Old 09-16-2016, 12:16 AM   #61
SadFab CEO
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,299
Total Cats: 398
Default

Quote:
Originally Posted by Leafy View Post
I actually paid $420 through modern driveline for the radius 44mm to go with my quartermaster clutch. I figure it was worth it since I got a twin disk about the same weight as the 949 for $800. And I could have been super stupid and got the tiny ******* one and been even lighter.

If you want to turn that steel sleeve down I'll sell you the quartermaster release bearing I decided to not use because of the having to turn down the already too thin sleeve for $100.
Im turning new sleeves there, cowboy. We only need to determine if they should be hardened. Anybody know?

edit-aidan beat me
hi_im_sean is offline   Reply With Quote
Old 09-16-2016, 12:18 AM   #62
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,598
Total Cats: 91
Default

Remind me tomorrow after work and I'll grab the piece of sleeve I had to cut off to make the release bearing work and I'll hardness test it at work. It cut off pretty easy with the sawsall so if its more than a light case on cheese grade steel I'd be surprised.
Leafy is offline   Reply With Quote
Old 09-16-2016, 12:19 AM   #63
SadFab CEO
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,299
Total Cats: 398
Default

Gracias senior.
hi_im_sean is offline   Reply With Quote
Old 09-16-2016, 12:19 AM   #64
SadFab Sales Lady
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,787
Total Cats: 930
Default

Yeah, it was easy to drill through, so obviously not something crazy hard.
aidandj is offline   Reply With Quote
Old 09-16-2016, 11:06 AM   #65
SadFab Sales Lady
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,787
Total Cats: 930
Default

Looking at new input shafts.

Ford Mustang Borg Warner T5 World Class Transmission 9 1 4 Input Shaft Kit | eBay

I guess the fox body had a shorter TOB sleeve. And a shorter bearing retainer.

Does anyone know if the aftermarket kits are good? Or should I be looking for OEM stuff.
aidandj is offline   Reply With Quote
Old 09-16-2016, 11:24 AM   #66
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,598
Total Cats: 91
Default

If you're going to buy a new one you probably should get a 1 piece steel one.
Leafy is offline   Reply With Quote
Old 09-16-2016, 11:27 AM   #67
SadFab Sales Lady
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,787
Total Cats: 930
Default

A 1 piece bearing retainer?
aidandj is offline   Reply With Quote
Old 09-16-2016, 02:42 PM   #68
SadFab Sales Lady
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,787
Total Cats: 930
Default

Just got off the phone with Paul at Modern Driveline. Very helpful, learned a bit.

The 90-93 input shaft bearing retainers were 2 piece, like the 99-04. But both the casting and the sleeve were shorter. He can supply the new input shaft, shim kit, and everything else. I opted to skip out on the bearing retainer for now, and see if I can make my longer one fit.

The new shaft + bearing + shim kit (and they press the bearing on for you) was $90+shipping. Not too bad. After this I will basically have a 90-93 trans, but with an electronic speedo output. Which is perfect.
aidandj is offline   Reply With Quote
Old 09-16-2016, 03:11 PM   #69
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,732
Total Cats: 746
Default

The Modern Driveline guys have always been awesome to deal with. I still have one of their complete T5 install kits for a 64-68 smallblock Mustang sitting in my garage gathering dust.

I find it hard to believe Ford would change the entire tail shaft housing for the speedo sender, but I guess stranger things have happened. If one wanted to convert from a mechanical to electrical drive what all would be involved? Just the housing or are we talking about replacing a bunch of inards as well?

I'm trying to figure out if my -246 T5 (3.35-1.99-1.33-1.00-0.68) might actually be useful should I blow my 6 speed.
EO2K is offline   Reply With Quote
Old 09-16-2016, 03:21 PM   #70
SadFab Sales Lady
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,787
Total Cats: 930
Default

All 94-04 mustangs had an electronic speedo output. In 99 it is physically different inside the transmission. One if the links in the OP explains it.

You and I essentially have the same gearbox.
aidandj is offline   Reply With Quote
Old 09-16-2016, 03:22 PM   #71
SadFab Sales Lady
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,787
Total Cats: 930
Default

double post
aidandj is offline   Reply With Quote
Old 09-16-2016, 03:30 PM   #72
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,732
Total Cats: 746
Default

Now I get it!

Now I need to decide if I want to try to adapt the trans to the Miata, or just sell it all as a complete kit to some classic Mustang guy
EO2K is offline   Reply With Quote
Old 09-16-2016, 03:31 PM   #73
SadFab Sales Lady
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,787
Total Cats: 930
Default

Quote:
Originally Posted by EO2K View Post
Now I get it!

Now I need to decide if I want to try to adapt the trans to the Miata, or just sell it all as a complete kit to some classic Mustang guy
put it in your mustang?
aidandj is offline   Reply With Quote
Old 09-16-2016, 03:39 PM   #74
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,732
Total Cats: 746
Default

Ain't got no Mustang no mo' but I've got thousands of dollars worth of new, unused parts for one. I should probably try to sell them and make my money back.
EO2K is offline   Reply With Quote
Old 09-16-2016, 04:16 PM   #75
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 12,189
Total Cats: 748
Default

Quote:
Originally Posted by EO2K View Post
Ain't got no Mustang no mo' but I've got thousands of dollars worth of new, unused parts for one. I should probably try to sell them and make my money back.
You should probably sell all that stuff and put that money to better use. Like parts for your miata.
shuiend is offline   Reply With Quote
Old 09-16-2016, 05:26 PM   #76
SadFab Sales Lady
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,787
Total Cats: 930
Default

Quote:
Originally Posted by shuiend View Post
You should probably sell all that stuff and put that money to better use. Like Mkturbo parts for your miata.
FTFY
aidandj is offline   Reply With Quote
Old 09-16-2016, 06:40 PM   #77
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,732
Total Cats: 746
Default

Lol. My intention was to someday buy another cheap rust free California inline 6 equipped 64 or 65 chassis and use my parts to build that up. Unfortunately it's not 2001 anymore and most of those finds have dried up.

The big swap meet out at the Marina airport is on Oct 1st. I'd be out there selling stuff except thats the same weekend as M@MRLS
EO2K is offline   Reply With Quote
Old 09-16-2016, 06:41 PM   #78
SadFab Sales Lady
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,787
Total Cats: 930
Default

Don't give up on your dreams.

But yeah, these non 90-93 transmissions are a dime a dozen. Input shaft swap and you are good to go.
aidandj is offline   Reply With Quote
Old 09-22-2016, 01:23 AM   #79
SadFab Sales Lady
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,787
Total Cats: 930
Default

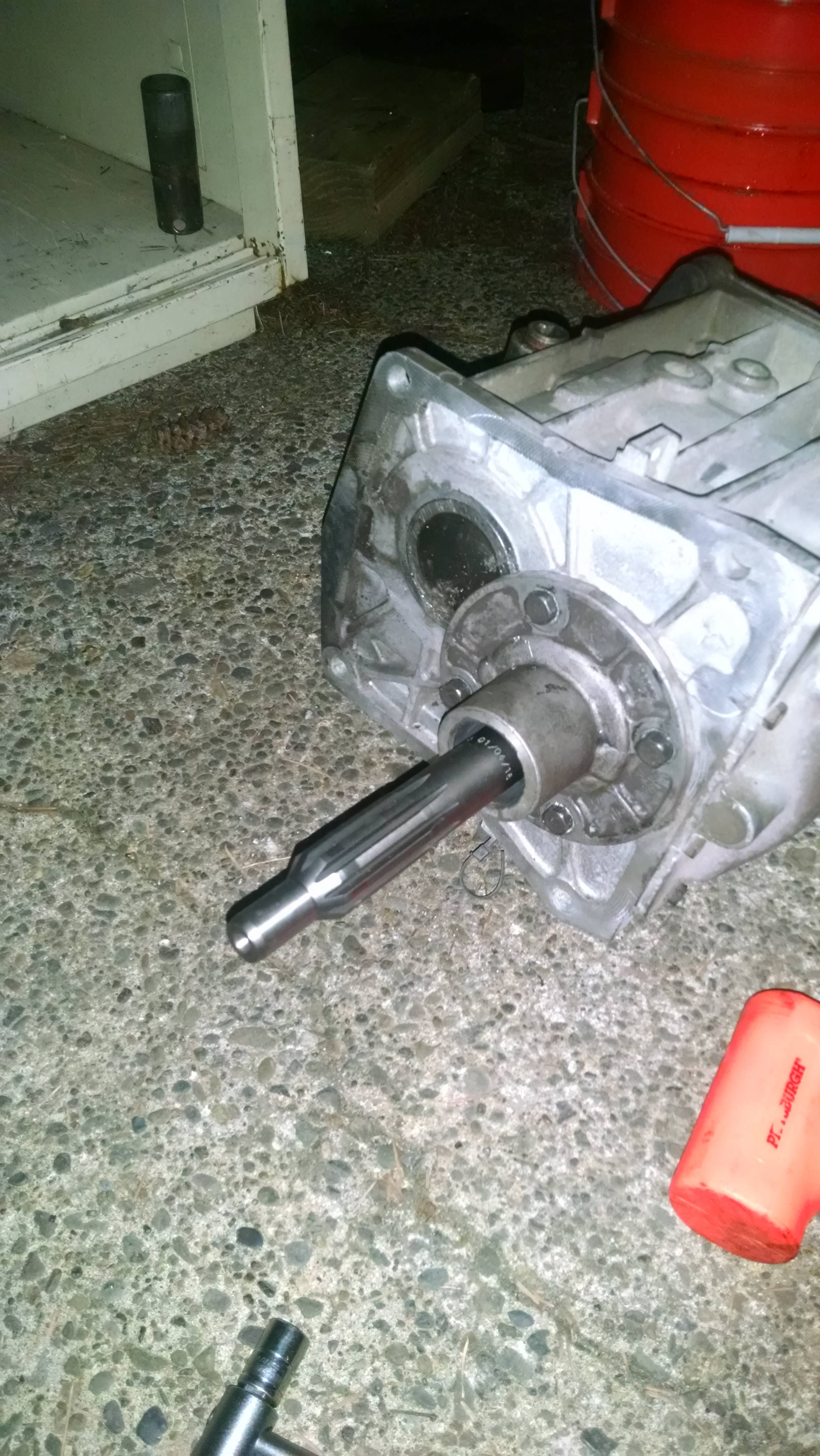

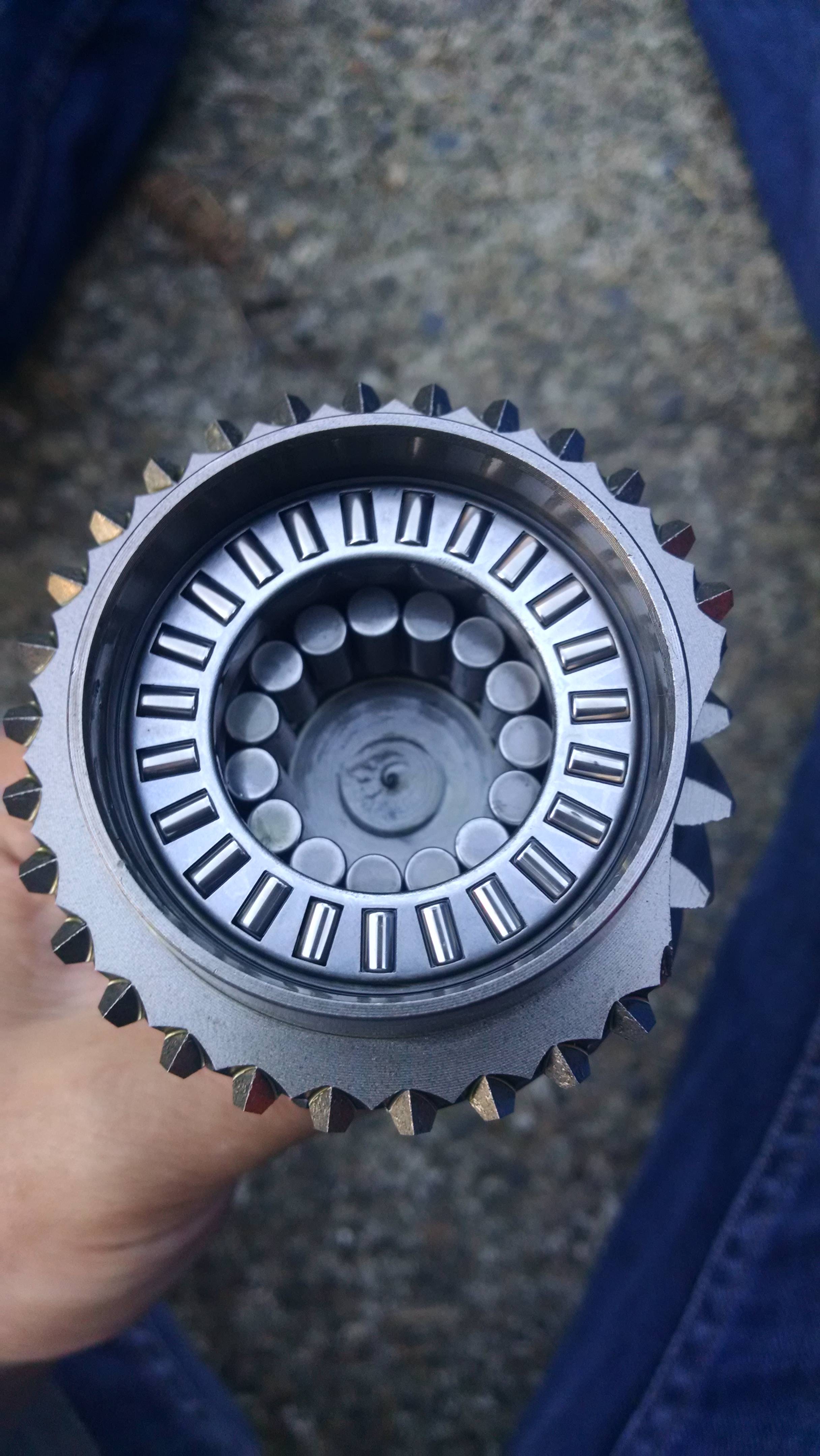

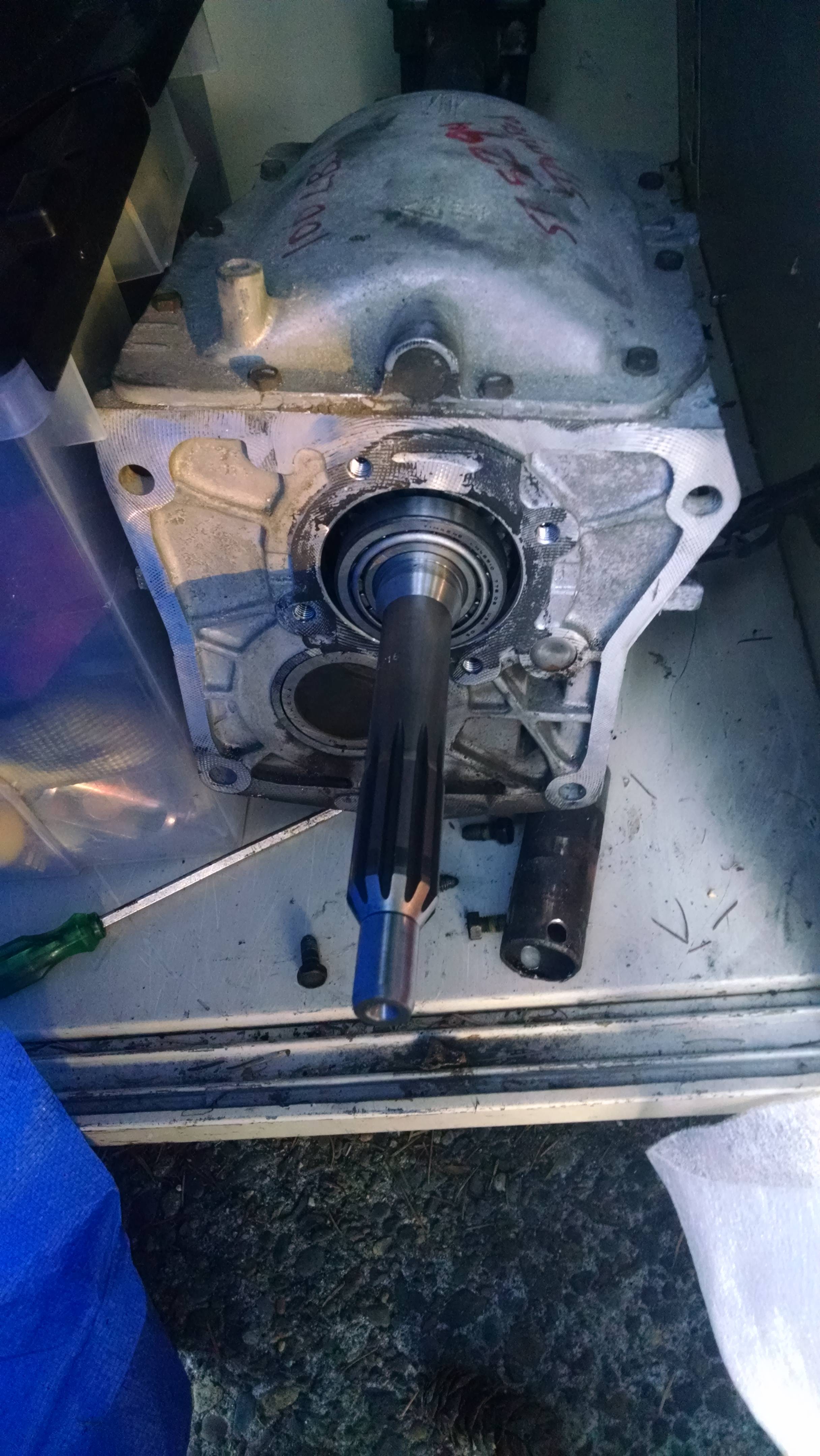

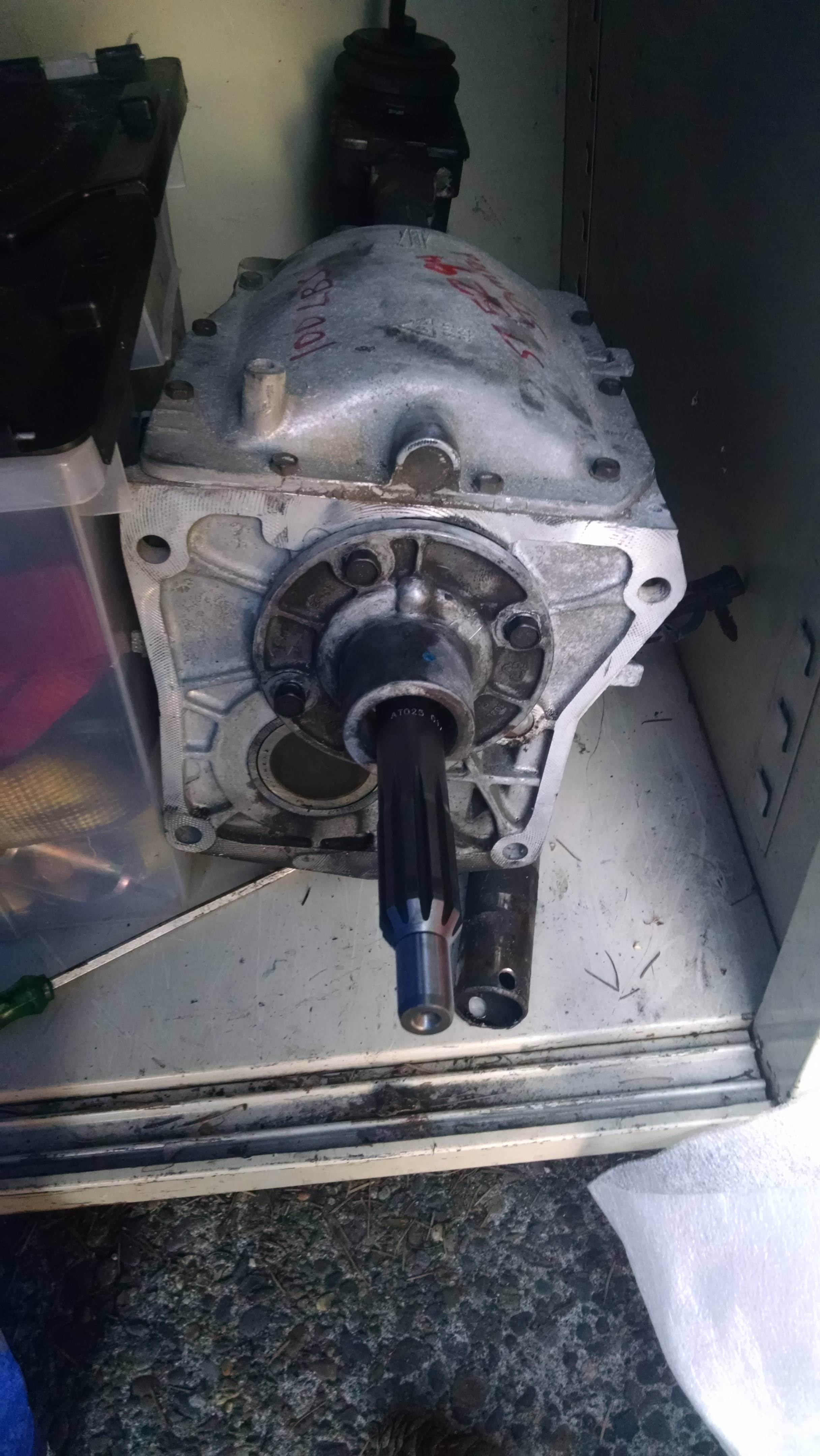

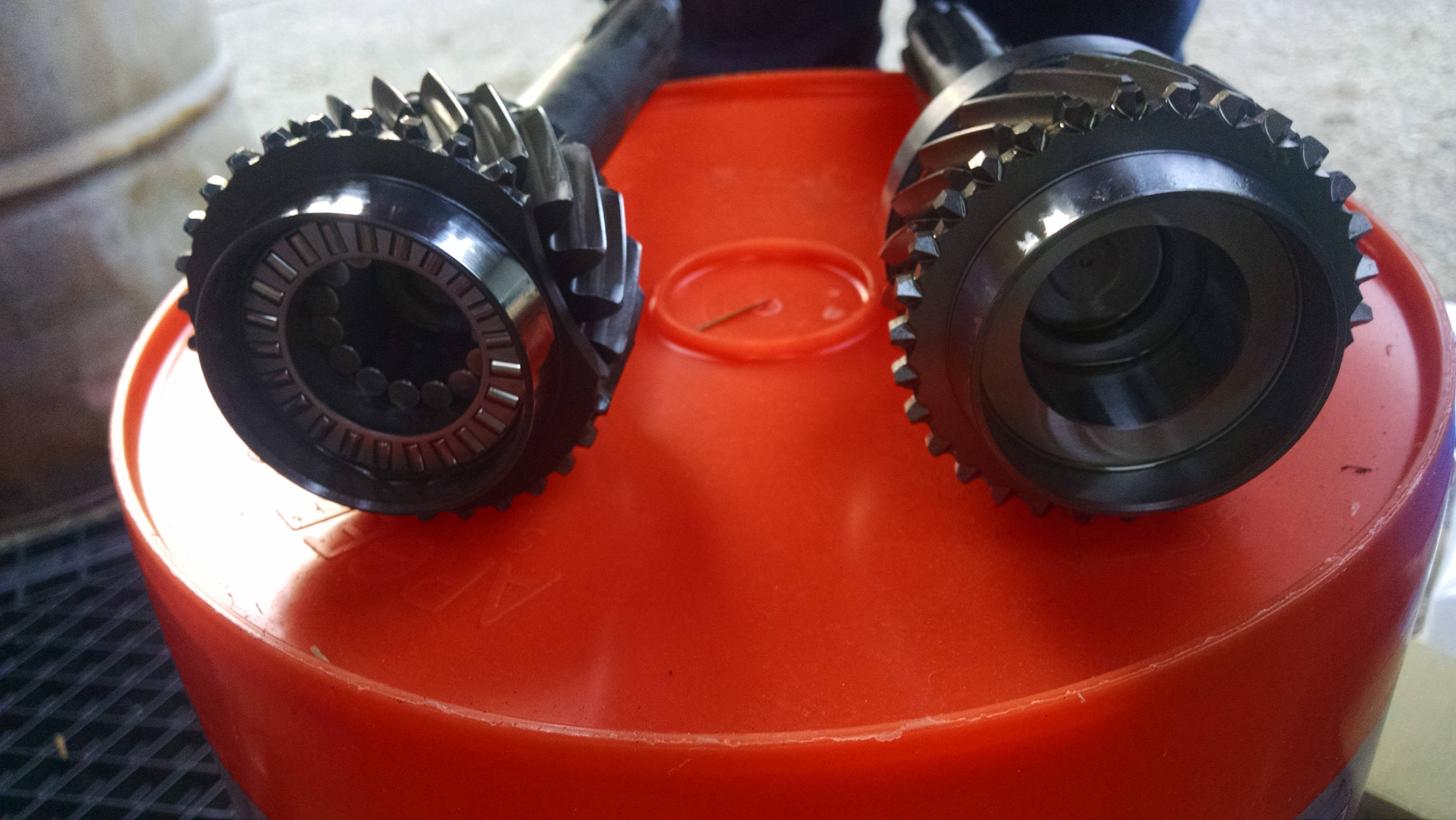

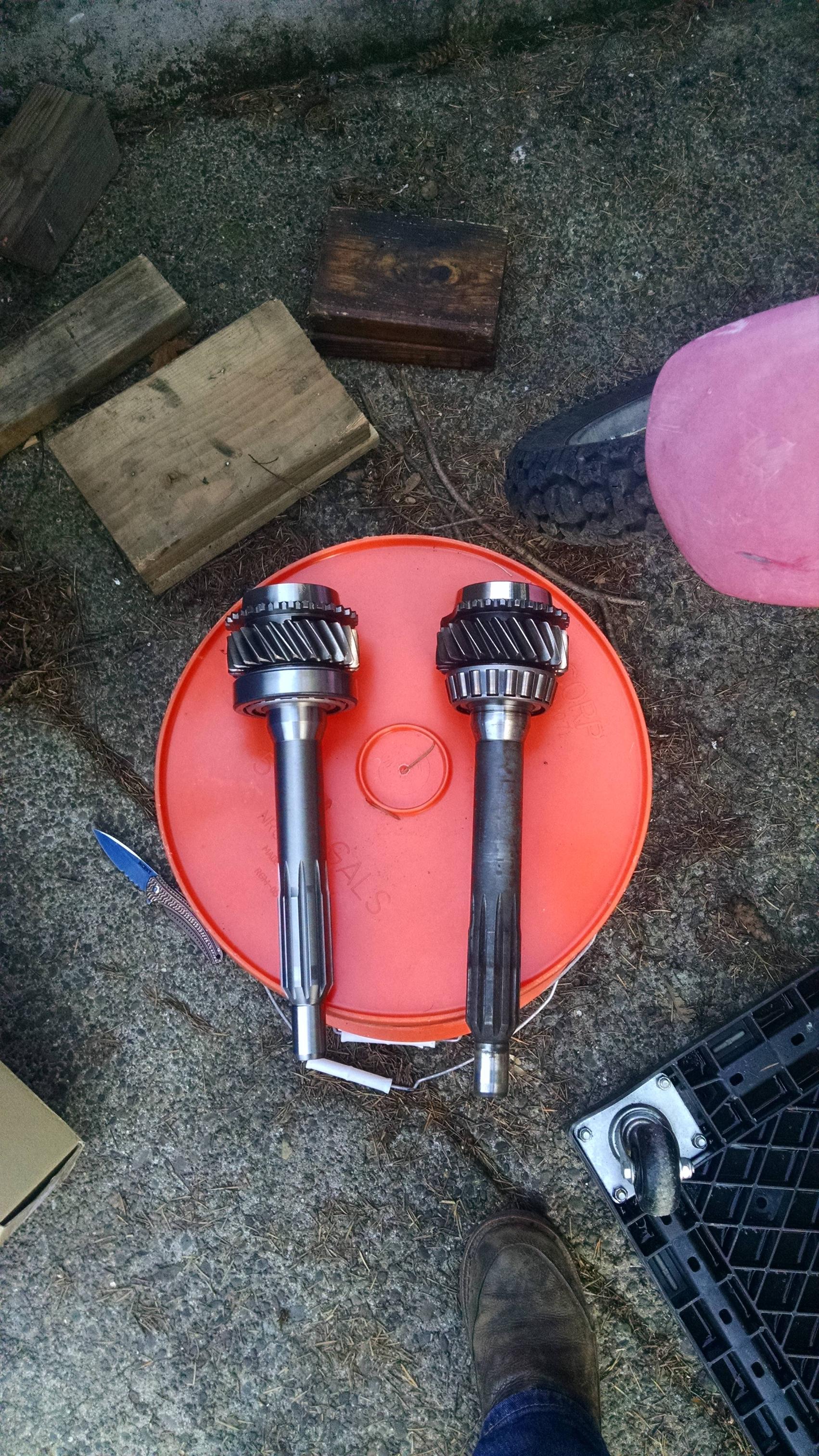

Got some more T5 work done. New input shaft showed up, still need to order new input and output seals. The input shaft swap was stupid easy.








aidandj is offline   Reply With Quote
Old 09-22-2016, 02:21 PM   #80
SadFab Sales Lady
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,787
Total Cats: 930
Default

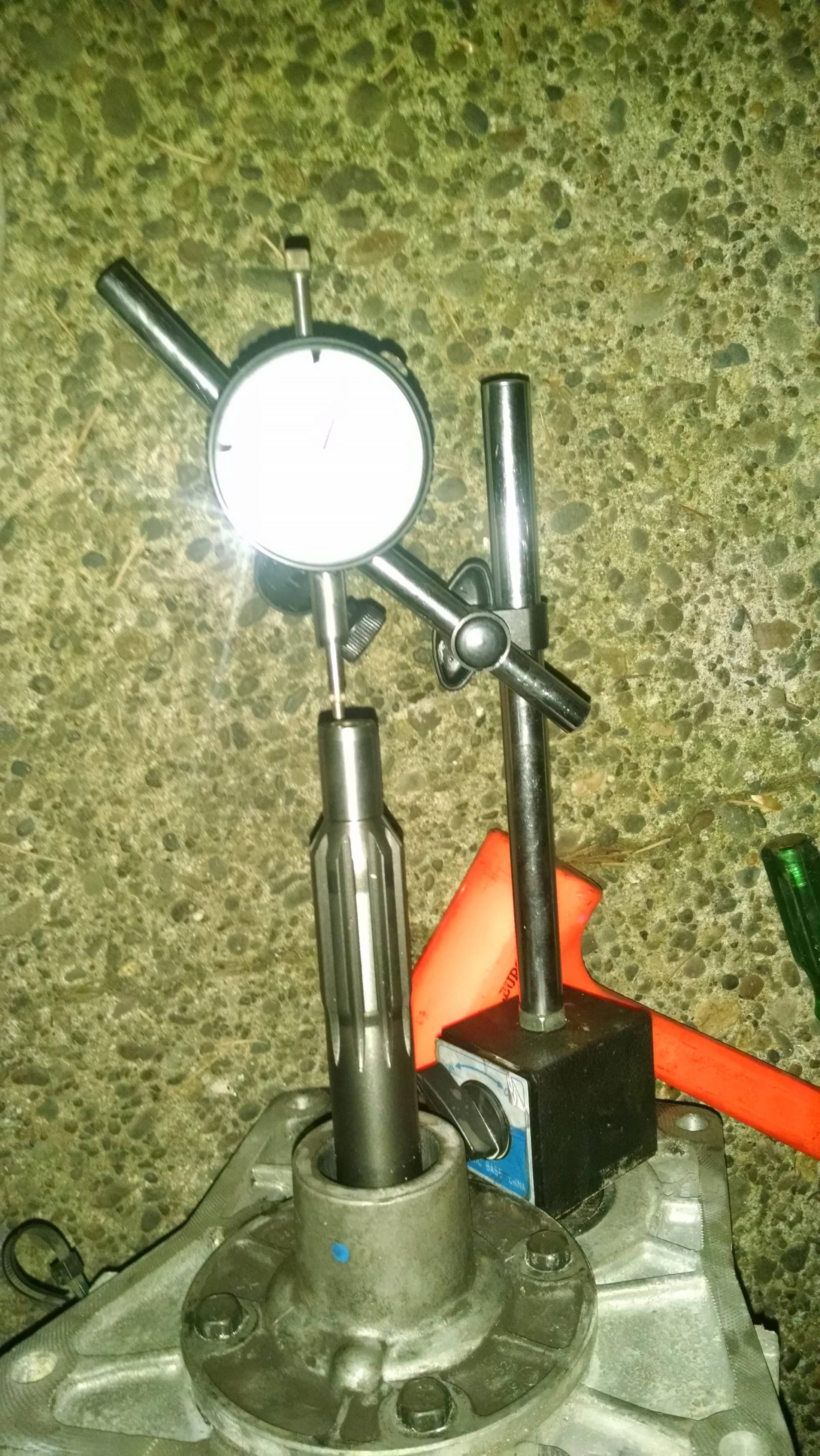

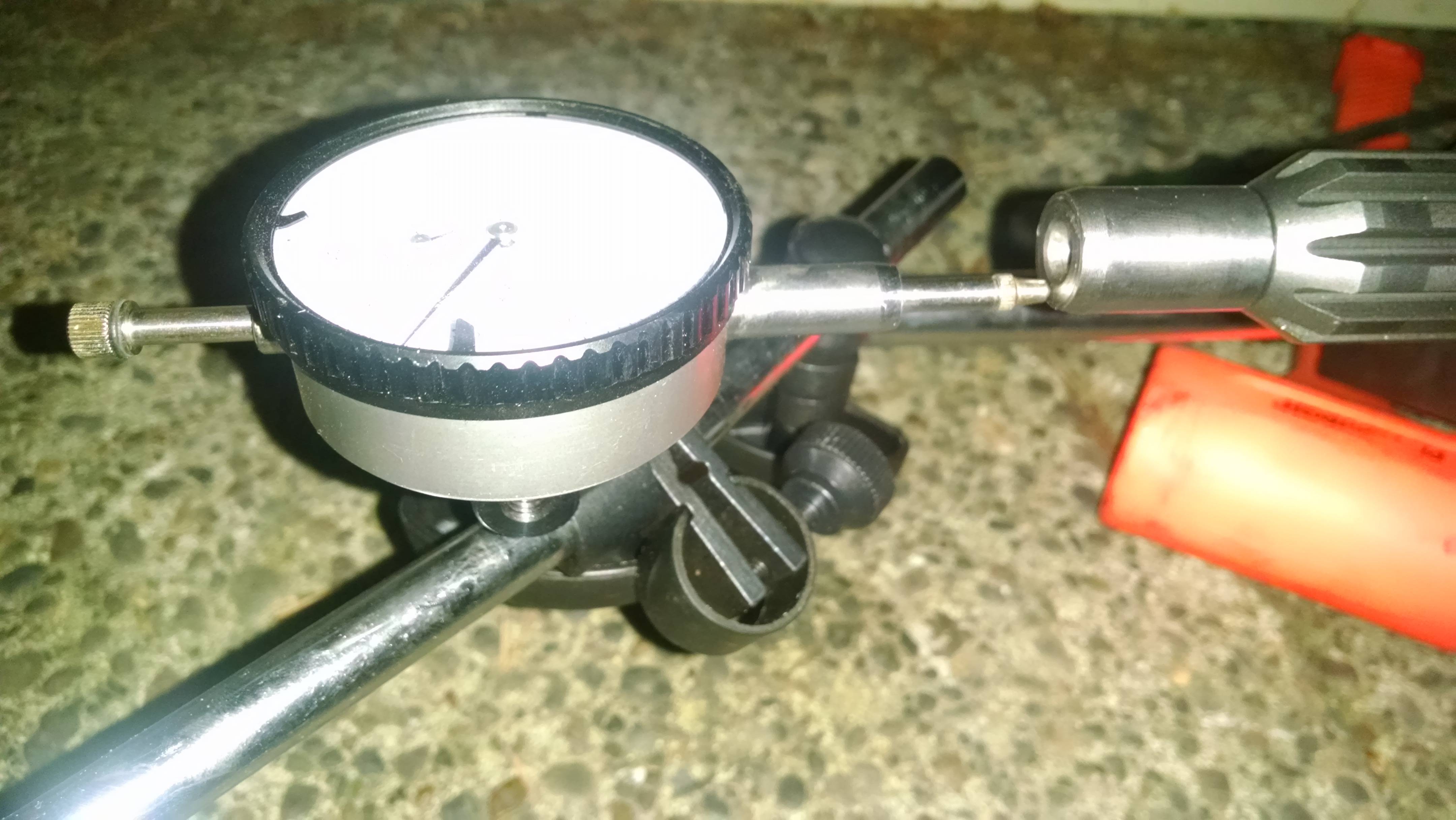

Did some math, someone tell me what I screwed up.

Miata input shaft to bellhousing flange offset (from tim): .410"
Length from input shaft tip to T5 flange (on a shorter input shaft box): 7.189"
3/8 transmission flange (1/2" flange, milled down an 1/8th for flatness): .375"

So the total miata bellhousing needed is: 7.189+.410-.375 = 7.224"

Wow, thats really not a lot of bellhousing lol.
aidandj is offline   Reply With Quote
