where are you getting the longer one?
Leafy is offline   Reply With Quote
Old 10-10-2016, 11:39 PM   #122
SadFab Sales Lady
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,845
Total Cats: 937
Default

One of these:

And one of these (Thats a hi_im_sean riding a motohorse):



aidandj is offline   Reply With Quote
Old 10-10-2016, 11:44 PM   #123
SadFab CEO
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,324
Total Cats: 402
Default

Disclaimer: I will not be riding the motohorse while operating the lathe.
hi_im_sean is offline   Reply With Quote
Old 10-10-2016, 11:45 PM   #124
SadFab Sales Lady
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,845
Total Cats: 937
Default

Quote:
Originally Posted by hi_im_sean View Post
Disclaimer: I will not be riding the motohorse while operating the lathe.
aidandj is offline   Reply With Quote
Old 10-11-2016, 12:39 PM   #125
Senior Member

Join Date: Oct 2013
Location: NorthWest NJ
Posts: 754
Total Cats: 28
Default

Quote:
Originally Posted by hi_im_sean View Post
Disclaimer: I will not be riding the motohorse while operating the lathe.

That's because the lathe goes on the motorhorse. Duh.
x_25 is offline   Reply With Quote
Old 10-28-2016, 12:07 AM   #126
SadFab Sales Lady
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,845
Total Cats: 937
Default

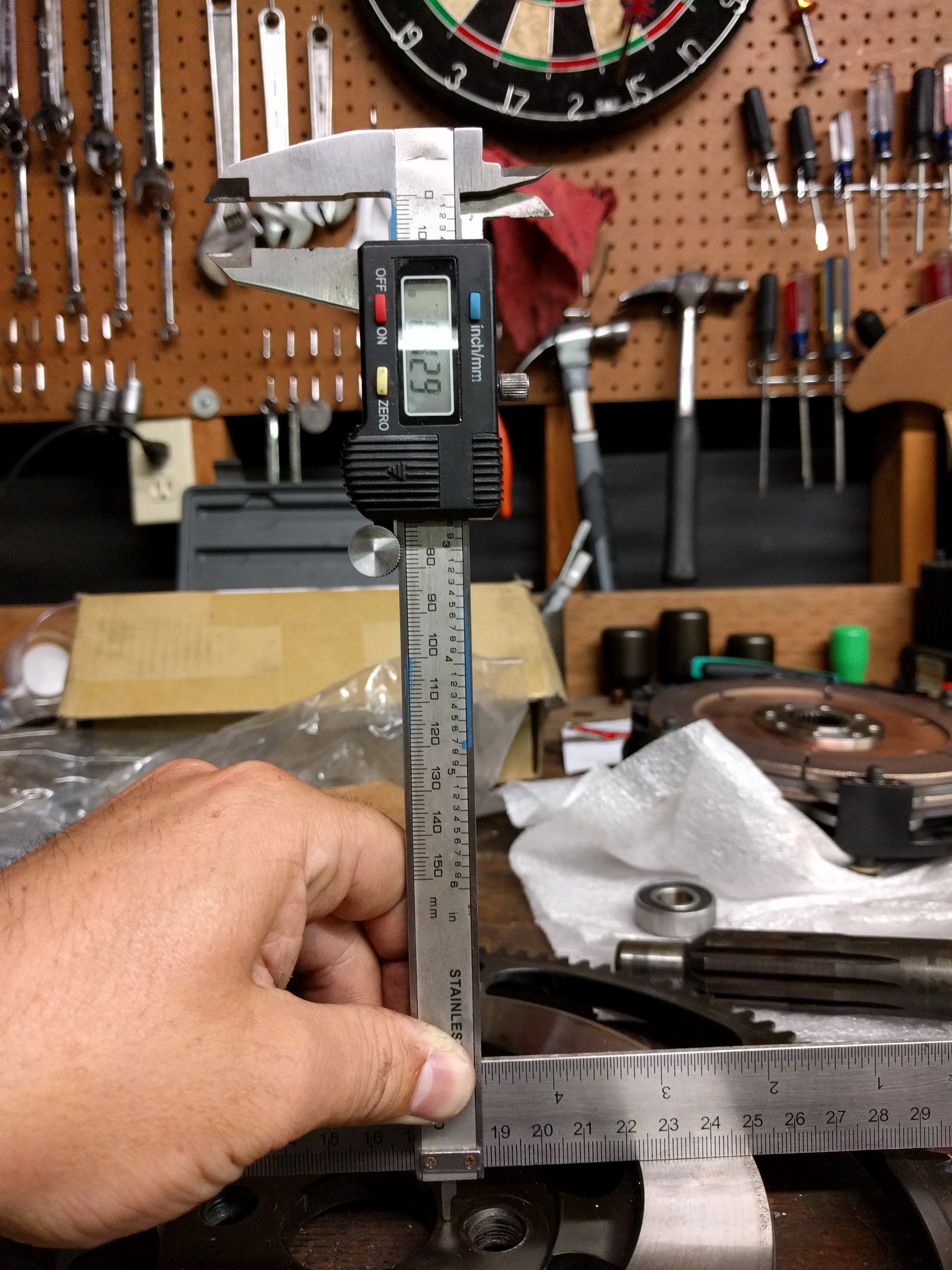

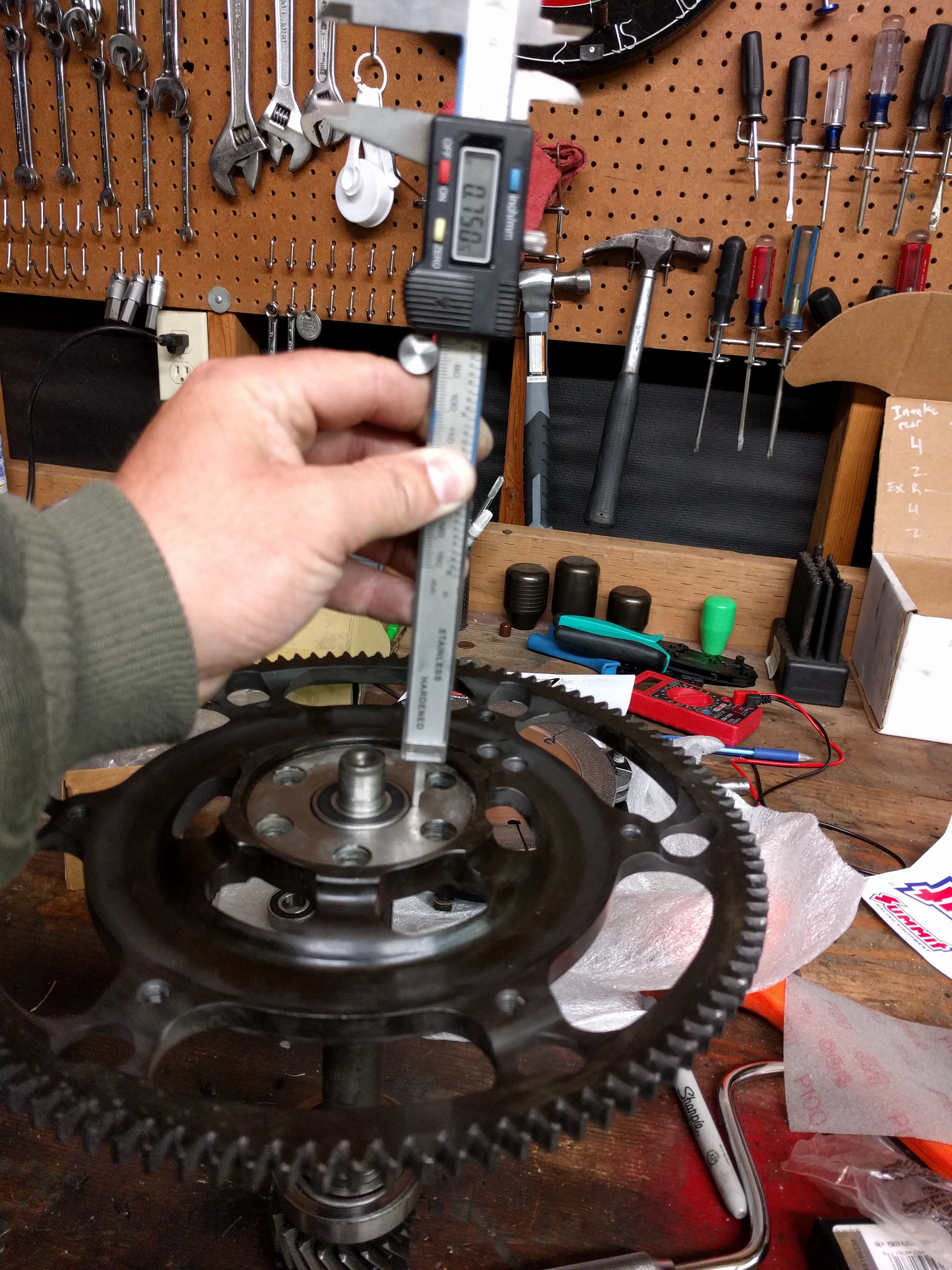

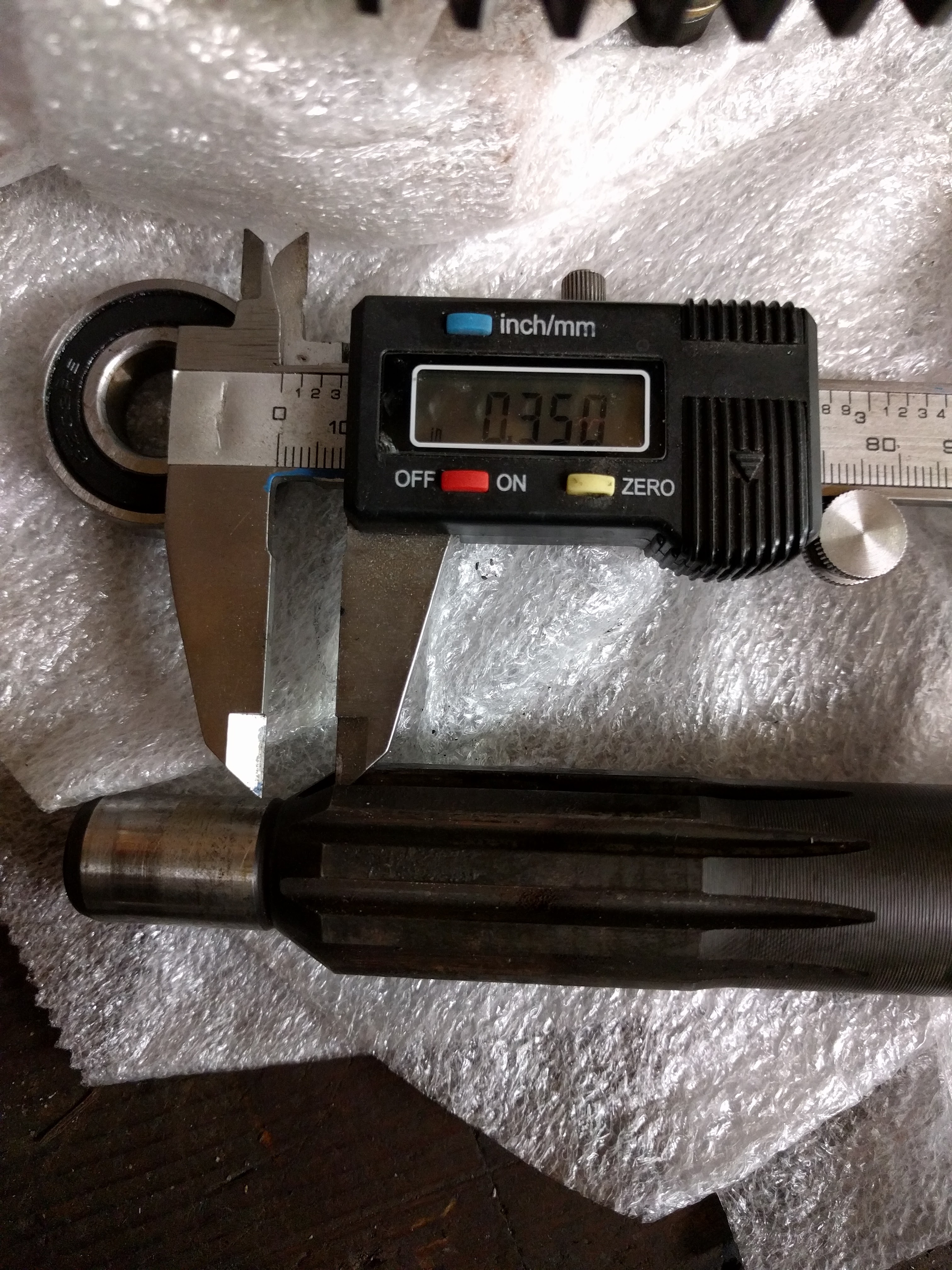

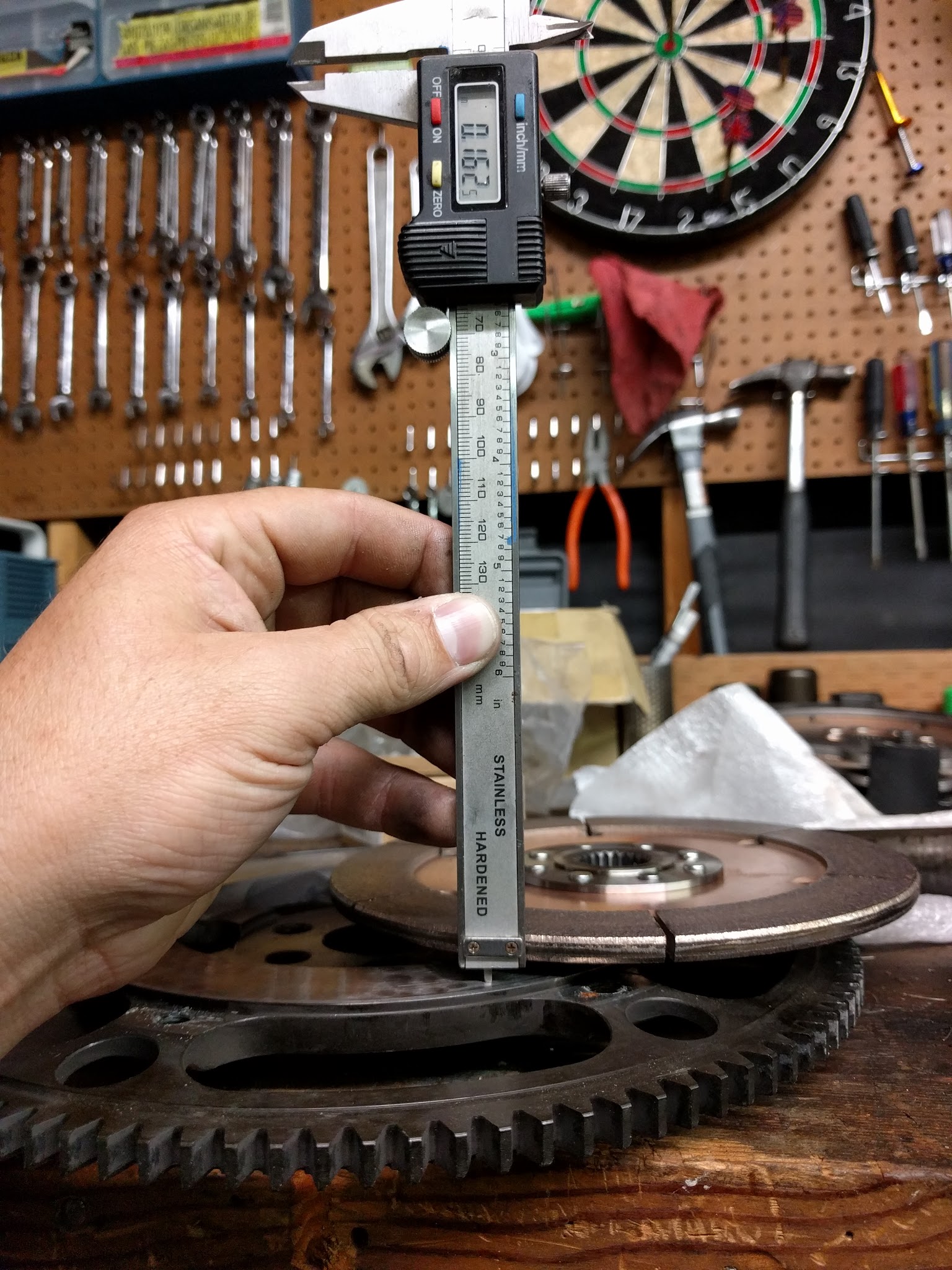

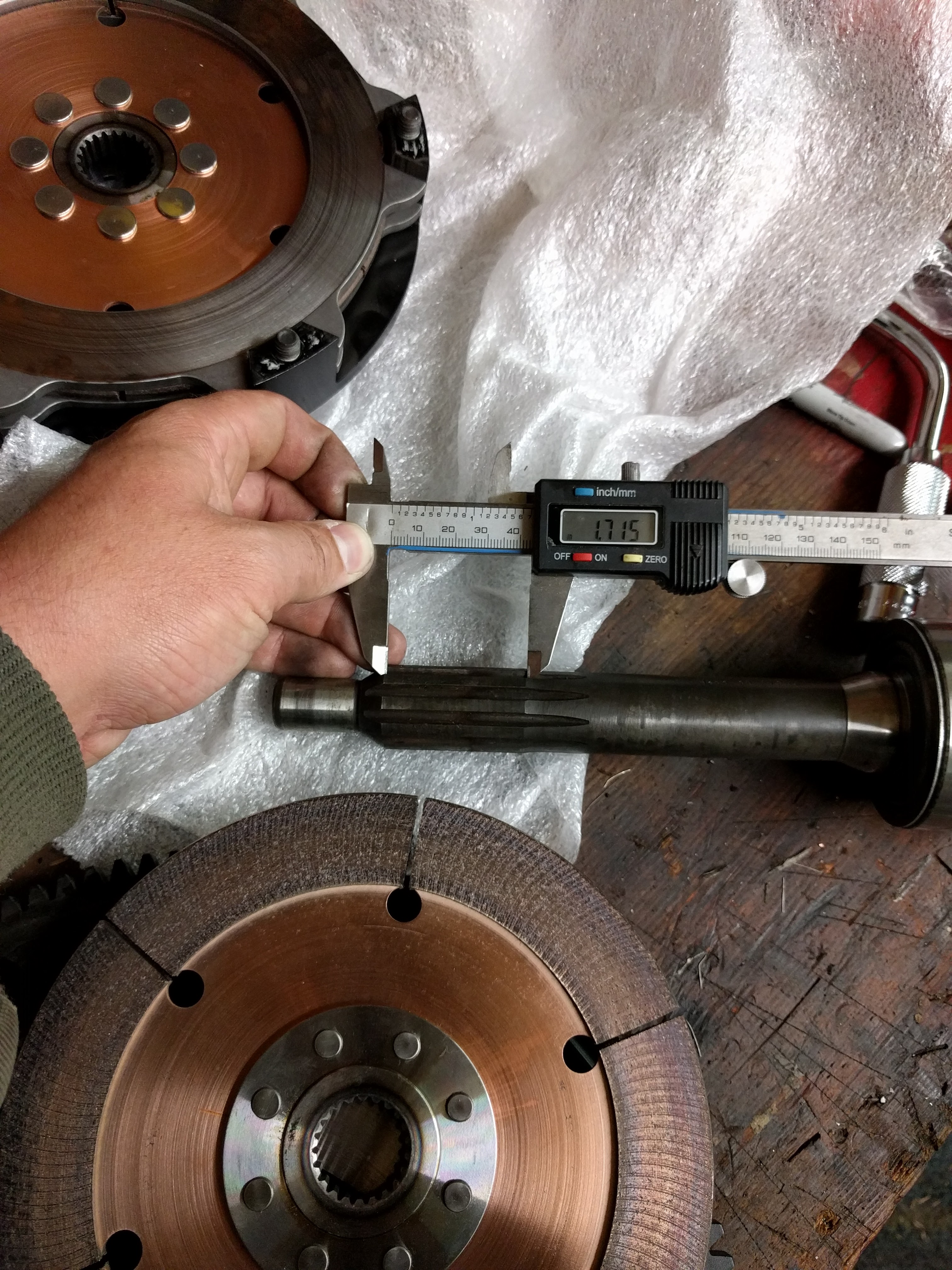

Here are some pictures.

These wont help with anything besides a 949 twin disc, but should help anyone else planning.

Waiting on some measurements from sean for the crank, but we might end up having to take a bit off of the end of the input shaft.

And maybe some custom discs, don't know yet.






(0.429")


aidandj is offline   Reply With Quote
Old 10-28-2016, 12:15 AM   #127
SadFab Sales Lady
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,845
Total Cats: 937
Default

I will draw it all up tomorrow.

I don't have mspaint at home.
aidandj is offline   Reply With Quote
Old 10-28-2016, 12:44 AM   #128
SadFab CEO
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,324
Total Cats: 402
Default

I like dat green shift **** in the last pic.
hi_im_sean is offline   Reply With Quote
Old 10-28-2016, 12:45 AM   #129
SadFab Sales Lady
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,845
Total Cats: 937
Default

Quote:
Originally Posted by hi_im_sean View Post
I like dat green shift **** in the last pic.
Brb, rethreading for t5
aidandj is offline   Reply With Quote
Old 10-28-2016, 02:04 AM   #130
SadFab Sales Lady
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,845
Total Cats: 937
Default

What is the general consensus on input shaft spline engagement. With the twin disc and the t5 input shaft I would be missing about .12" out of like .75". But only on one disc.
aidandj is offline   Reply With Quote
Old 10-29-2016, 01:21 AM   #131
Senior Member
iTrader: (1)

Join Date: Nov 2007
Location: Saint Paul, MN
Posts: 1,164
Total Cats: 18
Default

Is that engaged or disengaged?
Der_Idiot is offline   Reply With Quote
Old 10-29-2016, 01:26 AM   #132
SadFab Sales Lady
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,845
Total Cats: 937
Default

Engaged. I remeasured. It's like .04 out of .35 or something. I still haven't drawn it all up.

worst case is I strip a disc or input shaft. Still have a second to limp home on.
aidandj is offline   Reply With Quote
Old 10-29-2016, 09:30 AM   #133
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,610
Total Cats: 91
Default

It'll probably be fine.
Leafy is offline   Reply With Quote
Old 11-01-2016, 09:12 PM   #134
SadFab Sales Lady
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,845
Total Cats: 937
Default

Built a little fixture to align the tailshaft housing. This aligns the shift rod hole on the mill and lets me drill a hole for the extension on the back of the T5 perfectly.



aidandj is offline   Reply With Quote
Old 11-14-2016, 02:43 PM   #135
SadFab Sales Lady
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,845
Total Cats: 937
Default

Just found a t5 flange drawing on an alfa site.

Another T5 Conversion Thread - Alfa Romeo Bulletin Board & Forums

And here is my version with the holes for the alfa bellhousing removed.




Printed one out. Going to check it on the trans tonight.

Going to rough cut a miata bellhousing to make sure I don't need to add any material anywhere and then get this waterjetted.
aidandj is offline   Reply With Quote
Old 11-15-2016, 10:22 PM   #136
Newb

Join Date: Jul 2014
Location: Auckland, New Zealand
Posts: 25
Total Cats: 1
Default

Have you looked in to use a NA Miata Automatic Bellhousing? Could make adapting easier...
REDBEN is offline   Reply With Quote
Old 11-15-2016, 10:28 PM   #137
SadFab Sales Lady
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,845
Total Cats: 937
Default

I need the clutch hydraulics
aidandj is offline   Reply With Quote
Old 11-15-2016, 10:30 PM   #138
Newb

Join Date: Jul 2014
Location: Auckland, New Zealand
Posts: 25
Total Cats: 1
Default

Ah I see, I had intend to use a hydro release bearing, but it's a short enough Bellhousing.
REDBEN is offline   Reply With Quote
Old 11-15-2016, 10:59 PM   #139
SadFab Sales Lady
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,845
Total Cats: 937
Default

Hydro release bearing costs more than the trans I bought.

Good solution tho.
aidandj is offline   Reply With Quote
Old 11-16-2016, 10:15 PM   #140
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,610
Total Cats: 91
Default

If you're turning it down I'll sell you a quartermaster hydro release bearing for $150. $250 regular price, brand new.
Leafy is offline   Reply With Quote
