Default Stock air temp sensor ADC map

Did anyone ever make one of these? I wanted to include it in my new packet with all the new manuals. I just don't think anyone actually did it.
TravisR is offline   Reply With Quote
Old 07-30-2009, 10:50 AM   #2
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

I did, however it's based on the analytical model.

Adaptronic gives a resistance-to-ADC formula and miataturbo has the stock sensor values somewhere.

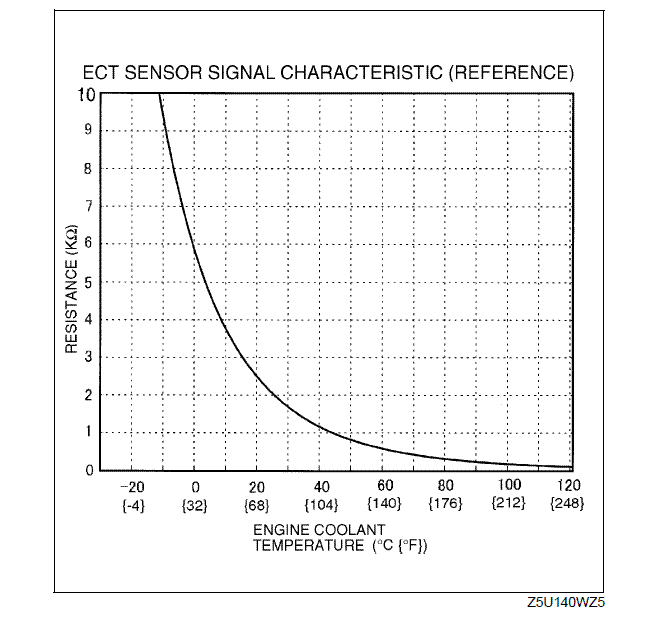

Check my spreadsheet's "temp cal" tab. I've attached the IAT and ECT curves from the FSM. You can approximate them pretty well I'm sure.

edit: you'll note their almost identical. and almost identical to the GM sensor.
Attached Thumbnails
Stock air temp sensor ADC map-ect_2001_miata.gif   Stock air temp sensor ADC map-iat_2001_miata.gif
y8s is offline   Reply With Quote
Old 07-30-2009, 10:53 AM   #3
Elite Member
Thread Starter
iTrader: (9)

Join Date: Jun 2008
Location: Houston, TX
Posts: 1,583
Total Cats: 8
Default

Got it thanks Matt.
