Hardtops

Old 11-16-2018, 07:18 AM
  #21
Newb
Thread Starter

Join Date: May 2018
Posts: 24
Total Cats: 4
Default

Those are good examples of convertibles vs fastbacks, and it surprises me that the fastback makes about no difference in top speed. I wonder if there are cars that go faster with the fastback, like maybe a Corvette or something? Anyway, it's great info to support the status quo and beat down the new guy, which is always a fun game.

For me, there were a a few good reasons to build a fastback. For one, I could sell my old hardtop and build a fastback for half the price. It was also less than half the weight. And I think it looks cool, which was maybe most of it.

Since we race with windows down, I also wanted to optimize airflow around the open windows. The stock hardtop is wider at the rear than the windows, and I'd imagine this acts as an air scoop, feeding more air into the cabin. My hardtop is very different in this regard, and I have some vents to extract cabin air as well. Does it work? I don' t know, the only evidence I have is my last race at WGI where the engine was running terribly. However, an e30 was clearly out accelerating me and walking away on corner exits, but every lap I'd catch him on the back straight and pass him going into the inner loop. I don't know if it was that his aero was terrible, but mine was clearly better. How much of that was the fastback is debatable, maybe a lot, maybe none.

I live 25 miles from WGI, and I have a factory hardtop on my street car, so I could do an A/B test and see what the difference is. There's a foot of snow on the ground, so not tomorrow, but maybe this summer I'll get around to it. It would be interesting to find out. I won't be happy to be proven wrong and start over, but the point of innovating is failing and improving.

To change the topic slightly, what are people doing to optimize aerodynamics when running with the windows open?
Occam’s Racer is offline
Old 11-16-2018, 07:58 AM
  #22
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 9,878
Total Cats: 1,389
Default

Originally Posted by Blackbird View Post
I have a car w/ a CCP fastback here, it's actually not half bad for a race top, but it's not as light as you think.
IIRC we scaled it at 24 Lbs for the top and trunk lid that goes with it.
Sounds lighter than a CCP oem shape + oem trunk lid according to my scale.

Originally Posted by Blackbird View Post
Yes, skin with a couple strips for reinforcement in key areas and gel coat.
Fit and finish was not OEM, but definitely better than the garbage skin tops that are commonly sold at least around here in socal.
The more people say this, the more i think i got a bad one. My CCP is the hottest of trash.

Originally Posted by Savington View Post
I have a couple of the CCP tops in the shop as well, all OEM shape. They are nice race tops. Fitment is 9/10, if OEM is 10/10. I have seen far, far worse. I have only seen one nicer race-style OEM top, and it was 3x the price, and you cannot buy one today.
Yep. I got a bad one. Fitment is 2/10 would not bang if OEM is perfect 5/7.

#justbenthings

Guess i should consider the fastback if my lack of quality issue is an anomaly.
concealer404 is offline
Old 11-16-2018, 08:11 AM
  #23
Junior Member

rrjwilson's Avatar

Join Date: Aug 2008
Posts: 287
Total Cats: -4
Default

Originally Posted by Occam’s Racer View Post
it surprises me that the fastback makes about no difference in top speed
Top speed is a function of gearing and engine RPM (as well as having as little drag to be not limited by that).
Originally Posted by Occam’s Racer View Post
if there are cars that go faster with the fastback
There will be (like ours with top down and top on/up) but they will be drag limited not power limited.
Originally Posted by Occam’s Racer View Post
beat down the new guy
This may be sarcasm but it may not. I would not believe anyone is beating down the new guy stipulation of information and facts is hardly bad. This forum tends to be totally up front with accurate tested material which people often dislike but it is very rarely incorrect. That is why it is the place to come for advice for a miata.
Originally Posted by Occam’s Racer View Post
For me, there were a a few good reasons to build a fastback. For one, I could sell my old hardtop and build a fastback for half the price. It was also less than half the weight. And I think it looks cool, which was maybe most of it.
Very impressed with your construction. Did you ever ponder the connection between your fastback and the softop edges being smoothed?
Originally Posted by Occam’s Racer View Post
The stock hardtop is wider at the rear than the windows, and I'd imagine this acts as an air scoop, feeding more air into the cabin. My hardtop is very different in this regard, and I have some vents to extract cabin air as well. Does it work?
There are still quite a lot of discussions about this although they seem to cycle and not listen to posts mostly. The hardtop certainly scoops but its full effect may be less than thought. Vents will help but placement is paramount as the boot has high pressure areas resulting in reverse flow on the standard hardtop.
Originally Posted by Occam’s Racer View Post
I have a factory hardtop on my street car, so I could do an A/B test and see what the difference is. There's a foot of snow on the ground, so not tomorrow, but maybe this summer I'll get around to it. It would be interesting to find out. I won't be happy to be proven wrong and start over, but the point of innovating is failing and improving
This would be a great piece of comparable information for the discussion and very welcome. I would suspect that fastback > hardtop > softtop > topdown. The difference between hardtop and softtop may be difficult to gauge but I'd believe the luffing from the canvas or mohair would increase drag. However the difference in top speed will be none from the softtop upwards as we are only slowed by drag (and lack of power) when the roof is down. What you should see is the time to peak will be shorter.
rrjwilson is offline
Old 11-16-2018, 10:15 AM
  #24
Junior Member

Join Date: Apr 2013
Location: toronto
Posts: 137
Total Cats: 5
Default

-re. open windows racing, I've eliminated rear window completely. haven't done a apples to apples comparison yet. It was much faster in cold weather but I don't have a baseline from temps. that low.
-disagree on 1.6 miata under 100mph top down/128mph top up. (the top up part only)
-I agree fastback should have less drag, I just think it's not as much as everyone thinks/assumes.
-OP DIY fastback is fantastic, wish I had his skills/resources.
-all the speed figures are either from car and driver.or manufacturer. before, when the magazine was much thicker, they would do actual top speed runs on their own. I'm assuming their budget cuts killed that in the past 7-8 years.
-everything is drag limited. no governor/redline limits.
found the corvette.
-1998 C5 coupe Cd .29 171mph, conv. Cd .32, 167mph. (160mph top down, back when C&D budget permitted top speed testing.)
-2009 coupe 190mph. convertible 185mph.


Last edited by endura; 11-16-2018 at 10:39 AM.
endura is offline
Reply
Leave a poscat -1 Leave a negcat
Old 11-16-2018, 11:03 AM
  #25
Junior Member

rrjwilson's Avatar

Join Date: Aug 2008
Posts: 287
Total Cats: -4
Default

Originally Posted by endura View Post
everything is drag limited. no governor/redline limits.
Thats like saying everything is drag limited when you drop it from 30,000ft. Correct but not helpful.
This is only true because you have removed the things manufacturers and tuners use to stop bad things happening. Specifications are there for a reason.

With a particular RPM limit and gearing you can only do a certain speed regardless of the output of the engine. You just get there quicker.
Once you get obnoxious power levels top speed will be limited by RPM and gearing only. This is likely why the R8 is exactly the same but the Mustang is not.
Emilio's Vegas in standard trim rather than aero would rip to the limiter without difficulty but a more subtle tune would (with the same gearing) just get there slower. Neither will be drag limited.

That is not to say reducing drag on a car that isn't drag limited is not a worthy thing to do. It is. Very worthwhile really as the air can be used more efficiently with other devices.

Originally Posted by endura View Post
disagree on 1.6 miata under 100mph top down/128mph top up. (the top up part only)
Whilst the speedometer is likely inaccurate on our car I have hit the limiter in 5th and the reading was just shy of 130 with top up.
The top down speed is a hilarious moment I my driving history having only done this back to back over the course of an abandon airfield "run what you brung" day.

Originally Posted by endura View Post
corvette. -2009 coupe 190mph. convertible 185mph
If specifications for the engine and powertrain are the same this demonstrates that the convertible has more drag.
It doesn't demonstrate the coupe is drag limited though.

I'd love to see more information on the 2005 Mustang.
Assuming it has the same specifications the fact the softtop has higher top speed means it has less drag.
What amuses me is that means for some reason the coupe with all the smooth panel design is worse that the badly shaped canvas top for drag which is impressively bad given the funding supplied to manufacturers.
rrjwilson is offline
Old 11-16-2018, 11:05 AM
  #26
Newb
Thread Starter

Join Date: May 2018
Posts: 24
Total Cats: 4
Default

Originally Posted by rrjwilson View Post
Very impressed with your construction. Did you ever ponder the connection between your fastback and the softop edges being smoothed?
I'm not sure what you mean by soft top edges. I don't have a soft top in either car, so I can't test that vs other tops.
Occam’s Racer is offline
Old 11-16-2018, 11:19 AM
  #27
Junior Member

rrjwilson's Avatar

Join Date: Aug 2008
Posts: 287
Total Cats: -4
Default

Originally Posted by Occam’s Racer View Post
I'm not sure what you mean by soft top edges.
The edges of where the soft top used to be not covered by your main fastback area. I've highlight in green the locations i mean.

Soft top edges
rrjwilson is offline
Old 11-16-2018, 11:26 AM
  #28
Newb

Join Date: Dec 2014
Posts: 15
Total Cats: -5
Default

Something to keep in mind, drag differences is only one aspect to consider. Buffeting and inconsistent flow structures have great impacts on performance. Buffeting generates oscillating downforce which in turn increases tire contact patch load variation, which is typically a negative thing for performance.
jspeed.713 is offline
Old 11-16-2018, 11:55 AM
  #29
Junior Member

Join Date: Apr 2013
Location: toronto
Posts: 137
Total Cats: 5
Default

Confirmed best i could to compare cars with no governors and theyre not hitting redline in top gear/top speed. That, to me, leaves only aero drag. If (otherwise identucal) corvette coupe with ideal fastback and convertible with miataesque rear window slant/long rear deck have a 5mph difference at 190mph, what am i gaining on my 250 whp miata at a fast track where I'm hitting 130mph? 2-3 mph tops.? I agree that it will gain, just disagree that it's significant. The gains are probably much more significant with a proper wing /fastback combo. If the wing on a fastback can get clean air/lower, drag should go down significantly compared to hardtop with wing at roofline for clean air. Regardless, it's all somewhat educated guesswork without a wind tunnel or actual testing. Also, I'm going to build a fastback this winter as a-even if it's 1-2 mph gain, I'll take it, b-I love how a fastback miata looks.

Last edited by endura; 11-16-2018 at 12:12 PM.
endura is offline
Old 11-16-2018, 12:23 PM
  #30
Newb
Thread Starter

Join Date: May 2018
Posts: 24
Total Cats: 4
Default

Originally Posted by rrjwilson View Post
The edges of where the soft top used to be not covered by your main fastback area. I've highlight in green the locations i mean.
Soft top edges
Ah, thanks for the illustration. Those ares are somewhat smoothed out, I used leftover plastic from my airdam. I think that area you highlighted might be a very important part of the drag reduction. Just look how much wider the soft top (and hard top) is at that green location! And the stock configuration has virtually no taper from that point rearward, it's very abrupt. The fastback is so narrow at this spot, and has the ideal 12 degree taper going back. If there isn't a benefit, I'll be very surprised.
Occam’s Racer is offline
Old 11-16-2018, 12:26 PM
  #31
Newb
Thread Starter

Join Date: May 2018
Posts: 24
Total Cats: 4
Default

Originally Posted by endura View Post
Also, I'm going to build a fastback this winter as a-even if it's 1-2 mph gain, I'll take it, b-I love how a fastback miata looks.
Looking forward to seeing what you come up with!
Occam’s Racer is offline
Old 11-16-2018, 12:53 PM
  #32
Junior Member

rrjwilson's Avatar

Join Date: Aug 2008
Posts: 287
Total Cats: -4
Default

Originally Posted by Occam’s Racer View Post
I think that area you highlighted might be a very important part of the drag reduction.
Agreed but I think the reduction is due to reducing the separation of flow via smooth transition.
Maintenance of the corner between window and panel as you have done should allow air to feed along better than standard but I would be it will cause more separation than desired.
Smoothing of the corner into the fastback shape would likely cause less separation and reduce drag for those areas.
Downstream effects may be worse off but as far as the hardtop goes that would likely be better.
rrjwilson is offline
Old 11-16-2018, 01:59 PM
  #33
Newb
Thread Starter

Join Date: May 2018
Posts: 24
Total Cats: 4
Default

Originally Posted by rrjwilson View Post
Agreed but I think the reduction is due to reducing the separation of flow via smooth transition.

Smoothing of the corner into the fastback shape would likely cause less separation and reduce drag for those areas.
Now I get what you are saying. This picture was an early stage before I added Lexan “scoops” that smooth the transition area. They start inside the vehicle to grab air that goes past the window and then come out and meet the start of the fastback with a gentle curve. The scoop is larger on the passenger side because there’s no seat there. They are Lexan so I can see through them, as they are kind of mini windows.

The reason I chose a 12 degree taper was to avoid separation. I’m sure there’s turbulent flow along the side, but avoiding separation was paramount.

Occam’s Racer is offline
Old 11-18-2018, 09:30 AM
  #34
Newb

Join Date: Dec 2014
Posts: 15
Total Cats: -5
Default

Lots of people spend a ton of resources and collaboration on big engine builds but ignore aero. Using the relationship between drag and hp required to over come it, Hp required=(Frontal Area^Coeff of Drag*.00256*MPH^3)/375, using this we can see that power needed is proportional to mph^3, so to increase top speed by 10% i.e. to 1.1 times its original top speed we would need 1.1^3 amount of hp to overcome the drag, I.e 1.33 original hp. To summarize it takes 33% more power to achieve 10% more top speed. This is a slippery slope and puts quite a bit of strain on powertrain reliability and increased vehicle consumables. The coeff of drag is not cubed, it is proportional to Hp required, reducing drag is effectively dynamic horsepower, power that doesn't show up on the dyno when classing your car in race series that use adjusted pwr/weight ratios. If you do the calcs for a car with frontal area of 20f^2, at 85mph (assumed avg track speed), and reduce coeff of drag by .05 it is worth ~4hp which is important in some race series, Assuming the engine on avg uses .6 lbs fuel/hp/hour we can relate this reduction in drag to an increased fuel economy of 2mpg, In a longer race this is critical, the fuel consumption relationship to vehicle weight distribution can have noticeable impacts on vehicle balance at grip thresholds, (over/understeer at the limit as weight distribution shifts foward assuming fuel cell is near rear axle) All these benefits with very little impact on powertrain reliability and rate of vehicle consumables.

Make Sense? Did I miss something?
jspeed.713 is offline
Old 11-18-2018, 01:37 PM
  #35
Newb

Join Date: Feb 2017
Posts: 22
Total Cats: 5
Default

Originally Posted by Blackbird View Post
I have a car w/ a CCP fastback here, it's actually not half bad for a race top, but it's not as light as you think.
IIRC we scaled it at 24 Lbs for the top and trunk lid that goes with it.





shindul is offline
Old 11-18-2018, 02:27 PM
  #36
Newb
Thread Starter

Join Date: May 2018
Posts: 24
Total Cats: 4
Default

Let me share a couple online tools I use. I don't know how accurate this stuff is, but it's fun to mess around with.

First, this HP Wizard calculator allows you to play with different body shapes and estimate the total drag. I chose some values to represent a Miata and got Cd of .376, which is close enough to published figures of .38. I messed around with the shape of the top and got these values:

.376 Standard top, closed windows
.395 Fastback, open windows
.424 Standard top, open windows
.462 Convertible top down

So then I go to this other top speed calculator (scroll to the bottom and use 18 sq ft for the frontal area and 2400 lbs). Using the open-window drag figures, here's some interesting results.

To go 120 mph, the convertible needs 123 hp, the standard top needs 114 hp, and the fastback need 107 hp. You can reverse the whole process and find top speed. So let's say the same Miata with 123 hp, the calculated top speed of the convertible is 120 mph, the standard top is 123 mph, and the fastback is 126 mph. The standard top with closed windows is 128 mph.

These are big numbers for a Miata, so let's take a look at what happens at 90 mph. The convertible needs 55 hp to get there, while the standard top uses 51 hp, so it has another 4 hp available. And the fastback uses only 48 hp to go 90 mph, and so it has another 3 hp available over the standard top, and 7 over the convertible.

If you have a 300 hp Miata, then you may not care about single-digit hp. But if you're endurance racing a stock-ish Miata, you take all the free HP you can get. In addition, a 10% reduction in drag is about a 4% increase in fuel economy (at 70 mph), which can be a big deal if you're racing on a stock gas tank.
Occam’s Racer is offline
Old 11-18-2018, 02:44 PM
  #37
Supporting Vendor
iTrader: (8)

nigelt's Avatar

Join Date: Aug 2014
Location: Carmel Valley, CA
Posts: 1,138
Total Cats: 175
Default

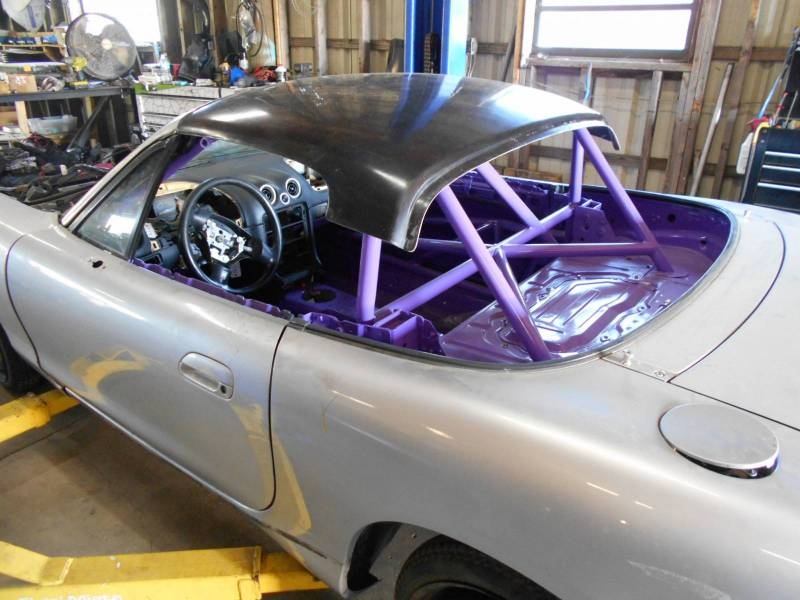

What do you all think about the difference between the OEM-style hardtop and the treasure coast chop top? With windows open, I'd imagine it wouldn't be all that different - lose some smoothness from the over the top air, but reduce the drag of the open window-cabin air interface.
Attached Thumbnails Hardtops-f143559615.jpg
__________________
FlowForce 380 |640| 960 Injectors
LS Coil PNP harnesses
and complete kits
Free shipping on everything,
including MS3Pro PNP
Bring your own boost - goflowforce.com
nigelt is online now
Old 11-18-2018, 03:58 PM
  #38
Newb
Thread Starter

Join Date: May 2018
Posts: 24
Total Cats: 4
Default

I bought two of those half tops because it was the same price to ship one or two. If nobody else has done this test, I can try open top vs hardtop vs half top next spring.
Occam’s Racer is offline
Old 11-18-2018, 06:02 PM
  #39
Junior Member

Join Date: Apr 2013
Location: toronto
Posts: 137
Total Cats: 5
Default

https://s3.amazonaws.com/amv-prod-ca...pless-toys.pdf

From Aug. 2001 Car&Driver. Corvette and Boxster S are ungoverned. Top speed, top up/down.
Corvette 162/158
Boxster S 155/144

No thoughts, just more info for the pile.
endura is offline
Reply
Leave a poscat -1 Leave a negcat
Old 11-18-2018, 11:47 PM
  #40
Junior Member

Join Date: Sep 2017
Location: SF Bay Area
Posts: 66
Total Cats: 2
Default

Originally Posted by Occam’s Racer View Post
When I was building my fastback I did some research and found that the ideal rear window angle was around 12 degrees. I used more like 15 degrees for better visibility, but it's still good. The Miata hardtop rear window is really close to 30 degrees, which is apparently the worst angle you can have, worse even than a vertical square back.

I'd be careful generalizing a figure without understanding the assumptions that went into it. These are usually done on simple 2-D profiles for simplicity sake, whereas our cars are highly three dimensional.
This random paper shows that the notchback (45d) was only 10% lower Cd than the fastback (21d), .28 vs .31, and the squareback (no window, flat to the rear of the car) was 35% more draggy @ .38. In reality, the curved edges of the OEM glass would further reduce the difference. One of the big fastback advantages might be lower drag in corners.
As rrjwilson pointed out, the other benefits of the fastback are there, but i doubt the shape alone is as big a reduction as most of us think.
moocow is offline
