Old 03-08-2011, 04:20 PM   #41
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,315
Total Cats: 1,913
Default

Quote:
Originally Posted by TravisR View Post
Got yourself a fancy sec of mics with 4 digit places
As Scotty said, "The right tool for the right job."

I think they cost me all of about $20 each. They're cheap Chinese-made mics, but they work ok.



Well, .002 would be almost exactly the difference between my old stock gearset and a theoretical spec of "0.3700". I'm glad to know that this was by design- it worried me slightly.

It also bothers the hell out of me that the Mazda catalog is looking increasingly wrong in this regard. I really wish they'd give the complete VIN suffix, and not just the last four digits.


Wait.


Holy hell, I'm retarded. Literally, as in "My mother smoked meth during the second trimester." Those numbers AREN'T VIN suffixes, they're datecodes! How the hell did I never realize this before?!

9301 means "year 1999, month 3, day 01."

It is there, in small, smudged print at the bottom of the catalog page. As ***** Wonka said, it's right here, in black and white, clear as crystal:



136036 definitely puts my engine in the "middle" production class, between 9301 and 0701.

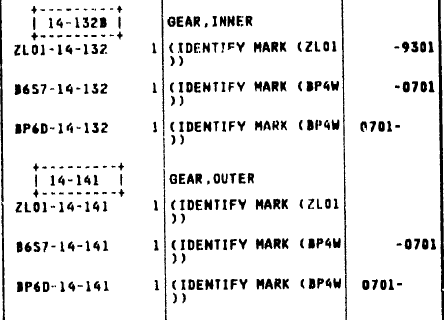

Hmmm. So going back to the '99-'00 catalog:




Wait a minute... ZL01? What the hell is a ZL01?

(google google.)

1.6l Mazda3? Was THIS the engine that went into the Euro-spec 1.6l NBs?

If so, then "the change" didn't happen in March of '99 as Rosenthal claims, it happened in July of 2000, which would be about the time that the factory would have started producing VVT engines for model year 2001. And THAT would be consistent with what Travis has been saying all along, and the catalog is not wrong.

So what the hell is up with Rosenthal's website?
Joe Perez is offline   Reply With Quote
Old 03-08-2011, 06:45 PM   #42
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Quote:
Originally Posted by Joe Perez View Post
So what the hell is up with Rosenthal's website?
Tommy is not perfect?
shuiend is online now   Reply With Quote
Old 10-30-2017, 07:57 PM   #43
Junior Member

Join Date: Jan 2016
Location: Munich
Posts: 237
Total Cats: 27
Default

Quick question as I currently have my oil pan off because of some slow leakage: how many shims do stock VVT oil pumps come with? Reason being: I bought a Boundary Engineering Stage 2 VVT oil pump for my rebuilt VVT engine (no oil squirters). I'm running a turbo, too. I ordered my pump from Fab9, with 1 additional shim.

after the rebuild cold oil pressure was immense. Like rev a little higher and it would hit right the end of the scale. I then went with 0W-40 oil, but pressure still seemed excessively high. The engine would also leak oil, which I suppose is a result from high oil pressure pushing oil beyond the seals.

today I took the engine out and remove the oil pan. When I inspected the bypass valve I discovered FOUR shims! The first one was a special shim with a hat. It goes into the spring and I suppose it's always there. Then came a shim with letters on it, followed by two other blank shims.

so how many shims are standard? Just the hat? Hat + letter shim? I would like to go back to normal max oil pressure.

Eunos91 is offline   Reply With Quote
Old 10-30-2017, 08:09 PM   #44
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,793
Total Cats: 247
Default

Stock is hat only on a VVT motor, I checked two stock oil pumps and both were hat only.
patsmx5 is online now   Reply With Quote
Old 10-31-2017, 08:06 AM   #45
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,642
Total Cats: 1,559
Default

Yep, stock is hat only.
sixshooter is online now   Reply With Quote
Old 10-31-2017, 08:58 AM   #46
Junior Member

Join Date: Jan 2016
Location: Munich
Posts: 237
Total Cats: 27
Default

Thanks guys. So that means I was running 3 spacers instead of 1 as per my order. Great...
Eunos91 is offline   Reply With Quote
Old 10-31-2017, 09:06 AM   #47
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,700
Total Cats: 319
Default

Fail9 Strikes again
psyber_0ptix is offline   Reply With Quote
Old 10-31-2017, 09:31 AM   #48
Junior Member

Join Date: Jan 2016
Location: Munich
Posts: 237
Total Cats: 27
Default

go figure :(
Eunos91 is offline   Reply With Quote
Old 10-31-2017, 09:33 AM   #49
Elite Member
iTrader: (7)

bahurd's Avatar

Join Date: Apr 2013
Location: Ohio
Posts: 2,123
Total Cats: 144
Default

Quote:
Originally Posted by Eunos91 View Post
today I took the engine out and remove the oil pan. When I inspected the bypass valve I discovered FOUR shims! The first one was a special shim with a hat. It goes into the spring and I suppose it's always there. Then came a shim with letters on it, followed by two other blank shims.
Question... did it come in a sealed plastic bag with the Boundary documentation? Looks like someone used plain old Home Depot washers for the additional ones.

Quote:
Originally Posted by psyber_0ptix View Post
Fail9 Strikes again
All roads lead there.
bahurd is offline   Reply With Quote
Old 10-31-2017, 09:38 AM   #50
Junior Member
iTrader: (5)

Join Date: Jan 2014
Location: Mount Pleasant, SC
Posts: 388
Total Cats: 4
Default

Now you got me wanting to check my oil pump as it came with 2 shims. I will have to look back at my pictures to see if the box was sealed or not. Definitely not buying from Fab9 again.
ysleem is online now   Reply With Quote
Old 10-31-2017, 09:59 AM   #51
Elite Member
iTrader: (7)

bahurd's Avatar

Join Date: Apr 2013
Location: Ohio
Posts: 2,123
Total Cats: 144
Default

Quote:
Originally Posted by ysleem View Post
Now you got me wanting to check my oil pump as it came with 2 shims. I will have to look back at my pictures to see if the box was sealed or not. Definitely not buying from Fab9 again.
They are supposed to come in a sealed plastic bag from Boundary.
bahurd is offline   Reply With Quote
Old 10-31-2017, 10:27 AM   #52
Junior Member

Join Date: Jan 2016
Location: Munich
Posts: 237
Total Cats: 27
Default

i can't remember, but I think it did come in a plastic bag. Even if it didn't it still has all the machined and engraved surfaces that the original BE pumps have. I suppose he'd order BE pumps and add shims as requested by his customers?!
Eunos91 is offline   Reply With Quote
Old 10-31-2017, 10:46 AM   #53
Elite Member
iTrader: (7)

bahurd's Avatar

Join Date: Apr 2013
Location: Ohio
Posts: 2,123
Total Cats: 144
Default

Quote:
Originally Posted by Eunos91 View Post
i can't remember, but I think it did come in a plastic bag. Even if it didn't it still has all the machined and engraved surfaces that the original BE pumps have. I suppose he'd order BE pumps and add shims as requested by his customers?!
Good question. The bag is too ensure no dirt get's inside the pump during transport/storage. There's been others who haven't got a pump in a bag. I ordered mine through him earlier this year but it shipped from a distributor directly so Fab9 was just a reseller.

If I was Boundary, and a reseller was doing work [adding shims] and representing it as mine I'd be pretty pissed although with distributors in the mix + resellers [Fab9 and others] who knows where the blame lies.
bahurd is offline   Reply With Quote
Old 10-31-2017, 11:20 AM   #54
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 782
Default

TravisR any ideas here?
concealer404 is offline   Reply With Quote
Old 10-31-2017, 12:21 PM   #55
Elite Member
iTrader: (9)

Join Date: Jun 2008
Location: Houston, TX
Posts: 1,583
Total Cats: 8
Default

Hello Everyone,

Basically if you order from Fab9Tuning and it is not a dropship, they have our authorization to shim the pumps. Its an easy process, and it does not void customer warranty to shim their own. If you have concerns about getting someone to do it for you, just order the pumps without shims and do it yourself. If you have questions, just call I'm always here. I talked to Fab9 about this, and he is reviewing his records on what happened here. We couldn't figure out Eunis91's name, so we didn't get too far on that! 3 Shims should put you at about 78 PSI, its a little more then we recommend for non-rebuilds without oil coolers, but it should have been safe. We ship 5 shims to Italy all the time, seems to be a thing in that region, and they run stock engines and race engines in that configuration. They see a 100+ down the tach with no issues. So I don't think it would have hurt anything, but we do need to make sure we are getting the customer what they ordered.

Thanks,
Travis
TravisR is offline   Reply With Quote
Old 10-31-2017, 12:22 PM   #56
FAB
Fab9Tuning.com
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 943
Total Cats: 394
Default

Thanks guys, shots fired of course. Travis just gave me a ring. The photo above shows 3 shims, the spring hat is just to keep the spring centered to avoid plunger alignment issues. I don't know what your order looked like but if you ordered it with an additional shim, it's as it should be.

I'd first like to make this clear, 3 shims is intended to reach 78PSI as stated on our website and the Boundary Engineering site. A perfectly SAFE oil pressure. It sounds like the plunger in this case may have ingested a contaminate and needs to be cleaned up? It's hard to say because problems with these pumps is VERY rare and we ship more of them than anyone.

Pump Shim Configurations:
The Stage 2 (Street/Strip) pumps start their lives as a 2 shim pump. - Shims added beyond this point should increase pressure as advertised.
The Stage1 (Street) pumps begin at a 0 shim configuration - Shims added beyond this point should increase pressure as advertised.

Unless we missed something, it appears we don't have actual data? What was the recorded oil pressure? Is the factory gauge the source of reading here?

Last edited by FAB; 10-31-2017 at 12:37 PM.
FAB is offline   Reply With Quote
Old 10-31-2017, 12:39 PM   #57
Elite Member
iTrader: (7)

bahurd's Avatar

Join Date: Apr 2013
Location: Ohio
Posts: 2,123
Total Cats: 144
Default

Quote:
Originally Posted by FAB View Post
Pump Shim Configurations:
The Stage 2 (Street/Strip) pumps start their lives as a 2 shim pump. - Shims added beyond this point should increase pressure as advertised.
The Stage1 (Street) pumps begin at a 0 shim configuration - Shims added beyond this point should increase pressure as advertised.

If pressure was
FAB, looking at your web site as I write this...

So, if the Street/Strip VVT Compatible "starts" with 2 shims, it would be 72PSI? So if you ordered that pump with "1 shim" you'd actually get a 3 shim pump? Sorry, but I don't see that as at all clear.


bahurd is offline   Reply With Quote
Old 10-31-2017, 12:45 PM   #58
FAB
Fab9Tuning.com
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 943
Total Cats: 394
Default

I understand the confusion there. - this was changed after the initial description of the product because we realized months into it that the Stage 1/Stage 2 pumps were shimmed differently out of the box. I'll clarify the verbiage accordingly.
FAB is offline   Reply With Quote
Old 10-31-2017, 05:56 PM   #59
Junior Member

Join Date: Jan 2016
Location: Munich
Posts: 237
Total Cats: 27
Default

so Bryan dropped me a PM, props for that. When I ordered in December I was lacking the information that stage 2 pumps already have 2 shims before adding additional ones. This is the only fault I can blame Fab9 for, and I apologize for accusing Bryan of shipping the wrong product.

However the BE oil pump is already under my suspension, since I did have to replace the front main seal shortly after installing the pump (as it turned out the pump came with a non-OEM inferior quality seal). I will hook up a mechanical oil pressure gauge and go from there. Until then, I will reseal the oil pan and pump with a different sealant, and switch to 5W-40 oil (I previously ran 0W-40).
Eunos91 is offline   Reply With Quote
Old 11-01-2017, 08:25 AM   #60
Junior Member

Join Date: Jan 2016
Location: Munich
Posts: 237
Total Cats: 27
Default

Foxtrot Uniform Charlie Kilo

so my front main seal was partially pushed out, grinding against the timing belt sprocket. I KNOW it was flush because I had to replace the seal two months ago.





Eunos91 is offline   Reply With Quote
