Default The adventures of my drift miata

I have some scattered partial build threads between this site and club roadster but no single thread really tells the whole story of my car so I'm going to attempt to put it all in one place here.

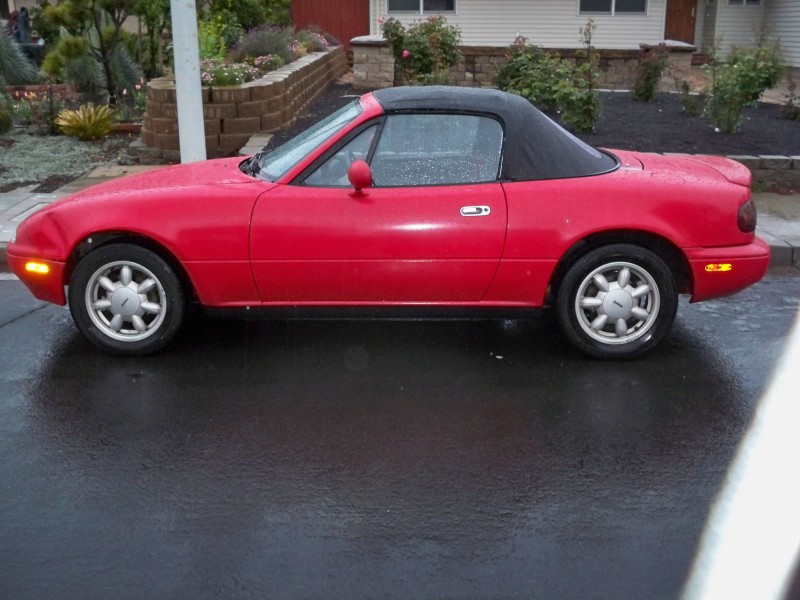

I bought this miata for $1900 from a performance/speed shop, basically what happened is, somebody burnt a couple valves, took it to this shop, the shop rebuilt the head, gave the customer the $1400 bill and he couldn't afford it so the shop bought the car from him for $500. Then I came along and bought the car with literally 0 miles on the rebuilt head (they were still setting timing when I pulled up to check the car out). The car had a salvage title and there was some obvious previous damage in the right rear quarter panel but no biggie. The top was also ripped but other than that ran great, they smogged it on the spot and I took it home.



That pic was taken after I replaced the ripped soft top with a $150 one off ebay, not as high quality as the OE but it keeps me dryish in the rain, though it does leak a little onto the passenger's lap.

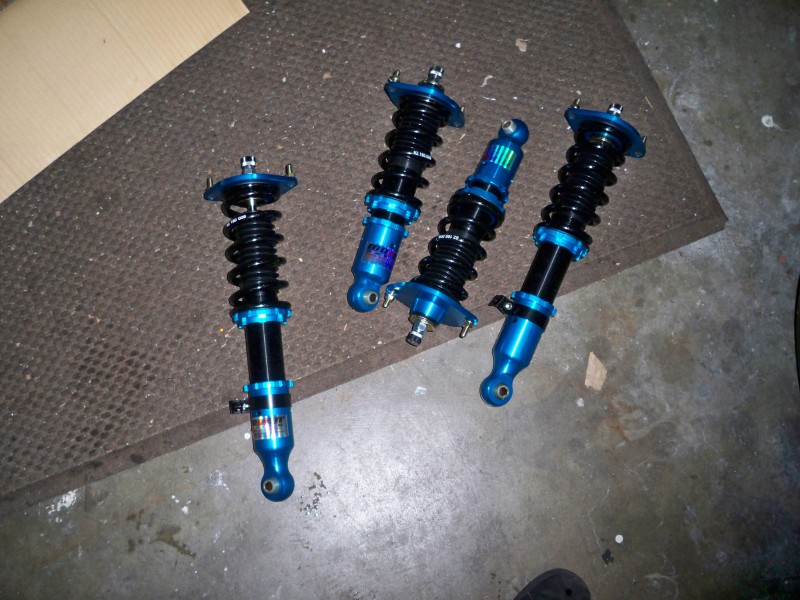

First mod, megan ez-street coilovers, this was after replacing all the maintenance crap like shift boots, transmission and diff fluid, etc. (the timing belt, plugs, oil, and coolant had all been changed by the shop when they did the head)

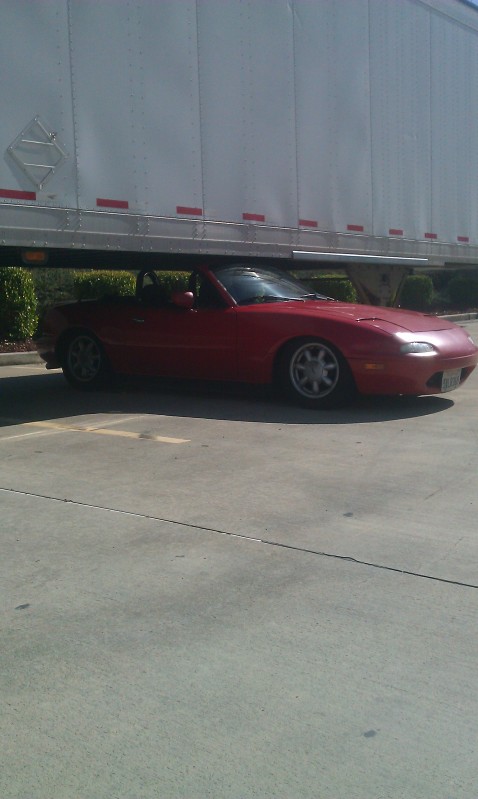

Cuz I could, I rode this low for two days and then raised it about an inch, then a few weeks later raised it another 3/4"



Ebay cone filter and a homemade heat sheild.

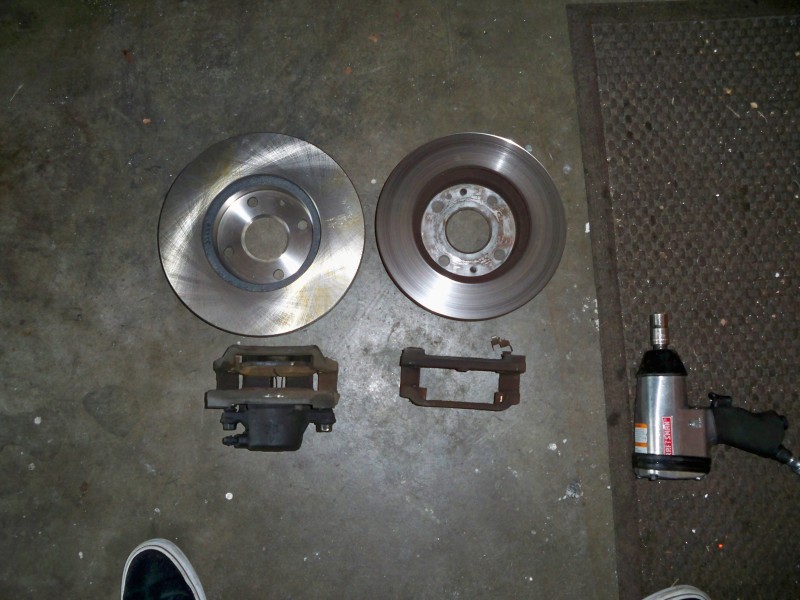

Upgraded to 1.8 Calipers and rotors all around.

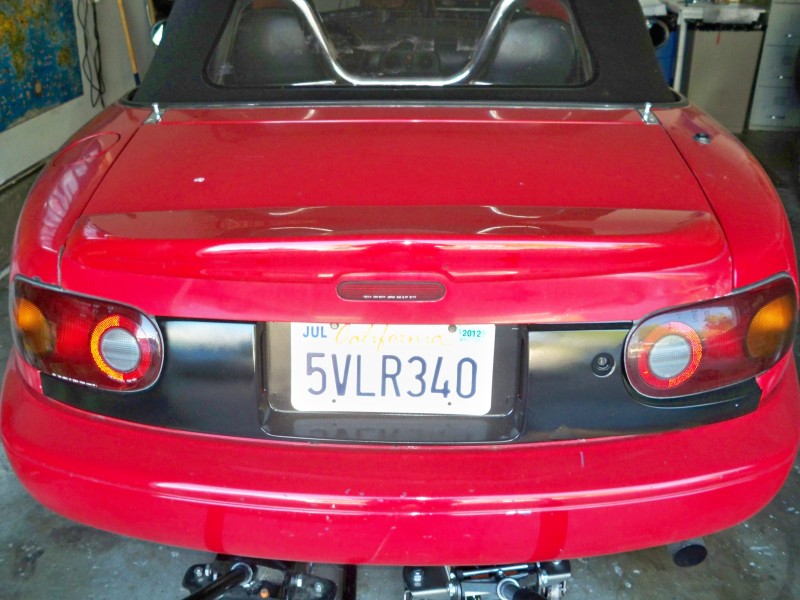

Painted rear finish panel black, when I got the car it was silver which clashed horribly with the red, this looks much better IMO.

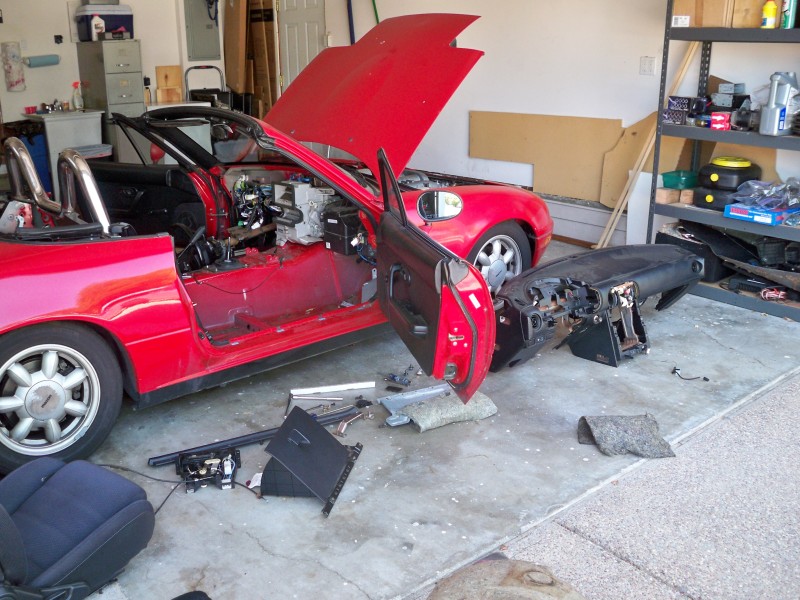

A little weight reduction, removed the carpet and some other interior pieces. Also added a shift **** to replace the crappy JB-welded on carbon fiber one that came on the car. Also added a digital media receiver, somebody tried to give me **** about removing the carpet but still having a stereo, but this thing doesn't play cd's only USB and AUX inputs so it weighs less than half what a headunit normally does.

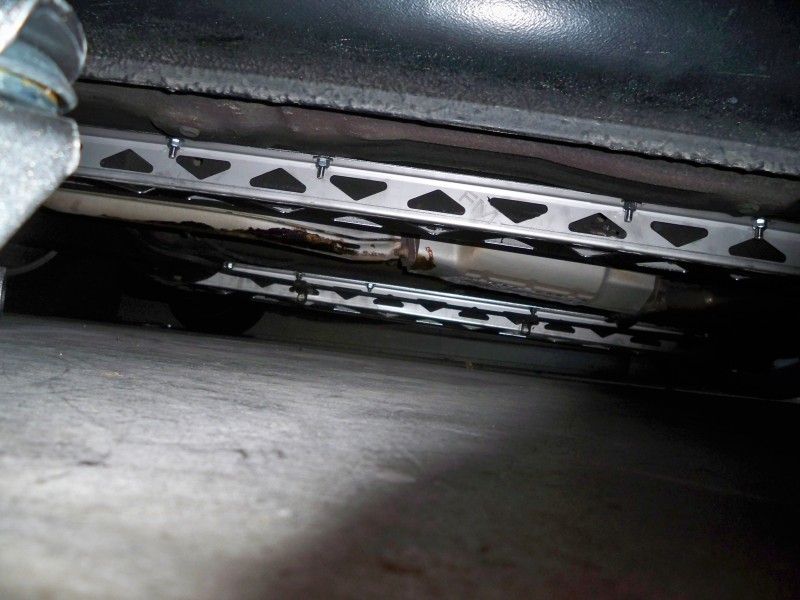

Flyin miata frame rail braces, best mod for the buck ever!



I was having issue with overheating whenever I'd push the car hard, so I replaced the thermostat and relocated the license plate so it wouldn't block the incoming air. I also wired the fans together so they'd both come on at the same time. Problem solved.
Attached Thumbnails
The adventures of my drift miata-100_1017.jpg   The adventures of my drift miata-100_1018.jpg   The adventures of my drift miata-su1brzawodmuanbn.jpg   The adventures of my drift miata-100_1027.jpg   The adventures of my drift miata-100_1030.jpg

The adventures of my drift miata-100_1068.jpg   The adventures of my drift miata-100_1065.jpg   The adventures of my drift miata-100_1075.jpg   The adventures of my drift miata-100_1076.jpg
6strngs is offline   Reply With Quote
Old 01-09-2014, 09:44 PM   #2
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

I'm sorry to read that you have ties with club roadster. Car looks like a good starting project. What are your plans for the engine/ rest of the car?
thirdgen is offline   Reply With Quote
Old 01-09-2014, 09:48 PM   #3
Junior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2013
Location: Livermore, CA
Posts: 138
Total Cats: -18
Default

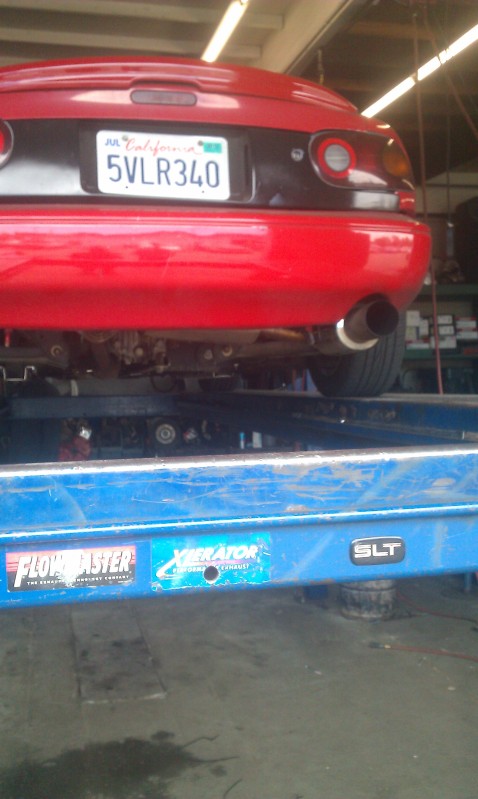

used ebay catback, took this pic while I was having an extra hanger put on it because one was broken off when I got it.

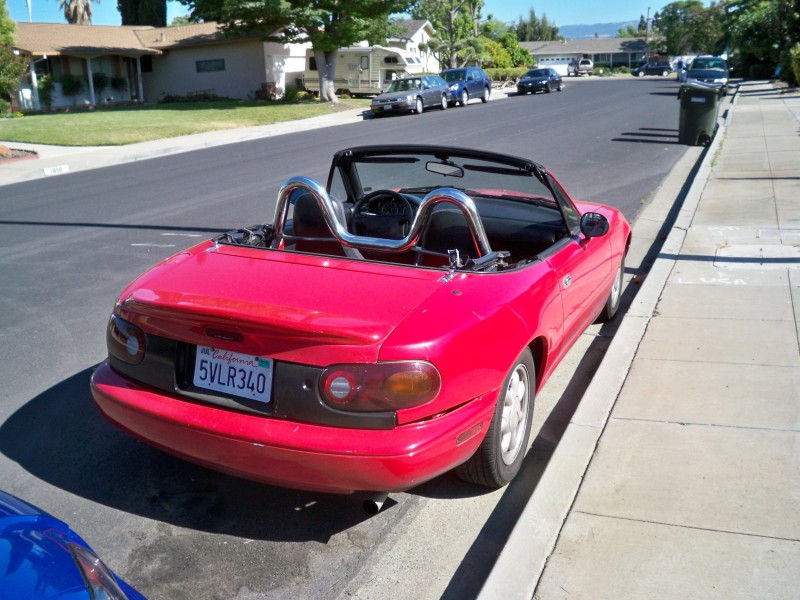

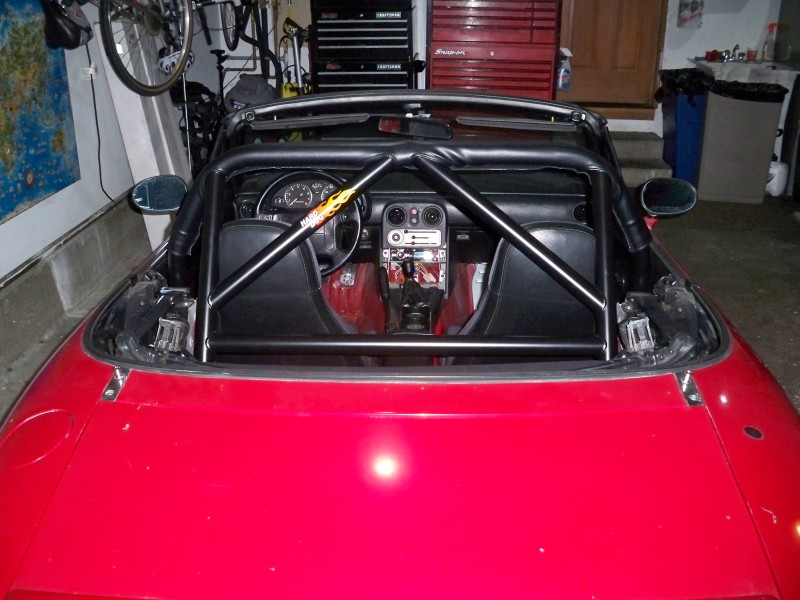

added a hard dog roll bar

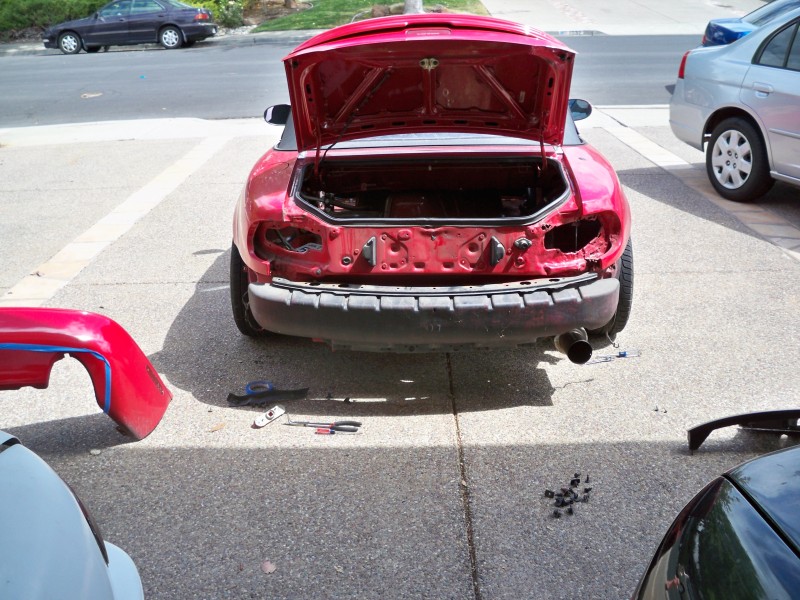

Took the back bumper off to trim the bottom

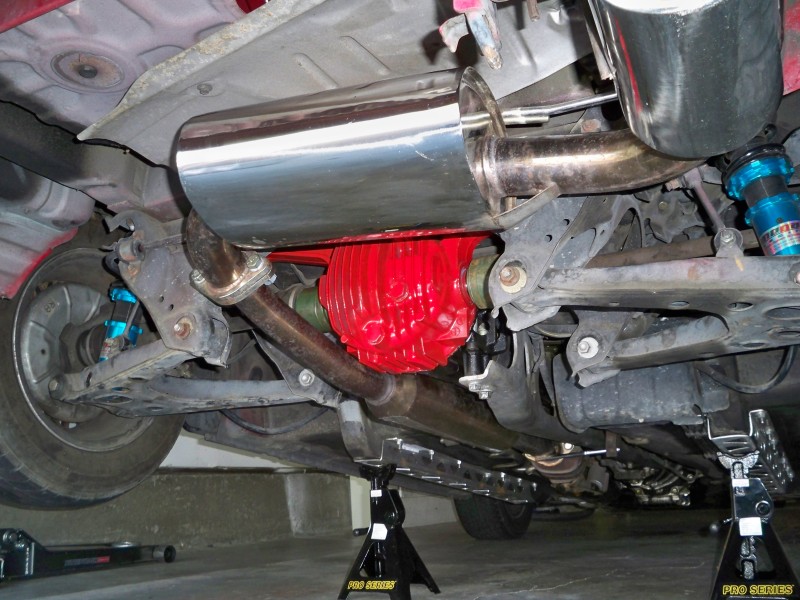

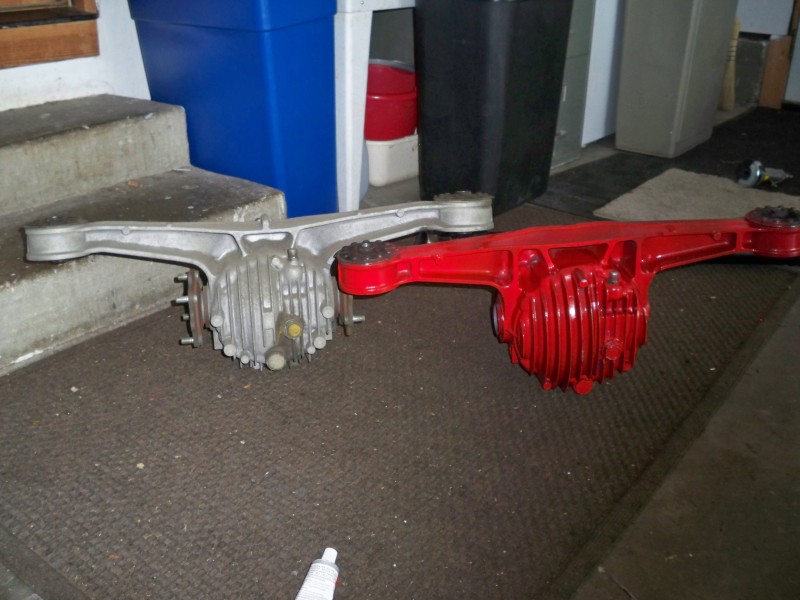

1.8 differential with an rx7 clutch type lsd, housing painted by myself.

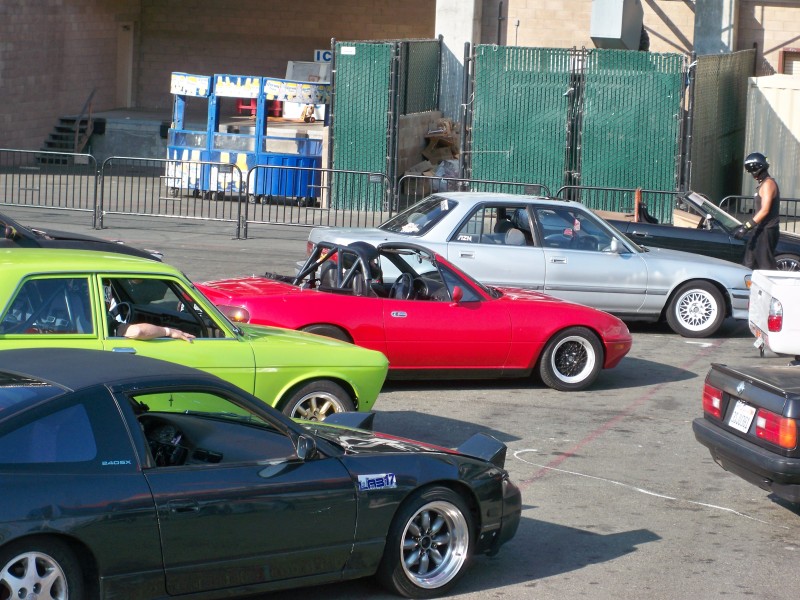

Put on some BBS mahle's shortly before my first drift event. I sucked lol
Attached Thumbnails
The adventures of my drift miata-su1brzawotiuanbn.jpg   The adventures of my drift miata-100_1090.jpg   The adventures of my drift miata-100_1094.jpg   The adventures of my drift miata-100_1158.jpg   The adventures of my drift miata-100_1165.jpg

The adventures of my drift miata-100_1168.jpg   The adventures of my drift miata-100_1173.jpg   The adventures of my drift miata-100_1171.jpg   The adventures of my drift miata-100_1172.jpg
6strngs is offline   Reply With Quote
Old 01-09-2014, 09:53 PM   #4
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

Pics of turbo?
thirdgen is offline   Reply With Quote
Old 01-09-2014, 10:01 PM   #5
Junior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2013
Location: Livermore, CA
Posts: 138
Total Cats: -18
Default

Quote:
Originally Posted by thirdgen View Post
I'm sorry to read that you have ties with club roadster. Car looks like a good starting project. What are your plans for the engine/ rest of the car?
Let me finish posting and you'll see

Name:  385616_4038256549620_1509411150_n.jpg
Views: 341
Size:  60.5 KB

This is me looking like I'm doing something cool but really just spinning out lol

Name:  100_1214.jpg
Views: 461
Size:  111.5 KB

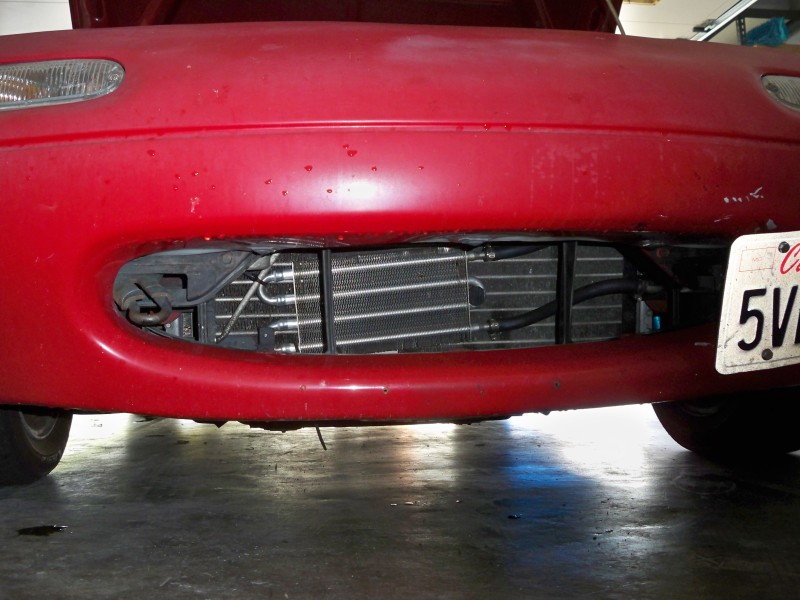

Added a power steering oil cooler. It didn't help, fluid shot out the reservoir everytime I drifted the car ever. I eventually got rid of power steering altogether, but let's keep this chronological...

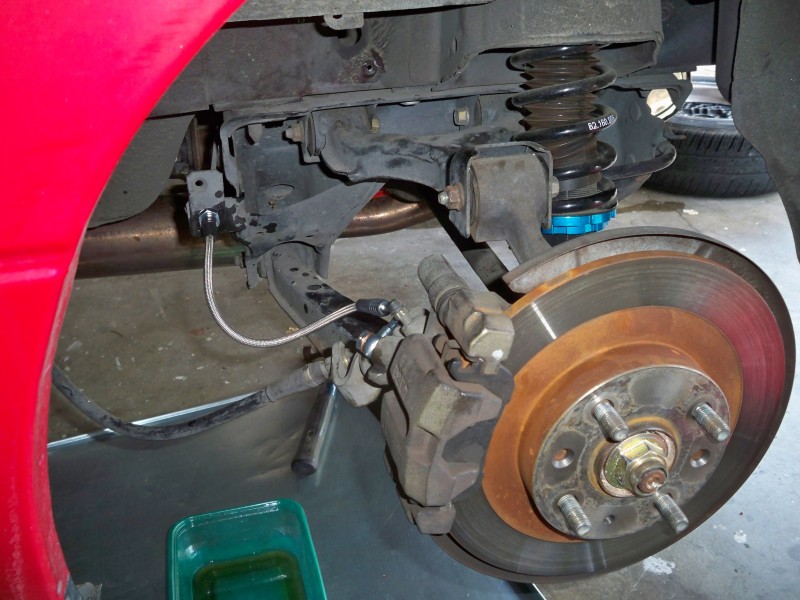

Name:  100_1216.jpg
Views: 347
Size:  120.6 KB
Name:  100_1220.jpg
Views: 349
Size:  138.6 KB
Name:  100_1221.jpg
Views: 369
Size:  125.9 KB

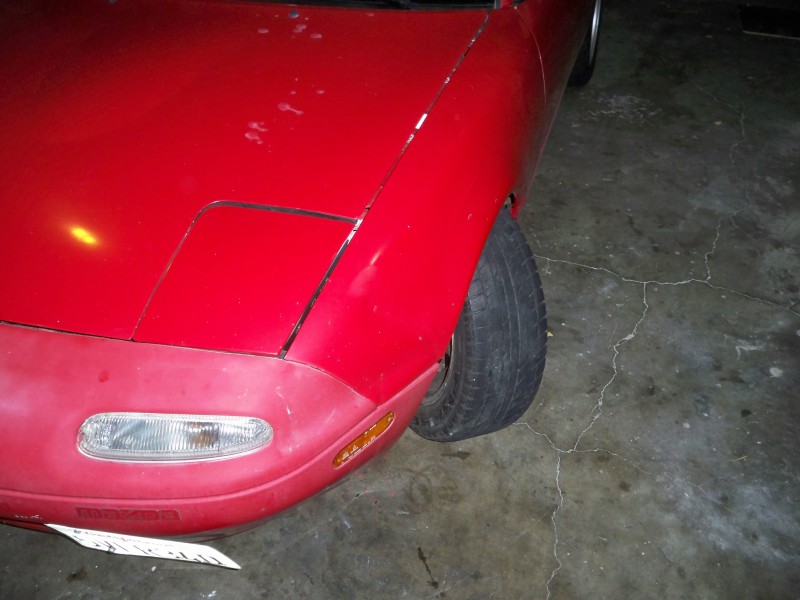

Name:  100_1230.jpg
Views: 346
Size:  89.4 KB

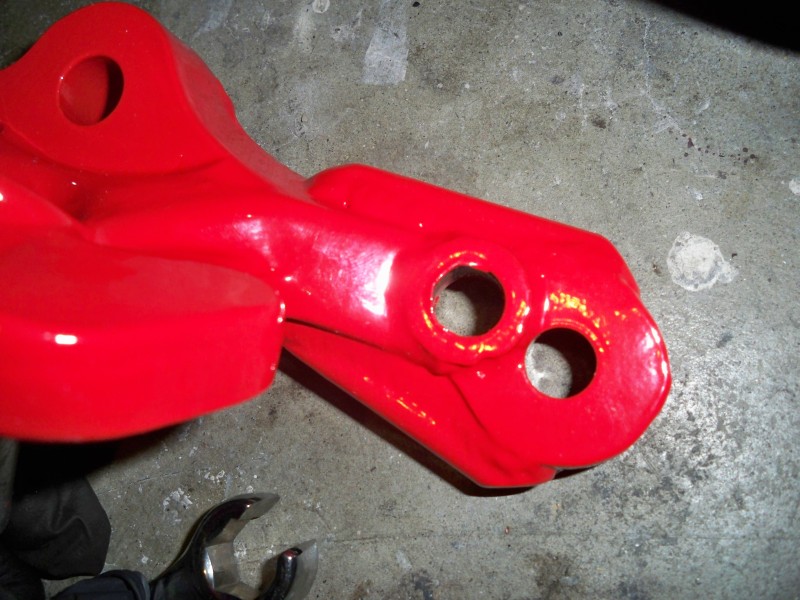

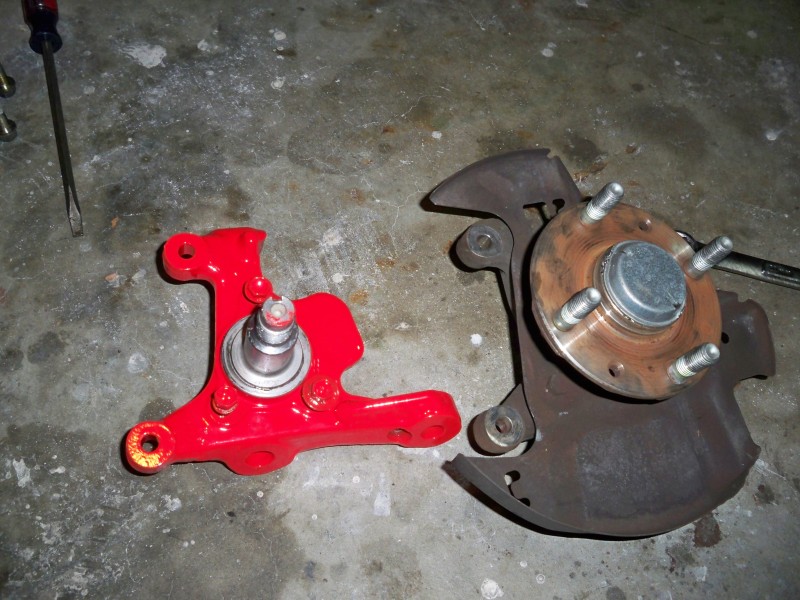

Modified knuckles for my steering angle, powdercoated red. I also made some stainless braided brake line that were extended for the front brakes to account for the extra angle. Made them all out of stuff off summit racing for cheap!

Name:  100_1234.jpg
Views: 347
Size:  101.8 KB
Name:  155514_4154016923557_1265672668_n.jpg
Views: 382
Size:  73.3 KB
Name:  100_1248.jpg
Views: 360
Size:  88.0 KB

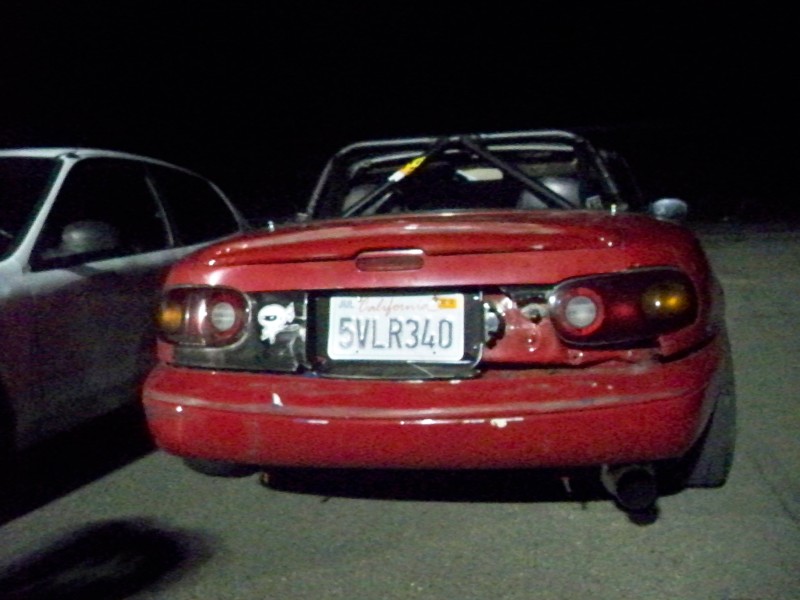

Another drift event. It had rained a little earlier in the day so the drag races were cancelled, meaning that us drifters were allowed on the race track rather than the skid pad. This unfortunately led to my first crash, but nothing really happened besides breaking the finish panel and some scratches.

Long boring video from that night:
Attached Thumbnails
The adventures of my drift miata-385616_4038256549620_1509411150_n.jpg   The adventures of my drift miata-100_1214.jpg   The adventures of my drift miata-100_1216.jpg   The adventures of my drift miata-100_1220.jpg   The adventures of my drift miata-100_1221.jpg

The adventures of my drift miata-100_1230.jpg   The adventures of my drift miata-100_1234.jpg   The adventures of my drift miata-155514_4154016923557_1265672668_n.jpg   The adventures of my drift miata-100_1248.jpg
6strngs is offline   Reply With Quote
Old 01-09-2014, 10:15 PM   #6
Junior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2013
Location: Livermore, CA
Posts: 138
Total Cats: -18
Default

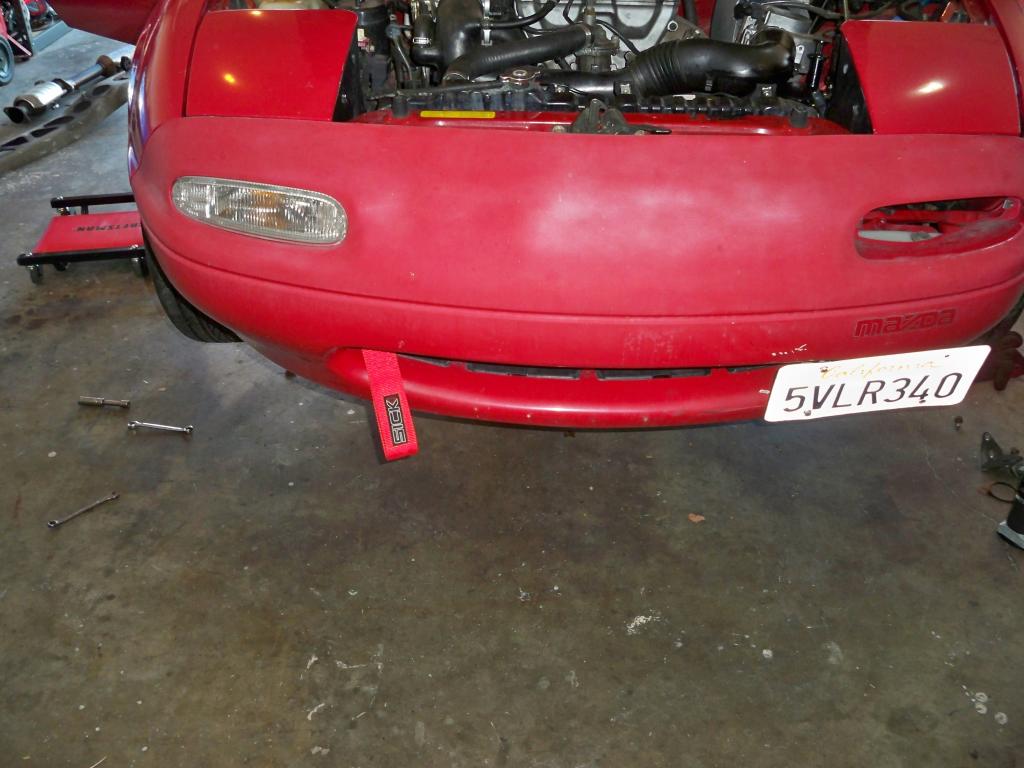

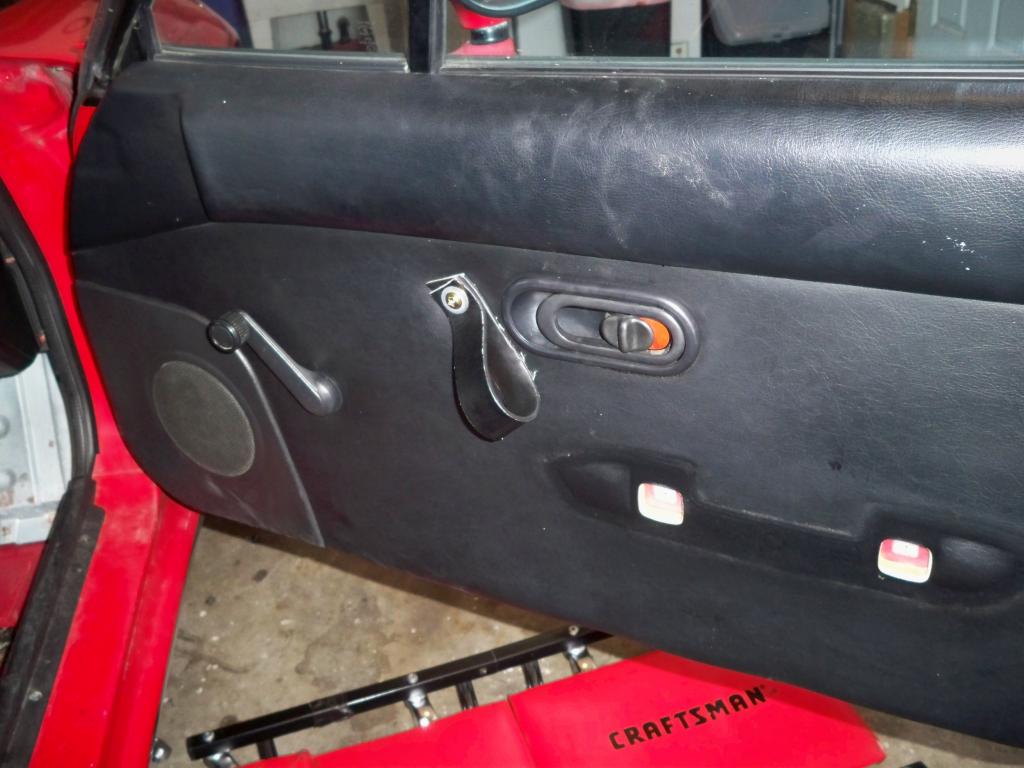

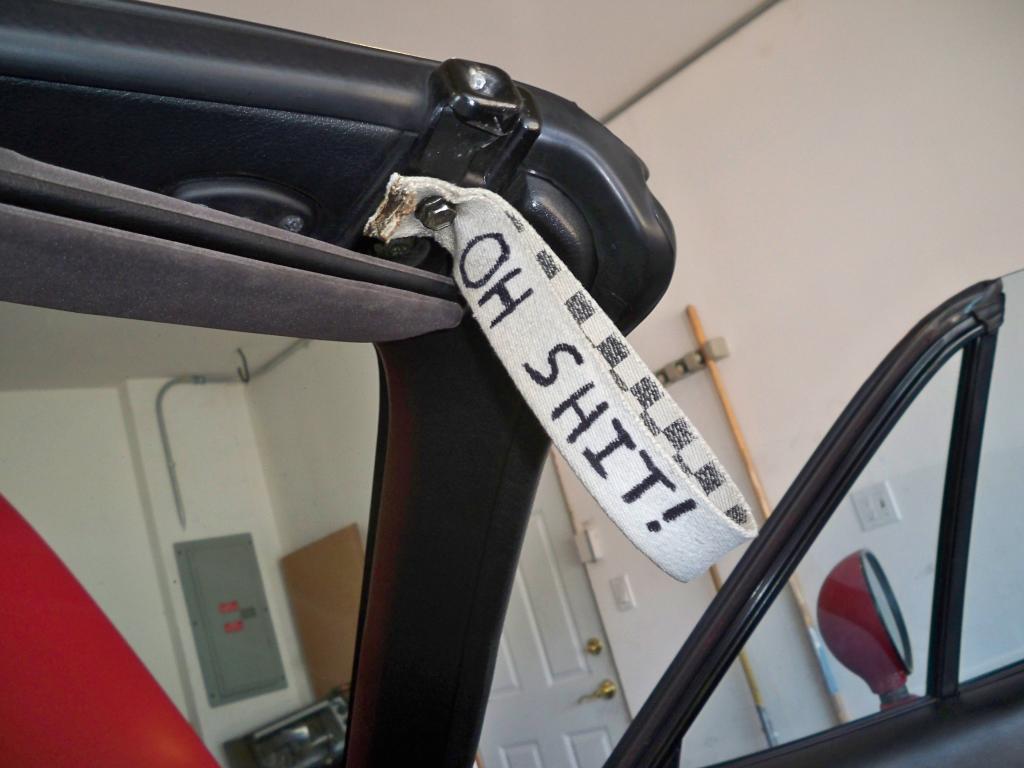

Added a nifty tow-strap and some door pull handles and a much needed "Oh ****" handle

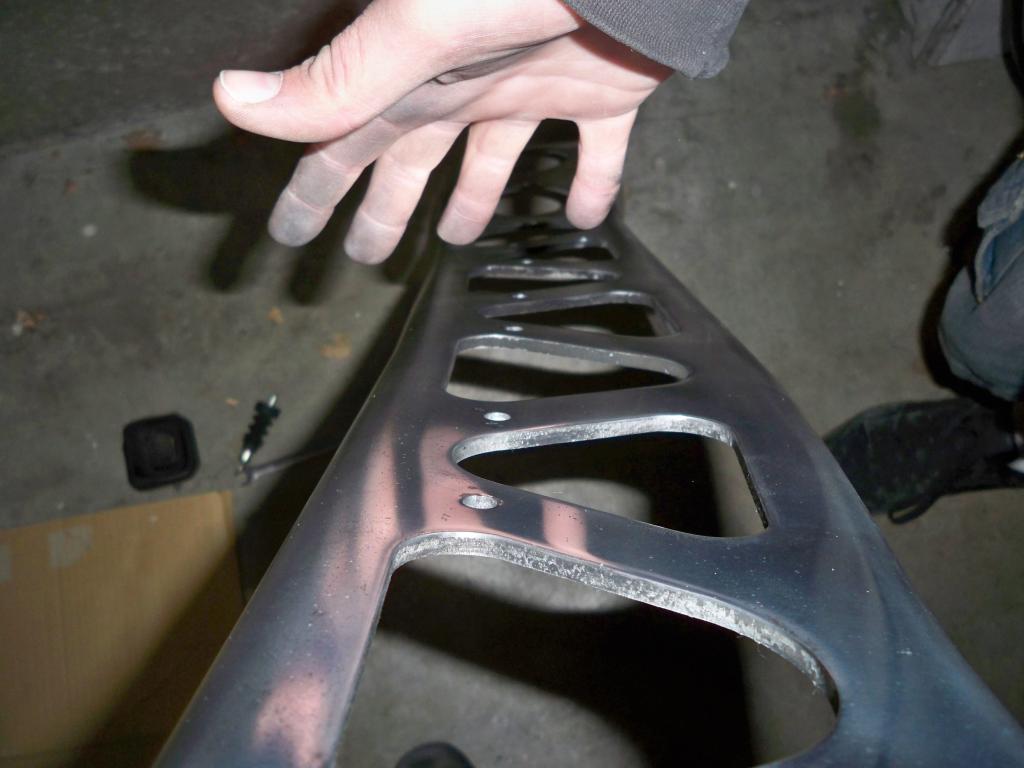

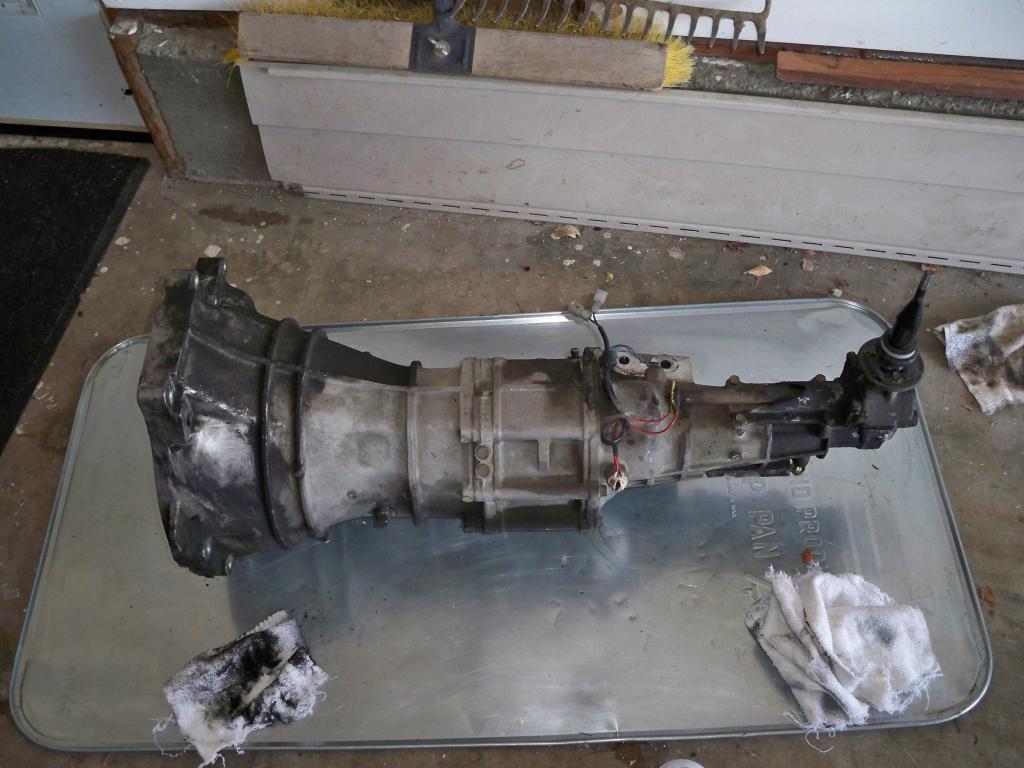

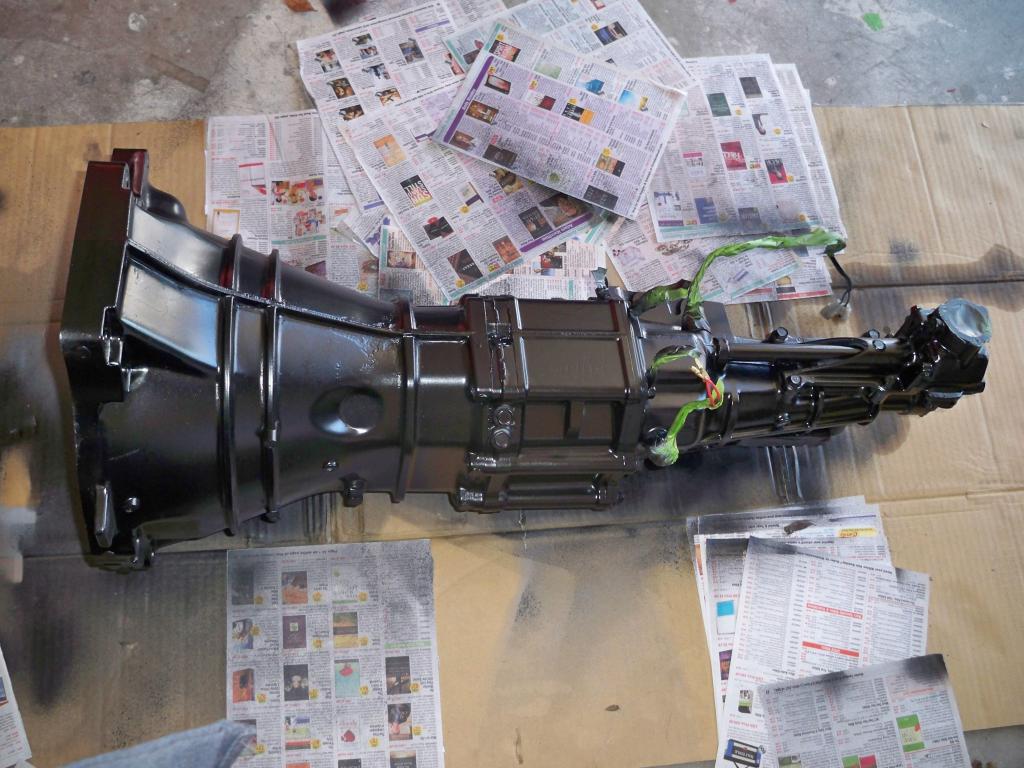

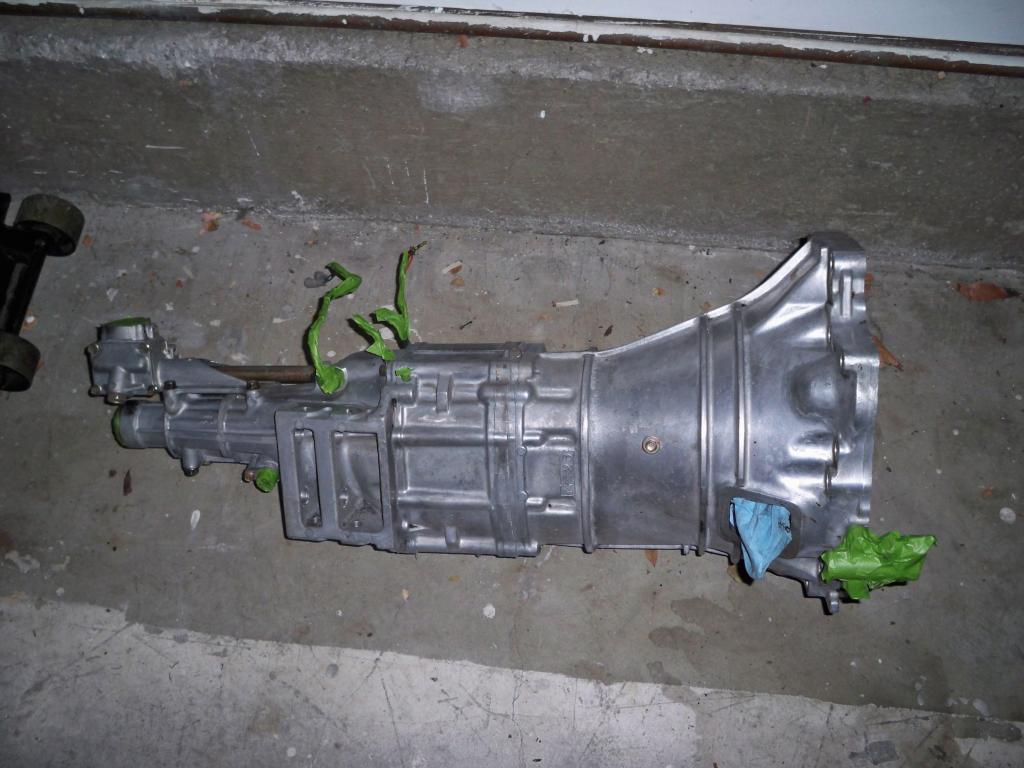

Cleaned and painted the tranny and polished the PPF

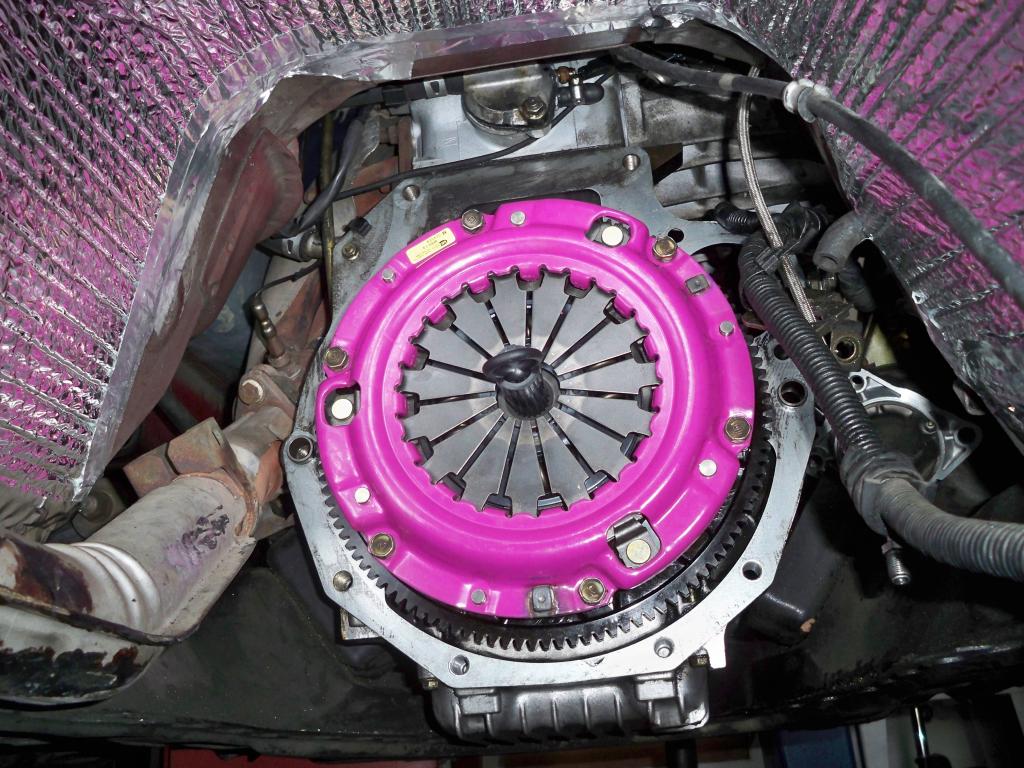

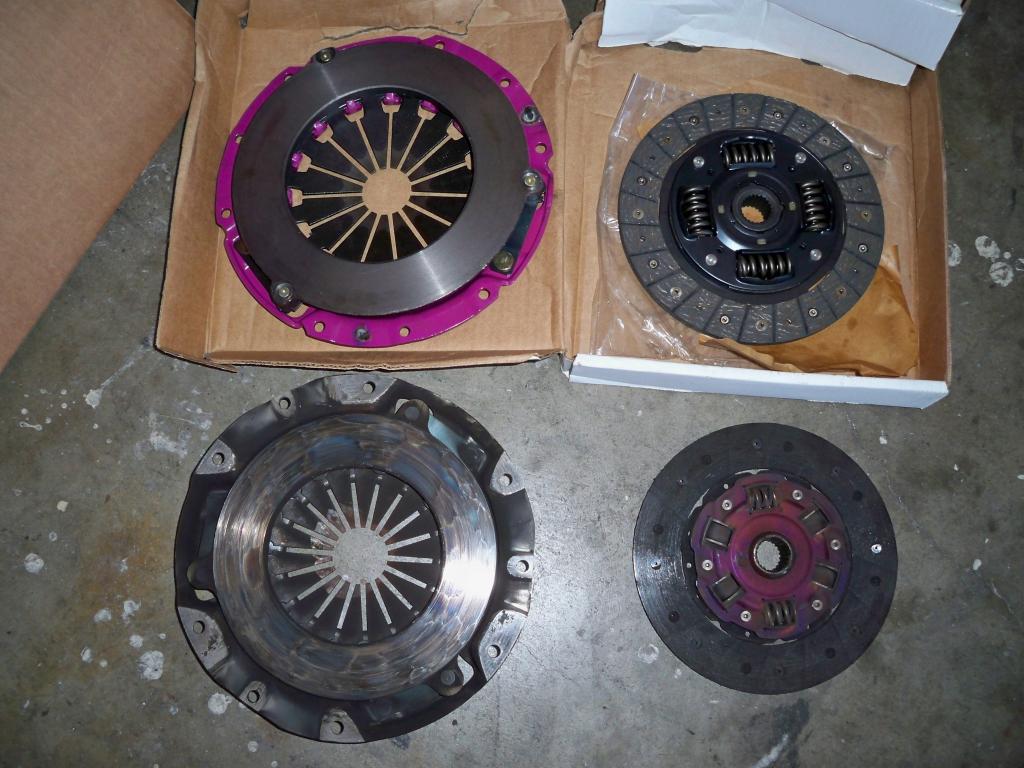

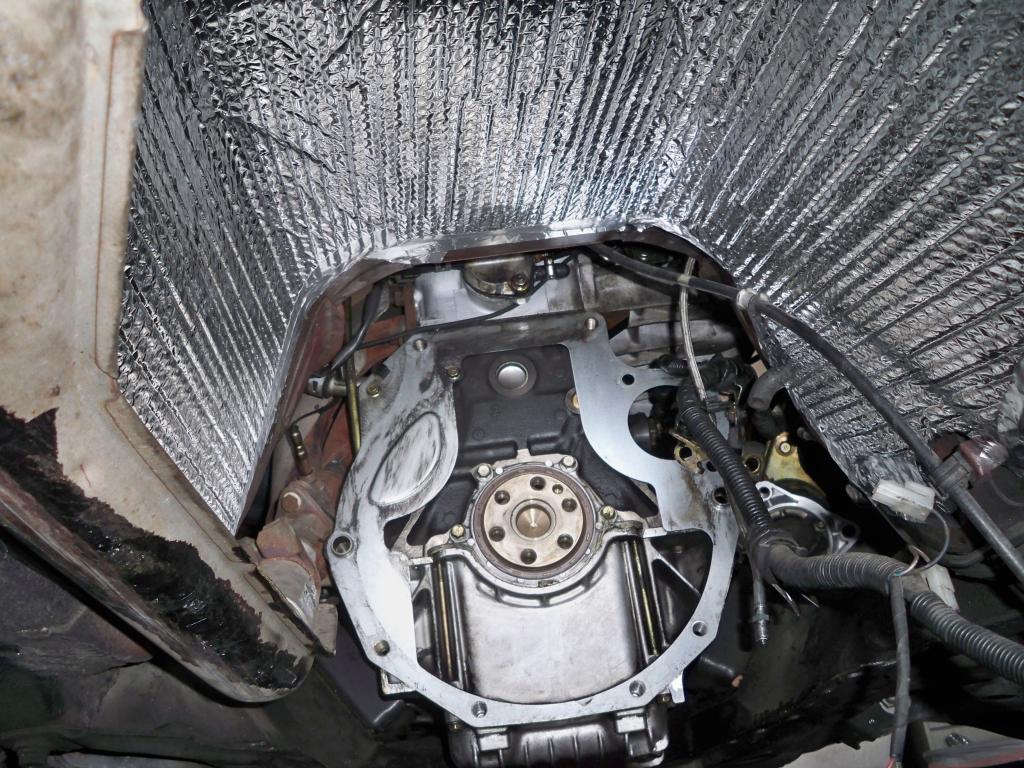

Poor little 1.6 clutch couldn't hang in the drift world, so I put in a flyin miata 1.8 clutch and flywheel. I also heat shielded the underside of the tranny tunnel which really helped the floor boards from becoming super hot after removing the carpet.

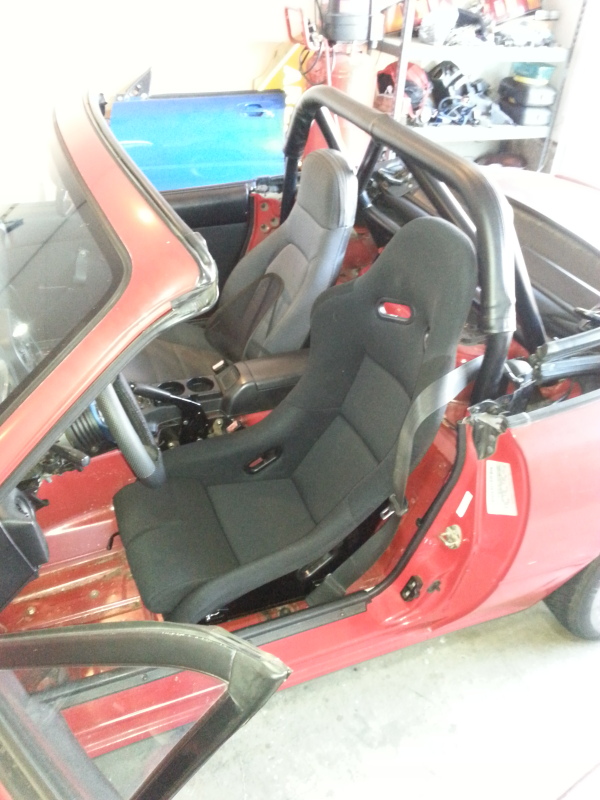

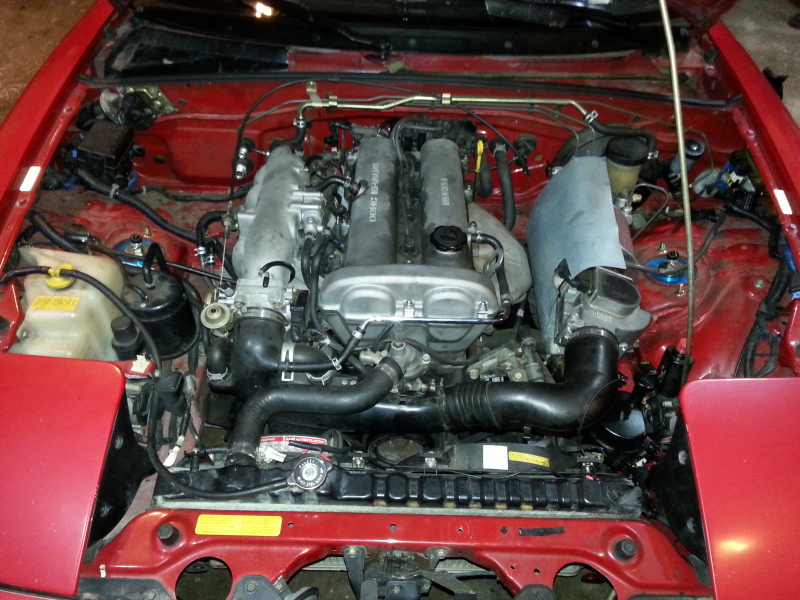

cheapo bucket seat bolted to stock sliders, and engine bay tidied up a little bit.
Attached Thumbnails
The adventures of my drift miata-253031_4188222298670_492325046_n.jpg   The adventures of my drift miata-100_1288_zpsf3de26ef.jpg   The adventures of my drift miata-100_1291_zpsed7d1a15.jpg   The adventures of my drift miata-100_1292_zps479e051e.jpg   The adventures of my drift miata-100_1294_zps953380aa.jpg

The adventures of my drift miata-100_1295_zps43888c6b.jpg   The adventures of my drift miata-100_1305_zps8ac96afb.jpg   The adventures of my drift miata-100_1301_zps58761569.jpg   The adventures of my drift miata-100_1307_zpse2d90fba.jpg   The adventures of my drift miata-100_1308_zps9cc7f2fc.jpg

The adventures of my drift miata-100_1311_zpsc913a4e5.jpg   The adventures of my drift miata-1362114762.jpg   The adventures of my drift miata-1362114793.jpg
6strngs is offline   Reply With Quote
Old 01-09-2014, 10:43 PM   #7
Senior Member
iTrader: (3)

Join Date: Apr 2011
Location: Volo, IL
Posts: 1,247
Total Cats: 140
Default

dieselmiata is offline   Reply With Quote
Old 01-09-2014, 10:43 PM   #8
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

lets review:

1. pics of too low (bonus point under truck shot)
2. drifting
3. drifting crash damage
4. no turbo

those are pretty egregious and going to lead down the bad road here, but honestly the rest of the car is fine. I mean it's not awful or anything.

Curious how the steering knuckles hold up. Does the car bump steer at all?
y8s is offline   Reply With Quote
Old 01-09-2014, 10:44 PM   #9
Junior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2013
Location: Livermore, CA
Posts: 138
Total Cats: -18
Default

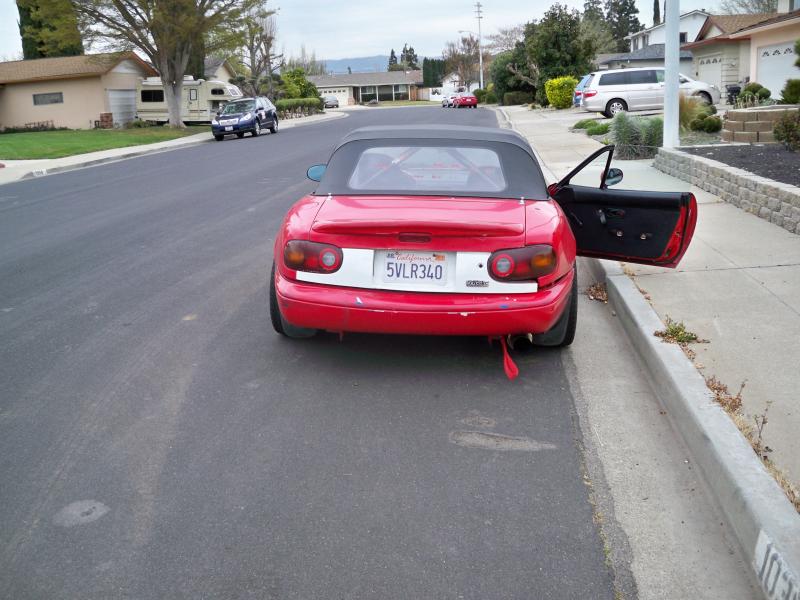

Got a new finish panel.

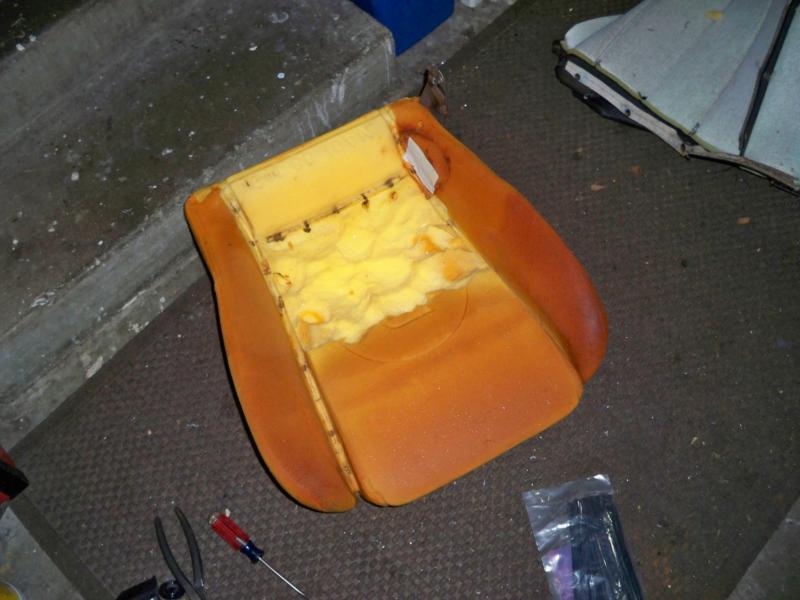

Passenger seat got the foam-ectomy

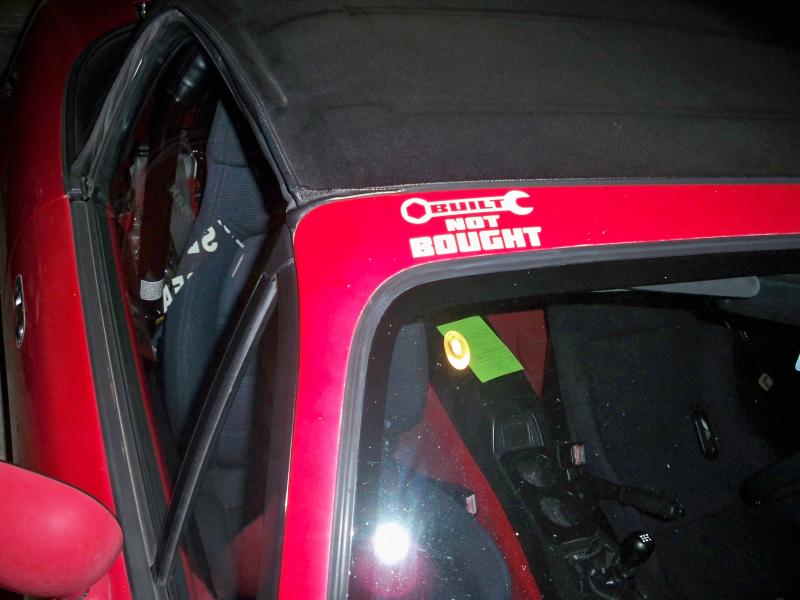

sitckerz because drift missile...

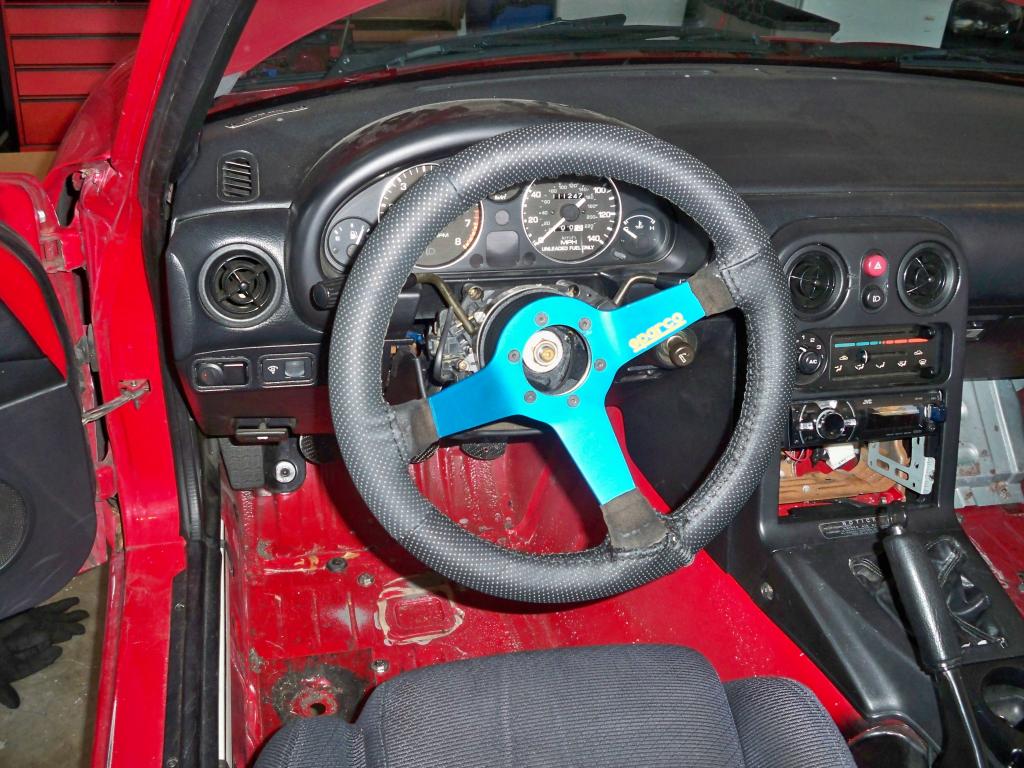

sparco wheel and turn signal intakes.

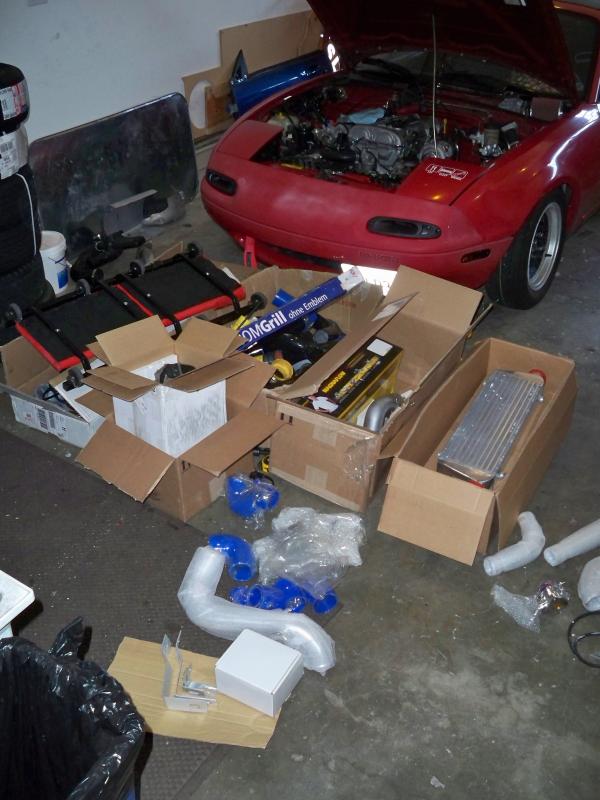

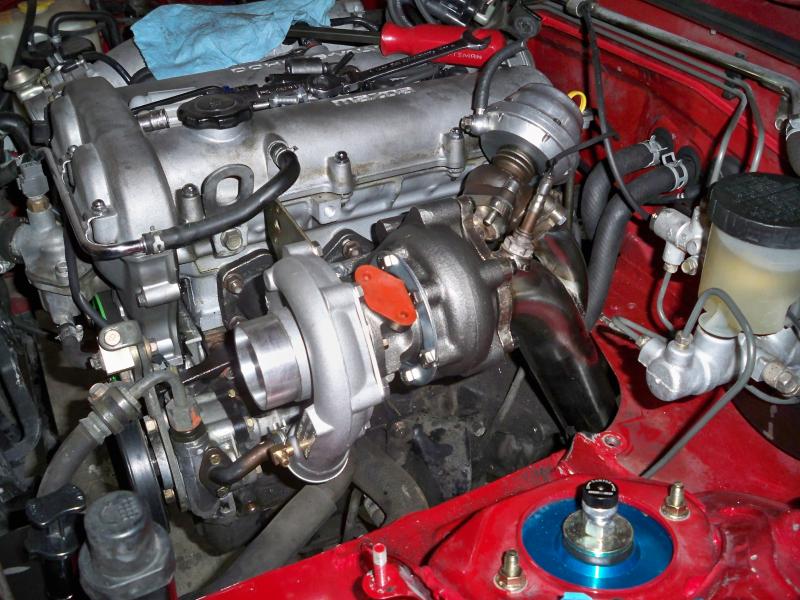

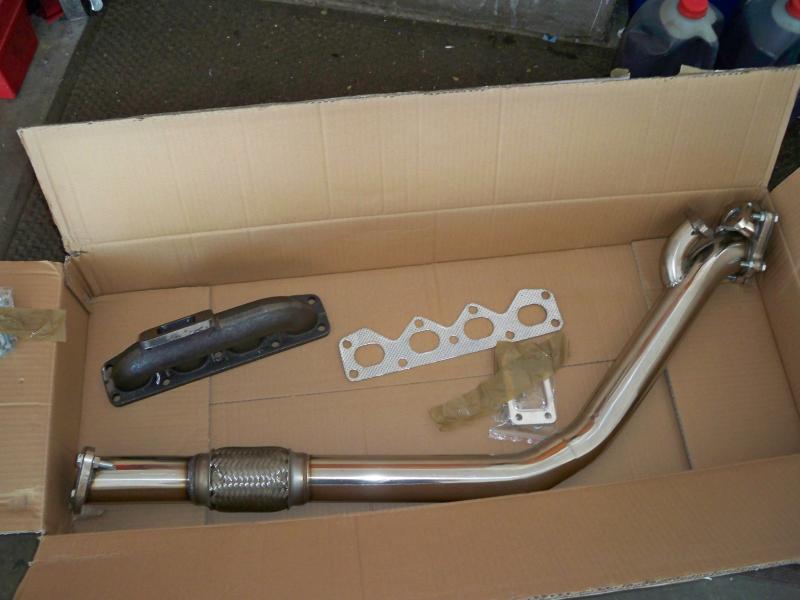

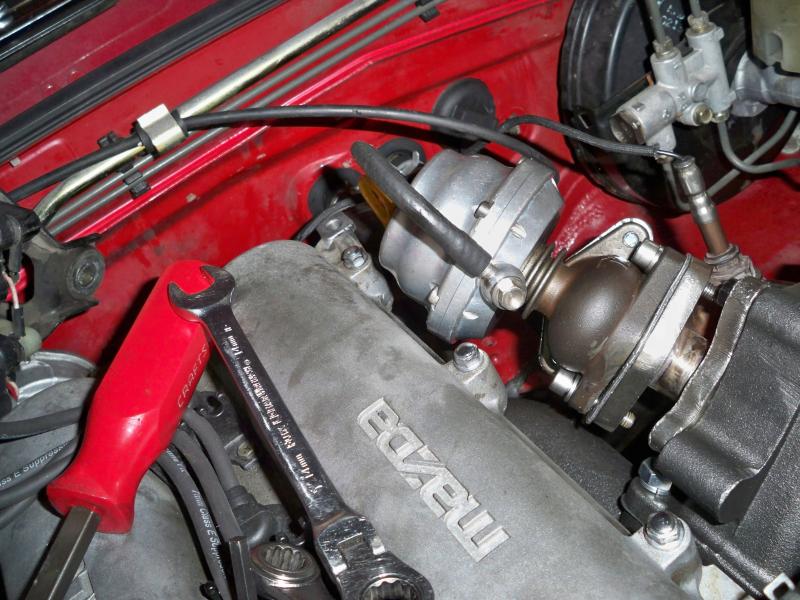

This is when I started assembling turbo parts. That's an ebay manifold and downpipe, the downpipe does not fit at all btw. The turbo was sold to me as a 50-trim t3, it was actually a 70 trim t3/t4, my car wouldn't even start spooling until 4200 with that guy! I also managed to blow the seals in this turbo in less than two weeks. The rest of the build specs: Begi FPR, 1.8L injectors, tial wastegate, cx racing FMIC kit and BOV.

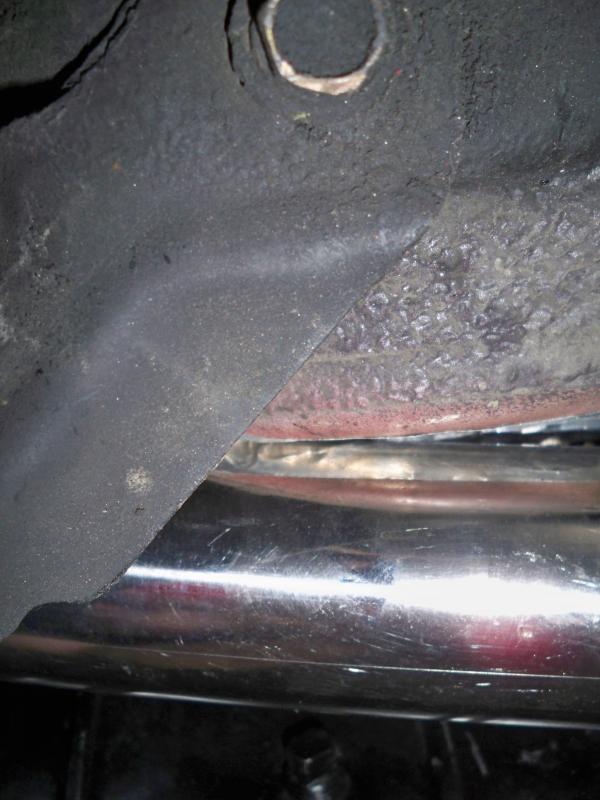

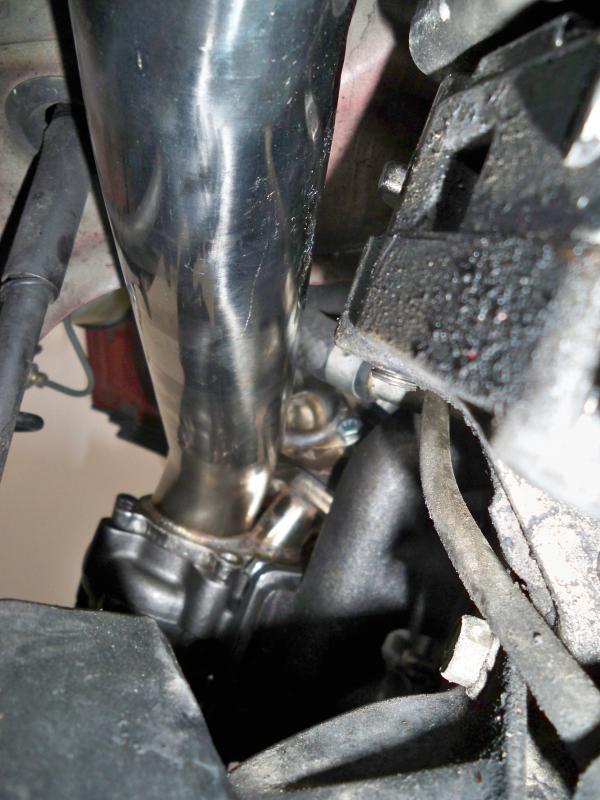

Here's how well that downpipe fit btw, notice the heater hose resting on it and how badly it hits the chassis. My favorite part though is how well it bolted to the stock exhaust...
Attached Thumbnails
The adventures of my drift miata-100_1316.jpg   The adventures of my drift miata-100_1328.jpg   The adventures of my drift miata-100_1351.jpg   The adventures of my drift miata-100_1358.jpg   The adventures of my drift miata-100_1357.jpg

The adventures of my drift miata-100_1293_zps639d2cc8.jpg   The adventures of my drift miata-100_1374.jpg   The adventures of my drift miata-100_1372.jpg   The adventures of my drift miata-100_1377.jpg   The adventures of my drift miata-100_1378.jpg

The adventures of my drift miata-100_1386.jpg   The adventures of my drift miata-1365211201.jpg   The adventures of my drift miata-100_1385.jpg   The adventures of my drift miata-100_1384.jpg   The adventures of my drift miata-100_1382.jpg

The adventures of my drift miata-100_1381.jpg   The adventures of my drift miata-100_1383.jpg
6strngs is offline   Reply With Quote
Old 01-09-2014, 10:49 PM   #10
Senior Member
iTrader: (3)

Join Date: Apr 2011
Location: Volo, IL
Posts: 1,247
Total Cats: 140
Default

Quote:
Originally Posted by y8s View Post
lets review:

1. pics of too low (bonus point under truck shot)
2. drifting
3. drifting crash damage
4. no turbo

those are pretty egregious and going to lead down the bad road here, but honestly the rest of the car is fine. I mean it's not awful or anything.

Curious how the steering knuckles hold up. Does the car bump steer at all?
Let's not forget all the madtytejdm eBay parts.
dieselmiata is offline   Reply With Quote
Old 01-09-2014, 10:58 PM   #11
Junior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2013
Location: Livermore, CA
Posts: 138
Total Cats: -18
Default

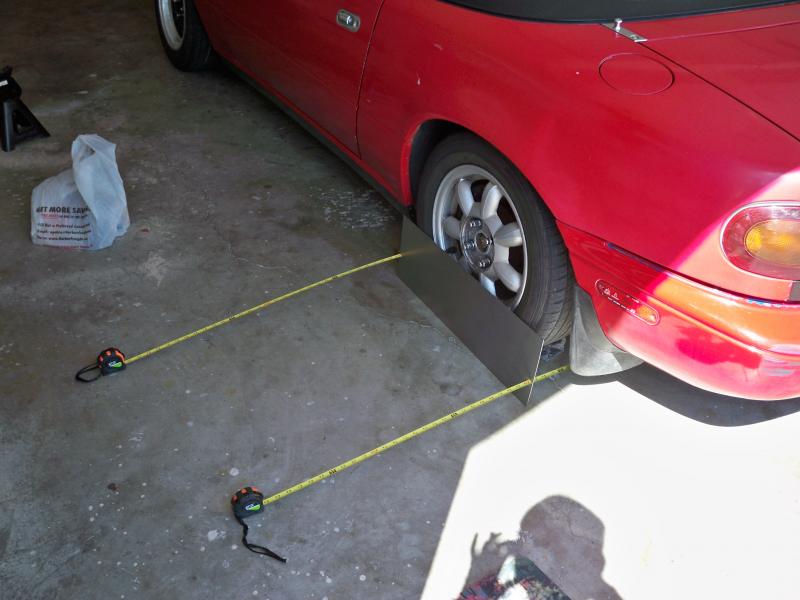

DIY alignment

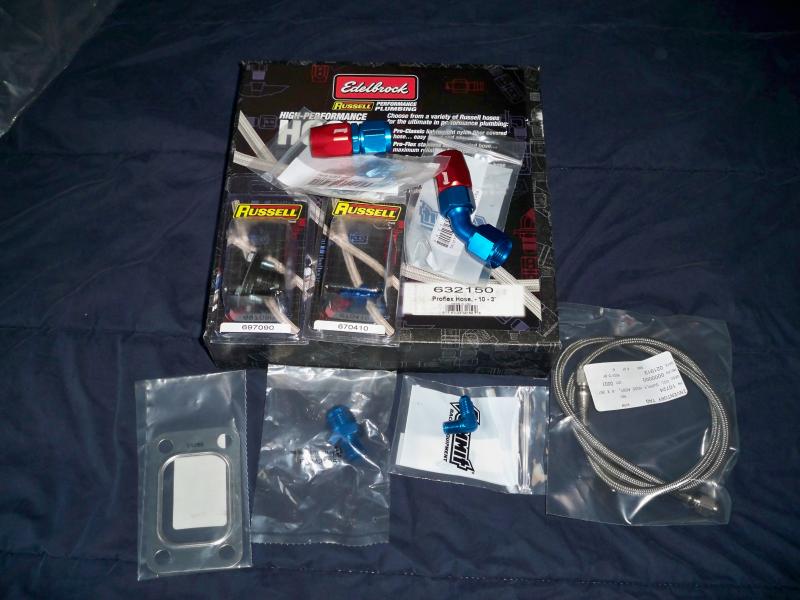

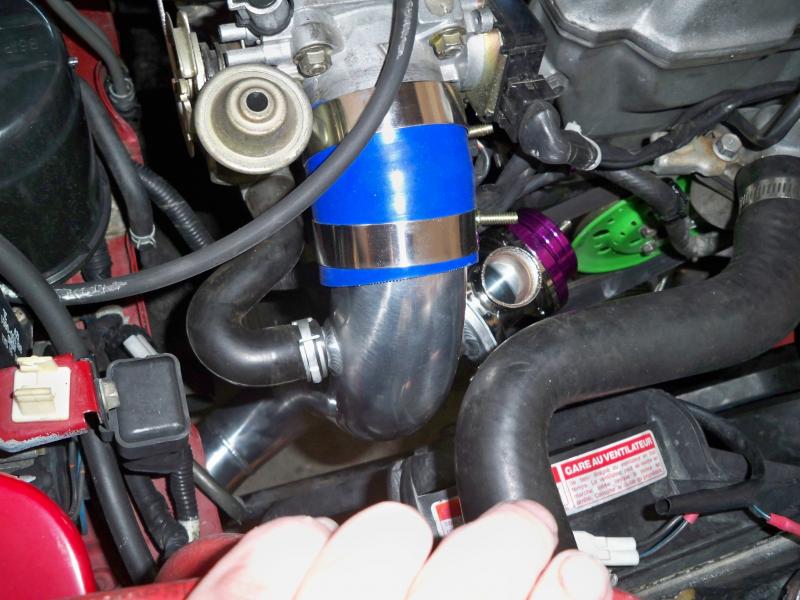

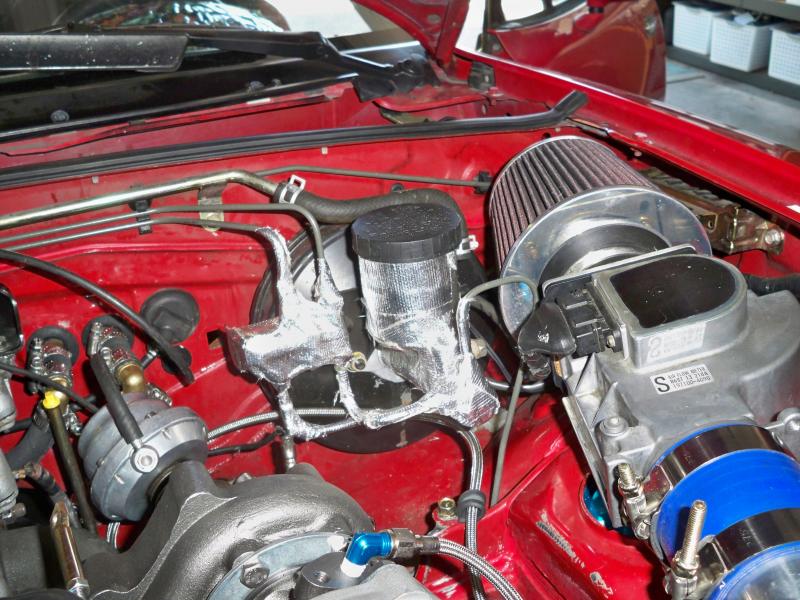

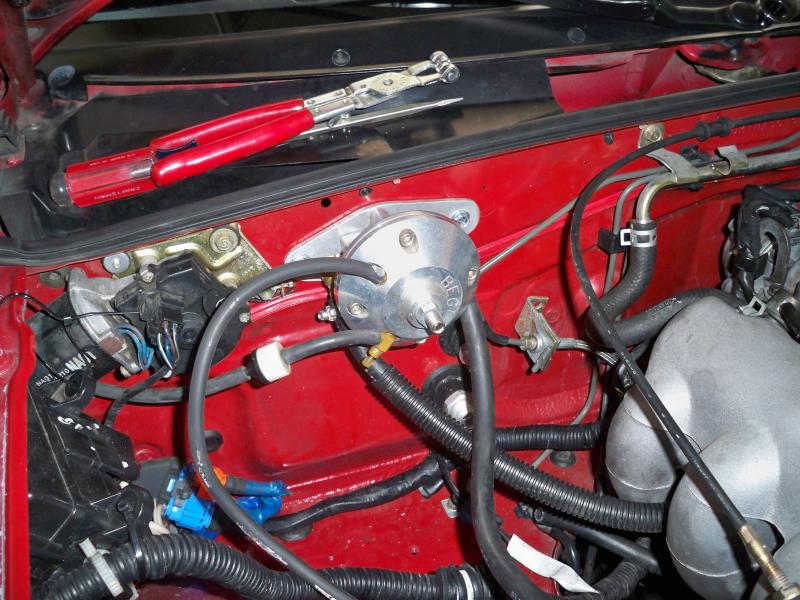

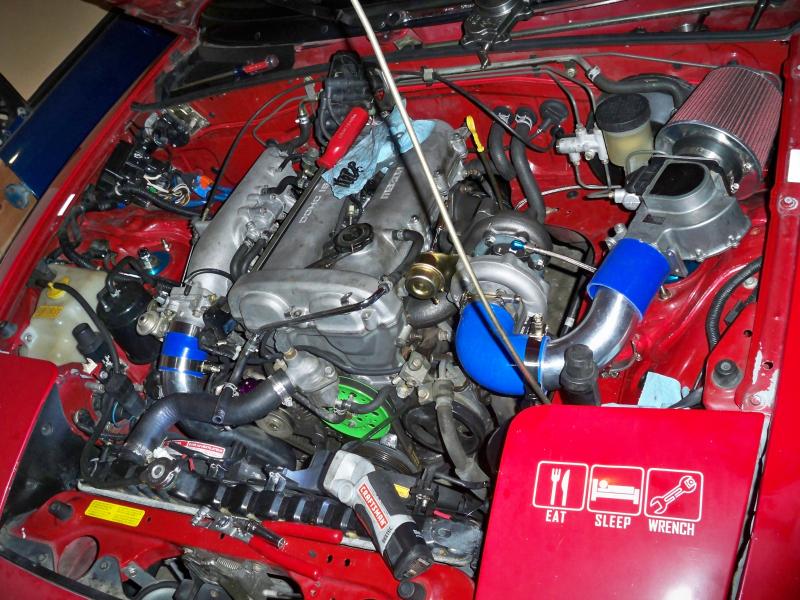

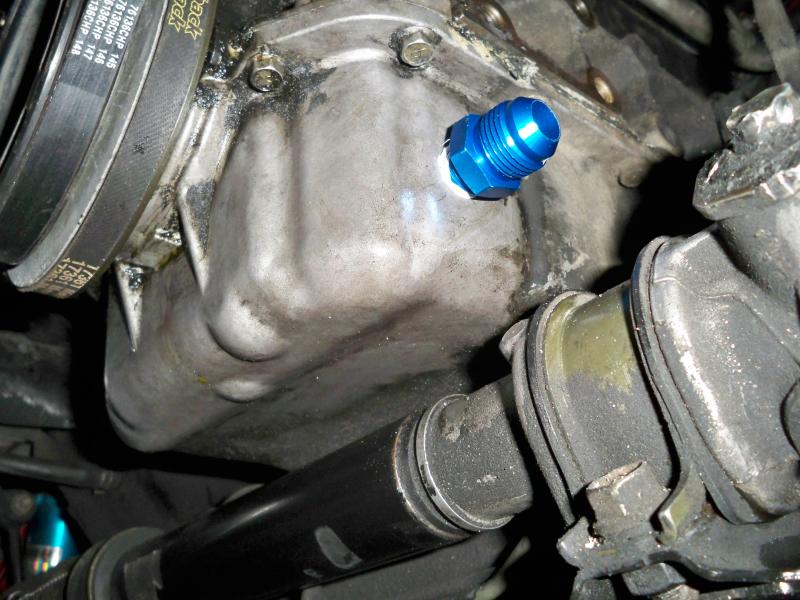

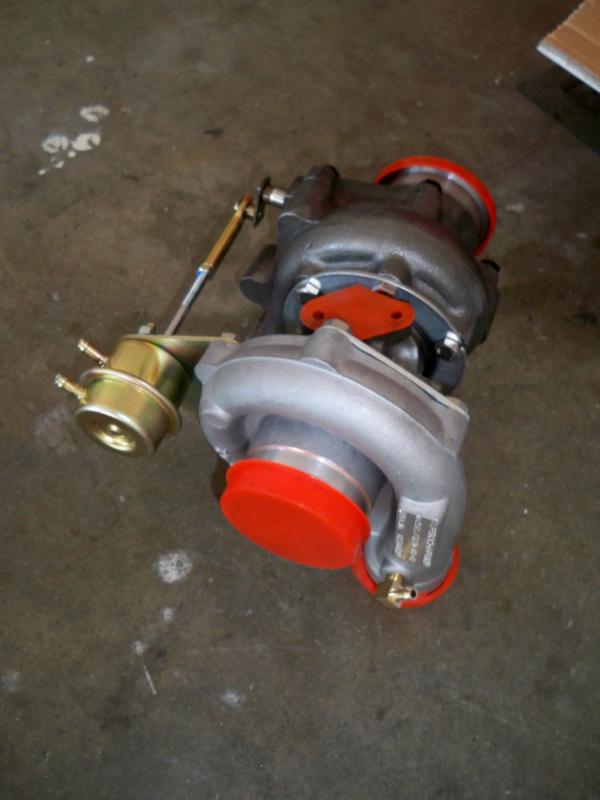

Now we're getting to the stuff you guys came here to see. I love my custom heater lines here. I went to a specialty automotive hose shop, told him I needed something that could survive a high heat environment and he sold me some (very expensive) push-loc hose and fiberglass heat sheild. This hose is really tough and hard to work with but it's very durable! I don't think these heater hoses will ever melt through in this location. I routed it a little differently to avoid the downpipe as best as possible.

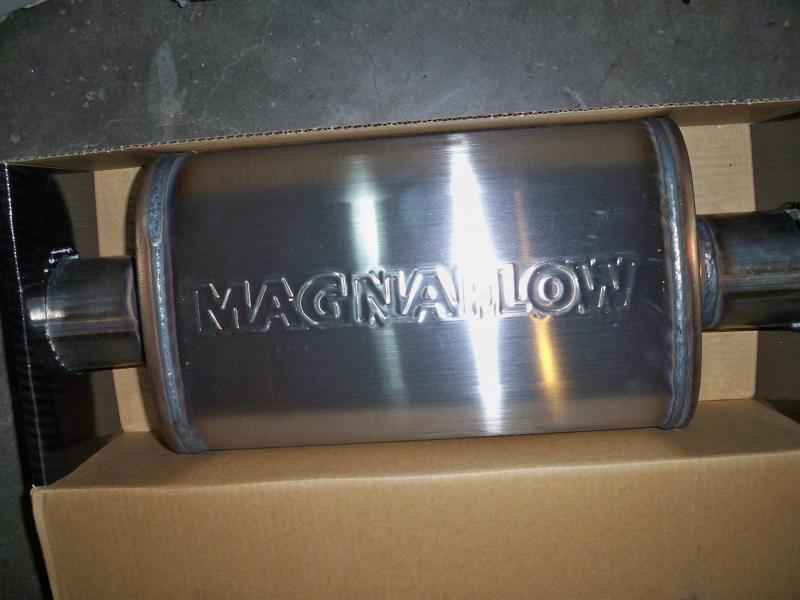

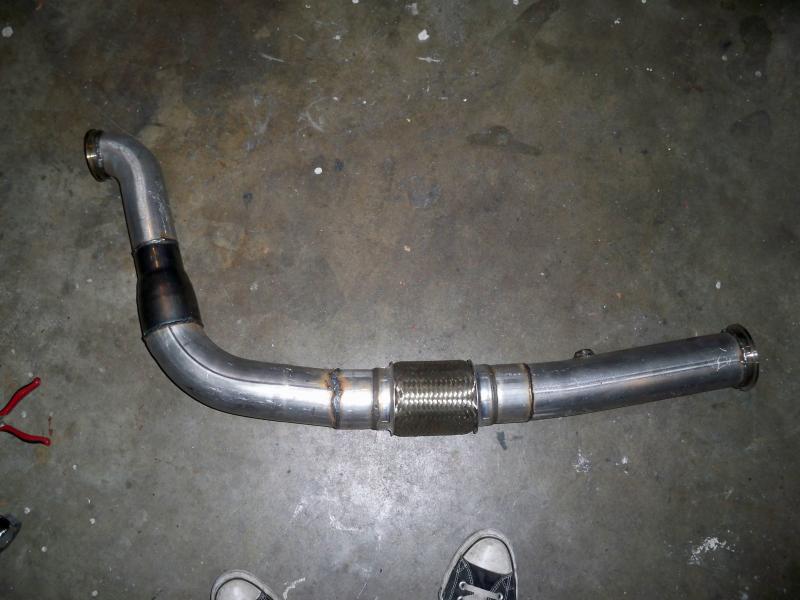

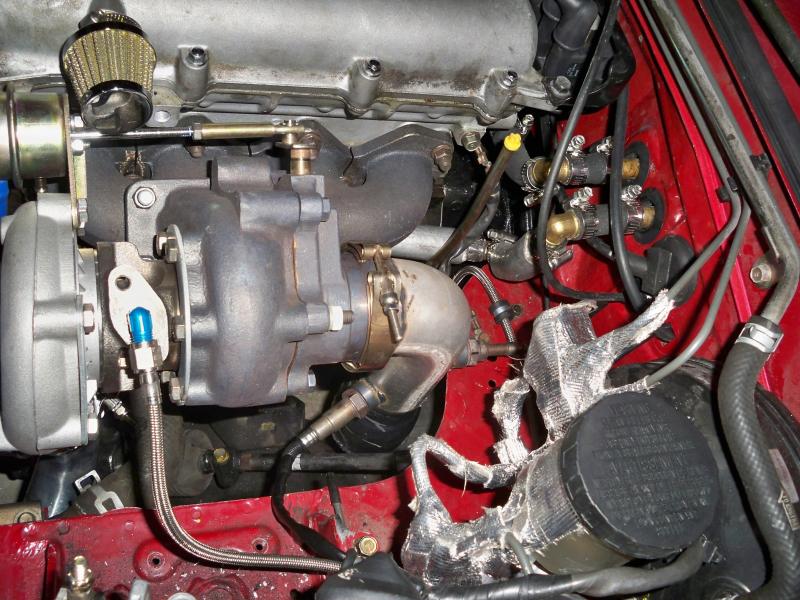

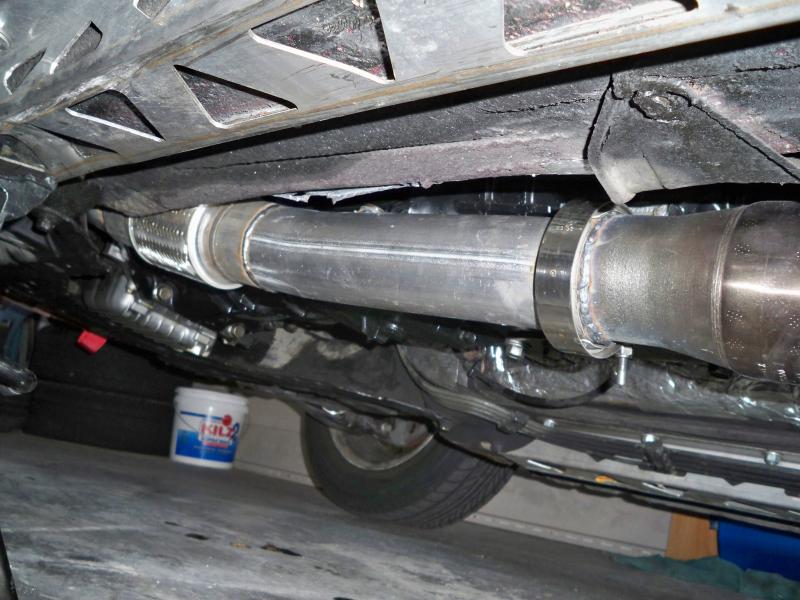

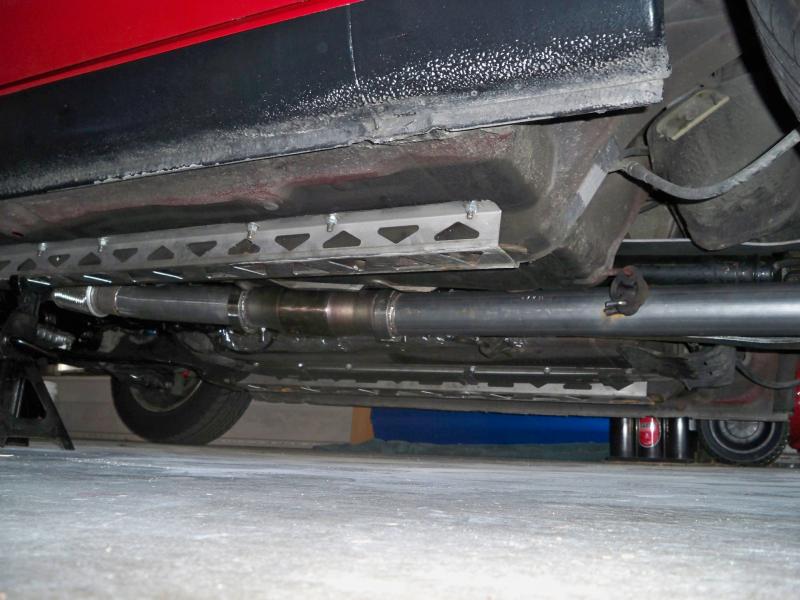

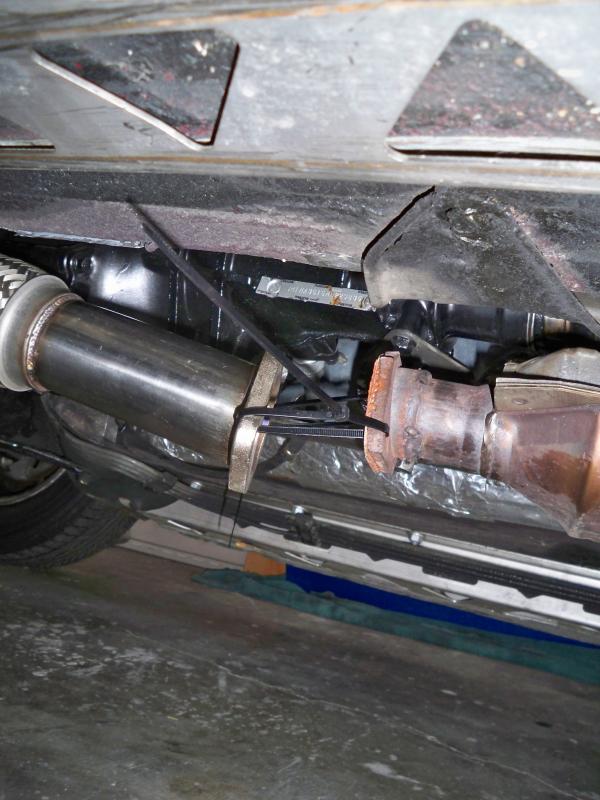

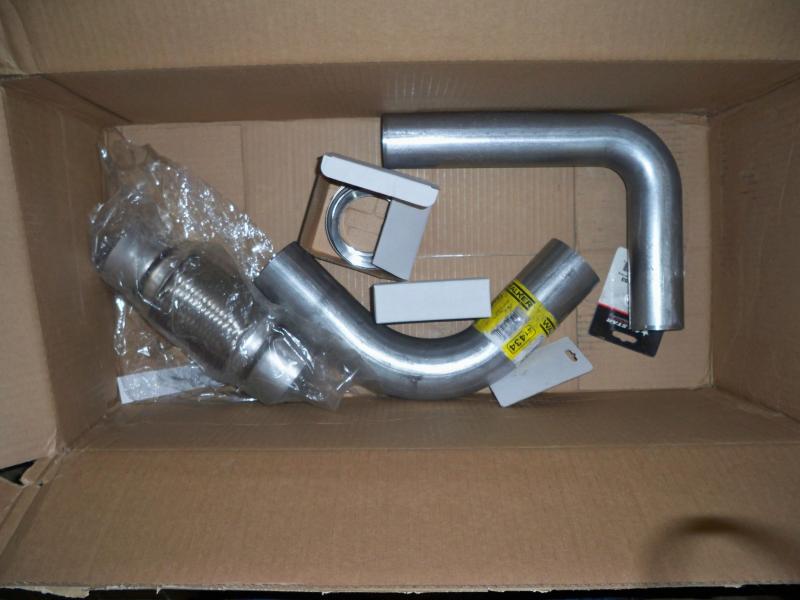

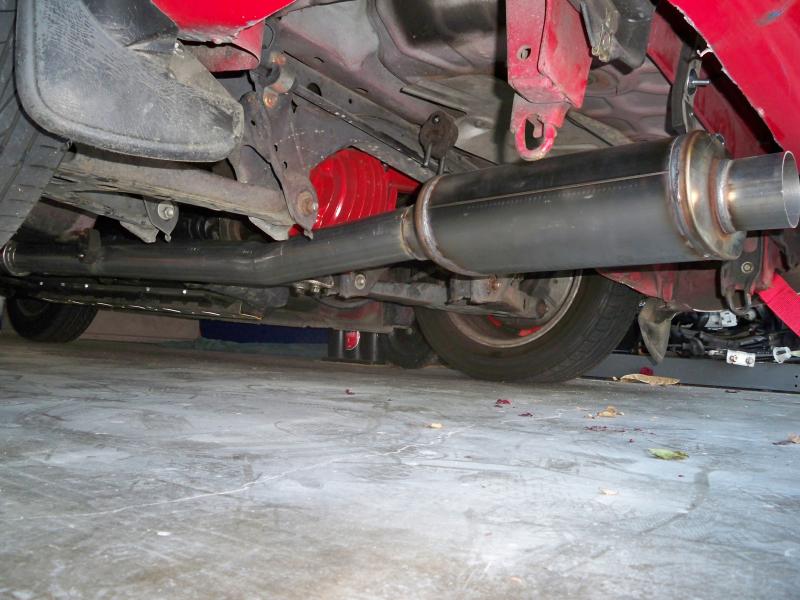

The new exhaust. It starts 2.5" right off the turbo and then transitions to 3" as soon as there's room for it. 3 total v bands, one at the turbo and one on either side of the high flow cat. I told my exhaust guy I wanted it as straight as possible and he definitely delivered!
Attached Thumbnails
The adventures of my drift miata-100_1376.jpg   The adventures of my drift miata-100_1391.jpg   The adventures of my drift miata-100_1397.jpg   The adventures of my drift miata-100_1398.jpg   The adventures of my drift miata-100_1400.jpg

The adventures of my drift miata-100_1399.jpg   The adventures of my drift miata-100_1403.jpg   The adventures of my drift miata-100_1388.jpg   The adventures of my drift miata-100_1389.jpg   The adventures of my drift miata-100_1412.jpg

The adventures of my drift miata-100_1407.jpg   The adventures of my drift miata-100_1409.jpg   The adventures of my drift miata-100_1410.jpg   The adventures of my drift miata-100_1414.jpg
6strngs is offline   Reply With Quote
Old 01-09-2014, 11:21 PM   #12
Junior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2013
Location: Livermore, CA
Posts: 138
Total Cats: -18
Default


There's a video of the first event with the turbo on and actually functioning properly. Naturally, as soon as I get this thing all back together I crash it again which you can see in the video, but more on that later. Side note, I still suck pretty good at this point but I'm at least getting better.

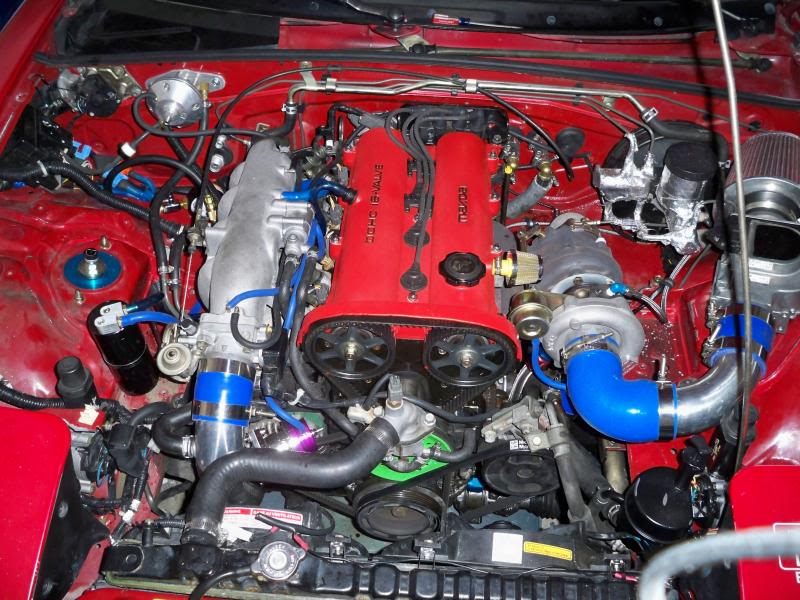

Name:  100_1415.jpg
Views: 327
Size:  103.8 KB

Finished. For the time being at least.

Name:  100_1419.jpg
Views: 324
Size:  81.7 KB

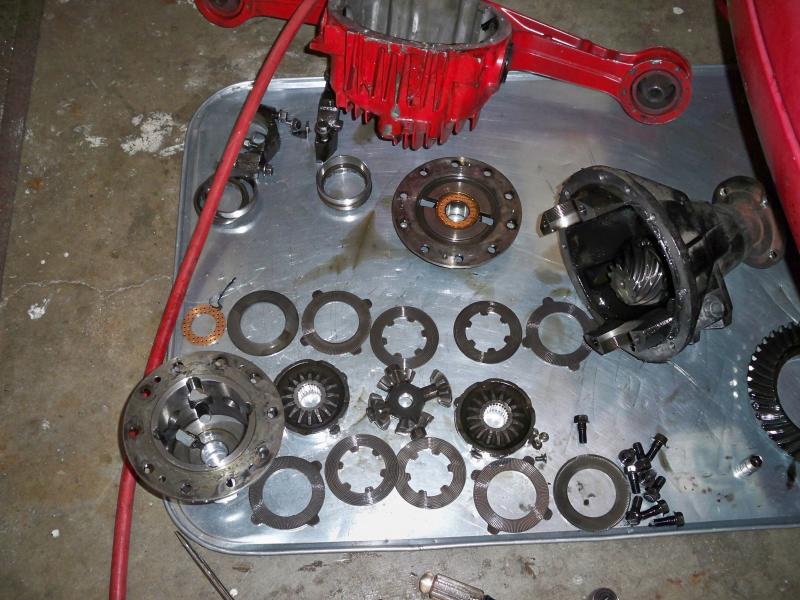

Took apart the diff to find that the clutch plates had been installed in the wrong order the last time someone had taken it apart. I measured all the discs in spec though so I ended up just putting it back together.

Name:  1040774_680413048652176_1369580815_o.jpg
Views: 330
Size:  87.5 KB
Name:  1025806_610934065584054_361524530_o.jpg
Views: 325
Size:  46.0 KB
Name:  792226_635969163087580_551925977_o.jpg
Views: 330
Size:  46.3 KB

Oh yeah, I crashed it again, but it didn't really stop me. Luckily all the damage done was in front of the suspension, though it did bend the frame a little.

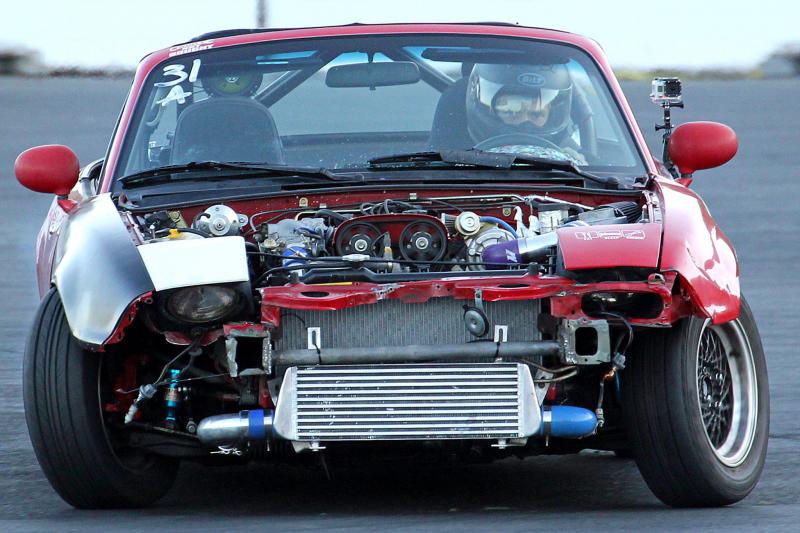

Name:  1399248_10201340745415455_120875552_o.jpg
Views: 328
Size:  71.9 KB

Here's a good shot that shows how I fixed it. I welded a thick steel pipe between the frame rails, cut away all offending damaged goods, and am using hood pins. I still want to add some more here but it was what I could come up with to make my car survive the rest of the season. It looks good enough with the body panels on it as shown below:

Name:  100_1481.jpg
Views: 327
Size:  53.6 KB

And that's about when this video takes place:

Attached Thumbnails
The adventures of my drift miata-100_1415.jpg   The adventures of my drift miata-100_1419.jpg   The adventures of my drift miata-1040774_680413048652176_1369580815_o.jpg   The adventures of my drift miata-1025806_610934065584054_361524530_o.jpg   The adventures of my drift miata-792226_635969163087580_551925977_o.jpg

The adventures of my drift miata-1399248_10201340745415455_120875552_o.jpg   The adventures of my drift miata-100_1481.jpg
6strngs is offline   Reply With Quote
Old 01-09-2014, 11:55 PM   #13
Junior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2013
Location: Livermore, CA
Posts: 138
Total Cats: -18
Default

Name:  1389324925.jpg
Views: 328
Size:  110.7 KB

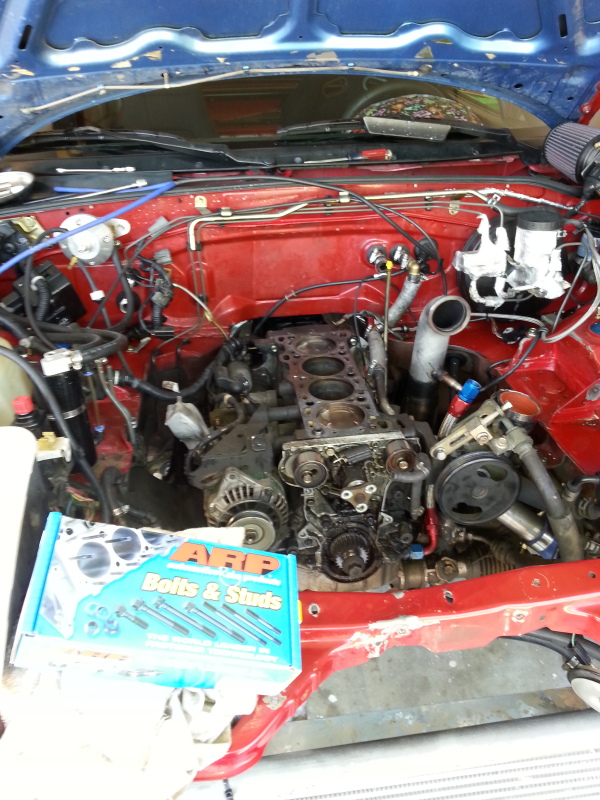

And this is where **** really breaks. I'm still not sure what happened, though I suspect a faulty wastegate actuator, but my car started boosting 15 PSI, making the car run really lean, well, the headgasket did not take long to pop under these conditions. I put in some ARP headstuds while I was in there. After re-assembling though it had a slight tick, I took it for valvetrain noise as apparently it's common for the lifters to tick a little after having the head off so I shrugged it off. That's about when this video takes place, as you can see, I'm finally starting to get the hang of this whole drifting thing.


Yeah, so if you watched you notice that my tick turns louder and louder until it's pretty severe rod knock, ending with a blown hole in the side of the engine block. Yay!

Name:  100_1513.jpg
Views: 326
Size:  82.1 KB

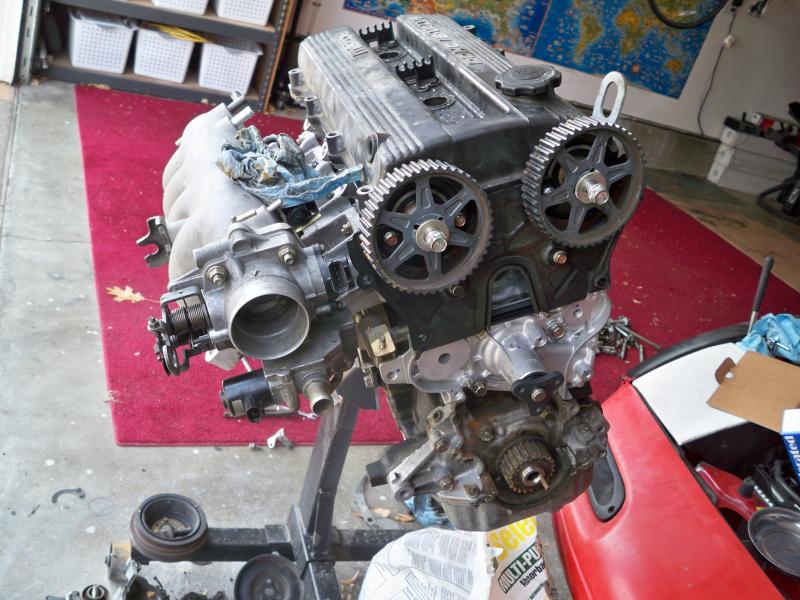

I found a 1.8 engine to replace it with though...


Name:  100_1514.jpg
Views: 323
Size:  68.2 KB

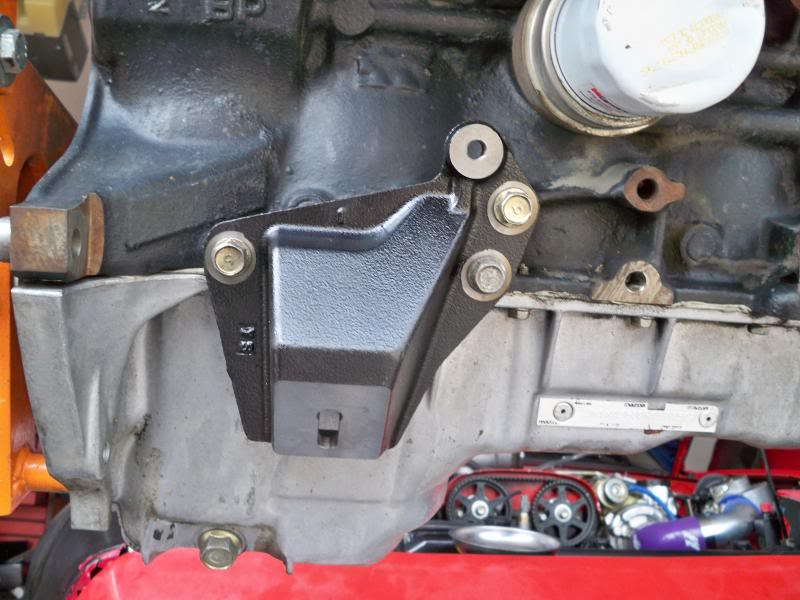

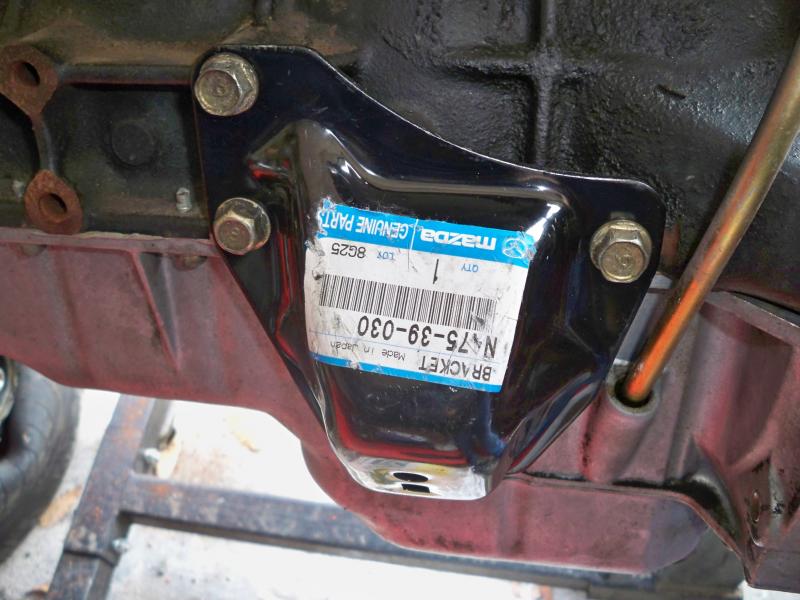

motor mount brackets that I got from a member on norcal roadsters

Name:  100_1517.jpg
Views: 327
Size:  89.4 KB
Name:  100_1511.jpg
Views: 328
Size:  82.6 KB

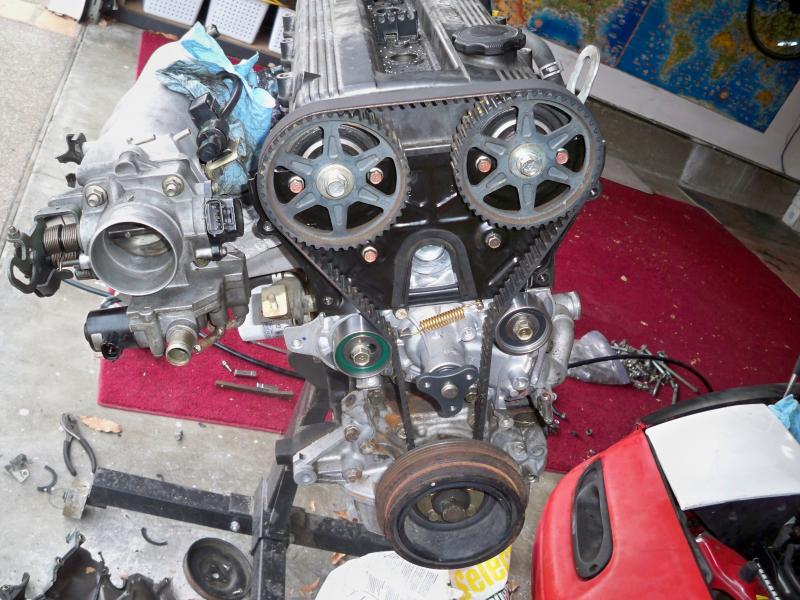

Name:  100_1518.jpg
Views: 325
Size:  89.0 KB

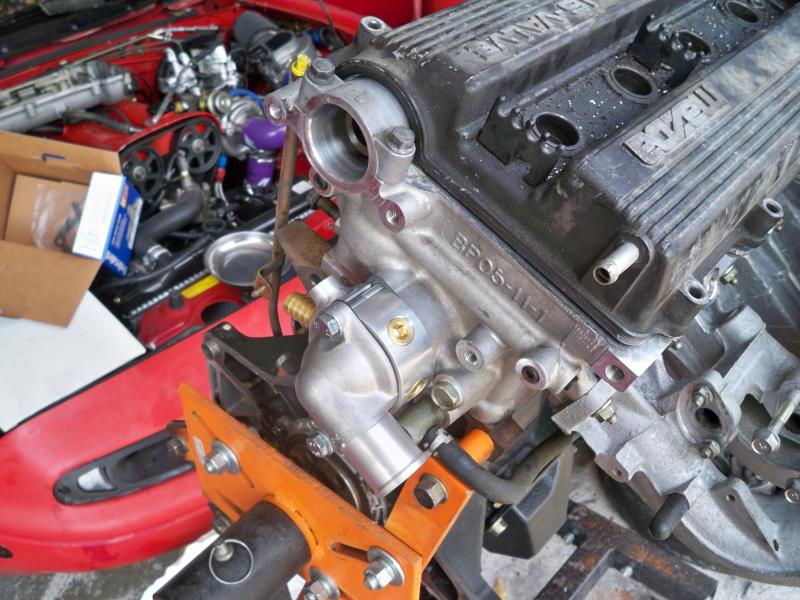

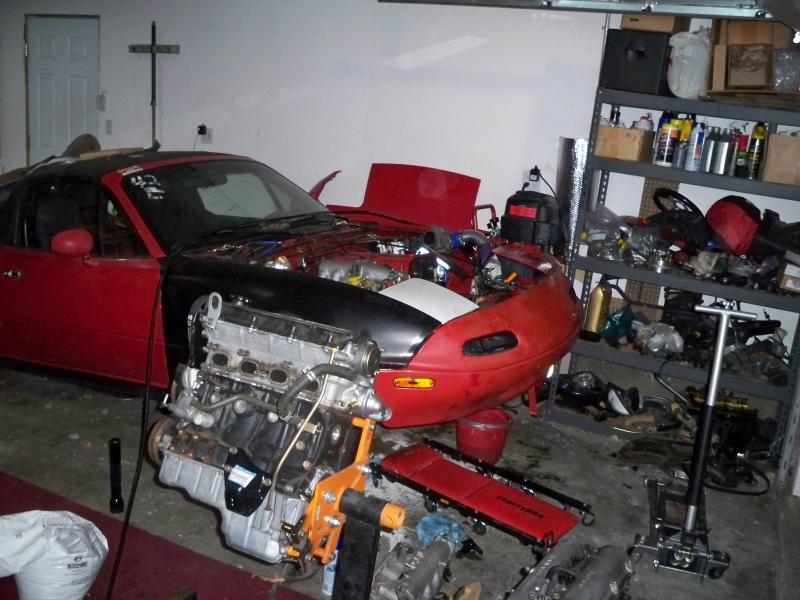

BEGI coolant re-route parts, also notice the protege valve cover I got from the junk yard, it'll be powdercoated shortle

Name:  100_1519.jpg
Views: 327
Size:  70.6 KB

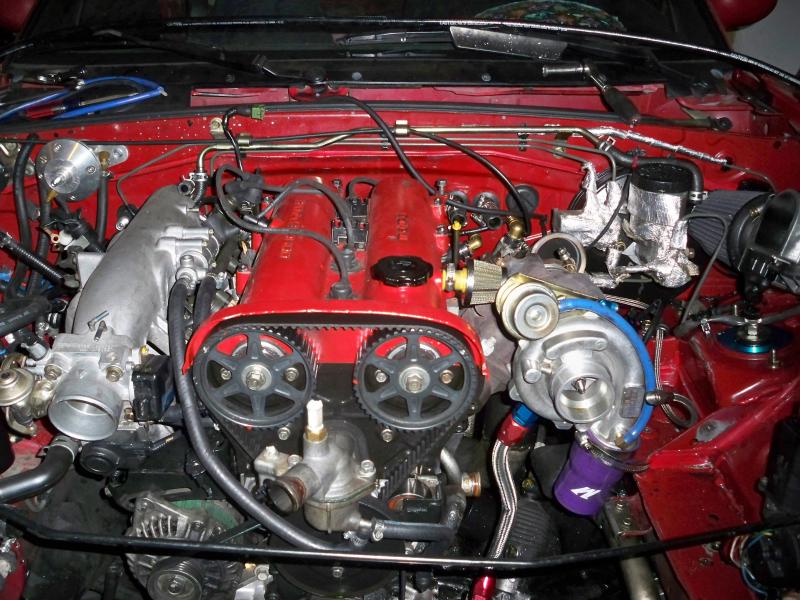

Name:  100_1522.jpg
Views: 326
Size:  98.3 KB
Name:  100_1530.jpg
Views: 326
Size:  67.6 KB
Name:  100_1531.jpg
Views: 331
Size:  84.0 KB
Name:  100_1532.jpg
Views: 327
Size:  66.5 KB

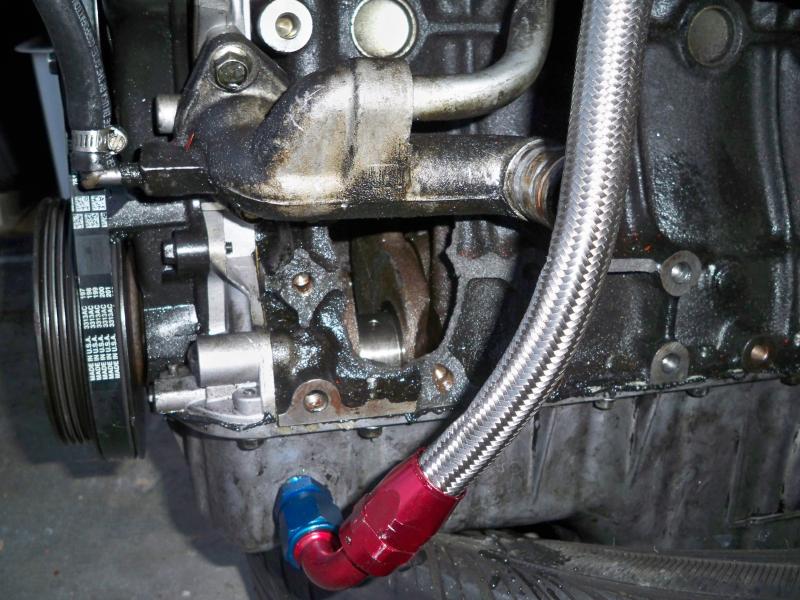

Name:  100_1533.jpg
Views: 325
Size:  84.6 KB

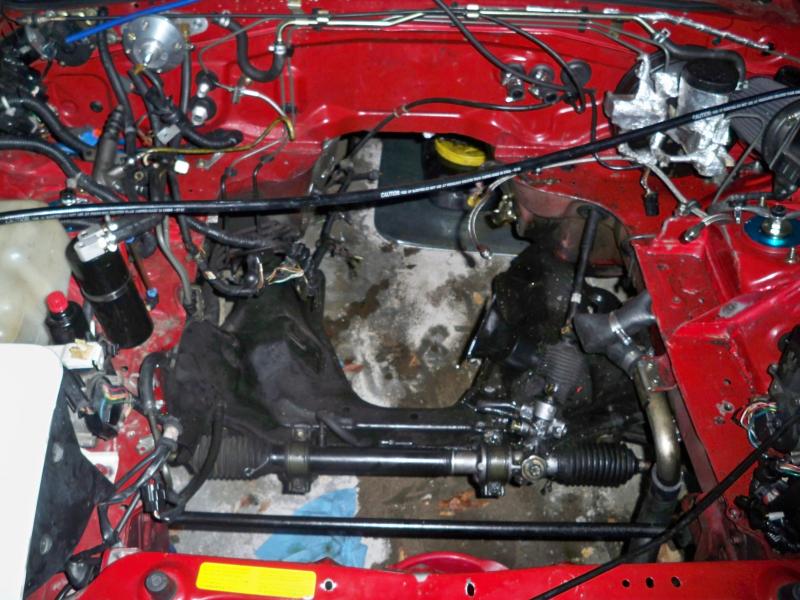

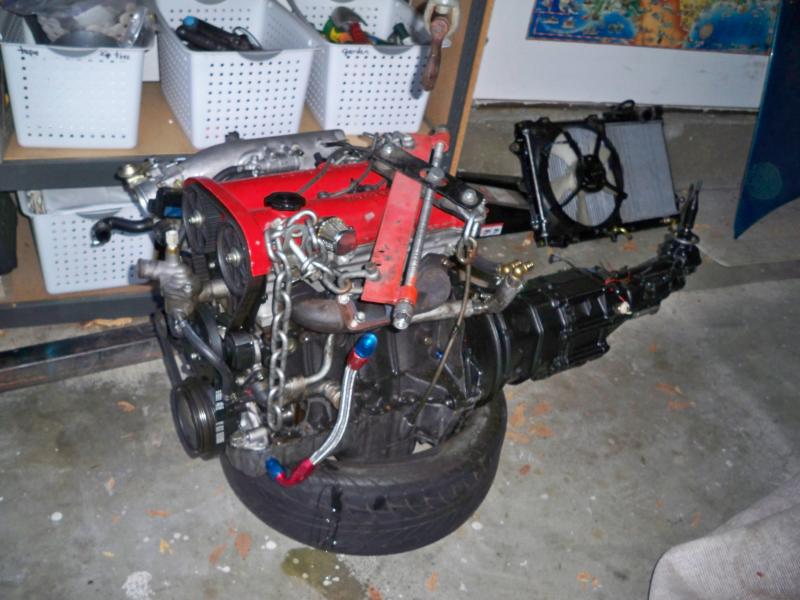

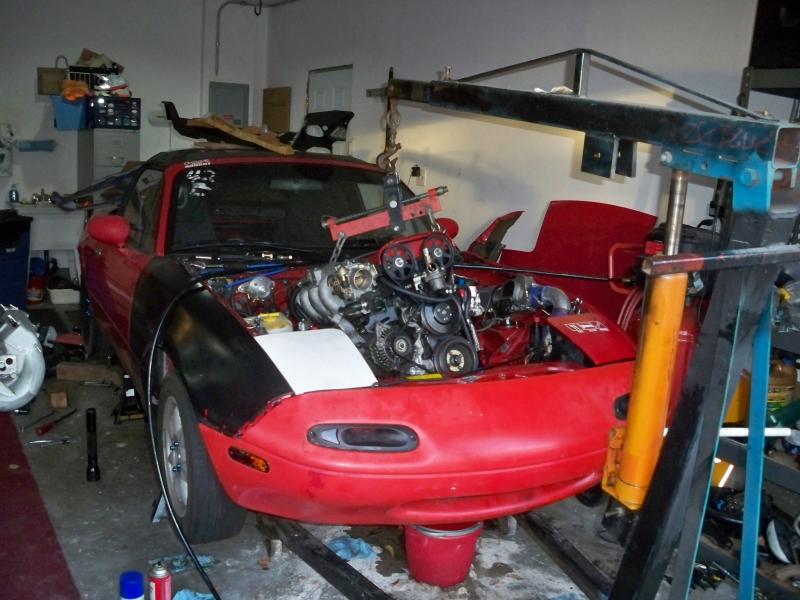

And under the knife she goes. And that's where my project stands I just got the engine out today. Now you're all caught up and I can update from here. I'm hoping tomorrow to get the engine bay all pressure washed and sparkly clean and then I need to pull the rack and pinion and depower it.
Attached Thumbnails
The adventures of my drift miata-1389324925.jpg   The adventures of my drift miata-100_1513.jpg   The adventures of my drift miata-100_1516.jpg   The adventures of my drift miata-100_1514.jpg   The adventures of my drift miata-100_1517.jpg

The adventures of my drift miata-100_1511.jpg   The adventures of my drift miata-100_1518.jpg   The adventures of my drift miata-100_1519.jpg   The adventures of my drift miata-100_1522.jpg   The adventures of my drift miata-100_1530.jpg

The adventures of my drift miata-100_1531.jpg   The adventures of my drift miata-100_1532.jpg   The adventures of my drift miata-100_1533.jpg
6strngs is offline   Reply With Quote
Old 01-10-2014, 12:08 AM   #14
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Needs more mismatching panels man. Not to nissan 240 territory yet.
triple88a is offline   Reply With Quote
Old 01-10-2014, 01:00 AM   #15
Junior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2013
Location: Livermore, CA
Posts: 138
Total Cats: -18
Default

Quote:
Originally Posted by triple88a View Post
Needs more mismatching panels man. Not to nissan 240 territory yet.
I'm a little more worried about getting the swap done and getting it running, but it will likely be getting vinyl wrapped by my friend who is just starting his powdercoating/hydro-dipping/vinyl wrapping business and needs some rolling advertisement. Kinda like my first sponsor I guess
6strngs is offline   Reply With Quote
Old 01-10-2014, 01:45 AM   #16
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,702
Total Cats: 237
Default

A+ drift thread, car is already a total POS after only a few drift events.

LOL, seriously though I dont care. glad you did it with a salvage title car anyways.

You know your hotparts won't fit on the new motor, right?
Fireindc is offline   Reply With Quote
Old 01-10-2014, 02:43 AM   #17
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

I gotta say man, it sure seems like you put some serious time/ know how into your car. Why drift? You could have so much more. You could have what I have, a turbo NB (rhymes with pure envy). Someday I'll post a build thread, maybe, and everyone will either:
A) ********** instantaneously.
2) bow down and say, "we're not worthy".
d) ask me how I achieved such amazingness.

If you want to learn more, PM me...I'm no guidance counselor, but maybe I can help you overcome your problem.
thirdgen is offline   Reply With Quote
Old 01-10-2014, 04:25 AM   #18
Junior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2013
Location: Livermore, CA
Posts: 138
Total Cats: -18
Default

Quote:
Originally Posted by Fireindc View Post
A+ drift thread, car is already a total POS after only a few drift events.

LOL, seriously though I dont care. glad you did it with a salvage title car anyways.

You know your hotparts won't fit on the new motor, right?
Yup, custom ARtech manifold shipped yesterday.

I know it's a total POS, but crashing is just a part of the sport with drifting and honestly, my car doesn't look as bad as some cars that come out to the drifts. After I crashed it I strongly considered retiring it, but eventually decided to rebuild. Then after the engine blew I really did decide to get rid of it but yet again, I decided I could just slap in a new motor (along with over a thousand dollars worth of other parts...) and be back on the road. I have decided though that one more wall tap with this chassis and it's toast. Though there's more than one local guy who buys up cheap miata's to part out that I could probably get a shell from for cheap...

Also, I showed pics and videos from about 4 or 5 different events but really attended closer to 15 or so. I didn't have a go pro until later on.

Quote:
I gotta say man, it sure seems like you put some serious time/ know how into your car. Why drift? You could have so much more. You could have what I have, a turbo NB (rhymes with pure envy). Someday I'll post a build thread, maybe, and everyone will either:
A) ********** instantaneously.
2) bow down and say, "we're not worthy".
d) ask me how I achieved such amazingness.

If you want to learn more, PM me...I'm no guidance counselor, but maybe I can help you overcome your problem.
I used to think drifting was stupid too, I actually bought my miata with the intention to make it a daily/autocross/aggressive mountain road car, but after spectating at a drift event and getting some ride-alongs I was hooked. It's so much fun!
6strngs is offline   Reply With Quote
Old 01-10-2014, 10:47 AM   #19
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Quote:
Originally Posted by 6strngs View Post
Redemption shot ^^^


Quote:
Originally Posted by drifty mcdrifterson
Attached Thumbnails
The adventures of my drift miata-100_1415.jpg   The adventures of my drift miata-1040774_680413048652176_1369580815_o.jpg   The adventures of my drift miata-freddie-so-close.png
y8s is offline   Reply With Quote
Old 01-10-2014, 11:01 AM   #20
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

If you were really smart, you would save yourself thousands of dollars in the future if you stopped replacing broken rear finish panels.

It was an interesting mix of decent parts and **** parts. Nobody is surprised that you blew up the 1.6 with the FMU, get a damn megasquirt, you clearly have the money if you're buying Artech parts.
thenuge26 is offline   Reply With Quote


Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
1994 Spec Miata Race Car SM/SM2/SSM For Sale Quinn Cars for sale/trade 6 10-23-2016 08:58 AM
Need help - Stock Balancer and Fastforward overlay pulleys Frank_and_Beans Supercharger Discussion 13 09-12-2016 09:17 PM
LucaCarMods's Boosted Dutch Miata Build! LucaCarMods Build Threads 11 02-14-2016 07:13 AM
WTB HPDE miata - Texas Voltwings Cars for sale/trade 0 09-27-2015 07:40 PM


Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off



All times are GMT -4. The time now is 03:13 PM.
