Bird's NA Turbo Track Build - Page 2 - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



Build Threads Building a motor? Post the progress here.

Reply



LinkBack Thread Tools Search this Thread
Old 02-28-2012, 05:03 PM   #21
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 260
Default

I would definitely reuse the rods but at that point it would be "sell block whole vs. part out block minus rods".
soviet is offline   Reply With Quote
Old 02-28-2012, 07:47 PM   #22
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Location: Los Angeles
Posts: 65
Total Cats: 1
Default

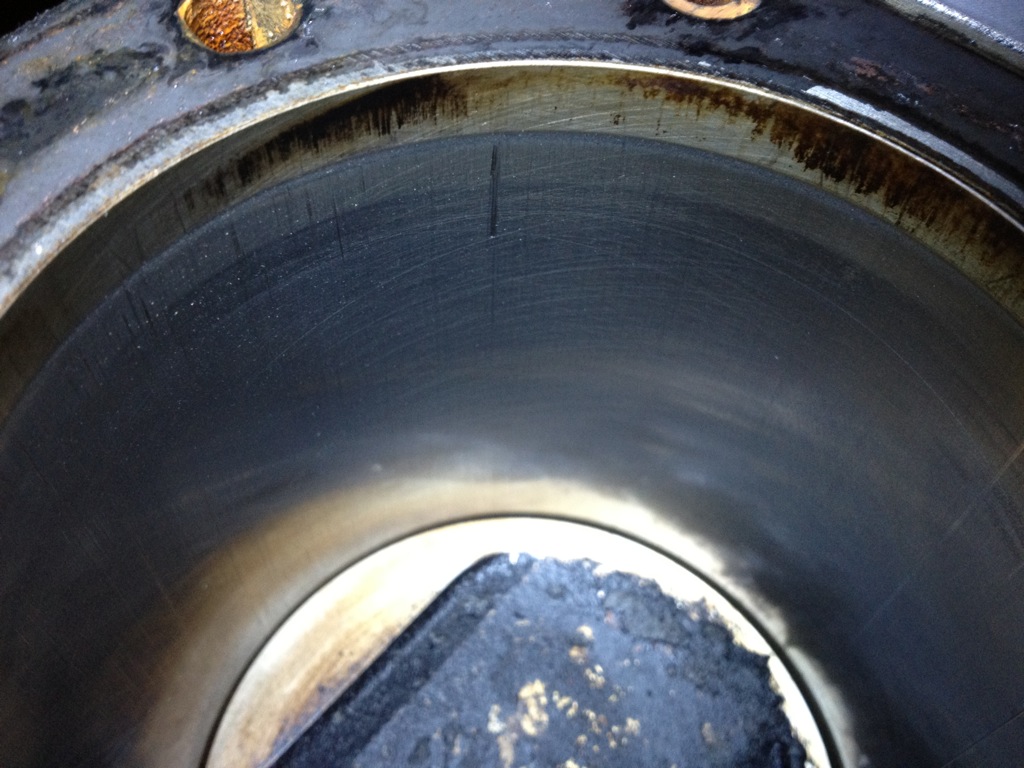

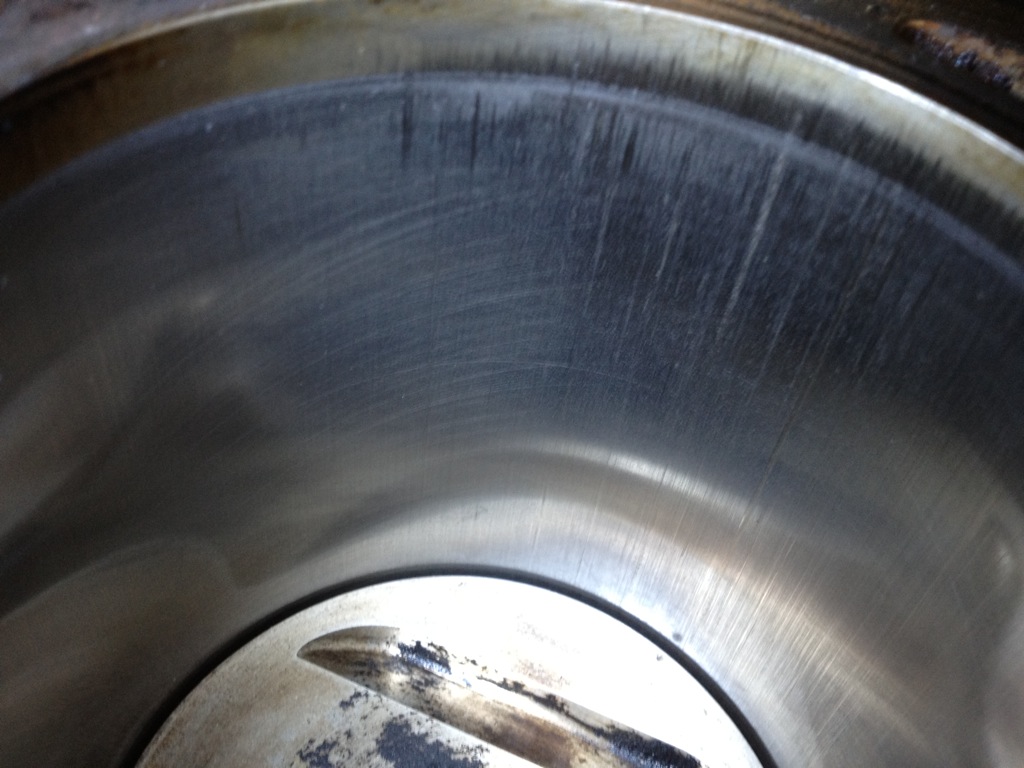

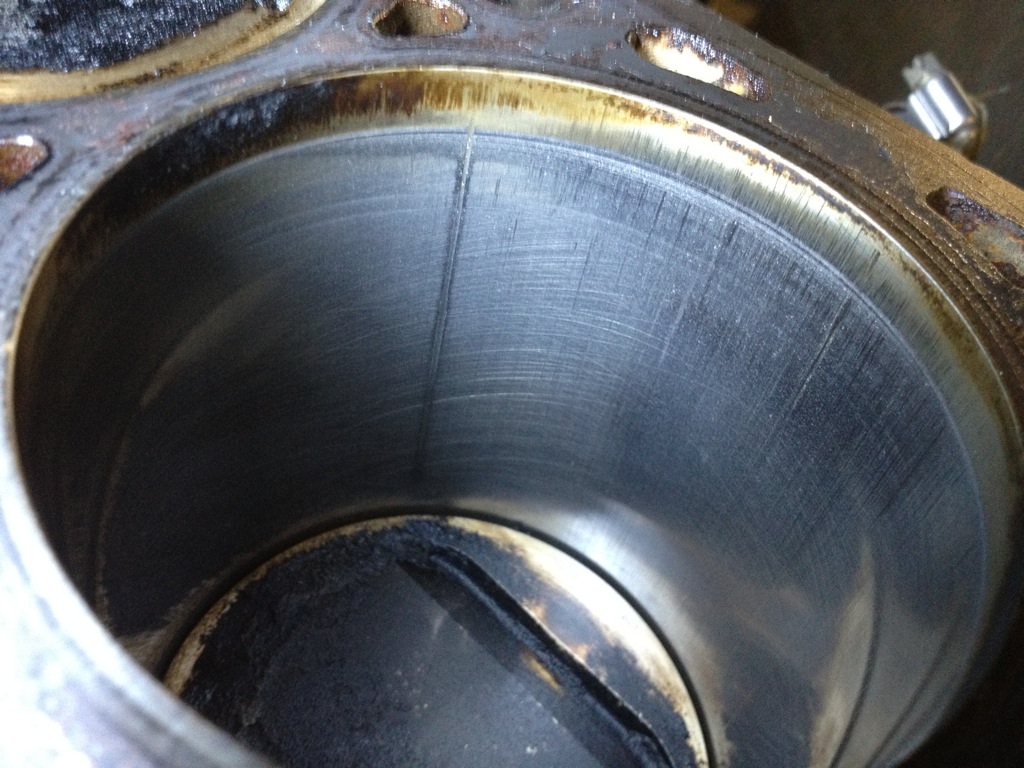

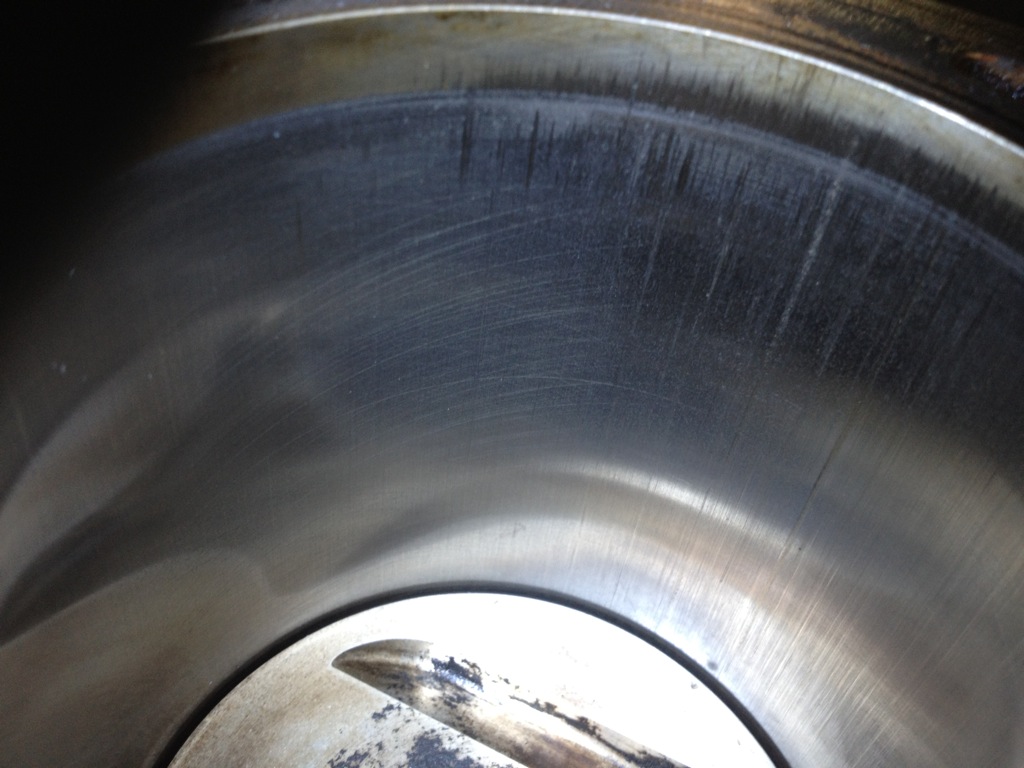

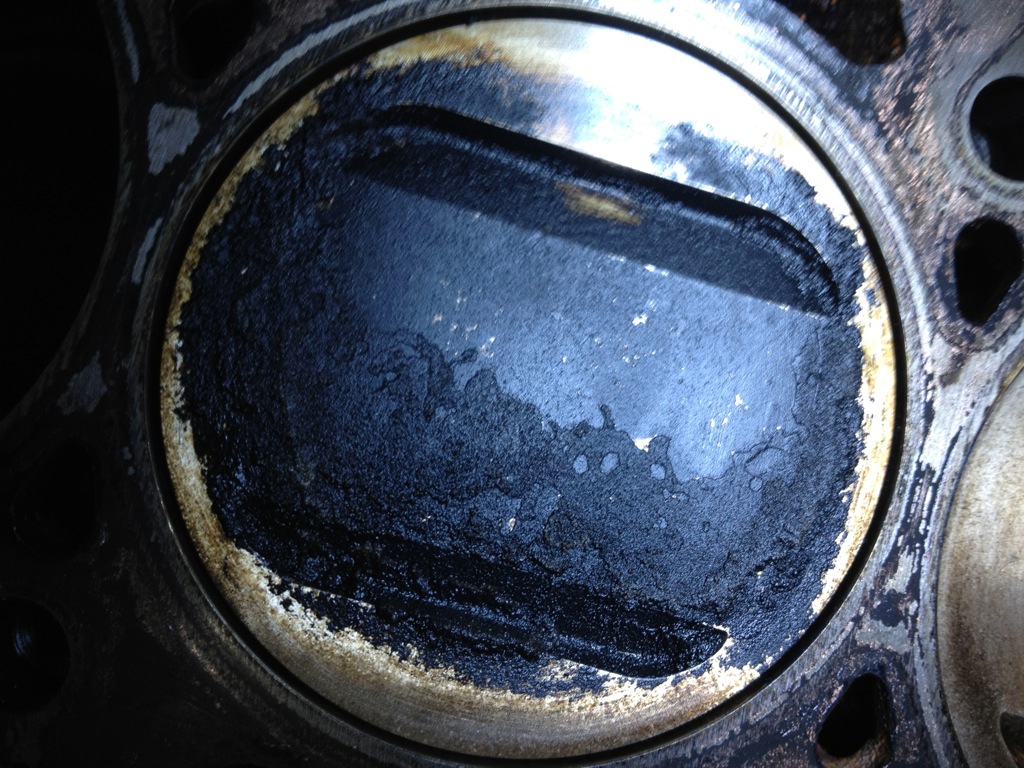

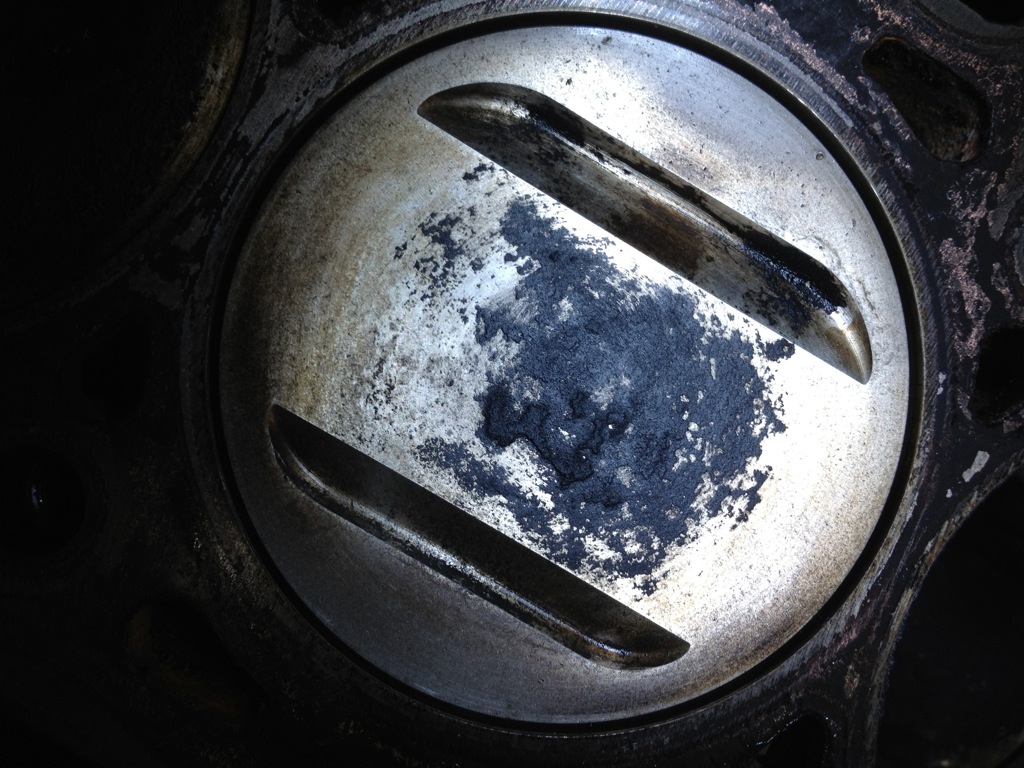

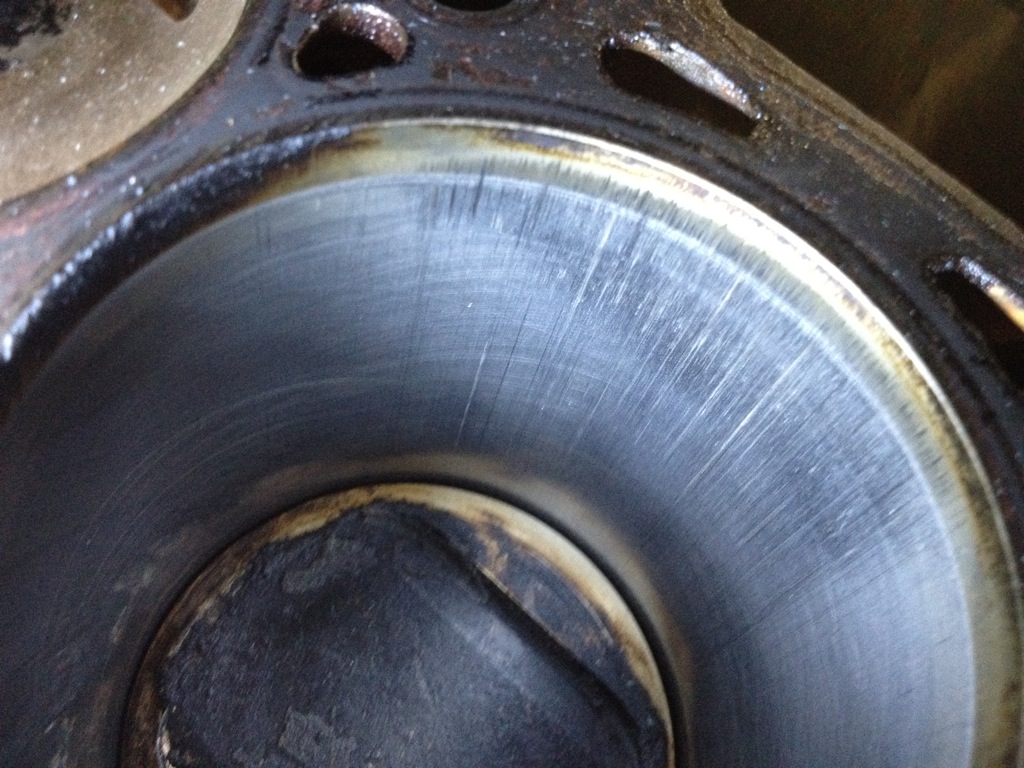

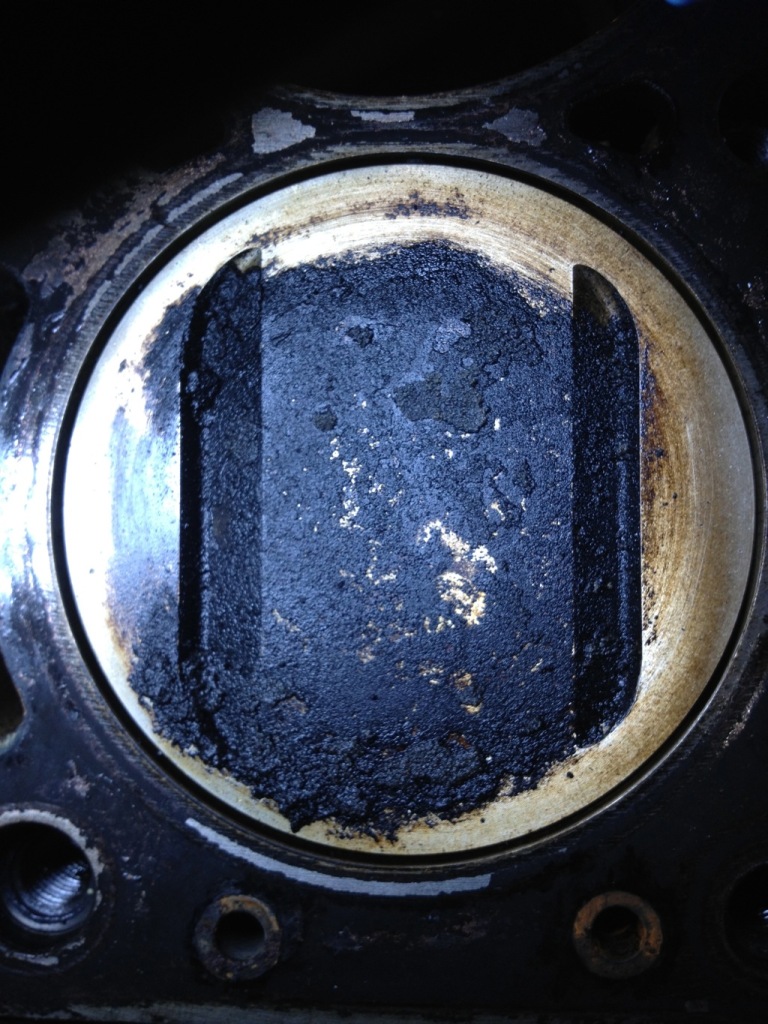

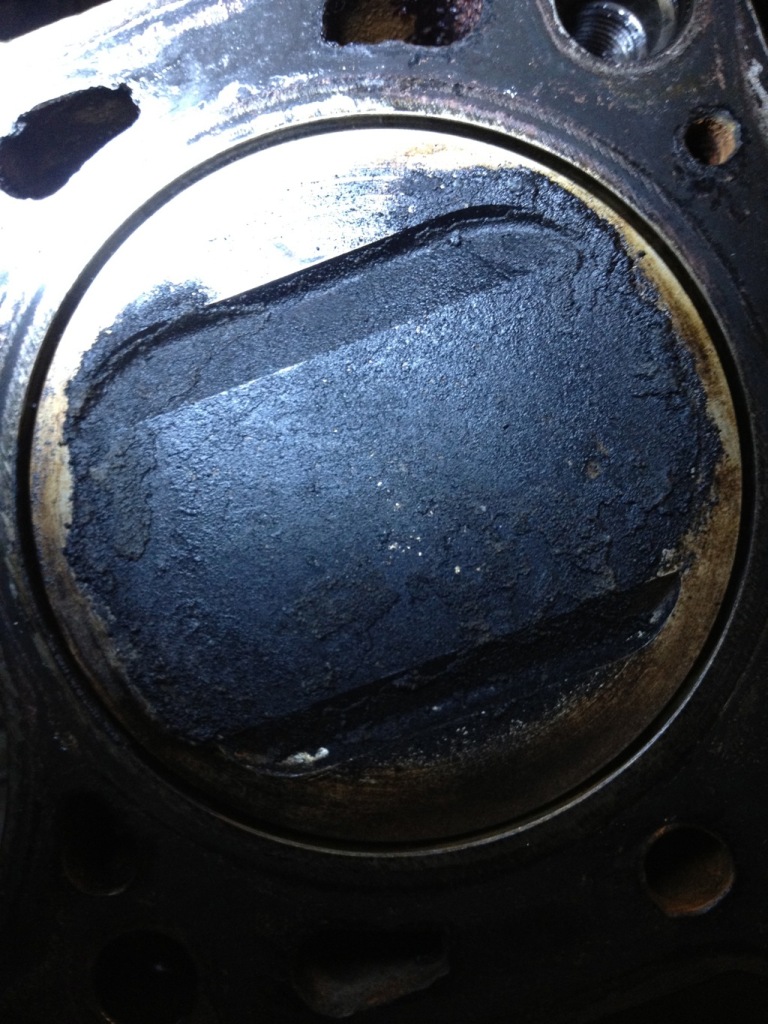

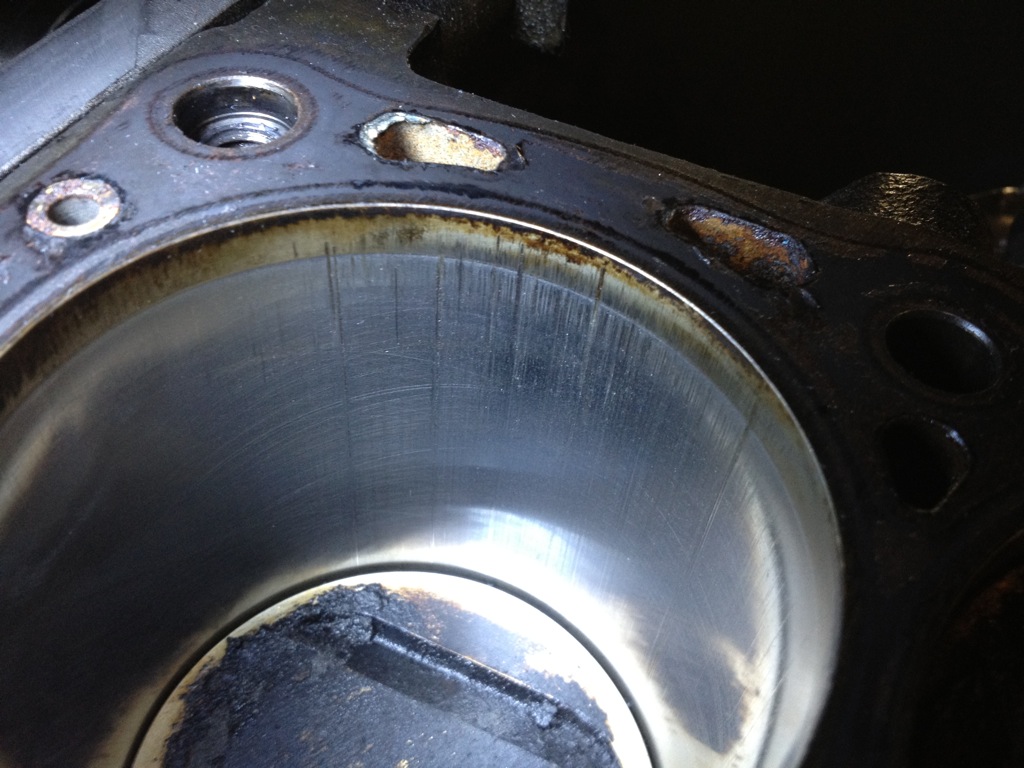

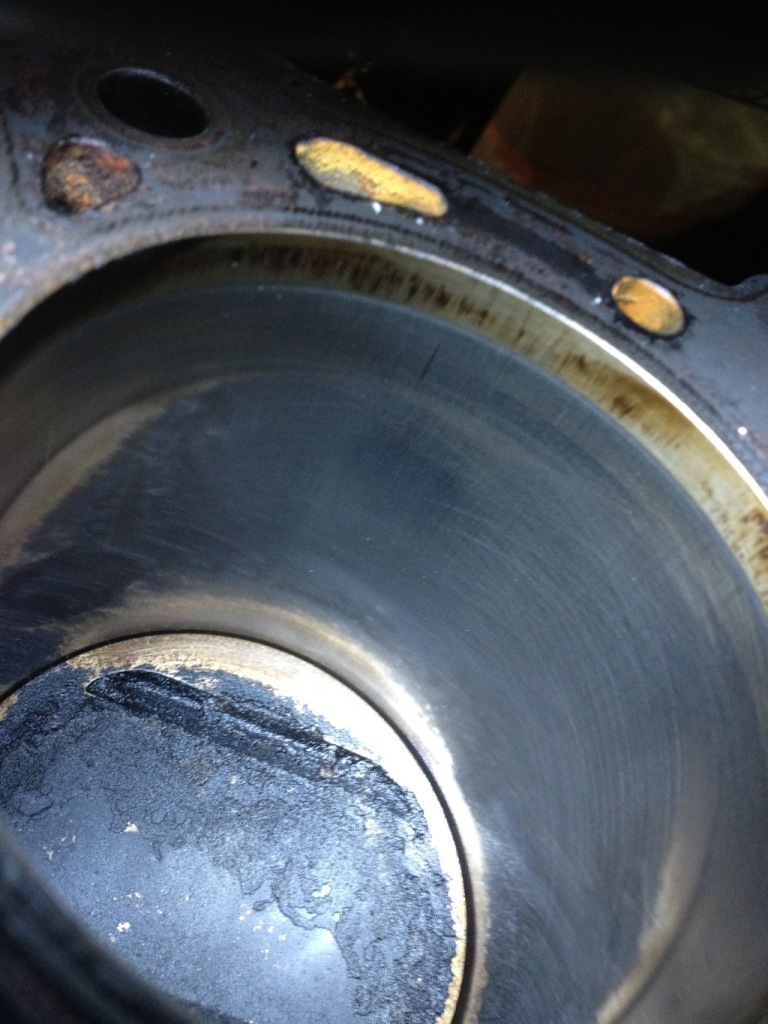

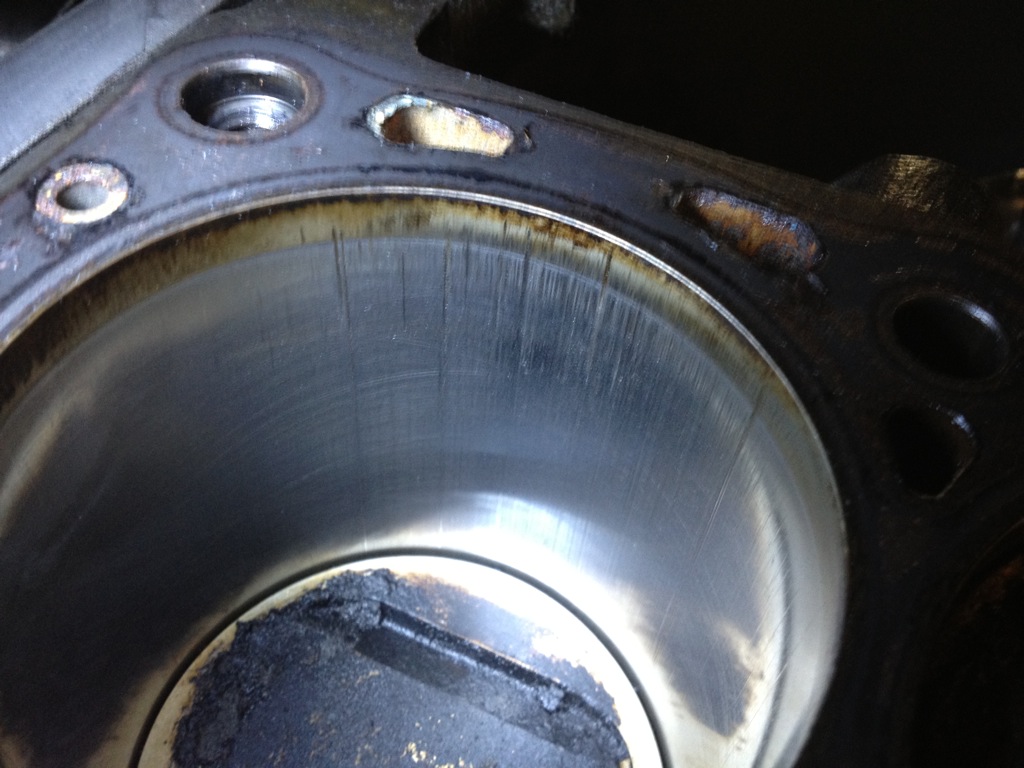

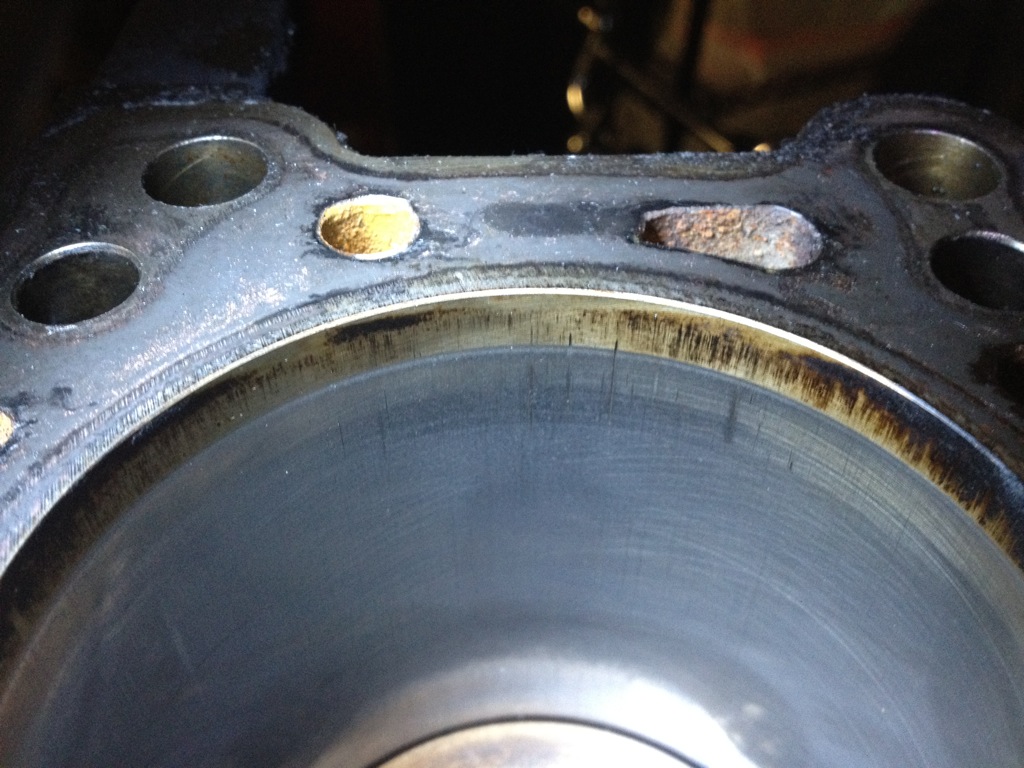

So here's some more pics of the built engine. I'll get photos of the other motor once I tear into it. Cylinder 2 has the worst score mark, one single one running the length of the cylinder that you can catch a nail on. All the others are pretty smooth to the touch. Looks like there is one big nick on piston #3, and a few small ones. It was the cleanest of the pistons and I cleaned it up a little more with an oily rag to show the nick.

There's also a few more pics on my album:
http://s165.photobucket.com/albums/u... Build Thread/

Cylinder #1





Cylinder #2





Cylinder #3






Cylinder #4


Attached Thumbnails
Bird's NA Turbo Track Build-cyl1a.jpg   Bird's NA Turbo Track Build-cyl1b.jpg   Bird's NA Turbo Track Build-piston1.jpg   Bird's NA Turbo Track Build-cyl2b.jpg   Bird's NA Turbo Track Build-piston2.jpg

Bird's NA Turbo Track Build-cyl3b.jpg   Bird's NA Turbo Track Build-piston3.jpg   Bird's NA Turbo Track Build-cyl4b.jpg   Bird's NA Turbo Track Build-piston4.jpg   Bird's NA Turbo Track Build-cyl2a.jpg

Bird's NA Turbo Track Build-cyl3a.jpg   Bird's NA Turbo Track Build-piston3a.jpg   Bird's NA Turbo Track Build-cyl4a.jpg   Bird's NA Turbo Track Build-cyl1c.jpg
TheBirdmanJD is offline   Reply With Quote
Old 02-29-2012, 09:38 AM   #23
I'm Miserable!

Join Date: Dec 2011
Posts: 346
Total Cats: -223
Default

You bitch! I was trying to buy this engine.
Boost Joose is offline   Reply With Quote
Old 02-29-2012, 01:25 PM   #24
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Location: Los Angeles
Posts: 65
Total Cats: 1
Default

Sorry. Be happy I saved you from it.


Bird
TheBirdmanJD is offline   Reply With Quote
Old 02-29-2012, 01:49 PM   #25
I'm Miserable!

Join Date: Dec 2011
Posts: 346
Total Cats: -223
Default

Haha it's cool, is it really that bad? I know you got a deal on it . I'll still take it if you wanna sell it.
Boost Joose is offline   Reply With Quote
Old 02-29-2012, 02:16 PM   #26
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Location: Los Angeles
Posts: 65
Total Cats: 1
Default

It's not too bad. Just that hole in the exhaust valve. I may sell the head, or just part the whole thing, or keep it...I haven't really decided yet.

If there's something specific you want, PM me an offer, I'd consider it.


Bird
TheBirdmanJD is offline   Reply With Quote
Old 02-29-2012, 02:27 PM   #27
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,372
Total Cats: 1,332
Default

That bottom end is hosed. I see det damage on all 4 pistons.

Why in the hell is there a single billet main cap?
Savington is online now   Reply With Quote
Old 02-29-2012, 02:32 PM   #28
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Location: Los Angeles
Posts: 65
Total Cats: 1
Default

Quote:
Originally Posted by Savington View Post
That bottom end is hosed. I see det damage on all 4 pistons.

Why in the hell is there a single billet main cap?
Thanks for chiming in.

So what exactly does the det damage look like? Not sure what I'm looking for.

Any opinions on if it's worth repairing the head? Would you consider anything from this motor salvageable?

And Center cap was FM's thing ten years ago I guess...


Bird
TheBirdmanJD is offline   Reply With Quote
Old 02-29-2012, 04:00 PM   #29
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Location: Los Angeles
Posts: 65
Total Cats: 1
Default

Ok...so I googled it and found a few decent pics of mild det, then got led back here:

https://www.miataturbo.net/engine-performance-56/built-motors-detonation-42072/

I guess I was looking for more catastrophic damage...
TheBirdmanJD is offline   Reply With Quote
Old 02-29-2012, 04:07 PM   #30
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,372
Total Cats: 1,332
Default

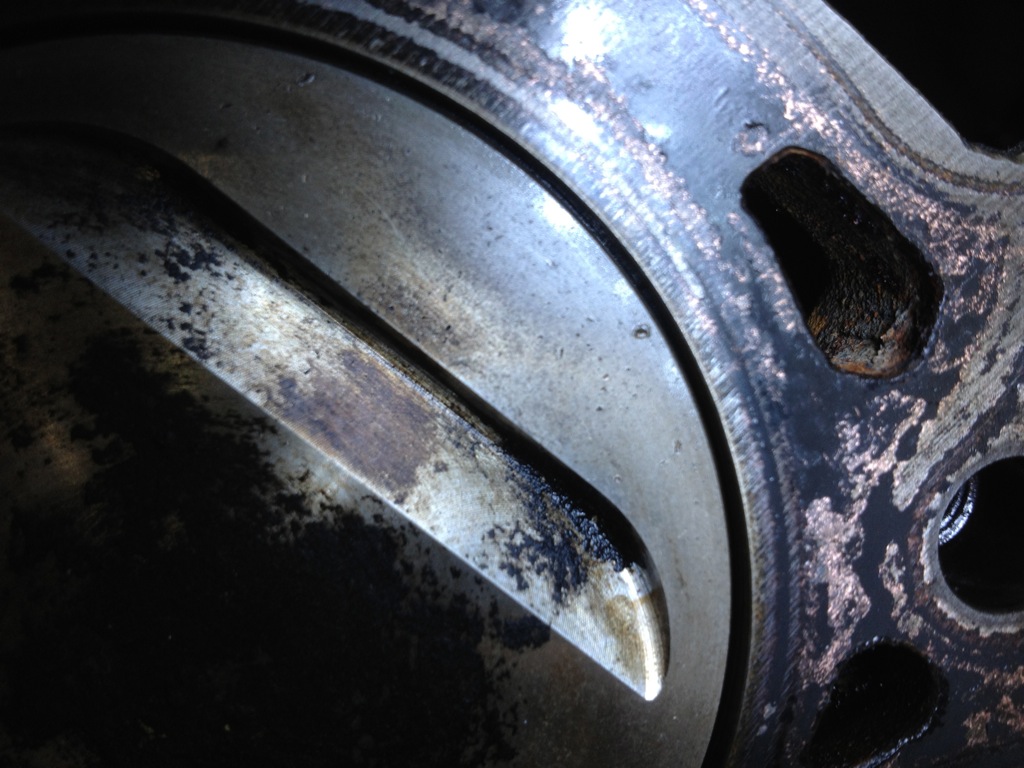

The top of the piston should be completely uniform in finish - in your pictures, at the edges of the piston near the valve relief, the finish gets rough and changes in color. That's the detonation damage - it's mild but it's definitely there. We can't see the ringlands, but I bet the same style of damage is on those as well (or worse).

I bet the head is salvageable, though. You might want to take it to a local machinist and have him take a look. Or you can send it up to us and we can have our guy go through it and refresh it - new guides, 3-angle seats, etc.
Savington is online now   Reply With Quote
Old 03-01-2012, 12:50 AM   #31
Newb
iTrader: (1)

Join Date: Feb 2012
Location: QC
Posts: 19
Total Cats: 0
Default

cool build here! looking forward for more
marc-111 is offline   Reply With Quote
Old 03-02-2012, 03:08 AM   #32
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Location: Los Angeles
Posts: 65
Total Cats: 1
Default

More pictures...because everybody loves pictures.

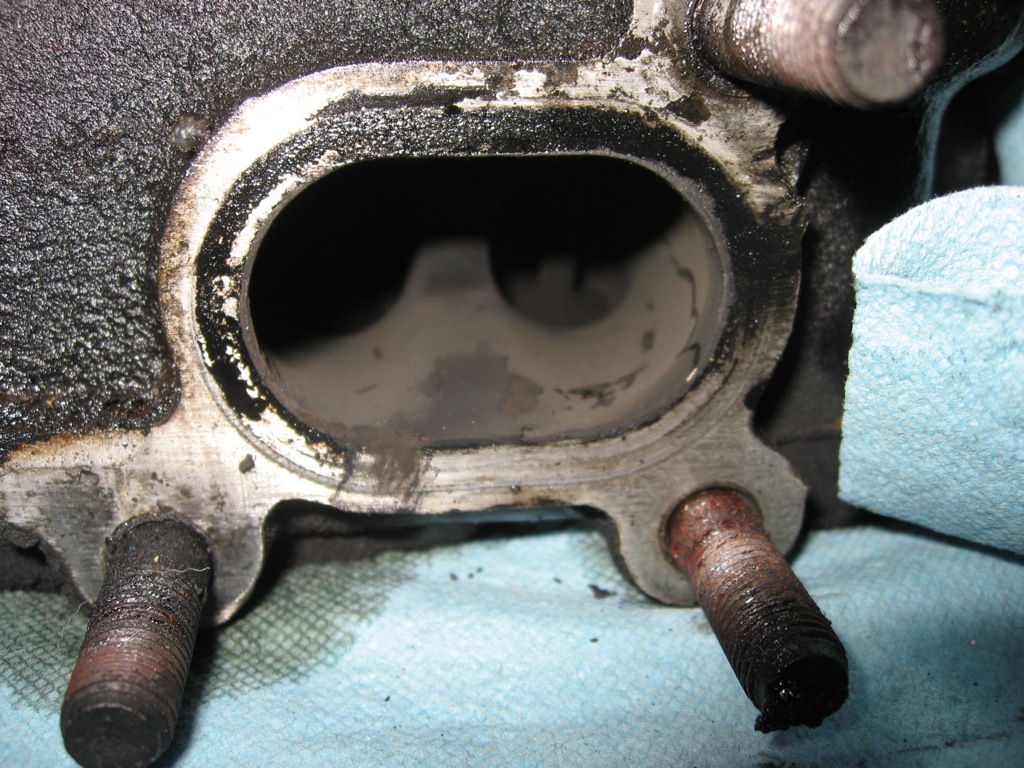

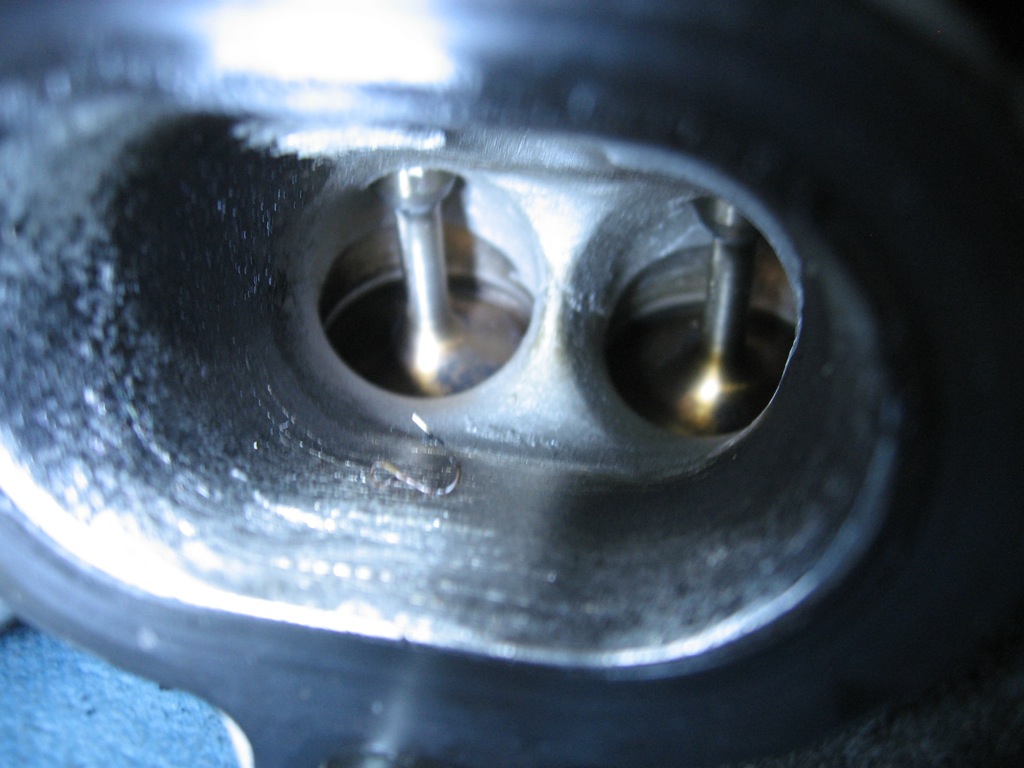

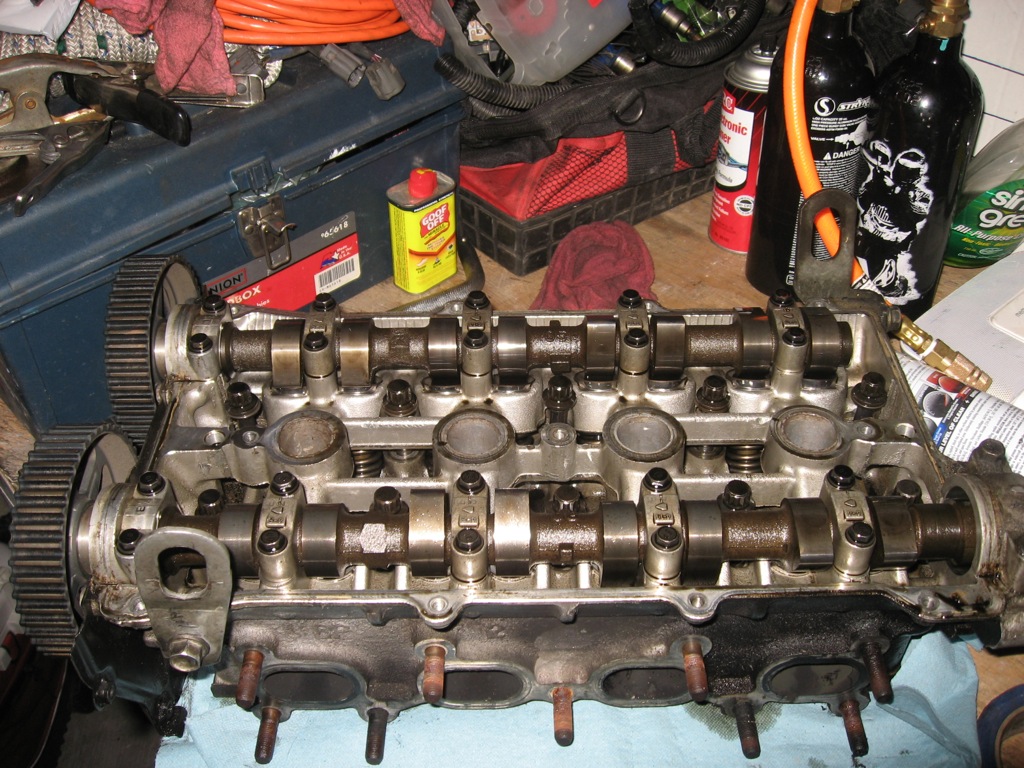

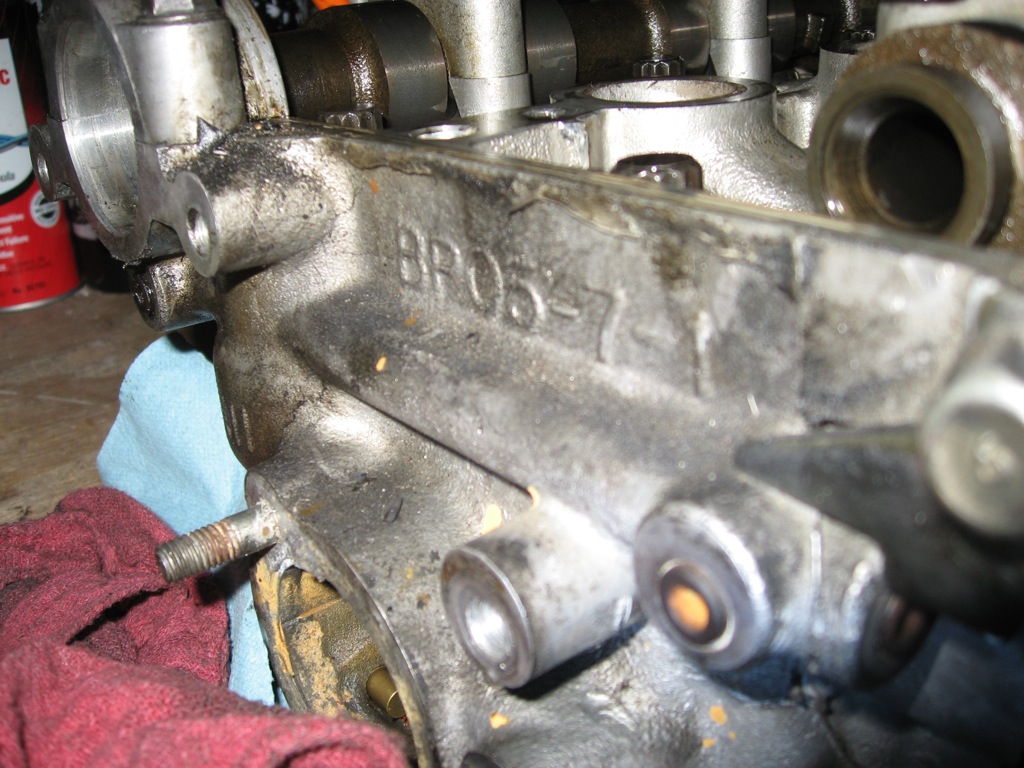

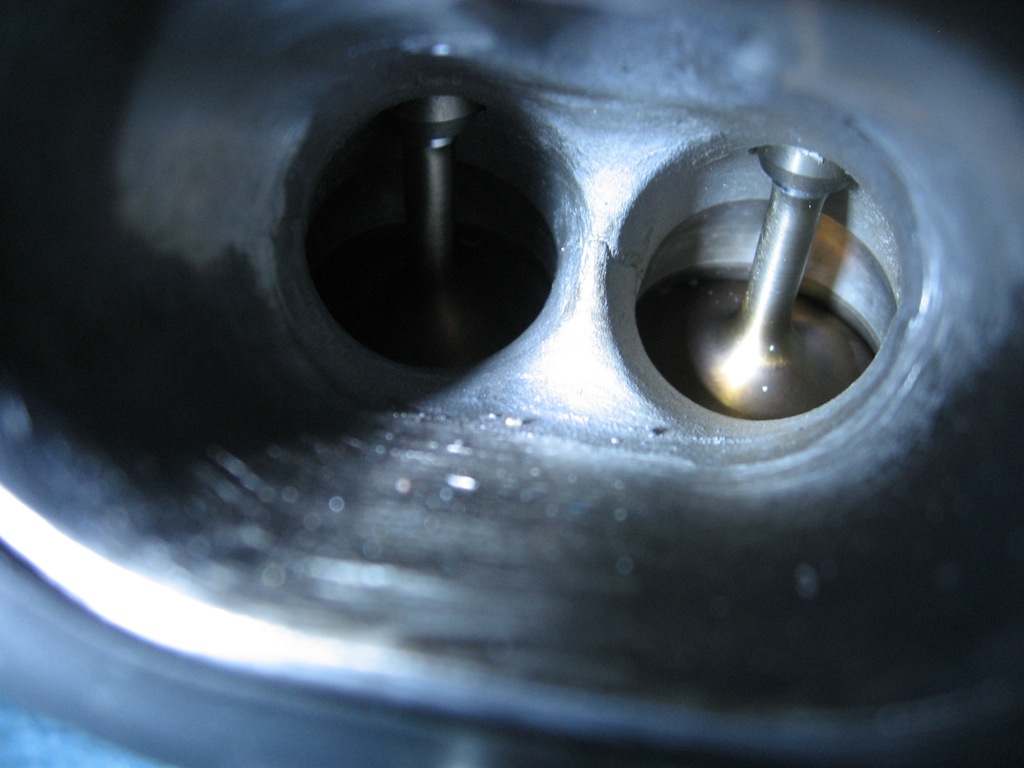

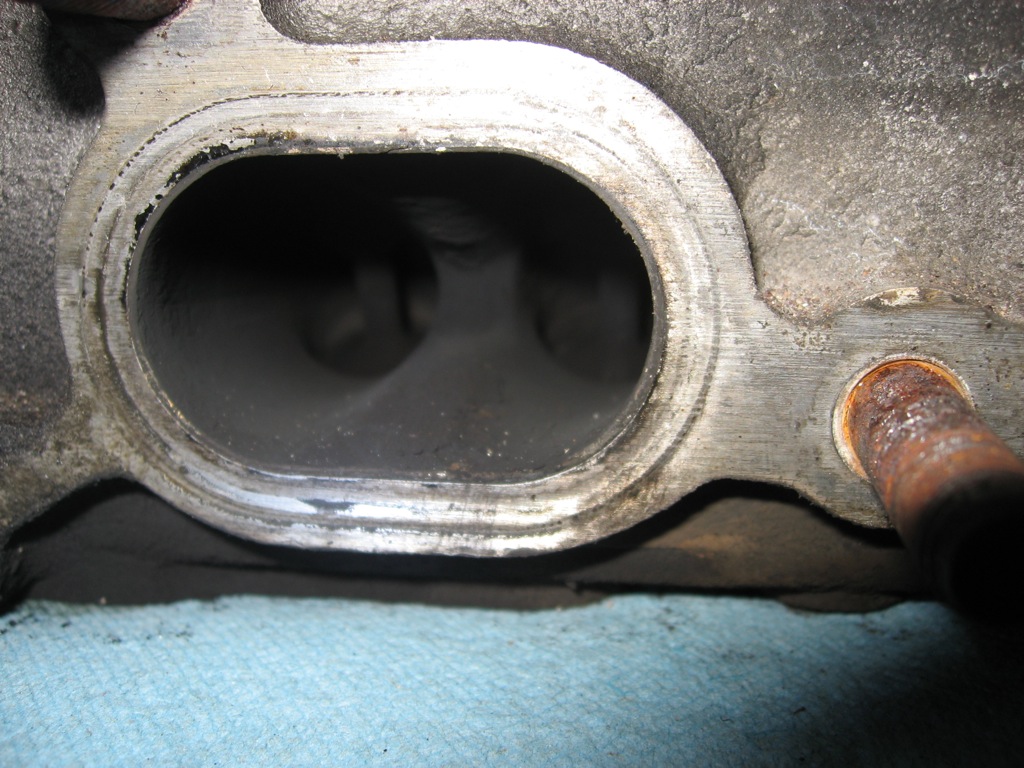

Some pics of the head:

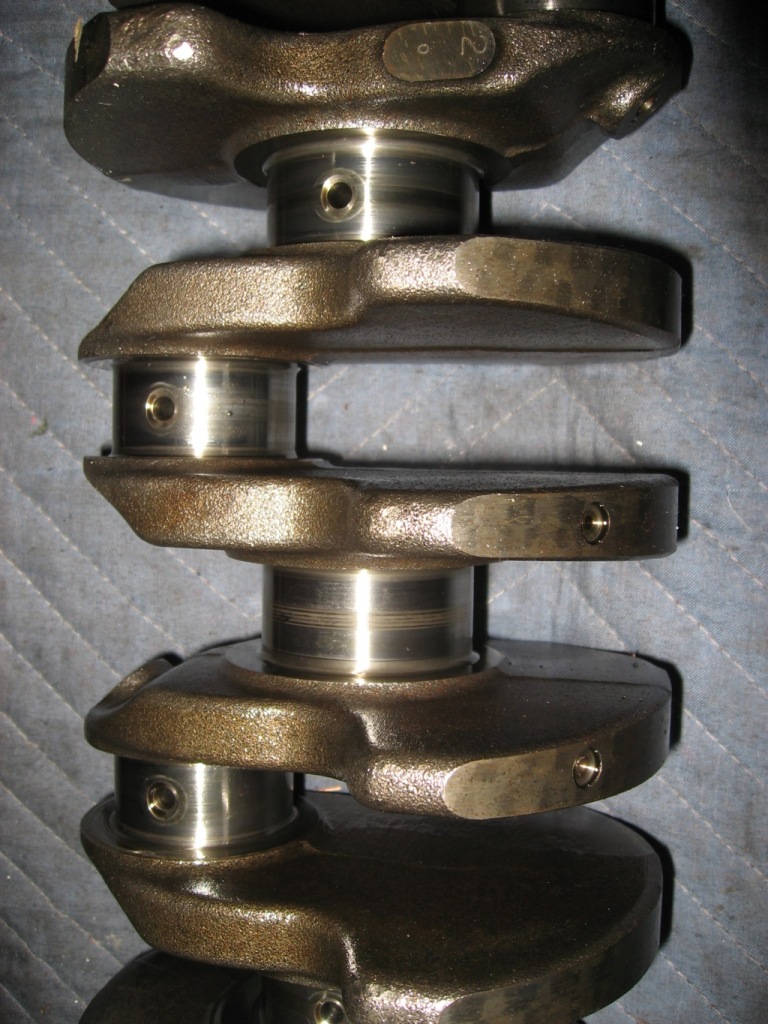

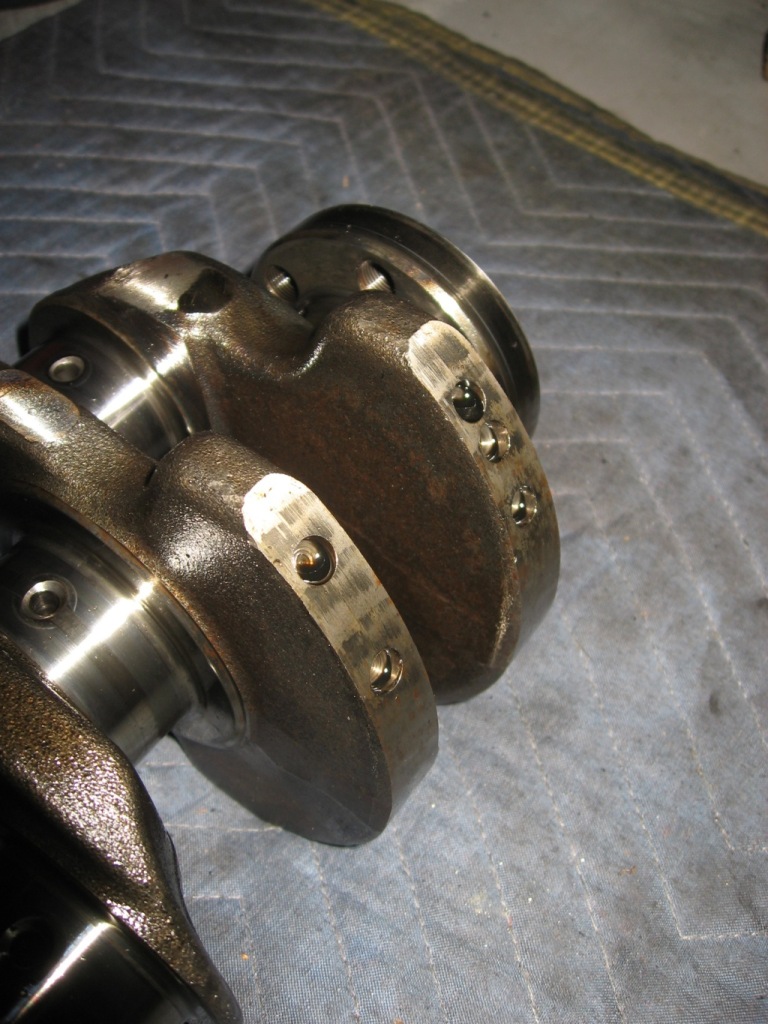

Here's what the crank looks like, some scoring.

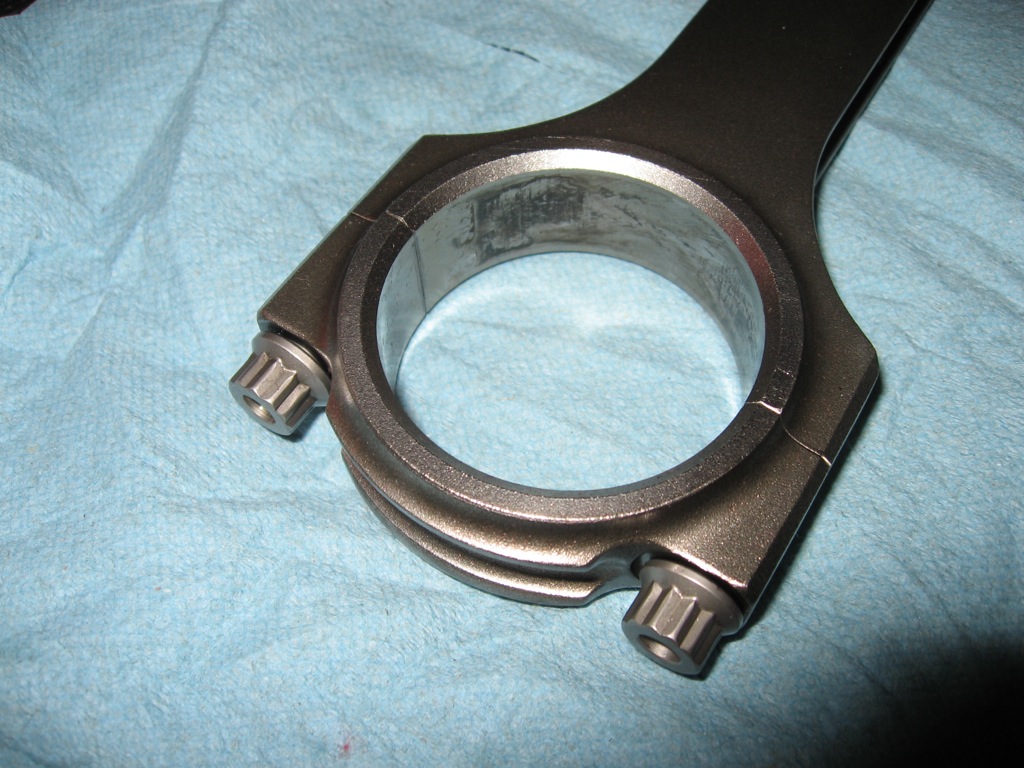

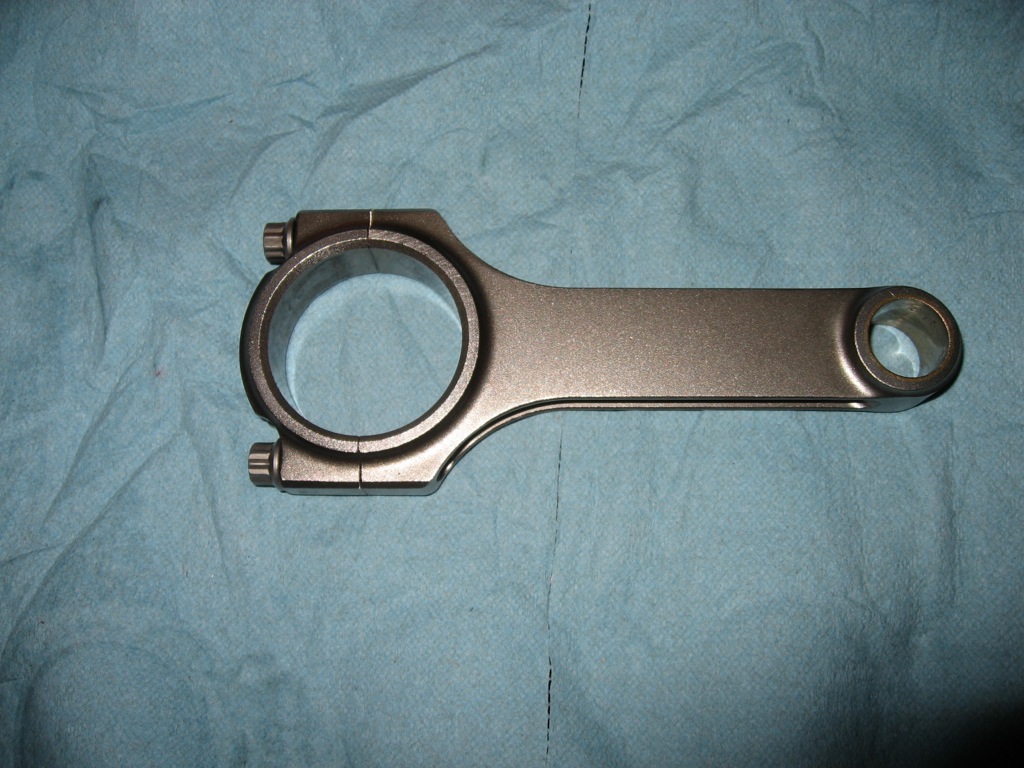

Rods:

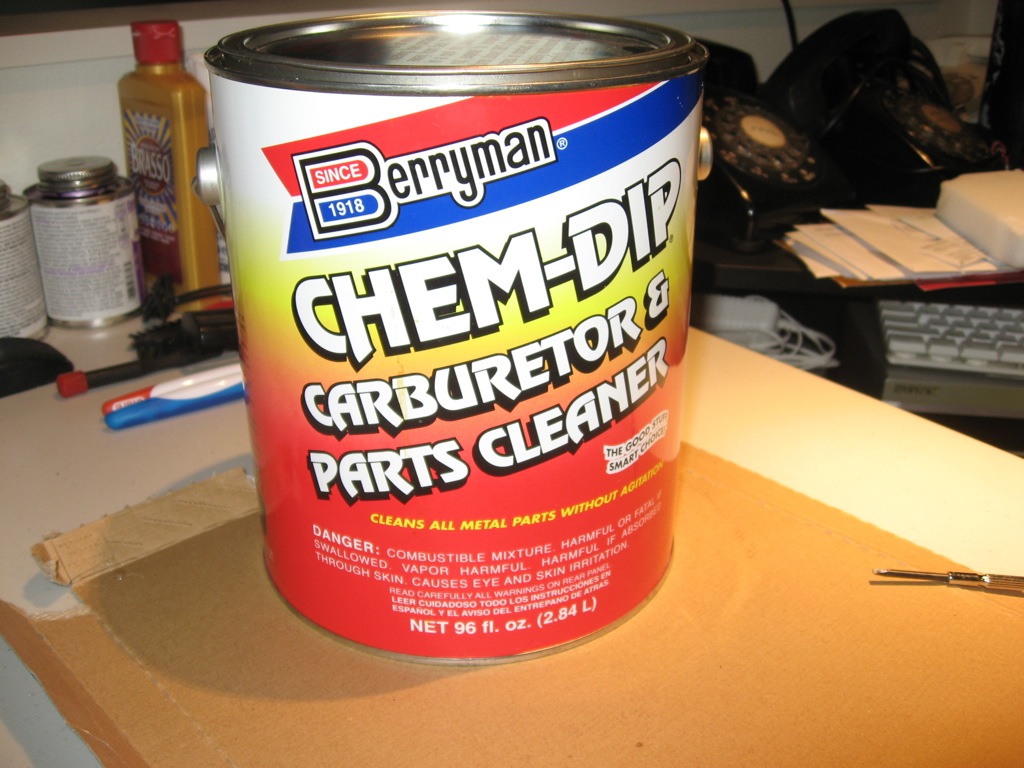

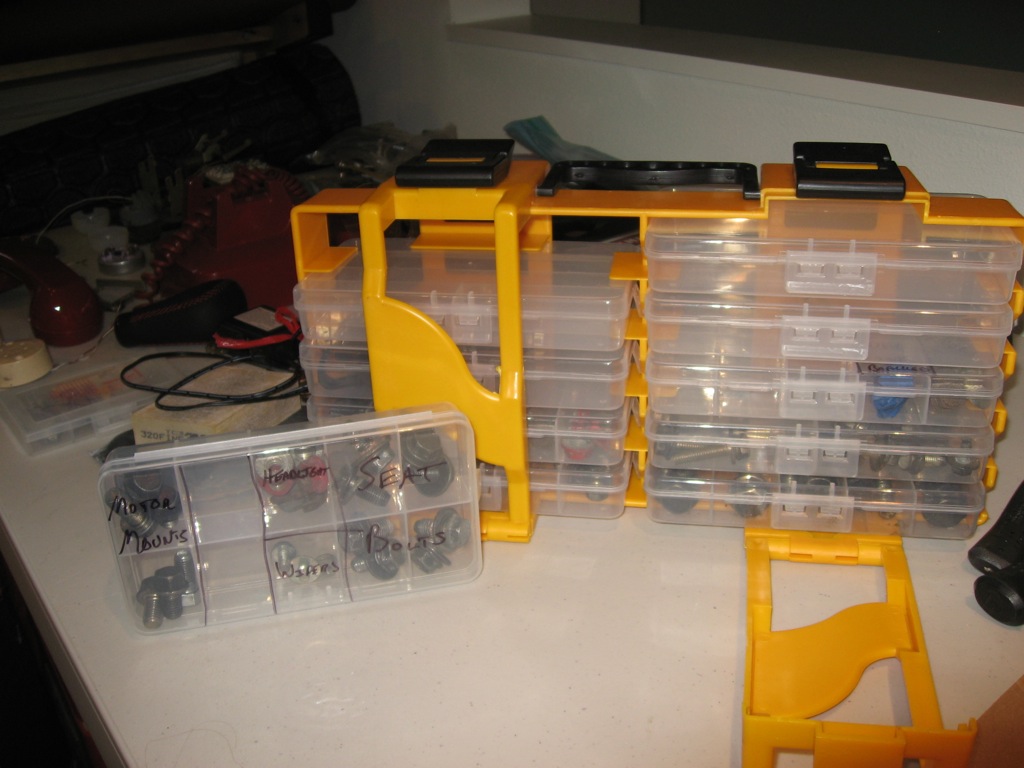

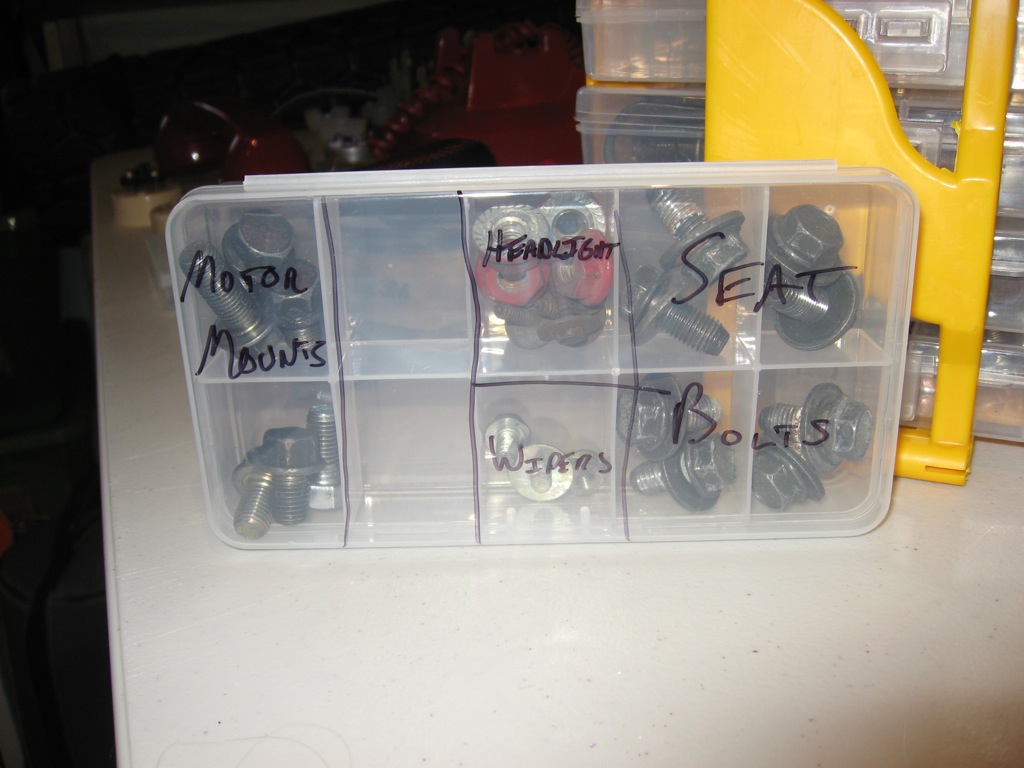

And just thought I'd share this tip. Harbor Freight sells these cheap, and they're great for storing fastners from stuff you're taking apart.






I use this stuff to clean up some of my small parts and hardware, but it will strip plating from bolts if you leave them in too long.




Bird
Attached Thumbnails
Bird's NA Turbo Track Build-img_2504.jpg   Bird's NA Turbo Track Build-img_2522.jpg   Bird's NA Turbo Track Build-img_2536.jpg   Bird's NA Turbo Track Build-img_2513.jpg   Bird's NA Turbo Track Build-img_2534.jpg

Bird's NA Turbo Track Build-img_2500.jpg   Bird's NA Turbo Track Build-img_2539.jpg   Bird's NA Turbo Track Build-img_2541.jpg   Bird's NA Turbo Track Build-img_2489.jpg   Bird's NA Turbo Track Build-img_2488.jpg

Bird's NA Turbo Track Build-img_2486.jpg   Bird's NA Turbo Track Build-img_2520.jpg   Bird's NA Turbo Track Build-img_2511.jpg
TheBirdmanJD is offline   Reply With Quote
Old 03-02-2012, 10:08 AM   #33
Elite Member
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default

There was a guy on the forum selling a complete set of valves for a good price recently. Not sure if he still has them, but would be worth a look.
miatauser884 is offline   Reply With Quote
Old 03-02-2012, 11:03 AM   #34
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

Was that Y8s? I believe Hustler bought those.
curly is offline   Reply With Quote
Old 03-06-2012, 12:30 AM   #35
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Location: Los Angeles
Posts: 65
Total Cats: 1
Default

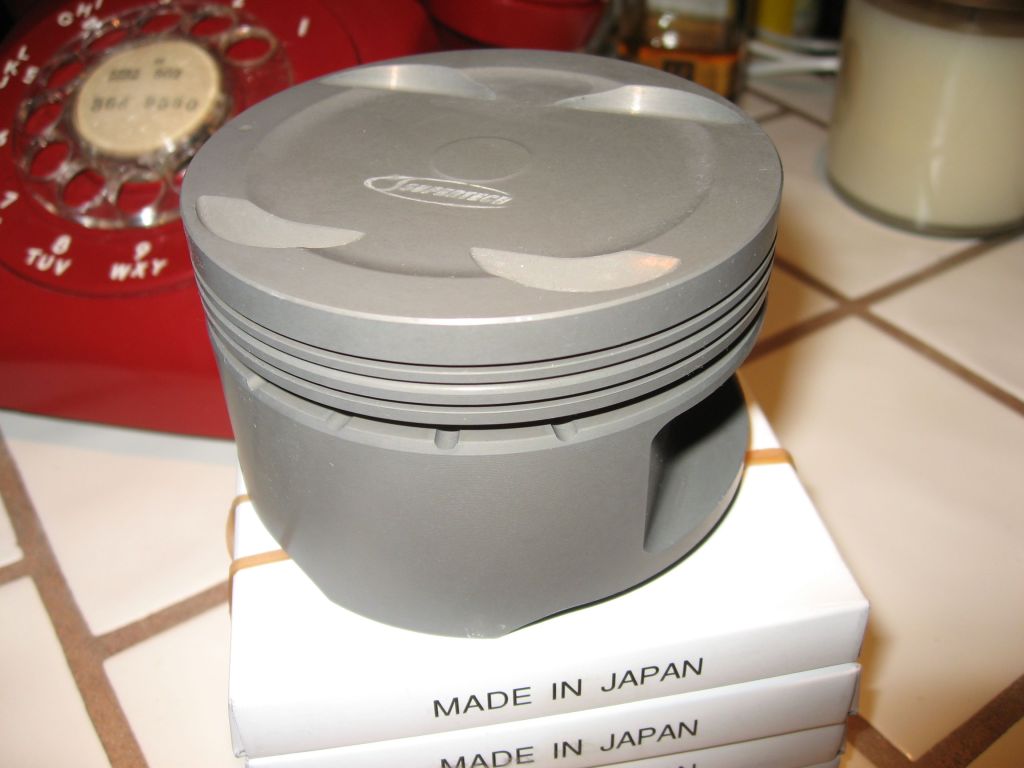

Just got 4 of these from Trackspeed in the mail:




Tomorrow I'm taking these, the Carrillo rods from the FM motor, and the '00 head and block down to a machine shop. I'm going to have to use the crank from the 95, the keyway in the '00 crank was messed up making it unusable. It looks like a botched timing belt job is what caused that motor's demise.

Still need to order the BE oil pump, I'm bummed I missed the GB.

Hopefully in a couple weeks I'll have new built motor pics to share.



Bird
Attached Thumbnails
Bird's NA Turbo Track Build-img_2551.jpg
TheBirdmanJD is offline   Reply With Quote
Old 03-06-2012, 01:46 AM   #36
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 260
Default

What machine work are you getting and how much is it?
soviet is offline   Reply With Quote
Old 03-06-2012, 03:14 AM   #37
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Location: Los Angeles
Posts: 65
Total Cats: 1
Default

Hot Tank
Magnaflux
Bore, Hone for pistons
Deck
Line Hone
$325

Rods are $15 a piece if they need machining, I forgot what he said for Maganfluxing those but it was cheap.
TheBirdmanJD is offline   Reply With Quote
Old 03-06-2012, 03:25 PM   #38
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 260
Default

damn, that is cheap :O
soviet is offline   Reply With Quote
Old 03-06-2012, 03:59 PM   #39
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Location: Los Angeles
Posts: 65
Total Cats: 1
Default

Yeah, I was surprised. I'm having it done at Eddings Engine They also quoted me $300 to do the valves on the '00 Head, more if it needs any parts replaced.

I think I'm going to just have them assemble it too. I haven't talked to them about that yet though.


Bird
TheBirdmanJD is offline   Reply With Quote
Old 06-23-2012, 06:51 PM   #40
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Location: Los Angeles
Posts: 65
Total Cats: 1
Default

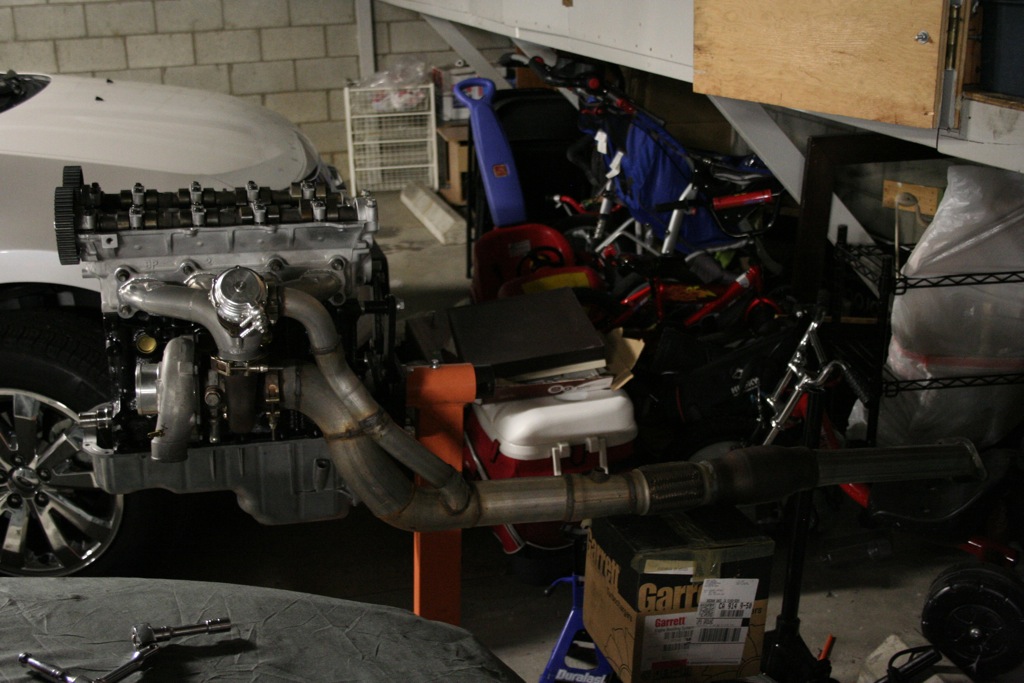

Haven't updated in a while, not much progress on the car. I got my engine from the machine shop a few weeks ago, but life and work have got in the way of working on it. It's ok though, I needed a break, and I've been playing with something new...

Here's the engine while test fitting and picking oil drain location. I had AN bungs welded onto the valve cover and oil pan.




My girlfriend's new car is what has really been taking up my free time though...
*Warning-Non miata content below
(but it does have a turbo)





Attached Thumbnails
Bird's NA Turbo Track Build-file-1.jpg   Bird's NA Turbo Track Build-file-2.jpg   Bird's NA Turbo Track Build-file.jpg   Bird's NA Turbo Track Build-file-5.jpg   Bird's NA Turbo Track Build-file-3.jpg

Bird's NA Turbo Track Build-file-4.jpg
TheBirdmanJD is offline   Reply With Quote


Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
Turbo 1995 Miata Low mileage Clean Tekel Cars for sale/trade 29 02-05-2016 05:16 PM
Left over turbo build parts gdoehl Miata parts for sale/trade 16 10-01-2015 10:42 AM
The "other" spool question stefanst DIY Turbo Discussion 44 09-28-2015 08:16 PM
Project DDoS: '99 "Budget" boost build ProjectDDoS Build Threads 1 09-09-2015 02:52 PM


Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off



All times are GMT -4. The time now is 11:31 PM.
