Default Stop being so damn F&*%ing slow (Turbo Build)

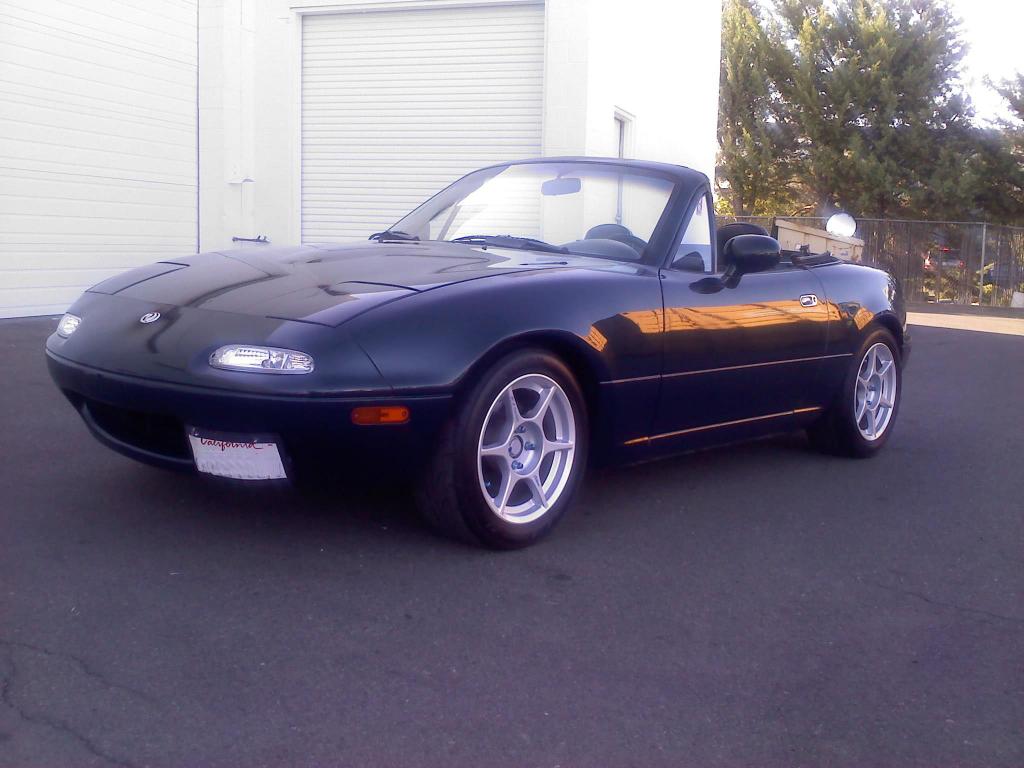

95 Miata, 120k Original engine
Exhintake cam swap
Racing Beat intake (knock off)

Koni Yellow/GC 440/300
FCM 36mm bumpstops
NB Mounts
Kosei K1 Racing 15x7 +38
Dunlop Direzza Star Specs 205/50/15

Carbotech xp10 front pads
949 SS brake lines



Attached Thumbnails
Dear Miata, Stop being so damn F&*%ing slow (Turbo Build)-miata.jpg

Last edited by Gt2560rMiata; 11-25-2012 at 03:35 PM.
Gt2560rMiata is offline   Reply With Quote
Old 11-17-2012, 03:08 AM   #2
Junior Member
Thread Starter
iTrader: (-2)

Join Date: Nov 2012
Posts: 242
Total Cats: -42
Default

Engine is healthy, Compression tested at 180psi...no leak down test has been done yet thought.

Goal is to make this thing fun in a straight line instead of just the corners and Im thinking 240whp will do that for me
Gt2560rMiata is offline   Reply With Quote
Old 11-17-2012, 03:12 AM   #3
Junior Member
Thread Starter
iTrader: (-2)

Join Date: Nov 2012
Posts: 242
Total Cats: -42
Default

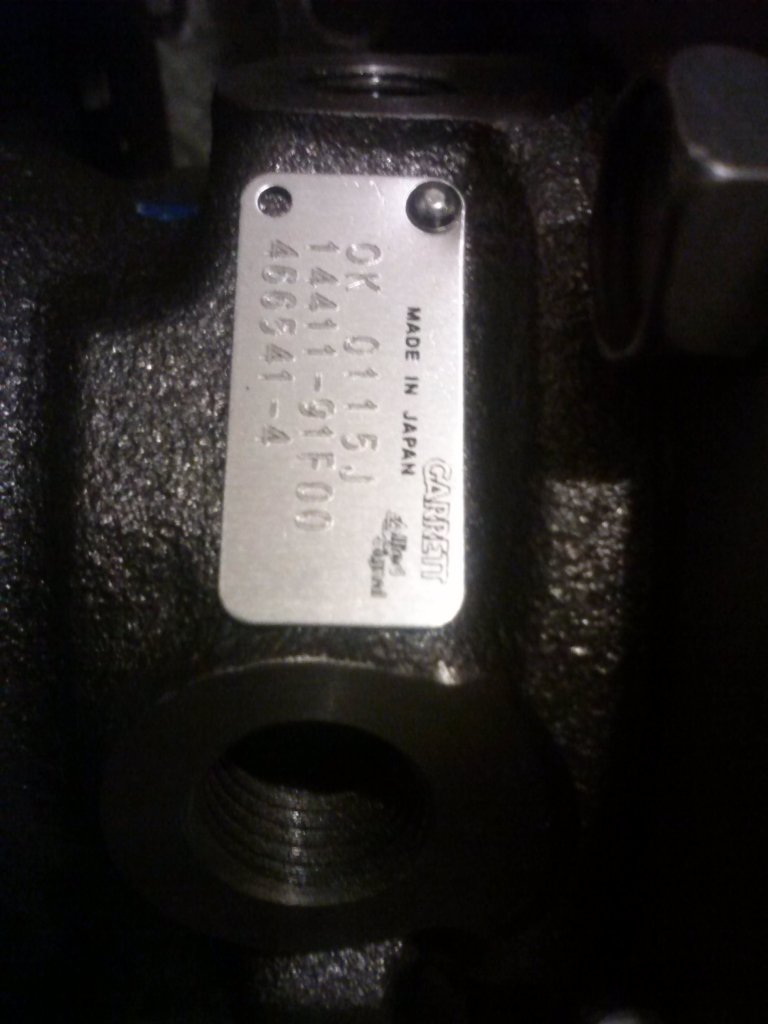

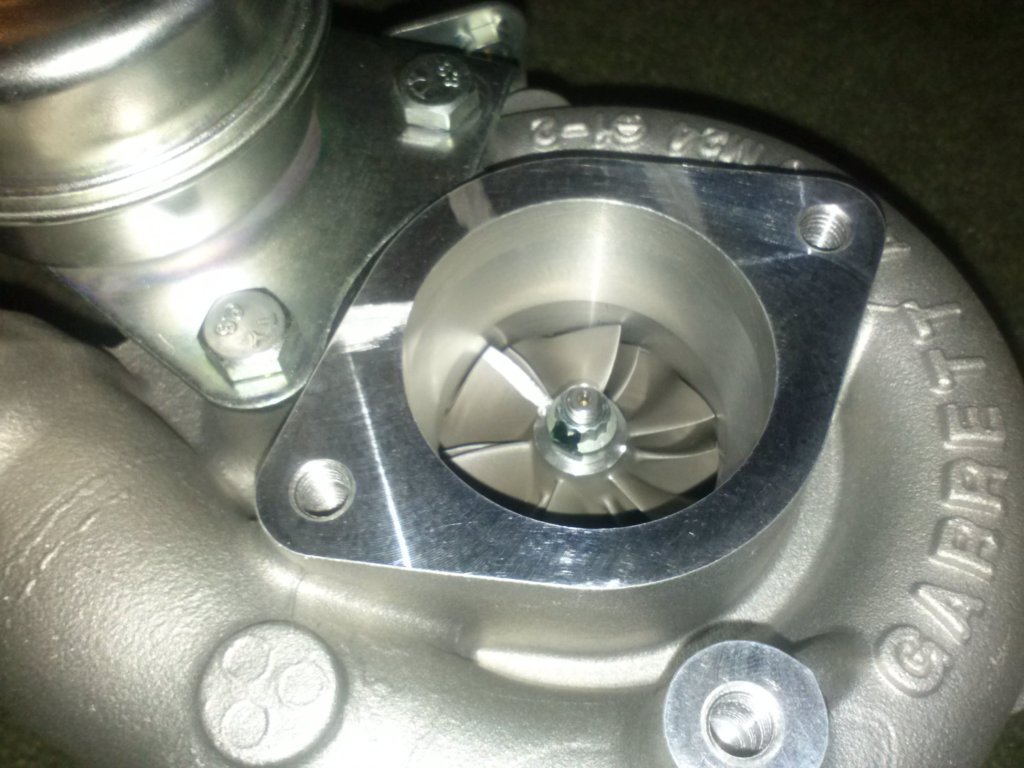

Picked up the first piece of the puzzle months back from a nissan forum (Zilvia.net)

a brand new Nissan Silvia S15 SpecR turbo AKA a Garrett 2560r

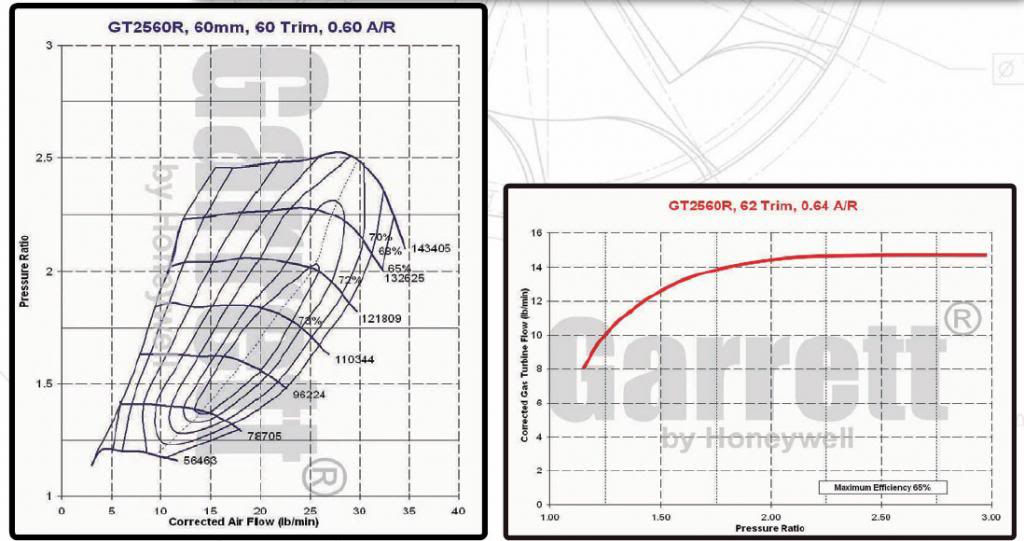

Name:  CompMap.jpg
Views: 15
Size:  77.5 KB
Attached Thumbnails
Dear Miata, Stop being so damn F&*%ing slow (Turbo Build)-0917121747.jpg   Dear Miata, Stop being so damn F&*%ing slow (Turbo Build)-0929122030.jpg   Dear Miata, Stop being so damn F&*%ing slow (Turbo Build)-0929122027.jpg

Last edited by Gt2560rMiata; 11-17-2012 at 07:13 PM.
Gt2560rMiata is offline   Reply With Quote
Old 11-17-2012, 03:17 AM   #4
Junior Member
Thread Starter
iTrader: (-2)

Join Date: Nov 2012
Posts: 242
Total Cats: -42
Default

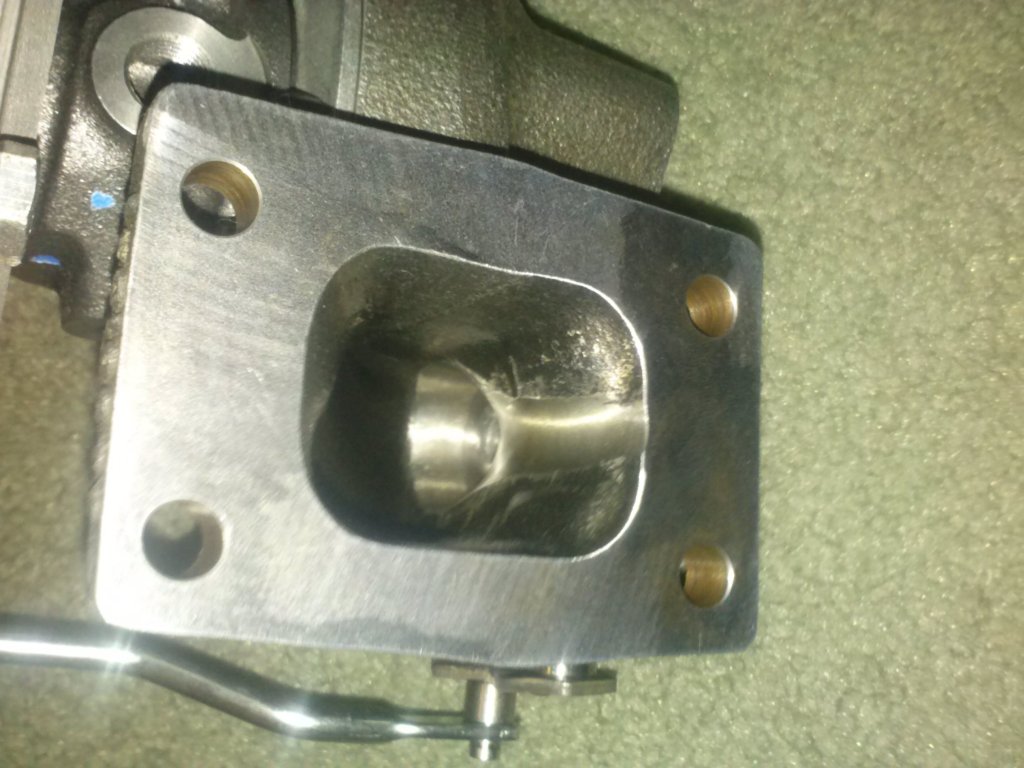

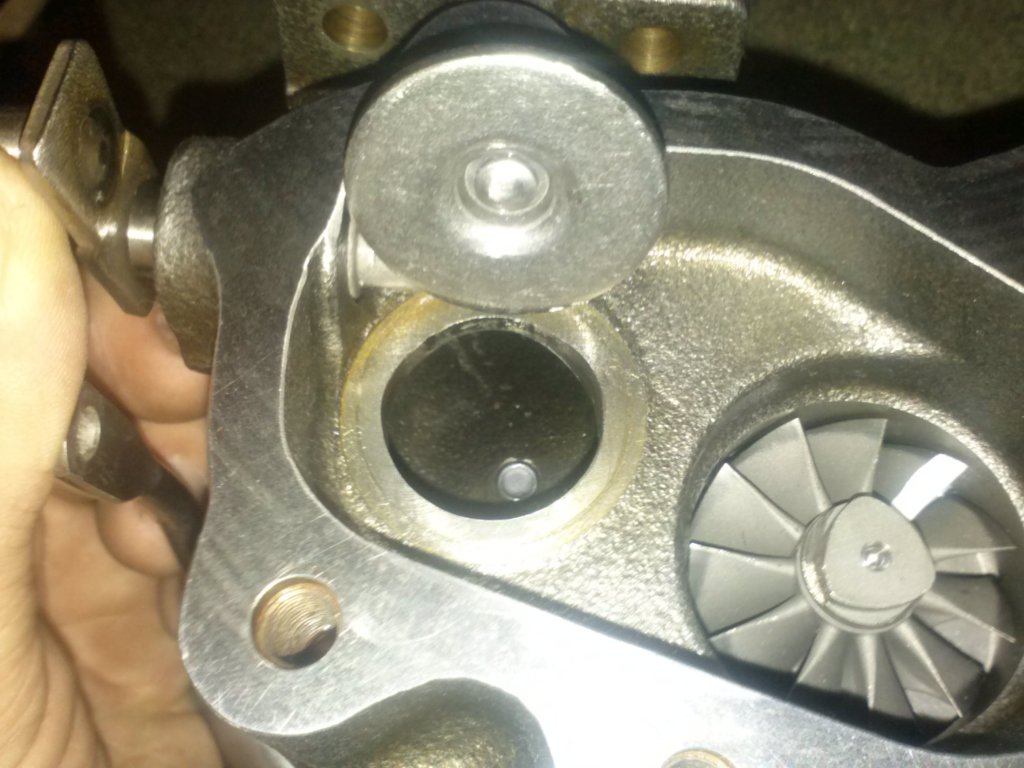

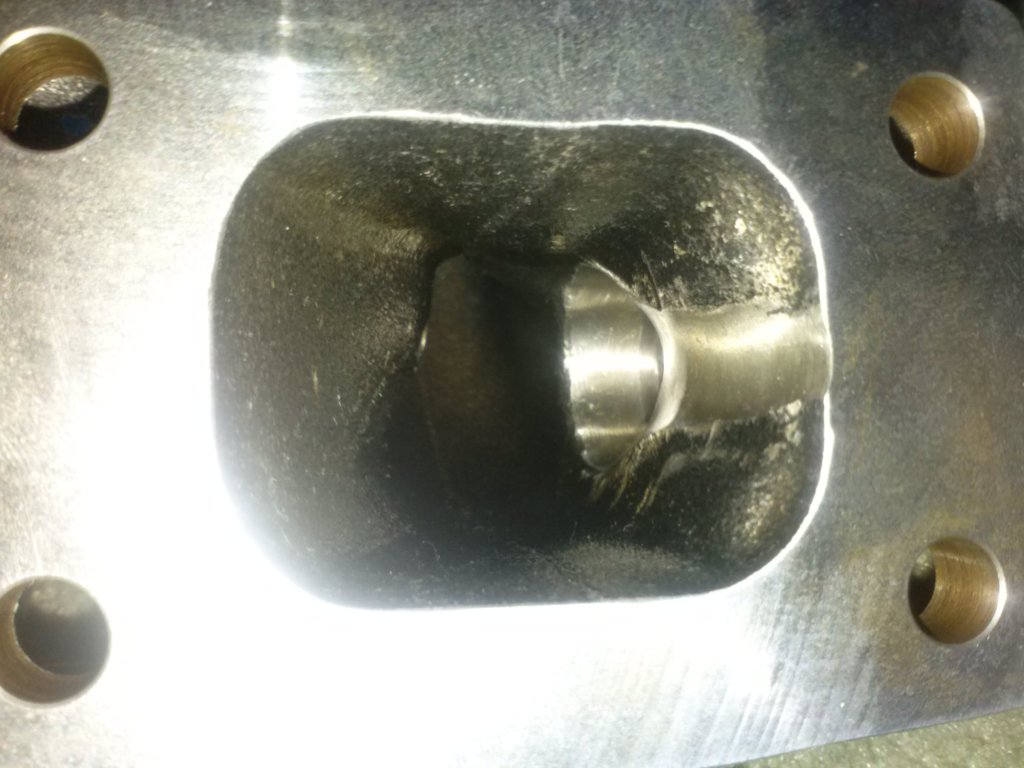

I mildly ported the wastegate as I plan to run 3" exhaust and have heard of boost creep issues.



Attached Thumbnails
Dear Miata, Stop being so damn F&*%ing slow (Turbo Build)-0929122031a.jpg   Dear Miata, Stop being so damn F&*%ing slow (Turbo Build)-0929122032.jpg   Dear Miata, Stop being so damn F&*%ing slow (Turbo Build)-0929122032a-1.jpg
Gt2560rMiata is offline   Reply With Quote
Old 11-17-2012, 03:19 AM   #5
Junior Member
Thread Starter
iTrader: (-2)

Join Date: Nov 2012
Posts: 242
Total Cats: -42
Default

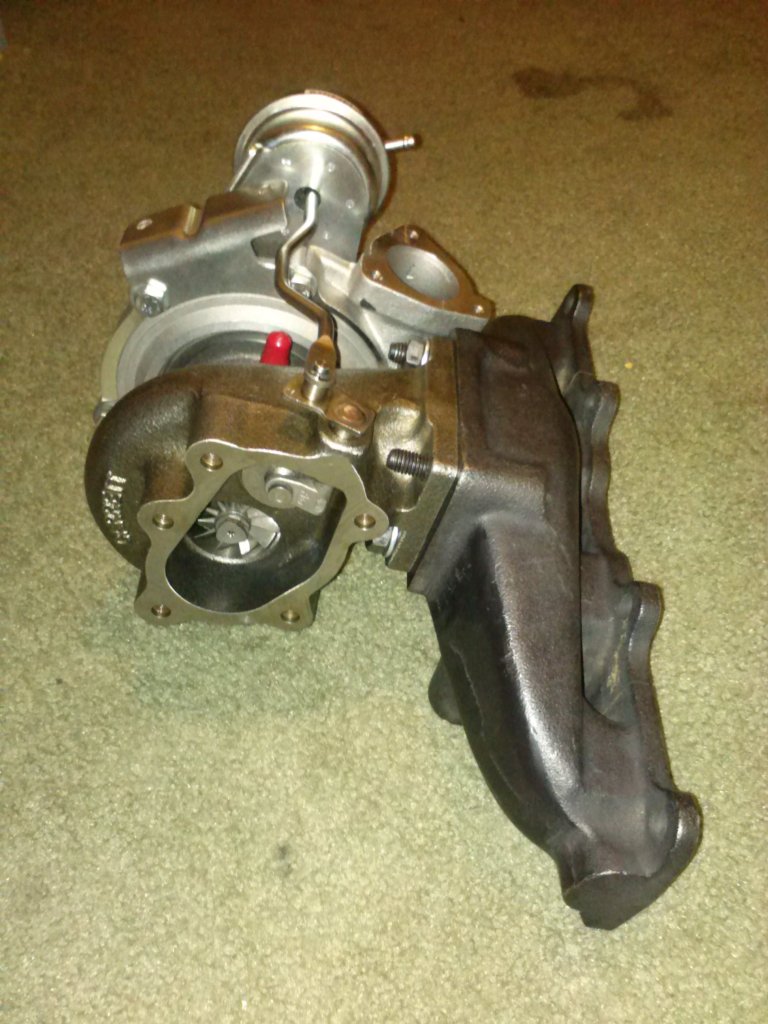

Next up was to get a manifold. Ended up buying a BEGI cast turbo manifold without EGR or EGT (I may tap it for EGT later)


Attached Thumbnails
Dear Miata, Stop being so damn F&*%ing slow (Turbo Build)-1020120054b.jpg

Last edited by Gt2560rMiata; 11-17-2012 at 07:09 PM.
Gt2560rMiata is offline   Reply With Quote
Old 11-17-2012, 03:28 AM   #6
Junior Member
Thread Starter
iTrader: (-2)

Join Date: Nov 2012
Posts: 242
Total Cats: -42
Default

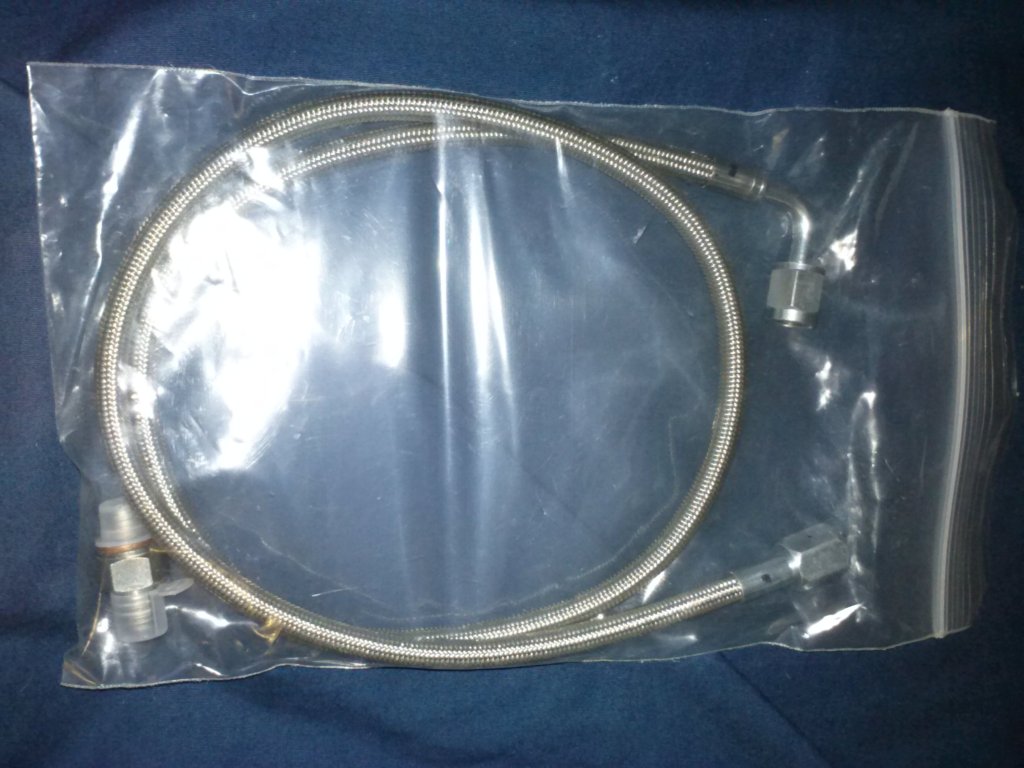

Picked up from ATPTurbo...
.035" restricted 4an turbo oil feed fitting
3ft 4an SS Oil feed line
10mm (1.50 Pitch) to -4 AN fitting to supply the turbo from the unused port on block

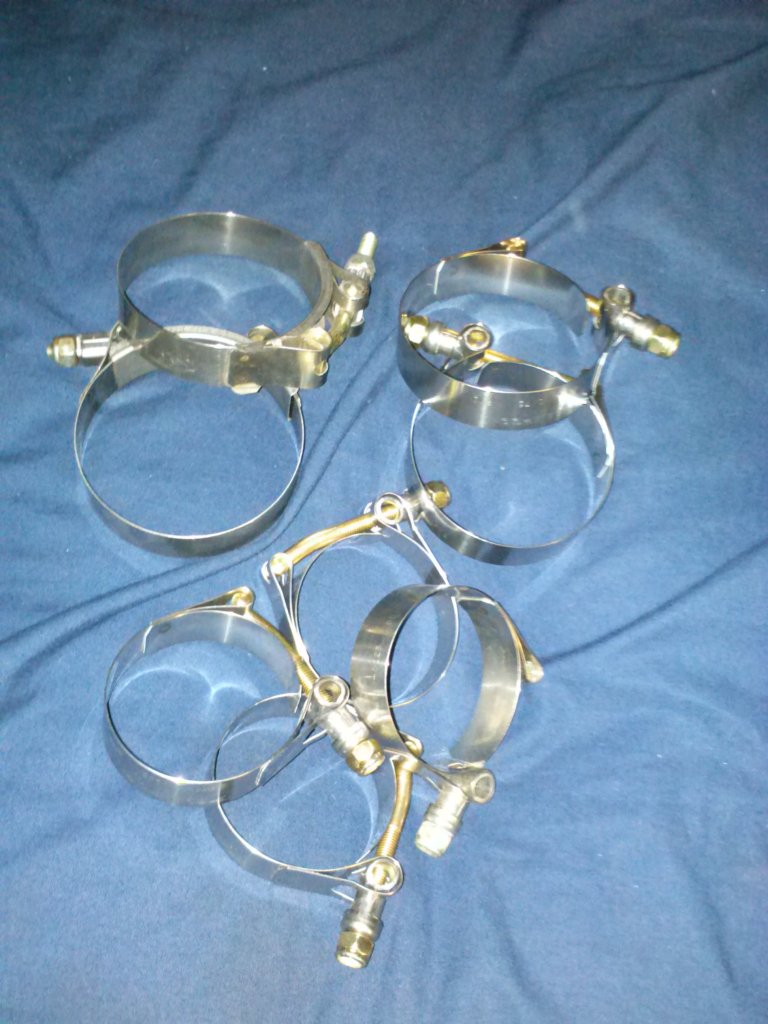

SS Tbolt clamps for 2" and 2.5"


Attached Thumbnails
Dear Miata, Stop being so damn F&*%ing slow (Turbo Build)-1117121447.jpg   Dear Miata, Stop being so damn F&*%ing slow (Turbo Build)-1117121446a.jpg

Last edited by Gt2560rMiata; 11-17-2012 at 06:55 PM.
Gt2560rMiata is offline   Reply With Quote
Old 11-17-2012, 03:35 AM   #7
Junior Member
Thread Starter
iTrader: (-2)

Join Date: Nov 2012
Posts: 242
Total Cats: -42
Default

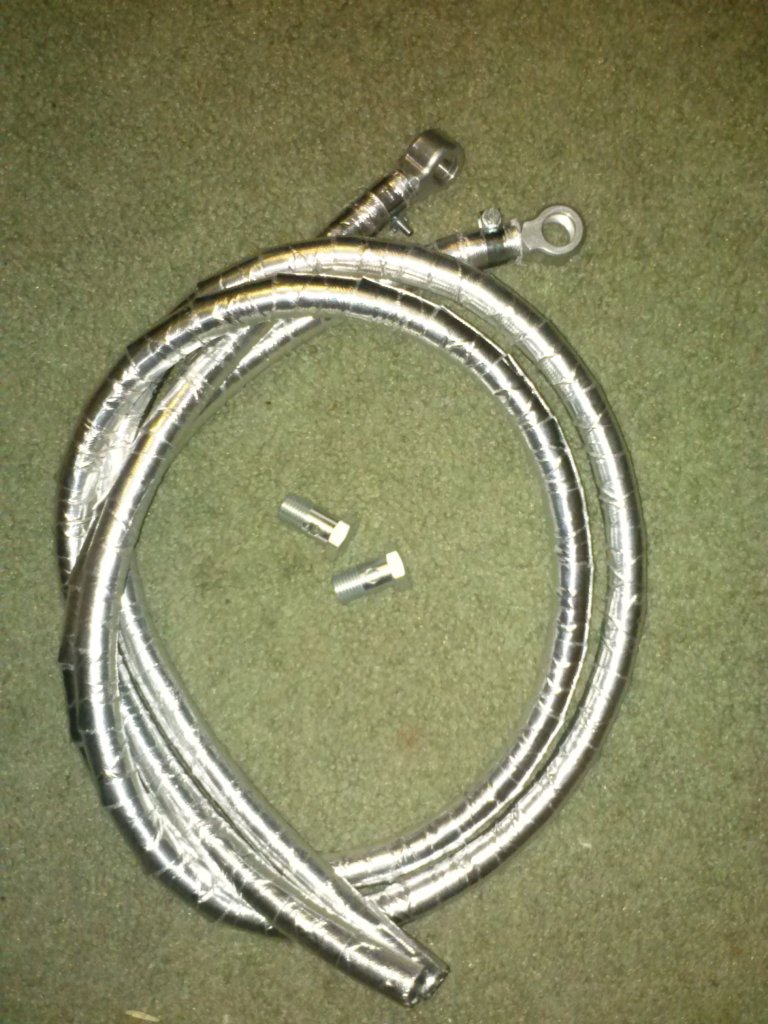

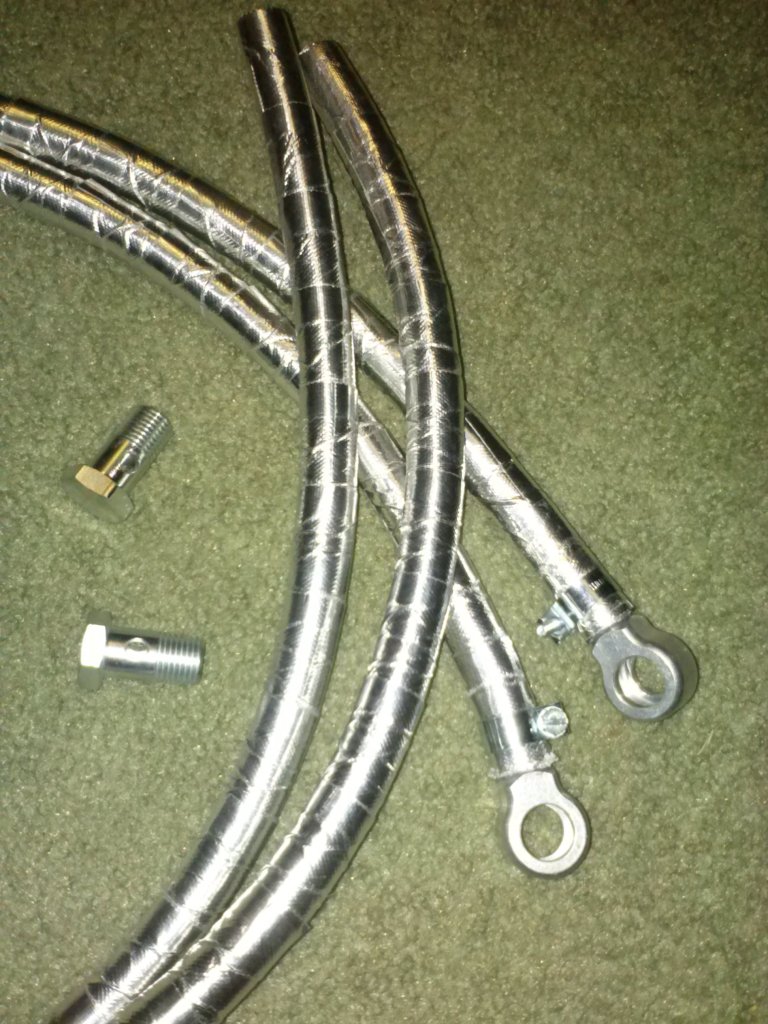

Order some turbo coolant Banjo fittings from ATPturbo. Picked up some 6an "NHRA Approved" coolant hose and some DEI cool tape from Summit Racing and made my turbo coolant lines. The clamps are 3/8" Fuel injection clamps


Attached Thumbnails
Dear Miata, Stop being so damn F&*%ing slow (Turbo Build)-1113122211a-1.jpg   Dear Miata, Stop being so damn F&*%ing slow (Turbo Build)-1113122212-1.jpg
Gt2560rMiata is offline   Reply With Quote
Old 11-17-2012, 03:43 AM   #8
Junior Member
Thread Starter
iTrader: (-2)

Join Date: Nov 2012
Posts: 242
Total Cats: -42
Default

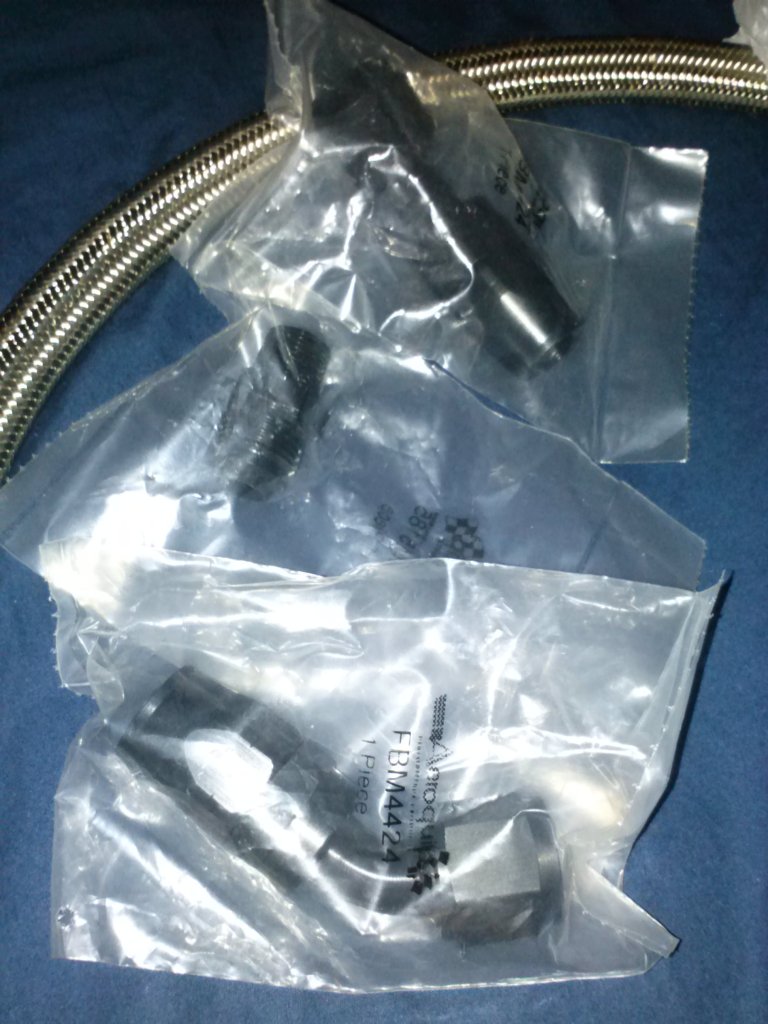

Im using Aeroquip 10an fittings/hose for the turbo oil drain. I ordered the 10an adapter that bolts to the turbo from Treadstone

Attached Thumbnails
Dear Miata, Stop being so damn F&*%ing slow (Turbo Build)-1116122338.jpg
Gt2560rMiata is offline   Reply With Quote
Old 11-17-2012, 03:49 AM   #9
Junior Member
Thread Starter
iTrader: (-2)

Join Date: Nov 2012
Posts: 242
Total Cats: -42
Default

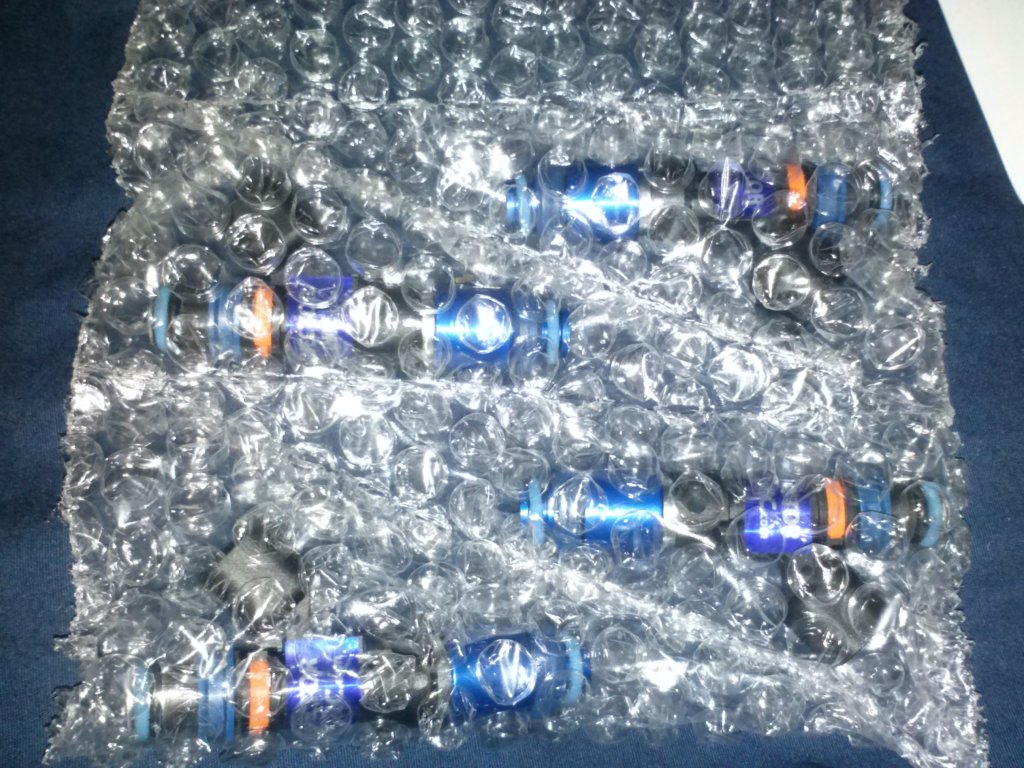

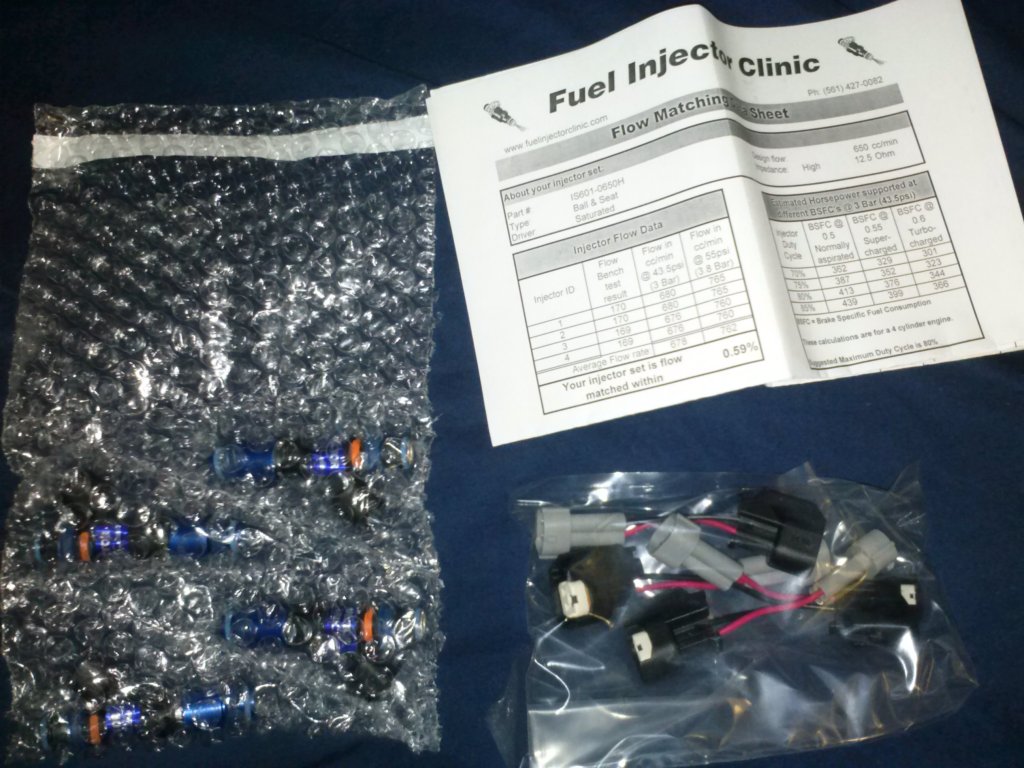

Picked up some 650CC EV14 style Injectors from Fuel Injection Clinic. Was originally going to buy the ones FM sales made by deatchworks till I found out they were older EV6 style.

Got the PNP harness for them aswell. saves me from having to hack my wiring up too much


Attached Thumbnails
Dear Miata, Stop being so damn F&*%ing slow (Turbo Build)-1116122339.jpg   Dear Miata, Stop being so damn F&*%ing slow (Turbo Build)-1116122338a.jpg
Gt2560rMiata is offline   Reply With Quote
Old 11-17-2012, 04:27 AM   #10
Junior Member
Thread Starter
iTrader: (-2)

Join Date: Nov 2012
Posts: 242
Total Cats: -42
Default

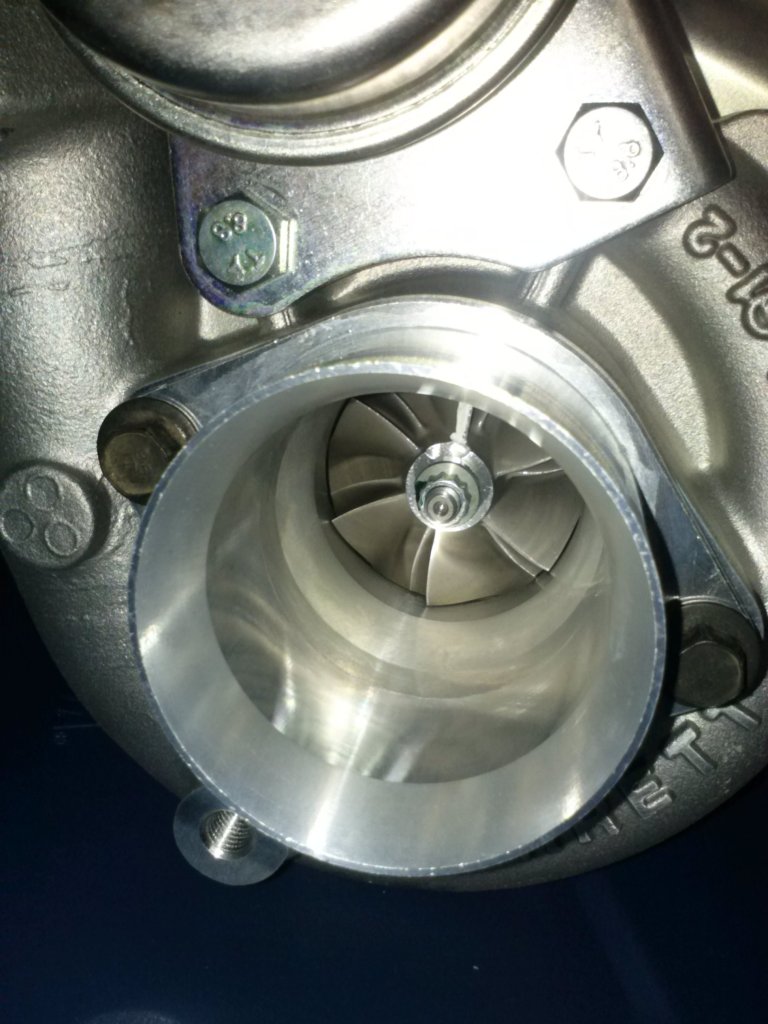

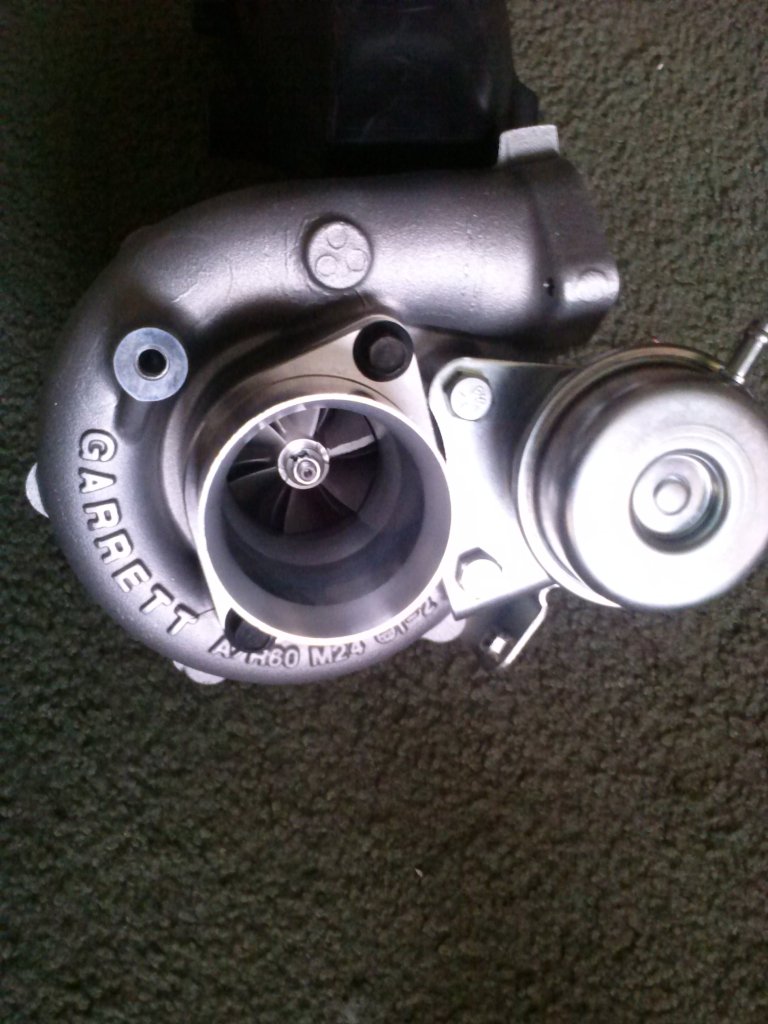

ATPturbo Turbo inlet flange with 2.5" opening. Planning on using 3" intake piping if I have enough room to do so




ATPturbo steel turbo outlet flange.

Attached Thumbnails
Dear Miata, Stop being so damn F&*%ing slow (Turbo Build)-1111121150a-1.jpg   Dear Miata, Stop being so damn F&*%ing slow (Turbo Build)-1111121148.jpg

Last edited by Gt2560rMiata; 11-17-2012 at 06:58 PM.
Gt2560rMiata is offline   Reply With Quote
Old 11-17-2012, 04:37 AM   #11
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,583
Default

Welcome.

Perfect intro thread.
Lotsa good stuff in here.
18psi is offline   Reply With Quote
Old 11-17-2012, 06:17 PM   #12
Junior Member
Thread Starter
iTrader: (-2)

Join Date: Nov 2012
Posts: 242
Total Cats: -42
Default

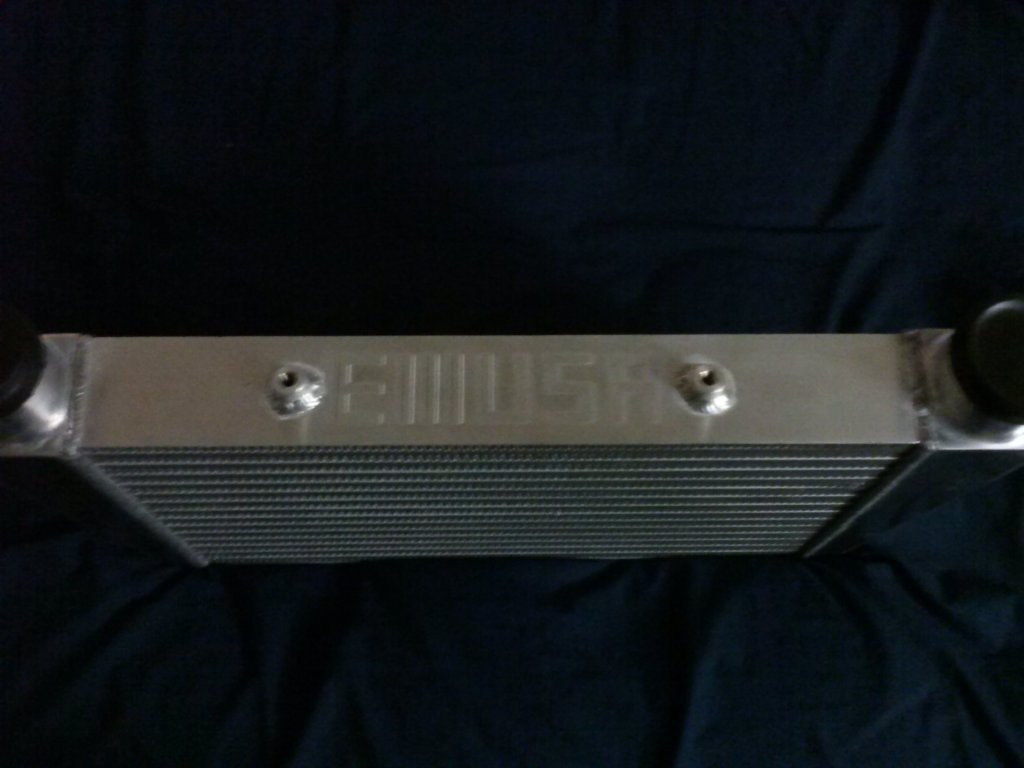

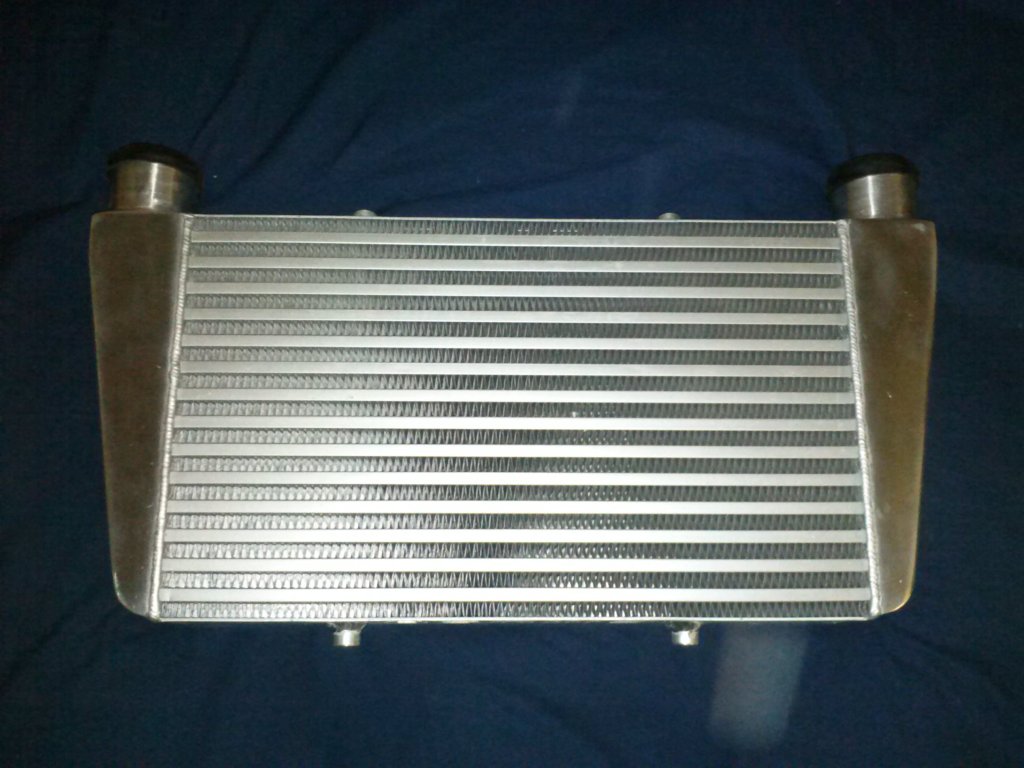

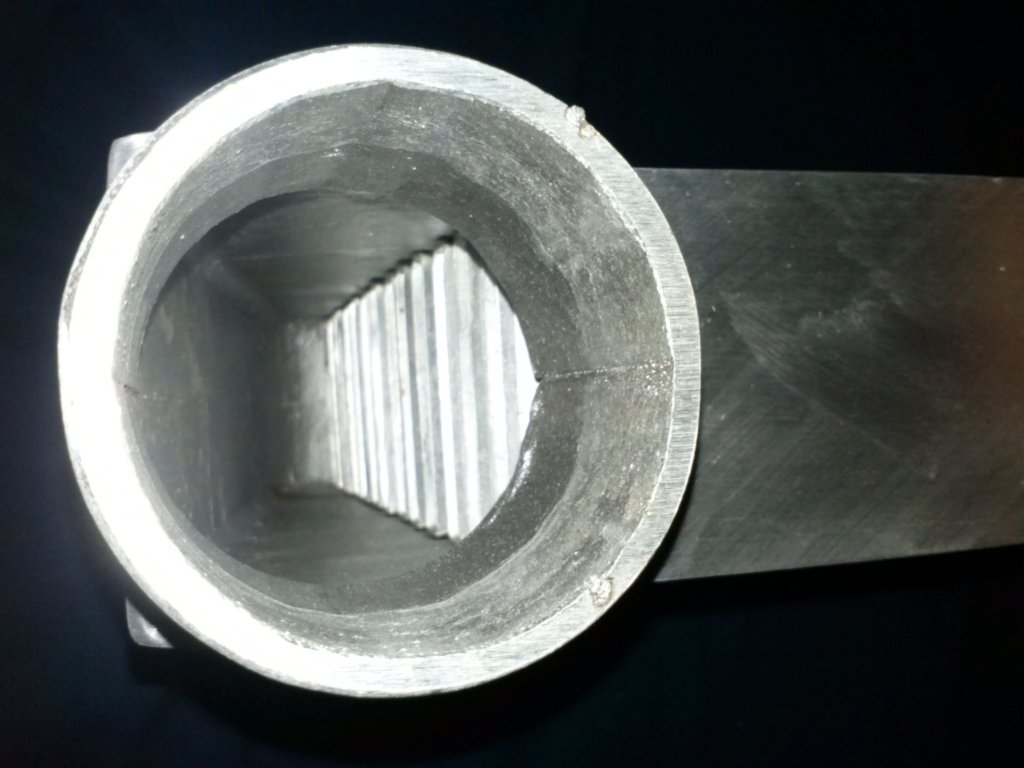

Here is the intercooler I got. Picked up up from Speedyracer.com It seems to be the same one CXracing sales but is $60 or so cheaper

Overall size 23.75"X 13.5"X3"
Core size 18"X11"X2.75



Attached Thumbnails
Dear Miata, Stop being so damn F&*%ing slow (Turbo Build)-1117121409.jpg   Dear Miata, Stop being so damn F&*%ing slow (Turbo Build)-1117121410.jpg   Dear Miata, Stop being so damn F&*%ing slow (Turbo Build)-1117121411.jpg
Gt2560rMiata is offline   Reply With Quote
Old 11-17-2012, 06:19 PM   #13
Junior Member
Thread Starter
iTrader: (-2)

Join Date: Nov 2012
Posts: 242
Total Cats: -42
Default

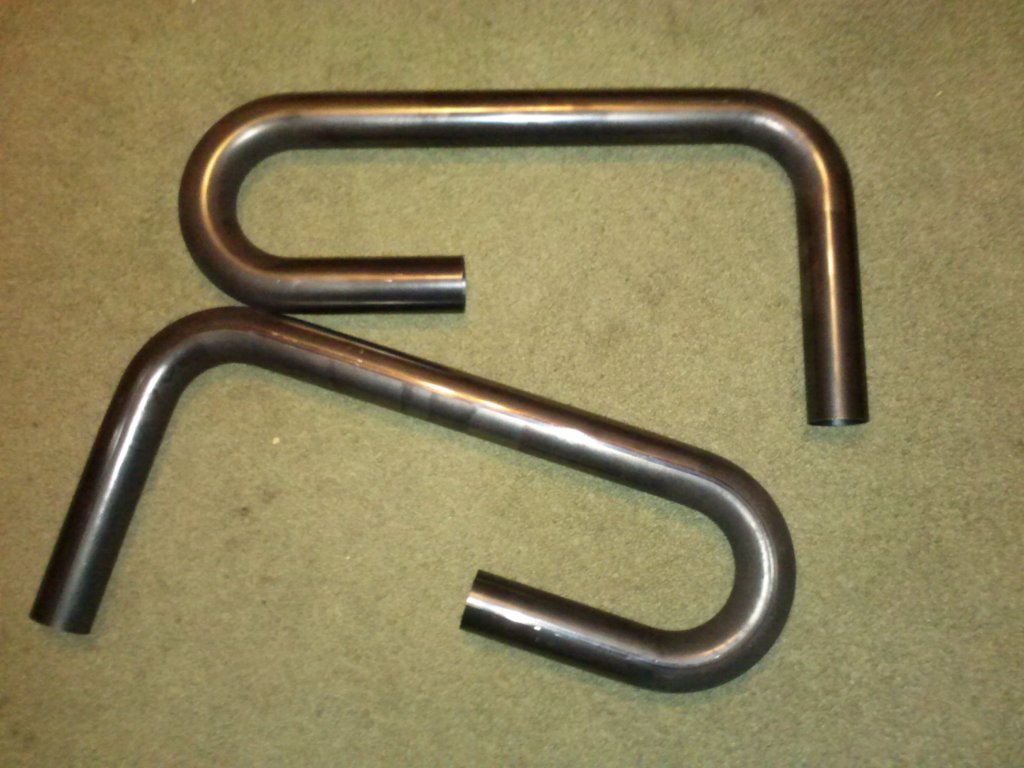

The plan is to do an "over the rad" intercooler setup using 2" piping. I picked up my piping from Speedwaymotors.com, for both pieces it came out to under $50 shipped

Attached Thumbnails
Dear Miata, Stop being so damn F&*%ing slow (Turbo Build)-1114121810-1.jpg
Gt2560rMiata is offline   Reply With Quote
Old 11-17-2012, 06:39 PM   #14
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

Awesome man, keep the pictures and the little details coming, I may be doing exactly this in a few months.
thenuge26 is offline   Reply With Quote
Old 11-17-2012, 06:54 PM   #15
Junior Member
Thread Starter
iTrader: (-2)

Join Date: Nov 2012
Posts: 242
Total Cats: -42
Default

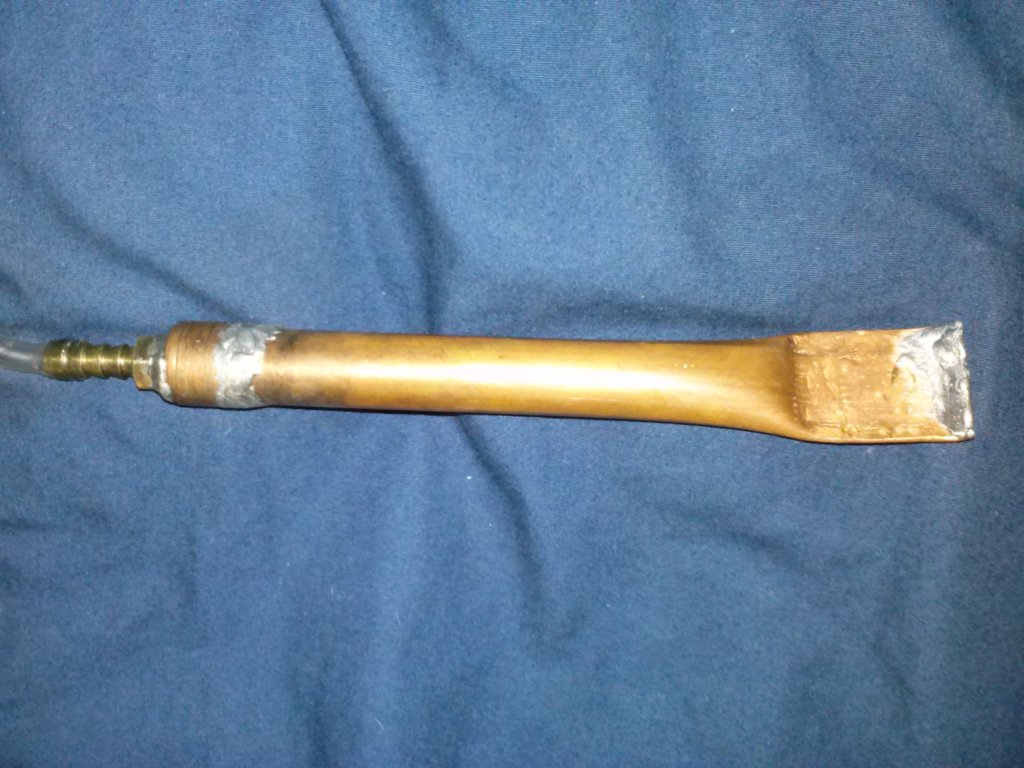

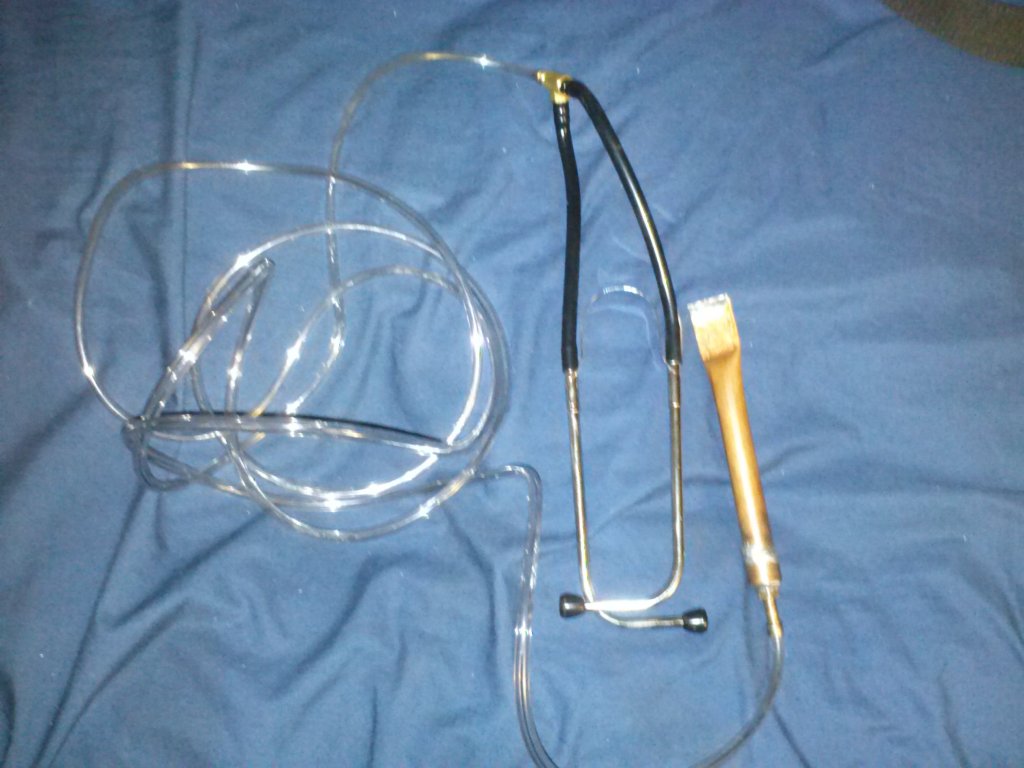

Crappy picture but this is the Detcan I made. The copper tubing, Fittings and clear hose all came from Home Depot. I bought a cheap mechanics stethoscope from Harbor Freight. This thing should work well when it comes to listening for detonation. I had my girlfriend hold the copper piping and scrap her fingernail on it and I could hear it easily. I have yet to drill a hole in it yet for mounting, unsure of exactly where I'm going to bolt it to at the moment


Attached Thumbnails
Dear Miata, Stop being so damn F&*%ing slow (Turbo Build)-1117121443.jpg   Dear Miata, Stop being so damn F&*%ing slow (Turbo Build)-1117121443a.jpg
Gt2560rMiata is offline   Reply With Quote
Old 11-17-2012, 07:01 PM   #16
Junior Member
Thread Starter
iTrader: (-2)

Join Date: Nov 2012
Posts: 242
Total Cats: -42
Default

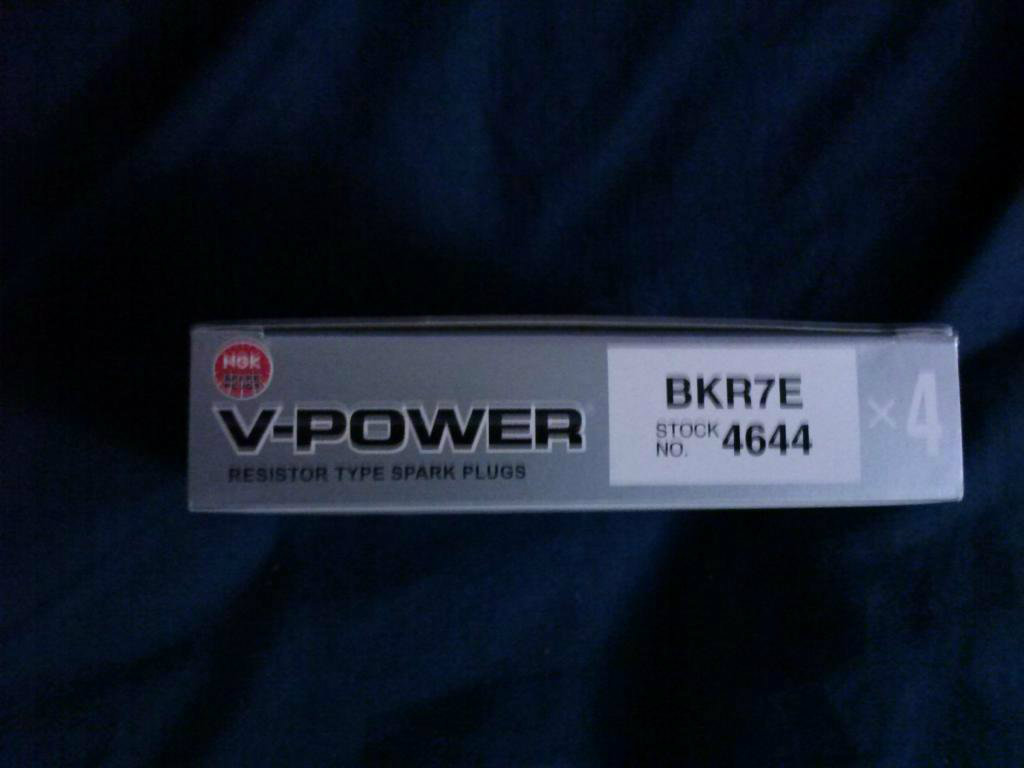

Picked up my spark plugs, these seem to be the ones "everyone" is running. I dont know why im posting a picture....**** it who cares
Attached Thumbnails
Dear Miata, Stop being so damn F&*%ing slow (Turbo Build)-plugs.jpg
Gt2560rMiata is offline   Reply With Quote
Old 11-17-2012, 07:28 PM   #17
ies
Newb
iTrader: (1)

Join Date: Apr 2012
Posts: 23
Total Cats: -2
Default

Looks like a solid build so far
ies is offline   Reply With Quote
Old 11-17-2012, 09:25 PM   #18
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

Aren't bkr7e's 2 steps colder than stock 1.8 plugs? I remember reading somewhere that stock 1.6 plugs (bkr6e) are 1 step colder for a 1.8.

I doubt it matters at all though, that said - I'm running the same plugs in my 1.6.
Fireindc is offline   Reply With Quote
Old 11-17-2012, 09:57 PM   #19
Junior Member
Thread Starter
iTrader: (-2)

Join Date: Nov 2012
Posts: 242
Total Cats: -42
Default

My understanding is that they are 2 steps colder than stock, Which is fine with me. I plan to buy some Toyota COPs here soon. went to my local junkyard the other week and couldn't find any. I can get brand new ones for dealer cost but haven't checked how much that would set me back yet
Gt2560rMiata is offline   Reply With Quote
Old 11-22-2012, 04:10 AM   #20
Junior Member
Thread Starter
iTrader: (-2)

Join Date: Nov 2012
Posts: 242
Total Cats: -42
Default

Ordered a blow off valve tonight. Went with a plastic Bosch unit that Audi uses. Bought it new from a European car parts sight (Volvo Parts, BMW Parts, European Car Parts | FCPGroton.com) brand new for $38 shipped. It will be setup for venting to atmosphere. Ill be running Megasquirt so no need to run it recirculated
