f20c engine conversion


At the request of some members I have started this thread to detail the engine conversion I performed on my 91 Miata.

I have been driving Miatas for the past 10 years and absolutely love the cars. The one short coming as most of us know is power. I thought about FI of the Miata power plant but decided I wanted something different than just another turbo charged Miata. **No offense intended to any of the members of this web site, as I respect all that has been accomplished, and through your work, now realize just what a capable mill the Miata engine is. I thought about the V-8 route but after visiting Miata.net's engine conversion forum, I realized there are quite a few V-8 conversions out there. So many in fact, that there are 3 or 4 companies that make kits for V-8 conversions. No thank you, I wanted something original. That is what led me to the Honda f20c; no kit for this conversion I would need to do it all on my own!

I bought my 91 on eBay for $1300 with a hardtop; it was a non-running automatic car. I got the car running and put a 5spd in it and drove it for 5 years before starting the conversion.

Now, onto the fun stuff!! The first thing needed after brainstorming the project? An engine and transmission of course! After countless hours of watching eBay and Craigslist I settled on an engine and transmission located in Las Vegas. The carfax stated salvage title issued at 10, 358 miles. Being a student and cash strapped, I decided to drive out and pick the engine up myself. The transportation of choice? Not my truck; it uses too much gas, nope I used my trusty old 1988 Acura Legend; which has since been sold to a friend. Take out the passenger seat and off to Vegas, hell its only 11 hours one way and I had the whole weekend off. The result, mission accomplished transmission in the back seat, engine on the floor. Vegas and back in 26 clock hours!

Here is the engine and transmission. the engine is taller and about 1.5 inches longer than the stock engine. Aluminum block and head, I never weighed it but my car only weighs 2400 pounds with me in it, and the hardtop.

[IMG]http://i408.photobucket.com/albums/p...m/DSCF1785.jpg[/IMG][

IMG]Attachment 201338[/IMG]

fixed :noob:

edit: delete this shiz

should be a good thread. Please post way more pictures:)

Nice man, so is it in the car now? Any pics of the car together? I'm sure you've probably seen this thread but it's definitely an interesting read: S2KI - S2000 Forums -> Miata + S2000 = M2000?

[/QUOTE]I'm sure you've probably seen this thread but it's definitely an interesting read: S2KI - S2000 Forums -> Miata + S2000 = M2000?[/QUOTE]


Yes, I looked at his build. The paint job is incredible, but to me the rest of his build left me saying why didn't they do "X". I must admit though, they did a good job documenting the build, which gave me insight on my solutions to engineering obstacles

Here is an example of what I am talking about. Because the rack has to be moved due to the front sump oil pan, a new rack mount must be fabricated. The first picture is their solution, the second picture is mine. I show this not to bash his build but to illustrate how his willingness to share allowed me to critique, and come up with what I consider a better solution. It is always easier to come up with good ideas after you have seen the problem!

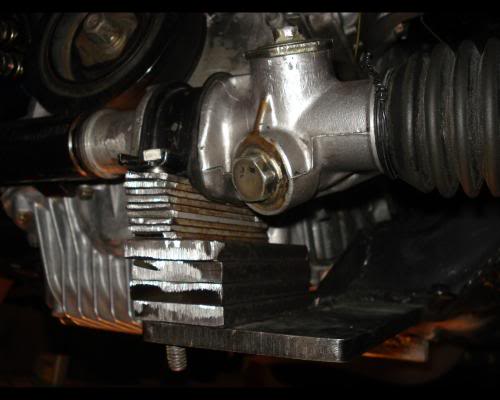

Their solution to rack mount (I don't care for all the shims)
Attachment 201336

My solution (simple and strong!)
Attachment 201337
