Old 05-19-2012, 05:06 PM   #1
Junior Member
Thread Starter

Join Date: Apr 2010
Posts: 60
Total Cats: 0
Default The Family Guy Build.

Just killing time. It is going to be a track car.







ChrisGriffin is offline   Reply With Quote
Old 06-15-2012, 04:13 PM   #2
Junior Member
Thread Starter

Join Date: Apr 2010
Posts: 60
Total Cats: 0
Default

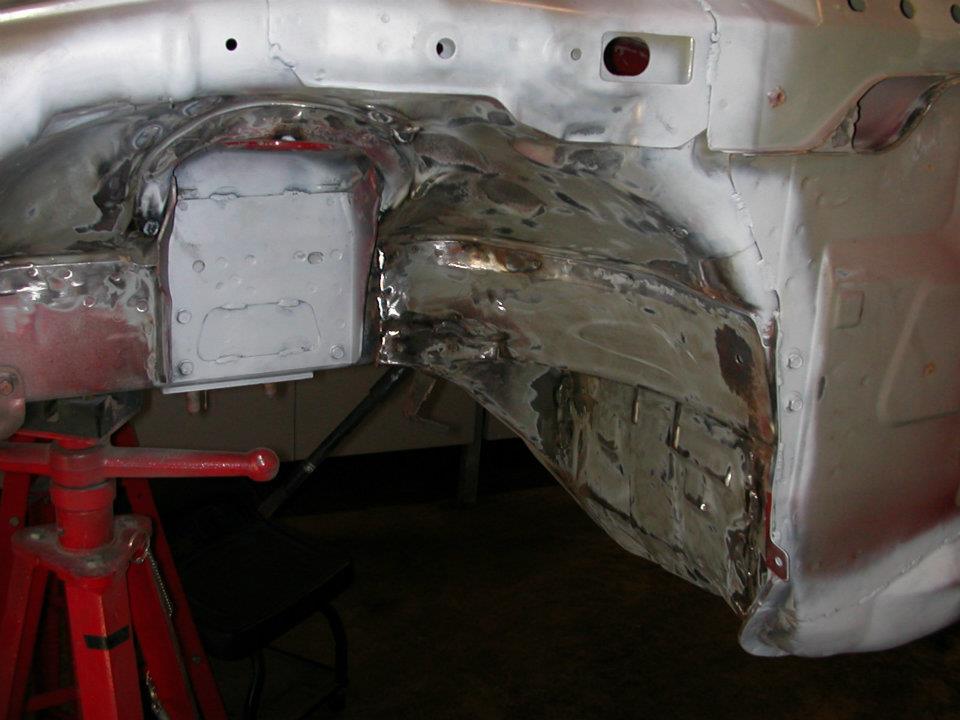

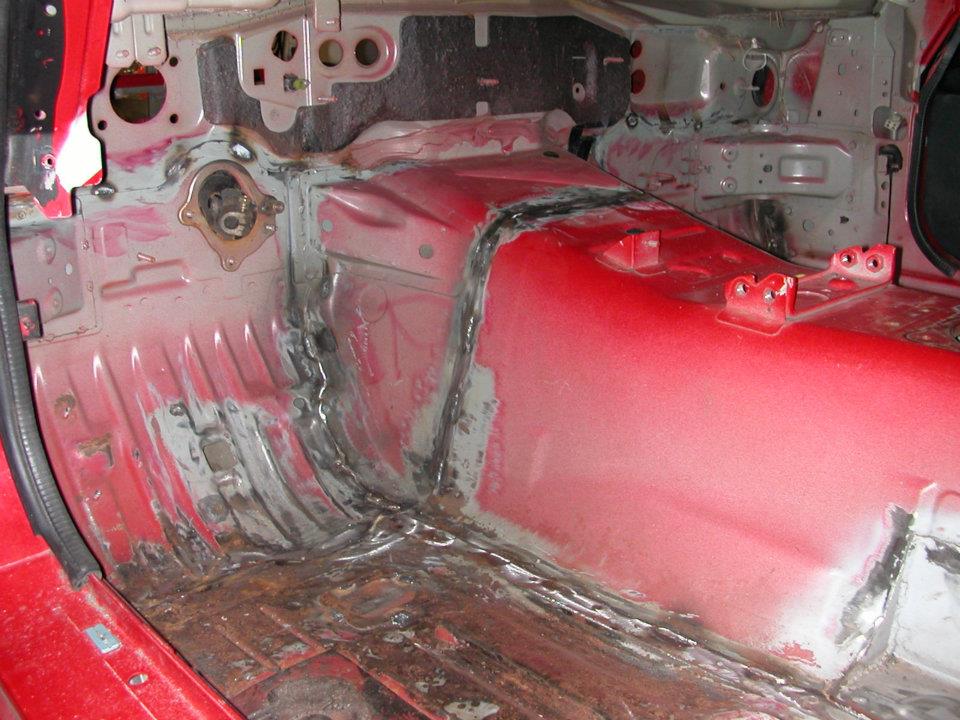

Started seam welding the car.



Attached Thumbnails
The Family Guy Build.-547164_4137437763041_19401837_n.jpg   The Family Guy Build.-181422_4137435722990_1776417768_n.jpg
ChrisGriffin is offline   Reply With Quote
Old 06-15-2012, 04:16 PM   #3
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Neat! Are those full welds, or just stitching?
EO2K is offline   Reply With Quote
Old 06-15-2012, 04:54 PM   #4
Junior Member
Thread Starter

Join Date: Apr 2010
Posts: 60
Total Cats: 0
Default

Stitching
ChrisGriffin is offline   Reply With Quote
Old 06-15-2012, 05:07 PM   #5
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

What's the build plan?
EO2K is offline   Reply With Quote
Old 11-02-2012, 04:31 PM   #6
Junior Member
Thread Starter

Join Date: Apr 2010
Posts: 60
Total Cats: 0
Default

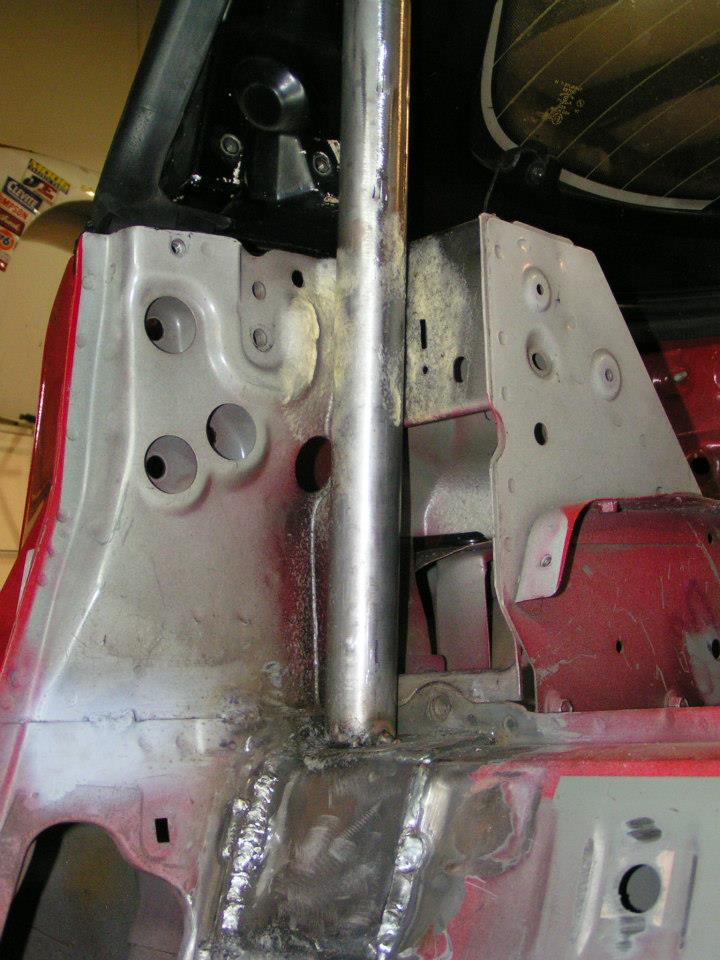

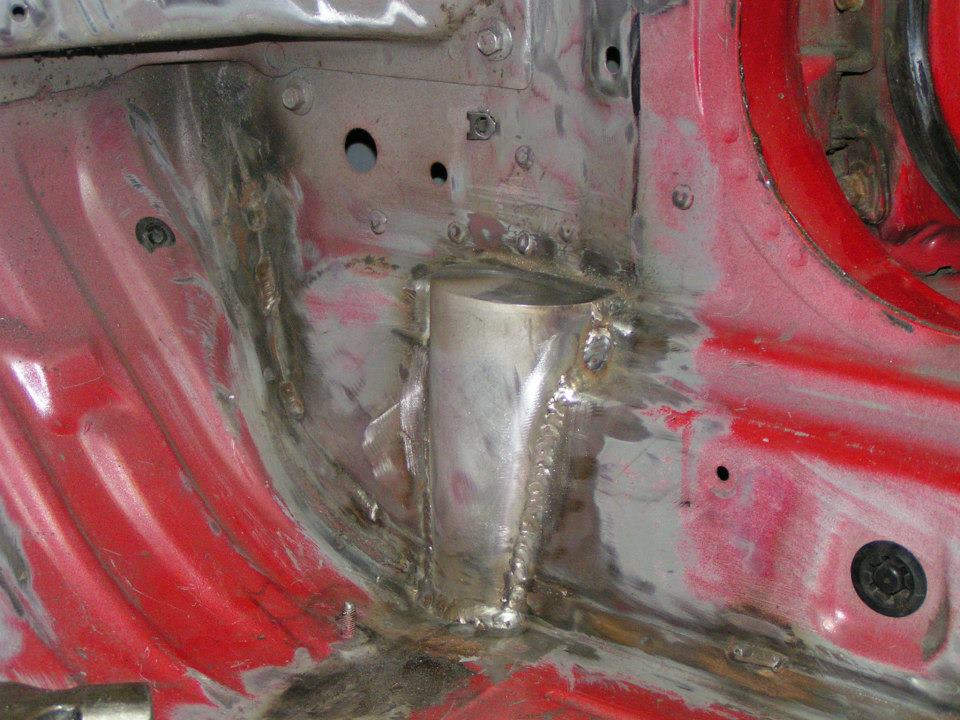

Roll Cage Started.



Attached Thumbnails
The Family Guy Build.-552424_4842540030157_626263991_n.jpg   The Family Guy Build.-396349_4842540630172_381382384_n.jpg
ChrisGriffin is offline   Reply With Quote
Old 11-11-2012, 06:55 AM   #7
Junior Member
Thread Starter

Join Date: Apr 2010
Posts: 60
Total Cats: 0
Default

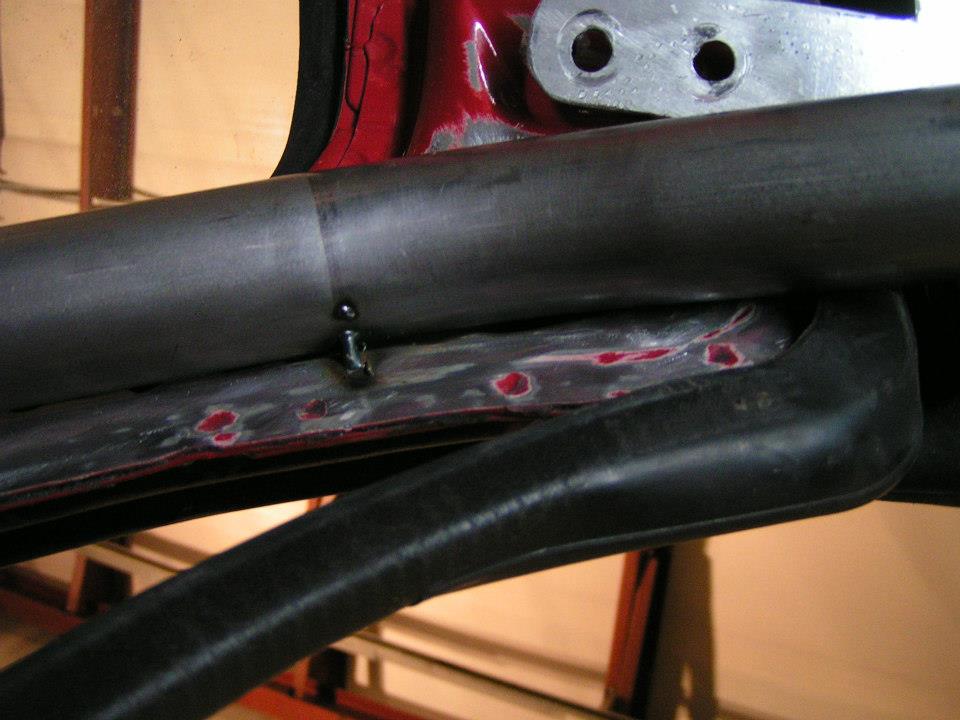

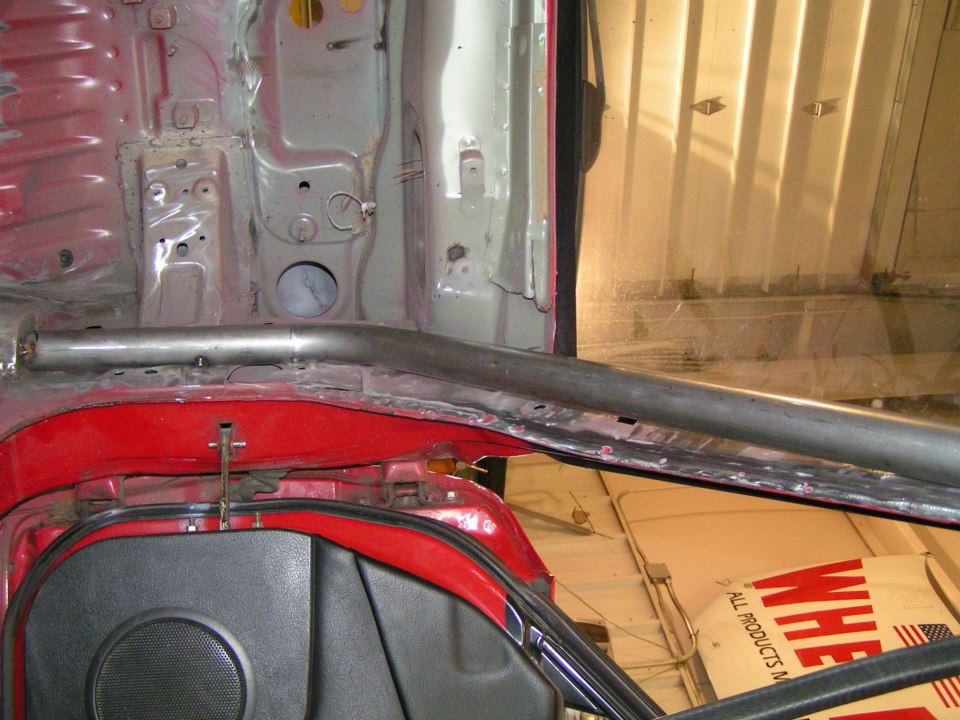

A-Pillar bars are fitted!




Attached Thumbnails
The Family Guy Build.-542811_4885246097782_577927247_n.jpg   The Family Guy Build.-548886_4885245137758_1940153952_n.jpg
ChrisGriffin is offline   Reply With Quote
Old 11-11-2012, 12:26 PM   #8
Senior Member

Join Date: Aug 2010
Location: Arl. Texas
Posts: 937
Total Cats: 23
Default

Good looking welds. What's the wall on that DOM?

What the plans drive line wise? Motor/trans/rearend...
Miater is offline   Reply With Quote
Old 11-11-2012, 09:25 PM   #9
Junior Member
iTrader: (1)

Join Date: Oct 2012
Location: Eureka, Ca
Posts: 150
Total Cats: -21
Default

This is a very nice start.
old school is offline   Reply With Quote
Old 11-14-2012, 08:11 AM   #10
Junior Member
Thread Starter

Join Date: Apr 2010
Posts: 60
Total Cats: 0
Default

Car will be a track/street car. Really just building it for the fun of it. Miata driveline is going back in. I have some used turbo parts sitting around from other projects. They will probably make it on the car. Thanks for the compliments on the welds. Far from a expert though.
ChrisGriffin is offline   Reply With Quote
Old 11-16-2012, 10:34 AM   #11
Junior Member
Thread Starter

Join Date: Apr 2010
Posts: 60
Total Cats: 0
Default

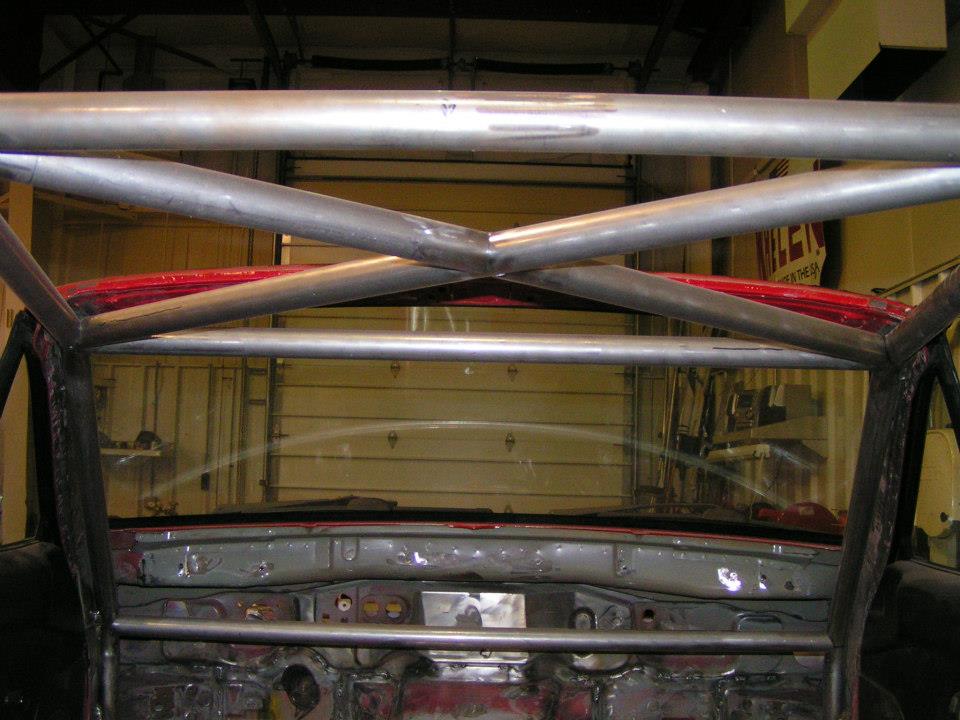

More progress on the roll cage.

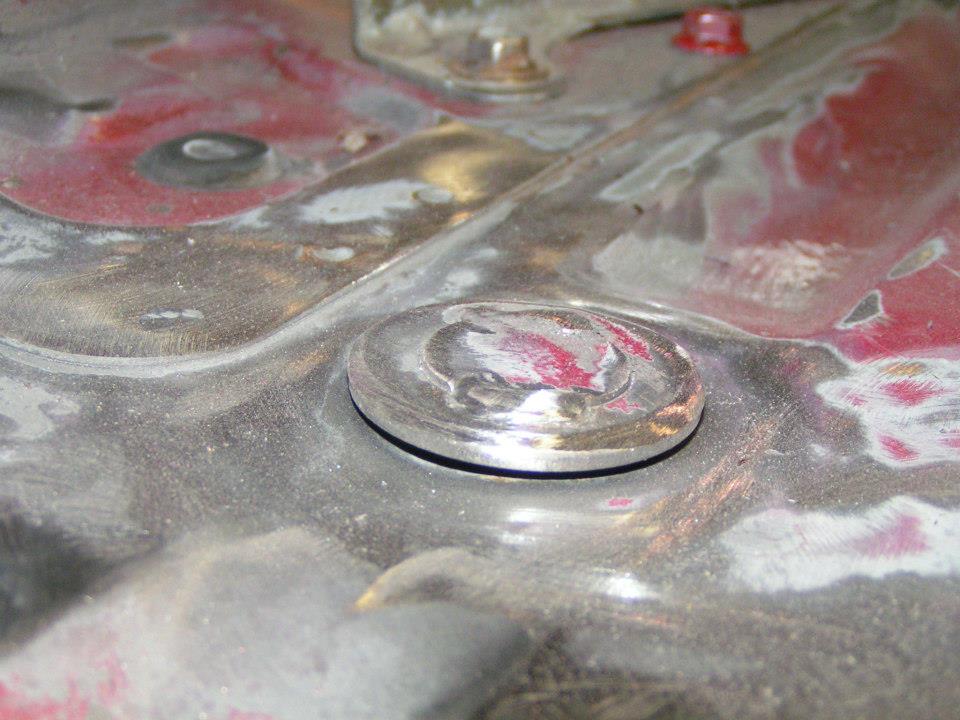

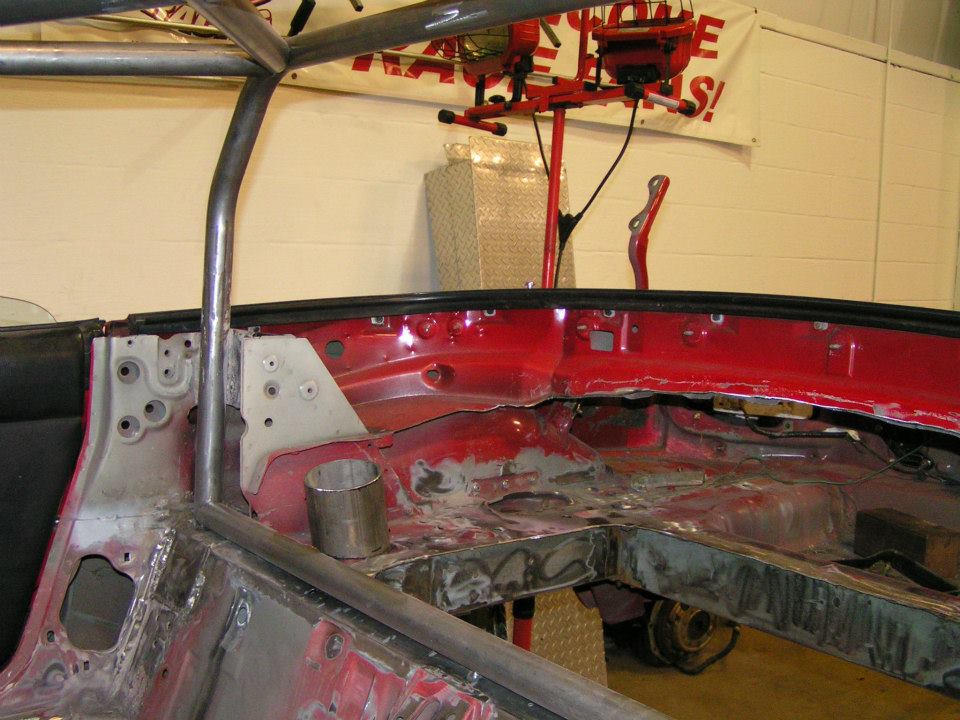

Rear Subframe mounts where coming loose.

Attached Thumbnails
The Family Guy Build.-480295_4907886063767_1342213333_n.jpg   The Family Guy Build.-532286_4907889983865_1797671040_n.jpg   The Family Guy Build.-532179_4907887703808_1312189804_n.jpg
ChrisGriffin is offline   Reply With Quote
Old 12-12-2012, 07:23 PM   #12
Junior Member
Thread Starter

Join Date: Apr 2010
Posts: 60
Total Cats: 0
Default

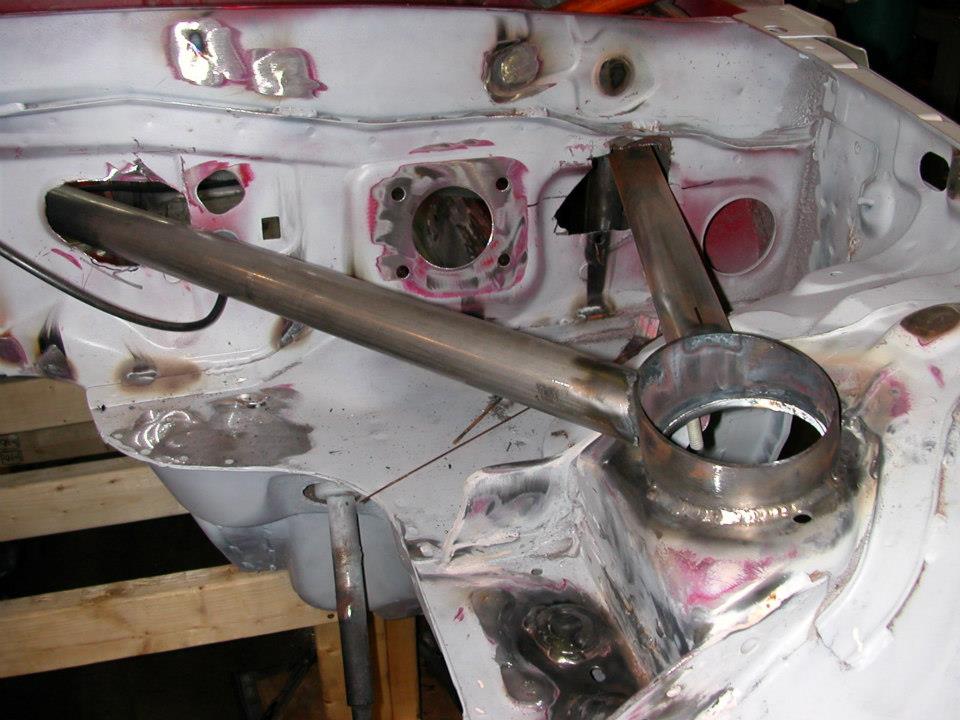

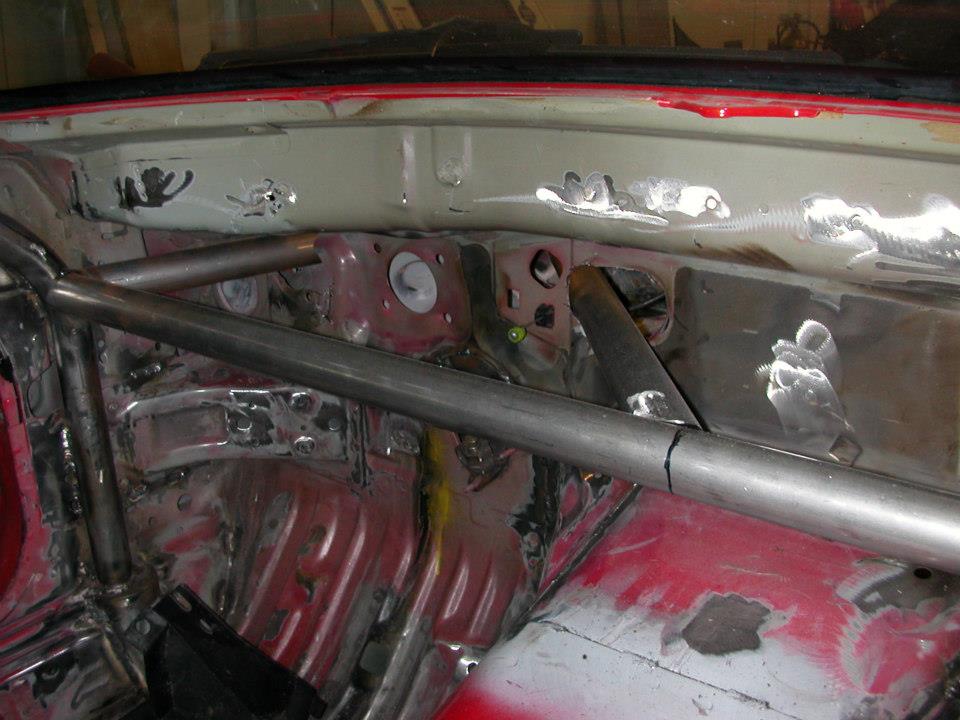

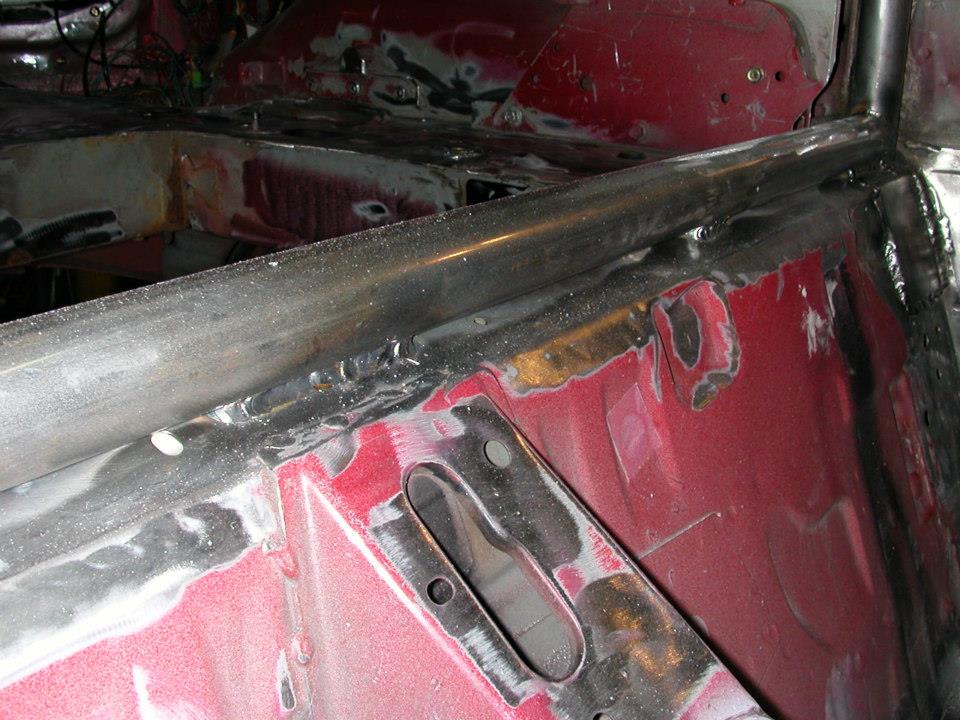

Lower cross bar getting tied into the body.



Through the firewall to shock towers.


Attached Thumbnails
The Family Guy Build.-76781_10200137435867421_135577815_n.jpg   The Family Guy Build.-316563_10200137436027425_1309032830_n.jpg   The Family Guy Build.-525812_10200137437387459_1259621646_n.jpg
ChrisGriffin is offline   Reply With Quote
Old 12-13-2012, 02:25 AM   #13
Senior Member

Join Date: Aug 2010
Location: Arl. Texas
Posts: 937
Total Cats: 23
Default

Very nice welds. Keep up the good work.
Miater is offline   Reply With Quote
Old 12-13-2012, 09:34 AM   #14
Junior Member
Thread Starter

Join Date: Apr 2010
Posts: 60
Total Cats: 0
Default

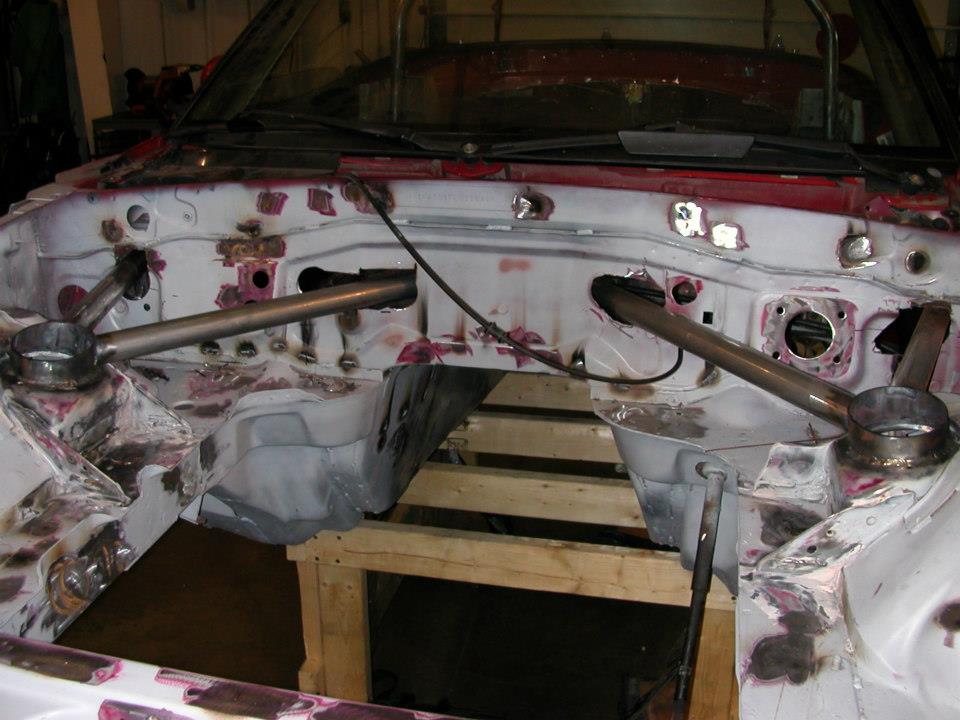

Thanks. Learning to tig weld in very awkward positions.


Attached Thumbnails
The Family Guy Build.-205074_10200140575985922_782679488_n.jpg
ChrisGriffin is offline   Reply With Quote
Old 12-13-2012, 12:43 PM   #15
Senior Member

Join Date: Aug 2010
Location: Arl. Texas
Posts: 937
Total Cats: 23
Default

Can you snap a few more pics of the diff mounts comming loose? One more good shot from under the car, and one from the top should be fine. I've never had my car broken down that far, but I suspect there may be some fatigue in that area.
Miater is offline   Reply With Quote
Old 12-13-2012, 01:03 PM   #16
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,901
Total Cats: 109
Default

Looks like you have made great progress in learning the art of welding. Welding was something I never was great at.

One thing I noticed that will be a problem is the main hoop brace you have welded to the deck behind the seat. That should be raised higher to about shoulder level so as to have a place for your harness. I know most sanctioning bodies require it that way. Adding another one higher is redundant and adds too much weight. Have you consulted a rule book? From a far away land that does not require it that way?

I love the front shock tower support.

Last edited by miata2fast; 12-14-2012 at 08:44 AM.
miata2fast is offline   Reply With Quote
Old 12-13-2012, 01:37 PM   #17
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

Sick cage build. I like how you tied it to the chassis, that shell should be stiff.
Fireindc is offline   Reply With Quote
Old 12-14-2012, 03:18 AM   #18
Senior Member
iTrader: (10)

Join Date: Jul 2009
Location: Oakdale, CA
Posts: 1,353
Total Cats: 66
Default

Are you going with a custom pedal setup? Like Wilwoods with the reservoirs on top? Because those are sexy. When doing my cage I was going to tie into the front shock towers but didn't want to mess with the pedal situation and I didn't want to loss my blower motor. Looks cool though, I like the x bar at the top, Troy does have a point about the harness bar though.

But I'm sure the main hoop is going to get a diagonal bar and a harness bar... In for more pictures though, that's for sure

Last edited by RyanRaduechel; 12-14-2012 at 01:33 PM.
RyanRaduechel is offline   Reply With Quote
Old 12-14-2012, 05:13 PM   #19
Junior Member
Thread Starter

Join Date: Apr 2010
Posts: 60
Total Cats: 0
Default

Thanks. Custom pedals mounted on the floor. The lower main hoop cross bar is just to stiffen the shell.
ChrisGriffin is offline   Reply With Quote
Old 12-15-2012, 04:52 PM   #20
Junior Member
iTrader: (1)

Join Date: Oct 2012
Location: Eureka, Ca
Posts: 150
Total Cats: -21
Default

Nice work. How is your clearance for headroom when sitting in the seat with a helmet on.?
old school is offline   Reply With Quote
