Old 01-18-2012, 10:01 PM   #21
Junior Member
iTrader: (6)

Join Date: May 2008
Location: Goodrich, MI
Posts: 182
Total Cats: 2
Default

I love you. Ive been drooling over this head for a while but have not had the ***** to try it, can't wait to see your results. Awesome work!
-Mike
MustangMike is offline   Reply With Quote
Old 01-19-2012, 04:20 AM   #22
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Wow. What is your day job.
Faeflora is offline   Reply With Quote
Old 01-23-2012, 05:44 PM   #23
IHI
Junior Member

Join Date: Oct 2009
Location: The Netherlands
Posts: 200
Total Cats: 1
Default

Wow... I like how you see things in perspective.
Does anyone has the part no. For that triggerwheel?
IHI is offline   Reply With Quote
Old 01-24-2012, 03:18 PM   #24
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,517
Total Cats: 256
Default

Quote:
Originally Posted by IHI View Post
Wow... I like how you see things in perspective.
Does anyone has the part no. For that triggerwheel?
http://www.jimellismazdaparts.com/pr...ZM0111408.html

I got one from a junk yard. Don't know if it fits 1.8 yet.
soviet is offline   Reply With Quote
Old 02-02-2012, 10:35 PM   #25
Junior Member

Join Date: Jun 2008
Posts: 82
Total Cats: 1
Default

I actually put a z5 bottom end with a b6 top end and threw it into my festiva, I took a look at the z5's head and threw it in the garbage... i thought all z series engines were the same i geuss not! i wondered why they looked so different at the junkyard.

great bulidthread
miata39 is offline   Reply With Quote
Old 02-02-2012, 10:41 PM   #26
Junior Member

Join Date: Jun 2008
Posts: 82
Total Cats: 1
Default

Do you have any pictures of the zm factory exhaust manifold? is it cast or tubular?
miata39 is offline   Reply With Quote
Old 02-02-2012, 11:56 PM   #27
Senior Member

Join Date: Aug 2010
Location: Arl. Texas
Posts: 937
Total Cats: 23
Default

Thank you for clearing up my oil squirter debate. In for updates on boths cars.
Miater is offline   Reply With Quote
Old 02-03-2012, 01:46 AM   #28
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Sigh nithing to add but bonnnwr
Faeflora is offline   Reply With Quote
Old 02-09-2012, 02:21 AM   #29
htc
Newb

Join Date: Feb 2012
Posts: 2
Total Cats: 0
Default

So, specifically, how has fuel consumption been a factor in parts selection/engine build specs and what do you expect in mpg? I've always wanted to build some extra power into my engine, but fuel economy is a big concern of mine. Thanks.
htc is offline   Reply With Quote
Old 02-09-2012, 05:22 AM   #30
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

Why is fuel economy an issue?

Dann
nitrodann is offline   Reply With Quote
Old 03-07-2012, 03:30 AM   #31
htc
Newb

Join Date: Feb 2012
Posts: 2
Total Cats: 0
Default

I'm interested in modifications for my daily driver. I can't justify high output if I can't afford my commute to work, no matter how much fun I have on the way. And I'm frugal.
htc is offline   Reply With Quote
Old 03-10-2012, 01:20 PM   #32
Junior Member
iTrader: (6)

Join Date: May 2008
Location: Goodrich, MI
Posts: 182
Total Cats: 2
Default

Just wanted to confirm that the MLS head gasket from the zm-de motor will infact work on the B6 miata motor (in my configuration IE:stock valve-train and Weisco 8.5:1 pistons). Just bought one and worked perfect, pistons still don't reach the valves even with the different thickness.
-Mike
MustangMike is offline   Reply With Quote
Old 06-08-2012, 01:25 PM   #33
Junior Member
iTrader: (2)

Join Date: Apr 2011
Posts: 360
Total Cats: 10
Default

This is awesome. For my SSM car, for phase 2, I've been thinking about doing a 1.6L supercharged build to drop 40 lbs of nose weight (and 40 lbs off my min weight for the class too!) This looks like some excellent stuff to use, and factory stuff too (crank trigger wheel, woot!) I'll be back with more questions later this year.
codingparadox is offline   Reply With Quote
Old 07-26-2012, 03:32 AM   #34
Junior Member
Thread Starter
iTrader: (1)

Join Date: Dec 2010
Location: California
Posts: 53
Total Cats: 15
Default

I thought I would post an update to what I have been working on...

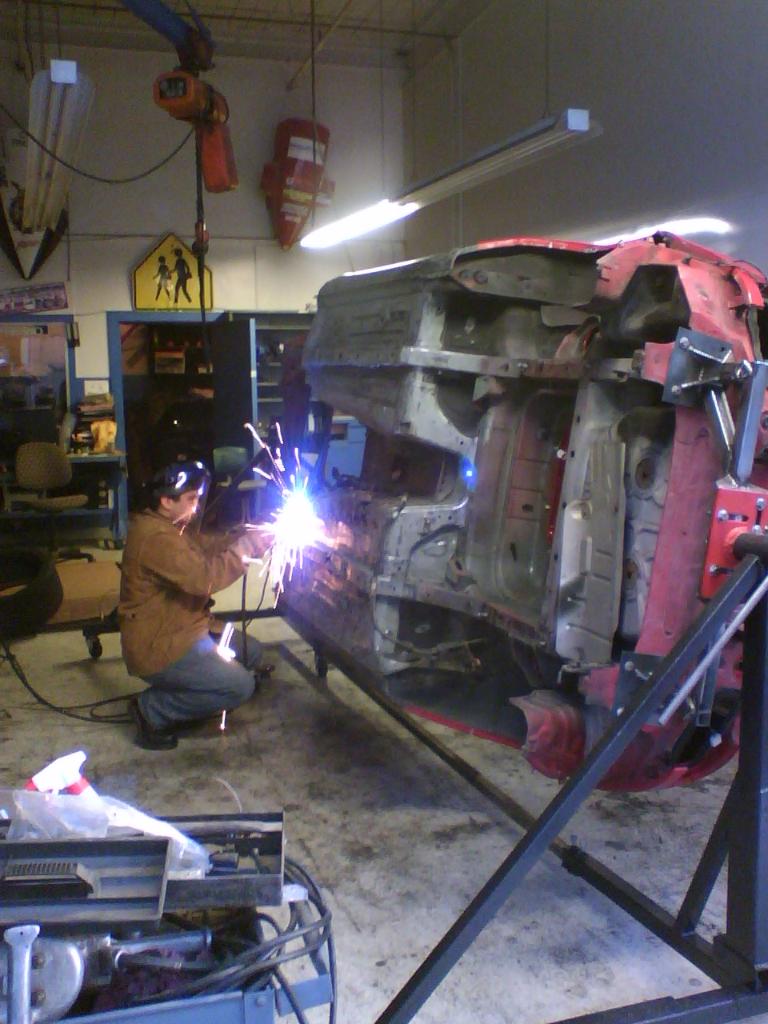

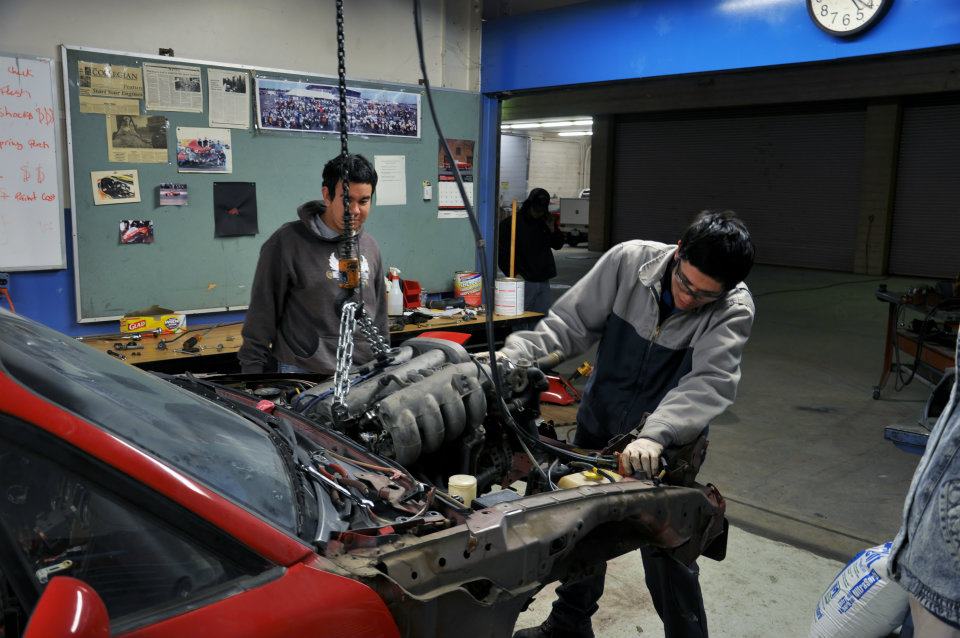

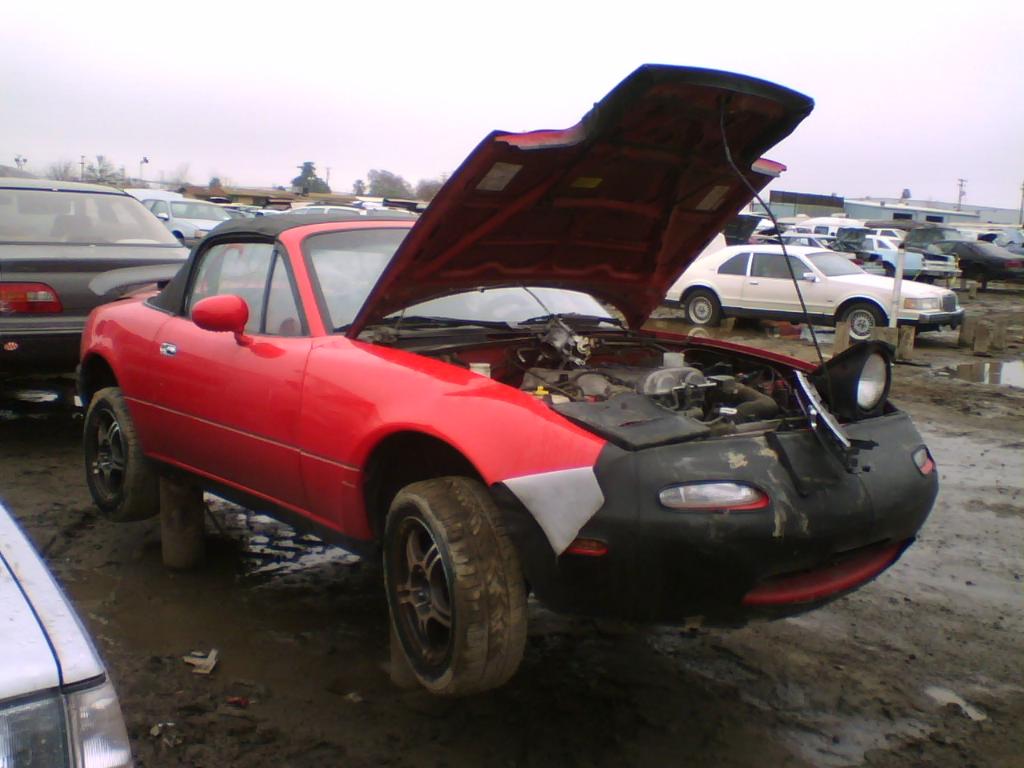

First of all, last spring I co-founded a Motorsports development course at CSU Fresno. We submitted a $60,000 funding request to develop the program (i'm expecting half the $), we then procured a 91' from a local Pick-A-Part and began disassembling. The engine was removed so we could begin doing development work on the engine dyno, and a custom rotisserie was constructed so that we could stitch weld the chassis and make various modifications to the suspension.

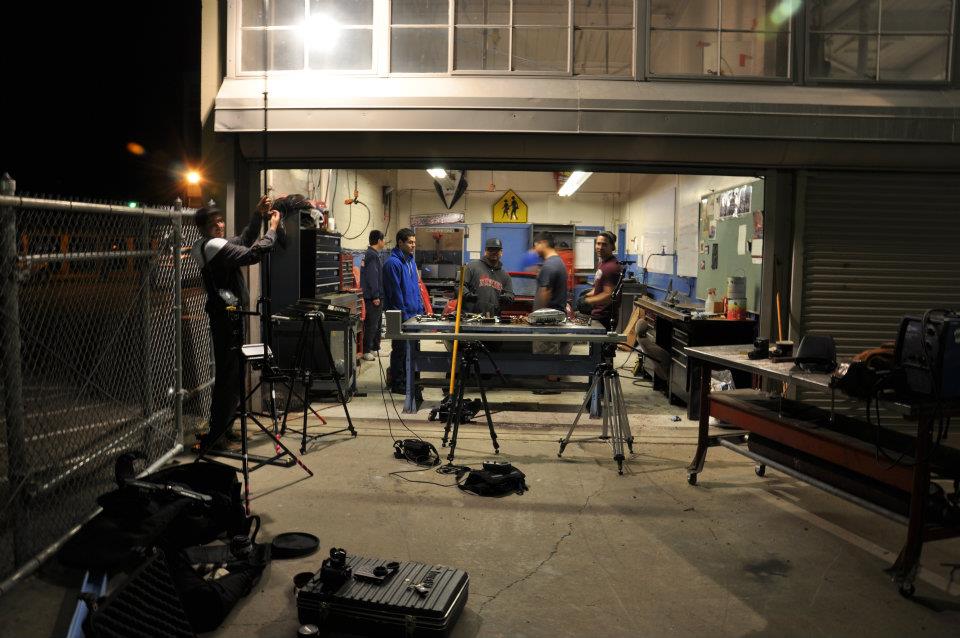

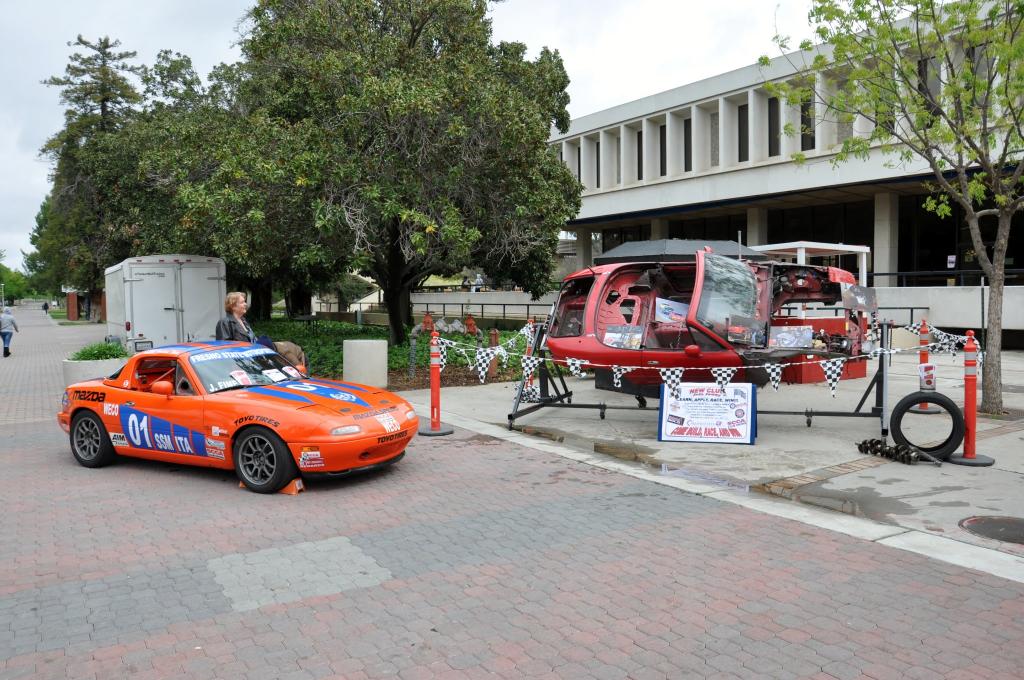

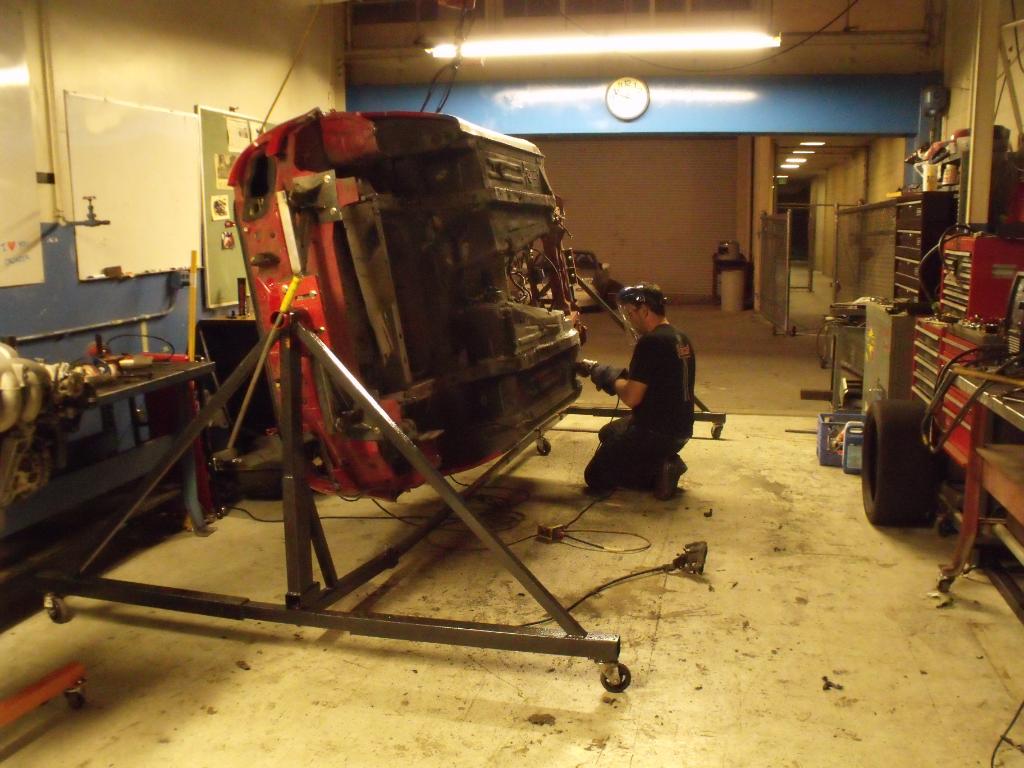

We currently promoting the new program and looking for sponsors. Here we are setting up for a photo shoot.










Hopefully, we will see some of you at the track next summer...
Attached Thumbnails
Hybrid B6/ZM-DE engine build-0127121055-01.jpg   Hybrid B6/ZM-DE engine build-429428_311345612258459_1827251792_n.jpg   Hybrid B6/ZM-DE engine build-dscf3990.jpg   Hybrid B6/ZM-DE engine build-0426121931-03.jpg   Hybrid B6/ZM-DE engine build-403880_321285491264471_1762113710_n.jpg

Hybrid B6/ZM-DE engine build-465566_334957703230583_1652062399_o.jpg
crowder92 is offline   Reply With Quote
Old 07-26-2012, 04:56 AM   #35
Junior Member
Thread Starter
iTrader: (1)

Join Date: Dec 2010
Location: California
Posts: 53
Total Cats: 15
Default

At home I have been working on various engine components as well as chassis and powertrain modifications for my own car (A few parts that are currently in development I hope to have on the market sometime next year).

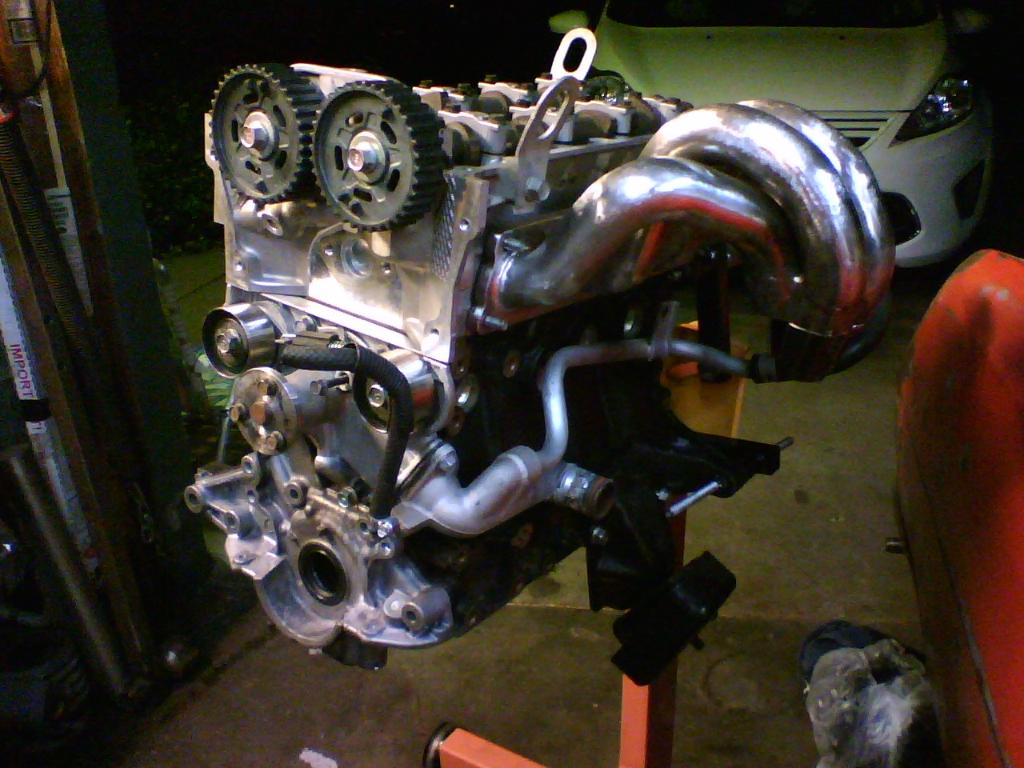

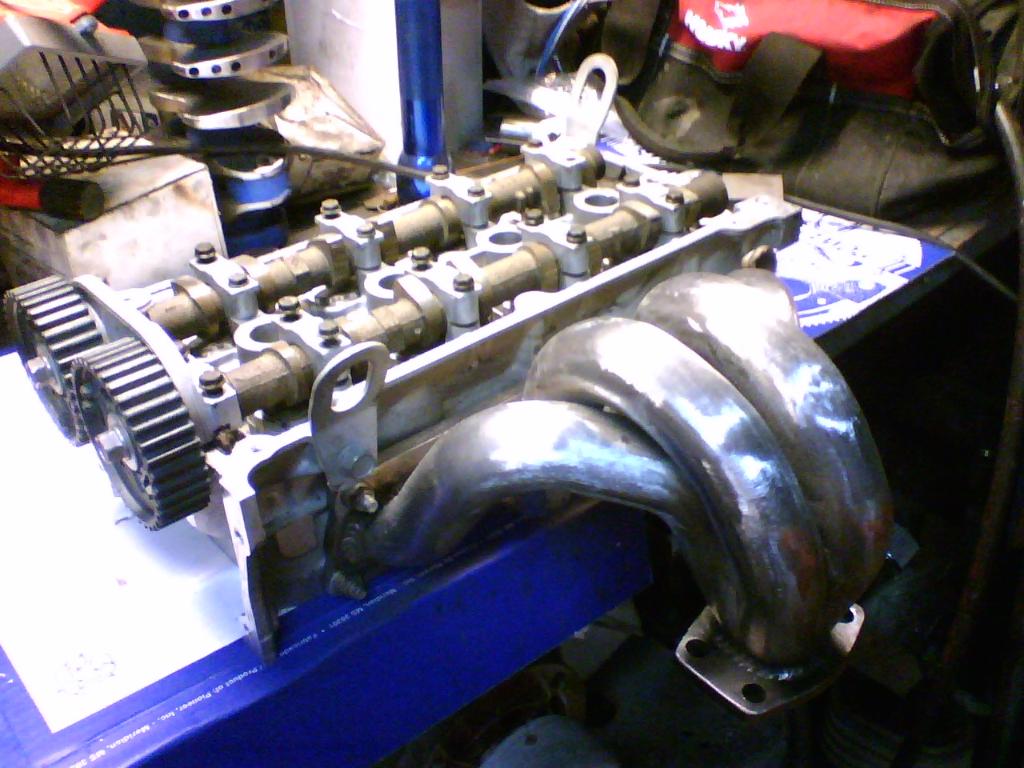

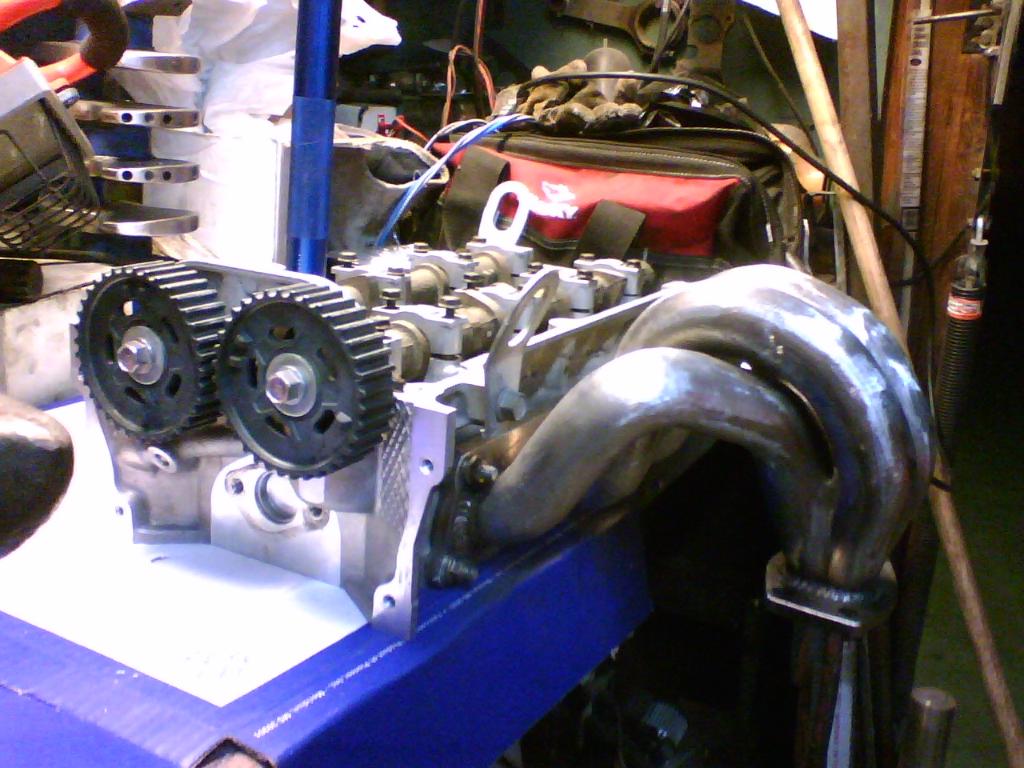

Here is a shot of the turbo manifold I am finishing for the ZM-DE head. The runners have been finished and the collector is being welded inside and out before the very complicated collector divider is welded in place(twin scroll turbo).















The stock oiling system on the BP/B6 is very good under most conditions. However under certain conditions the oil can migrate away from the oil pickup. Rather than installing an Accusump to assist oil flow/pressure, I thought I would first improve on the existing system.

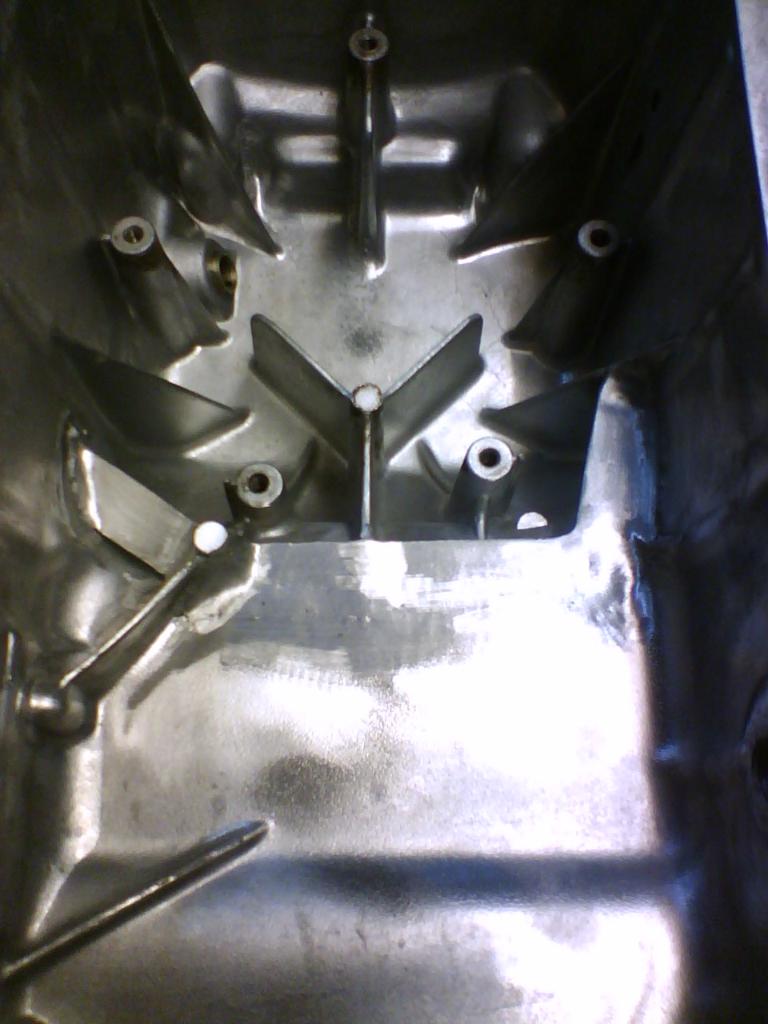

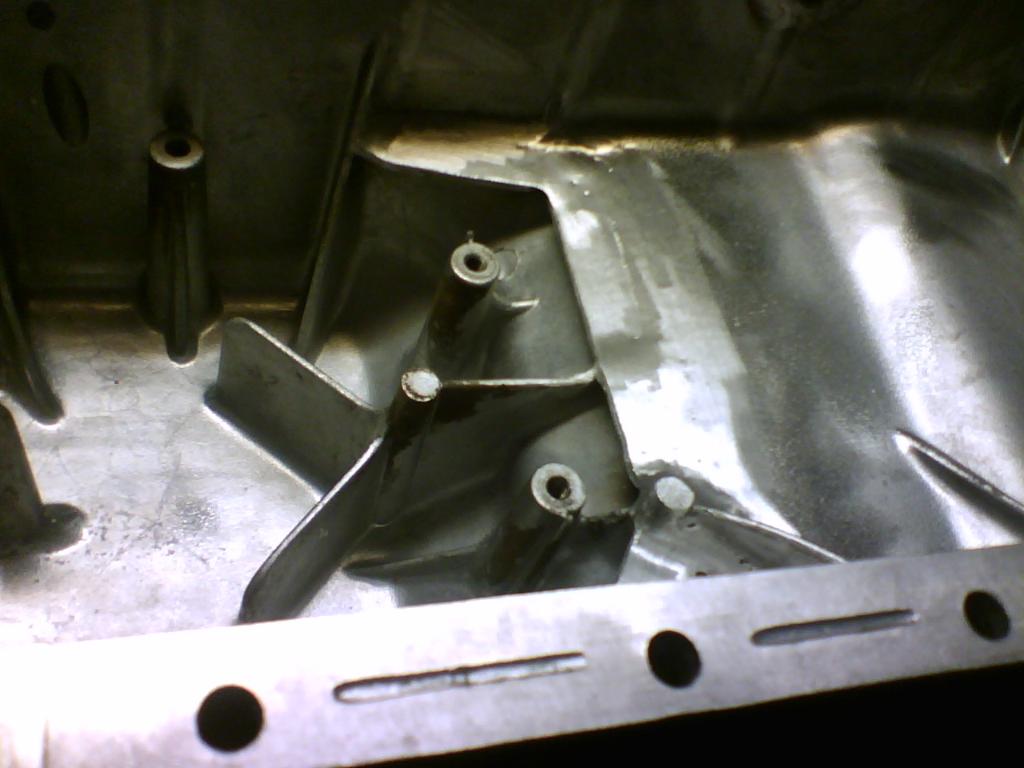

I welded some "baffles" to the sump of the oil pan. These baffles create a shelf between the factory pan baffle in the bottom of the oil pan and the surrounding structure. This is to reduce the tendency of the oil to leave the sump under heavy breaking.

I left enough of a gap between the factory baffle and new sections that their should be little effect on oil return to the sump.






I will find some before and after photos of the modifications if they are not clear.






Now to fix the 1.8 diff housing.

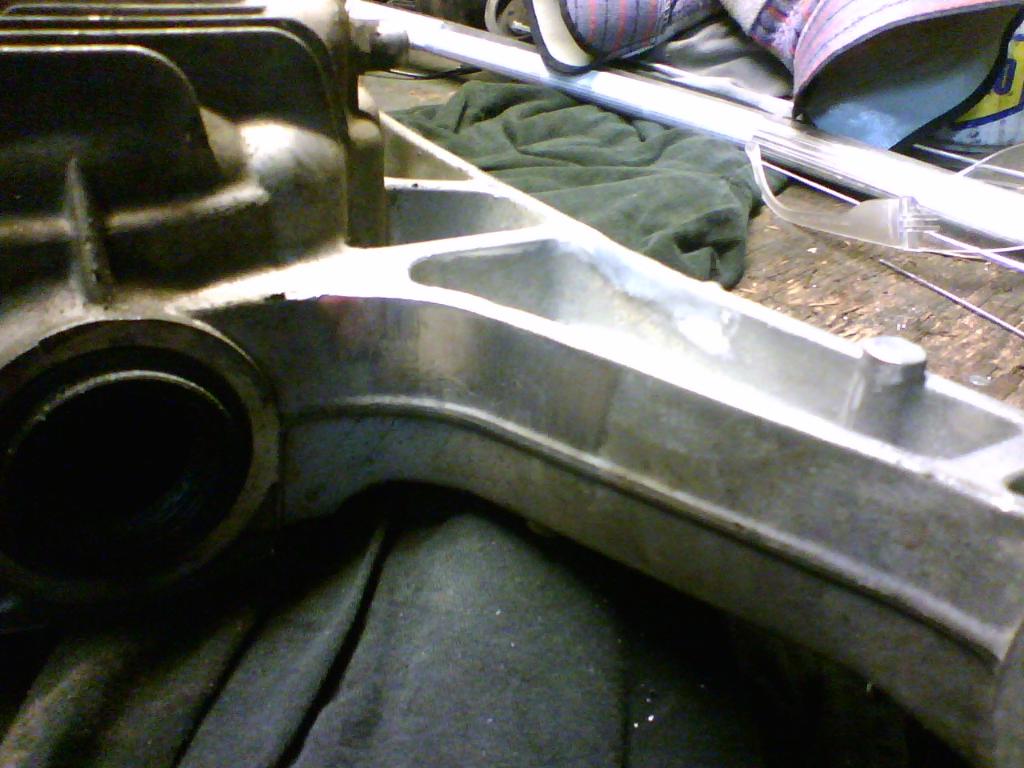

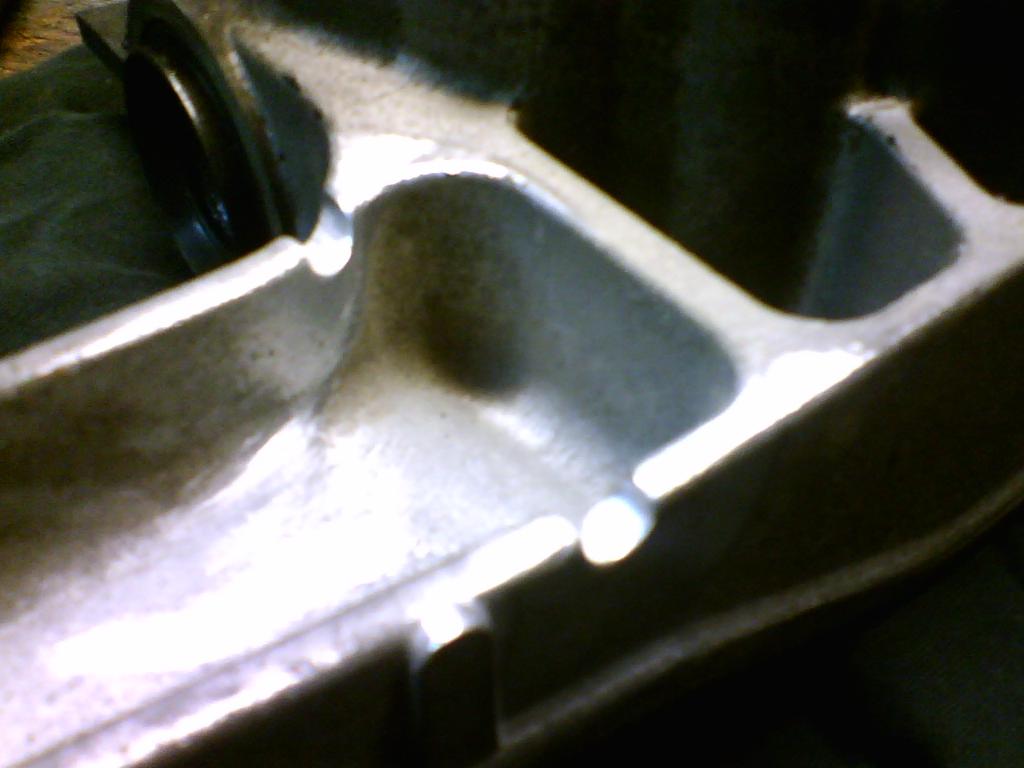

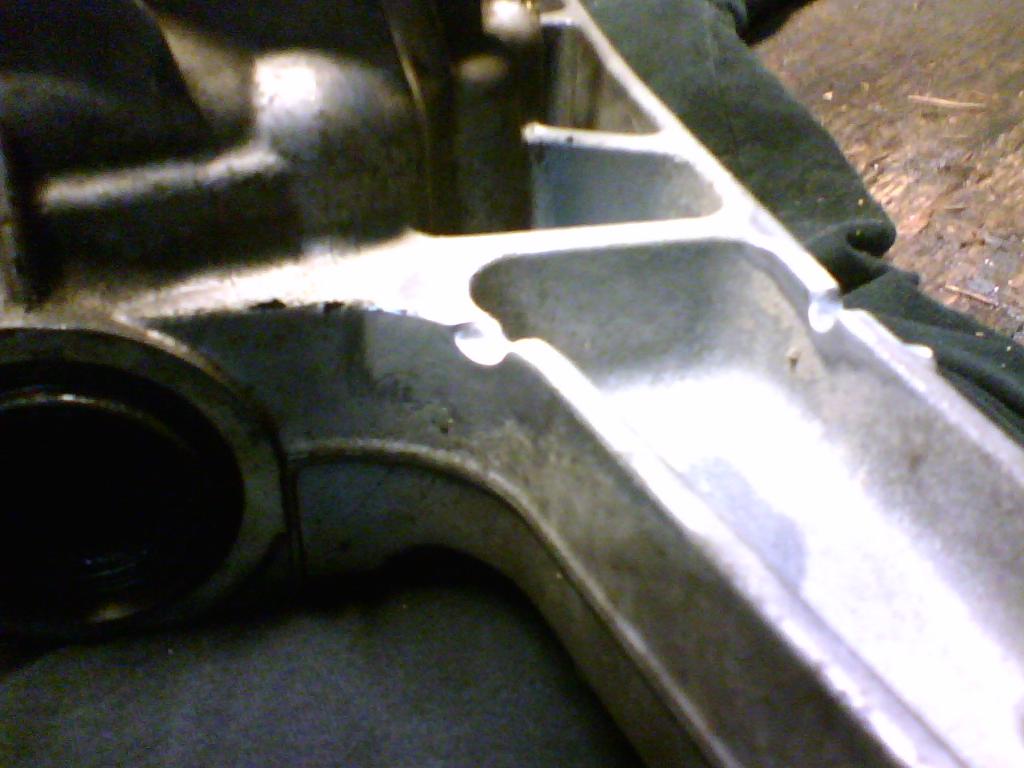

I decided to fix "fracture points" the 1.8 Miata housing rather than install my RX-7 housing, because I feel that the Miata diff housing has bigger/better cooling fins. Just my opinion.

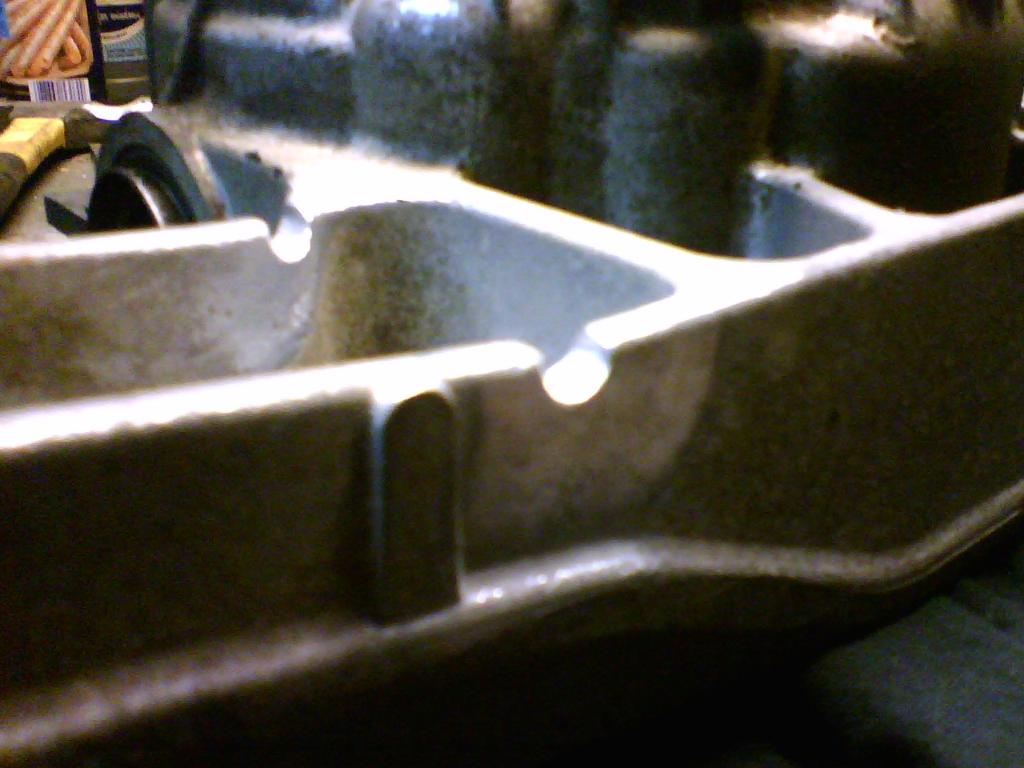

Before...

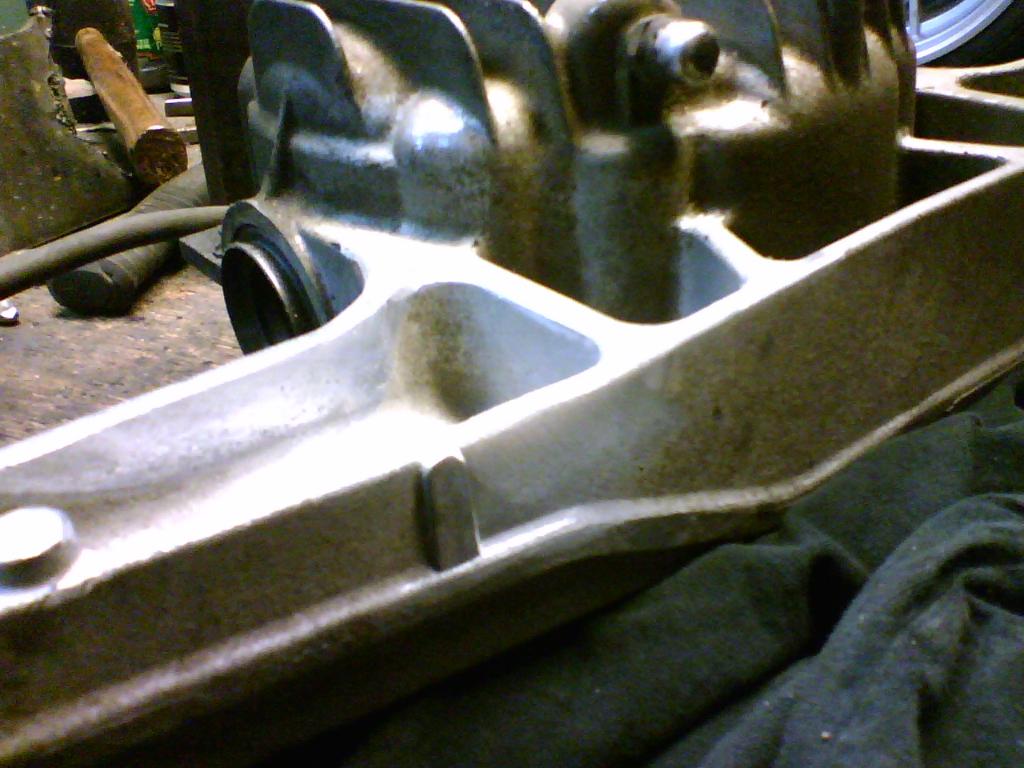

After...

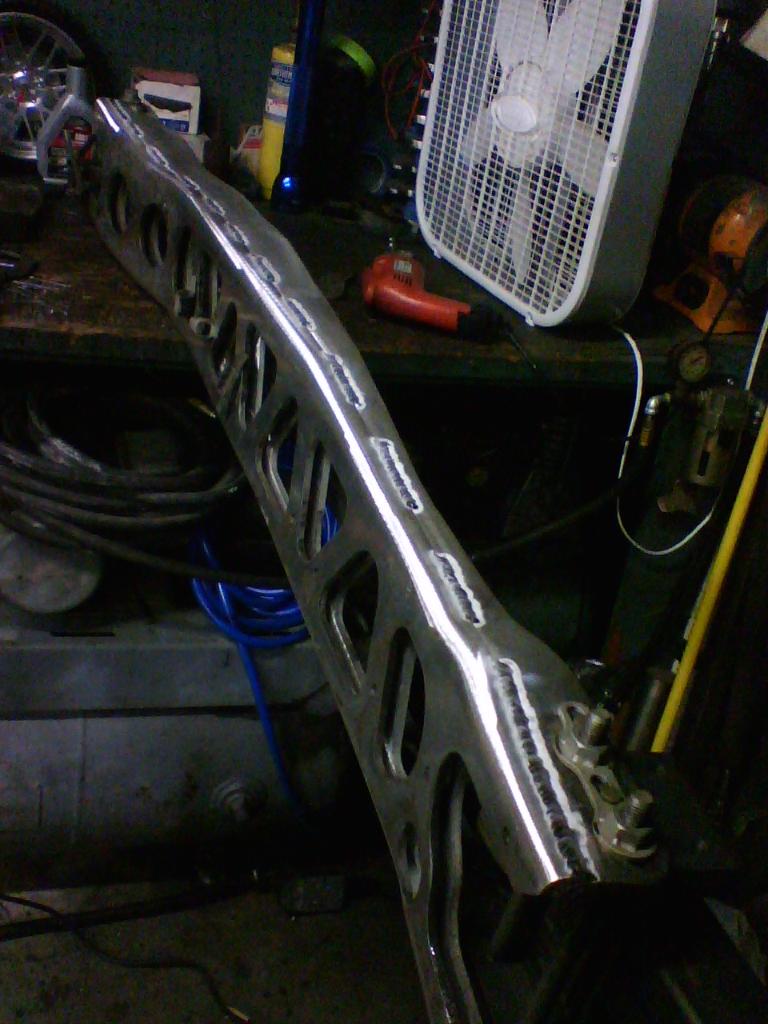

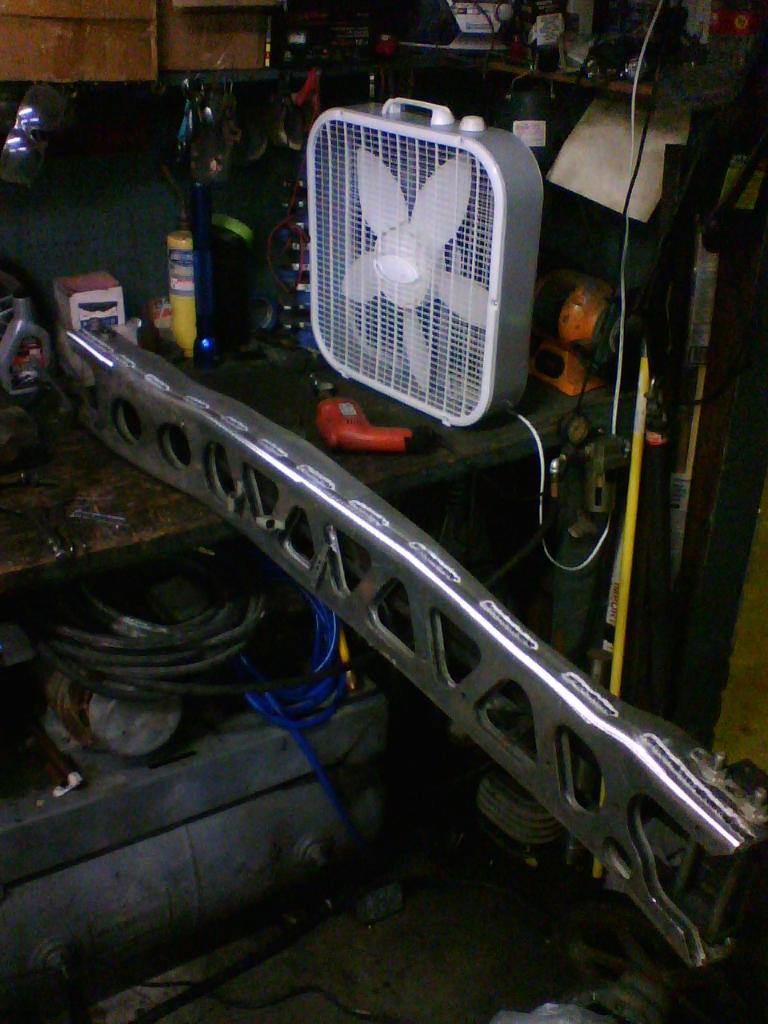

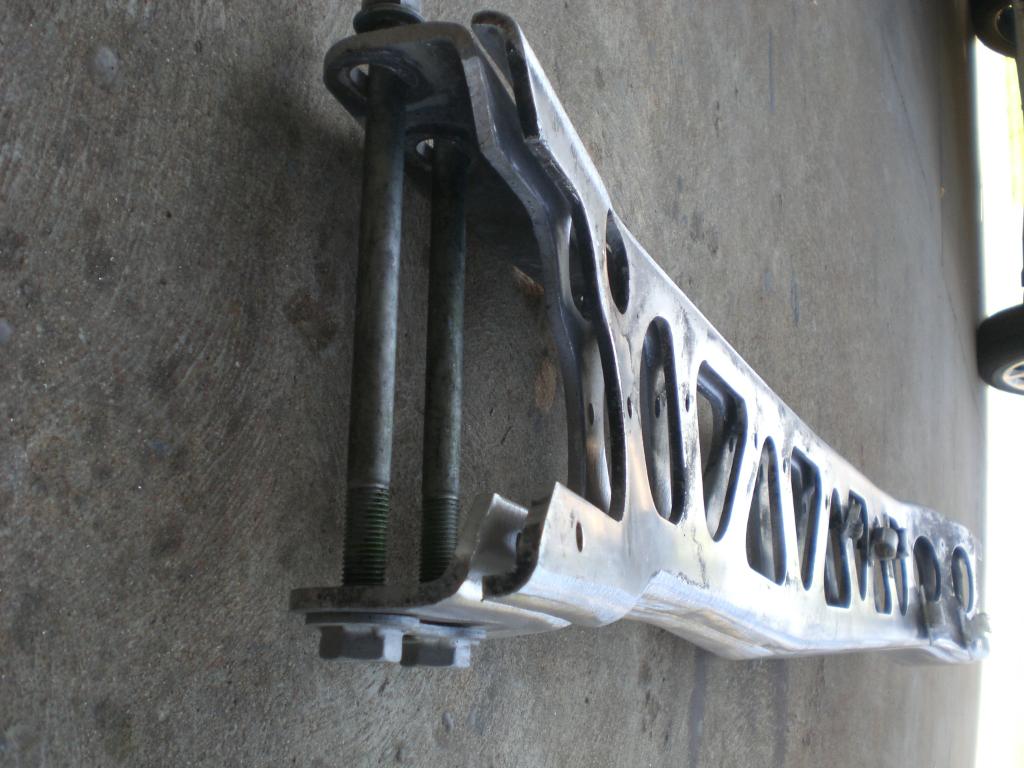

I have a Moss Motors Miata PPF Stabilizer Kit on my DD. But I thought this was a better way to stiffen the PPF. This design essentially boxes in the full length of the PPF without adding much weight.

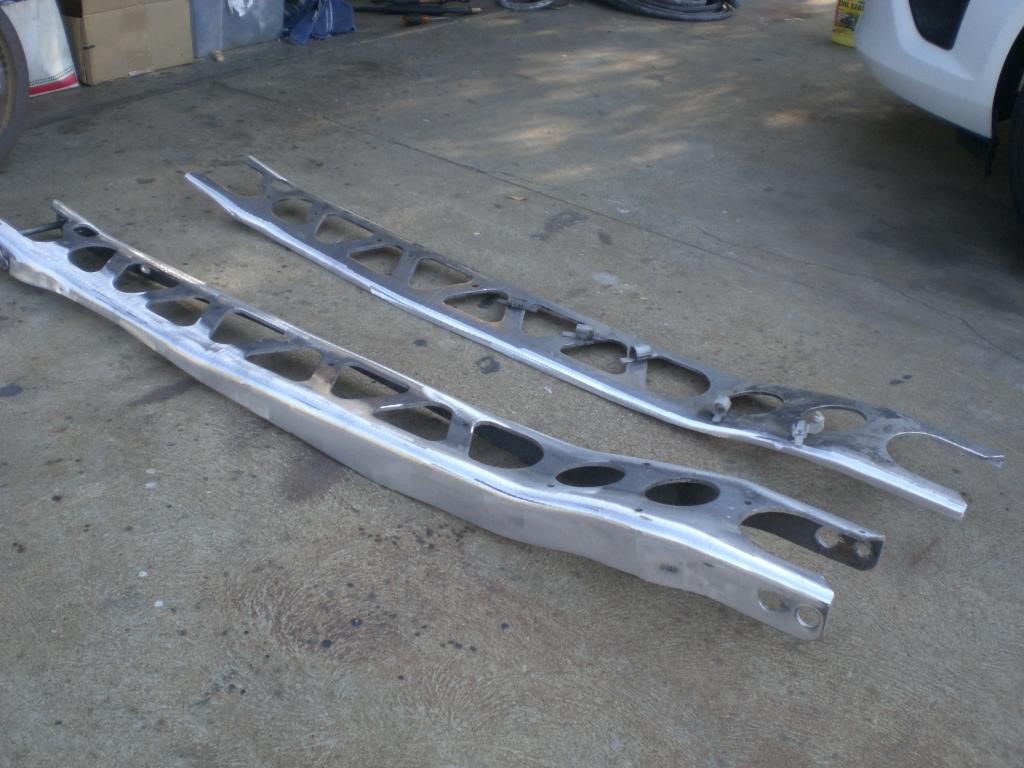

First I took a spare PPF and cut the horizontal sections so that they follow the curved vertical section of the original. Carefully placing it close enough to not cause interference with any other components but still having enough distance between the faces for the wiring harness clips and to create a "box" structure.

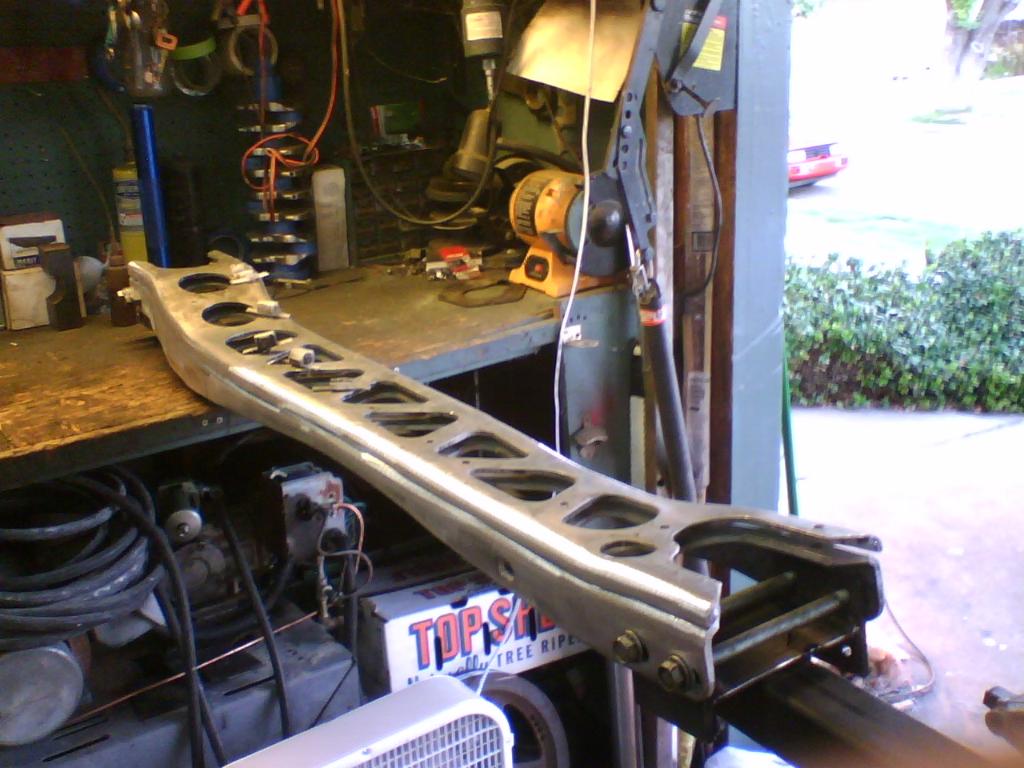

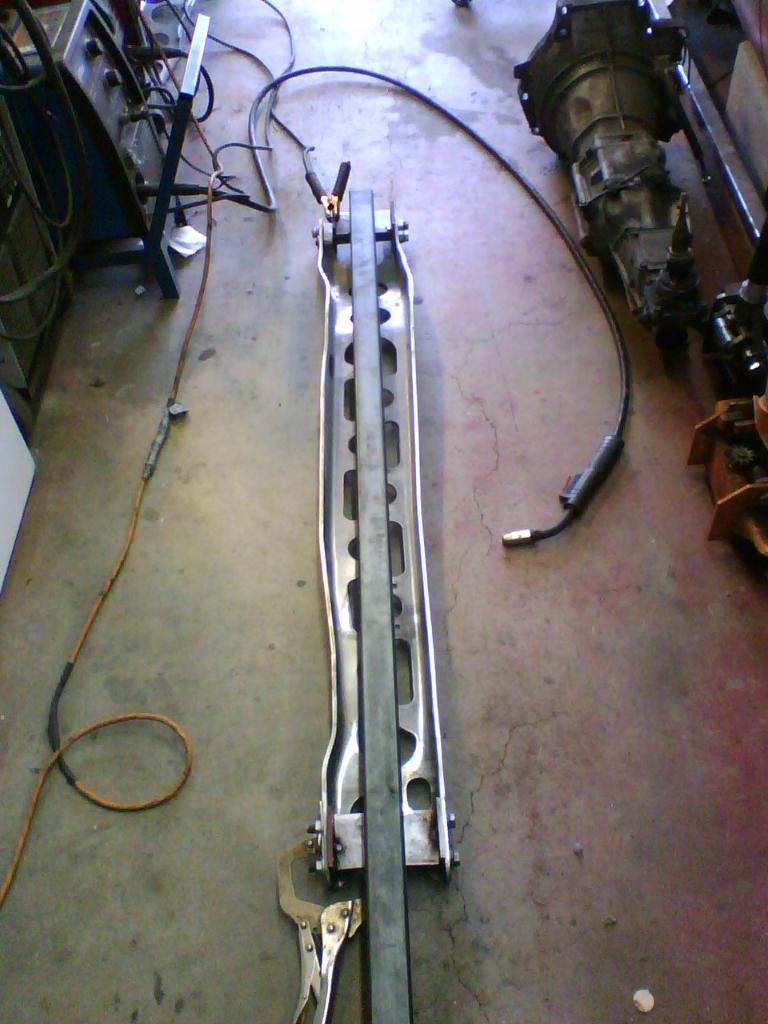

I then constructed a jig to maintain PPF bolt alignment.








Then welded the two sections together.







I hope to post some updates on the engine build as soon as possible.
Attached Thumbnails
Hybrid B6/ZM-DE engine build-0114122039-01-1.jpg   Hybrid B6/ZM-DE engine build-0114122039-02-1.jpg   Hybrid B6/ZM-DE engine build-0122121803-01.jpg   Hybrid B6/ZM-DE engine build-0603122243-01.jpg   Hybrid B6/ZM-DE engine build-0603122244-00.jpg

Hybrid B6/ZM-DE engine build-0603122244-03.jpg   Hybrid B6/ZM-DE engine build-0302122326-00-1.jpg   Hybrid B6/ZM-DE engine build-0302122326-03.jpg   Hybrid B6/ZM-DE engine build-0302122326-02-1.jpg   Hybrid B6/ZM-DE engine build-0302122347-00.jpg

Hybrid B6/ZM-DE engine build-0302122347-03.jpg   Hybrid B6/ZM-DE engine build-cimg4694.jpg   Hybrid B6/ZM-DE engine build-cimg4704.jpg   Hybrid B6/ZM-DE engine build-0617121934-00.jpg   Hybrid B6/ZM-DE engine build-0617121950-01.jpg

Hybrid B6/ZM-DE engine build-0620120137-00.jpg   Hybrid B6/ZM-DE engine build-0620120137-01.jpg
crowder92 is offline   Reply With Quote
Old 07-26-2012, 05:22 AM   #36
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

As usual, bloody nice work.
richyvrlimited is offline   Reply With Quote
Old 07-26-2012, 12:48 PM   #37
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,702
Total Cats: 237
Default

Badass man. Seriously good work going on here.
Fireindc is offline   Reply With Quote
Old 07-26-2012, 01:25 PM   #38
Elite Member
iTrader: (4)

MartinezA92's Avatar

Join Date: Aug 2009
Location: Mountain View, CA
Posts: 1,702
Total Cats: 28
Default

Makes me wanna go to csu Fresno when I transfer and join your program lol
MartinezA92 is offline   Reply With Quote
Old 07-26-2012, 02:03 PM   #39
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,663
Total Cats: 1,560
Default

There is always a way to improve something if the time is taken to study it. Good job.
sixshooter is online now   Reply With Quote
Old 11-02-2012, 01:33 PM   #40
Newb

Join Date: Jun 2006
Location: Akron, OH
Posts: 4
Total Cats: 0
Default

I have a question about the similarities between a ZM and a B6. I have a 2000 Protege with the ZM and I'd like to swap a BP from my 92 Protege LX into the 2000. Do you know if the two motors are similar enough that I could easily swap the two? I know the ECU and wiring are going to be different, but I'm more concerned with actually fitting the motor in the car, mounts, etc. Are they similar enough that I could simply 'bolt in' the BP?

Thanks!
codex is offline   Reply With Quote
