Default Hysteria's boring little build

I don't have much to show here, but I thought I would start my build thread before I get too far into things so I can get advice and avoid some mistakes along the way. The car is a 97 in that ultra-rare red color that you hardly ever see. I picked the car up for what I think was a decent deal on craigslist with 190k on the clock. It runs well and doesn't have an unusual amount of rust so I'm not worried about the high miles, especially since I'm going to tear everything apart anyway.

The plan is to turbo the car with a built 1.8 sitting under the 99-00 head running megasquirt. I still haven't decided on a turbo, but I would like to be in the 300-350whp range(I know 200hp is more than enough). Right now I'm sorting out all of my suspension so that I can start dd'ing the miata and sell my turbo civic to fund this project. I guess this is where I start showing pictures?

Name:  155998_515682931653_154200775_30293474_1601327_n.jpg
Views: 3
Size:  58.4 KB
Name:  156021_515682806903_154200775_30293472_1862601_n.jpg
Views: 4
Size:  58.2 KB
Name:  154733_515682921673_154200775_30293473_8201045_n.jpg
Views: 3
Size:  22.4 KB

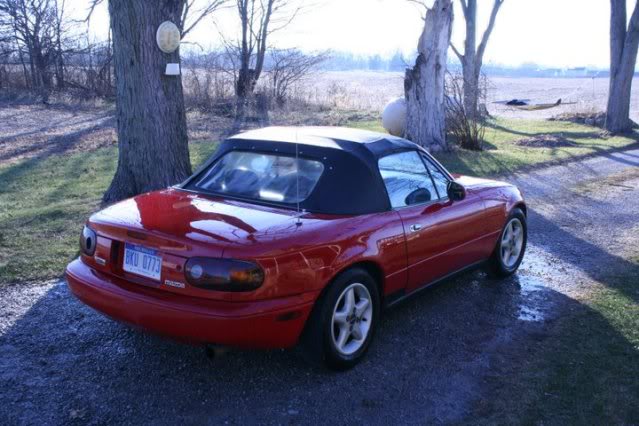

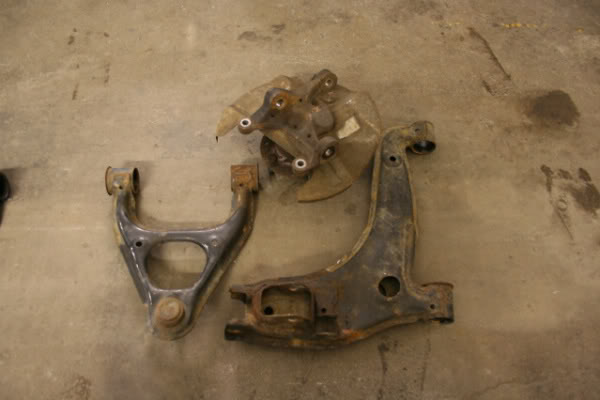

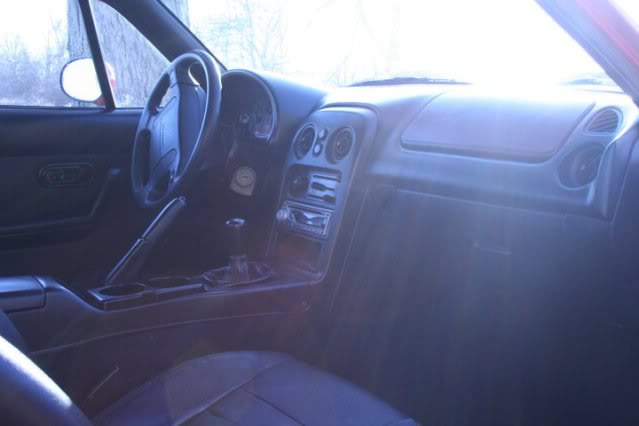

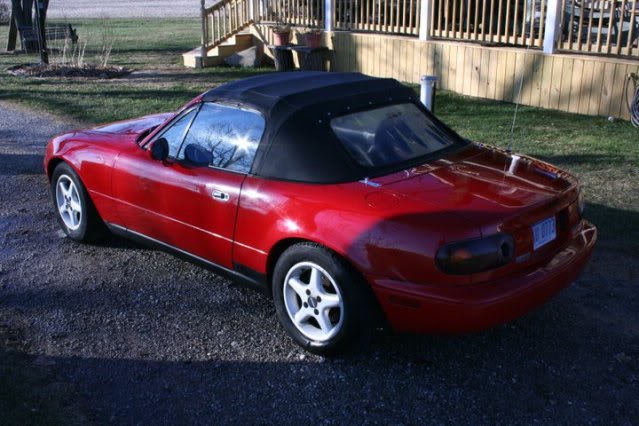

This is what it looked like when I bought it. Since then I managed to slide off the road on some loose gravel and bent the passenger side lower control arm, so I bit the bullet and ordered up an Energy Suspension master kit.

Name:  Picture001-1.jpg
Views: 3
Size:  28.6 KB
Name:  Picture002.jpg
Views: 3
Size:  30.0 KB

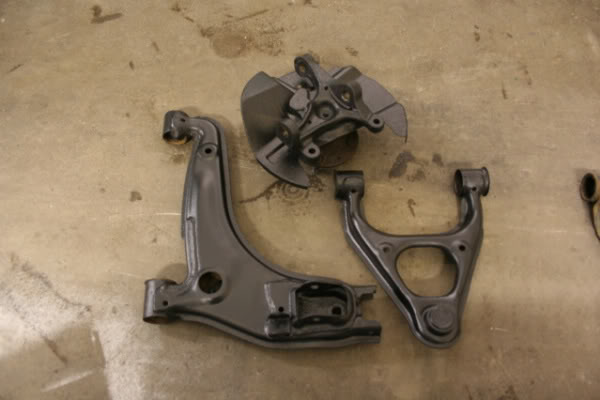

I've been wire wheeling all my suspension bits and then coating them with truck bed liner to clean things up while I wait for my bushings to come in.

Name:  Picture.jpg
Views: 3
Size:  35.1 KB

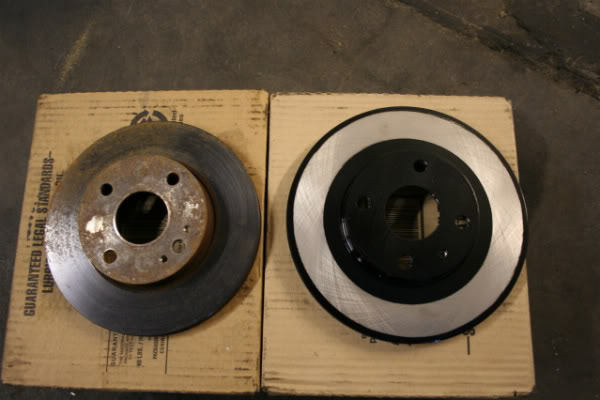

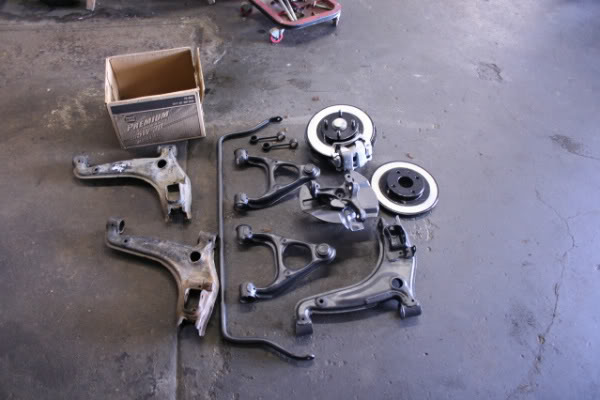

The previous owner had the wrong size rotors on the front, oops. I replaced them with the correct size for obvious reasons.

Name:  Picture036.jpg
Views: 3
Size:  39.0 KB

The front suspension is almost done, still have to tackle everything on the back though :/

Name:  Picture035.jpg
Views: 3
Size:  55.0 KB
Name:  Picture034.jpg
Views: 3
Size:  44.2 KB

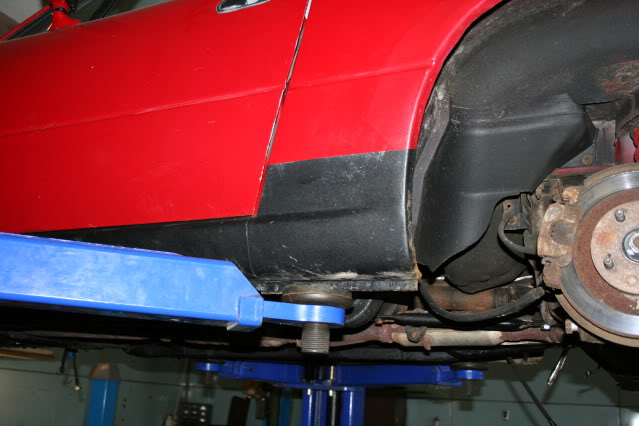

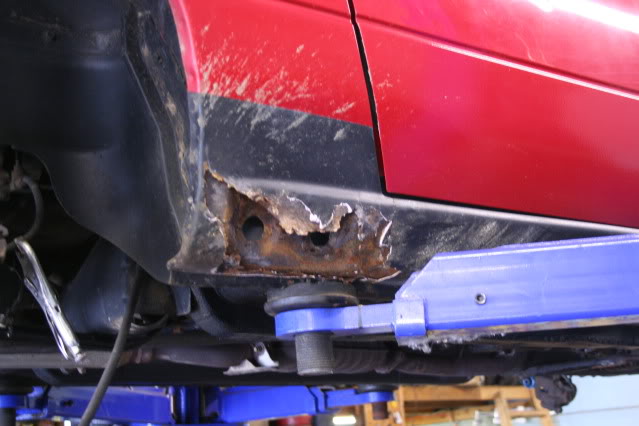

I also decided to dig out the rocker rust while I have the car in the shop, I do have to give the guy credit for covering it up pretty well though.

That's pretty much where I'm sitting at right now, feel free to fire away with any comments/questions/insults.
hysteria411 is offline   Reply With Quote
Old 02-17-2011, 06:47 PM   #2
Newb

Join Date: Feb 2011
Location: NC
Posts: 44
Total Cats: 0
Default

its always nice to see people who clean the suspension components. i did that with my old *** ae86.
EGCoopey is offline   Reply With Quote
Old 02-17-2011, 08:45 PM   #3
Elite Member
iTrader: (10)

leatherface24's Avatar

Join Date: Dec 2006
Location: Pembroke Pines
Posts: 4,033
Total Cats: 2
Default

300rwhp or nothing
leatherface24 is offline   Reply With Quote
Old 02-22-2011, 08:06 PM   #4
Newb
Thread Starter

Join Date: Jul 2010
Posts: 42
Total Cats: 4
Default


Name:  Picture042.jpg
Views: 3
Size:  44.0 KB

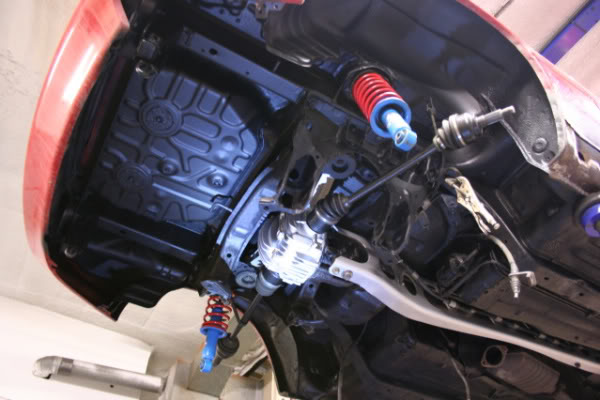

Dropped the rear subframe, hit everything with a wire wheel, then gave it a nice coat of truck bed liner to fight off this Indiana rust. I went ahead and put the subframe and diff back in since I'm not using the energy diff bushings (I hear they transmit a decent amount of vibration from the motor). Still waiting on my parts :/
hysteria411 is offline   Reply With Quote
Old 02-22-2011, 09:20 PM   #5
Newb

Join Date: Feb 2011
Location: NC
Posts: 44
Total Cats: 0
Default

oh what i would give for a lift to use when i wanted...
EGCoopey is offline   Reply With Quote
Old 02-22-2011, 10:03 PM   #6
Newb
Thread Starter

Join Date: Jul 2010
Posts: 42
Total Cats: 4
Default

If I didn't have access to a full shop I wouldn't have even tried this.
hysteria411 is offline   Reply With Quote
Old 03-01-2011, 11:30 PM   #7
Newb
Thread Starter

Join Date: Jul 2010
Posts: 42
Total Cats: 4
Default

Name:  Picture-1.jpg
Views: 3
Size:  49.0 KB

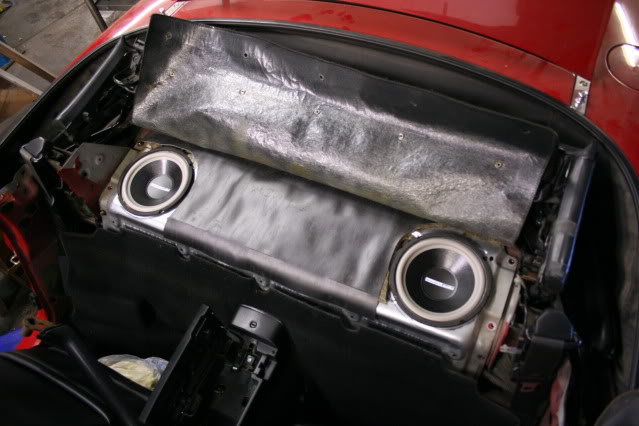

I know a lot of people consider this a step in the wrong direction, but I'm installing two 8" subs in the rear deck while I have it in the shop.
hysteria411 is offline   Reply With Quote
Old 03-02-2011, 04:11 PM   #8
Elite Member
iTrader: (18)

Join Date: Dec 2007
Location: oahu
Posts: 1,720
Total Cats: 2
Default

There should be a rollbar there, but subs do sound good when mounted there. I ditched mine for a rollbar and am glad I did. The benefits and vast improvements in rigidity outweighed the hit I took in audio quality.
astroboy is offline   Reply With Quote
Old 03-02-2011, 04:24 PM   #9
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default



That sub money is money that could have been used for boost. I am ashamed of you.

Also, 200hp is definitely not enough. 300hp is not enough either and I assume 400hp will not be as well. I will stop going for more power when adding more hp won't get me going faster in a straight line.
Faeflora is offline   Reply With Quote
Old 03-02-2011, 11:22 PM   #10
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

Yeah, what he said. 300rwhp ain't much anymore.
TurboTim is offline   Reply With Quote
Old 03-04-2011, 12:51 PM   #11
Newb
Thread Starter

Join Date: Jul 2010
Posts: 42
Total Cats: 4
Default

Haha the subs were $21 shipped on ebay and the amp was free, that won't dip too far into the turbo funding.

Maybe you guys can help me with an issue I'm having. The rear of my car sits too low, and it's even worse now that I have the ES bushings that aren't preloaded like the stock ones. Here's some pictures to clarify:

Name:  Picture044.jpg
Views: 3
Size:  33.4 KB

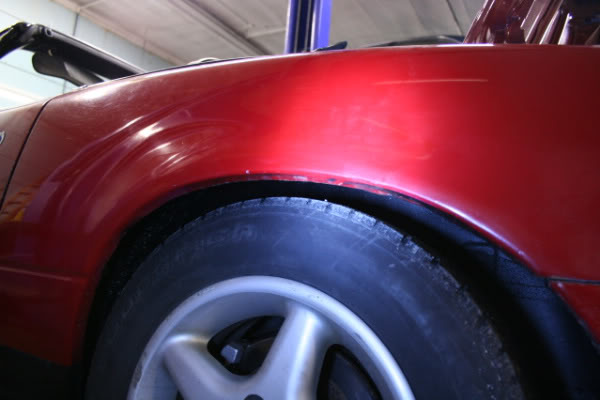

This is the rear, it actually sits a little lower than that but I had just lifted the car and it hasn't settled down all the way in this picture.

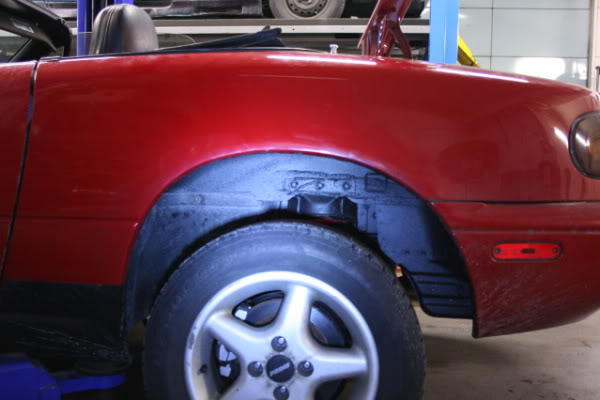

This is the front of the car, it sits noticeably higher.

Name:  Picture046.jpg
Views: 3
Size:  35.0 KB

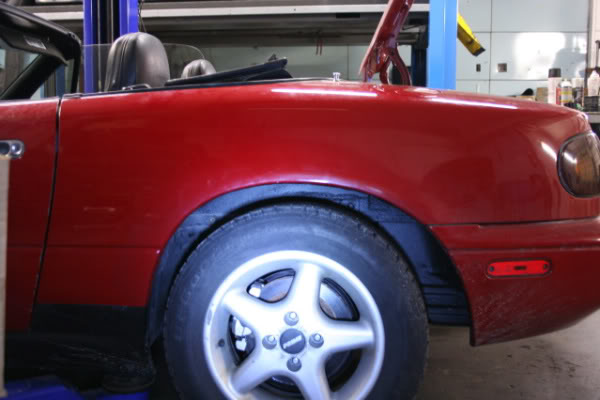

When I lift the car it travels smoothly through the whole range.

Name:  Picture047.jpg
Views: 3
Size:  36.3 KB

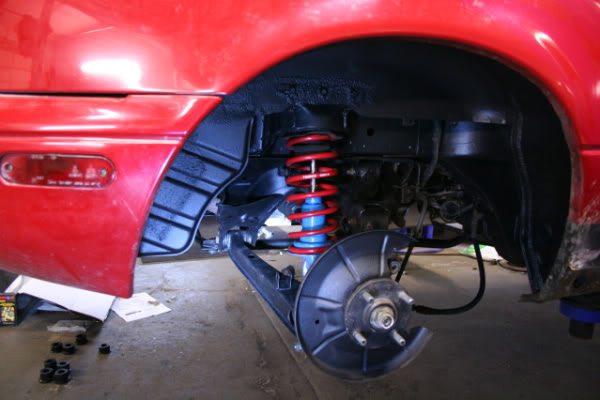

When I set the car back down it stays here until I cycle the suspension.

Name:  Picture048.jpg
Views: 3
Size:  43.2 KB
The car has tokico blues, which I've heard should be close to stock ride height?

The blues are supposed to be semi-new according to the previous owner, is it possible that the springs are already shot? I don't mind the front, but I almost have to roll my fenders in the rear, which isn't right at all.
hysteria411 is offline   Reply With Quote
Old 03-04-2011, 01:02 PM   #12
Antisaint
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

Quote:
Originally Posted by astroboy View Post
There should be a rollbar there, but subs do sound good when mounted there. I ditched mine for a rollbar and am glad I did. The benefits and vast improvements in rigidity outweighed the hit I took in audio quality.
I fit both.

If you drive the car enough to give a **** about the sound quality then adding the subs was definitely worth it. I added a **** ton of dynamat at the same time so the car sounds pretty much perfect to me. So glad I did it.

I like the truck bed liner under there. When I get mine down to the shop I might have to take a day and do the same.
Vashthestampede is offline   Reply With Quote
Old 03-04-2011, 01:29 PM   #13
Newb
Thread Starter

Join Date: Jul 2010
Posts: 42
Total Cats: 4
Default

I need to go back and dynamat, but I did take the time to totally isolate the trunk from the cabin, which probably helps the sound.
hysteria411 is offline   Reply With Quote
Old 03-04-2011, 01:34 PM   #14
Antisaint
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

Quote:
Originally Posted by hysteria411 View Post
I need to go back and dynamat, but I did take the time to totally isolate the trunk from the cabin, which probably helps the sound.
Yeah I did that as well. I used styrofoam squares to block the majority of the space and went around thew edges with spray foam. I tested it both ways before and after. Sealing off the trunk is night and day difference.
Vashthestampede is offline   Reply With Quote
Old 03-04-2011, 01:41 PM   #15
Newb
Thread Starter

Join Date: Jul 2010
Posts: 42
Total Cats: 4
Default

So you blocked the tunnels going to the trunk? I only sealed up all the air gaps between the cabin and the trunk.
hysteria411 is offline   Reply With Quote
Old 03-04-2011, 02:09 PM   #16
Antisaint
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

Quote:
Originally Posted by hysteria411 View Post
So you blocked the tunnels going to the trunk? I only sealed up all the air gaps between the cabin and the trunk.
Here's some pics from my build thread. Took me a minute to find what page they were on. lol









Vashthestampede is offline   Reply With Quote
Old 03-04-2011, 02:30 PM   #17
Newb
Thread Starter

Join Date: Jul 2010
Posts: 42
Total Cats: 4
Default

Wow, thanks. So the foam blocks made a pretty substantial difference then?
hysteria411 is offline   Reply With Quote
Old 03-04-2011, 02:45 PM   #18
Antisaint
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

Quote:
Originally Posted by hysteria411 View Post
Wow, thanks. So the foam blocks made a pretty substantial difference then?
Night and day. As I was installing all the stereo related stuff I was testing it through each stage. When all was said and done I could honestly say it sounds better than any other car I've been in. With the doors closed you can barely hear anything, open them and its like whoa.
Vashthestampede is offline   Reply With Quote
Old 03-04-2011, 03:01 PM   #19
Crumple Zone Tester
iTrader: (7)

mgeoffriau's Avatar

Join Date: Jul 2009
Location: Jackson, MS
Posts: 7,656
Total Cats: 447
Default

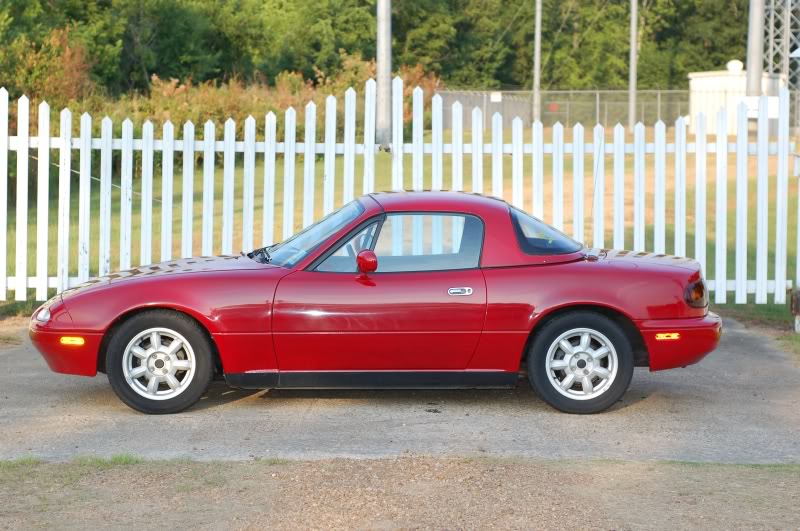

My ride height on Tokico HP combo (Tokico Blues + Tokico Springs), with original OEM bushings:

Name:  miata011.jpg
Views: 16
Size:  123.9 KB

They are terrible, by the way. Too low, undersprung, and underdamped.
mgeoffriau is offline   Reply With Quote
Old 03-04-2011, 03:08 PM   #20
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Spring or top hat spacers are you option, unless you go for a whole new setup.

top hat spacer:
http://www.flyinmiata.com/index.php?...umber=13-59000
Spring spacer, more or less:
http://fatcatmotorsports.com/igaller...spacer_top.JPG

I say more or less because the ones I had went below the spring.
curly is offline   Reply With Quote
