Old 09-09-2012, 09:56 AM   #21
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2012
Posts: 92
Total Cats: 1
Default

Little bit of an update:
Ended up replacing the TPS. That didn't fix the problem but did get rid of the problem. Got really tired of messing with things and finally said I didn't know enough so I took it to a trusted mechanic that I have known for a while and the figured out that my Coolant Temp harness was messed up so the re pinned it and the car drove alot better. They also replaced the first O2 sensor because it was giving crazy readings on a multimeter.
When I got the car back it drove 100% better for a few days and then started giving the coolant problem again. So I am currently replacing the coolant temp sensor. It is a bitch just because of location. Hopefully that will be done today or tomorrow.

ON TO THE GOOD STUFF:
Finally got my wideband in and working. Ended up putting it on the second bung in my Jackson Racing Header. Routed it up and through the drain in the passenger floorboards.

PICS:



And a cockpit shot to see guages:


Finally the good news.... Picked up a 99 DIYPNP. Was told it was the prototype for the 99 plug and play and has all the same options.
mghtymouse380 is offline   Reply With Quote
Old 09-10-2012, 07:58 AM   #22
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Might want to put a grommet on those wires or they'll rub through the insulation and cause you issues further down the line.

Not sure on re-purposing the drain hole either, it's there for a reason.

Also not sure on running the wideband cable across the bottom of the gearbox, that's just asking for something to catch and rip it off.
richyvrlimited is offline   Reply With Quote
Old 09-11-2012, 05:30 PM   #23
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2012
Posts: 92
Total Cats: 1
Default

The drain is still in place and still working the way it should.It is routed pretty good and not touching anything. So I am not worried about that. Thanks for the input though
mghtymouse380 is offline   Reply With Quote
Old 09-11-2012, 06:58 PM   #24
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Those wires are touching bodywork as they come through to inside the cabin, they will fret through at some point.

I really would put a grommet there minimum.
richyvrlimited is offline   Reply With Quote
Old 09-12-2012, 12:50 PM   #25
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2012
Posts: 92
Total Cats: 1
Default

Ill make sure to put some rubber so they dont rub through. Finally got the coolant sensor replaced and the car runs again. I am getting the shittiest gas milage ever though at 18mpg. I am about to put on the Megasquirt here soon so that can fix all the fuel that is being dumped.

QUESTION: I am about to finish my turbo parts list and need to know where the best place is to route the oil feed line. I know the drain into the pan but do most people use a oil sandwhich plate and tee for the feed line. I was told that a feed line shouldnt be longer then 2ft. Any help would be awesome. About a month out from install hopefully.
mghtymouse380 is offline   Reply With Quote
Old 02-07-2013, 10:51 AM   #26
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2012
Posts: 92
Total Cats: 1
Default

So reviving this thread. I got alot done over the past few months and glad to say I have a running turbo miata. There are still a few bugs to work on but here are some pics.

Just to make sure everyone know mods are
BEGI Cast Mani
BEGI DP
SR20 Turbo
Flying Miata silicone IC piping
Cx Racing IC
HKS BOV

Here is the Dyno plot

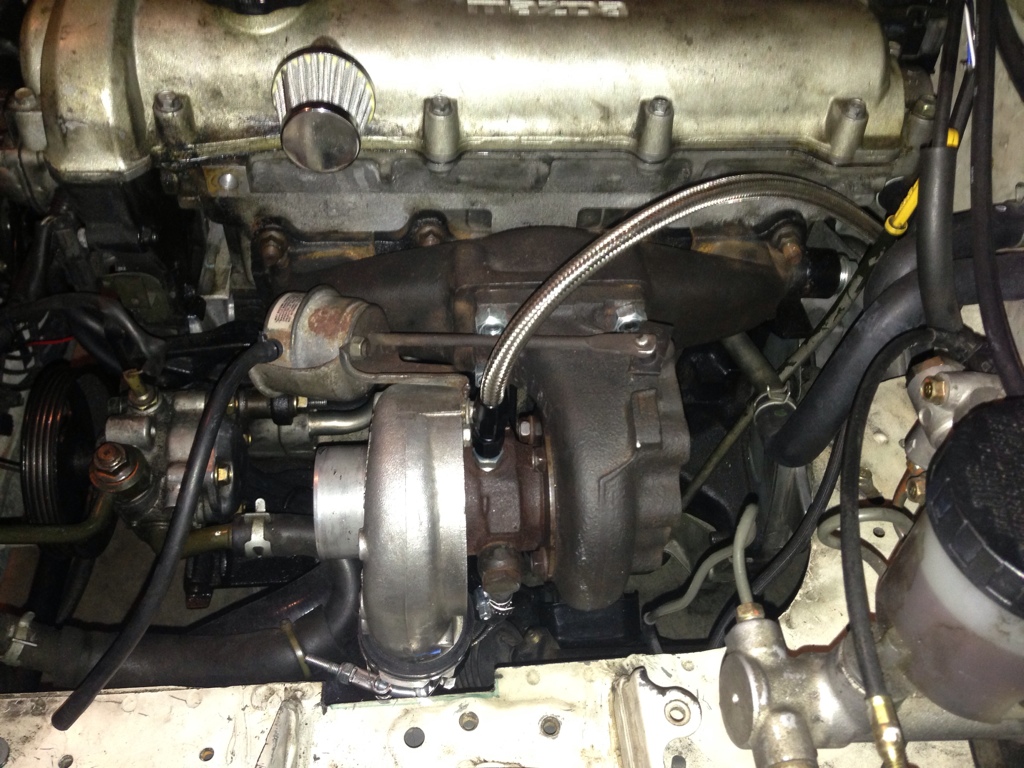

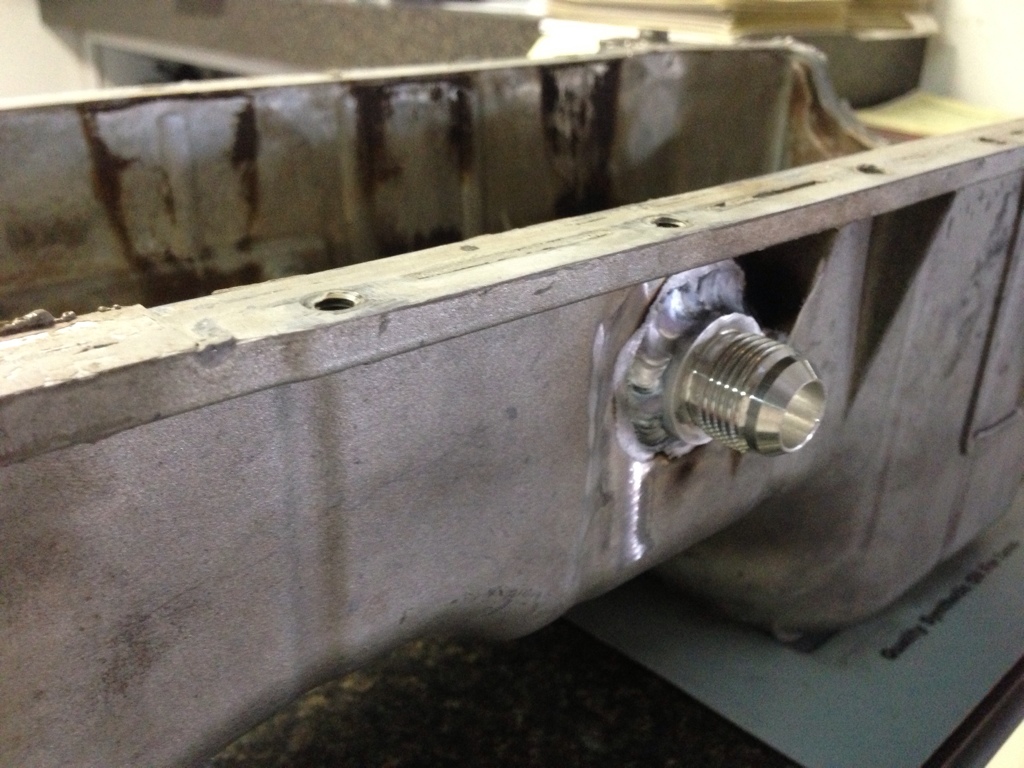

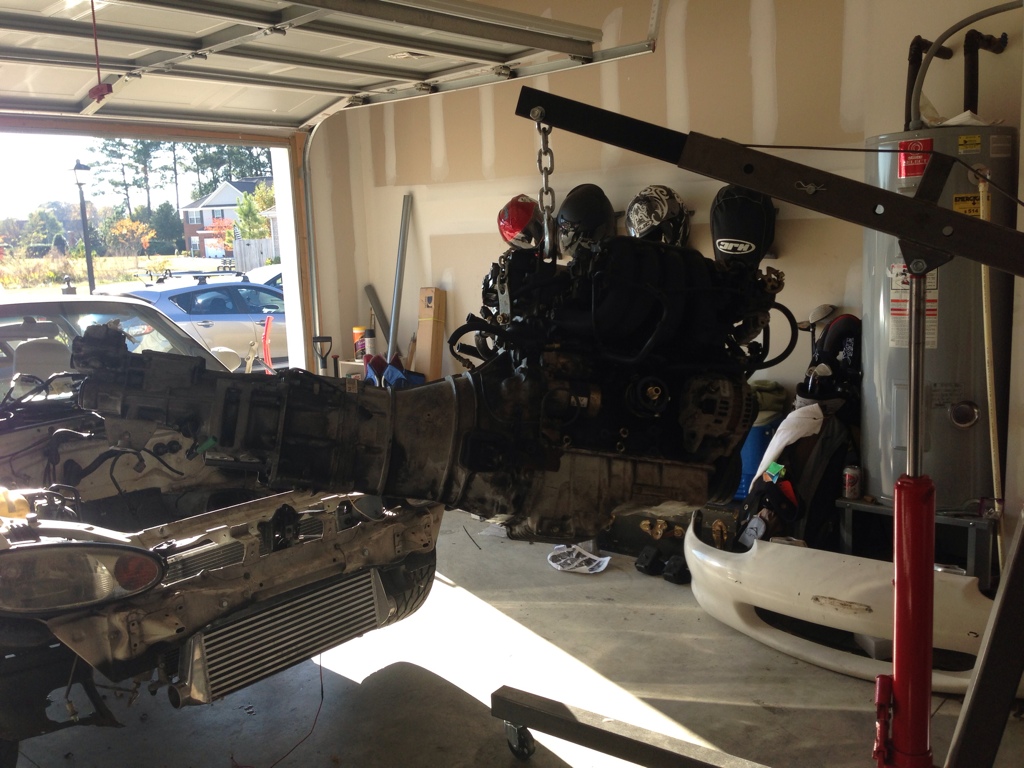

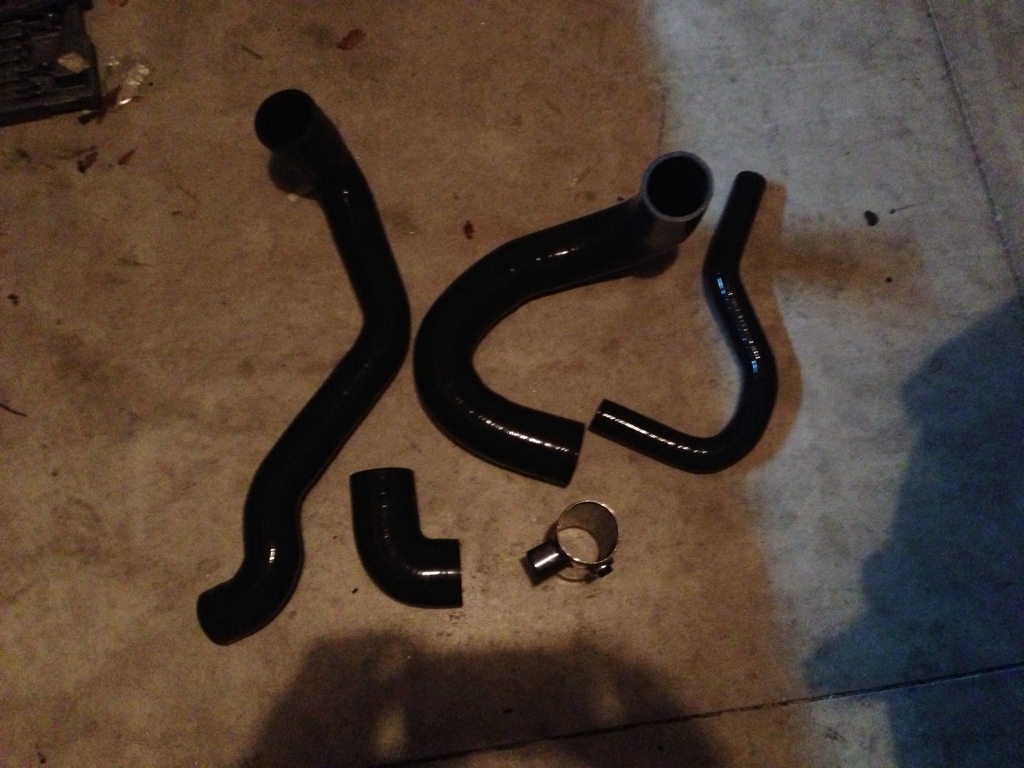

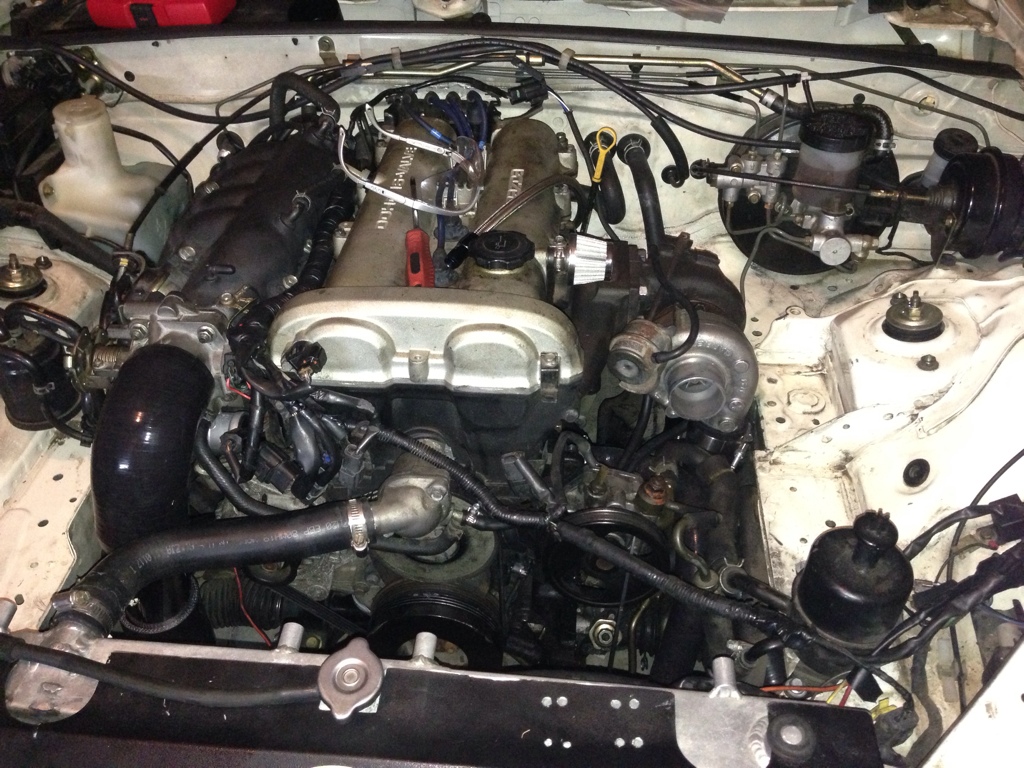

Here are just a few photos. This car is by no means the prettiest thing around but it is fun to drive and I love it.









Attached Thumbnails
I call her Casper-c9647bb4-c888-4ab3-abe1-f855540a6705-916-0000006d7e74ed86_zpsee4cdc86.jpg   I call her Casper-3c12f3b6-fe6b-4b93-bf68-fc7052c14522-916-0000006d7b23db9f_zpse0379d1f.jpg   I call her Casper-4a3857f3-0880-4f30-a343-b4a37deb8ed3-916-0000006d777fb6be_zpsa0184791.jpg   I call her Casper-dfd56571-10e6-4a42-91c5-7a10e06974b4-916-0000006d7044afa5_zps39fca628.jpg   I call her Casper-23c90f94-a05d-43ab-89be-d21c0fb35908-916-0000006d6cd82ba3_zps84f9a90b.jpg

I call her Casper-12373b91-6063-4573-889f-b501d96572ae-916-0000006f8919ee86_zps9be95cc3.jpg   I call her Casper-12373b91-6063-4573-889f-b501d96572ae-916-0000006f8919ee86_zps9be95cc3.jpg
mghtymouse380 is offline   Reply With Quote
Old 02-07-2013, 10:51 AM   #27
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2012
Posts: 92
Total Cats: 1
Default

And here is one with most of the crew

Attached Thumbnails
I call her Casper-cc6fb5ae-26fc-43a1-bc48-e25862fdcc7b-916-0000006d69d3445c_zpsb1e450ec.jpg
mghtymouse380 is offline   Reply With Quote
Old 02-07-2013, 10:55 AM   #28
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2012
Posts: 92
Total Cats: 1
Default

Now I am picking up a block that was taked out of a car that supposedly fried the piston rings or something to that nature. I will get more details soon. I am looking to build this motor on the side in order to take a bigger turbo to support close to 300 rwhp.

I am looking at trying to keep the build to about 2500. This will be my first build and need some help. I have been looking at rods and pistons but not sure what to go with as of yet because I need to do more research. The biggest thing I need to get is get the block break it down and get it checked to make sure that I can still use it. Picking up the block later this week for $50.

Any help or thoughts would be appericiated.
mghtymouse380 is offline   Reply With Quote
Old 02-20-2013, 04:38 PM   #29
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2012
Posts: 92
Total Cats: 1
Default

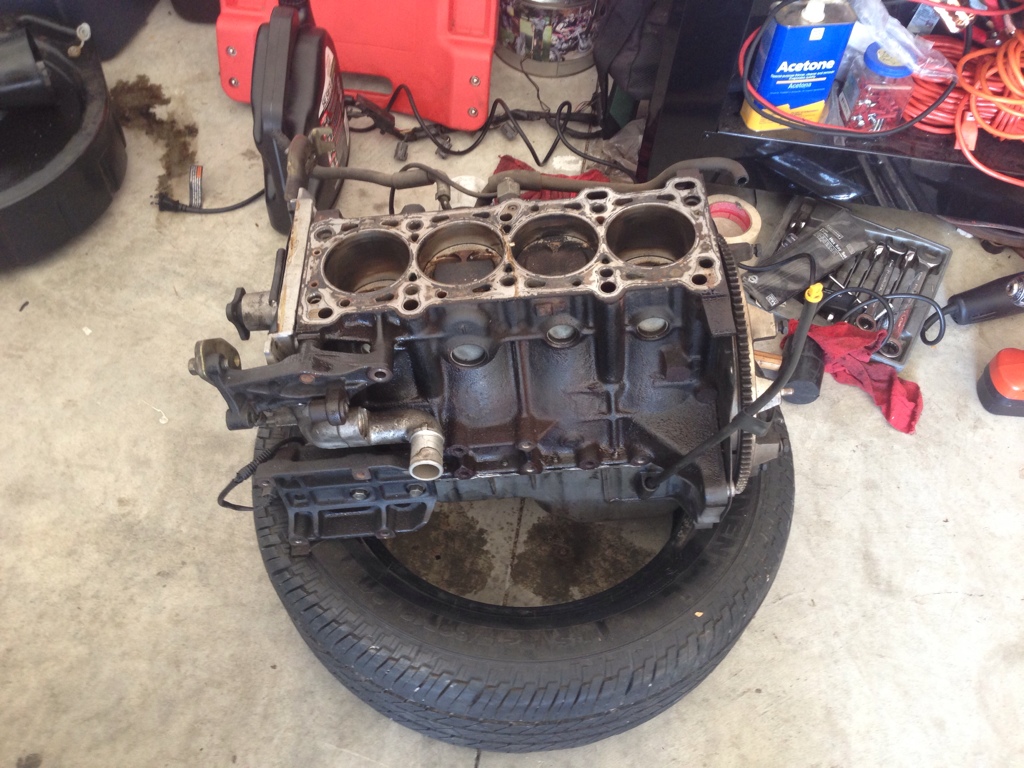

Picked up the block today now have to make some decisions on what I want to do. Was told that the block had a fried piston ring. Looking to make it to about 300-350 to the wheels. Any suggestions would be appericiated.

Attached Thumbnails
I call her Casper-c27f50e0-e08f-4476-8f32-c46c09f5af8e-5588-0000033ebe0a535f_zpsde7ba2de.jpg
mghtymouse380 is offline   Reply With Quote
Old 02-20-2013, 04:57 PM   #30
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

1) Build engine

2) EFR6258

3) ???

4) Profit.
thenuge26 is offline   Reply With Quote
Old 02-20-2013, 04:59 PM   #31
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2012
Posts: 92
Total Cats: 1
Default

Im thinking of a GTX2867 to attach to my BEGI manifold and get Abe to make me a custom dp.

Not sure what rods and pistons to get for the build. Trying to keep it under 2500 for everything.
mghtymouse380 is offline   Reply With Quote
Old 02-20-2013, 05:10 PM   #32
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

I just grabbed Brandon's deal for $795 for rods + pistons + bearings. Add ARP head and main studs (got them from Doap also), BE street or street-strip pump, and a harmonic damper if you can afford it.
thenuge26 is offline   Reply With Quote
Old 02-20-2013, 05:24 PM   #33
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2012
Posts: 92
Total Cats: 1
Default

It will be a bit because I have to save some money but I was looking at his deal not to long ago. Thanks for the help. This is my first motor build so I will have to do some research to do. I am excited now.
mghtymouse380 is offline   Reply With Quote
Old 02-24-2013, 06:37 PM   #34
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2012
Posts: 92
Total Cats: 1
Default

Tore down the block today. Looks like the Crankshaft is gonna have to machined and gonna have to get oversized bearing. I am trying to get everything together in a spreadsheet to keep track of everything that I get. I would appericiate it if people would tell me if I am missing anything for my build.
Attached Files
File Type: csv Miata build - Copy.csv (11.1 KB, 66 views)
mghtymouse380 is offline   Reply With Quote
Old 02-24-2013, 11:19 PM   #35
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2012
Posts: 92
Total Cats: 1
Default

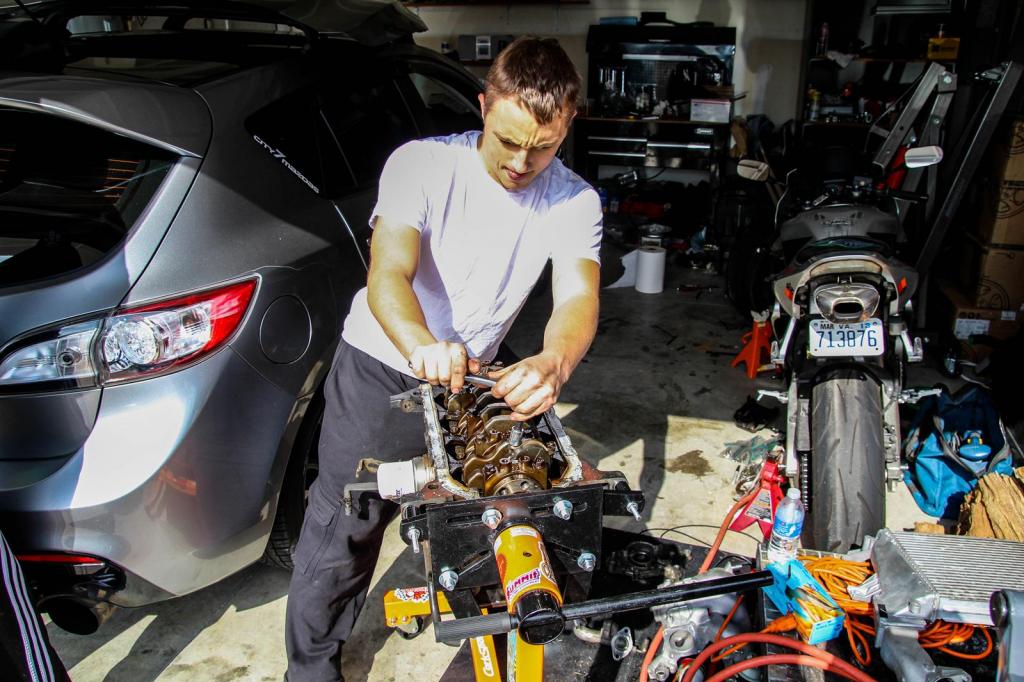

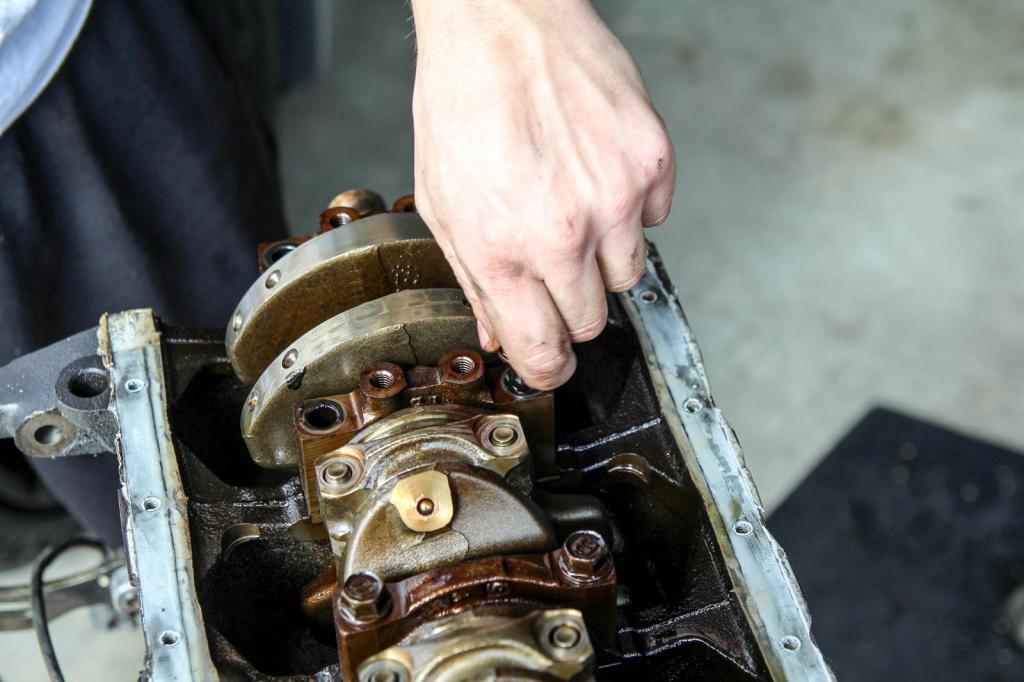

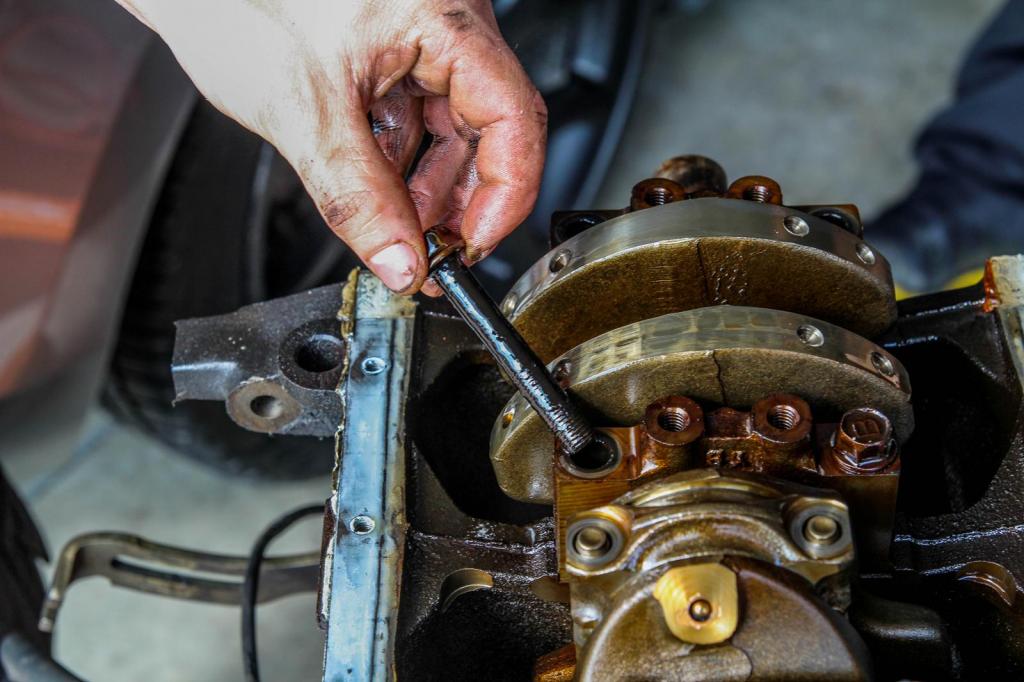

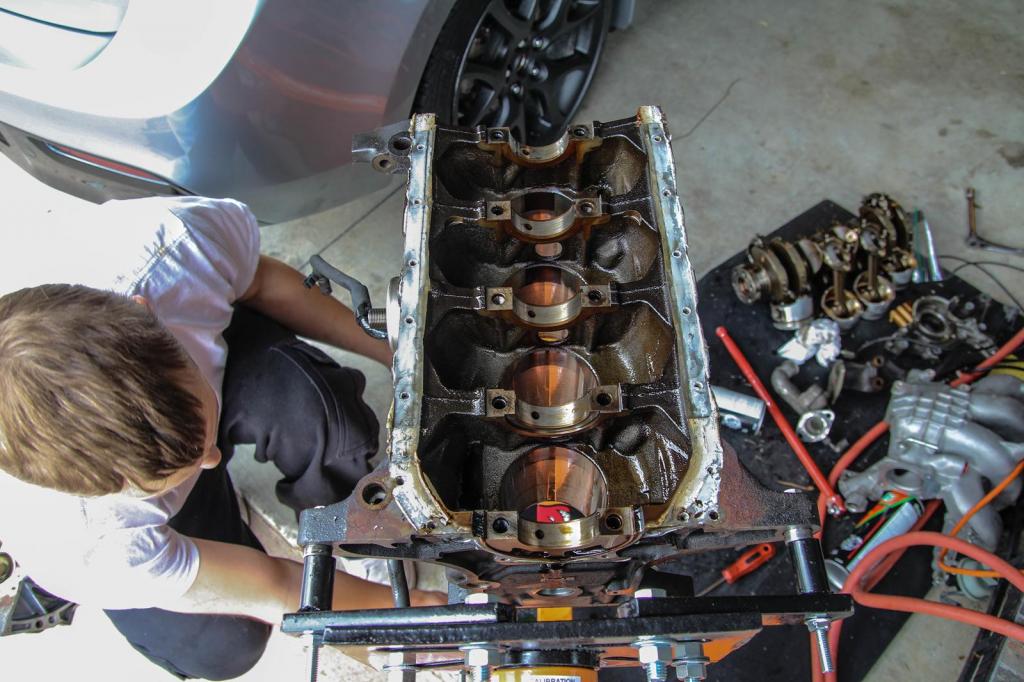

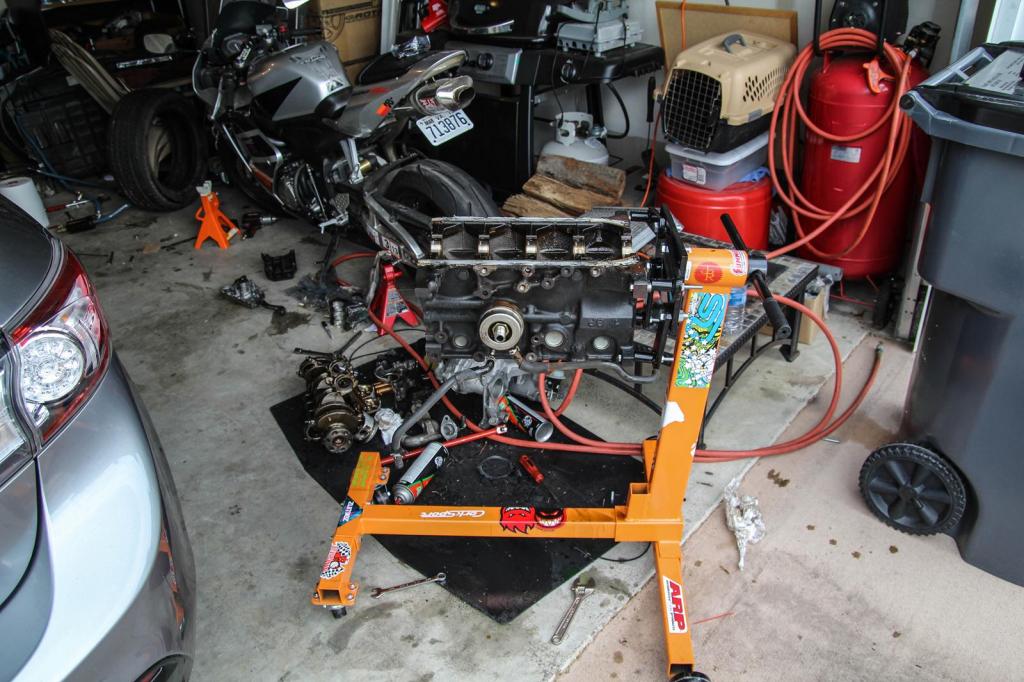

Just wanted to post up a few pics of the teardown.





Attached Thumbnails
I call her Casper-img_2811_zps5d39f5a9.jpg   I call her Casper-img_2810_zpsf4fefc6e.jpg   I call her Casper-img_2809_zps2e82846f.jpg   I call her Casper-img_2808_zps76998fe5.jpg   I call her Casper-img_2805_zps95ee31a4.jpg

mghtymouse380 is offline   Reply With Quote
Old 03-18-2013, 09:22 PM   #36
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2012
Posts: 92
Total Cats: 1
Default

Just ordered some Tein Street Advance with standard spring rates to replace my ricelands. Also got some TRmotorsports C1's 15x8 with S-drives. Hopefully the coils will come in soon so I can get the new stuff on
mghtymouse380 is offline   Reply With Quote
Old 06-16-2013, 11:12 PM   #37
Elite Member
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,762
Total Cats: 18
Default

Sub'd
IcantDo55 is offline   Reply With Quote
Old 06-16-2013, 11:22 PM   #38
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,516
Total Cats: 255
Default

Hey, that car!
I'll actually be moving to Norfolk in August.
soviet is offline   Reply With Quote
Old 06-17-2013, 12:23 AM   #39
Elite Member
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,762
Total Cats: 18
Default

Quote:
Originally Posted by soviet View Post
Hey, that car!
I'll actually be moving to Norfolk in August.
Cool. Few of us Miata people here. Military?
IcantDo55 is offline   Reply With Quote
Old 06-17-2013, 12:37 AM   #40
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,701
Total Cats: 236
Default

Cool thread! In for the motor build.

I have a question, did you use any kind of oil restrictor with the -4an feed line on the sr20 turbo?
Fireindc is offline   Reply With Quote
