Old 05-18-2017, 12:47 PM   #21
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,605
Total Cats: 1,048
Default

Quote:
Originally Posted by byerlyfactor View Post
Thanks man, I'm in love with them. I couldn't imagine trying to smash pipe this thick into ovals.

What do you use for the cuts? A band saw? I couldnt imagine you use a chopsaw or cutoff wheel with the number you cut.
I use a HF band saw. It is between $200-$250 and word reasonably well. If I could figure out how to properly adjust it to get perfect cuts it would be much better. But every time I do go to adjust it I just make it worse.
shuiend is offline   Reply With Quote
Old 05-18-2017, 01:58 PM   #22
Junior Member
iTrader: (1)

Join Date: Dec 2015
Location: Tulsa
Posts: 173
Total Cats: 15
Default

It is very hard to tell from the picture. 1/16" gap on that size pipe would be ideal. You may be able to get the center gap together a little by gaping the outside 2 a little more. The way the outlet saddles on this type of manifold is what saves it. Make the best weld joint the one that isn't gusseted with the outlet. You could also pull one of the Tee's out and "butter" up the end if the tee with weld metal and regrind your bevel and fit it up again.
Good Luck.
dr_boone is offline   Reply With Quote
Old 05-18-2017, 02:22 PM   #23
Newb
Thread Starter

Join Date: Mar 2017
Location: Fullerton, CA
Posts: 22
Total Cats: 4
Default

Quote:
Originally Posted by dr_boone View Post
It is very hard to tell from the picture. 1/16" gap on that size pipe would be ideal. You may be able to get the center gap together a little by gaping the outside 2 a little more. The way the outlet saddles on this type of manifold is what saves it. Make the best weld joint the one that isn't gusseted with the outlet. You could also pull one of the Tee's out and "butter" up the end if the tee with weld metal and regrind your bevel and fit it up again.
Good Luck.
Thanks for the tips. I think I will pull them out and add some material. Before you mentioned that I really thought my only option was buying some new tees and cutting them and I didn't want to go through all that again.
byerlyfactor is offline   Reply With Quote
Old 05-18-2017, 02:26 PM   #24
Junior Member
iTrader: (1)

Join Date: Dec 2015
Location: Tulsa
Posts: 173
Total Cats: 15
Default

Just keep everything clean. Spend the time grinding and in fit up your welds will come out much better.
dr_boone is offline   Reply With Quote
Old 05-18-2017, 02:32 PM   #25
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,605
Total Cats: 1,048
Default

I buy all my weld el's from a local plumbing shop. Call around and you can probably find them locally if you live in a decent sized area.
shuiend is offline   Reply With Quote
Old 05-18-2017, 02:39 PM   #26
Newb
Thread Starter

Join Date: Mar 2017
Location: Fullerton, CA
Posts: 22
Total Cats: 4
Default

Quote:
Originally Posted by shuiend View Post
I buy all my weld el's from a local plumbing shop. Call around and you can probably find them locally if you live in a decent sized area.
Luckily enough I live about 30 minutes from Ace Stainless.
byerlyfactor is offline   Reply With Quote
Old 05-18-2017, 02:41 PM   #27
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,605
Total Cats: 1,048
Default

Quote:
Originally Posted by byerlyfactor View Post
Luckily enough I live about 30 minutes from Ace Stainless.
In that case I would go buy 2 more tee's and start over just to be on the safe side.
shuiend is offline   Reply With Quote
Old 05-19-2017, 02:02 PM   #28
Newb
Thread Starter

Join Date: Mar 2017
Location: Fullerton, CA
Posts: 22
Total Cats: 4
Default

Well, you guys convinced me. I'd rather do it right than do it twice. I'm going to order new tees today and pick them up on Tuesday.
byerlyfactor is offline   Reply With Quote
Old 05-19-2017, 02:06 PM   #29
Junior Member
iTrader: (1)

Join Date: Dec 2015
Location: Tulsa
Posts: 173
Total Cats: 15
Default

Good choice. Take plenty of time and get the fit perfect with good bevels.
dr_boone is offline   Reply With Quote
Old 05-19-2017, 02:06 PM   #30
Elite Member
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 2,254
Total Cats: 181
Default

smart.
ryansmoneypit is offline   Reply With Quote
Old 05-19-2017, 02:09 PM   #31
Elite Member
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 2,254
Total Cats: 181
Default

Quote:
Originally Posted by thumpetto007 View Post
Dont you want a very small gap at the bottom of a v butt weld for best strength?
in this case I would not. I would bevel 75%, then run a hot setting on the welder. I could easily get full penn. Cuts down on having 10,000 wires inside the manifold too. Thats just me.
ryansmoneypit is offline   Reply With Quote
Old 05-22-2017, 06:20 PM   #32
Newb
Thread Starter

Join Date: Mar 2017
Location: Fullerton, CA
Posts: 22
Total Cats: 4
Default

Got more parts today! I stopped by Ace to pick up the tees and had the ATP Turbo stuff waiting for me when I got home.



It's nice to have an exhaust flange that actually fits now. It feels like it's good quality, not that I really would know. However, I'm disappointed in the oval transition. Even though ATP says to use it with their flange, it did not fit initially and required some massaging with my vice. Now it sort of squeezes into the relief. And now, thanks to the persuasion it needed to fit, the "round" 3" side is slightly ovaled. Wonderful. I don't think I'm expecting too much for an $18 part. If I did it again, I would much rather crush a 90 into an oval. It would be the same amount of work and save me a weld. Oh well... live and learn.
byerlyfactor is offline   Reply With Quote
Old 05-22-2017, 07:52 PM   #33
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,605
Total Cats: 1,048
Default

This is how one of my 1.6 manifolds looks before I bevel it.

shuiend is offline   Reply With Quote
Old 05-22-2017, 08:59 PM   #34
Newb
Thread Starter

Join Date: Mar 2017
Location: Fullerton, CA
Posts: 22
Total Cats: 4
Default

Quote:
Originally Posted by shuiend View Post
This is how one of my 1.6 manifolds looks before I bevel it.
Very helpful, thank you.
byerlyfactor is offline   Reply With Quote
Old 05-23-2017, 06:26 PM   #35
Newb
Thread Starter

Join Date: Mar 2017
Location: Fullerton, CA
Posts: 22
Total Cats: 4
Default

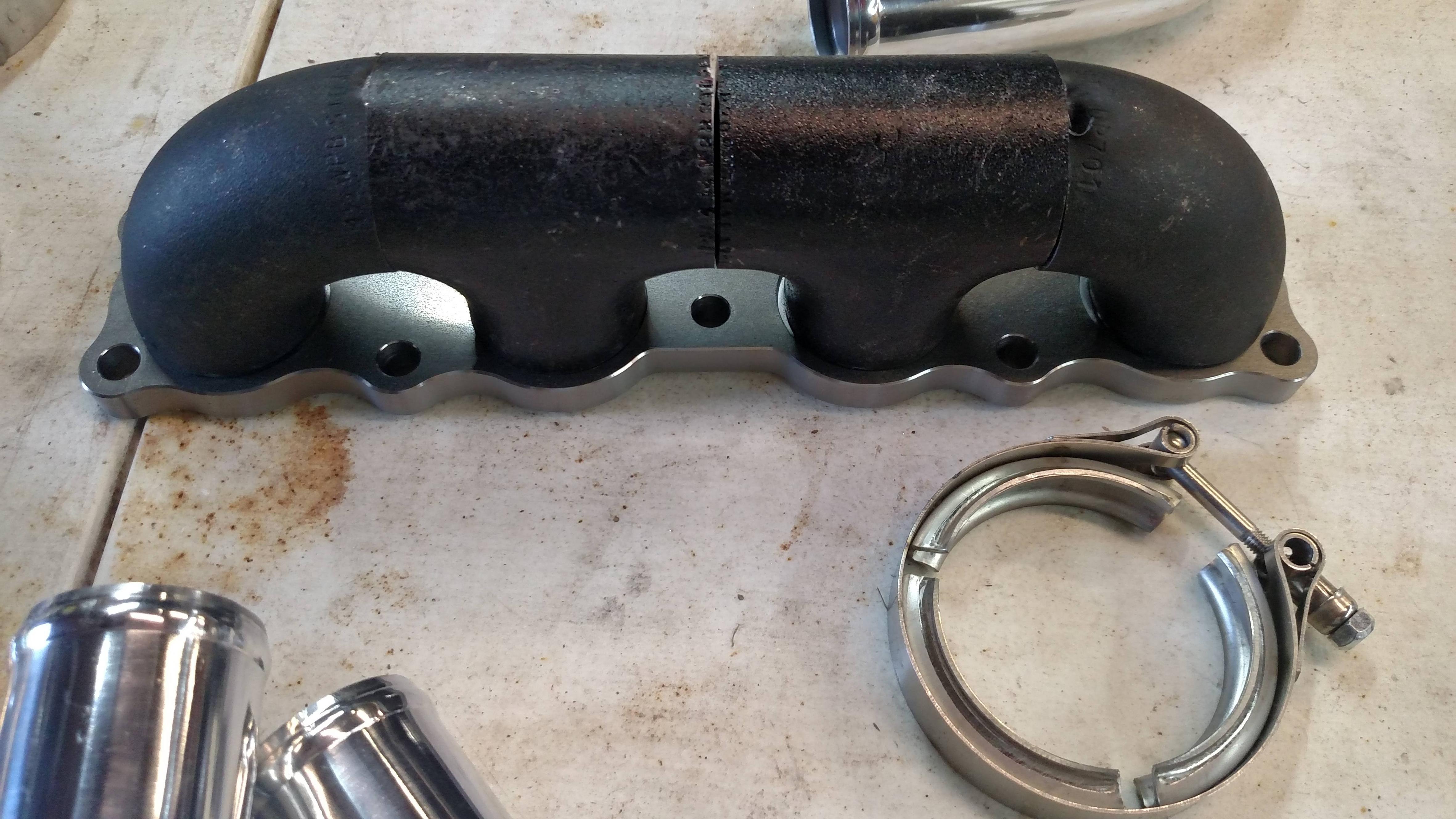

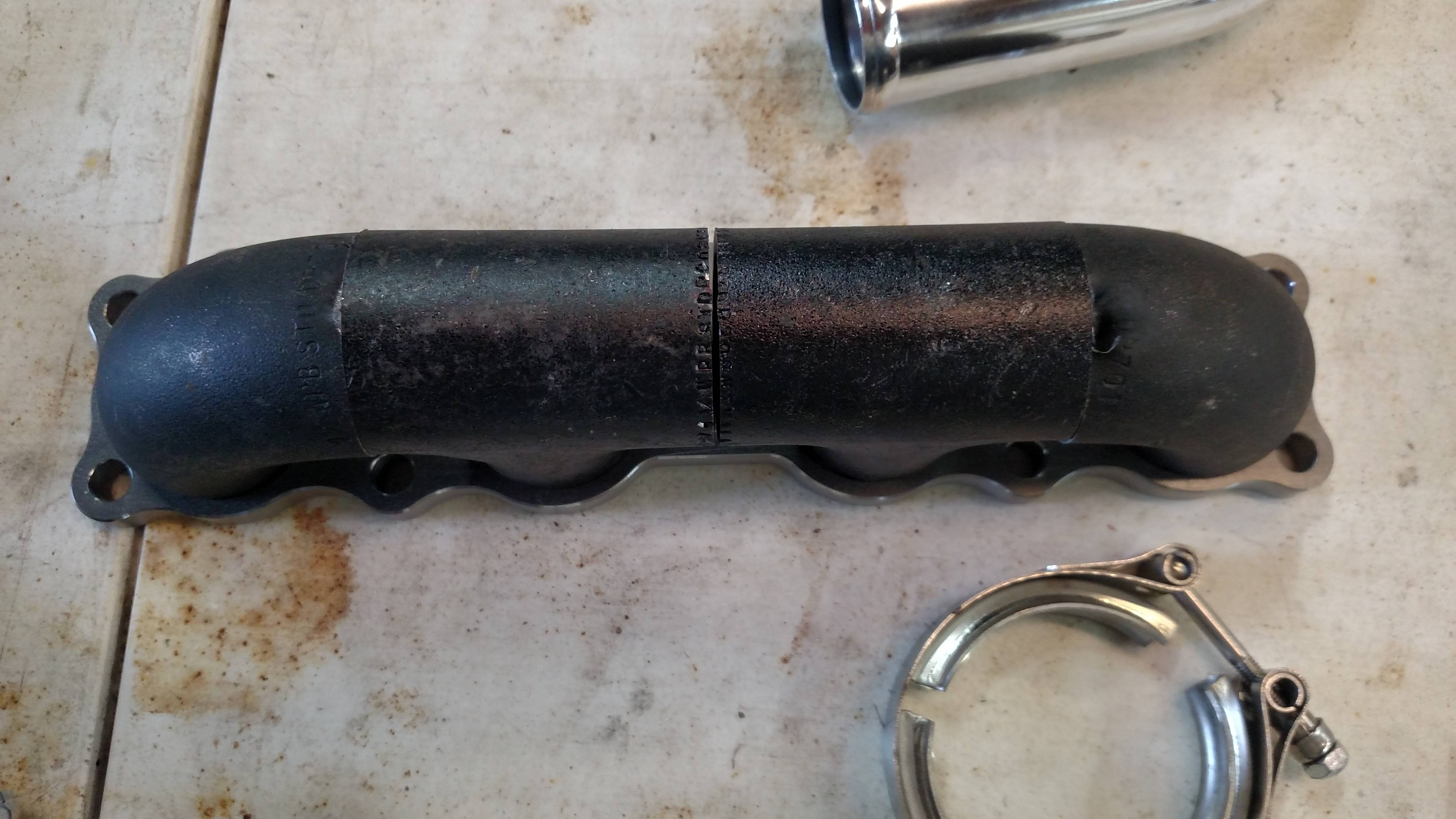

Today I cut and beveled the tees. I'm very pleased with how it turned out and can't wait to weld it up.


byerlyfactor is offline   Reply With Quote
Old 05-23-2017, 08:21 PM   #36
Elite Member
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 2,254
Total Cats: 181
Default

Nice! Looks great, sooo much better than last time.

ladies and gentleman, this is what happens when real friends step in. You started off showing parts than looked like doo doo destination brokenville. We told you it was junk. You came back with nice parts and added skills. Keep going with new standards and this build will be a good one.
ryansmoneypit is offline   Reply With Quote
Old 05-24-2017, 08:59 AM   #37
Junior Member
iTrader: (1)

Join Date: Dec 2015
Location: Tulsa
Posts: 173
Total Cats: 15
Default

nice....be sure you clean the ID of the pipe also a 1/2" back or so from the weld. The first set was worth the money for practice.
dr_boone is offline   Reply With Quote
Old 06-13-2017, 06:27 PM   #38
Newb
Thread Starter

Join Date: Mar 2017
Location: Fullerton, CA
Posts: 22
Total Cats: 4
Default

It was a little while since I worked on the car since my last post. In the past two days, I really got to work and finished the manifold, the 5 bolt adapter, and I fabbed a small bracket for the wastegate.









My welds ARE getting better but still look shitty.
byerlyfactor is offline   Reply With Quote
Old 06-15-2017, 06:03 PM   #39
Newb
Thread Starter

Join Date: Mar 2017
Location: Fullerton, CA
Posts: 22
Total Cats: 4
Default

Update for today: I was a dumbass and bent the compressor wheel from moving around the housing carelessly. I think I'll end up buying a new wheel or just wait and buy a genuine 2554 or 2560. Or maybe another chinacharger. I don't know for sure yet, and I still have a while to go before I can get to a point where I would make boost.


I also fitted the manifold to the head after making the holes slightly bigger. I still need to do a little grinding so the nuts will all fit. I'm happy with how it looks.

byerlyfactor is offline   Reply With Quote
Old 06-16-2017, 10:05 AM   #40
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,605
Total Cats: 1,048
Default

Yep lower cornet nuts are always tight on the 1.6 manifolds. I have not figured out a good solution for that yet.
shuiend is offline   Reply With Quote
