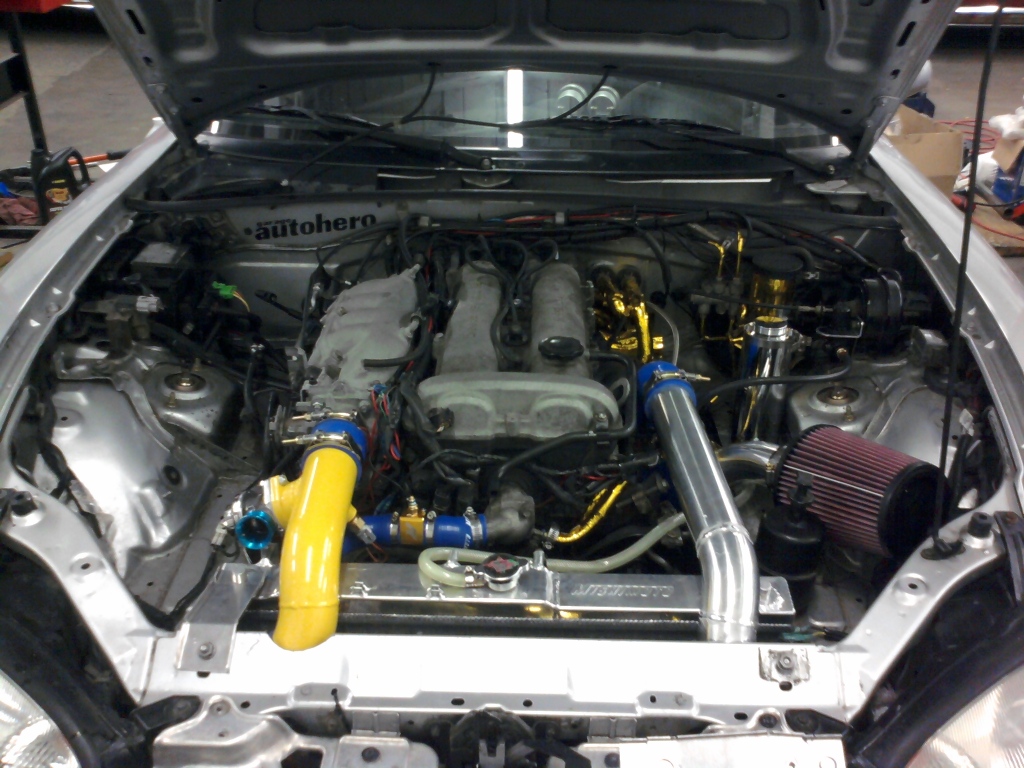

Stopped by today, didn't really do a whole lot, my buddies TIG broke down, so we just mocked up places everything, and decided on the exhaust design. Everything hopefully should be done tomorrow.

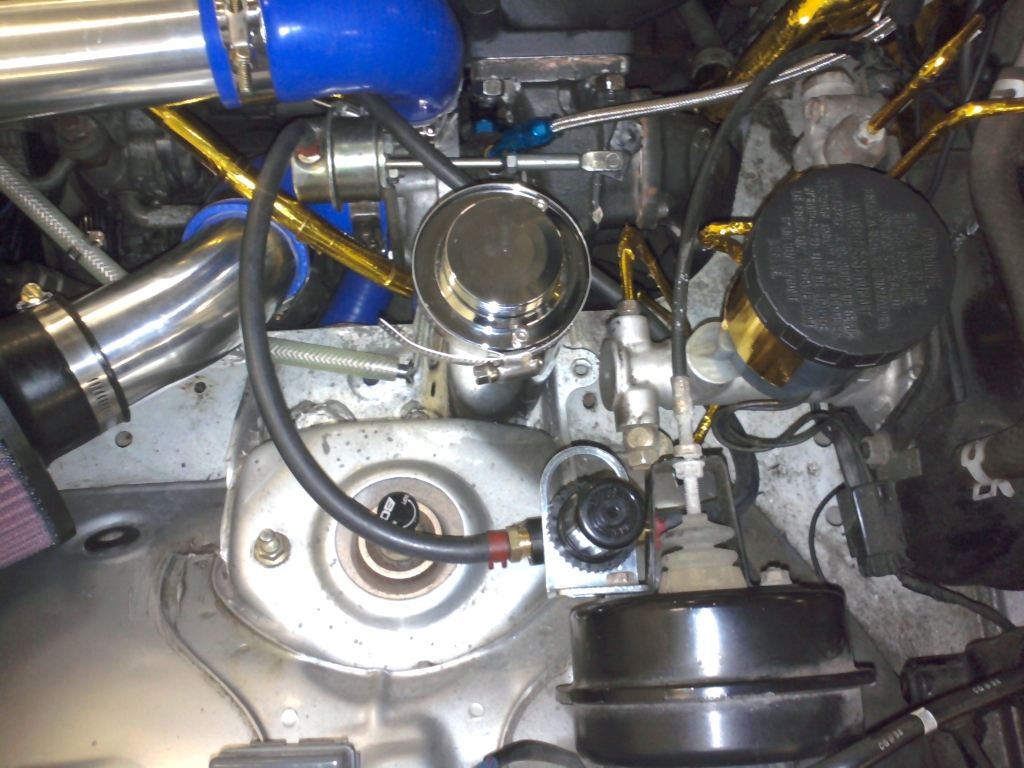

Thinking of this location for the coolant overflow





gonna just weld a bracket on to a clamp to mount it, so it can easily be moved, and usable.

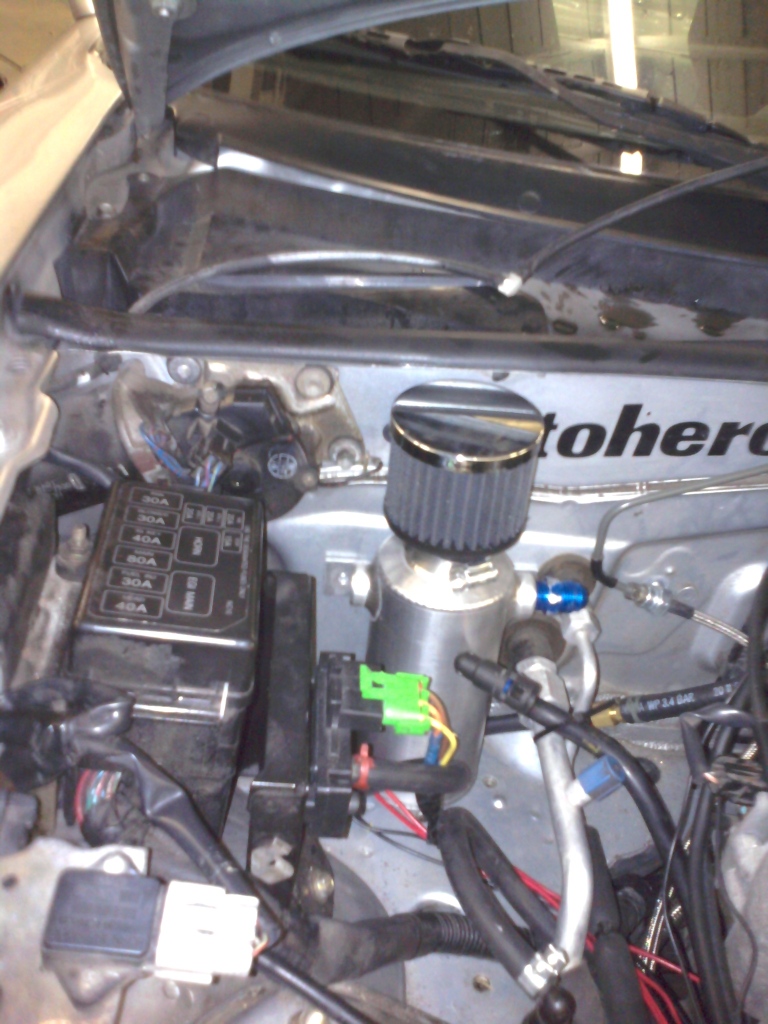

decided that the catch cans going here, gonna remove the fitting, and just weld some -8ANs in there.

Attached Thumbnails
imput's first turbo build-photo0561.jpg   imput's first turbo build-photo0563.jpg   imput's first turbo build-photo0567.jpg
imput1234 is offline   Reply With Quote
Old 10-26-2011, 02:36 AM   #22
Junior Member
Thread Starter
iTrader: (3)

Join Date: May 2010
Posts: 282
Total Cats: -4
Default

Unfortunately exhaust still isn't done yet, catch cans are tho, we decided to change some stuff. Originally I was gonna get the AVO downpipe hacked, so it's a 2.5 to 3" downpipe; but then we decided that it would be better just to keep the downpipe intact, since it fits perfect, and just make a little 2.5-3" extension for the exhaust, and eventually just make a 3" downpipe bolt up to the new Vband location.

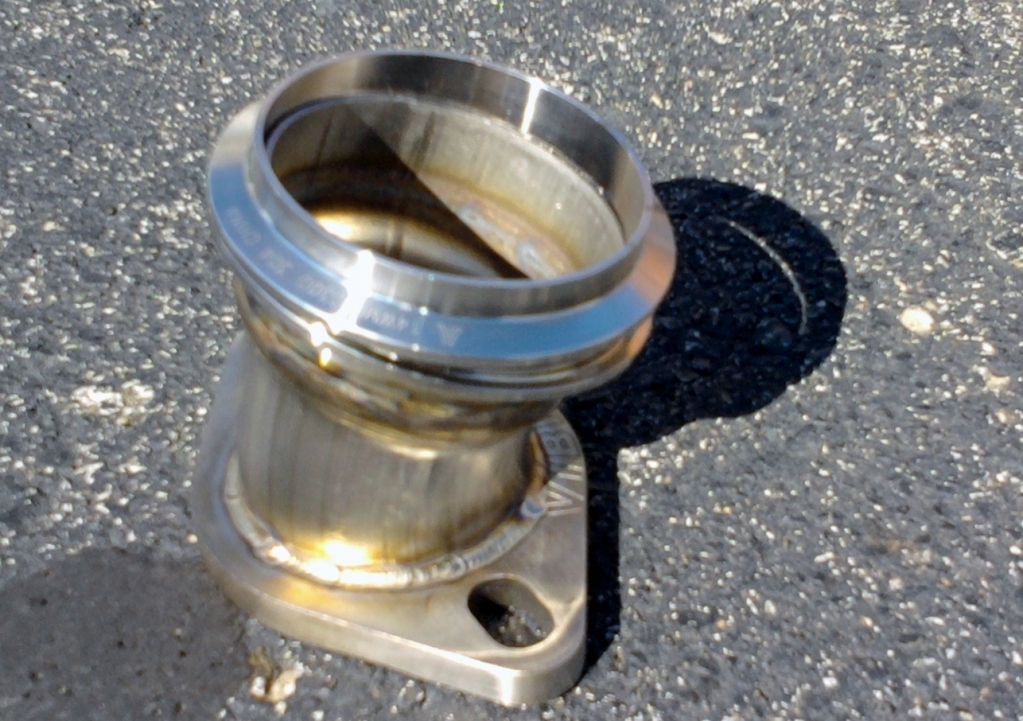

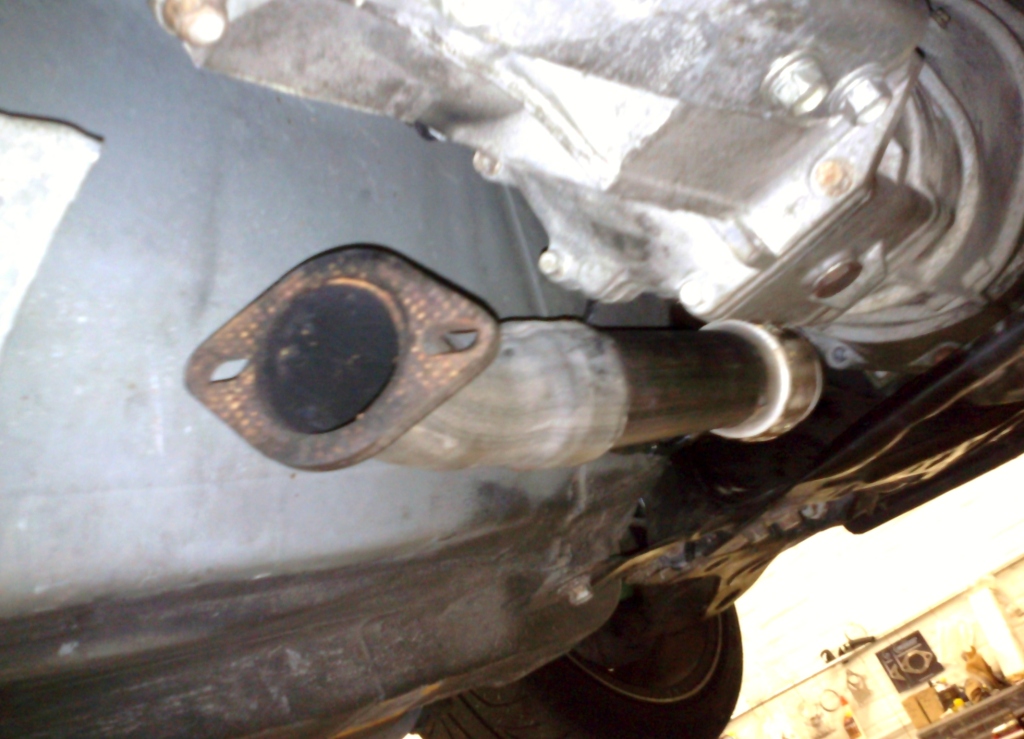

The ugly AVO downpipe :(



This is the little extension piece he made, looks super sweet.

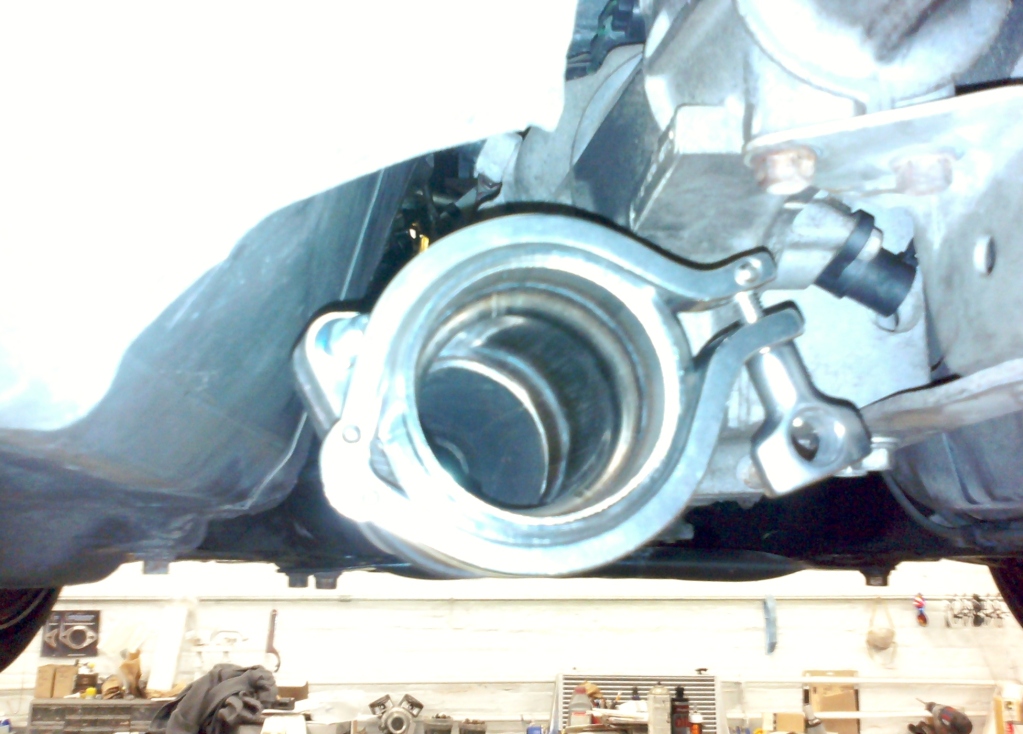

And of course V-Band everything after that.




One of my main concerns with the exhaust was to keep it as high as possible, so I wont have to worry about it scraping everywhere. The location now is freaking perfect, tucked nicely.



Also wanted it to be light as it can be while being really durable. So I choose Vibrant 304 stainless steel for everything including the hangers.

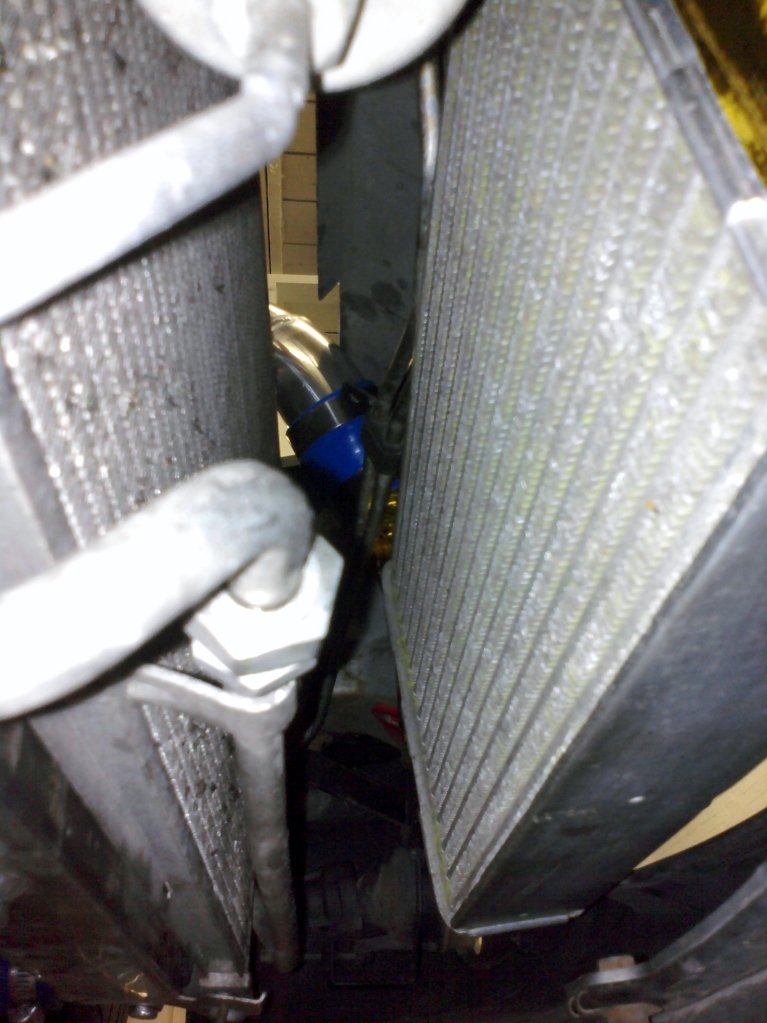

Just a random shot of the intercooler gap, gonna be a perfect place to mount a oil and a power steering cooler.

Attached Thumbnails
imput's first turbo build-photo0570.jpg   imput's first turbo build-photo0568.jpg   imput's first turbo build-photo0576.jpg   imput's first turbo build-photo0591.jpg   imput's first turbo build-photo0592.jpg

imput's first turbo build-photo0575.jpg
imput1234 is offline   Reply With Quote
Old 10-26-2011, 06:28 PM   #23
Junior Member
Thread Starter
iTrader: (3)

Join Date: May 2010
Posts: 282
Total Cats: -4
Default

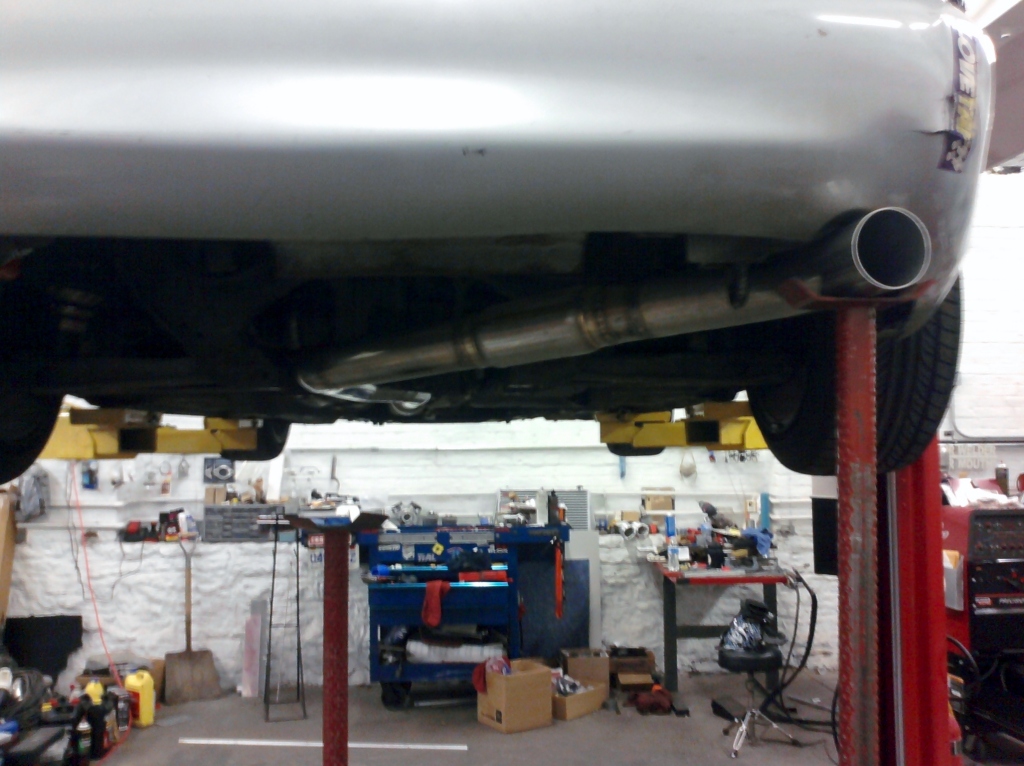

Exhaust done, car stared up right away!!! Still have to fix some random stuff tho, before I can really drive it, random leak from the manifold from a stud rubbing, need to saw that off, and then it should be good.

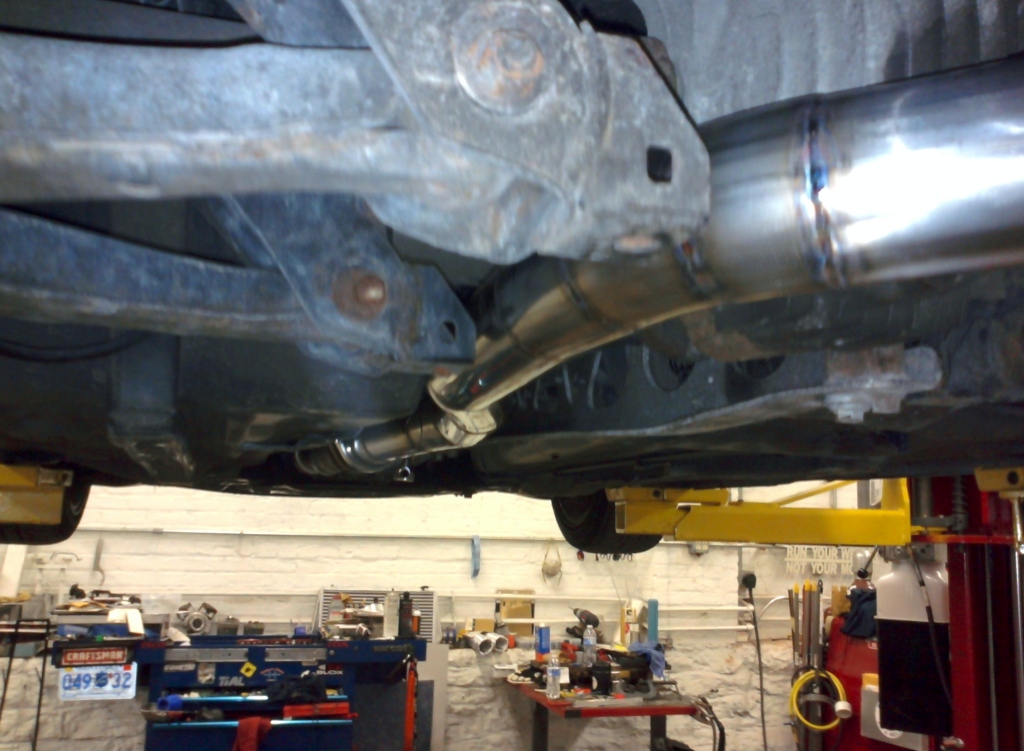

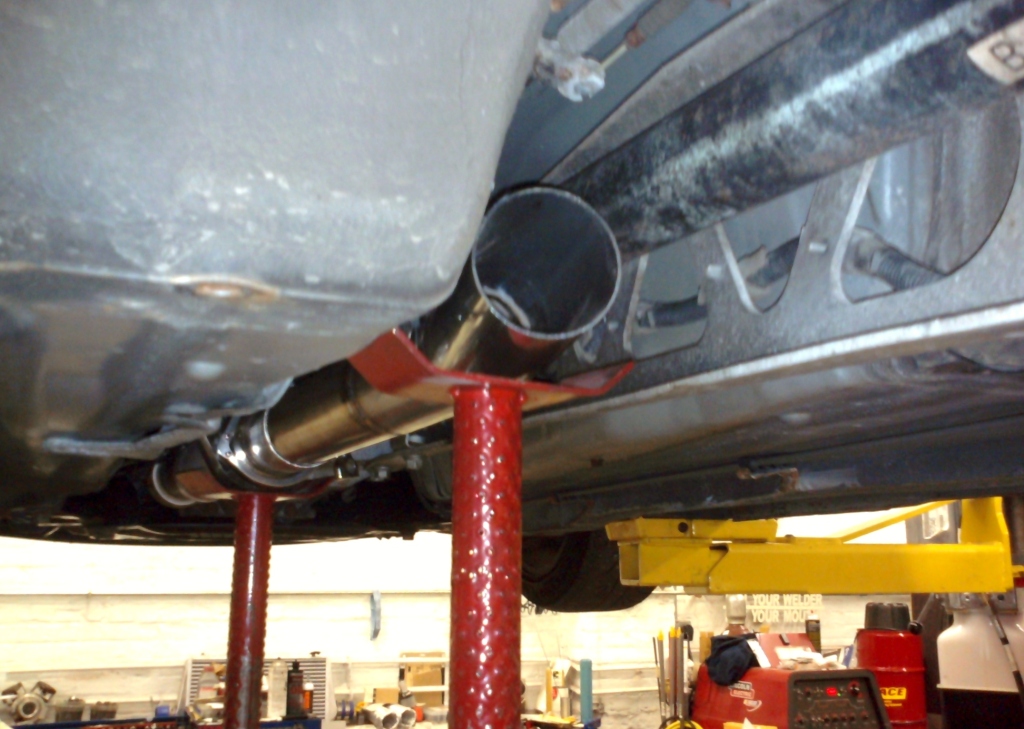

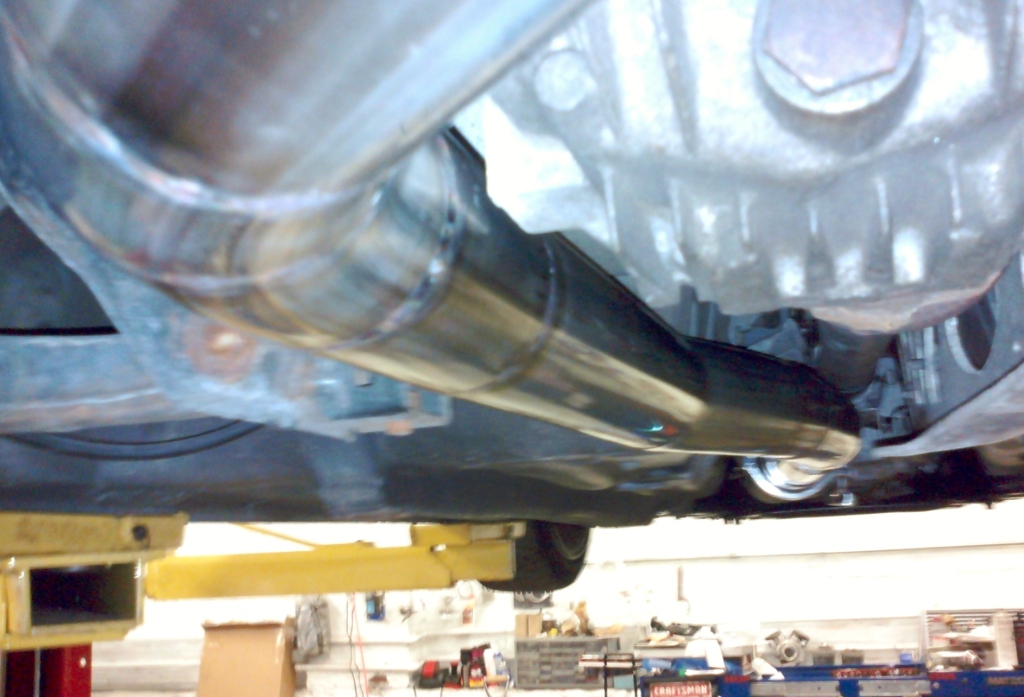

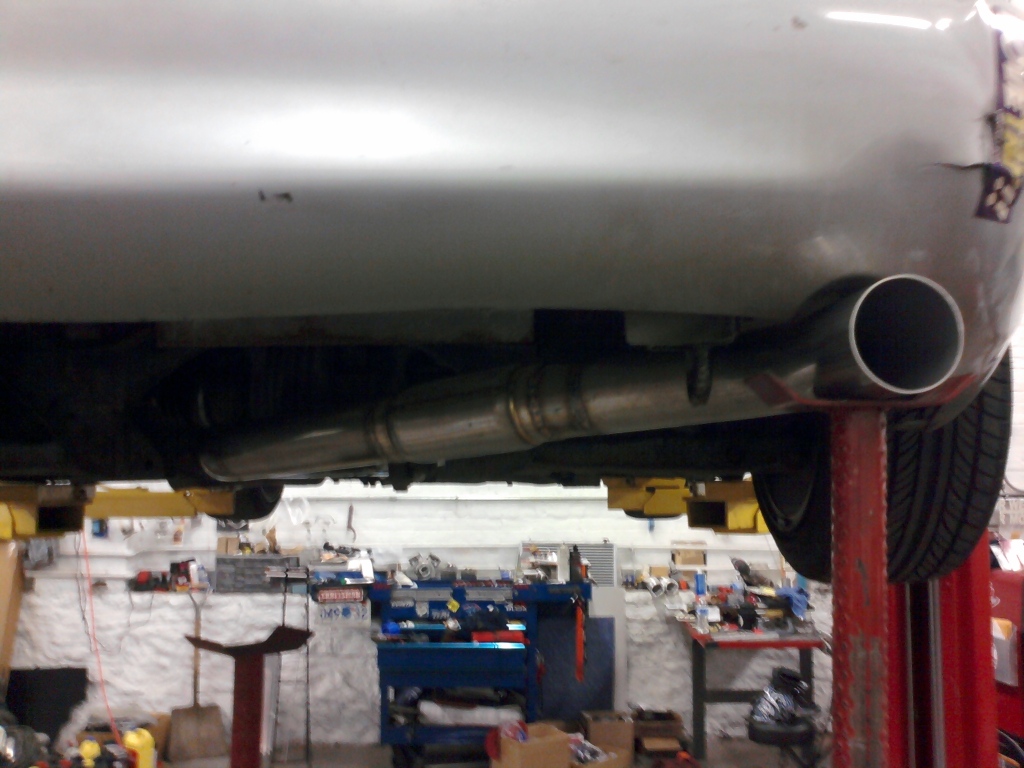

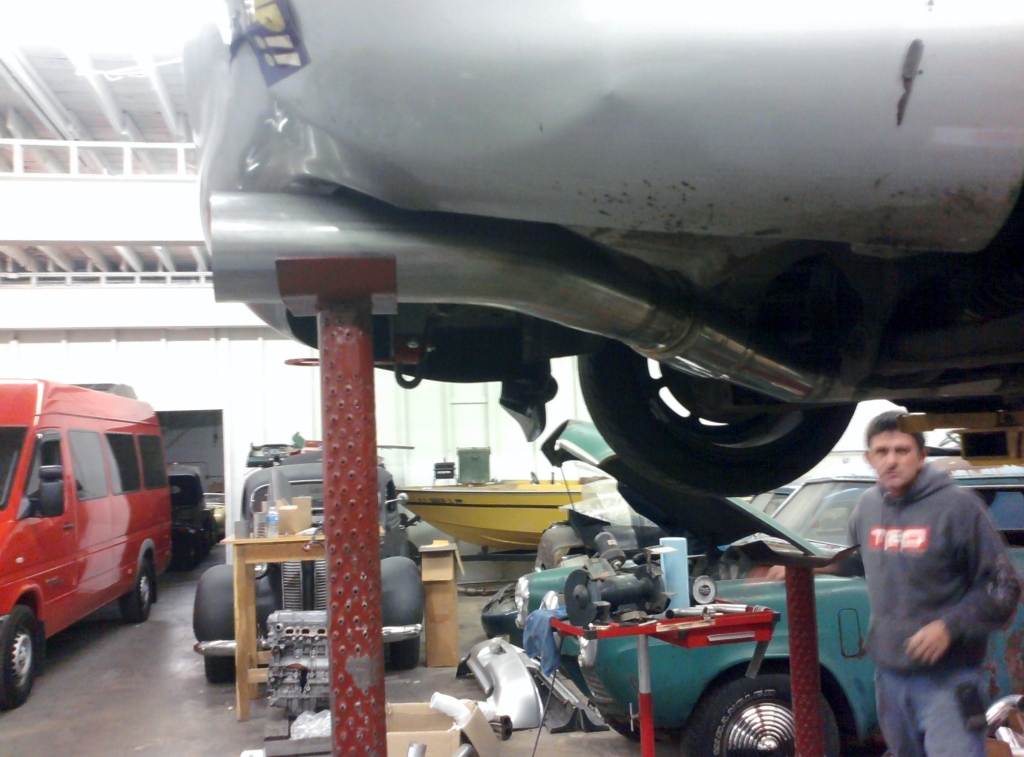

Took these pics before the exhaust hangers were made, but I'm super happy with the exhaust, its higher than everything in the car, the entire exhaust probably weighs between 15-20lbs. The muffler is a Vibrant SS race muffler, weights a little over 1lb haha.

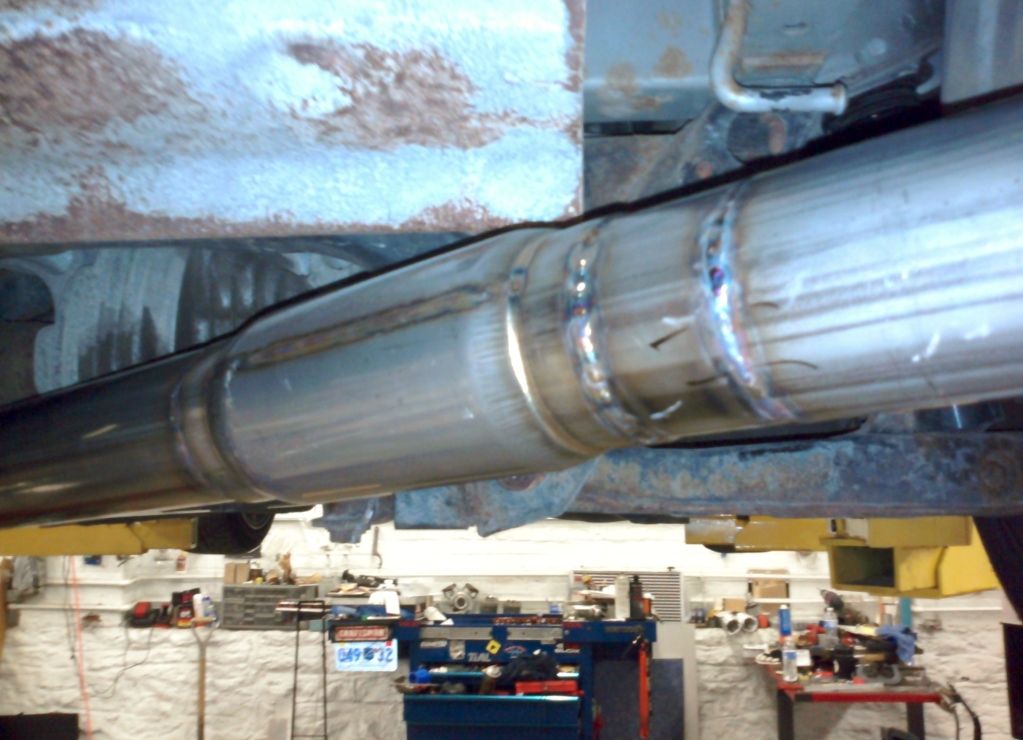

originally the plan was to make a dolphin tip, but we ran out of bends, haha.







was gonna add an additional vband, but not really needed, and it wont fit anywhere, everything is tucked really nice.



Attached Thumbnails
imput's first turbo build-photo0600.jpg   imput's first turbo build-photo0601.jpg   imput's first turbo build-photo0602.jpg   imput's first turbo build-photo0603.jpg   imput's first turbo build-photo0606.jpg

imput's first turbo build-photo0607.jpg
imput1234 is offline   Reply With Quote
Old 10-26-2011, 08:11 PM   #24
Elite Member
iTrader: (5)

Join Date: Dec 2010
Location: Raleigh, NC
Posts: 1,970
Total Cats: 49
Default

haha, that exhaust is going to be so quiet. I see many sleeping babies in your neighborhood.
Seefo is offline   Reply With Quote
Old 10-26-2011, 08:28 PM   #25
Junior Member
Thread Starter
iTrader: (3)

Join Date: May 2010
Posts: 282
Total Cats: -4
Default

Quote:
Originally Posted by Track View Post
haha, that exhaust is going to be so quiet. I see many sleeping babies in your neighborhood.

Yup, that's why I got that muffler. haha
imput1234 is offline   Reply With Quote
Old 10-26-2011, 08:40 PM   #26
Elite Member
iTrader: (5)

Join Date: Dec 2010
Location: Raleigh, NC
Posts: 1,970
Total Cats: 49
Default

So I assume from your post that the exhaust piping is 3" also?

Edit: Doh!! ignore.
Seefo is offline   Reply With Quote
Old 10-27-2011, 05:58 PM   #27
Junior Member
Thread Starter
iTrader: (3)

Join Date: May 2010
Posts: 282
Total Cats: -4
Default

Quote:
Originally Posted by Track View Post
So I assume from your post that the exhaust piping is 3" also?

Edit: Doh!! ignore.

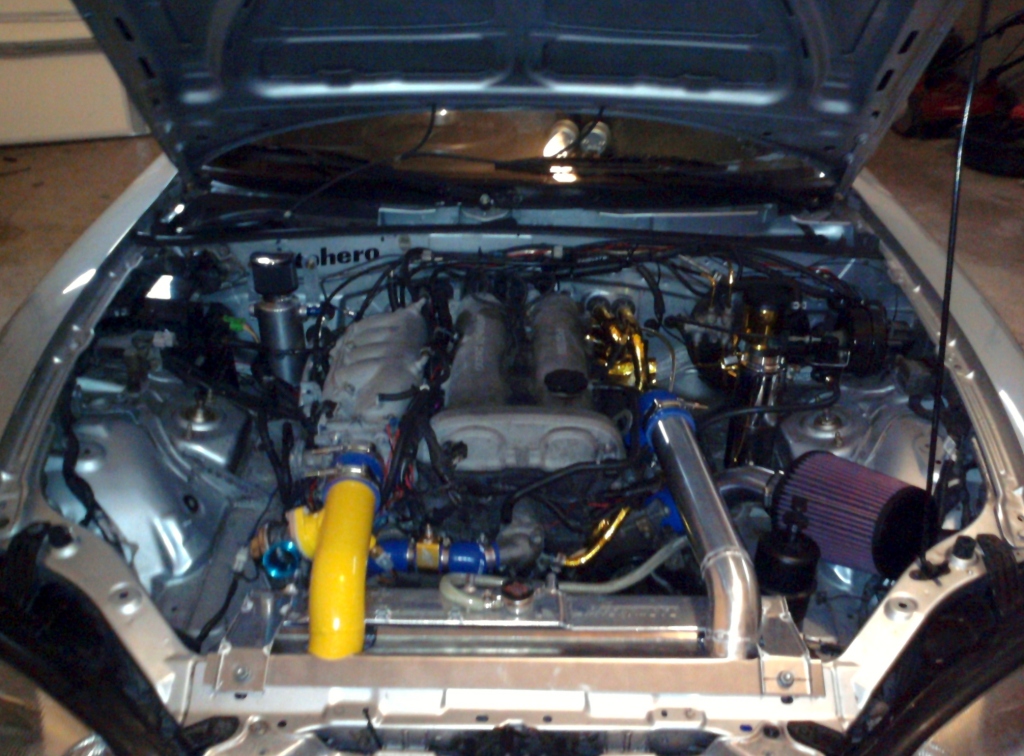

Its back home!!! Time to fix a manifold leak and tune it



decided to wait on shrouding till I get a different front bumper
Attached Thumbnails
imput's first turbo build-photo0609.jpg
imput1234 is offline   Reply With Quote
Old 10-30-2011, 02:01 AM   #28
Junior Member
Thread Starter
iTrader: (3)

Join Date: May 2010
Posts: 282
Total Cats: -4
Default

Did some more stuff today, fixed some random issues. Originally I was gonna do a drift day tomorrow, but my tune sucks ***, so I'm going to get it dyno tuned instead. Hopefully everything goes smooth.

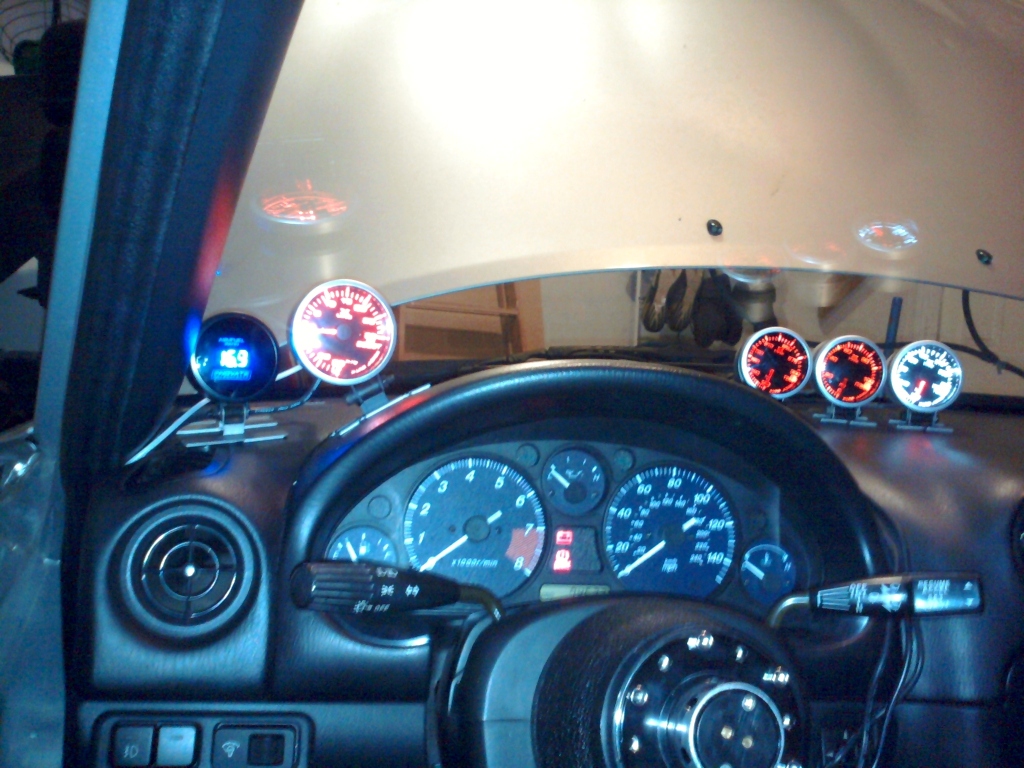

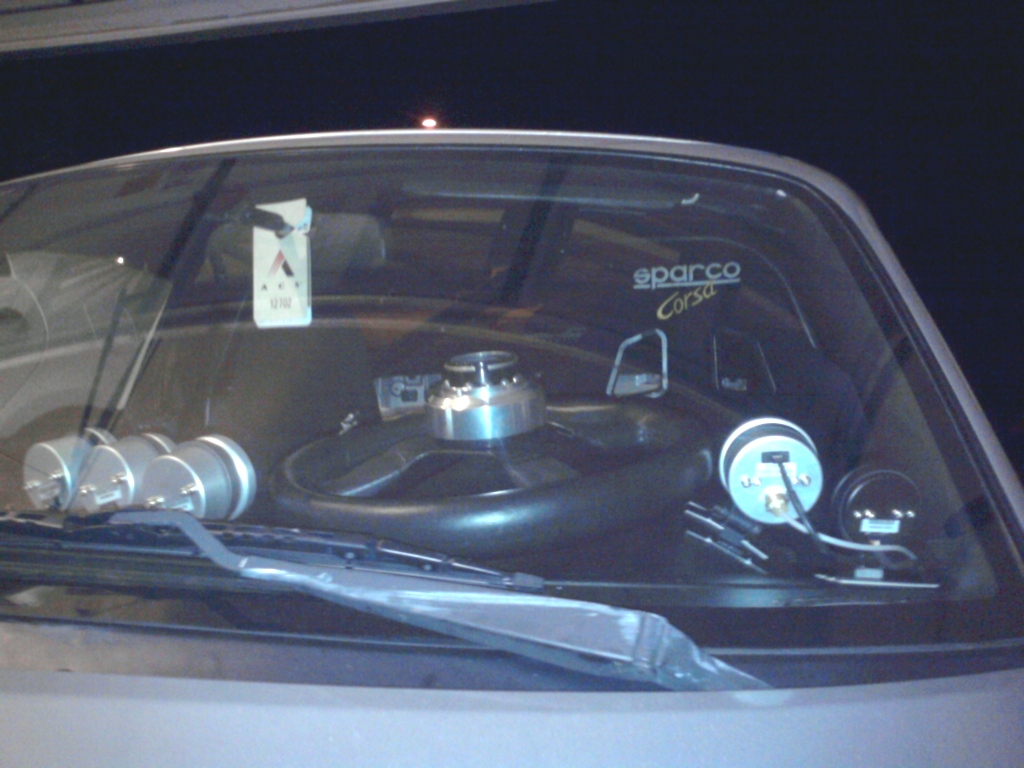

changed my plugs put some iridium NGK's in, got another gauge pod, so I was able to move my gauges around.

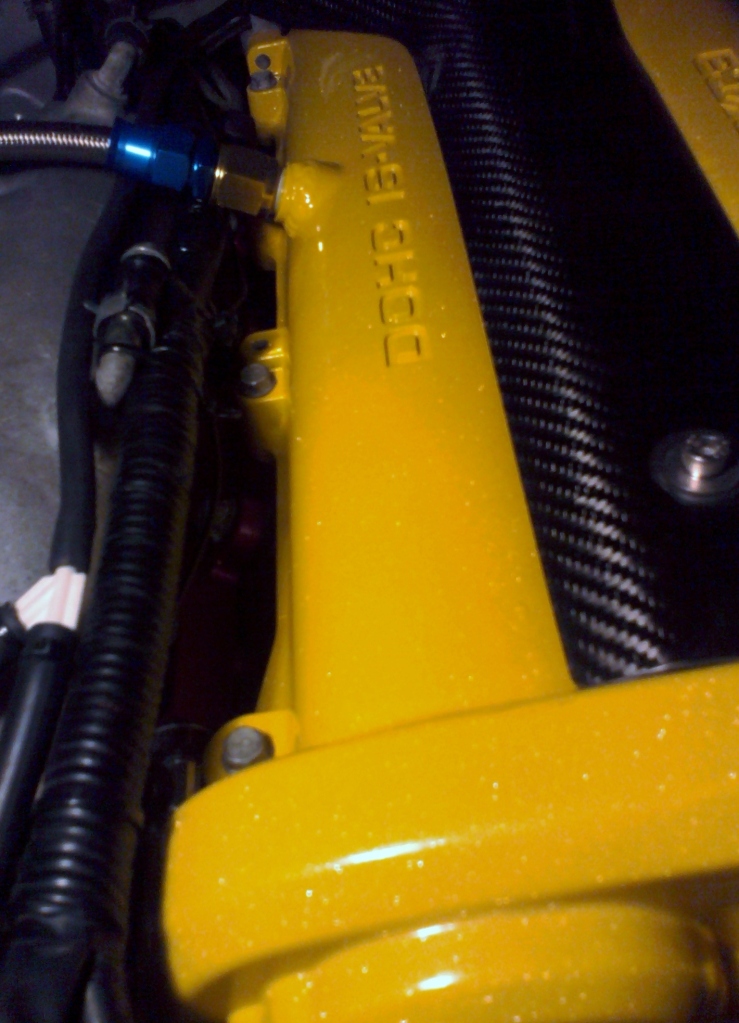

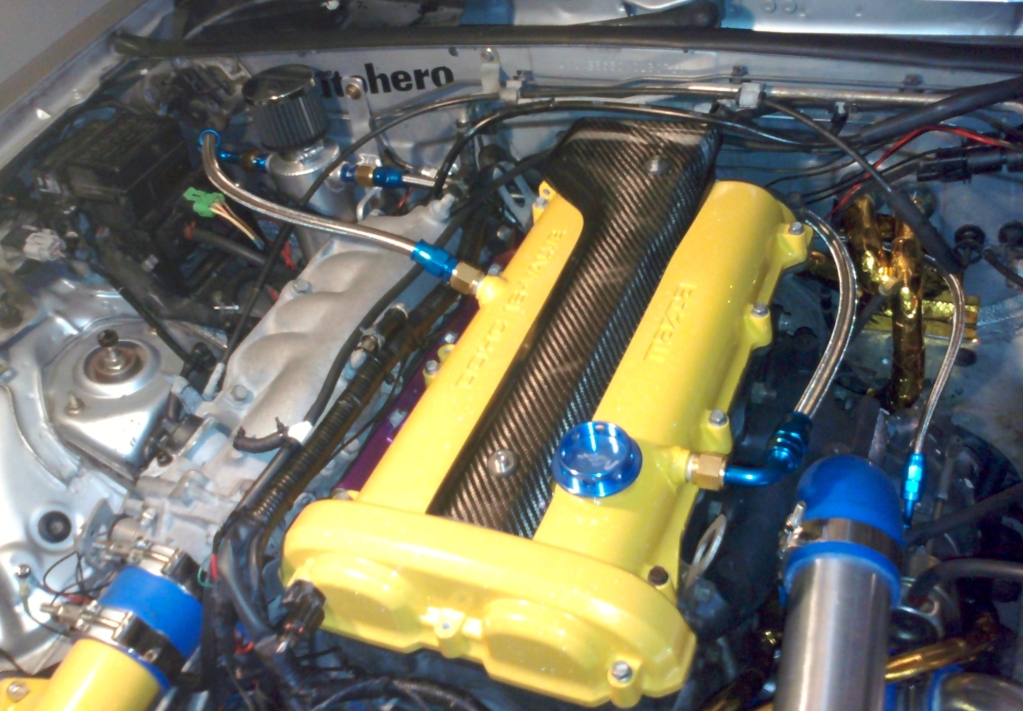

Installed my new valve cover & sparkplug cover, and make some lines for the catch can. Tried to clean it up a bit, but its so damn messy, haha, a tuck is def coming soon






Attached Thumbnails
imput's first turbo build-photo0614-1.jpg   imput's first turbo build-photo0635.jpg   imput's first turbo build-photo0633.jpg   imput's first turbo build-photo0632.jpg   imput's first turbo build-photo0631.jpg

imput1234 is offline   Reply With Quote
Old 10-30-2011, 11:03 PM   #29
Junior Member
Thread Starter
iTrader: (3)

Join Date: May 2010
Posts: 282
Total Cats: -4
Default

got the car tuned:



feels sooo much better.

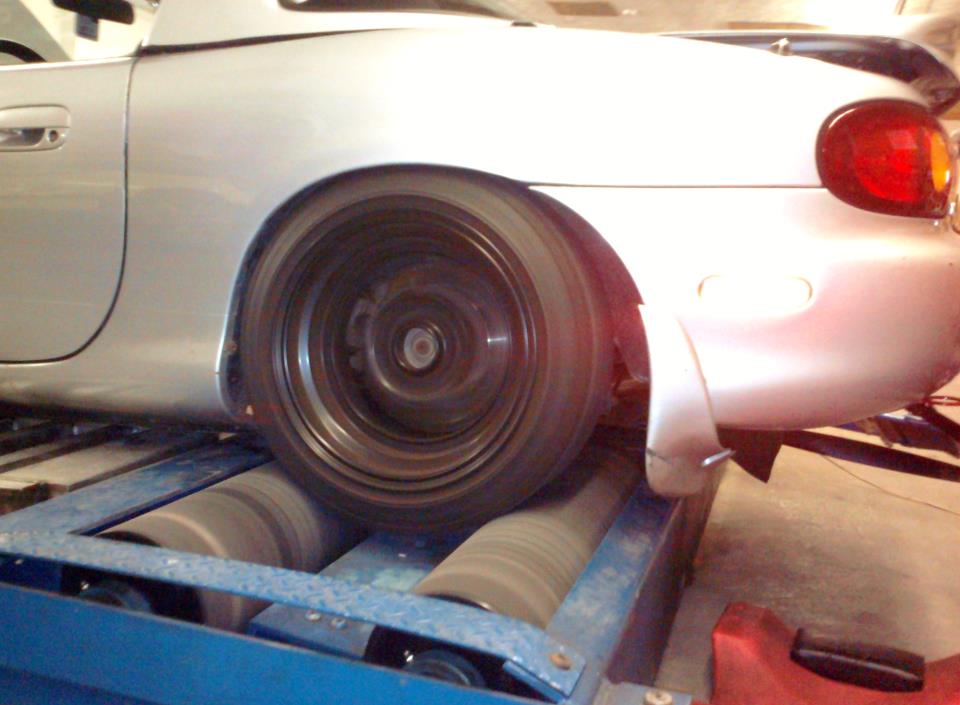

boost kicks in early as ****. 221whp, 243wtq @ 8psi, I'll upload the graph later
Attached Thumbnails
imput's first turbo build-320708_2175055414929_1203120084_32090431_1032352794_n.jpg
imput1234 is offline   Reply With Quote
Old 10-30-2011, 11:11 PM   #30
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

Nice!
hornetball is offline   Reply With Quote
Old 10-30-2011, 11:26 PM   #31
Junior Member
Thread Starter
iTrader: (3)

Join Date: May 2010
Posts: 282
Total Cats: -4
Default

Quote:
Originally Posted by hornetball View Post
Nice!
hell yeah dude, feels so freaking good!
imput1234 is offline   Reply With Quote
Old 10-31-2011, 03:20 PM   #32
Senior Member
iTrader: (4)

ThatGuy85's Avatar

Join Date: Mar 2010
Location: Waldo, Ohio
Posts: 750
Total Cats: 8
Default

First: Nice build, looks great!

Have a couple questions though:
1)Where did you get that spark plug/wire cover? That's badass.
2)Is there a write-up you followed for deleting egt? Any tips for someone who wants to do the same thing?
ThatGuy85 is offline   Reply With Quote
Old 10-31-2011, 10:51 PM   #33
Junior Member
Thread Starter
iTrader: (3)

Join Date: May 2010
Posts: 282
Total Cats: -4
Default

Quote:
Originally Posted by ThatGuy85 View Post
First: Nice build, looks great!

Have a couple questions though:
1)Where did you get that spark plug/wire cover? That's badass.
2)Is there a write-up you followed for deleting egt? Any tips for someone who wants to do the same thing?
Thanks!

Sparkplug cover was from a group buy garagestar did a while back.

I jsut removed the tube, removed the EGR valve, bought a EGR valve delete plate on ebay, and covered it up.

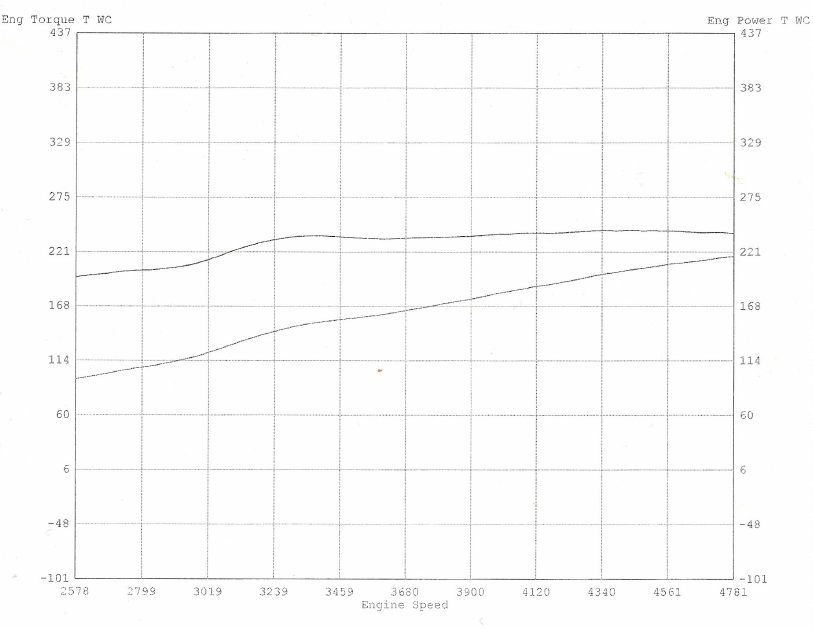

Dyno graph:

car feel soo ******* good:

Attached Thumbnails
imput's first turbo build-dkdyno.jpg
imput1234 is offline   Reply With Quote
Old 11-01-2011, 12:11 PM   #34
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

Your torque curve looks amazing.

Why are you cutoff at 4800 RPM?

Last edited by hornetball; 11-01-2011 at 03:33 PM.
hornetball is offline   Reply With Quote
Old 11-01-2011, 12:26 PM   #35
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,072
Total Cats: 253
Default

Fake dyno is fake. 2554 @ 8psi =/= over 240wtrq

Am I the only one to notice this?
viperormiata is offline   Reply With Quote
Old 11-01-2011, 01:23 PM   #36
Elite Member
iTrader: (5)

Join Date: Dec 2010
Location: Raleigh, NC
Posts: 1,970
Total Cats: 49
Default

Quote:
Originally Posted by hornetball View Post
You're torque curve looks amazing.

Why are you cutoff at 4800 RPM?
its a graph from 2.5k to 4.8k, thats why tq looks so good?

and you are right, why does it end so soon?
Seefo is offline   Reply With Quote
Old 11-01-2011, 03:25 PM   #37
Former Vendor
iTrader: (8)

Join Date: Sep 2011
Posts: 487
Total Cats: 4
Default

Looks like a lot of fun! Really liking the radiator/intercooler/piping setup.

-Sam
Renown Performance is offline   Reply With Quote
Old 11-01-2011, 04:25 PM   #38
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,370
Total Cats: 1,332
Default

Quote:
Originally Posted by imput1234 View Post
Thanks!

Sparkplug cover was from a group buy garagestar did a while back.
Throw it away. You are going to nuke the spark plug wires. They don't last very long as-is, and encasing them in a shell so the valve cover can bake them is exactly the opposite of what you want to do.

I would also have made the vent lines much, much larger than -8AN, and I would not have vented the passenger side of the valve cover. You're going to see the passenger side can fill with oil very, very quickly.

Also, not to be a dick, but I really don't think you made 220whp at 8psi from a 2554R. I had a similar setup ('99 longblock, 2554R, 3" exhaust, standalone) and I made 217whp at 15psi on a Mustang dyno. Your dyno chart tells us nothing - it's so bad I don't even know what mistake the dyno operator made.
Savington is offline   Reply With Quote
Old 11-01-2011, 04:29 PM   #39
Elite Member
iTrader: (5)

Join Date: Dec 2010
Location: Raleigh, NC
Posts: 1,970
Total Cats: 49
Default

maybe its in newton meters. hahaha
Seefo is offline   Reply With Quote
Old 11-01-2011, 06:24 PM   #40
Junior Member
Thread Starter
iTrader: (3)

Join Date: May 2010
Posts: 282
Total Cats: -4
Default

Quote:
Originally Posted by hornetball View Post
Your torque curve looks amazing.

Why are you cutoff at 4800 RPM?
Quote:
Originally Posted by viperormiata View Post
Fake dyno is fake. 2554 @ 8psi =/= over 240wtrq

Am I the only one to notice this?
Quote:
Originally Posted by Track View Post
maybe its in newton meters. hahaha
Quote:
Originally Posted by Track View Post
its a graph from 2.5k to 4.8k, thats why tq looks so good?

and you are right, why does it end so soon?
dyno isnt fake lol, its just a section that he printed, it looks the same tho. Theres a dyno day coming up at a different place, i might do that just to see what that says.

Quote:
Originally Posted by Renown Performance View Post
Looks like a lot of fun! Really liking the radiator/intercooler/piping setup.

-Sam
Thanks!

Quote:
Originally Posted by Savington View Post
Throw it away. You are going to nuke the spark plug wires. They don't last very long as-is, and encasing them in a shell so the valve cover can bake them is exactly the opposite of what you want to do.

I would also have made the vent lines much, much larger than -8AN, and I would not have vented the passenger side of the valve cover. You're going to see the passenger side can fill with oil very, very quickly.
Thanks, did not know that about the wires. NGK wires lifetime warrenty @ autozone haha. I'll remove it on the track, but it looks too damn good haha.


Quote:
Originally Posted by Savington View Post
Also, not to be a dick, but I really don't think you made 220whp at 8psi from a 2554R. I had a similar setup ('99 longblock, 2554R, 3" exhaust, standalone) and I made 217whp at 15psi on a Mustang dyno. Your dyno chart tells us nothing - it's so bad I don't even know what mistake the dyno operator made.
That's cool, I understand. The stupid cutoff was retarded when he printed it out, but I didnt pay attention at the print out, but the graph pretty much looked the same.I could care less how much power/tq it makes, it feels amazing. I got a track day this sunday, hopefully I'll be able to find out a bit more.

Last edited by imput1234; 11-02-2011 at 11:40 AM.
