Old 08-06-2014, 12:40 PM   #21
Hug Life
iTrader: (3)

Monk's Avatar

Join Date: Apr 2014
Location: Huntington, Indiana
Posts: 2,634
Total Cats: 440
Default

Not hating. I genuinely enjoyed the picture with hole in the block. I support you trying them out, just take it to a very good tuner.
Monk is offline   Reply With Quote
Old 08-07-2014, 03:33 AM   #22
Newb

Join Date: Mar 2014
Posts: 12
Total Cats: 0
Default

Great build and awesome pictures!
rocker1337 is offline   Reply With Quote
Old 08-07-2014, 01:41 PM
DC441
This message has been deleted by sixshooter. Reason: spam
Old 08-07-2014, 01:46 PM   #23
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 7,456
Total Cats: 607
Default

I, for one, welcome the 11:1 CR.


I like the build!

That's a seriously strange wastegate setup, though. :lol:
concealer404 is offline   Reply With Quote
Old 08-07-2014, 02:15 PM   #24
Junior Member
Thread Starter

Join Date: Dec 2013
Location: Little Rock, Ar
Posts: 107
Total Cats: 24
Default

Quote:
Originally Posted by concealer404 View Post
I, for one, welcome the 11:1 CR.


I like the build!

That's a seriously strange wastegate setup, though. :lol:
Thanks guys!

Are you talking about the original external wastegate setup I had? It was strange but it did work well.

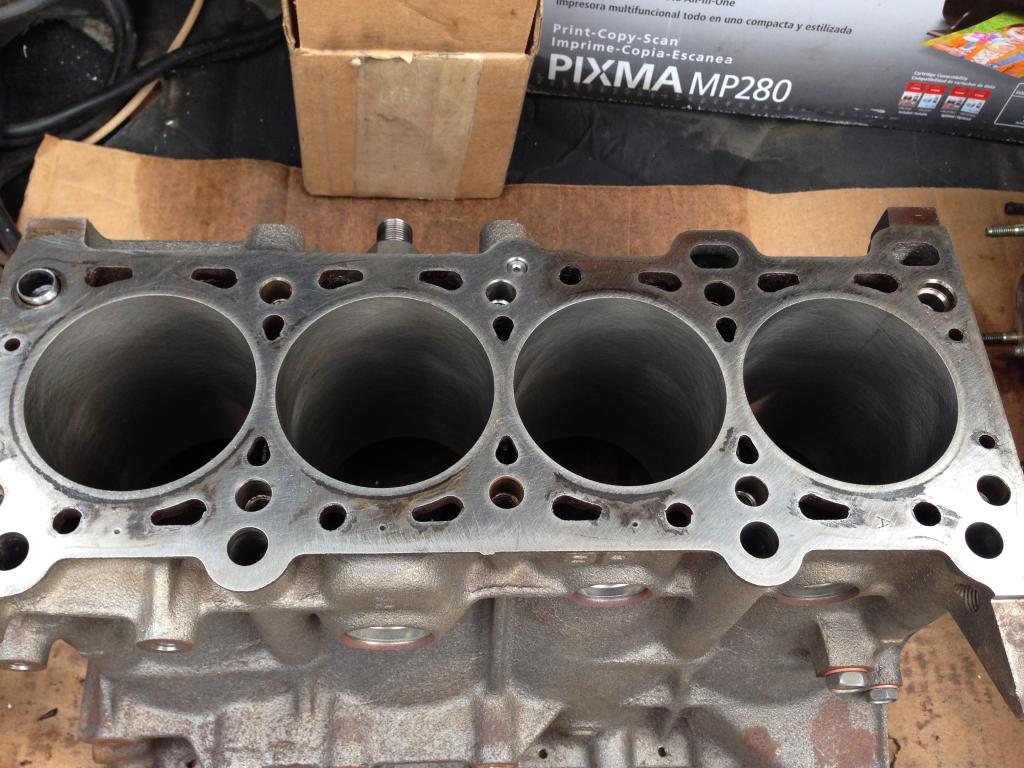

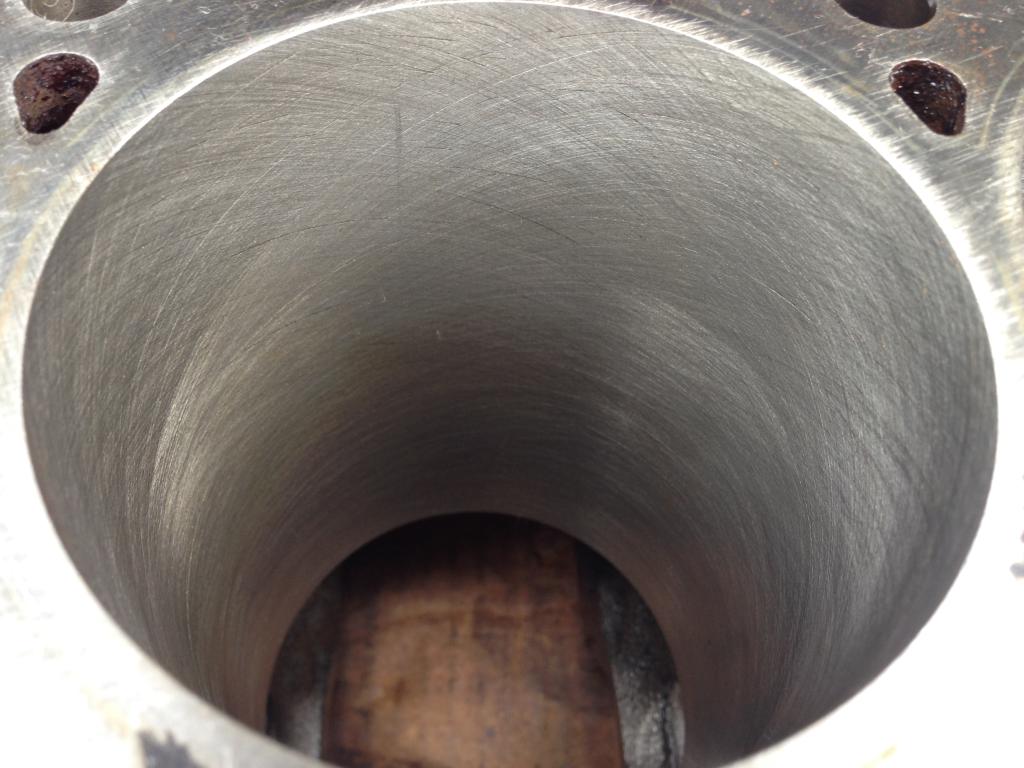

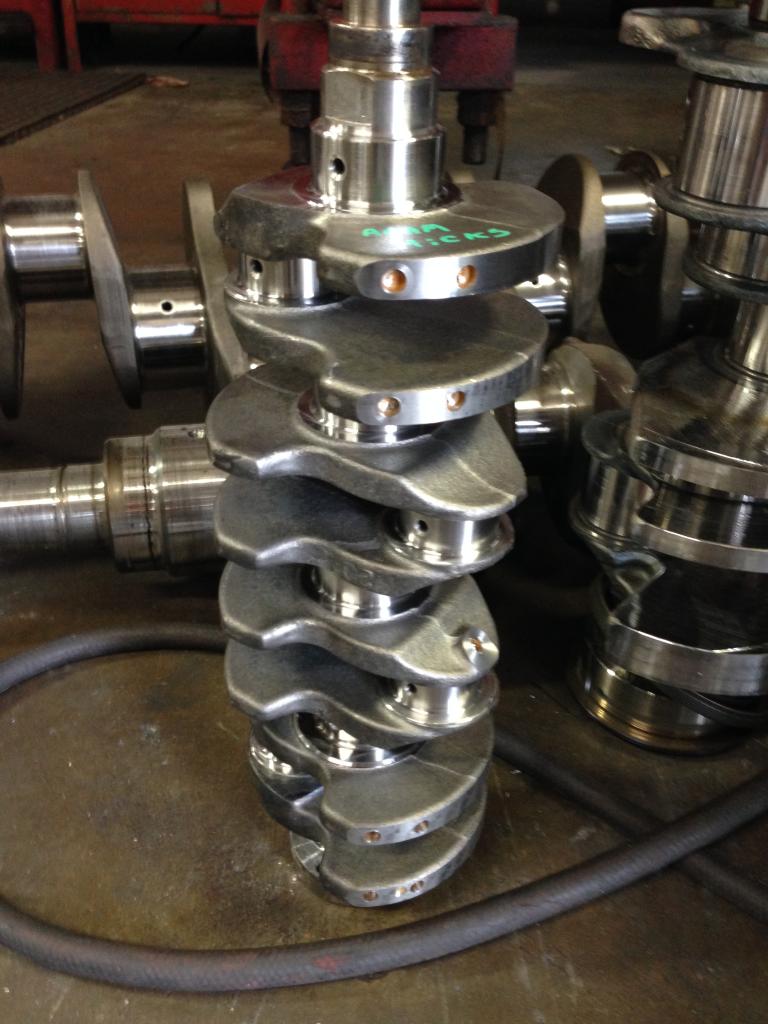

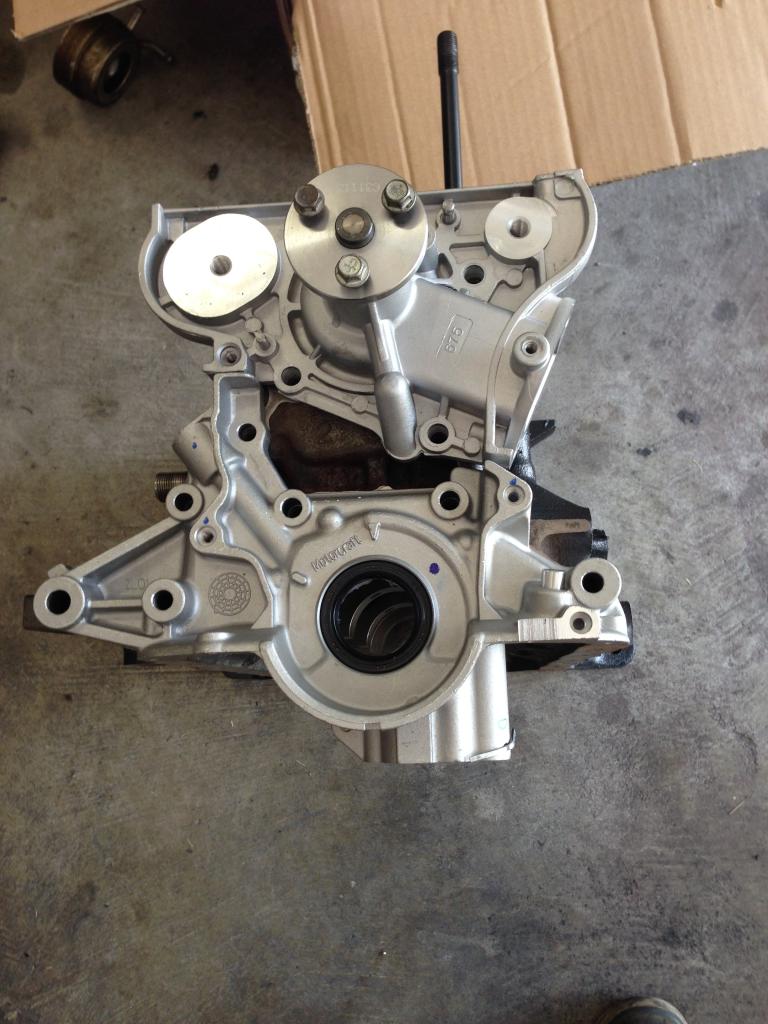

I got the block back from the machine shop today finally. Looks nice. They are still working on the crank since it had to be ground down slightly.





Attached Thumbnails
Intro turned hopefully epic build thread-ffd1f99f-363f-4226-aa20-97d2410c0493.jpg   Intro turned hopefully epic build thread-4e623857-5ff9-445e-ade6-5b3cddbf0bd9.jpg   Intro turned hopefully epic build thread-2e814487-bd85-45c7-9112-26448738159e.jpg
92turbomiata is offline   Reply With Quote
Old 08-07-2014, 04:42 PM   #25
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,887
Total Cats: 566
Default

Is this going to get an MLS headgasket? If so, the block surface doesn't look adequately prepared to me.
hornetball is offline   Reply With Quote
Old 08-19-2014, 07:52 PM   #26
Junior Member
Thread Starter

Join Date: Dec 2013
Location: Little Rock, Ar
Posts: 107
Total Cats: 24
Default

Ok guys small update. Still waiting on the damn machine shop to finish my crank but I should hopefully have it back by tomorrow, or the end of the week at the latest. Thats the last thing I am waiting on before I can start assembly on the engine. I got bored so I did some mocking up of the parts to get an idea of how everything would look and to make sure everything would fit properly.

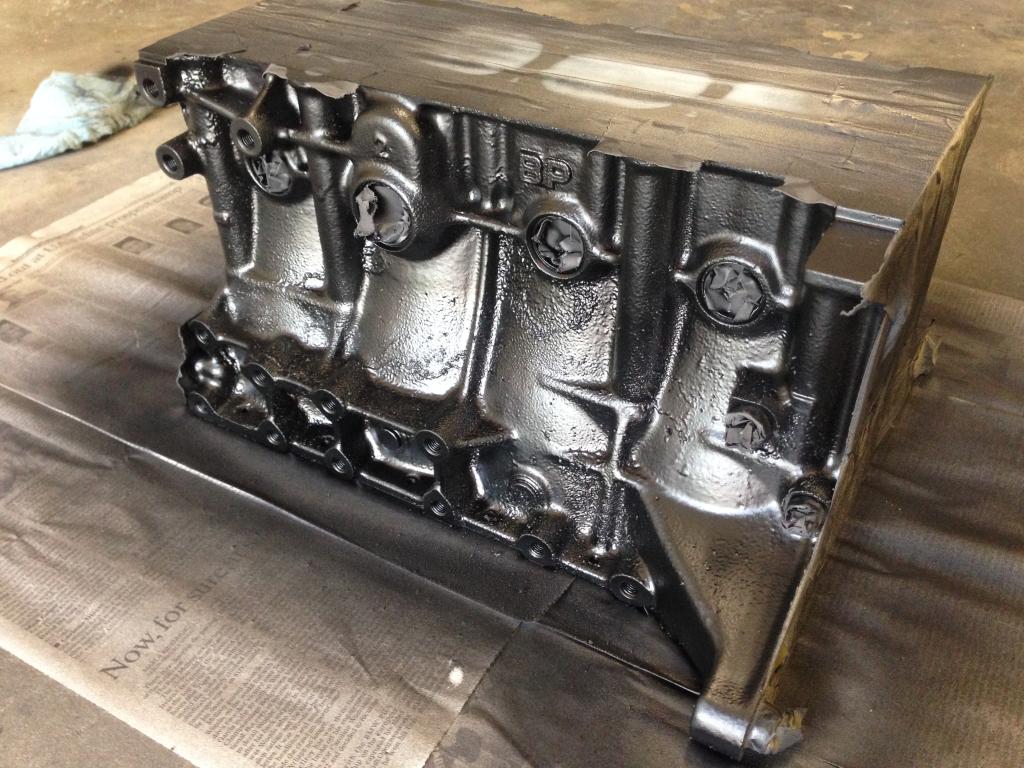

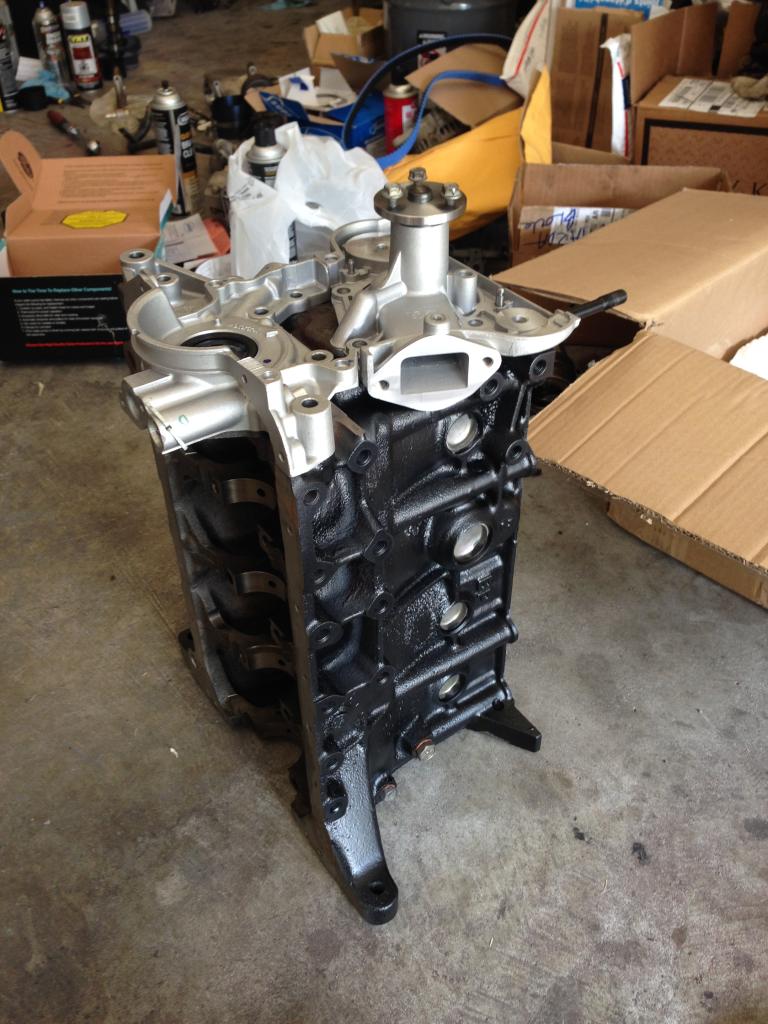

Painted the block

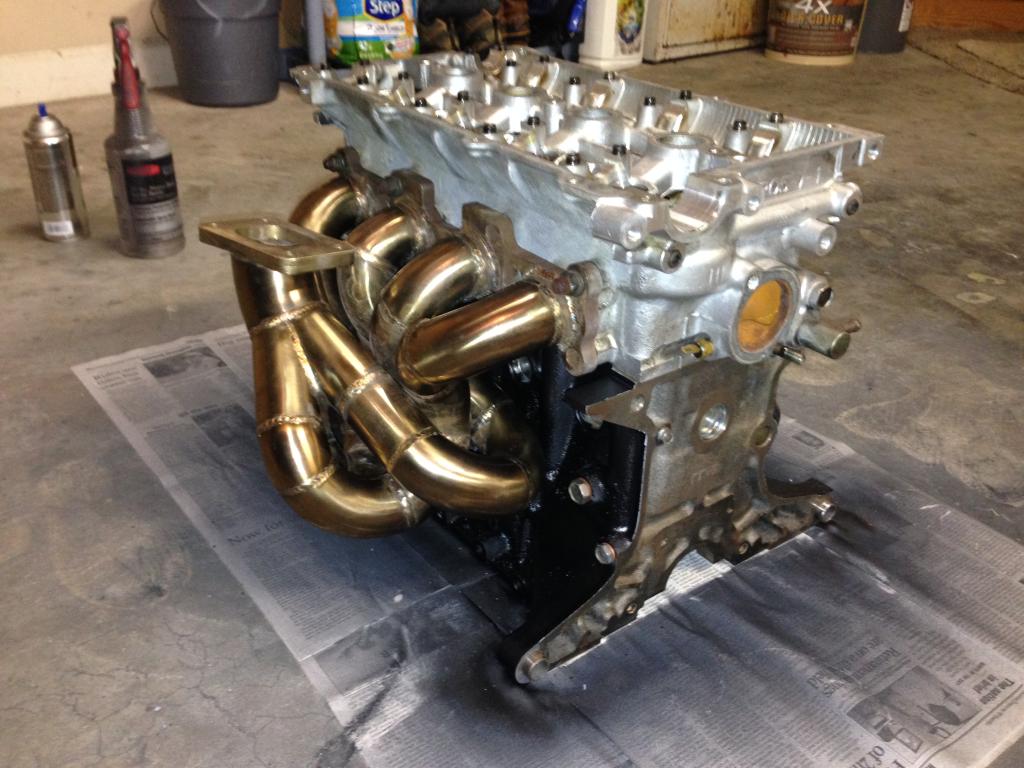

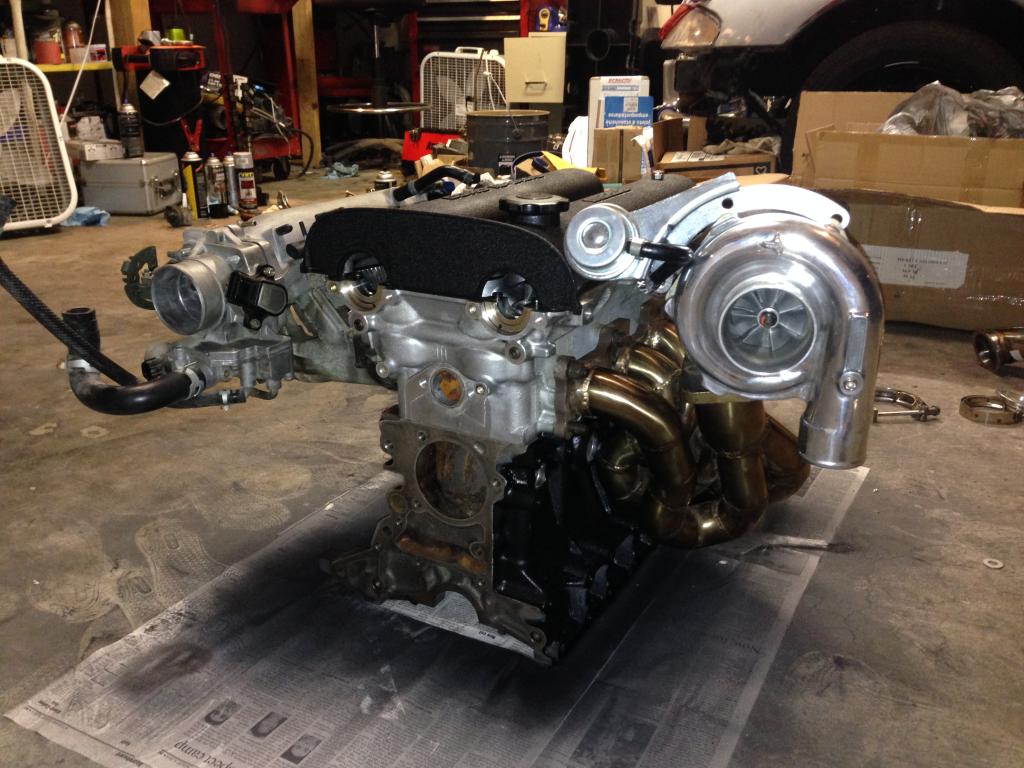

Test fitting manifold










If I end up getting the crank back in the next day or two I should have everything back together and the engine back in the car by Saturday. It sucks having the car down for this long as I'm having Miata withdrawals. She'll be alive soon though.
Attached Thumbnails
Intro turned hopefully epic build thread-50c6dc3f-54a2-44c1-b328-ad0d84e13bd1_1.jpg   Intro turned hopefully epic build thread-de107ff0-1ead-435e-a76c-c0c930ae3cd2.jpg   Intro turned hopefully epic build thread-575a78b9-1d24-4440-8acd-235987e64f1a_1.jpg   Intro turned hopefully epic build thread-0971922f-b685-493a-91c5-d2cc333c6074.jpg   Intro turned hopefully epic build thread-98a62e07-af7c-4563-b856-35e2ea8784d4.jpg

92turbomiata is offline   Reply With Quote
Old 08-19-2014, 07:52 PM
92turbomiata
This message has been deleted by curly. Reason: double post
Old 08-19-2014, 08:00 PM   #27
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,421
Total Cats: 2,250
Default

I also welcome 11:1 and boost
At the power level you're looking to pursue, tune has to be good either way. And I bet most saying it will fail aren't running e85. (I know it doesn't make your engine indestructible, but you sure can do some absurd things with the stuff.....assuming its actual e85)
18psi is offline   Reply With Quote
Old 08-19-2014, 09:15 PM   #28
Hug Life
iTrader: (3)

Monk's Avatar

Join Date: Apr 2014
Location: Huntington, Indiana
Posts: 2,634
Total Cats: 440
Default

Any time you try something uncommon, you're going to get some razzing if for no other reason than to make sure you've completely thought it through.
Vlad is right; your tune needs to be good regardless. Good luck. Check out nitrodanns 12:1 build.

Last edited by Monk; 08-20-2014 at 06:12 AM.
Monk is offline   Reply With Quote
Old 08-20-2014, 12:38 AM   #29
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Wow, that is coming together quickly. The exhaust manifold looks glorious!

Maybe it is just the angle of the photos, but how is your hood clearance with the wastegate bracket?
Jeffbucc is offline   Reply With Quote
Old 08-20-2014, 12:05 PM   #30
Junior Member
Thread Starter

Join Date: Dec 2013
Location: Little Rock, Ar
Posts: 107
Total Cats: 24
Default

Quote:
Originally Posted by Jeffbucc View Post
Wow, that is coming together quickly. The exhaust manifold looks glorious!

Maybe it is just the angle of the photos, but how is your hood clearance with the wastegate bracket?
I think the manifold looks awesome, very sturdy and fits well. Can anyone guess what manifold that is? lol

It's probably the angle but if you look you will see that the wastegate bracket is just sitting there, it's not actually bolted to the turbo yet so its sitting up a bit higher than it should be. When its bolted on it is at the same level the oil fill cap is at so it shouldn't have any issues with hood clearance.

I have a pretty good local tuner who is going to help me out with tuning it. I even bought this thing to make an electronic det can just to be on the safe side.

Pocket-Size Stereo Amplified Listener - RadioShack.com

I was gonna go with knocksenseMs but after doing some research I found it to be pretty much crap and I trust my ears over that thing. My buddy has a turboXS Knocklite that I may throw on there as well...we will see.
92turbomiata is offline   Reply With Quote
Old 08-20-2014, 12:08 PM   #31
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,421
Total Cats: 2,250
Default

is it the $700 ebay special? I forget the name.
18psi is offline   Reply With Quote
Old 08-20-2014, 12:12 PM   #32
Junior Member
Thread Starter

Join Date: Dec 2013
Location: Little Rock, Ar
Posts: 107
Total Cats: 24
Default

Quote:
Originally Posted by 18psi View Post
is it the $700 ebay special? I forget the name.
haha not quite $700 but yes CXracing. I know it is a risk going with it but it seems very well made and quite sturdy. I've heard pretty decent things about their "new, thicker" manifolds so I guess I'll find out soon enough.
92turbomiata is offline   Reply With Quote
Old 08-20-2014, 12:13 PM   #33
Hug Life
iTrader: (3)

Monk's Avatar

Join Date: Apr 2014
Location: Huntington, Indiana
Posts: 2,634
Total Cats: 440
Default

CX Racing?
Monk is offline   Reply With Quote
Old 08-20-2014, 12:19 PM   #34
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,421
Total Cats: 2,250
Default

oh nevermind, I was thinking of that other one (made by a local guy actually).

but hey, everyone keeps talking about the cxracing and no one has really tested it for us yet, so this is actually pretty cool
18psi is offline   Reply With Quote
Old 08-20-2014, 12:22 PM   #35
Hug Life
iTrader: (3)

Monk's Avatar

Join Date: Apr 2014
Location: Huntington, Indiana
Posts: 2,634
Total Cats: 440
Default

Ah, you beat me to it. Did you buy the entire kit from them? It looks pretty decent for how cheap it is.

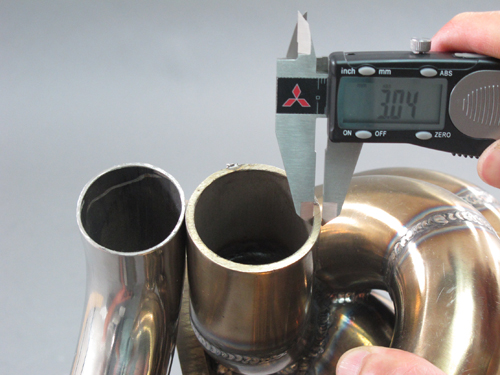

Were you thinking of DOC? It looks like a direct knockoff.
Attached Thumbnails
Intro turned hopefully epic build thread-v74i8i.jpg
Monk is offline   Reply With Quote
Old 08-20-2014, 12:31 PM   #36
Junior Member
Thread Starter

Join Date: Dec 2013
Location: Little Rock, Ar
Posts: 107
Total Cats: 24
Default

No I just got the manifold and v-band downpipe. I didn't need the turbo as I already had a few laying around. I'll upload a few more pictures of the manifold and downpipe ihere in a minute incase anyone is curious how it looks.
92turbomiata is offline   Reply With Quote
Old 08-20-2014, 12:52 PM   #37
Junior Member
Thread Starter

Join Date: Dec 2013
Location: Little Rock, Ar
Posts: 107
Total Cats: 24
Default

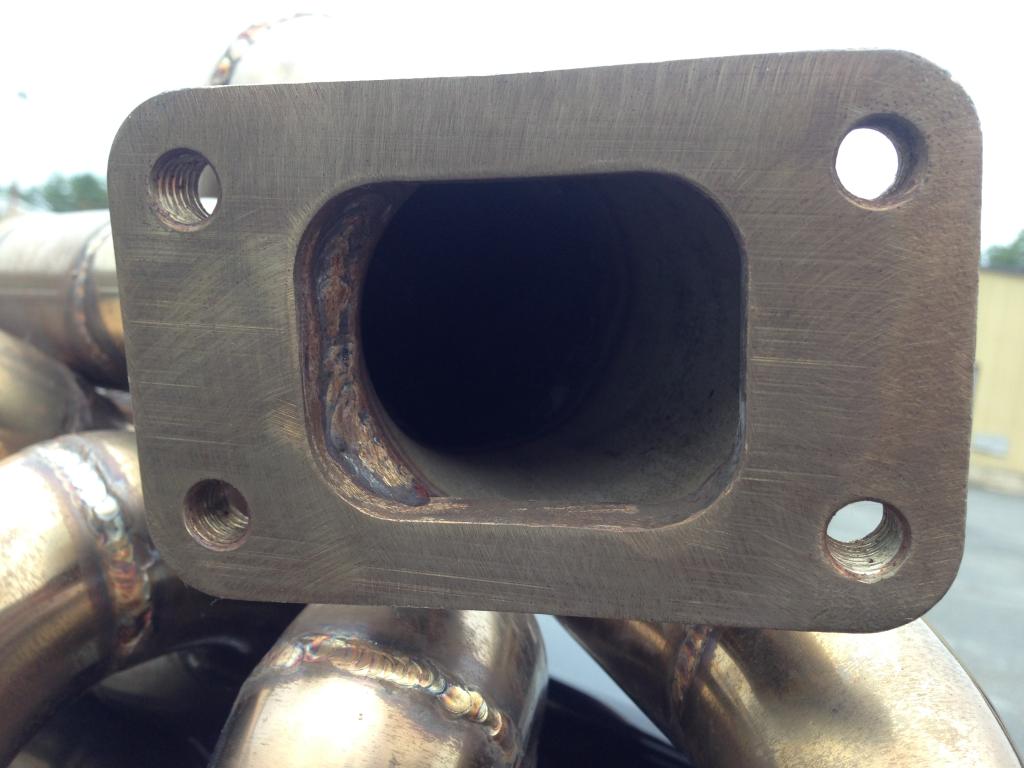

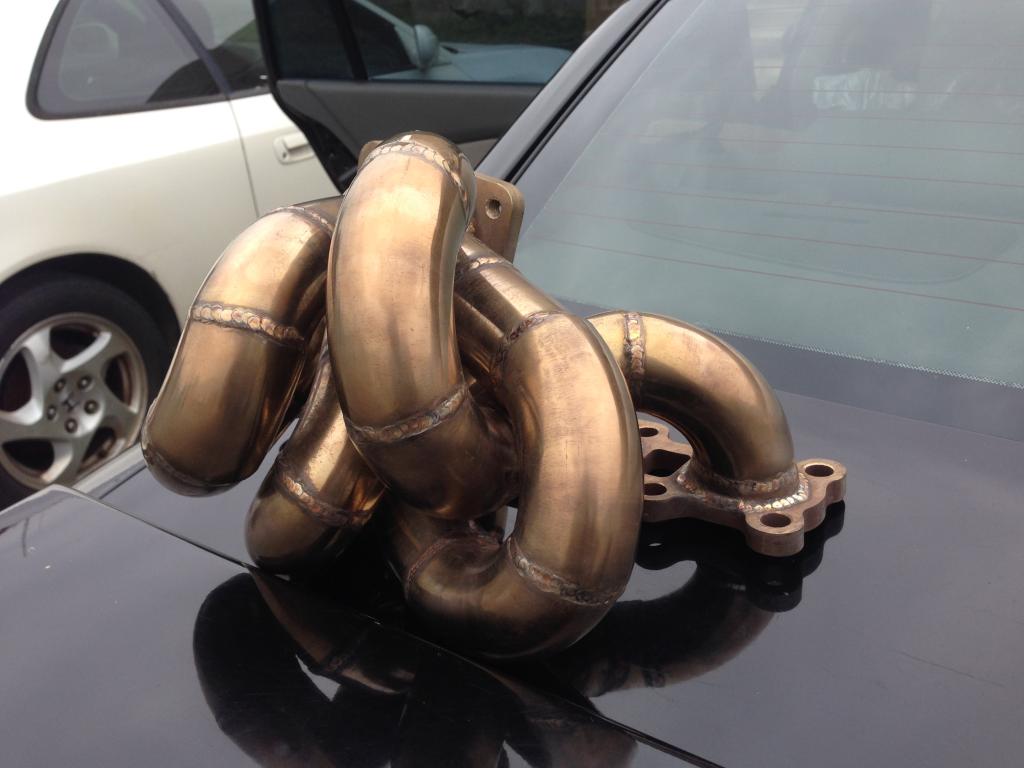

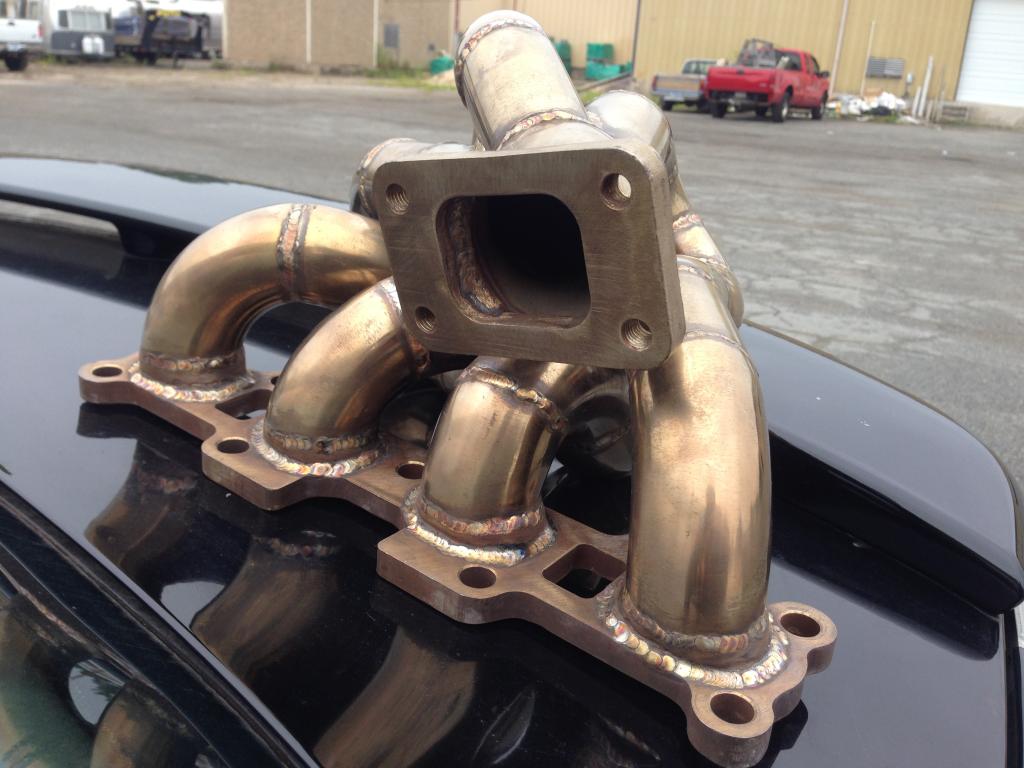

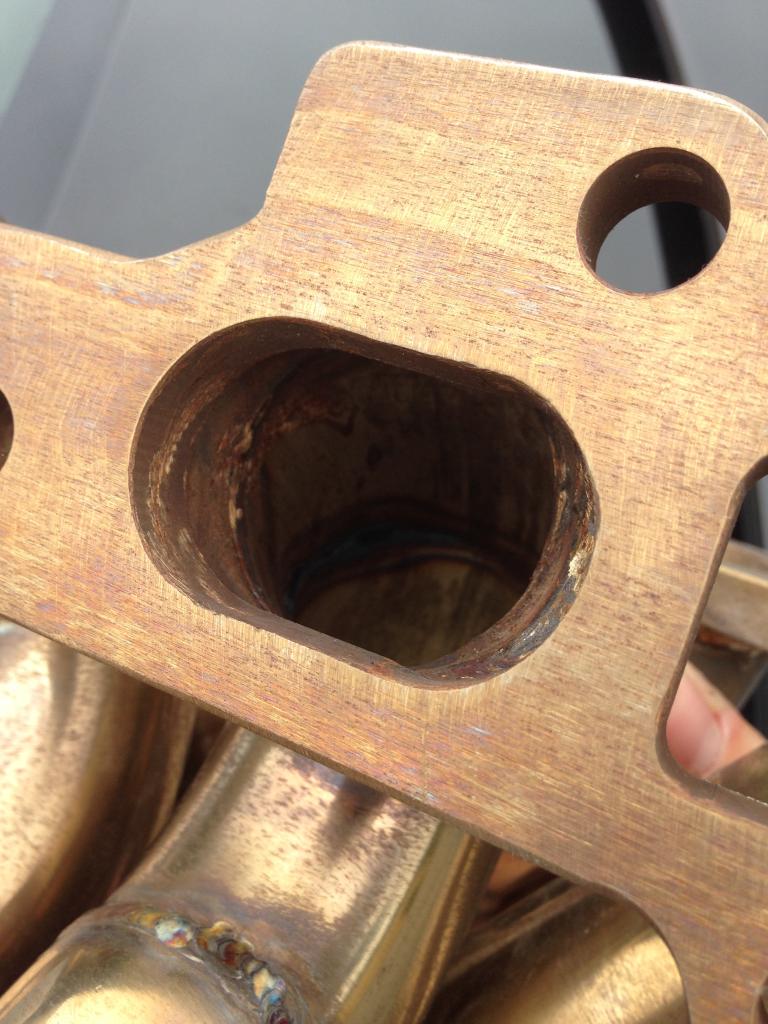

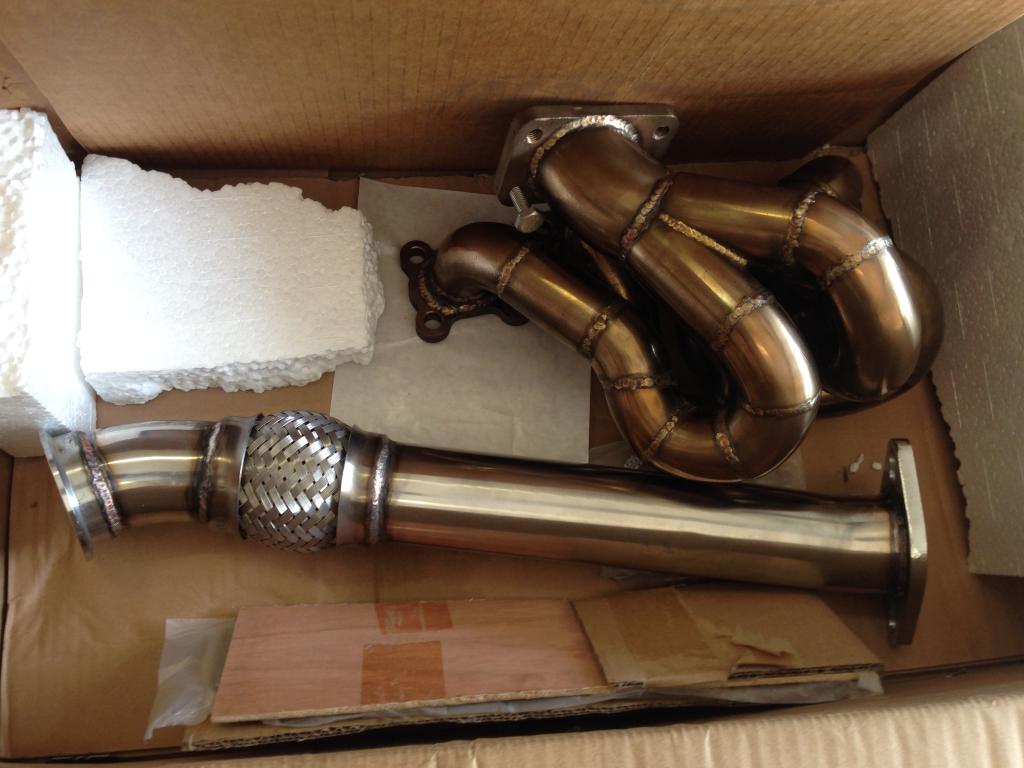

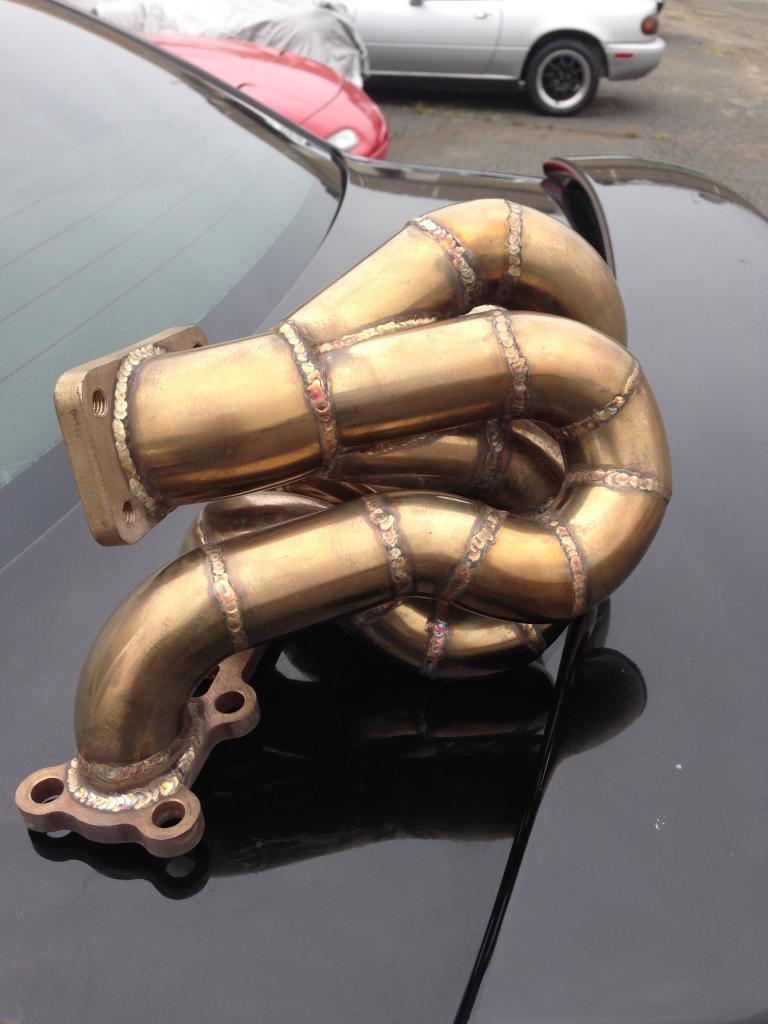

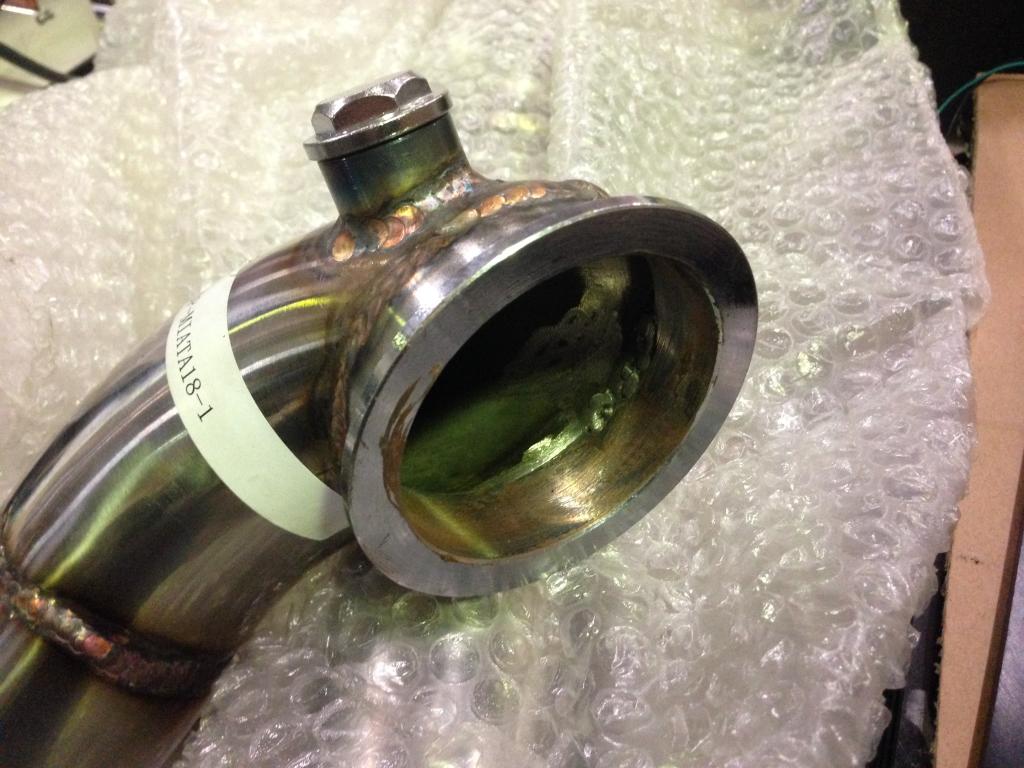

Ok here are more pics of the manifold and downpipe

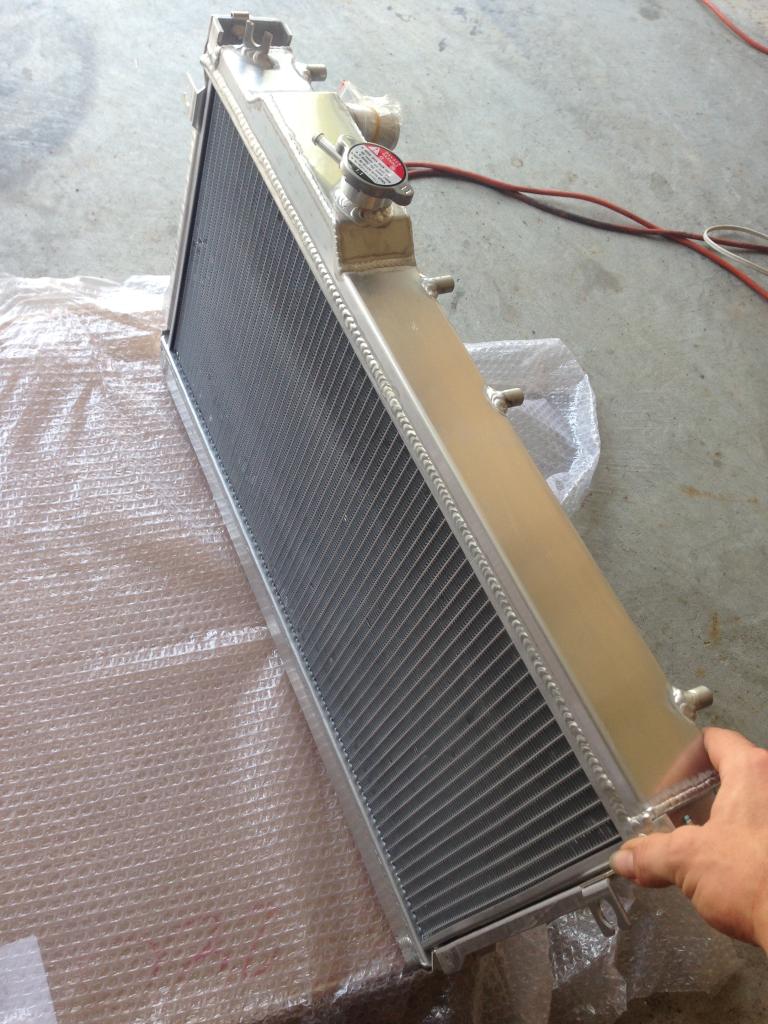

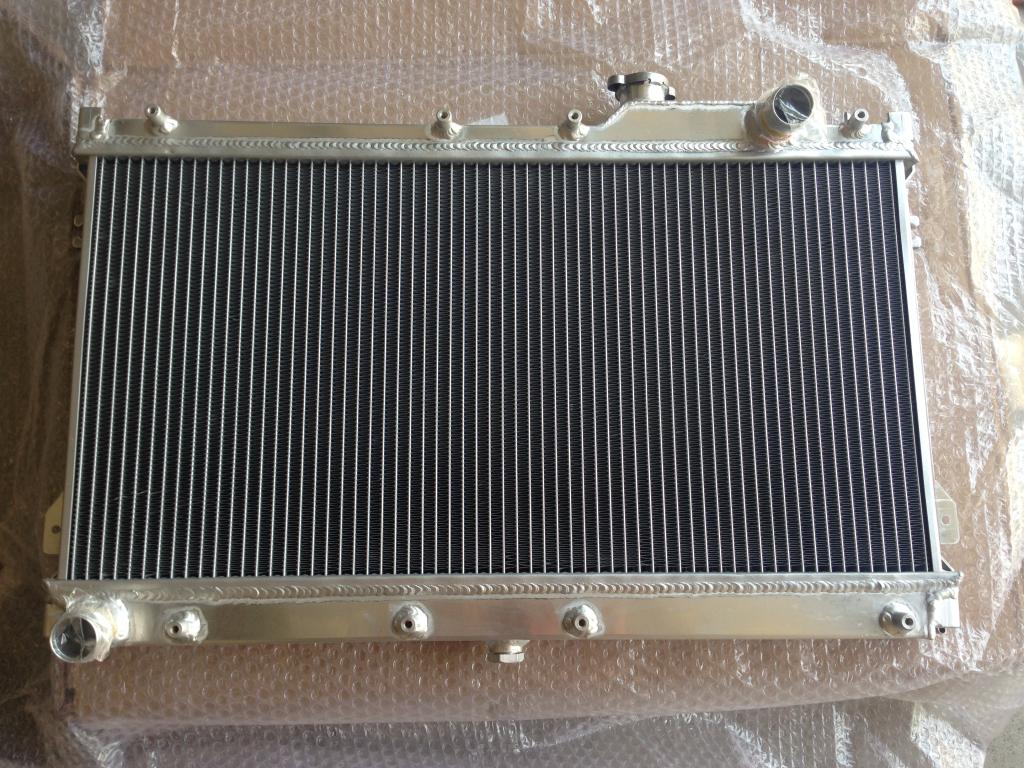

New radiator



Attached Thumbnails
Intro turned hopefully epic build thread-71350b63-88b2-4151-83b4-196cd61f5ba6.jpg   Intro turned hopefully epic build thread-059edb82-4fdd-403c-84a7-c60220c3ccad.jpg   Intro turned hopefully epic build thread-4553b13c-8474-4ff6-a8c2-3584facb7d48.jpg   Intro turned hopefully epic build thread-a30a8d2f-f6f2-41af-96fb-17e961a5afcc.jpg   Intro turned hopefully epic build thread-b7b6574f-ea00-442a-85a6-49fcaa295887.jpg

Intro turned hopefully epic build thread-b911b584-23c1-40bc-8118-328211807676.jpg   Intro turned hopefully epic build thread-0807650e-878e-4dcc-a8ed-650d66016e8f.jpg   Intro turned hopefully epic build thread-2e5c7328-3000-4888-bdf4-e8b50d8f9b9c.jpg   Intro turned hopefully epic build thread-780a6082-58aa-49ed-9dc0-7ea64d225dba.jpg
92turbomiata is offline   Reply With Quote
Old 08-20-2014, 01:12 PM   #38
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,421
Total Cats: 2,250
Default

Quote:
Originally Posted by Monk View Post
Were you thinking of DOC? It looks like a direct knockoff.
DING DING DING

we have a winner.

Yep. And yes, it does look awfully similar...hmmmm
18psi is offline   Reply With Quote
Old 08-20-2014, 02:15 PM   #39
Senior Member
iTrader: (1)

Join Date: Sep 2008
Location: Tucson, Arizona
Posts: 888
Total Cats: 54
Default

The buy it now on the DOC is like $800 and the cx racing is like 430 for just the mani. I'm intrigued. Not sure it's inexpensive enough for me to personally not have Abe muster one up.
krissetsfire is offline   Reply With Quote
Old 08-20-2014, 02:21 PM   #40
Junior Member
Thread Starter

Join Date: Dec 2013
Location: Little Rock, Ar
Posts: 107
Total Cats: 24
Default

Quote:
Originally Posted by krissetsfire View Post
The buy it now on the DOC is like $800 and the cx racing is like 430 for just the mani. I'm intrigued. Not sure it's inexpensive enough for me to personally not have Abe muster one up.
I wanted to have Abe make up a mani and downpipe but the lead time on it was at least 2 months and I needed something quicker than that. Maybe one day I will get him to make something up for me but for now I will see how this Cxracing manifold does.

Do you guys think I should spray some high temp ceramic coating on there? or leave it as is? I'm not gonna wrap it.
92turbomiata is offline   Reply With Quote
