Default Kevin's 95 Turbo build

First- Thanks to the members of Miata Turbo for most of my parts for this build and THANKS for all of the information!

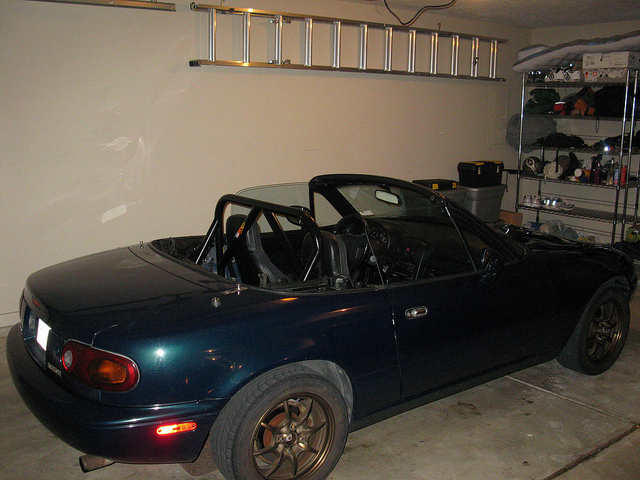

Im gonna start off just by posing a bunch of pictures of the car from when I got it a couple years back, to curent. then Ill get into the curent stage.

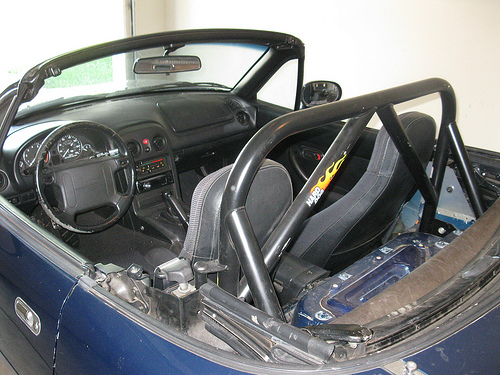

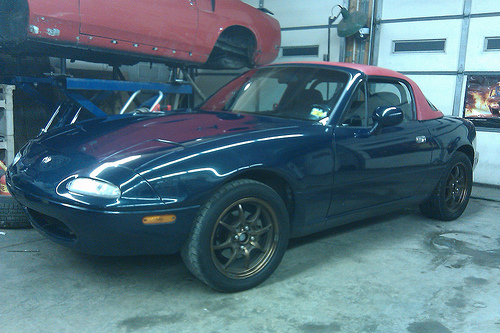

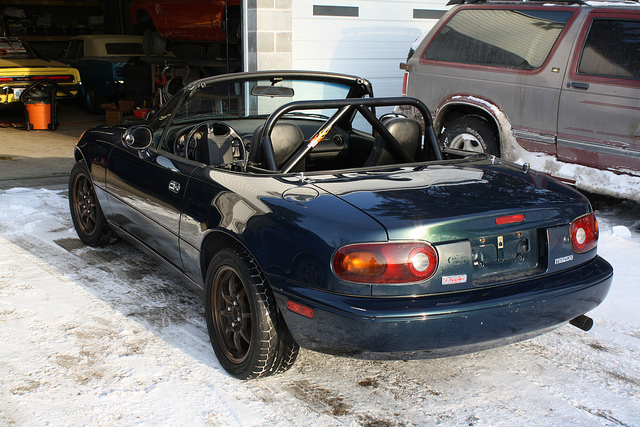

Original craigslist photos

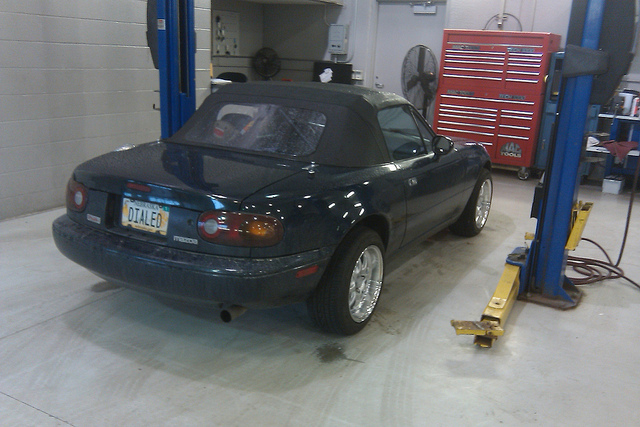

Bought car for $2800




cCleaned car

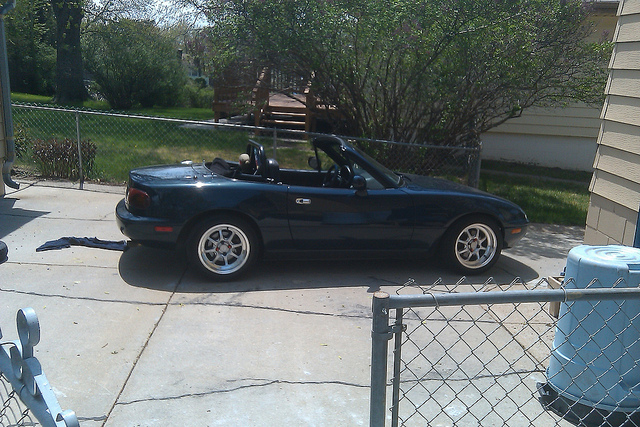

Got stuck in this snow

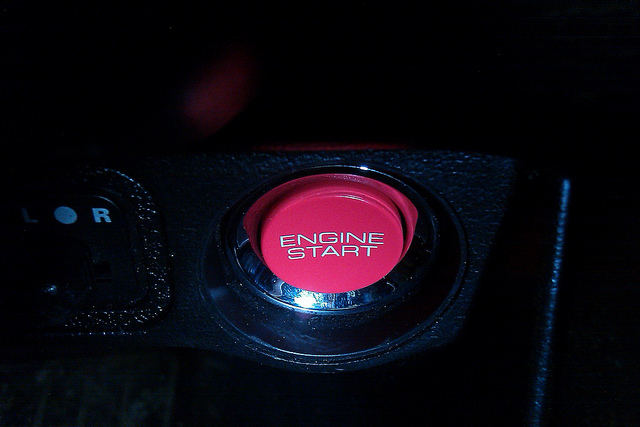

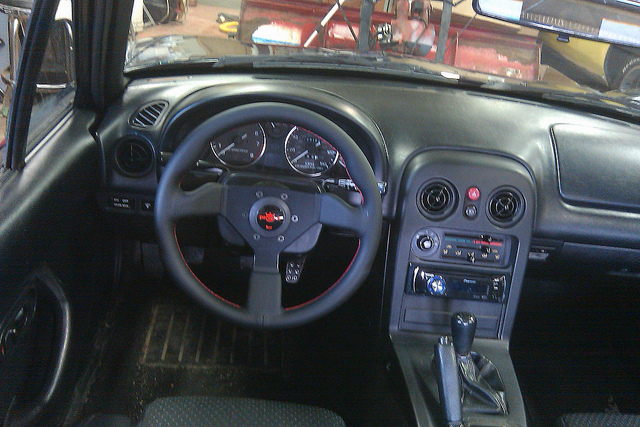

Added honda S2000 start button


Replaced badly worn steering wheel. Added snow plow.


Made a mini me


Replaced all missing interior plastic and carpet, also got a new top and top boot.

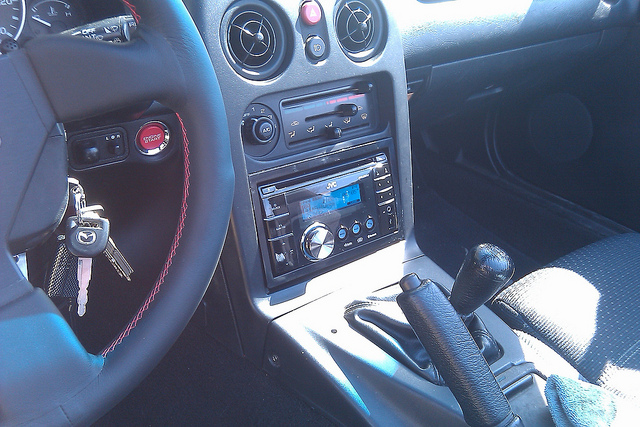

New stereo, amp, and speakers


$100 craigslist score

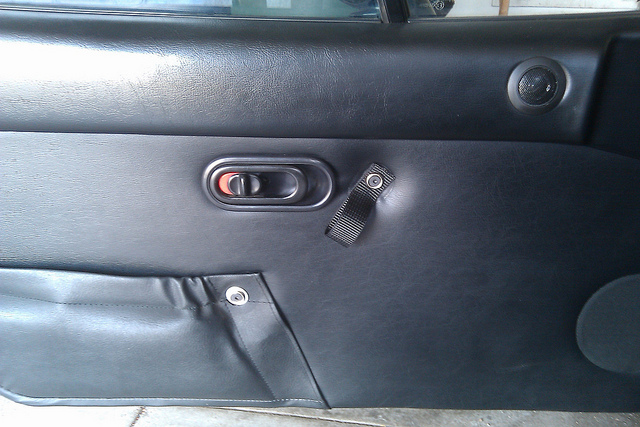

Made $3 door pulls

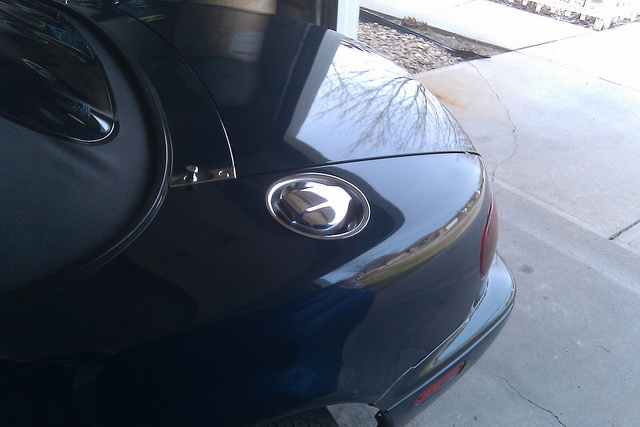

Installed Zoom fuel lid


Ordered a set of 15x8 Enkei J-Speed wheels, proceeded to monsterjam.

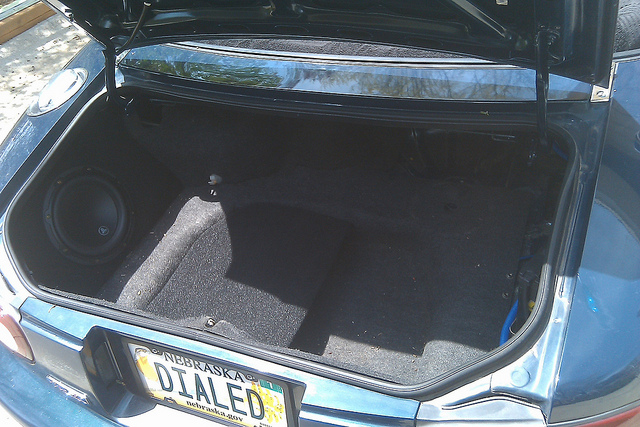

Added sub and amp


New suspension to fix monsterjam issue


Sold WRX DD


Purchased Evo as DD

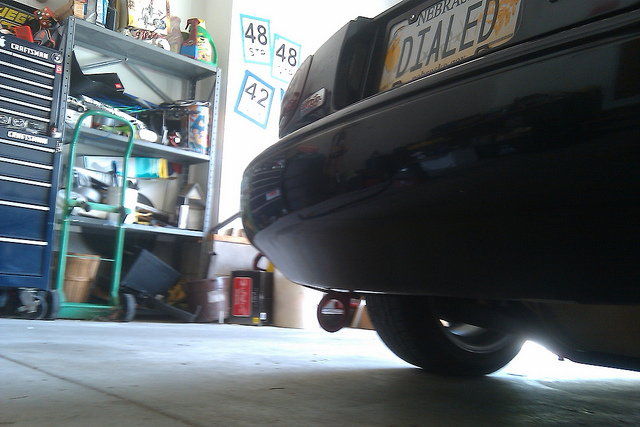

Everyone loves big red tow hooks


Replaced valve cover gasket, painted valve cover, and added STi wing

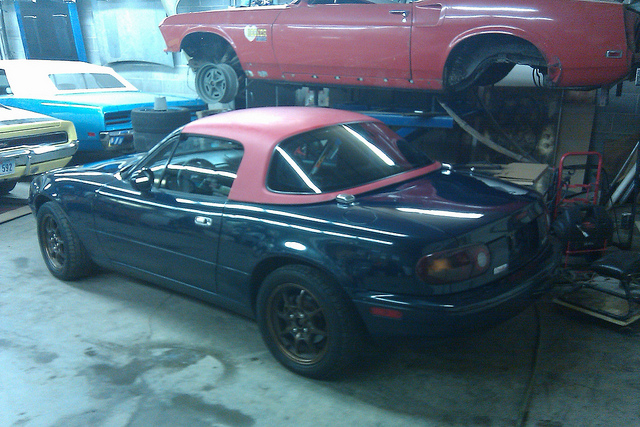

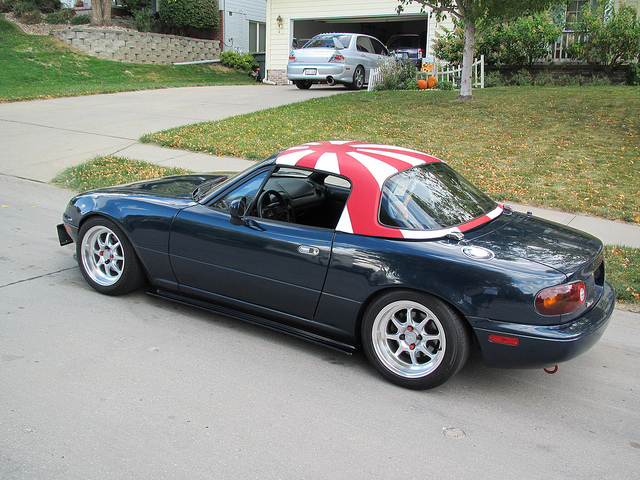

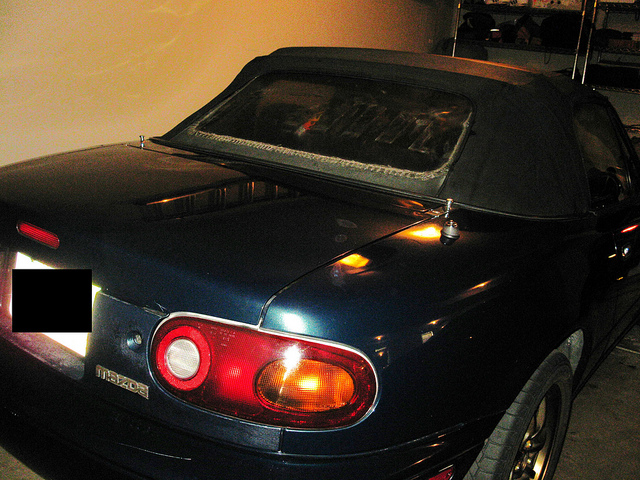

Vinyl wrapped the hard top

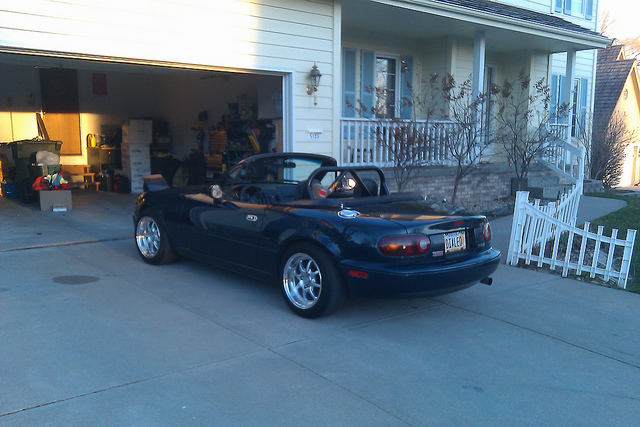

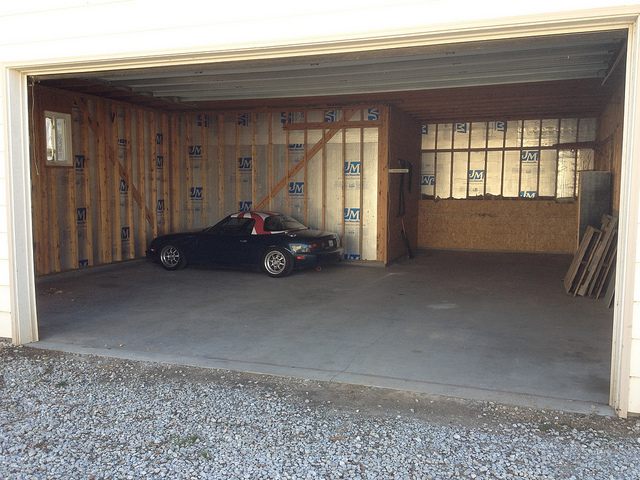

Sold evo, bought cheap galant VR-4 DD and a house with a big garage!




Started acquiring parts for my turbo build


Sold galant, bought Honda pilot as new DD


Sold Pilot because I have no need for a big family vehicle at 24. In return decided if I was going to make payments, it better be on something I love. Purchased STi DD.

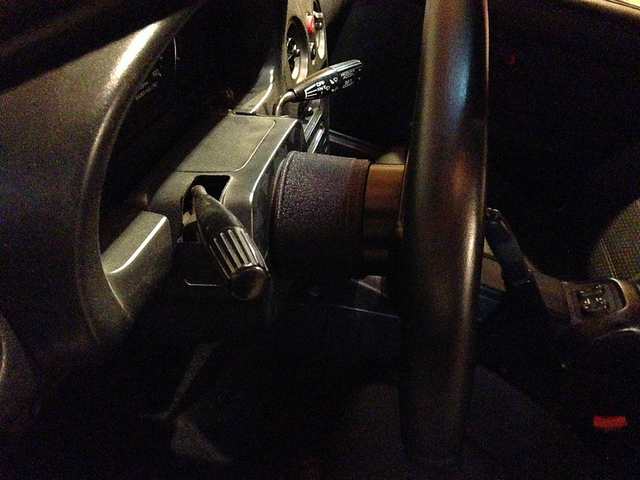

Steering wheel spacer, i was amazed what a difference this made


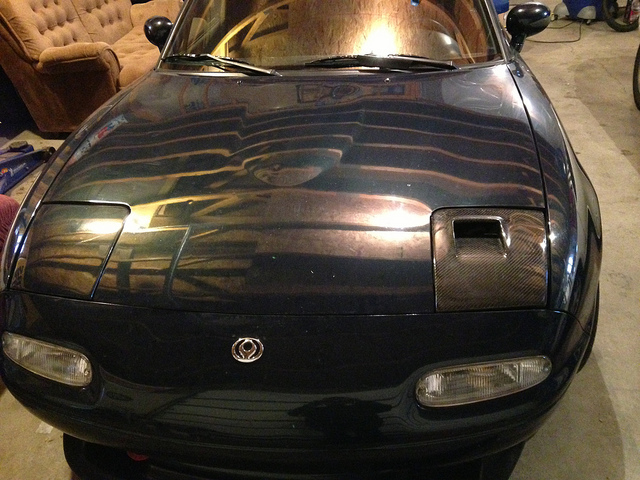

Very poorly fitting headlight doors.

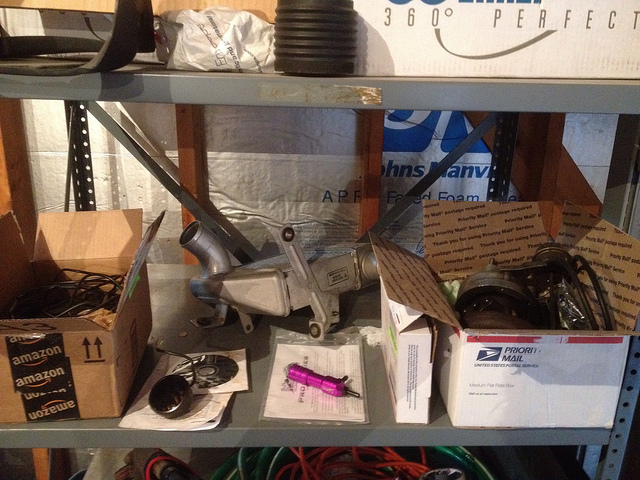

My shelf of parts. MS2, Wideband, SR20 t25, RX7 injectors, ignore the intercooler, Hallman MBC, more stuff im forgetting.


Recently I have ordered flanges and weld els for my manifold which will be here this week then its off to the welder to have my manifold and exhaust made.

Right now im trying to decide what style intercooler to run, im torn between over the rad, or running the tubing through the fender.

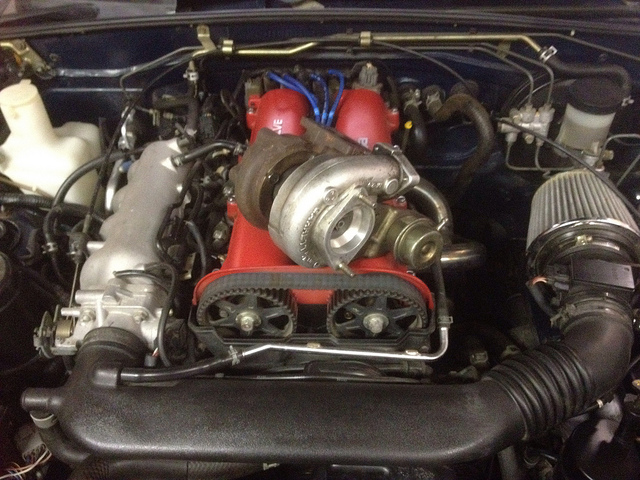

One more picture for now

After seeing this last picture, I forgot I added group buy side skirts and a GV style Togue run front lip somewhere in that timeline.

Much more to come!
Attached Thumbnails
Kevin's 95 Turbo build-5507811818_97b26c89ed.jpg   Kevin's 95 Turbo build-5507213611_ccd316a3dd_z.jpg   Kevin's 95 Turbo build-5507812874_fcd35ba6f7_z.jpg   Kevin's 95 Turbo build-5338068888_8ff290dfa6.jpg   Kevin's 95 Turbo build-5338066710_571f310cdd_z.jpg

Kevin's 95 Turbo build-5353636668_3a0c132b52_z.jpg   Kevin's 95 Turbo build-5353638496_e14598bce1_z.jpg   Kevin's 95 Turbo build-5373467497_a04d024f6c_z.jpg   Kevin's 95 Turbo build-5436721249_4933395682_z.jpg   Kevin's 95 Turbo build-5437362236_4ccd48f6ca_z.jpg

Kevin's 95 Turbo build-5497061542_a703e76364_z.jpg   Kevin's 95 Turbo build-5476277707_b52e3cf643_z.jpg   Kevin's 95 Turbo build-5518045360_fb2d5f9d8d_z.jpg   Kevin's 95 Turbo build-5531192660_0787631213_z.jpg   Kevin's 95 Turbo build-5543000425_fbec82d8cf_z.jpg

Kevin's 95 Turbo build-5542972731_3901ff9088_z.jpg   Kevin's 95 Turbo build-5543600116_f18f4d35d5_z.jpg   Kevin's 95 Turbo build-5578380571_2503a89dfe_z.jpg   Kevin's 95 Turbo build-5581440058_76b65874ac_z.jpg   Kevin's 95 Turbo build-5699635680_41a35764b9_z.jpg

Kevin's 95 Turbo build-5699053565_e65304e2d3_z.jpg   Kevin's 95 Turbo build-4919247332_31682b31d1_z.jpg   Kevin's 95 Turbo build-5746901196_03d08ac751_z.jpg   Kevin's 95 Turbo build-5699664672_7ca3c0e814_z.jpg   Kevin's 95 Turbo build-5848492043_5e72c58743_z.jpg

Kevin's 95 Turbo build-6223445844_307c5a7741_z.jpg   Kevin's 95 Turbo build-6223444284_a463c7d3ee_z.jpg   Kevin's 95 Turbo build-6223442878_7e4d57175a_z.jpg   Kevin's 95 Turbo build-6591259121_12cc0bb0b1_z.jpg   Kevin's 95 Turbo build-8080654958_30ed9a5de0_z.jpg

Kevin's 95 Turbo build-8024870506_dfd8fb7824_z.jpg   Kevin's 95 Turbo build-8243034392_72b49e9972_z.jpg   Kevin's 95 Turbo build-8241968081_e7917961aa_z.jpg   Kevin's 95 Turbo build-8270241627_7905fe8dc8_z.jpg   Kevin's 95 Turbo build-8428777684_953d6db30e_z.jpg

Kevin's 95 Turbo build-8428778586_b89790a575_z.jpg   Kevin's 95 Turbo build-8165637266_d19dc47c45_z.jpg   Kevin's 95 Turbo build-dsc00140_zps0274dc58.jpg
lesac is offline   Reply With Quote
Old 02-04-2013, 10:44 PM   #2
Senior Member

Join Date: Mar 2011
Location: South Chicago
Posts: 701
Total Cats: 26
Default

Wow looks promising so far! Can't wait to see what you do with it!
Mazduh is offline   Reply With Quote
Old 02-05-2013, 12:15 PM   #3
Junior Member

Join Date: Oct 2009
Location: Stamford, CT
Posts: 212
Total Cats: 3
Default

Good documentation, well done. LOL at all the DD changes, and coming back to a Subaru.
AlexL is offline   Reply With Quote
Old 02-05-2013, 12:18 PM   #4
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,165
Total Cats: 2,573
Default

Was going good til you did the stupid rising sun crap on the hardtop like a typical clubricer member.

I hope that's temporary.

Otherwise nice progress
18psi is offline   Reply With Quote
Old 02-05-2013, 01:37 PM   #5
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,924
Total Cats: 526
Default

Your DD progression makes me go


But ended up in a good place. Just very curious. Why did you ever buy that pilot? hahaha...

I don't love the vinyl rising sun roof, but it looks kinda cool and whatev, it's your car. Your still have normal camber on your wheels, you're building a turbo, and the STI wing was a joke. All is well.
turbofan is offline   Reply With Quote
Old 02-05-2013, 04:14 PM   #6
Junior Member
Thread Starter

Join Date: Nov 2008
Location: Omaha, NE
Posts: 54
Total Cats: 0
Default

Thanks for the input.

First off the hard top was done because I couldn't stand the flat red top on the blue car and I wanted to be cheap. Ideally I'd like to have it painted to match the rest of the car, but I'd also like to hav the whole thing repainted. It's totally reversible as it sits. Another option I've been thinking about is wrapping the top in 3m 1080 carbon vinyl. The hard top is only on the car 10% of the time anyway.

The dd progression is a strange bit yes. I owned the green forester in there somewhere too... Between the wrx and the evo. But the reason I got the pilot is I wanted a truck and the space to haul stuff, but I wanted something nice inside that did better on gas. It was also much cheaper than any truck I was looking at.

No offense to club ricer, but I feel like the $7 I spent on shelf contact paper for vinyl and taking my time made my roof turn out better than 99% of the others on that site.
lesac is offline   Reply With Quote
Old 02-05-2013, 04:18 PM   #7
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,165
Total Cats: 2,573
Default

Fair enough.
And yes I think black vinyl would look 100% better.

Scoobs and evo's are great, good choices there
18psi is offline   Reply With Quote
Old 02-05-2013, 04:36 PM   #8
Elite Member
iTrader: (2)

Join Date: Sep 2008
Location: Central Florida
Posts: 3,284
Total Cats: 178
Default

Bonus points for white GVR-4. That is one of those cars I look at through the rose-tinted shades of nostalgia and think I'd love to own one day.

Then I would buy it and remember why I vowed to never own another DSM again. [Edit: In before "it's not a DSM! it's built in Japan!"]

Nice score on the garage with attached house!
Scrappy Jack is offline   Reply With Quote
Old 02-05-2013, 04:55 PM   #9
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,702
Total Cats: 237
Default

Sweet car, glad to see a turbo build coming together. Same turbo i'll be using on my new motor, should be a torquey sob.
Fireindc is offline   Reply With Quote
Old 03-06-2013, 04:11 AM   #10
Junior Member
Thread Starter

Join Date: Nov 2008
Location: Omaha, NE
Posts: 54
Total Cats: 0
Default

Mmmmmm Paaaarrts (in homer simpson voice)

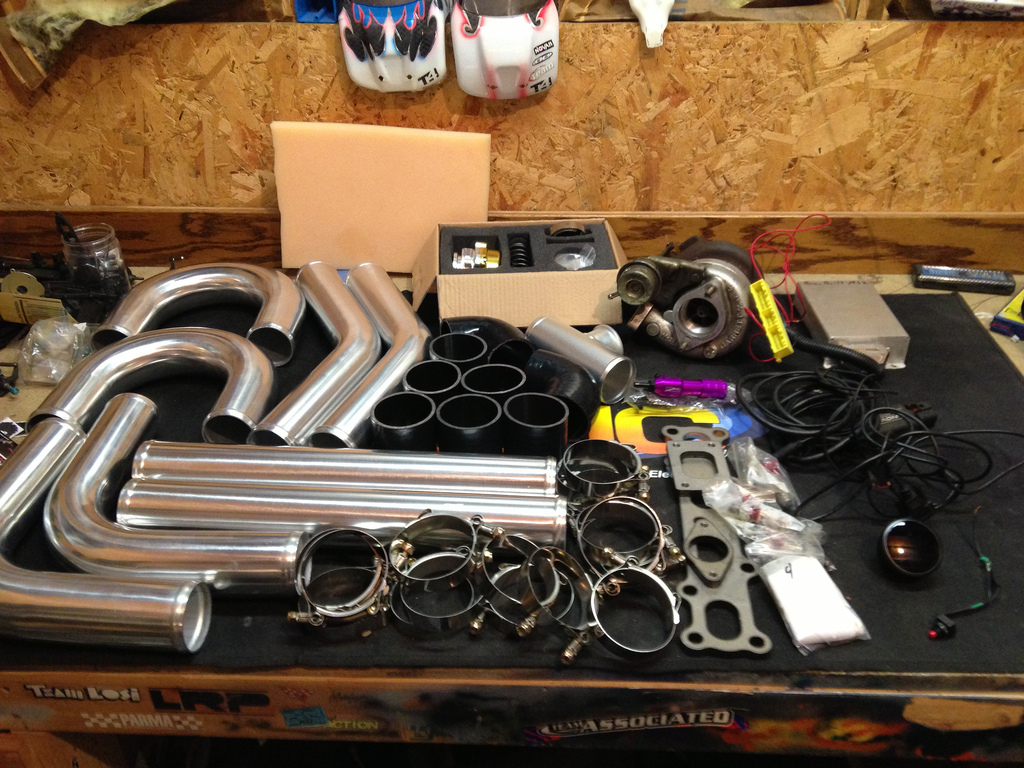

My local welder friend came and picked up my flanges and weld els to get started on the manifold today. Also tax return came back and Its too hard to do the right thing, I'm going to use it to pay off a credit card, but man it would be nice to put it towards this build.

Also not pictured but came in yesterday, was my intercooler. I Went with black, not for the stealthy sleeper look, but i just think it would stick out like a sore thumb otherwise.
Attached Thumbnails
Kevin's 95 Turbo build-8518764403_119678817f_b.jpg
lesac is offline   Reply With Quote
Old 03-06-2013, 12:48 PM   #11
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

As another option on intercooler routing keep an eye on my build thread. In a couple weeks I should have a 50/50 around and over setup plumbed. Best of both worlds, gets rid of the weird loopdeloops you have to do by the turbo for the over the rad setup and the 9000 bends going around the rad and connecting to the throttle body.
Leafy is offline   Reply With Quote
Old 03-16-2013, 02:00 PM   #12
Junior Member
Thread Starter

Join Date: Nov 2008
Location: Omaha, NE
Posts: 54
Total Cats: 0
Default

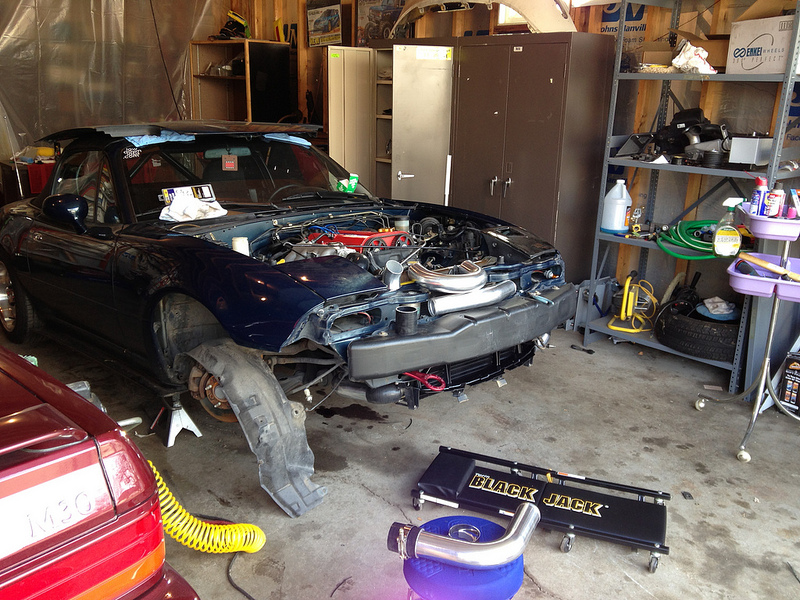

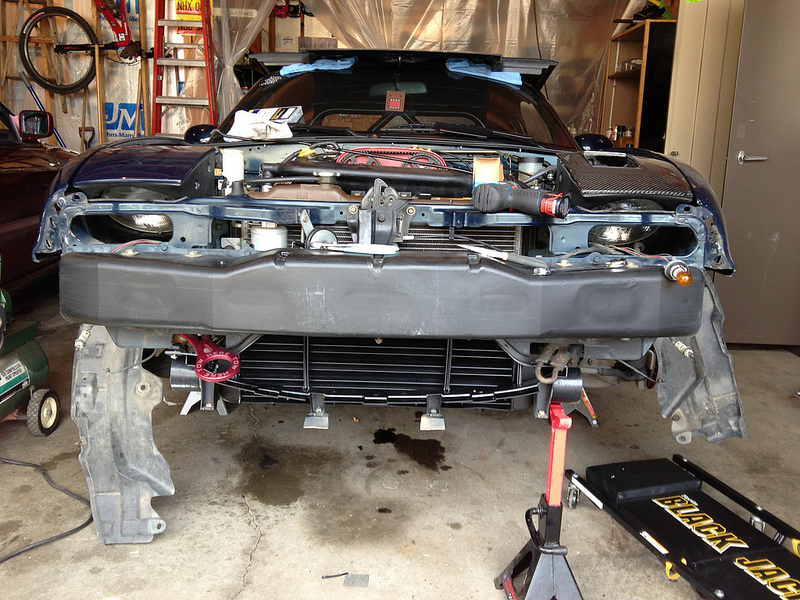

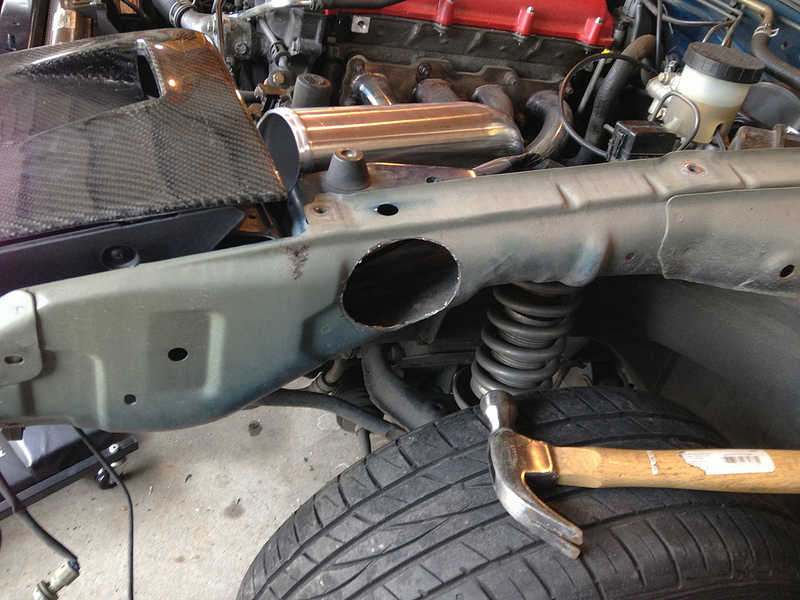

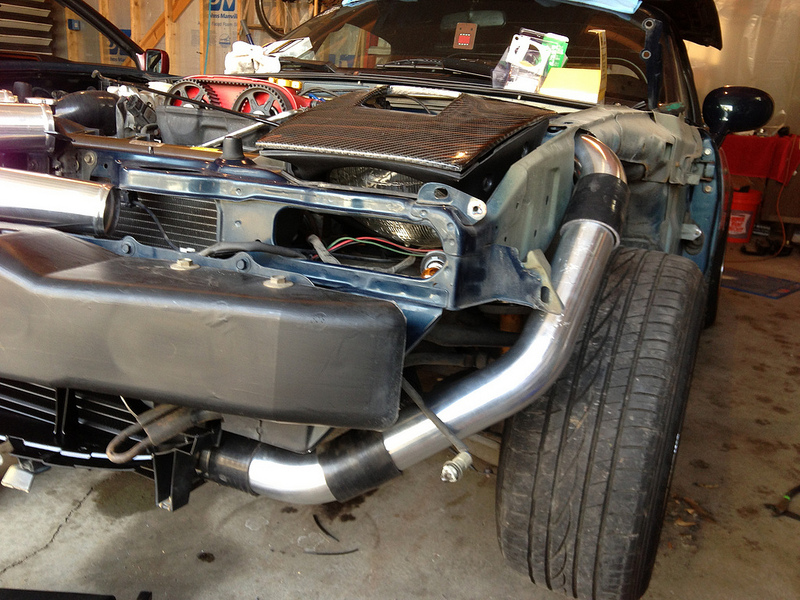

We had some nice weather here yesterday so I decided to go ahead and tackle the intercooler and some other little issues
I finished
-hamering out the body under the fender from a previous cavaliere incident
-delete charcoal canister
-mount intercooler
-run 80% of intercooler piping
-relocate cruise control

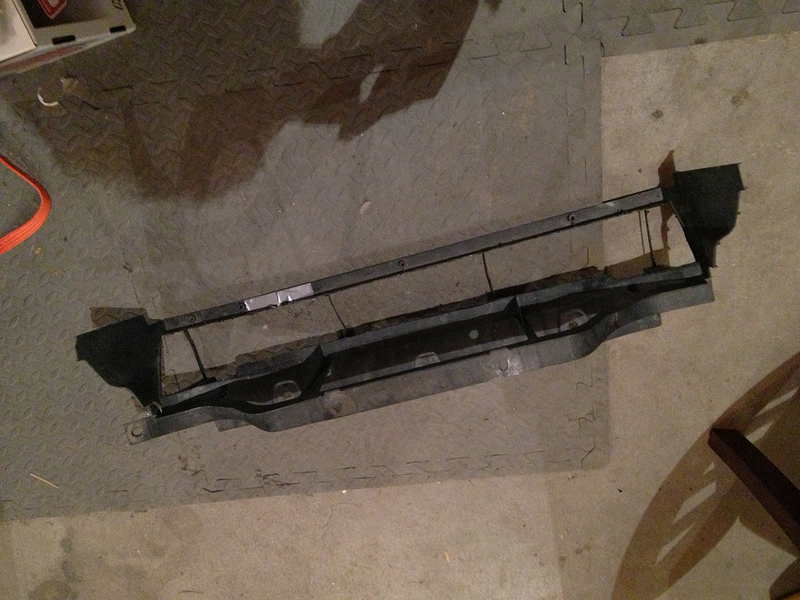

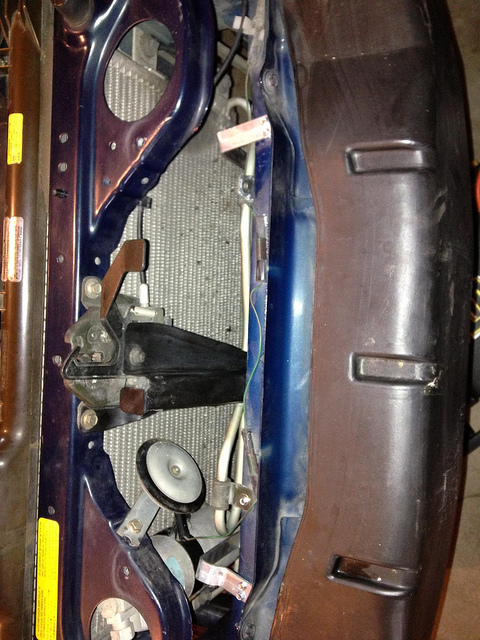

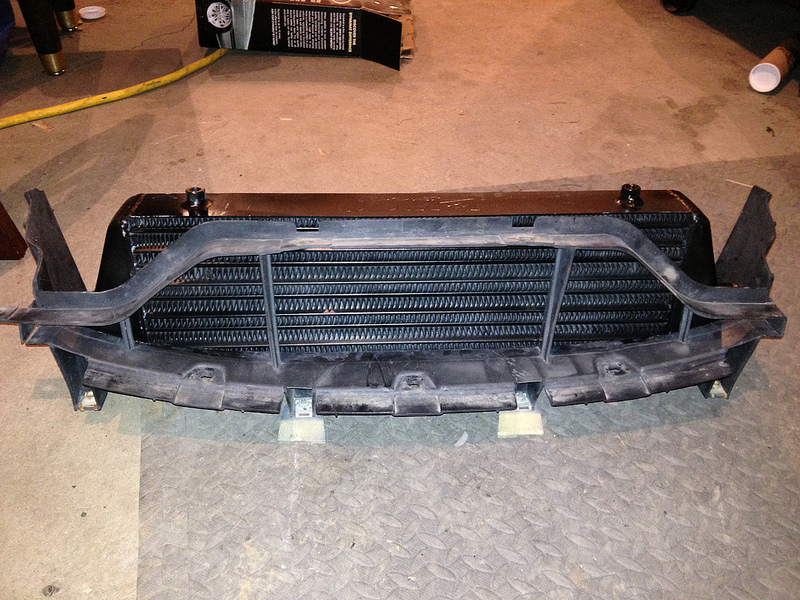

I took the plastic tray thing out of the grille and cut into it to have the intercooler sit inside of it. I know a lot of guys mount this a little further back, but since im keeping my AC the dryer is in the way. to get around this I moved the condesate lines up as far as possible and bent the dryer back towards the condenser as far as possible. its a tight fit, but it works well.



here is the crazy thing, It doesnt even look like there is an intercooler there at all!
the top is held in by 2 C shaped brackets I made out of some aluminum. they are just bent over and screwed into the front bumper support.




Since im keeping AC, and its pretty much in the way of everything I had to route the hot side IC piping around and inside the fender. I busted out the dremel and hammer and went to town making an opening. It comes out directly behind the headlight, under the rubber hood bushing. I think this is about the only place to put it that the tire wont rub on the pipe.


Here is a rough mockup of how the piping will sit. the other side just has a 90 off the intercooler that goes strait back, then a 90 strait up in front of the engine to the throttle body.


I need to take more pictures and could get more if it would help anybody in their own builds.
Attached Thumbnails
Kevin's 95 Turbo build-8560054819_bfe86d0b6a_c.jpg   Kevin's 95 Turbo build-8561161958_07d889009f_c.jpg   Kevin's 95 Turbo build-8561162490_b90a95deeb_c.jpg   Kevin's 95 Turbo build-8560056075_2eee6faa23_c.jpg   Kevin's 95 Turbo build-8560056373_10e6e80209_c.jpg

Kevin's 95 Turbo build-8560056661_40d93df731_c.jpg
lesac is offline   Reply With Quote
Old 03-16-2013, 02:00 PM   #13
Junior Member
Thread Starter

Join Date: Nov 2008
Location: Omaha, NE
Posts: 54
Total Cats: 0
Default

sorry double post
Attached Thumbnails
Kevin's 95 Turbo build-8560054819_bfe86d0b6a_c.jpg   Kevin's 95 Turbo build-8561161958_07d889009f_c.jpg   Kevin's 95 Turbo build-8561162490_b90a95deeb_c.jpg   Kevin's 95 Turbo build-8560056075_2eee6faa23_c.jpg   Kevin's 95 Turbo build-8560056373_10e6e80209_c.jpg

Kevin's 95 Turbo build-8560056661_40d93df731_c.jpg
lesac is offline   Reply With Quote
Old 03-16-2013, 02:44 PM   #14
Junior Member
Thread Starter

Join Date: Nov 2008
Location: Omaha, NE
Posts: 54
Total Cats: 0
Default

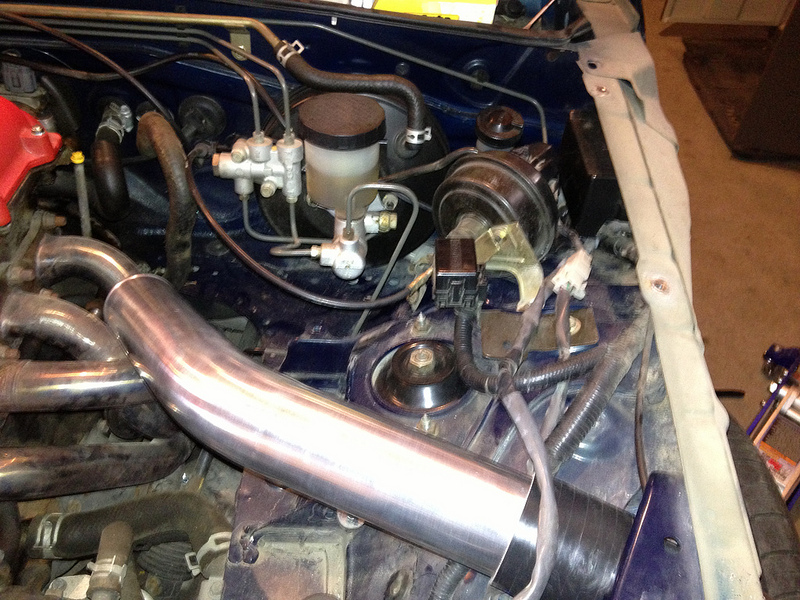

Decided to add a few more pictures

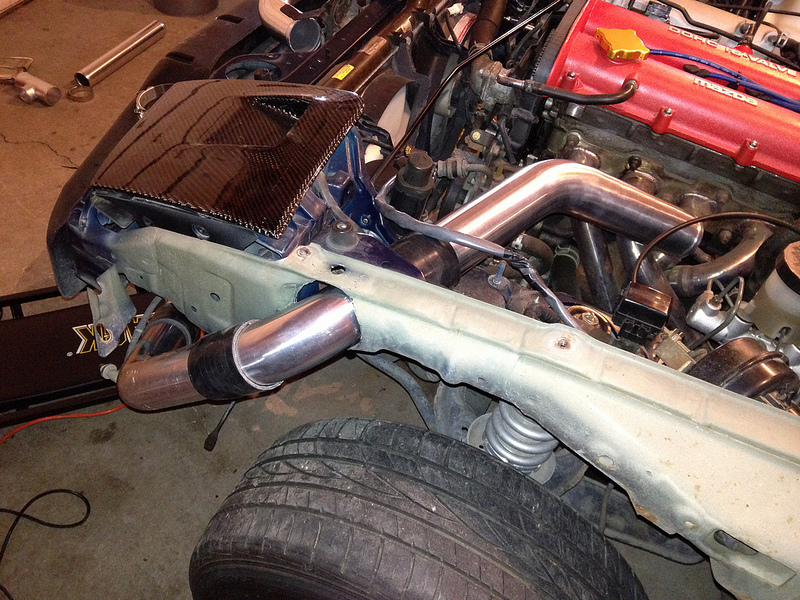

pipe roughly to where turbo will sit

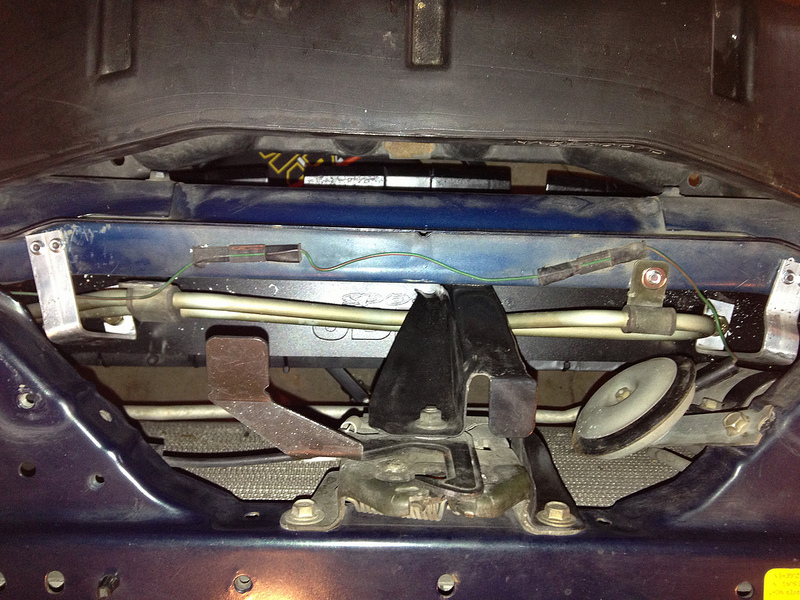

aluminum intercooler brakets (they will be covered by bumper and radiator cooling panel)

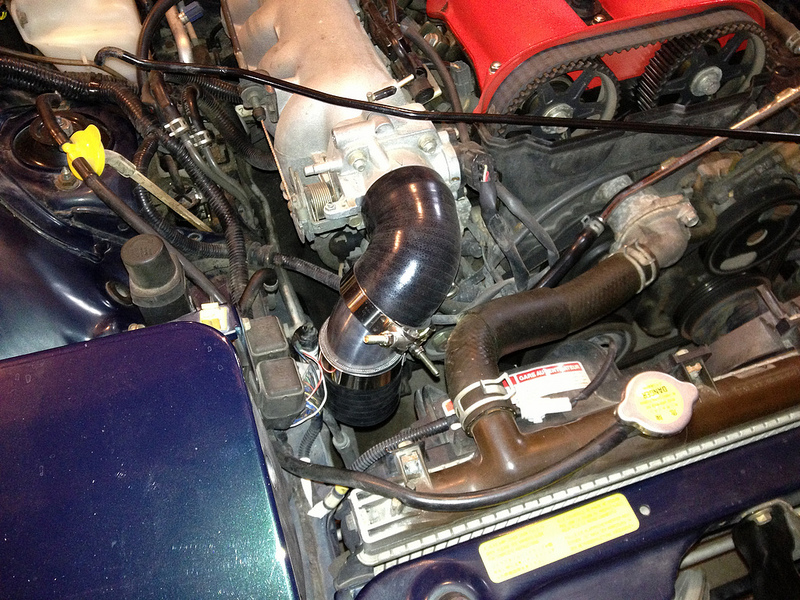

throttle body intake (not sure i like how this sits so i may try and get a bigger 90 so it goes strait down)

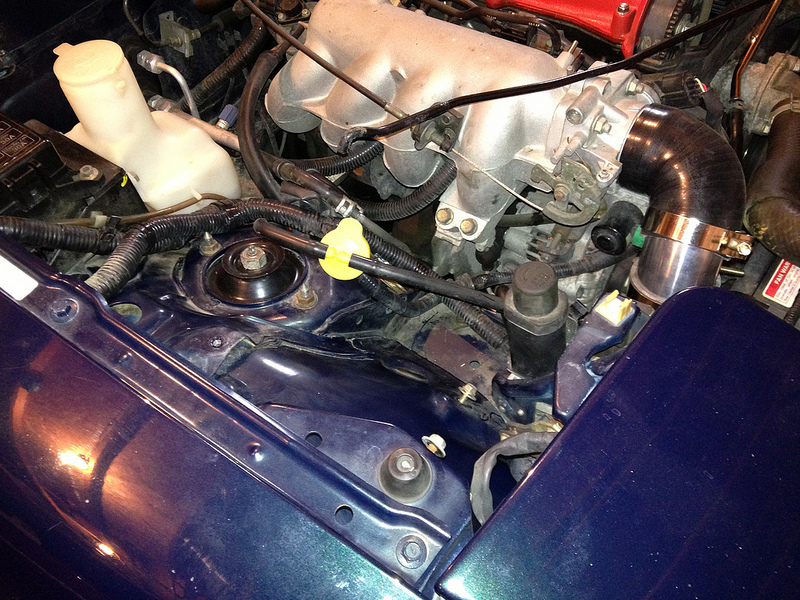

Charcoal Canister and coolant overflow gone, had to take coolant tank out to fix fender fitment from accident. Id like to do a different coolant tank, not sure what yet.


blurry picture of where I relocated the cruise control to.
Attached Thumbnails
Kevin's 95 Turbo build-8561843441_7cc67a4762_c.jpg   Kevin's 95 Turbo build-8562951536_9d6e04e0c6_z.jpg   Kevin's 95 Turbo build-8561844287_98a0963484_c.jpg   Kevin's 95 Turbo build-8561844591_3e84141cde_c.jpg   Kevin's 95 Turbo build-8561844951_19191ac144_c.jpg

Kevin's 95 Turbo build-8561845327_4424797a20_c.jpg
lesac is offline   Reply With Quote
Old 03-16-2013, 08:16 PM   #15
Junior Member
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

Very nice inter cooler piping route.. nice tidy thorough and well documented build :-)

I'll be shot for this, but the rising sun cool as **** :P
rhysmate is offline   Reply With Quote
Old 03-18-2013, 09:21 PM   #16
Junior Member
Thread Starter

Join Date: Nov 2008
Location: Omaha, NE
Posts: 54
Total Cats: 0
Default

Out in the garage yet again today. got a few things done but not as much as Id like. First off my friend making my manifold brought it by so far to mock it up. unfortunately the runners he had made were too long so he pretty much has to start over. good news is that it is going to be a very cool piece when done. sorry no pictures of the manifold yet.
On to pictures!

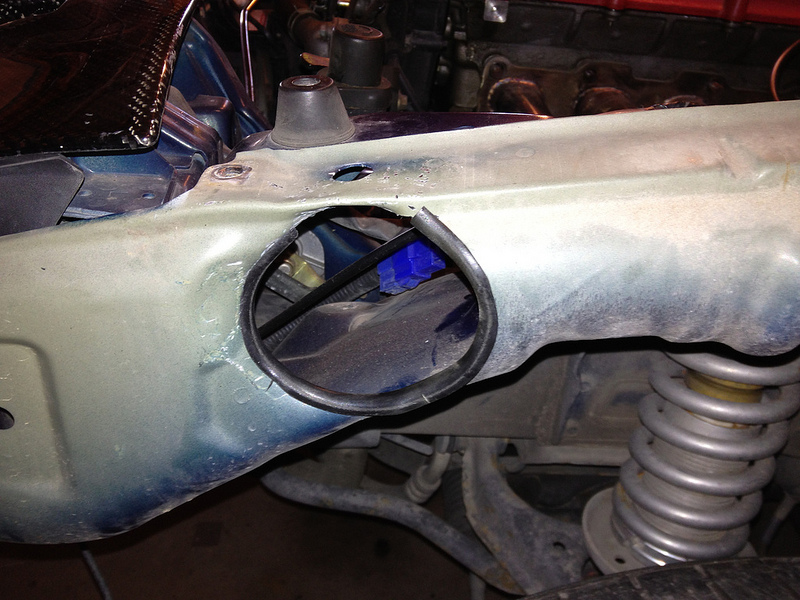

Im all about reusing parts so I took one of the hoses from the charcoal canister and cut it down the center as a grommet for the intercooler pipe to go through


After about 45 min of swearing, straining, praying, and with the help of a jack, some tow straps, a crow bar and a big effin hammer, I was able to get my OBX header out. Thank god I will never have to do that by myself again.

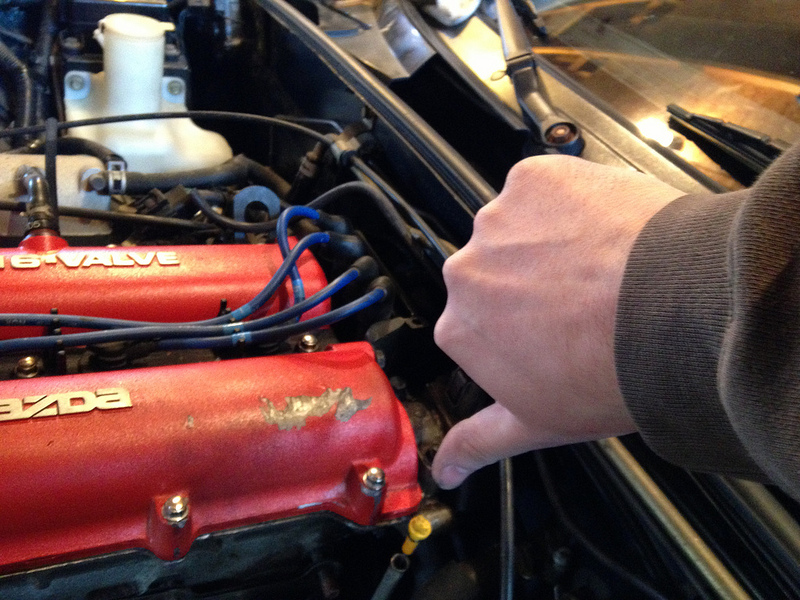

Bad news is that I scraped my valve cover pretty good. I guess this would be the opportunity to change colors or valve covers. I have a protege one as well and I have not decided which I want to use and what color. Im thinking either Red or Gold.

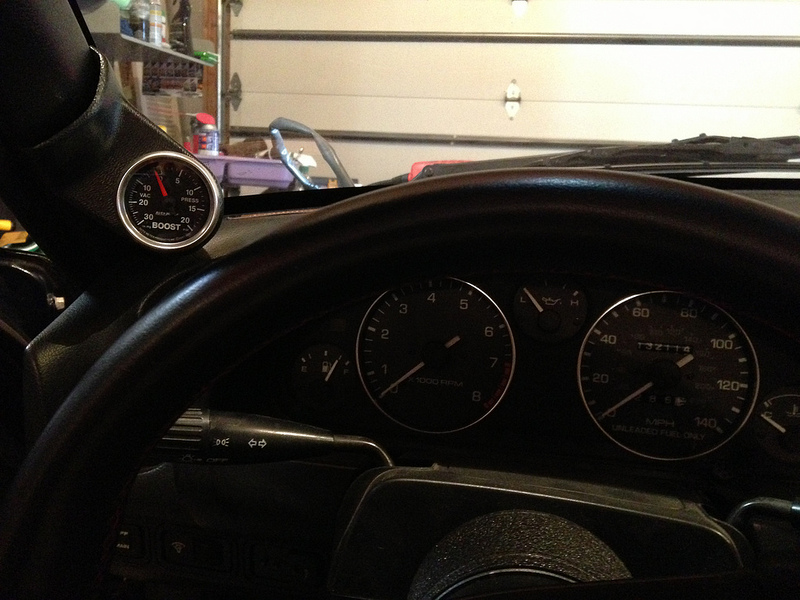

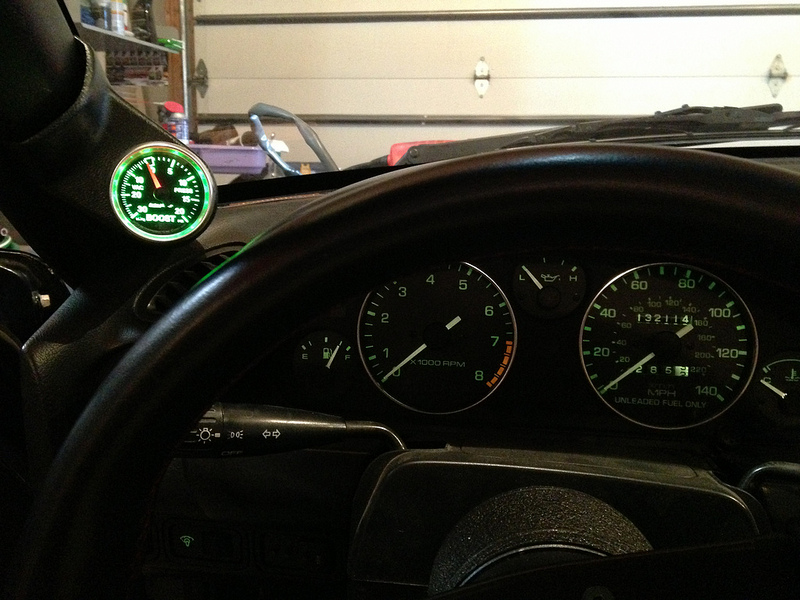

My boost gauge and pod also came today. I usually dont care for anything mounted on the A pillar but with such limited space in these little cars, I gave in and did it anyway. I havent mounted the pod to the trim yet, but just wired it up to check lighting. I know Autometer has a dimmer module that I may have to add, since this thing is bright! For those of you wondering, it is the Autometer GS series mechanical boost gauge. I like that it has a silver trim ring, and lights up green. Also I may try and find a small visor for this thing so it doesnt reflect off the windshield at night.




Thats it for now, Im yet again waiting on some more parts in the mail before I can start adding more things.
Attached Thumbnails
Kevin's 95 Turbo build-8570507108_9fecdc6d33_c.jpg   Kevin's 95 Turbo build-8569411341_7ed15aafe0_c.jpg   Kevin's 95 Turbo build-8570508540_b0d9a810d5_c.jpg   Kevin's 95 Turbo build-8569412233_f12f462a8b_c.jpg
lesac is offline   Reply With Quote
Old 03-18-2013, 10:11 PM   #17
Elite Member
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

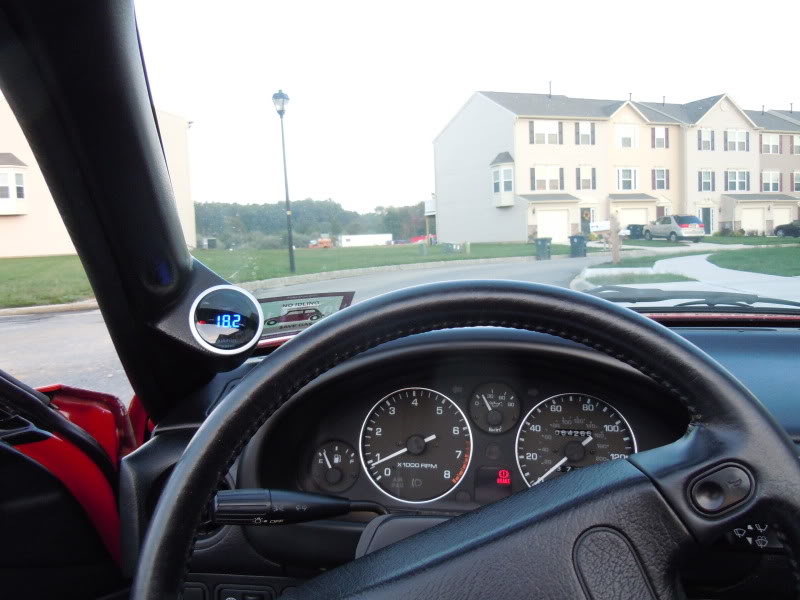

you could always take it one step further with the pod and blend it in with some body filler, sand, and paint it. I do it as a side gig for subaru's and NC miatas, but it's really pretty simple to do. Just a bit time consuming lol


Attached Thumbnails
Kevin's 95 Turbo build-dscn2235.jpg
BTMiata is offline   Reply With Quote
Old 03-18-2013, 10:23 PM   #18
Junior Member
Thread Starter

Join Date: Nov 2008
Location: Omaha, NE
Posts: 54
Total Cats: 0
Default

Ill see how uneven it is when mounted, I think it will be low enough that it wont bother me. on my evo the previous owner had a 3 gauge piller pod that was just so awkward.

yours looks good blended.
lesac is offline   Reply With Quote
Old 03-18-2013, 10:40 PM   #19
Elite Member
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by lesac View Post
Ill see how uneven it is when mounted, I think it will be low enough that it wont bother me. on my evo the previous owner had a 3 gauge piller pod that was just so awkward.

yours looks good blended.
Thanks! Anything more than a single looks tacky lol. Single mounted as low as possible looks pretty clean though! I'm liking your build though keep up the good work!
BTMiata is offline   Reply With Quote
Old 03-31-2013, 10:32 PM   #20
Junior Member
Thread Starter

Join Date: Nov 2008
Location: Omaha, NE
Posts: 54
Total Cats: 0
Default

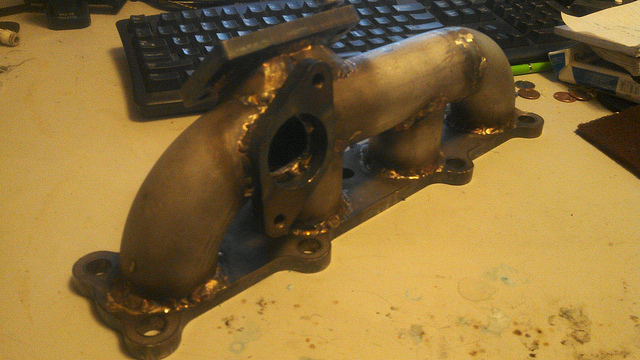

yay manifold. just have to go get it. will have more better pics later.
