I finally got moved into my new place and finally have a garage again. I spent the past week elbows deep in the miata after work each night.
I have plans to do an engine and diff swap and acquired the parts to do so, but the death shimmy and shake at 65mph+ meant that those items are on hold for a bit. This week I installed new ball joints/94 r pkg tie rod ends/inner tie rods/steering rack bushings. Here's some pics of my little helper lovingly referred to as "spare cat". He's a stray that took up residence in my in-laws junk yard (now a fully spoiled indoor cat :) ) https://www.miataturbo.net/attachmen...ine=1408216785 https://www.miataturbo.net/attachmen...ine=1408216785 The manual rack is beautifully simple; inpected, cleaned, regreased: https://www.miataturbo.net/attachmen...ine=1408216785 New bushings: https://www.miataturbo.net/attachmen...ine=1408216785 Also installed some bilstein sports/nb tophats/allstar sleeves that I picked up from a guy who bought them from track I believe: https://lh6.googleusercontent.com/-R...-no/2014-08-13 Mmmm fresh parts.... https://lh3.googleusercontent.com/-1...-no/2014-08-13 https://www.miataturbo.net/attachmen...ine=1408216785 Sits right nice: https://www.miataturbo.net/attachmen...ine=1408216785 Aaand soon, got these parts from forum members.... Going to do bushings and ms3x next... https://www.miataturbo.net/attachmen...ine=1408216785 https://lh5.googleusercontent.com/-U...o/P5120008.JPG https://lh5.googleusercontent.com/-3...o/IMAG0596.jpg |
1 Attachment(s)
I had my first track event ever last night! What a riot.
The new suspension is 100x better than my old 205k mile stock setup. With all the new parts I no longer feel like my life is in danger once I exceed 65mph. I feel like it went really well. I'm on 205 khumo ecstas on a 6.5" rim and they were clearly the limiting factor in my speed. The rest of the car felt really good for my ~$1500 of car/parts. For any NM guys, what kind of times do you run at Motiva? 1:47.8 was my best lap; there's certainly room for improvement. Even with just better tires; the 90hp of fury hasn't seen its full potential out there. https://www.miataturbo.net/attachmen...ine=1408217359 |
8 Attachment(s)
I finished off the poly bushing install over the weekend. That was certainly a lot of work; my fingers and elbow joints are still sore.
Even with the alignment rather messed up, the ride is substantially improved. I noticed my rear suspension was constantly on the bumpstops even with 5.25" height from the pinch welds. After taking about .75" off the rear bumpstops I'm no longer getting jarred on larger bumps. These bushings are a major win and come highly recommended. I picked mine up from Fab9 for a very reasonable price. I zerk'd everything except for the upper rear joints. I will probably go back and add them at a later time, but during the install the clearances didn't look good. https://www.miataturbo.net/attachmen...ine=1409672962 I used 45 degree zerks for the odd inner rear joints: https://www.miataturbo.net/attachmen...ine=1409672962 Which give great access: https://www.miataturbo.net/attachmen...ine=1409672962 https://www.miataturbo.net/attachmen...ine=1409672962 This thing rocked: https://lh5.googleusercontent.com/-4...o/P8310416.JPG https://lh3.googleusercontent.com/-P...o/P8300412.JPG https://lh3.googleusercontent.com/-7...o/P8310421.JPG |
Nice bushing press.
|
I got my ms3x kit in and decided that I needed something to sit on in order to solder it together.

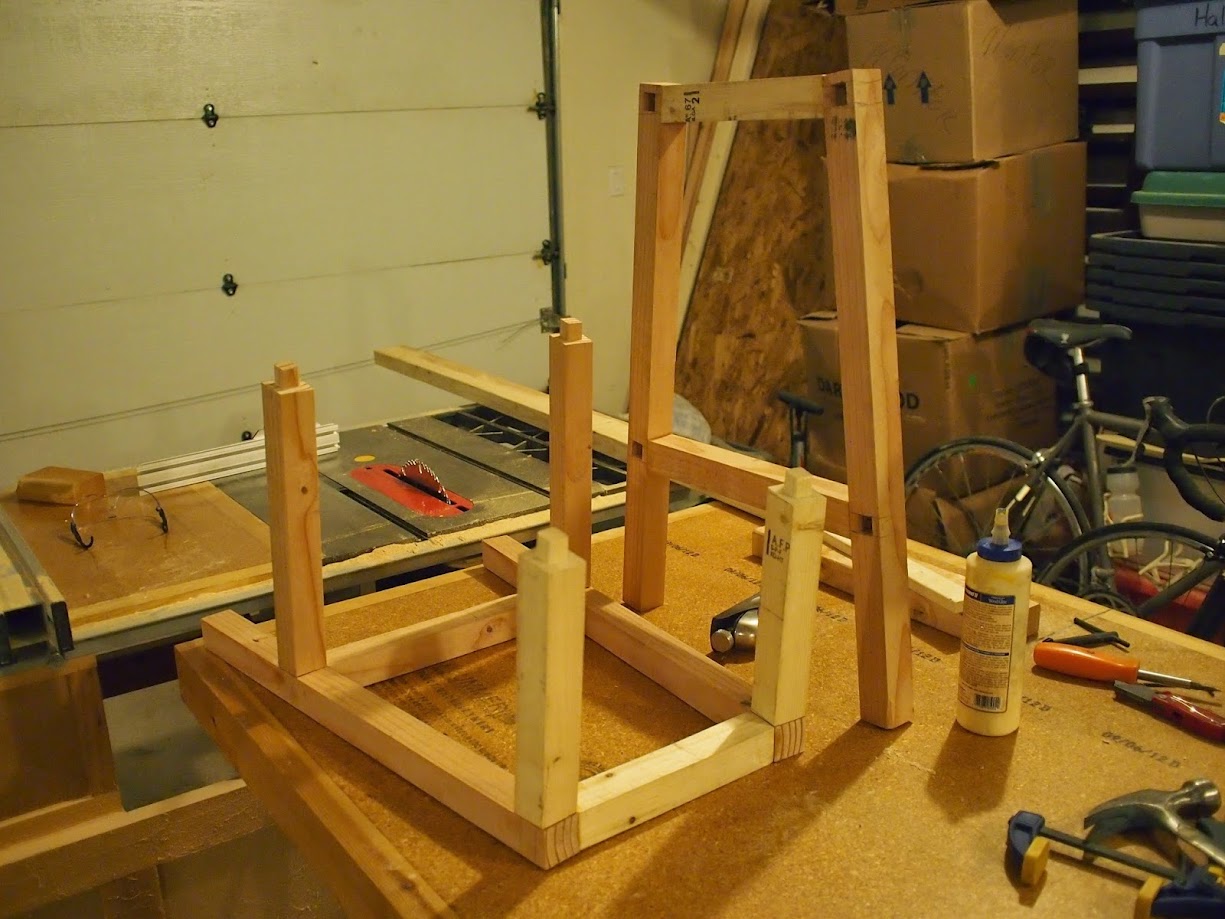

I've always wanted a solid shop stool so I found two mediocre 2x4's and went to work. (only the finest mortise and tenon joinery in my 2x4 furniture) https://lh6.googleusercontent.com/-_...o/P9180456.JPG https://lh5.googleusercontent.com/--...o/P9180457.JPG Bam https://lh5.googleusercontent.com/-o...o/P9190458.JPG Then I proceeded to put together this megasquirt. Very well labelled and setup kit from diyautotune: https://lh5.googleusercontent.com/-8...o/P9210459.JPG |
12 Attachment(s)
This kit/software is really well put together.... I remember trying to do this stuff with piggybacks and narrowband sensors back in high school/undergrad.... haha a decade of advancement has made this stuff so much easier...
A touch of mapdot with some autotune and this thing is already road worthy... I need to find out why my baro correction is showing as "INVALID"... I've got two independent sensors... I must not have it setup right https://www.miataturbo.net/attachmen...ine=1412054815 Check out my base kpa :D. There's no power up here but the views are worth it! https://www.miataturbo.net/attachmen...ine=1412054815 Local drive for testing upgrades :D https://www.miataturbo.net/attachmen...ine=1412054815 I did this with a connector from newunitedracetech.com: https://www.miataturbo.net/attachmen...ine=1412054815 https://www.miataturbo.net/attachmen...ine=1412054815 Works great! https://www.miataturbo.net/attachmen...ine=1412054815 |
2 Attachment(s)
After driving around all week with my electronics strewn about my passenger floor, I've decided that I trust the setup enough to sacrifice some zip ties to the cause.
I also stopped by the autozone "performance" aisle and grabbed a cheapo air filter while dodging teenagers looking at exhaust tips. A quick trip to the hardware store later, I had my afm removed and more zip ties deployed. And now I'm at a crossroads... I should probably continue enjoying my 1.6l of fury while I do a rods build on my 1.8l engine. Hmmm are the rods usually honed to fit each wrist pin individually? Or do you guys just plop them in there? I've never opened a miata engine so I'm not too sure what exactly I'm in for. Anyway I need to move the oil return so the pan's coming off... I guess I'll just start there and see... https://www.miataturbo.net/attachmen...ine=1412316744 https://www.miataturbo.net/attachmen...ine=1412316744 |
18 Attachment(s)
Well my ms3x and ricer cone were worth 4+ seconds at the track :D I even did some ice skating on lap 2 to make sure I had the right transponder...
https://www.miataturbo.net/attachmen...ine=1413094972 With the car now within 10ish seconds of the SM record I decided to just build my spare engine and keep the car running. The engine looks kinda clean on the outside; leakdown is ~2% cold on all 4; crankshaft endplay is 0.008 which isn't stellar but is within spec. After digging into it a little I think the crank might need some work. What do you guys think of the main journal? The scratches can be felt but I wouldn't say they catch the fingernail. I've never seen a mediocre journal... only brand new polished journals or completely borked ones... No flash: https://www.miataturbo.net/attachmen...ine=1413094972 Flash: https://www.miataturbo.net/attachmen...ine=1413094972 Bearing: https://www.miataturbo.net/attachmen...ine=1413094972 Conrod journals look a little better: https://www.miataturbo.net/attachmen...ine=1413094972 Piston bores look serviceable. There is scuffing but it can barely be felt. I've honed this level of scuff once upon a time and it worked out fine, do you guys usually just do a simple hone for this kind of wear? (I did not succeed in getting a decent photo... pics look worse than it is) https://www.miataturbo.net/attachmen...ine=1413094972 https://www.miataturbo.net/attachmen...ine=1413094972 Head looks good. I scraped some of the deposits off of the det prone areas and everything looks good to my eye. https://www.miataturbo.net/attachmen...ine=1413094972 https://www.miataturbo.net/attachmen...ine=1413094972 I'll probably just pull the crank out and take it to a machine shop and see what they think. |
Are you using locking or keyed lug nuts? They supposedly can contribute to the imbalance that makes the 65mph shimmy, fwiw.
|
Yeah without feeling them I'd say those look fine. New bearings and maybe polish the crank surfaces. Good start though.
|
I am using keyed lug nuts. The plan is to put new wheel bearings in on all corners and see if that gets it... There are 210k miles on chassis so I can't say I'm too surprised.
It's funny, I'm willing to pull the suspension and whatnot apart but I really wish I didn't need to pull the crank out because I don't want to have to clean the oil pump gasket surfaces hah. We'll see how much a crank polish is at the shop; I've read about some shadetree techniques involving sandpaper but I have limits on how far I'll go to save $50. |
5 Attachment(s)
Well found some more crank wear... The thrust bearing is completely shot. Crank did not contact the block or anything, but there is a decent groove on the crank thrust surface that looks out of place. Odd seeing as how the endplay was within spec. I just caught this with dumb luck I guess.
I noticed that there are oversized thrust bearings available so hopefully the crank can be machined. Any advice/war stories would be welcomed :) https://www.miataturbo.net/attachmen...ine=1413176543 https://www.miataturbo.net/attachmen...ine=1413176543 https://www.miataturbo.net/attachmen...ine=1413176543 On a better note I had a good day a week back at the junk yard. Found a pristine oem aluminum hood to replace my ill fitting steel one. Also scored what looks to be a freshly rebuilt shifter with all clean boots, a clean oil cooler from a turbo volvo, and a set of ls2 coils. https://www.miataturbo.net/attachmen...ine=1413176543 https://www.miataturbo.net/attachmen...ine=1413176543 |
16 Attachment(s)
Well my crankshaft and block are still at the machine shop. I haven't had any luck finding oversized thrust washer's that are actually stocked. My machinist claims he can find some, so I'm waiting... Kinda on the fence, at this point I should probably just buy another crank and move on, but I'd prefer to support my machinist instead of some random ebay seller...
I've been keeping the project rolling by derusting some brake parts I picked up. Add a little sodium carbonate and some low voltage DC and before you know it you have rust free parts. https://www.miataturbo.net/attachmen...ine=1415598140 https://www.miataturbo.net/attachmen...ine=1415598140 https://www.miataturbo.net/attachmen...ine=1415598140 https://www.miataturbo.net/attachmen...ine=1415598140 https://www.miataturbo.net/attachmen...ine=1415598140 After that was all wrapped up I decided to replace all of my wheel bearings. The fonts took about 30 minutes. The rear..... good grief... The rear axles had become one with the hubs. I tried to use a buddy's shop press which didn't work out. I then moved on to more old school techniques and sledge hammered them out thor style with a 5lb hammer. https://www.miataturbo.net/attachmen...ine=1415598140 I followed the sticky on the site for the bearing replacement. The only thing to add is that I used a puller to get the race off the hub. A 22mil socket fit the hub perfectly to give something to push on. https://www.miataturbo.net/attachmen...ine=1415598140 Since my axles were pretty much destroyed after the sledge hammer situation I decided to put my 1.8 kaaz diff in. With the poly bushings and clutch packs, the noises are pretty inspiring. https://www.miataturbo.net/attachmen...ine=1415598140 The car feels really great with the new bearings and driveline. It's finally rock solid at all speeds. |
Nice Progress! The zerk fittings were a nice touch.
|
1 Attachment(s)
I've been making slow winter progress on the car (too much skiing and other awesome stuff :D). I picked up an AHP ac/dc tig around Thanksgiving and have been learning how to aluminum weld. If you're in the market, I've been pretty pleased with the welder for the price I paid.
Added a 1/2" bung for my oil return. It looks kind of huge. I guess most do a 3/8"? Better to be too large than small hah. I also added a 3/8" over the drain plug for a temp sensor and a 1/4" on the water neck for my coolant lines. https://lh4.googleusercontent.com/cZ...c=w494-h878-no https://lh6.googleusercontent.com/-4...2015-01-04.jpg https://www.miataturbo.net/attachmen...ine=1420476366 Welding the oil pan has been interesting... Some times it goes great and other times it gets strange with porosity and unexpected contamination... But it looks like what I accomplished should be fine. My engine is finally back on the stand and I should be fitting pistons tonight! After futzing around with the wrong machinists I found an actual crank grinder who just welded/reground the thrust surface. More updates on that tonight... |
Nope, 1/2 NPT is great for an oil drain. Bigger the better, but above 1/2" is stupid.
Your 3/8NPT for the oil temp sensor however, is too big. Most sensors are 1/8" NPT. |
Hrrmm... My plan was to use this GM one:
GM Closed Element CLT / IAT Sensor with Connector DIYAutoTune.com Didn't really look into if it was ok for oil; I can't see why it wouldn't be? |
24 Attachment(s)
More progress...
Did a lot of skiing, got radical, made some in wall speakers, finished my engine rebuild, and removed one nasty 210Kmile engine. It's been a busy Jan-now. https://www.miataturbo.net/attachmen...ine=1425881661 https://www.miataturbo.net/attachmen...ine=1425881661 https://www.miataturbo.net/attachmen...ine=1425881661 https://www.miataturbo.net/attachmen...ine=1425881661 https://www.miataturbo.net/attachmen...ine=1425881661 https://www.miataturbo.net/attachmen...ine=1425881661 https://www.miataturbo.net/attachmen...ine=1425881661 https://www.miataturbo.net/attachmen...ine=1425881661 https://www.miataturbo.net/attachmen...ine=1425881661 Nasty https://www.miataturbo.net/attachmen...ine=1425881661 Nasty nasty https://www.miataturbo.net/attachmen...ine=1425881661 Minor oil leaks..... everywhere https://www.miataturbo.net/attachmen...ine=1425881661 |
2 Attachment(s)
Making some decent progress. Got the engine dropped in just in time to find that the previous engine owner left me yet another little surprise.
I picked up another valve on fleabay so now I have a solid week to clean up loose ends while I wait for that. https://lh3.googleusercontent.com/-B...317_235916.jpg https://lh3.googleusercontent.com/-t...321_220725.jpg Ehhhhh I was told everything was in working order lol. https://www.miataturbo.net/attachmen...ine=1426999427 |
1 Attachment(s)
https://www.miataturbo.net/attachmen...ine=1427029007
Looks good. That's what I plan to do, but with a -6AN bung. What 2 water outputs are you going to run there? |
