Default My turbo-less widebody '94

I think it's about time I've started a thread for this particular vehicle.

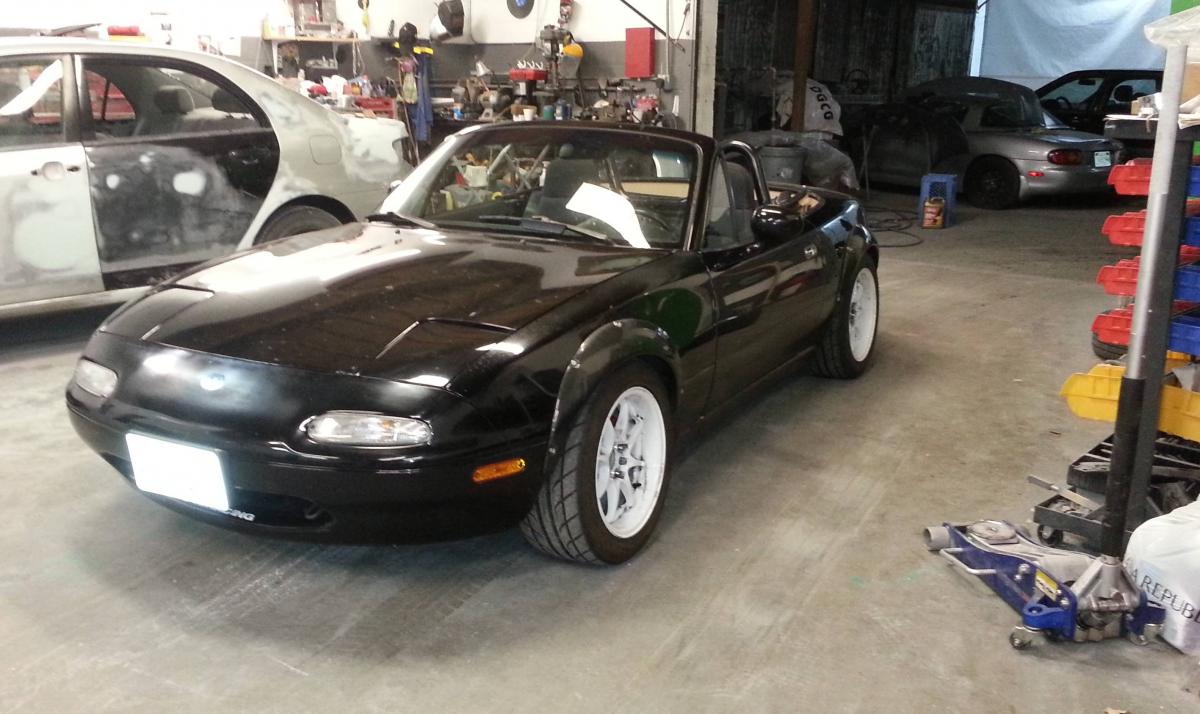

It started it's life as a base model '94 with A/C and no P/S. I bought it as a beater daily driver but ended up keeping just this car. It came with carbon fiber fender flares, KYB AGX w/ H&R springs, RB front and rear sway bars, and a style bar:



After some time I bought a '04 MSM which became my daily and I've started working on this car.

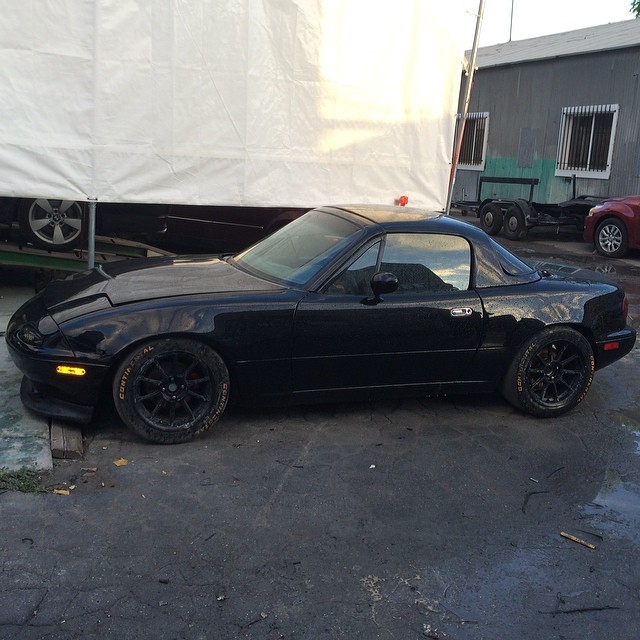

This is what it looked like after body shop was done with it:

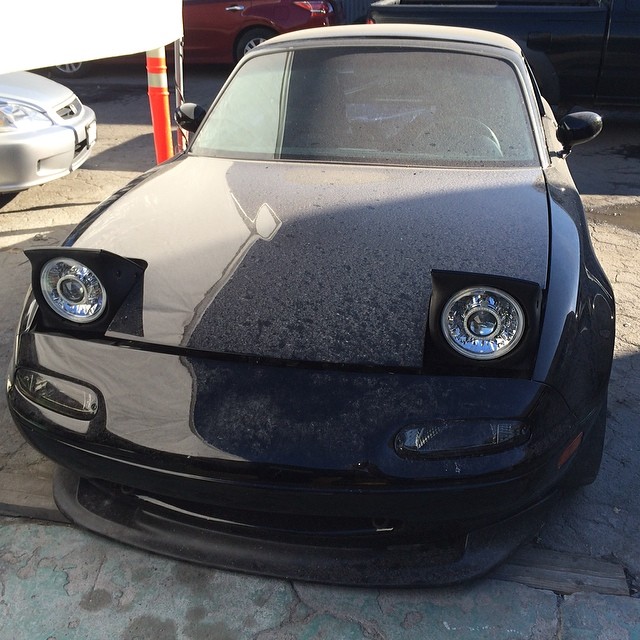

Skip a month, I found some time to install the Dapper Lighting 7 Inch Classic V2 Projector Kit:

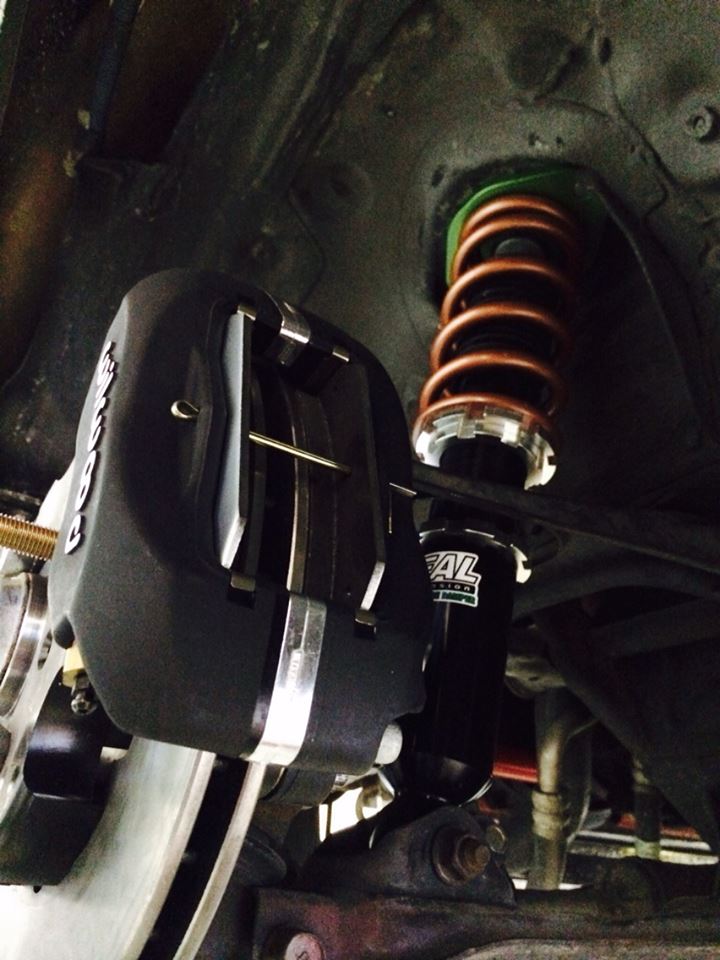

Skip another couple of months, I've installed Feal 441 coilovers, Wilwood 11" front brakes and M-tuned rear brakes with Carbotech XP-8 all around.



Current list of modifications:
  • AK blister fenders and quarter panels (+30mm I believe)
  • Boss Frog frame rails
  • Garage Star fender braces (not installed)
  • Beatrush PPF brace (not installed)
  • Feal 441 8/6
  • Racing Beat tubular front and solid rear sway bars
  • FM blueprinted front hubs, eBay rear hubs with Timken bearings, ARP studs
  • Wilwood 11" front brakes w/ XP8
  • M-Tuned rear brakes w/ XP8
  • eBay header, FM high-flow cat, modified eBay catback
  • Racing Beat intake
  • Mishimoto radiator with shroud and slim fans, NB lower hose
  • Momo (possibly fake) 350mm steering wheel
  • eBay short throw with MiataRoadster tall angled extension and MiataRoadster delrin shift ****
  • Kenwood Stereo
  • DDMWorks stereo mount
  • Power windows
  • Blackbird Fabworx single diagonal roll bar
  • 15x9 6UL with 225 BFG Rivals for street using spacers


These waiting to be installed:
  • Garage Star fender braces
  • Beatrush PPF brace
  • Depower steering
  • FM level 1 clutch & 10 lbs flywheel
  • Setrab oil cooler with Mocal adapter
  • ES poly bushings
  • 245 Hoosier R6 (waiting on JB 15x10... )
  • 245 Hoosier R80 on 15x10 6UL


These planned for the future:
  • Stock VVT motor w/ squaretop
  • MSLabs Megasquirt
  • EV14 injectors
  • Dual feed fuel rail (have one laying around)
  • Blackbird Fabworx 3/4 cage or 6 point bar
  • NA6 dashboard
Attached Thumbnails
My turbo-less widebody '94-xklv5pz.jpg   My turbo-less widebody '94-4p1crk2.jpg

Last edited by UrbanSoot; 05-15-2014 at 05:49 AM.
UrbanSoot is offline   Reply With Quote
Old 05-06-2014, 08:18 PM   #2
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

How much for the FEAL coilovers shipped to 87571?

Last edited by Fireindc; 05-06-2014 at 10:57 PM.
Fireindc is offline   Reply With Quote
Old 05-06-2014, 08:41 PM   #3
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

I'll take the clutch and flywheel.

You want me to move this to the correct section?
curly is offline   Reply With Quote
Old 05-06-2014, 10:53 PM   #4
Elite Member
Thread Starter
iTrader: (24)

Join Date: Jun 2007
Location: Sherman Oaks, CA
Posts: 4,481
Total Cats: 3
Default

**** you guys!

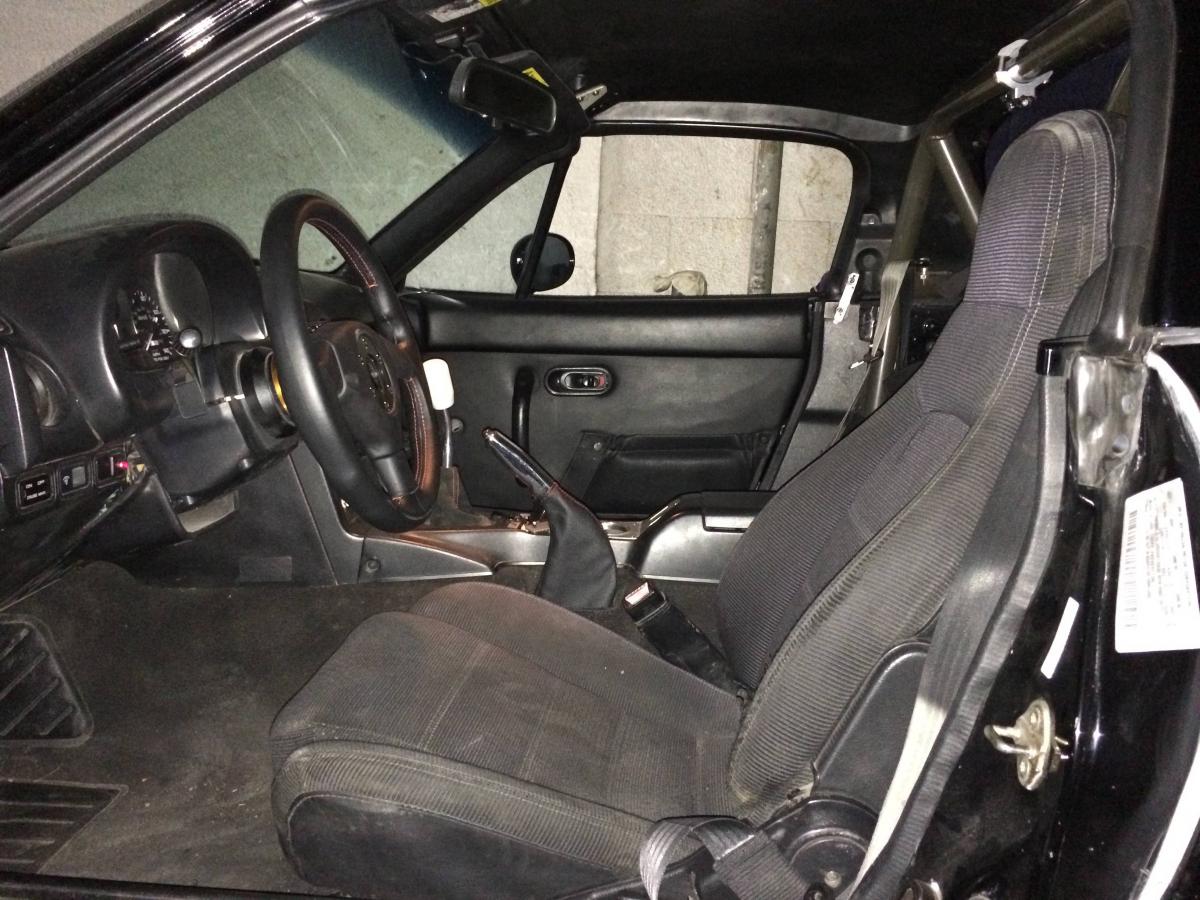

Single user mode enabled! Going to Streets of Willow this Sunday!
Attached Thumbnails
My turbo-less widebody '94-yahood9.jpg
UrbanSoot is offline   Reply With Quote
Old 05-06-2014, 11:04 PM   #5
Elite Member
iTrader: (33)

RotorNutFD3S's Avatar

Join Date: Jan 2007
Location: Newnan, GA
Posts: 2,539
Total Cats: 29
Default

Ooo, I'll take those 6ULs!

Looks good though. How good are those headlights? I've seen their website just haven't seen many user reviews.
RotorNutFD3S is offline   Reply With Quote
Old 05-06-2014, 11:22 PM   #6
Elite Member
Thread Starter
iTrader: (24)

Join Date: Jun 2007
Location: Sherman Oaks, CA
Posts: 4,481
Total Cats: 3
Default

Quote:
Originally Posted by RotorNutFD3S View Post
Ooo, I'll take those 6ULs!

Looks good though. How good are those headlights? I've seen their website just haven't seen many user reviews.
I still need to hook up angel eyes, but it's not so high on a priority list for now. They are damn good though. I've got the 5K version and I can see clearly everywhere. Cutoff is good, high beams are just awesome.
UrbanSoot is offline   Reply With Quote
Old 05-06-2014, 11:34 PM   #7
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,518
Total Cats: 259
Default

what spacers are you using?
soviet is offline   Reply With Quote
Old 05-06-2014, 11:37 PM   #8
Elite Member
Thread Starter
iTrader: (24)

Join Date: Jun 2007
Location: Sherman Oaks, CA
Posts: 4,481
Total Cats: 3
Default

Quote:
Originally Posted by soviet View Post
what spacers are you using?
Shitty ones that I'm not going to run on the track. I'm waiting for some 20mm hubcentric spacers right now. Will run those if they come on time.
UrbanSoot is offline   Reply With Quote
Old 05-06-2014, 11:45 PM   #9
Elite Member
iTrader: (9)

Join Date: Sep 2008
Location: Livonia, Michigan
Posts: 5,684
Total Cats: 10
Default

Get the bronze 15x8 6ULs instead so I can buy them off you later.

Good luck!
buffon01 is offline   Reply With Quote
Old 05-06-2014, 11:49 PM   #10
Elite Member
Thread Starter
iTrader: (24)

Join Date: Jun 2007
Location: Sherman Oaks, CA
Posts: 4,481
Total Cats: 3
Default

Quote:
Originally Posted by buffon01 View Post
Get the bronze 15x8 6ULs instead so I can buy them off you later.

Good luck!
I would most definitely not ship those
UrbanSoot is offline   Reply With Quote
Old 05-07-2014, 12:07 AM   #11
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

50 bucks for the lip, shipped?
triple88a is offline   Reply With Quote
Old 05-07-2014, 01:30 AM   #12
Elite Member

Join Date: Jul 2007
Location: Little Rock, AR
Posts: 3,110
Total Cats: 127
Default

Wilwoods shipped to 72114?
jacob300zx is offline   Reply With Quote
Old 05-08-2014, 05:29 PM   #13
Elite Member
Thread Starter
iTrader: (24)

Join Date: Jun 2007
Location: Sherman Oaks, CA
Posts: 4,481
Total Cats: 3
Default

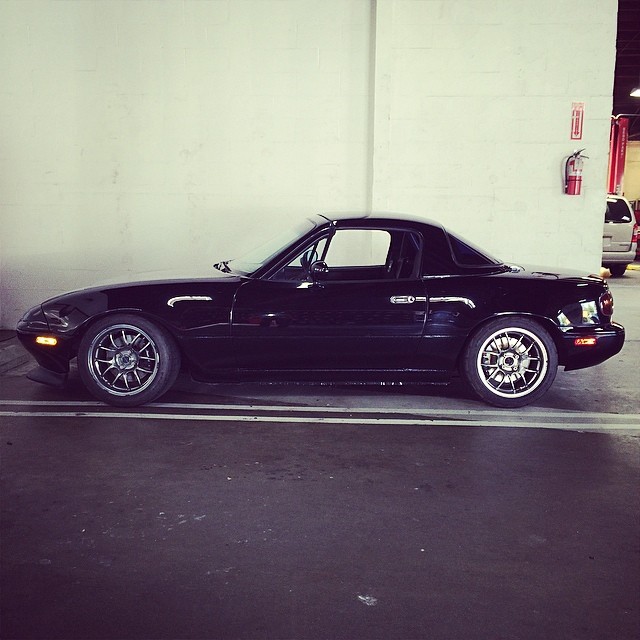

Nobody ever suspects that it's widebody. I like that. Do I need a spare trunk lid if I want an APR wing for track or is there a way to make it detachable without creating an aqueduct in my trunk?

Attached Thumbnails
My turbo-less widebody '94-10303175_10152382816206343_6445711065477578599_n.jpg

Last edited by UrbanSoot; 05-08-2014 at 05:39 PM.
UrbanSoot is offline   Reply With Quote
Old 05-08-2014, 05:41 PM   #14
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

Nice man, looks proper. What widebody is that?

Edit: just re-read: AK blister fenders and quarter panels (+30mm I believe)

Those are awesome, i had no idea AK made body parts that didn't look completely outlandish.
Fireindc is offline   Reply With Quote
Old 05-08-2014, 06:06 PM   #15
Elite Member
Thread Starter
iTrader: (24)

Join Date: Jun 2007
Location: Sherman Oaks, CA
Posts: 4,481
Total Cats: 3
Default

Quote:
Originally Posted by Fireindc View Post
Nice man, looks proper. What widebody is that?

Edit: just re-read: AK blister fenders and quarter panels (+30mm I believe)

Those are awesome, i had no idea AK made body parts that didn't look completely outlandish.
Body shop guys spent several days blending everything in and making it all fit together. Fitment was far from perfect but they made it work
UrbanSoot is offline   Reply With Quote
Old 05-08-2014, 06:13 PM   #16
Senior Member
iTrader: (8)

Join Date: Feb 2012
Location: Raleigh, NC
Posts: 617
Total Cats: 53
Default

Looks yummy. I dislike fender flares a good bit but a widebody looks killer. Can we get a centered, bumper level pic of the front and rear? Want to see the fatness!
petrolmed is offline   Reply With Quote
Old 05-08-2014, 08:21 PM   #17
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

This car makes me wish I bit the bullet and went Widebody when I did the paint. Too bad I was broke and 15x10 6UL's werent out yet...
240_to_miata is offline   Reply With Quote
Old 05-08-2014, 11:59 PM   #18
Elite Member
Thread Starter
iTrader: (24)

Join Date: Jun 2007
Location: Sherman Oaks, CA
Posts: 4,481
Total Cats: 3
Default

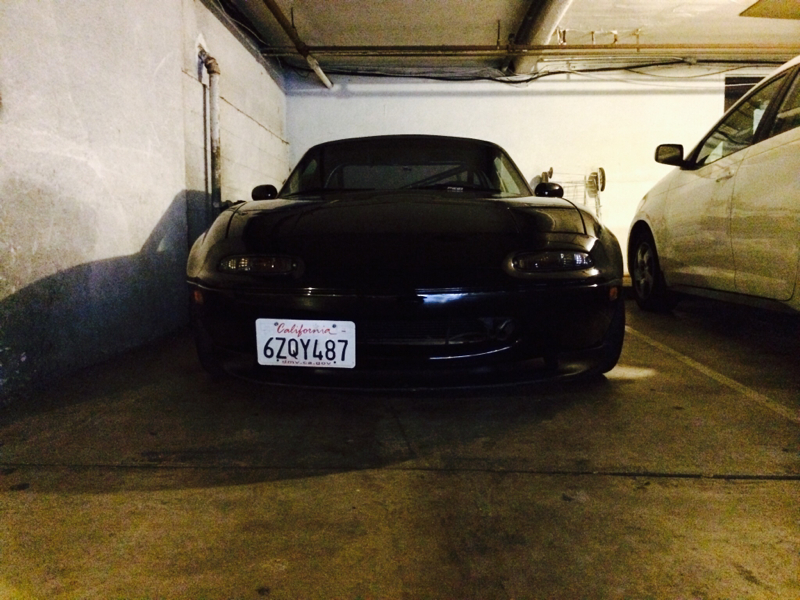

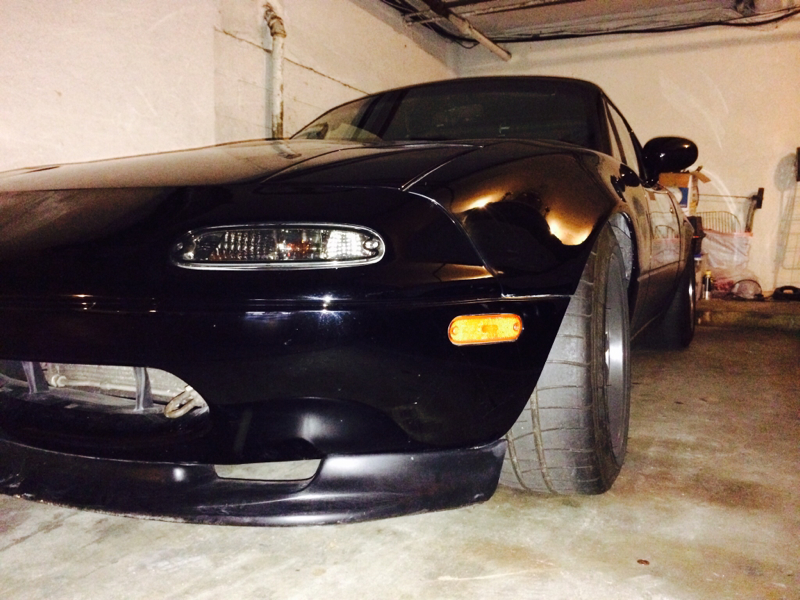

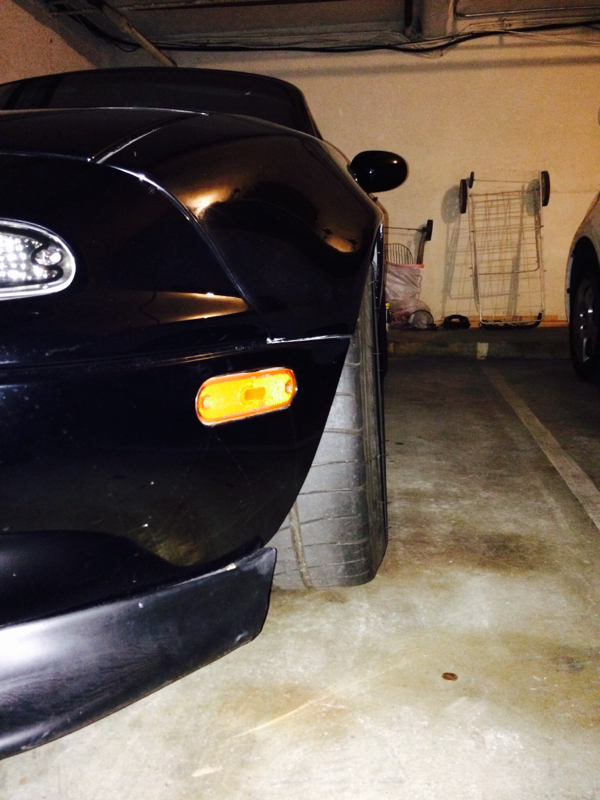

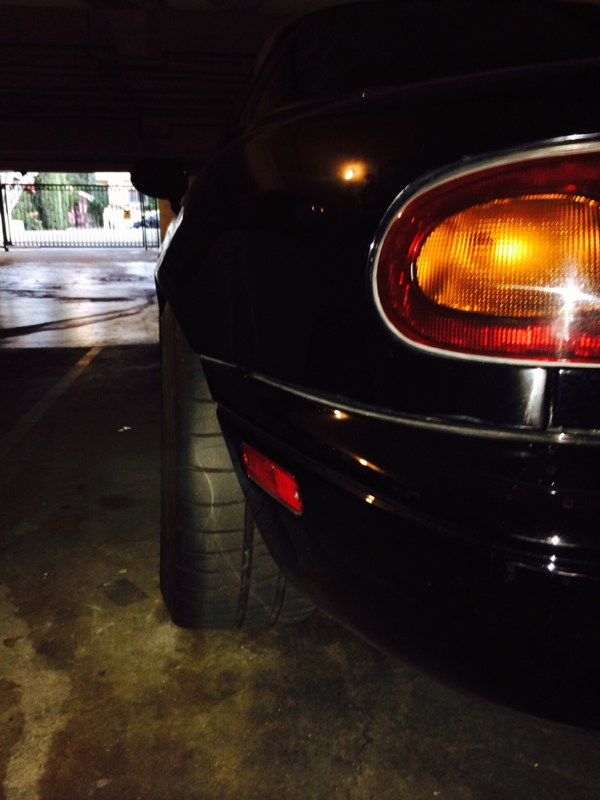

20mm spacer in the rear, no spacer up front. 15x9 +36 with 225/45/15s.
Attached Thumbnails
My turbo-less widebody '94-image-3671983362.jpg   My turbo-less widebody '94-image-352546256.jpg   My turbo-less widebody '94-image-4041076423.jpg   My turbo-less widebody '94-image-21368205.jpg
UrbanSoot is offline   Reply With Quote
Old 05-09-2014, 12:34 AM   #19
Newb

Join Date: Mar 2009
Posts: 10
Total Cats: -8
Default

So meaty! Id bring out the fronts just a ta to more match up to the rears.
XxxMonoxideChild is offline   Reply With Quote
Old 05-09-2014, 12:48 AM   #20
Elite Member
Thread Starter
iTrader: (24)

Join Date: Jun 2007
Location: Sherman Oaks, CA
Posts: 4,481
Total Cats: 3
Default

Quote:
Originally Posted by XxxMonoxideChild View Post
So meaty! Id bring out the fronts just a ta to more match up to the rears.
I'm going to install new hubcentric 20mm spacers all around tomorrow.
UrbanSoot is offline   Reply With Quote
