Old 08-25-2009, 07:02 PM   #1
Junior Member
Thread Starter

Join Date: Aug 2009
Location: melbourne aus
Posts: 450
Total Cats: 41
Default Noob from melbourne-turbo track toy

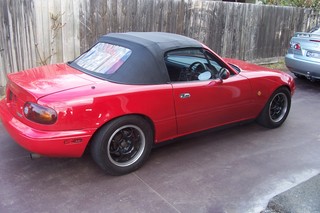

Noob from melbourne-turbo track toy-m1.jpg
This is how it looked when i bought it about a year and a half ago, the idea was to use it for track days.

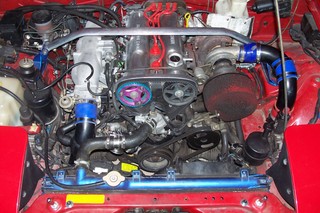

Noob from melbourne-turbo track toy-m2.jpg
The engine pretty much as bought. It's a 1.6 with a td05h turbo, microtec, with 128 rwkw.

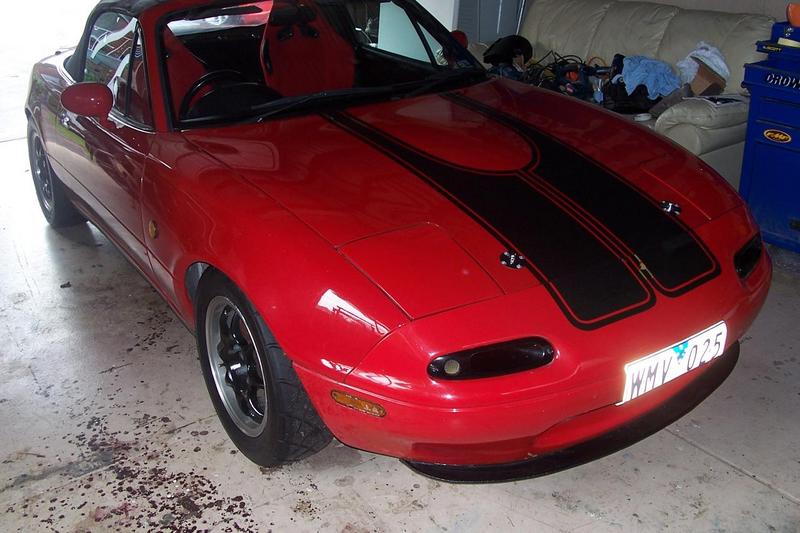

Noob from melbourne-turbo track toy-m3.jpg
I relocated the air cleaner by ripping out the headlight assembley.

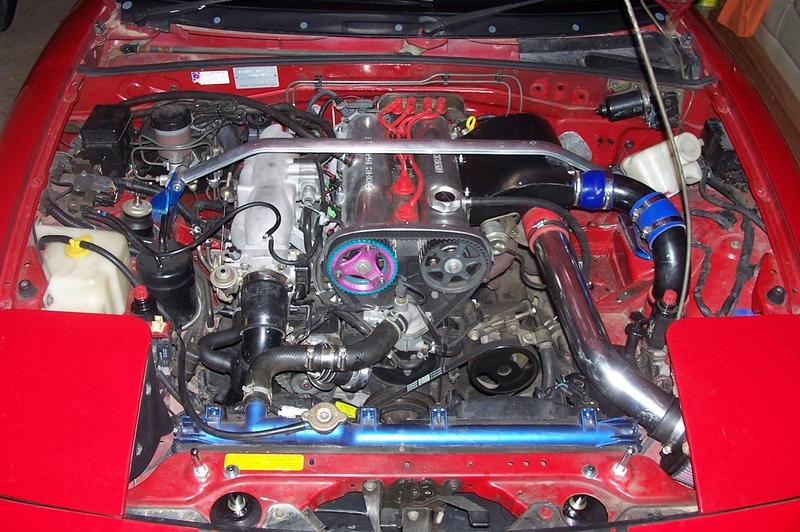

Noob from melbourne-turbo track toy-m4.jpg
washed and put some 16" nb wheels on it. Last time it looked like a nice street car probably.

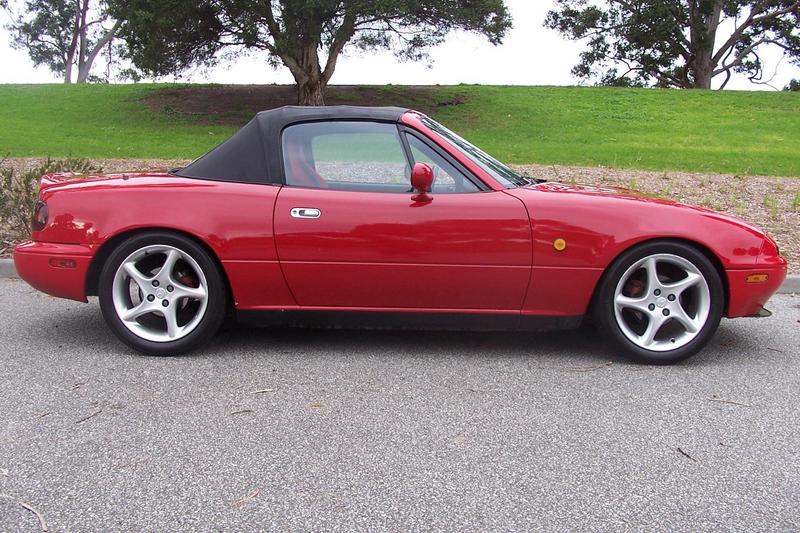

Noob from melbourne-turbo track toy-m5.jpg
lightyear is offline   Reply With Quote
Old 08-25-2009, 07:16 PM   #2
Junior Member
Thread Starter

Join Date: Aug 2009
Location: melbourne aus
Posts: 450
Total Cats: 41
Default

Noob from melbourne-turbo track toy-m6.jpg

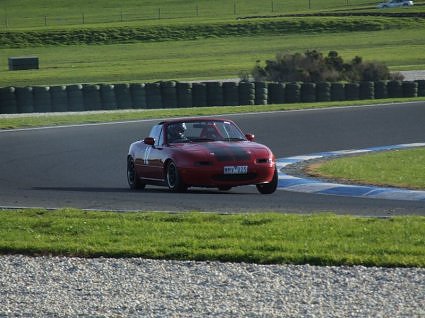

1st track day

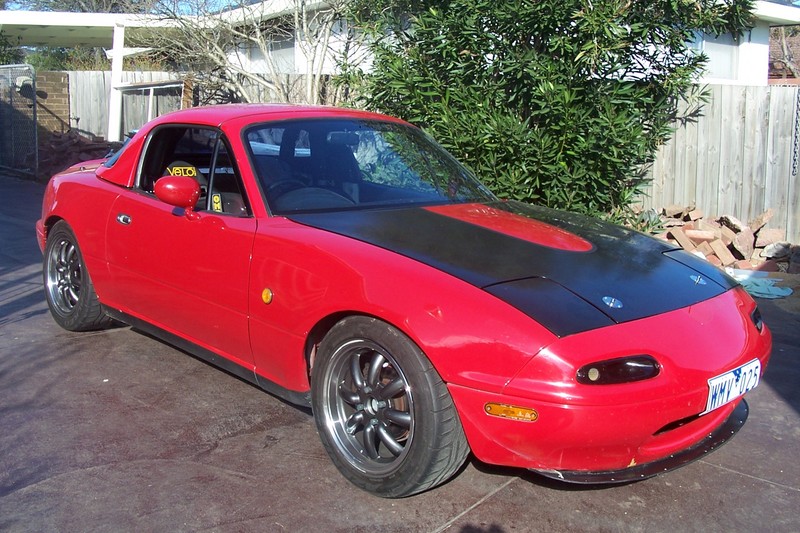

Noob from melbourne-turbo track toy-m8.jpg
new hardtop and 15x7 konig's


Noob from melbourne-turbo track toy-m9.jpg

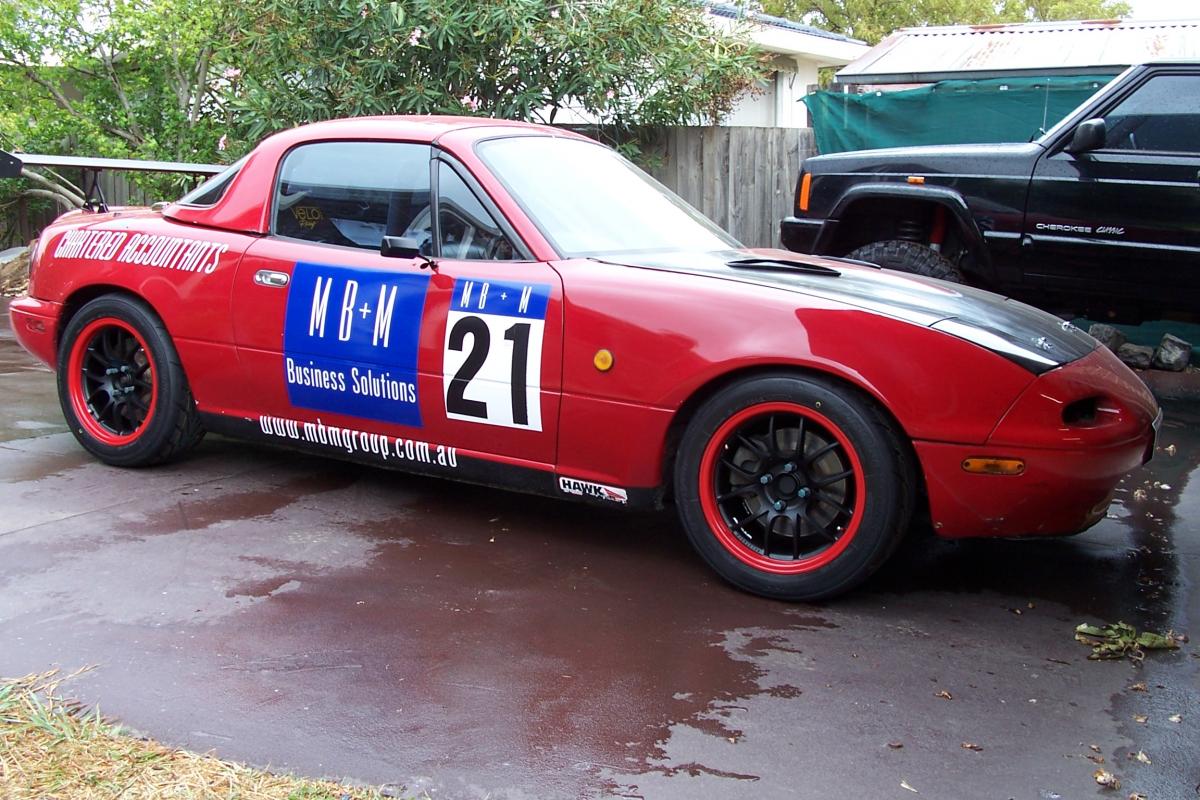

New 6ul's painted them as they where silver. Got sponsered to.

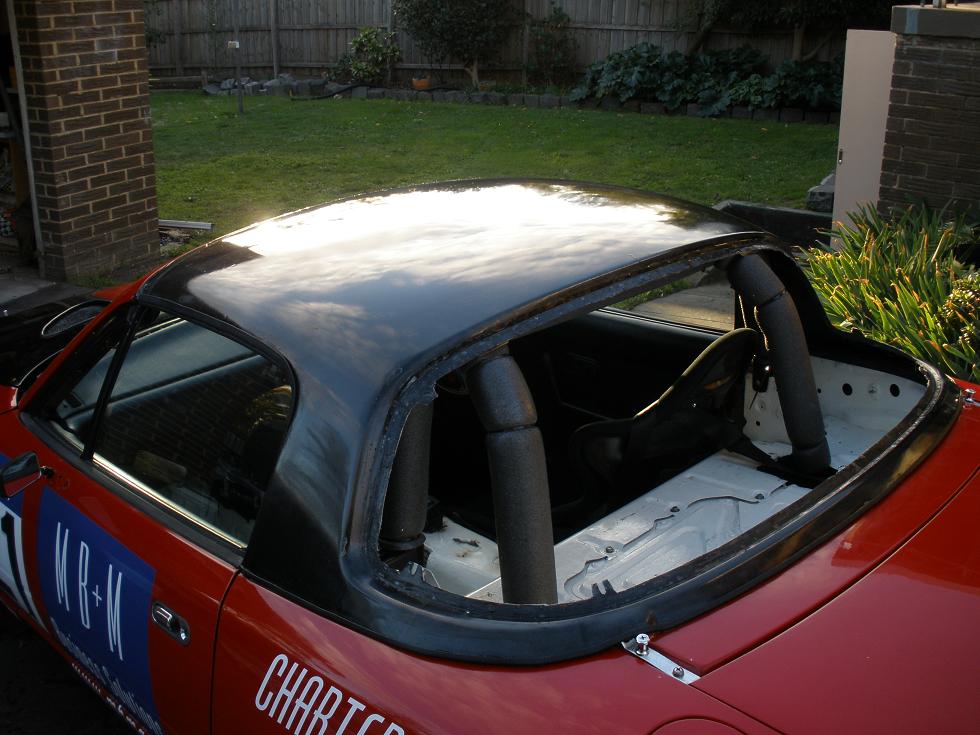

Noob from melbourne-turbo track toy-m10.jpg
Decided the hardtop weighed too much so i made my own carbon fibre one. Werighs 2.5kg's bare and 6 kg's with window, rubbers and latches.


Noob from melbourne-turbo track toy-m11.jpg
Hillclimb launch shot
lightyear is offline   Reply With Quote
Old 08-25-2009, 07:23 PM   #3
Senior Member
iTrader: (2)

Join Date: Apr 2008
Location: Tallahassee, FL
Posts: 1,378
Total Cats: 0
Default

I see you also have a front splitter? More pics of that?

Looks good.
naarleven is offline   Reply With Quote
Old 08-25-2009, 07:25 PM   #4
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

Welcome....very cool.

We have a few serious racers on board (as well as a few aspiring ones) that would surely be interested in details of your build, and how you've dealt with common issues such as turbo stud problems, ducting and coolant reroute.

Glad to have you here.

-Damon
gospeed81 is offline   Reply With Quote
Old 08-25-2009, 07:31 PM   #5
Junior Member
Thread Starter

Join Date: Aug 2009
Location: melbourne aus
Posts: 450
Total Cats: 41
Default

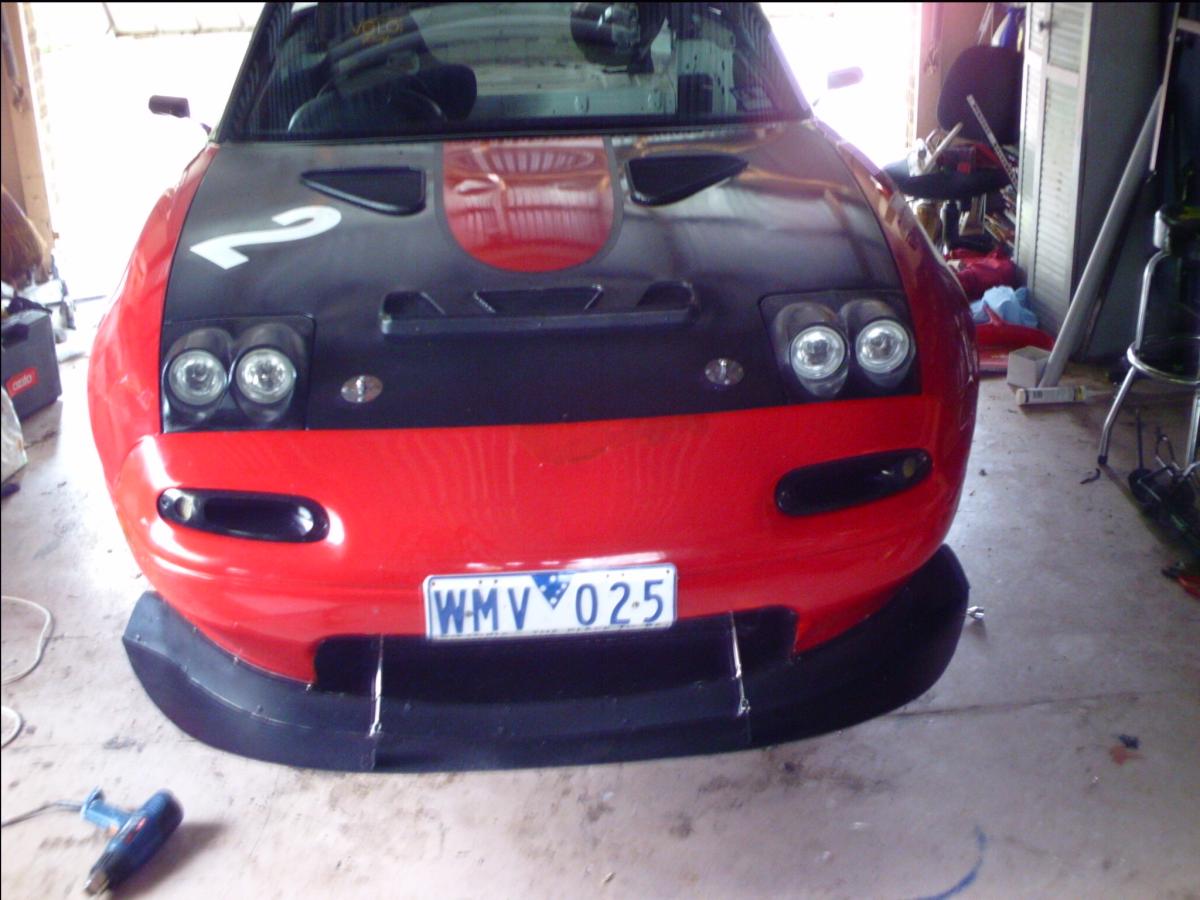

Noob from melbourne-turbo track toy-m12.jpg
I bought some 180sx twin headlights. Cut them out and mounted them to the headlight covers. I was a bit worried about driving arounds with one headlight as i have the air filter where the other headlight is. I made a splitter/undertray and cut some holes in the hood.
lightyear is offline   Reply With Quote
Old 08-25-2009, 07:42 PM   #6
Junior Member
Thread Starter

Join Date: Aug 2009
Location: melbourne aus
Posts: 450
Total Cats: 41
Default

The front splitter is made of a sheet of laminated alloy and plastic core they use for signwriting. It's very stiff and light. It goes back to the crossmember.
I would be glad to help out, but i am fairly new to this myself. Only had it for about 1.5 years.
I did have stud problems but fixed now. It has also got some new b.c coilovers, chassis braces, new downpipe, etc. It now has just over 200 hp at the wheels. And the car holds the record at phillip island and sandown tracks. In our club.
lightyear is offline   Reply With Quote
Old 08-25-2009, 10:02 PM   #7
Elite Member
iTrader: (28)

Join Date: May 2008
Location: St. Augustine FL
Posts: 2,310
Total Cats: 2
Default

very cool!!!! Good job and did you say you made your CF HT? Holy BAWLZ!!!!
p51hellfire is offline   Reply With Quote
Old 08-25-2009, 10:07 PM   #8
Senior Member

Join Date: Nov 2005
Location: Austin, TX yall
Posts: 849
Total Cats: 0
Default

Nice.

I like the Accounting Sponsor, lol.

Chris
Miatamaniac92 is offline   Reply With Quote
Old 08-25-2009, 11:21 PM   #9
Junior Member
Thread Starter

Join Date: Aug 2009
Location: melbourne aus
Posts: 450
Total Cats: 41
Default

Quote:
Originally Posted by p51hellfire View Post
very cool!!!! Good job and did you say you made your CF HT? Holy BAWLZ!!!!
Yep. I made a quick mould and hand laminated a carbon fibre one. I was asked by a few guys if i could make them one. And now i have gone a bought a vacuum infusion machine, and in the process of making a new mould to suit vacuum forming. I am looking at making c.f parts full time now.
lightyear is offline   Reply With Quote
Old 08-25-2009, 11:38 PM   #10
Elite Member
iTrader: (24)

Join Date: Jun 2007
Location: Sherman Oaks, CA
Posts: 4,481
Total Cats: 3
Default

ill be down to get some cf parts from if price is right
specifically looking for fenders and doors if price is reasonable
UrbanSoot is offline   Reply With Quote
Old 08-25-2009, 11:48 PM   #11
Junior Member
Thread Starter

Join Date: Aug 2009
Location: melbourne aus
Posts: 450
Total Cats: 41
Default

I am doing hoods and doors next. I am looking at selling the new c.f hardtops for $850au bare and $1250au with rubbers, alloy brackets and perspex window. Pitty the shipping would probably cost too much. The new vacuum moulded hardtops should weigh under 2 kg's bare. Under 4 lbs
lightyear is offline   Reply With Quote
Old 02-23-2010, 04:35 PM   #12
Junior Member
Thread Starter

Join Date: Aug 2009
Location: melbourne aus
Posts: 450
Total Cats: 41
Default





I finished making the c.f doors they weigh 2.3 kg's. About 5 poinds.
lightyear is offline   Reply With Quote
Old 02-24-2010, 01:18 AM   #13
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,311
Total Cats: 1,334
Default

Quote:
Originally Posted by lightyear View Post
I finished making the c.f doors they weigh 2.3 kg's. About 5 poinds.
I'd be interested in a set of doors with no inner section. We run "NASCAR" door bars that protrude into the doors. Contact me though our website for details.
emilio700 is offline   Reply With Quote
Old 02-24-2010, 01:50 AM   #14
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

I have been waiting for this...MICROTECH. Are you running an LT-8? I posted like 2 years ago about Microtech and nobody responded with ****, cause I don't know of anybody running it. A few members are running HalTech, but not Microtech.
thirdgen is offline   Reply With Quote
Old 02-24-2010, 06:17 AM   #15
Junior Member
Thread Starter

Join Date: Aug 2009
Location: melbourne aus
Posts: 450
Total Cats: 41
Default

Quote:
Originally Posted by emilio700 View Post
I'd be interested in a set of doors with no inner section. We run "NASCAR" door bars that protrude into the doors. Contact me though our website for details.
I worked out the labour and materials for the doors. $1260au each.

I would just infuse the whole door and the inside would have to be cut out after.

Details on hardtop- mx5cartalk.com • View topic - Carbon fibre Vac Infused Hardtops -taking orders now-

Details on doors- mx5cartalk.com • View topic - NA6/8 Carbon Fibre VAC INF Doors - Taking orders

I am making NA guards shortly, standard first then wider aero guards. About $500au
lightyear is offline   Reply With Quote
Old 02-24-2010, 06:20 AM   #16
Junior Member
Thread Starter

Join Date: Aug 2009
Location: melbourne aus
Posts: 450
Total Cats: 41
Default

Quote:
Originally Posted by thirdgen View Post
I have been waiting for this...MICROTECH. Are you running an LT-8? I posted like 2 years ago about Microtech and nobody responded with ****, cause I don't know of anybody running it. A few members are running HalTech, but not Microtech.
Yes LT8, i think it is best to use whatever your tuner is familiar with. The fist guy had it spot on then AVO tuned it and it's good but when between cold and normall running temp it hunts at idle. Doesn't really bother me as long as it goes hard at full noise.
lightyear is offline   Reply With Quote
Old 02-24-2010, 10:23 AM   #17
Junior Member

Join Date: Apr 2007
Location: Melboure australia
Posts: 171
Total Cats: 0
Default

Hey Lightyear, welcome aboard !!!, we gotta meet up some time at garage, im not there much due to work commitments but next time im up will need to look out for you, you have some pretty cool **** going on !!!

Zoran
sprx3 is offline   Reply With Quote
Old 02-24-2010, 09:34 PM   #18
Junior Member
Thread Starter

Join Date: Aug 2009
Location: melbourne aus
Posts: 450
Total Cats: 41
Default

I don't get out there much, as my car is not really a road car any more. Although it is still rego'd and i drive it to track days.
lightyear is offline   Reply With Quote
Old 02-26-2010, 06:58 AM   #19
Junior Member
Thread Starter

Join Date: Aug 2009
Location: melbourne aus
Posts: 450
Total Cats: 41
Default

I changed the timing belt today and found the motor has a ported head hks cam and the harmonic balancer is a 1.8 item.



[IMG][/IMG]

[IMG][/IMG]
lightyear is offline   Reply With Quote
Old 03-28-2010, 07:36 PM   #20
Junior Member
Thread Starter

Join Date: Aug 2009
Location: melbourne aus
Posts: 450
Total Cats: 41
Default

I did a coolant reroute and made a v mount set up for the intercooler. Went to a track day to see how it goes and the little heater hose that comes from the inlet to the motor popped off as i didn't mount it properly. All the water came out on the 2nd corner, but i didn't know and did 2 laps. The temp was reading high, but it would come down to 92-93c. As the temp sender was inline on the radiator hose it was just reading air temp - as there was no water to read. Now it is blowing smoke out of the rocker cover breather and down on compression on one cylinder.





Does anyone know what i have done? Head,piston? Do you think it is worth fixing? Or should i go another direction. I am tossing up to pull it apart and rebuild. Or get another complete 1.6 motor to put in for now. Maybe put in an ls1 later, or slowly rebuild my motor.

Last edited by lightyear; 03-28-2010 at 07:53 PM.
lightyear is offline   Reply With Quote
