Old 08-27-2014, 12:14 AM   #41
Senior Member
Thread Starter
iTrader: (6)

Join Date: May 2009
Location: San Francisco
Posts: 989
Total Cats: 23
Default

So it looks like the bolt I moved is the positive output of the alternator, which is why it was insulated in plastic before I cut it apart and welded it back together. I'm planning to coat the entire thing in multiple coats of black epoxy to re-insulate it. Anyone see any problems with that?
wittyworks is offline   Reply With Quote
Old 01-15-2015, 01:23 PM   #42
Senior Member
Thread Starter
iTrader: (6)

Join Date: May 2009
Location: San Francisco
Posts: 989
Total Cats: 23
Default

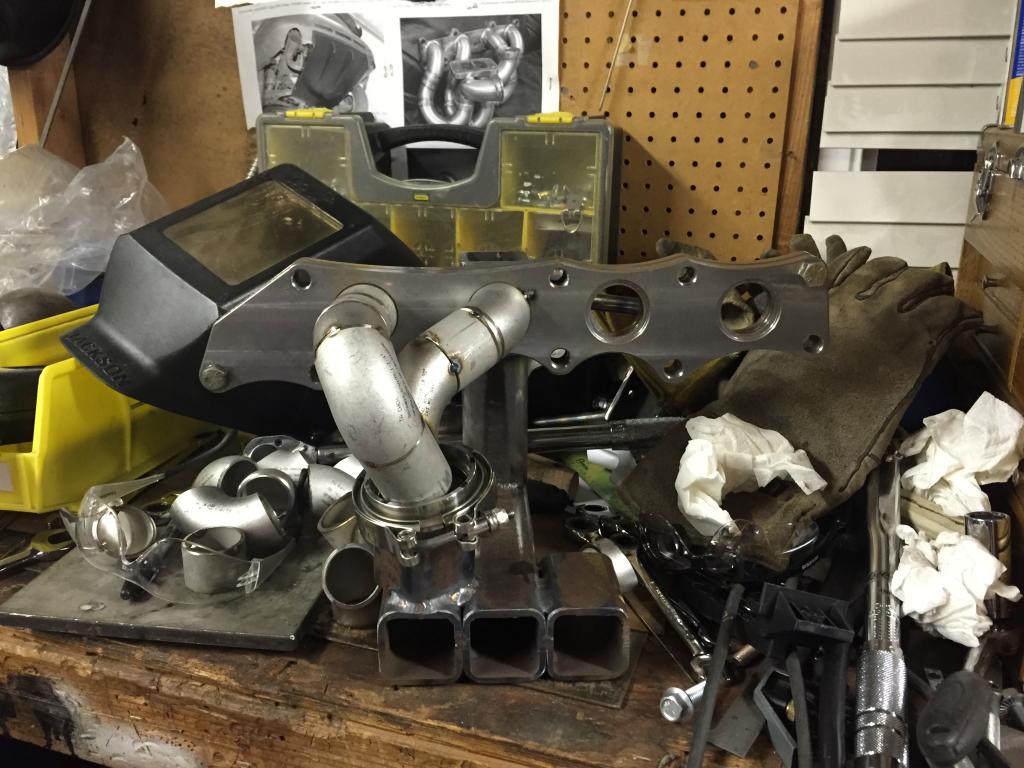

Started on the manifold:

Attached Thumbnails
Project: Can I fit my huge _____ in that tiny space?-img_2156_zps5d7d9125.jpg
wittyworks is offline   Reply With Quote
Old 01-15-2015, 01:28 PM   #43
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Oo, pretty! I love watching these builds. I'm interested to see how the collector comes together at that angle. Are you back in the BA for good?

Also, nice pr0n on the wall above the workbench
EO2K is offline   Reply With Quote
Old 01-15-2015, 01:46 PM   #44
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,701
Total Cats: 269
Default

Are you going for an ECU reflash for Engine Management?
DNMakinson is offline   Reply With Quote
Old 01-15-2015, 02:02 PM   #45
Senior Member
Thread Starter
iTrader: (6)

Join Date: May 2009
Location: San Francisco
Posts: 989
Total Cats: 23
Default

Quote:
Originally Posted by EO2K View Post
Oo, pretty! I love watching these builds. I'm interested to see how the collector comes together at that angle. Are you back in the BA for good?

Also, nice pr0n on the wall above the workbench
Yes, it is going to be pretty tough to get the other two runners to meet nicely at the collector. I may have to move the two runners I started with, but I'm happy to have actually started working on the manifold!
wittyworks is offline   Reply With Quote
Old 01-15-2015, 02:09 PM   #46
Senior Member
Thread Starter
iTrader: (6)

Join Date: May 2009
Location: San Francisco
Posts: 989
Total Cats: 23
Default

Quote:
Originally Posted by DNMakinson View Post
Are you going for an ECU reflash for Engine Management?
I will be using one of two tuners, haven't made my mind up yet. They will be using a program called ECUtek to reflash the stock ecu. There is also a racerom aspect to the reflash that will opens up a bunch of other features such as launch control and other cool stuff.
wittyworks is offline   Reply With Quote
Old 01-15-2015, 02:14 PM   #47
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Quote:
Originally Posted by wittyworks View Post
There is also a racerom aspect to the reflash that will opens up a bunch of other features such as launch control and other cool stuff.
In the stock ECU? Really? Thats kinda awesome actually.
EO2K is offline   Reply With Quote
Old 01-16-2015, 05:14 AM   #48
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

Quote:
Originally Posted by wittyworks View Post
I will be using one of two tuners, haven't made my mind up yet. They will be using a program called ECUtek to reflash the stock ecu. There is also a racerom aspect to the reflash that will opens up a bunch of other features such as launch control and other cool stuff.
We've been using an ecutek reflash on our 2010 endurance car without problems. Launch control, flatshift and map switching all available through cruise control switches. It was one of the few things on that car that didn't give us any problems
Oscar is offline   Reply With Quote
Old 01-16-2015, 10:54 AM   #49
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,776
Total Cats: 1,106
Default

Quote:
Originally Posted by Oscar View Post
We've been using an ecutek reflash on our 2010 endurance car without problems. Launch control, flatshift and map switching all available through cruise control switches. It was one of the few things on that car that didn't give us any problems
Does ecutek let you tune for boost and such? I am slowly looking into NC's. Engine management will be one of the big deciders on if I pick one up or not.
shuiend is offline   Reply With Quote
Old 01-16-2015, 10:59 AM   #50
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by shuiend View Post
Does ecutek let you tune for boost and such? I am slowly looking into NC's. Engine management will be one of the big deciders on if I pick one up or not.
Yes, but DIY tuning with the ECUTek is stupid expensive, its like $1500 for the cable or something dumb. Theres another tuner that works well with the NC thats much much cheaper, I forget what its called, does most of the same stuff as the ECUTek. There's also the mazdatune or what ever its called that supports almost all the new mazdas and thats also pretty cheap for a DIYer but theres like no info on the internet of people using it and whats out there makes the interface look like a bitch to work with. Not quite hydra 2.6 and older bitch, but pretty bad.
Leafy is offline   Reply With Quote
Old 01-16-2015, 11:36 AM   #51
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

Don't know about boost. You need the obd to usb cable though but in sure it was less than 1500. I did like how you could log literally everything through the stock ecu and sensors.
Oscar is offline   Reply With Quote
Old 01-16-2015, 11:45 AM   #52
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by Oscar View Post
Don't know about boost. You need the obd to usb cable though but in sure it was less than 1500. I did like how you could log literally everything through the stock ecu and sensors.
Its $800 for just the cable and software. Racerom costs more on top of that EcuTek ProECU Programming Kit and Datalogger with MOTOEAST REFLASH for MX5, Basic Normally Aspirated Tuning

Open flash is the one I was thinking of thats only $500. And Mazdaedit is only $250 + a tactrix cable, but thats the one with the crappy interface.
Leafy is offline   Reply With Quote
Old 02-09-2015, 02:31 AM   #53
Senior Member
Thread Starter
iTrader: (6)

Join Date: May 2009
Location: San Francisco
Posts: 989
Total Cats: 23
Default

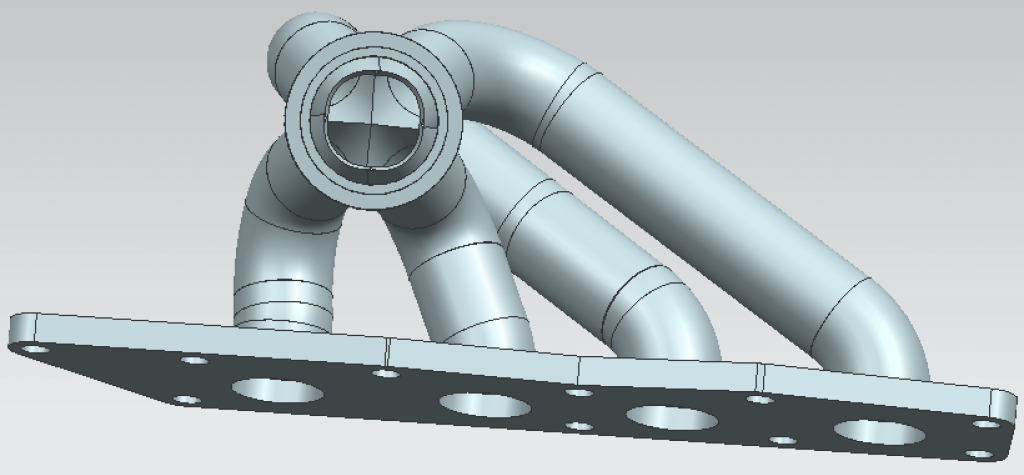

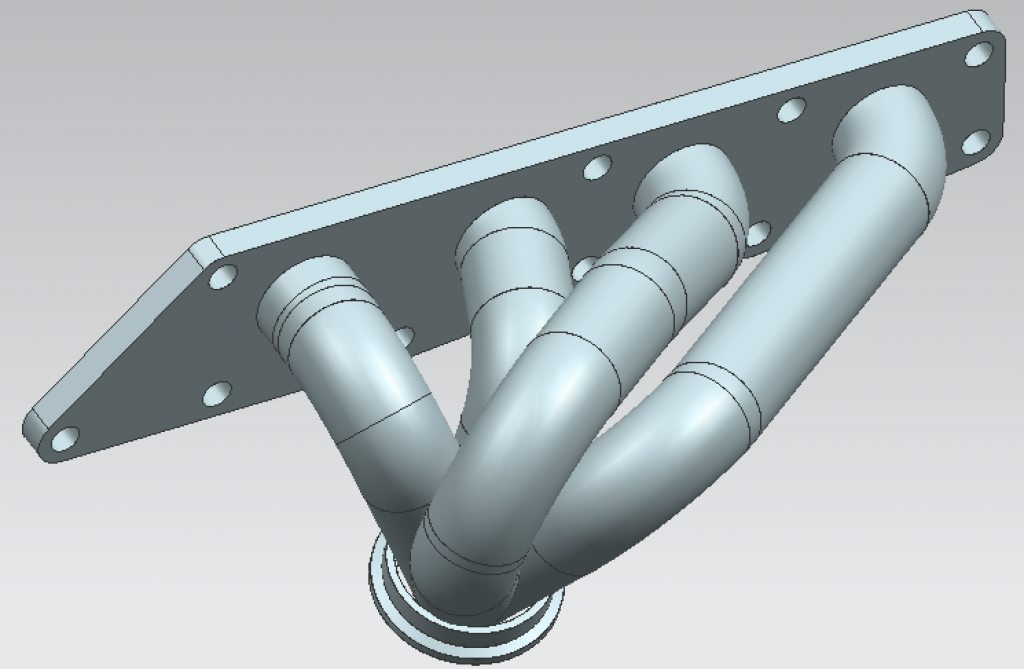

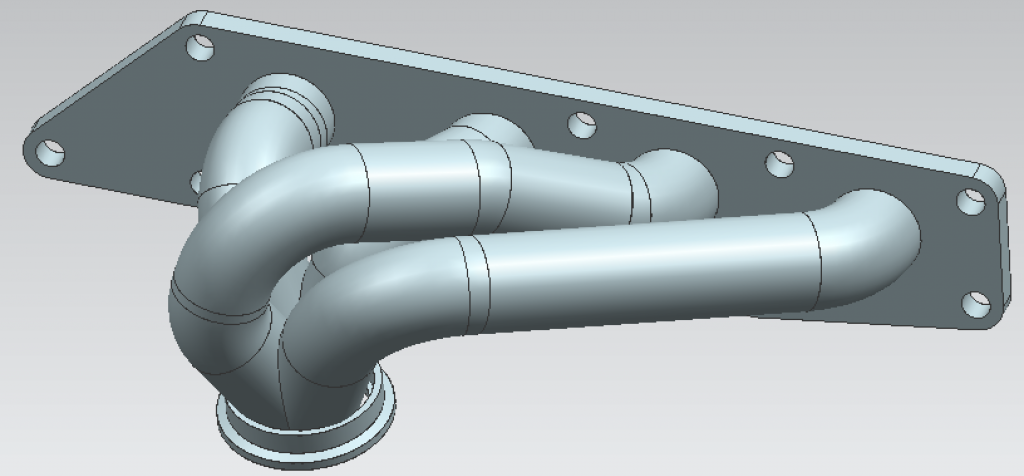

I wasn't sure that the initial manifold design was going to come together, so I cad'ed up this design and am going to start over with this design. Using a real 4-1 collector.





Attached Thumbnails
Project: Can I fit my huge _____ in that tiny space?-screenshot2015-02-08at102224pm_zpse413112c.png   Project: Can I fit my huge _____ in that tiny space?-screenshot2015-02-08at102259pm_zps8d2a3f4e.png   Project: Can I fit my huge _____ in that tiny space?-screenshot2015-02-08at102457pm_zps2f5102ee.png
wittyworks is offline   Reply With Quote
Old 02-09-2015, 09:13 AM   #54
Newb

Join Date: Jan 2015
Location: Fayetteville, NC
Posts: 28
Total Cats: 0
Default

nifty! I like the armature for placing the turbo. Any concerns about the runners hitting anything?
MG_Miata is offline   Reply With Quote
Old 02-09-2015, 03:17 PM   #55
Senior Member
Thread Starter
iTrader: (6)

Join Date: May 2009
Location: San Francisco
Posts: 989
Total Cats: 23
Default

Tiny concern with it contacting a body piece that is protruding, but that is a small concern because there is about an inch of material that could be cut away if necessary. I don't think it will contact, and I don't want to cut into that piece.
wittyworks is offline   Reply With Quote
Old 02-11-2015, 01:20 AM   #56
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Better take down those renders, those look FAR better than what those jackholes at Tuning Done Rong have come up with and I bet they jack your design.

Looking good man!
EO2K is offline   Reply With Quote
Old 02-11-2015, 01:50 AM   #57
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Quote:
Originally Posted by EO2K View Post
Better take down those renders, those look FAR better than what those jackholes at Tuning Done Rong have come up with and I bet they jack your design.

Looking good man!
No worries, they will probably spot weld the turbo to the manifold.
triple88a is offline   Reply With Quote
Old 02-11-2015, 02:15 AM   #58
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Quote:
Originally Posted by triple88a View Post
No worries, they will probably spot weld the turbo to the manifold.
Its funny because its not outside the realm of possibility.
EO2K is offline   Reply With Quote
Old 02-11-2015, 05:27 PM   #59
Senior Member
Thread Starter
iTrader: (6)

Join Date: May 2009
Location: San Francisco
Posts: 989
Total Cats: 23
Default

At this point I wouldn't really mind if someone copied my design. Once I get the efr on there and other NC people see the performance of it, I bet there will be a lot of people who want the system replicated. I'm not building parts to sell anymore, so someone will have to copy it. It's literally the only low mount location that will fit an EFR so not much can change design wise.
wittyworks is offline   Reply With Quote
Old 02-11-2015, 05:34 PM   #60
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,192
Total Cats: 2,583
Default

Quote:
Originally Posted by triple88a View Post
No worries, they will probably spot weld the turbo to the manifold.
Quote:
Originally Posted by EO2K View Post
Its funny because its not outside the realm of possibility.
Better yet, seam-weld mani to head.
18psi is offline   Reply With Quote
