Old 12-31-2014, 03:14 PM   #21
Junior Member
iTrader: (1)

Join Date: Jun 2014
Location: Metro Detroit
Posts: 270
Total Cats: 26
Default

*picking my jaw off the floor*

Rear drive + Mini = A dream come true.

I am super excited to see this project come to fruition.
Ryephile is offline   Reply With Quote
Old 12-31-2014, 03:21 PM   #22
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 783
Default

This is awesome!

Attached Thumbnails
Project Stella MX-fvskk.jpg
concealer404 is offline   Reply With Quote
Old 12-31-2014, 05:57 PM   #23
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,680
Total Cats: 1,561
Default

Quote:
Originally Posted by concealer404 View Post
This is awesome!
Agreed.
sixshooter is online now   Reply With Quote
Old 02-20-2015, 03:25 PM   #24
Junior Member
Thread Starter

paulw's Avatar

Join Date: Oct 2014
Location: Leeds,UK
Posts: 62
Total Cats: -6
Default

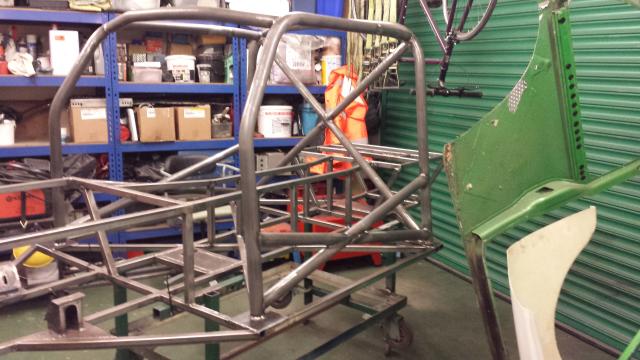

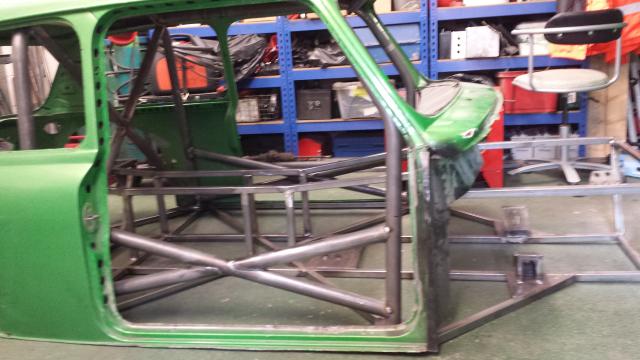

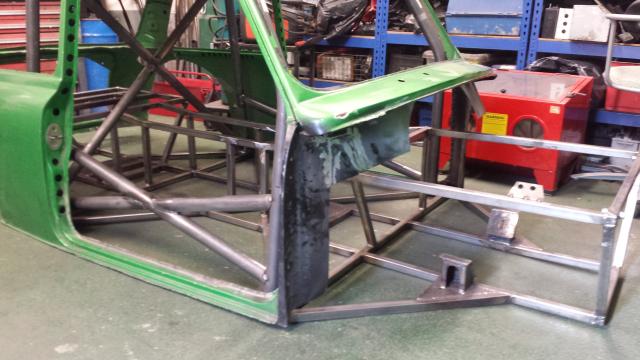

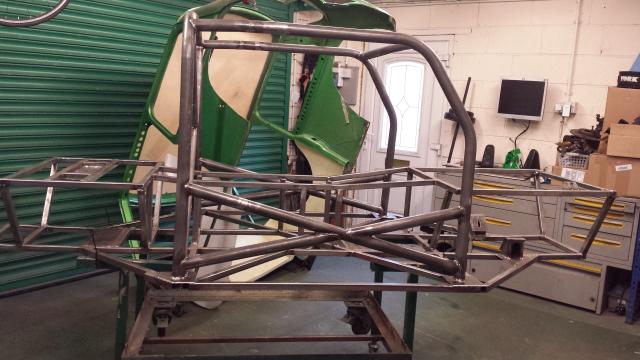

Started again with the welding. I've got the main cage fully welded up and it just needs to be tied into the front and back subframes and get a bit more triangulation in there.




And sat the shell over the climbing frame





Should get a moving a bit quicker now

my next issue is measuring up for the wishbones? Anyone got any thoughts?

Paul
Attached Thumbnails
Project Stella MX-20150222_141754_zpslyqxzljm.jpg   Project Stella MX-20150222_141826_zpstkgqxgjx.jpg   Project Stella MX-20150222_101552_zpsjbwgtfqh.jpg   Project Stella MX-20150222_101545_zpsfjmh7e4u.jpg

Last edited by paulw; 02-22-2015 at 04:03 PM.
paulw is offline   Reply With Quote
Old 02-22-2015, 04:05 PM   #25
Junior Member
Thread Starter

paulw's Avatar

Join Date: Oct 2014
Location: Leeds,UK
Posts: 62
Total Cats: -6
Default

Link sorted....i had a few issues with my tablet.

paul
paulw is offline   Reply With Quote
Old 02-22-2015, 04:51 PM   #26
Senior Member
iTrader: (2)

williams805's Avatar

Join Date: Oct 2013
Location: Goleta, Southern California
Posts: 510
Total Cats: 25
Default

Are you solid mounting the trans with rubber bushings one the engine?
williams805 is offline   Reply With Quote
Old 02-22-2015, 05:49 PM   #27
Senior Member

Join Date: Oct 2011
Location: The Race Track & St Pete FL
Posts: 587
Total Cats: 47
Default

1993ka24det is offline   Reply With Quote
Old 02-22-2015, 06:22 PM   #28
Junior Member
Thread Starter

paulw's Avatar

Join Date: Oct 2014
Location: Leeds,UK
Posts: 62
Total Cats: -6
Default

Quote:
Originally Posted by williams805 View Post
Are you solid mounting the trans with rubber bushings one the engine?
Sorry not sure i understand your question?

the engine is mounted on very hard rubber landrover mounts. The gearbox will be mounted on a plate with 4 x smaller bobbins. If it moves too much i can put a damper on the engine as a steady. It should be ok though.

paul
paulw is offline   Reply With Quote
Old 02-22-2015, 08:38 PM   #29
Senior Member
iTrader: (2)

williams805's Avatar

Join Date: Oct 2013
Location: Goleta, Southern California
Posts: 510
Total Cats: 25
Default

Oh good. Didn't seem like a good idea to have engine on rubber and trans solid mount. Sounds like you will also be mounting the trans on rubber.
williams805 is offline   Reply With Quote
Old 03-22-2015, 05:03 PM   #30
Junior Member
Thread Starter

paulw's Avatar

Join Date: Oct 2014
Location: Leeds,UK
Posts: 62
Total Cats: -6
Default

A bit of an update....I've been really busy in the garage but doesn't look like much. I'm down to what i didn't realize was going to be so complicated and that is making the wishbones. Making them is easy, measuring and testing isn't. There is tons of stuff to take into account and I've learnt so much about suspension geometry.

I found a brilliant bit of kit racing aspirations. Once you have measured you enter the data into it and you can see what effects what and see what happens to the roll center and camber in a corner.

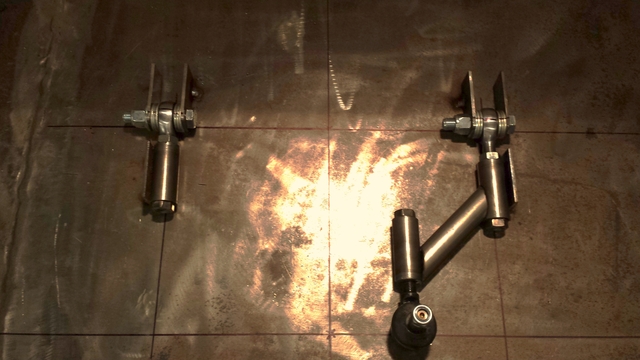

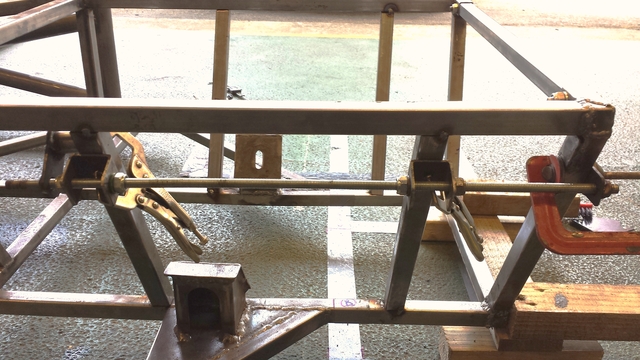

I've made brackets for one side......mirror image for the other side. The racing Aspirations site has helped withe the placement of the brackets.

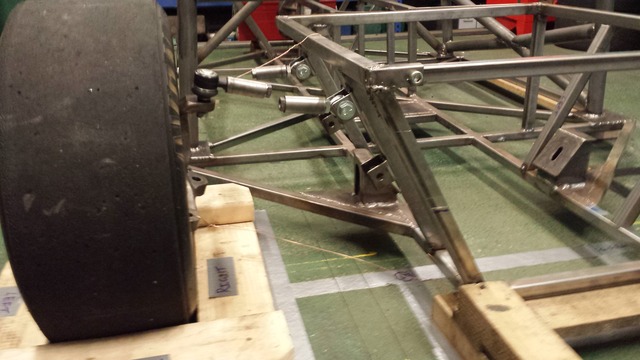

The start of a jig for the upper control arms that's just welded to the bench



Paul
Attached Thumbnails
Project Stella MX-1cd0e798-bfb7-4a3b-81da-c57d388a9cc4_zpsik1mxyvq.jpg   Project Stella MX-20150322_181808_zpskscjgy53.jpg   Project Stella MX-8fc9acab-f9fb-4bfa-a384-69297a5cbe5b_zpsmq6esix2.jpg
paulw is offline   Reply With Quote
Old 03-23-2015, 12:04 AM   #31
Junior Member
iTrader: (1)

that7guy's Avatar

Join Date: Apr 2005
Location: Bethesda, MD
Posts: 428
Total Cats: 7
Default

Quote:
Originally Posted by 1993ka24det View Post
Very cool build. This reminds me of this build I have been following for about a year now.
The first thing I thought of was Project Binky as well
that7guy is offline   Reply With Quote
Old 04-07-2015, 06:19 PM   #32
Junior Member
Thread Starter

paulw's Avatar

Join Date: Oct 2014
Location: Leeds,UK
Posts: 62
Total Cats: -6
Default

Project Binky will be a bit of a trailer queen i think. Mine will be ragged around the tracks of the UK.

Here's the latest

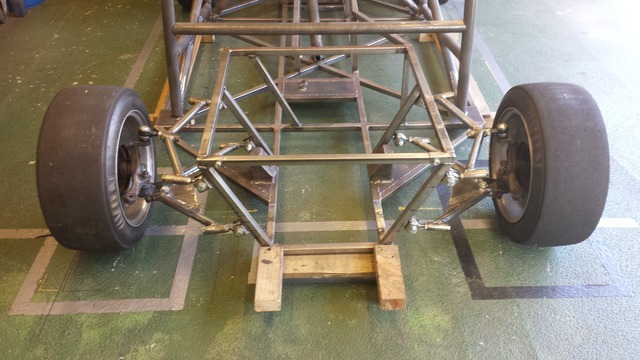

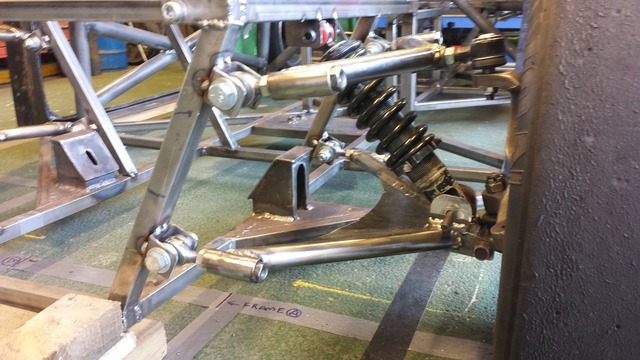

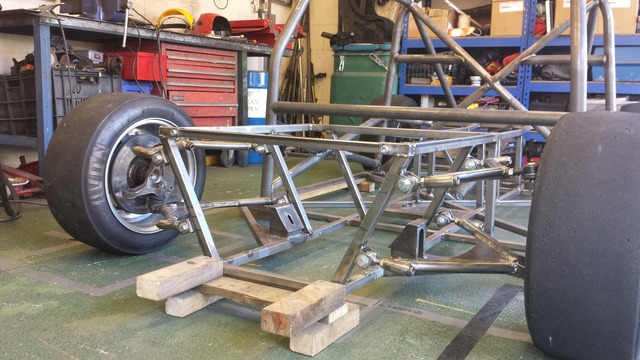

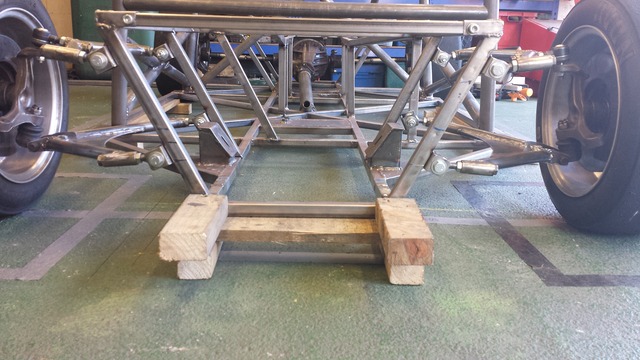

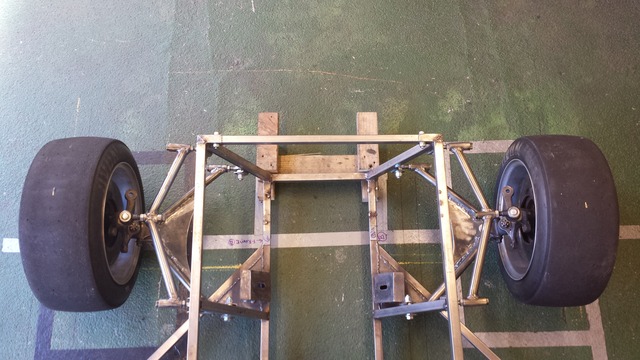

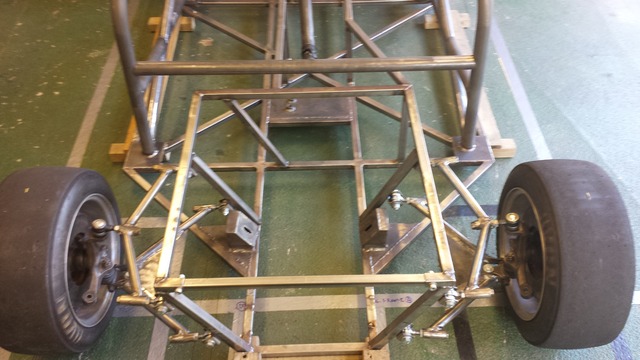

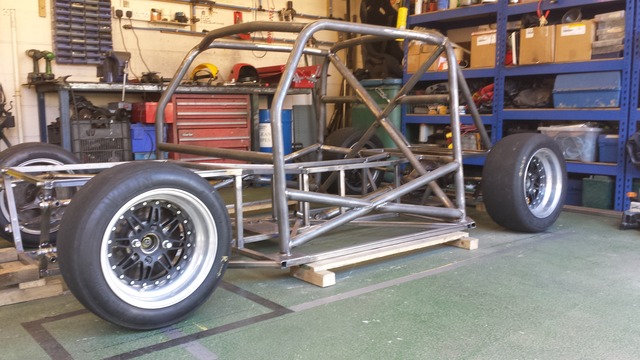

Front wishbones are done. Pickup points are still only tacked on. They are fully adjustable on car so setting it up should be easy













I made a start on the backs today but didn't get much done. I need some short coil overs.

Its taken me a lot more time than i thought it would. I hoped to have all the wishbones finished by close of play tomorrow but this isn't going to happen. I should have a full weekend on her though.

Paul
Attached Thumbnails
Project Stella MX-20150407_114554_zpsz3rnqkcs.jpg   Project Stella MX-20150407_114620_zpswfyvgscx.jpg   Project Stella MX-20150407_114650_zpslmbwz21s.jpg   Project Stella MX-20150407_114541_zpsuqirx5zh.jpg   Project Stella MX-20150407_114530_zps9zk5ga28.jpg

Project Stella MX-20150407_114517_zpsiaj3ndju.jpg
paulw is offline   Reply With Quote
Old 04-07-2015, 06:27 PM   #33
Senior Member

Join Date: Oct 2011
Location: The Race Track & St Pete FL
Posts: 587
Total Cats: 47
Default

That looks good. You weight should be around 1500lbs (682kgs)
1993ka24det is offline   Reply With Quote
Old 04-07-2015, 06:37 PM   #34
Junior Member
Thread Starter

paulw's Avatar

Join Date: Oct 2014
Location: Leeds,UK
Posts: 62
Total Cats: -6
Default

Quote:
Originally Posted by 1993ka24det View Post
That looks good. You weight should be around 1500lbs (682kgs)
Out of curiosity, what are you basing that overall weight on?

Paul
paulw is offline   Reply With Quote
Old 04-11-2015, 05:45 PM   #35
Junior Member
Thread Starter

paulw's Avatar

Join Date: Oct 2014
Location: Leeds,UK
Posts: 62
Total Cats: -6
Default

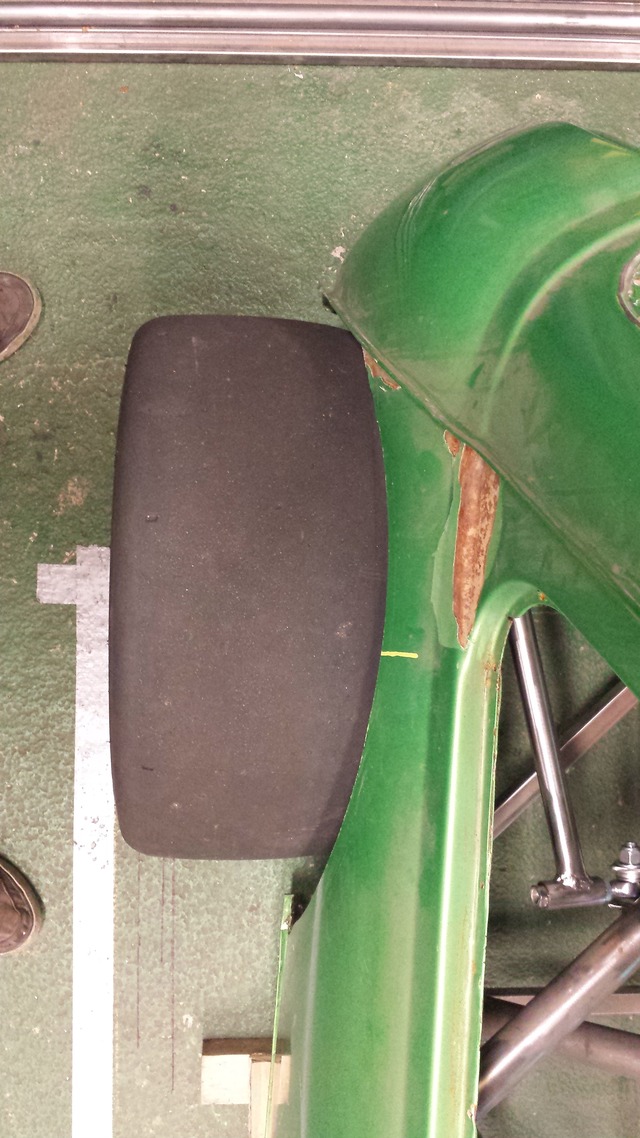

I might have to get another set of 7" Avons this is a shot of the 8" wide tyre i was running on the front of Stella when i was running the big Vauxhall/Opel

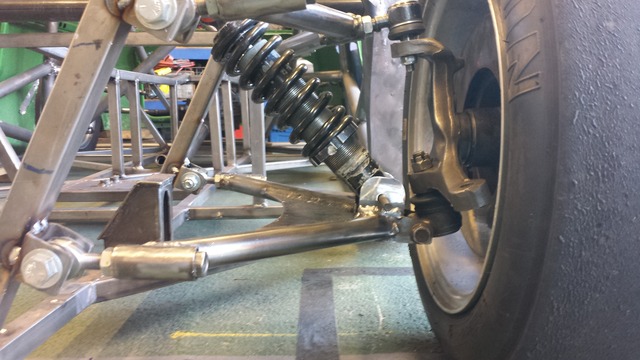

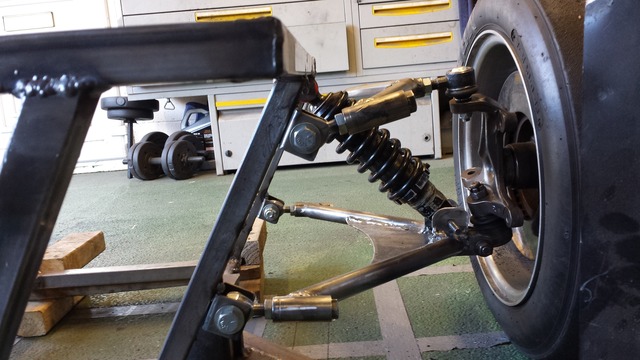

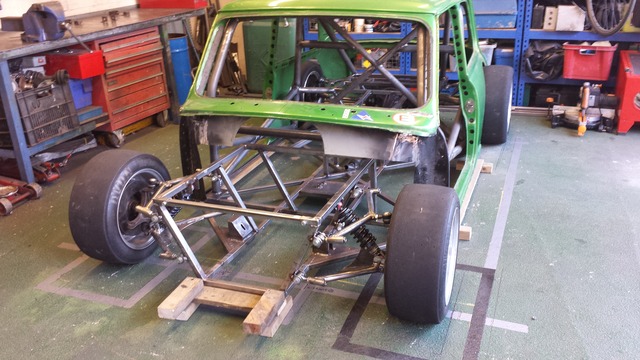

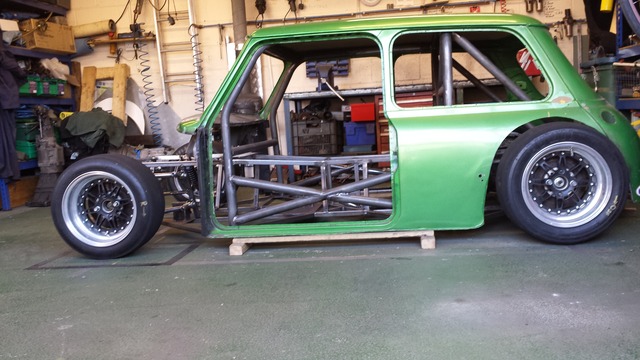

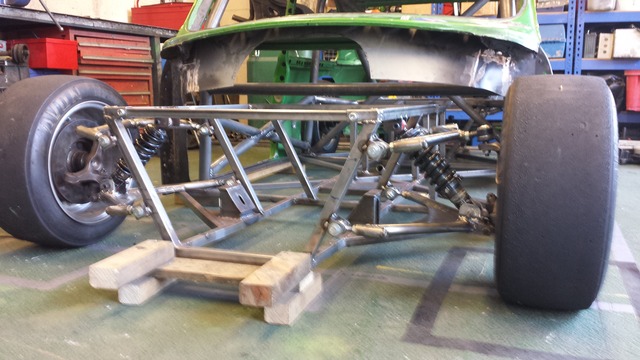

Anyway that's a long way off yet. I finished up the front suspension today, well i finished mocking it all up and used the AVO coilovers i was running last year. They are too long so will need some shorter units.



Thats the shortest springs i have and the unit is still bottomed out

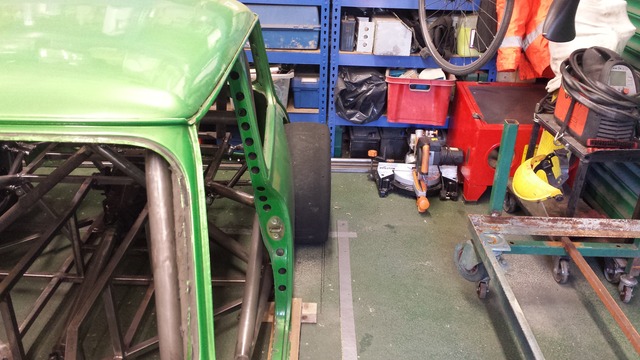

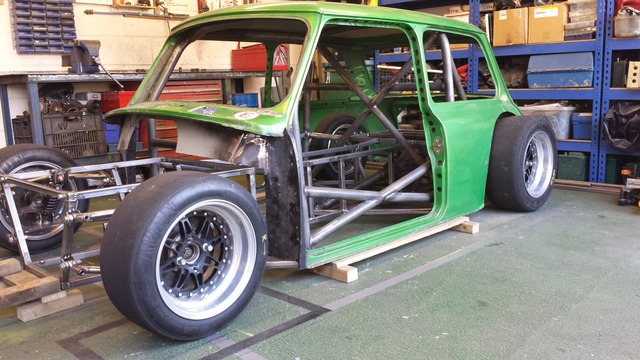

This is a bit of a comedy shot the wheels look like totally different sizes



I still need to make the rear LCA's I might crack on with this tomorrow.

Paul
Attached Thumbnails
Project Stella MX-20150411_174808_zpsmgckfs0f.jpg   Project Stella MX-20150411_174904_zpsjxrezysu.jpg   Project Stella MX-20150411_173905_zpskkfsevdu.jpg   Project Stella MX-20150411_173829_zpsip4mfceh.jpg   Project Stella MX-20150411_173819_zpsd1ijbimu.jpg

Project Stella MX-20150411_173810_zpswzwmpo2a.jpg   Project Stella MX-20150411_173750_zpsf2bcdjyb.jpg   Project Stella MX-20150411_173739_zps2xbpcymn.jpg   Project Stella MX-20150411_173725_zpsraovlisb.jpg
paulw is offline   Reply With Quote
Old 04-11-2015, 09:24 PM   #36
Senior Member
iTrader: (8)

paNX2K&SE-R's Avatar

Join Date: Dec 2007
Location: Mocksville, NC
Posts: 676
Total Cats: 11
Default

Great progress it's really starting to come together now.
paNX2K&SE-R is offline   Reply With Quote
Old 04-12-2015, 08:28 AM   #37
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,680
Total Cats: 1,561
Default

The front suspension looks like it has good travel available to it upwards (aside from the shocks bottoming) but the frame would touch the ground. Are the connection points for the control arms to the chassis mounted too high (I have never built a suspension and have no idea what I am doing)?
sixshooter is online now   Reply With Quote
Old 04-19-2015, 05:34 PM   #38
Junior Member
Thread Starter

paulw's Avatar

Join Date: Oct 2014
Location: Leeds,UK
Posts: 62
Total Cats: -6
Default

Quote:
Originally Posted by sixshooter View Post
The front suspension looks like it has good travel available to it upwards (aside from the shocks bottoming) but the frame would touch the ground. Are the connection points for the control arms to the chassis mounted too high (I have never built a suspension and have no idea what I am doing)?
So long as my calculations are right then it will be fine. The damping will be set to "man" with 500 l/b springs on the front it will not bottom out. The ride height can come up a bit maybe 10mm or so.

Don't get me wrong though this is all new to me and there is a certain amount of "suck it see" going on. It only gluing metal together.

Paul
paulw is offline   Reply With Quote
Old 04-19-2015, 05:35 PM   #39
Junior Member
Thread Starter

paulw's Avatar

Join Date: Oct 2014
Location: Leeds,UK
Posts: 62
Total Cats: -6
Default

Reet, this seemed a good point to take a break from building for a few weeks. I've been on it for about 6 weeks now doing the wishbones which took way longer than i thought.

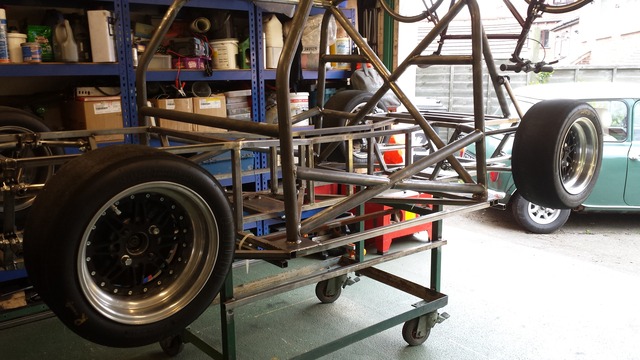

I thought it better to do a bit of a walk round before stripping it down and welding all the mounts and pick up points. I have to alter the gearbox mount as its way over engineered......(too heavy). The diff is also going to be changed for the same reason, still keeping the MX5 diff but getting a custom cover from Talon Motorsport that will be easier to mount.

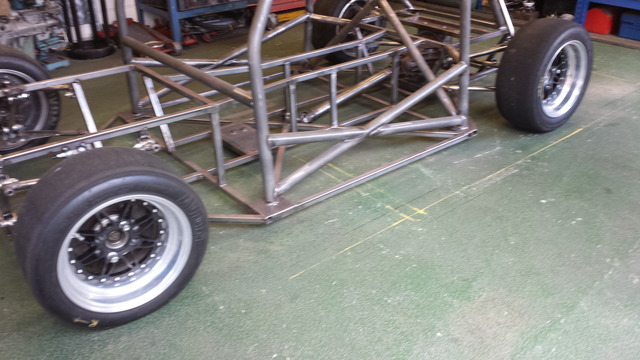

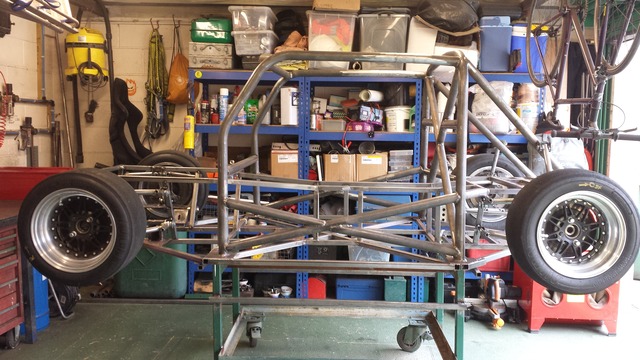

And this is where she sits waiting

Name:  20150419_175252_zpshwccjjzh.jpg
Views: 6
Size:  128.6 KB

Name:  20150419_175237_zpsqewtnwzi.jpg
Views: 6
Size:  148.5 KB

Name:  20150419_150832_zps0fvu3xl8.jpg
Views: 5
Size:  117.4 KB

More updates in a few weeks

Paul
Attached Thumbnails
Project Stella MX-20150419_175252_zpshwccjjzh.jpg   Project Stella MX-20150419_175237_zpsqewtnwzi.jpg   Project Stella MX-20150419_150832_zps0fvu3xl8.jpg
paulw is offline   Reply With Quote
Old 06-07-2015, 10:10 AM   #40
Junior Member
Thread Starter

paulw's Avatar

Join Date: Oct 2014
Location: Leeds,UK
Posts: 62
Total Cats: -6
Default

Sorry to those who were genuinely interested in my project. There will be no more updates.

Best wishes Paul
paulw is offline   Reply With Quote
