Old 12-23-2013, 05:21 PM   #41
Junior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2008
Location: Irvine, Ca
Posts: 277
Total Cats: 23
Default

My turbo kill ratio is still higher than my blower one
cjsafski is offline   Reply With Quote
Old 12-23-2013, 05:21 PM   #42
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

Damn, fail-aids. +1 for turbo, get a nice 2860 or something on there.
Fireindc is offline   Reply With Quote
Old 12-23-2013, 05:26 PM   #43
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 782
Default

The thing is, much as i hate to point this out...

Almost none of those issues are supercharger related. Yeah, the supercharger went bad, but... if that never happened to turbos, you couldn't buy rebuild kits.
concealer404 is offline   Reply With Quote
Old 12-24-2013, 03:55 AM   #44
Junior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2008
Location: Irvine, Ca
Posts: 277
Total Cats: 23
Default

Concealer hit on the irony of a a lot of the fails. Most were not FI related or issues I have had before. As far as the blower letting go I need to dissect it to pass judgement.
cjsafski is offline   Reply With Quote
Old 12-24-2013, 04:12 AM   #45
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,192
Total Cats: 2,583
Default

I'm having a hard time following you guys on this one (and its not because I'm here to hate on the sc, I actually had one myself recently), but how is the supercharger failing not a supercharger issue?

I mean if it ingested something then sure, but other than that, its a self contained, self oiled unit....
18psi is offline   Reply With Quote
Old 12-24-2013, 07:37 AM   #46
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by 18psi View Post
I'm having a hard time following you guys on this one (and its not because I'm here to hate on the sc, I actually had one myself recently), but how is the supercharger failing not a supercharger issue?
.
It is, but the rest aren't directly related to the blower failing.

I'll throw it out there that the blower overheated, the rotors expanded and touched the fore and aft parts of the casing.

BTDT....

BTW, Dual throttles don't help this issue in the slightest as they cause the blower to run quite a bit hotter. Particularly if they're not perfectly balanced.
richyvrlimited is offline   Reply With Quote
Old 12-24-2013, 10:50 AM   #47
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 782
Default

Quote:
Originally Posted by 18psi View Post
I'm having a hard time following you guys on this one (and its not because I'm here to hate on the sc, I actually had one myself recently), but how is the supercharger failing not a supercharger issue?

I mean if it ingested something then sure, but other than that, its a self contained, self oiled unit....

Sure, because nobody has ever had a turbo fail. (I actually just replaced one)

I'm just saying that the comedy of errors isn't caused by supercharger in this case.
concealer404 is offline   Reply With Quote
Old 12-24-2013, 12:49 PM   #48
Junior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2008
Location: Irvine, Ca
Posts: 277
Total Cats: 23
Default

I don't think the blower overheated since I still could touch it after coming off the track. Need to get a better thermometer than "ow it hurts must be hot." Either way I plan to pull it today and look at it.
cjsafski is offline   Reply With Quote
Old 12-24-2013, 03:30 PM   #49
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,192
Total Cats: 2,583
Default

Quote:
Originally Posted by concealer404 View Post
Sure, because nobody has ever had a turbo fail. (I actually just replaced one)

I'm just saying that the comedy of errors isn't caused by supercharger in this case.
relax for a second lol. I'm not hating on his supercharger. I know the other stuff is probably unrelated, I'm not trippin about that.
18psi is offline   Reply With Quote
Old 12-24-2013, 03:38 PM   #50
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 782
Default

Quote:
Originally Posted by 18psi View Post
relax for a second lol. I'm not hating on his supercharger. I know the other stuff is probably unrelated, I'm not trippin about that.


NO. I'M SUPER MAD.
concealer404 is offline   Reply With Quote
Old 12-25-2013, 01:49 AM   #51
Junior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2008
Location: Irvine, Ca
Posts: 277
Total Cats: 23
Default

So dived a bit into the car. Started off checking the blower. Spun freely. I took the rotor pack out and it looked as good as when I assembled it so doubt the boost issue was blower related. Noises in the blower may be a bearing. Need to investigate that further.

Only leak I could find was the BOV which did not want to actuate either. My BOV sits upside down on the IC so I found the leak by filling the IC with water and watching for drips. Possible source of my 7 psi leak.

The bad news is the motor. Decided to do a compression test so idled the car until up to temp. 150-172-165-170 which is a bit down from the 185 all across after it was broken in. Pressurized number one to see why compression is lower than the others and I have leaky intake valves on that cylinder. Checked it against number four which I could not pressurize since it just spun the motor. So boo
cjsafski is offline   Reply With Quote
Old 12-25-2013, 12:31 PM   #52
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

Did you try a wet compression test? How about a leakdown test, if so what was the % leak?

As long as it doesn't smoke and whatnot i'd just run it
Fireindc is offline   Reply With Quote
Old 12-25-2013, 01:52 PM   #53
Junior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2008
Location: Irvine, Ca
Posts: 277
Total Cats: 23
Default

I used my ghetto homebrew leakdown tester to at least see where the issue was. It doesn't give numbers though. Going to just buy a real leak down tester and go from there.
cjsafski is offline   Reply With Quote
Old 01-04-2014, 10:43 PM   #54
Junior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2008
Location: Irvine, Ca
Posts: 277
Total Cats: 23
Default

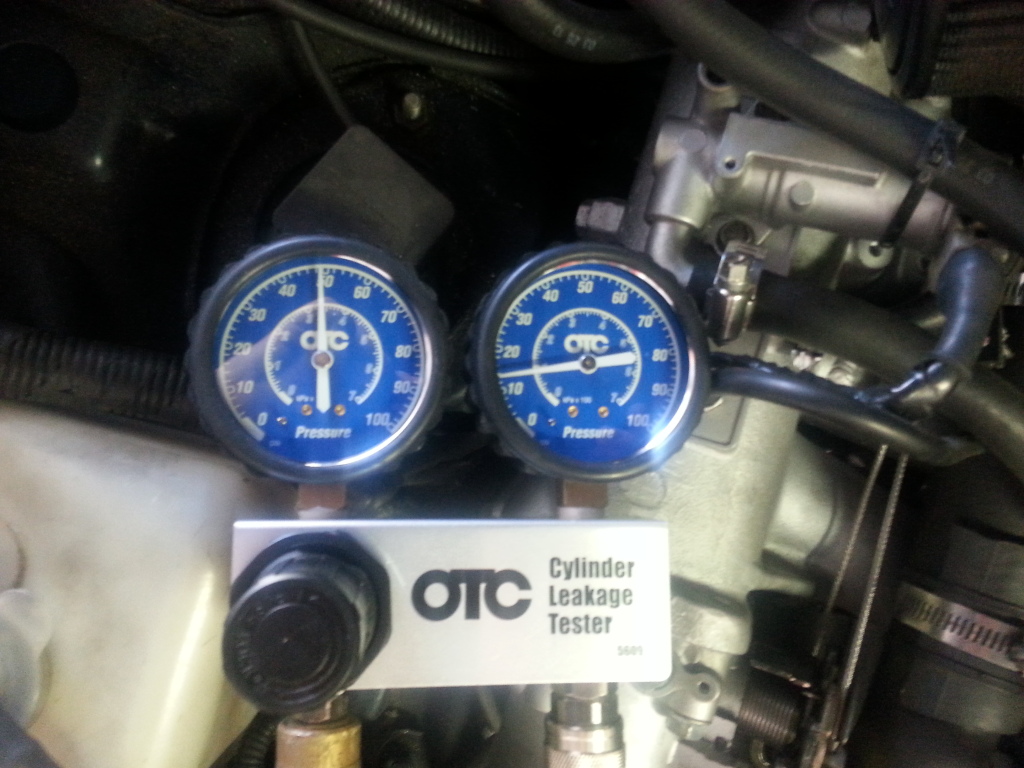

Finally got time to do a proper leakdown test. Leakdown on one was 70% cold on number one with very audible leaking from the intake valves. I rechecked compression and it was 120 cold. I then added oil and still 120. I then took the valve cover off and checked the lash on the number one intake valves. One was in spec and the other I could not get any feelers under. Decided to take the cams out to get around the lash issue and redo leakdown. Results were 18%-10%-6%-4% still with some audible leakage from the valves.

The cheap bastard part of me wants to reset the lash and go but I have a feeling there may be bigger issues. I find it odd that on the same cylinder the lash stayed in spec for one valve and not for the other. My concern is something may have happened to the valve or seat which then allowed it to sit higher up. I am thinking the next step may be to pull the head and see what is up.

Attached Thumbnails
Supercharged Frankencar; Dem Throttle Responses and Typical BS-20140104_115305_zps5bac2b10.jpg
cjsafski is offline   Reply With Quote
Old 01-26-2014, 12:32 AM   #55
Junior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2008
Location: Irvine, Ca
Posts: 277
Total Cats: 23
Default

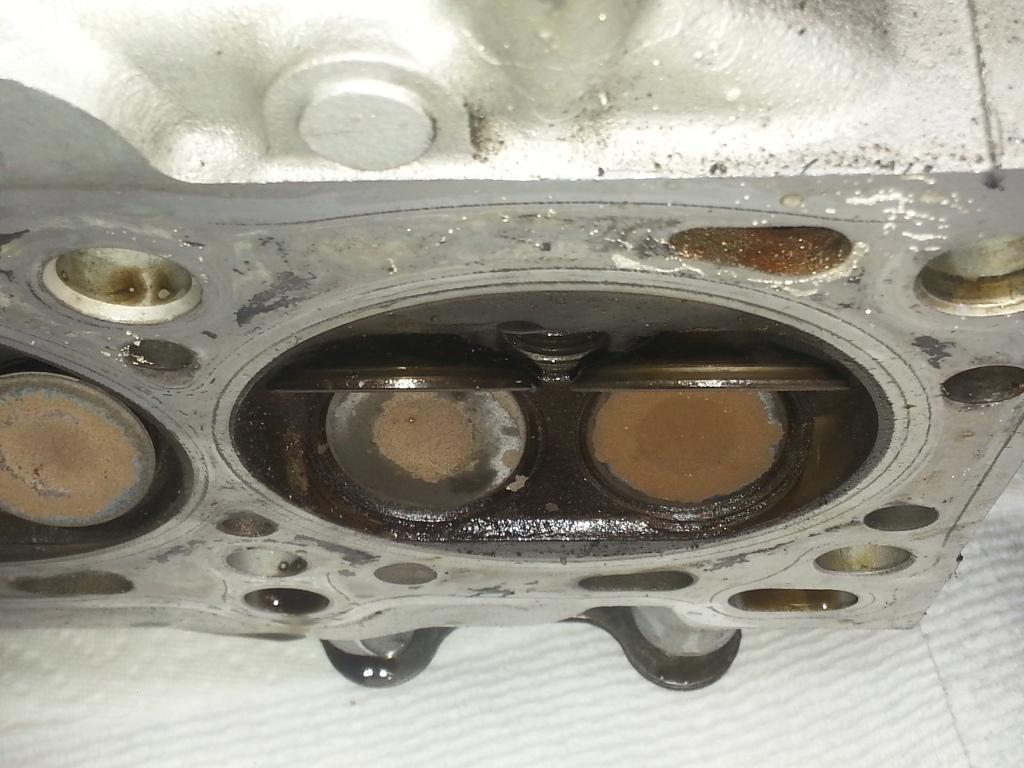

So the problem was with the intake valves pounding themselves to death. The exhaust were fine.

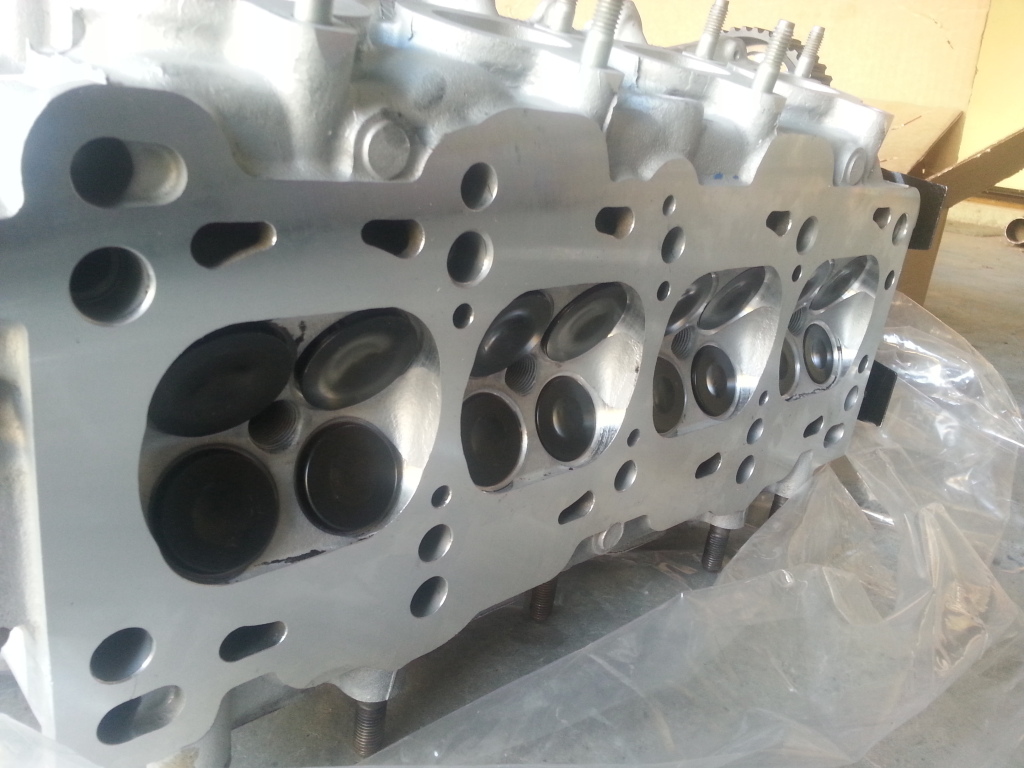

Head is now rebuilt and going in soon. Also now has supertech dual springs in it and deshrouded valves. I am curious to redyno it since I figure the valves were already starting to go when I got the last dyno.

Also learned that my exhaust is smaller than I thought when I measured it to double check the size. I have a 11+ year old racing beat that my car came with and apparently they were 2.25" instead of the current 2.375. I am going to sell it and build a 2.5" for it which based of off how the car performed on the dyno this should help a lot. Just removing the dyno sniffer picked up 5 hp.

Attached Thumbnails
Supercharged Frankencar; Dem Throttle Responses and Typical BS-20140105_114741_zpsc3be540e.jpg   Supercharged Frankencar; Dem Throttle Responses and Typical BS-20140125_155915_zps8e6b17fe.jpg
cjsafski is offline   Reply With Quote
Old 01-26-2014, 07:46 AM   #56
Senior Member
iTrader: (1)

Join Date: Jan 2011
Location: Chattanooga, Tn
Posts: 1,038
Total Cats: 157
Default

I had the exact same problem this past season. Checking valve lash before Summer Nationals and noticed that one of the valves had zero lash. Pulled the head and found the exact same issue. Replaced the valves with Supertech Valves and put in stronger valve springs.....so far so good.
TNTUBA is offline   Reply With Quote
Old 01-27-2014, 01:10 AM   #57
Junior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2008
Location: Irvine, Ca
Posts: 277
Total Cats: 23
Default

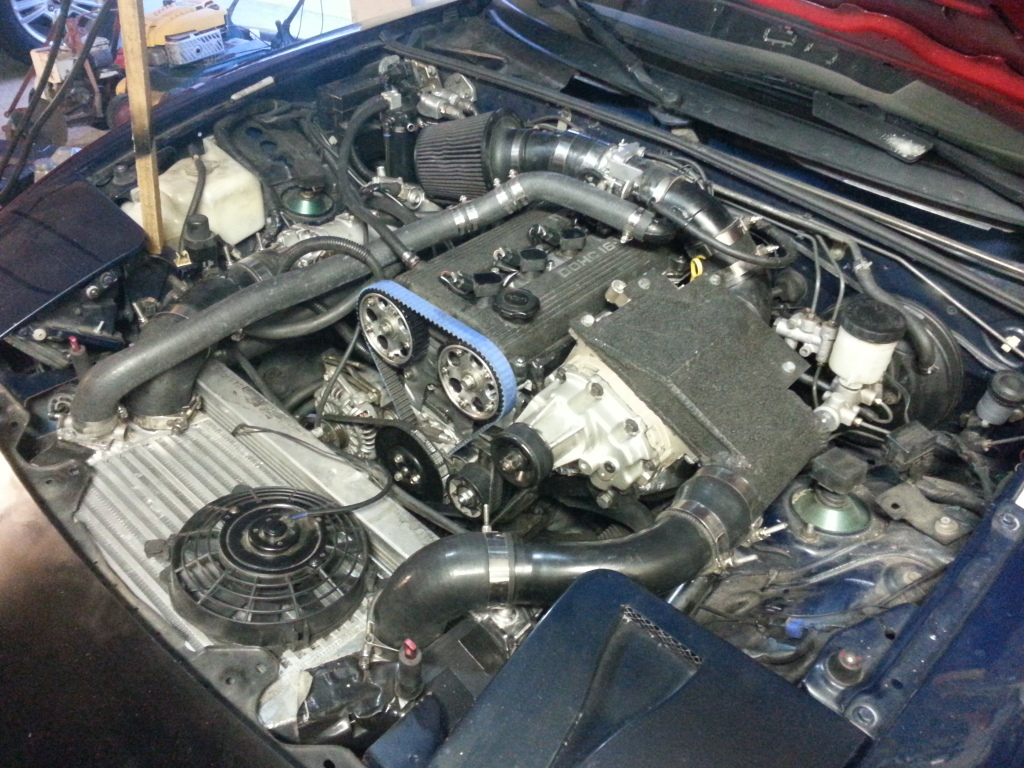

Good to hear that worked for you since I pretty much did the same fix. Everything is now back together at least.

Attached Thumbnails
Supercharged Frankencar; Dem Throttle Responses and Typical BS-20140126_171413_zps5827d81b.jpg
cjsafski is offline   Reply With Quote
Old 01-28-2014, 03:27 AM   #58
Junior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2008
Location: Irvine, Ca
Posts: 277
Total Cats: 23
Default

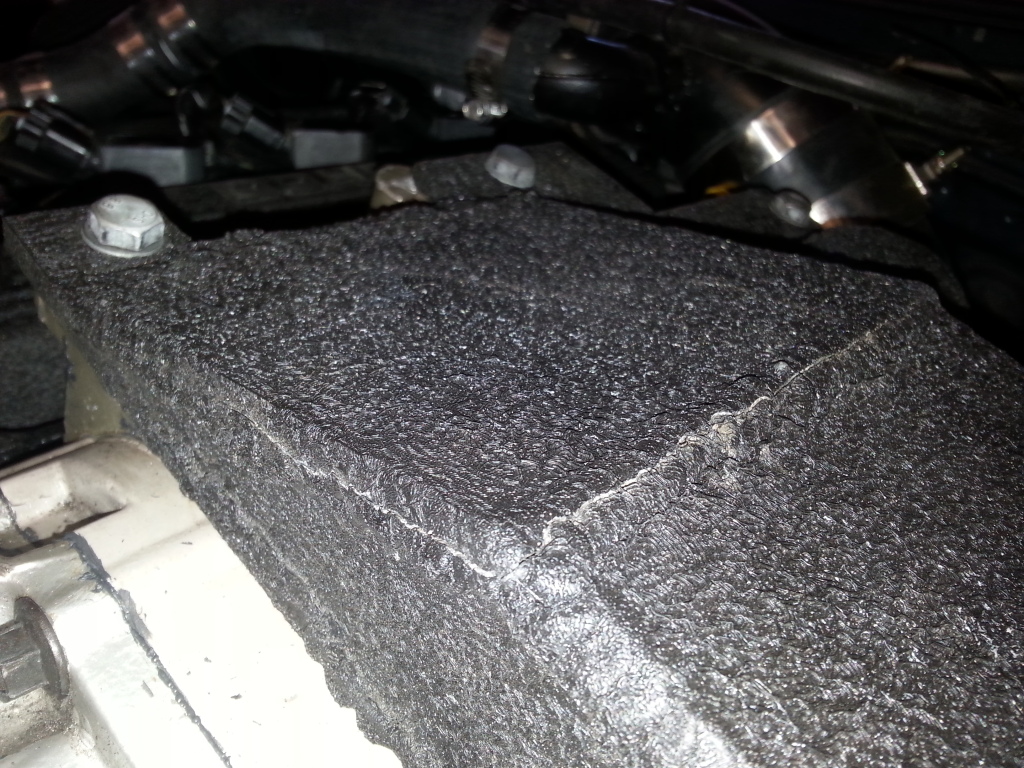

Went for a drive and the car still wouldn't make full boost pressure. Noticed an odd sound at idle and poking around in the engine bay and felt some odd airflow. Turns out I blew out the welds on the supercharger outlet. Time to pull it and repair.

Attached Thumbnails
Supercharged Frankencar; Dem Throttle Responses and Typical BS-20140127_160007_zps115720b1.jpg
cjsafski is offline   Reply With Quote
Old 01-28-2014, 03:35 AM   #59
Senior Member
iTrader: (2)

Join Date: Aug 2013
Location: Houston, TX
Posts: 598
Total Cats: 31
Default

Your boost breaks welds.

So damned impressive!

Glad to hear you're back up and running. Can't wait to see what it will do now.

Do you have your next track day lined up yet?
SchmoozerJoe is offline   Reply With Quote
Old 01-28-2014, 03:52 AM   #60
Junior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2008
Location: Irvine, Ca
Posts: 277
Total Cats: 23
Default

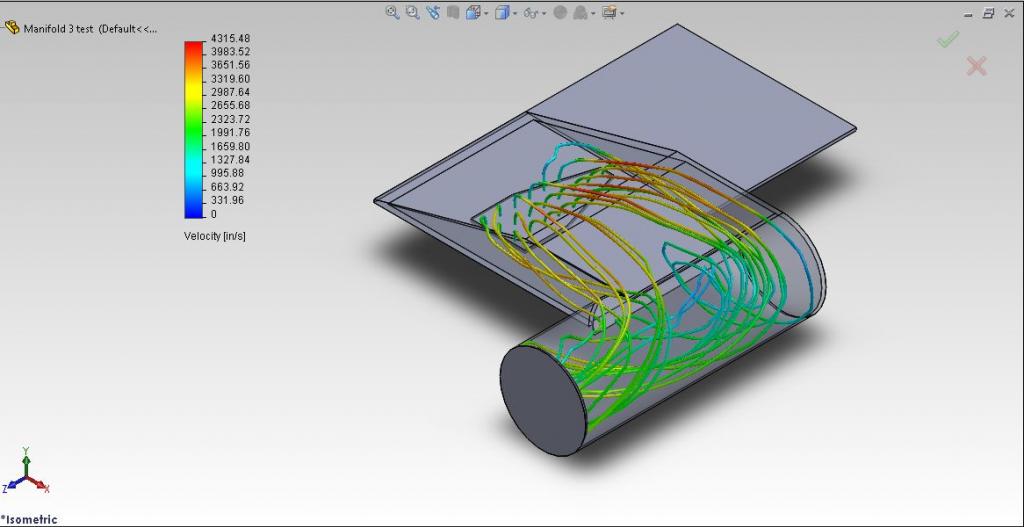

I think blowing the welds speaks more about my welding ability lol. Although it cracked where cfd seemed to show what was the most restrictive part of the manifold design. The plan is to get it together for autox at ACS on the 15th. If it survives that day then run the big track the next. Figure this is the closest track to me so best to go there.

Attached Thumbnails
Supercharged Frankencar; Dem Throttle Responses and Typical BS-floxpress_snap1_zpsab449688.jpg
cjsafski is offline   Reply With Quote
