Old 03-27-2015, 11:18 AM   #81
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

Manifold looks awesome Tim, very nice. Looks like insane spool and transient response are both in your near future



I'm curious how the turbo will tuck underneath without touching the mixing manifold or anything else (not sure if you have ps/ac still)
18psi is offline   Reply With Quote
Old 03-27-2015, 11:32 AM   #82
Senior Member
Thread Starter

Join Date: Dec 2004
Location: Brisbane, Australia
Posts: 1,272
Total Cats: 32
Default

Thanks Vlad, I'm super keen for some insane response!

It sits high enough to clear the mixing manifold, but I'm pretty sure it wouldn't work with power steering. I've still got A/C.

I'll get some pics soon, the manifold will be sent off to be coated though.

Cheers
timk is offline   Reply With Quote
Old 03-31-2015, 11:26 PM   #83
Senior Member
Thread Starter

Join Date: Dec 2004
Location: Brisbane, Australia
Posts: 1,272
Total Cats: 32
Default

Manifold and dump pipe are off getting ceramic coated. Charge pipes and intake are done.

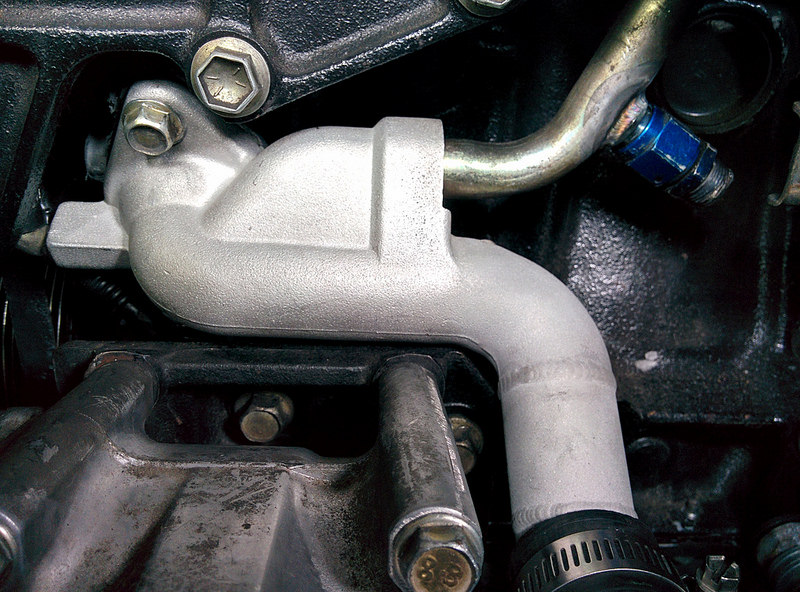

Here is the water pump inlet after modification, as well as the heater hard line after adding a -6 fitting for coolant return:



The mangled blue fitting was welded up to make a temporary cap and the stock MSM coolant return barb has also been welded up.

Next up is oil and coolant lines!

Cheers
Attached Thumbnails
Timk Makes Up for Talent With an EFR-16807868300_a7ae1a942c_c.jpg
timk is offline   Reply With Quote
Old 04-13-2015, 08:59 AM   #84
Senior Member
Thread Starter

Join Date: Dec 2004
Location: Brisbane, Australia
Posts: 1,272
Total Cats: 32
Default

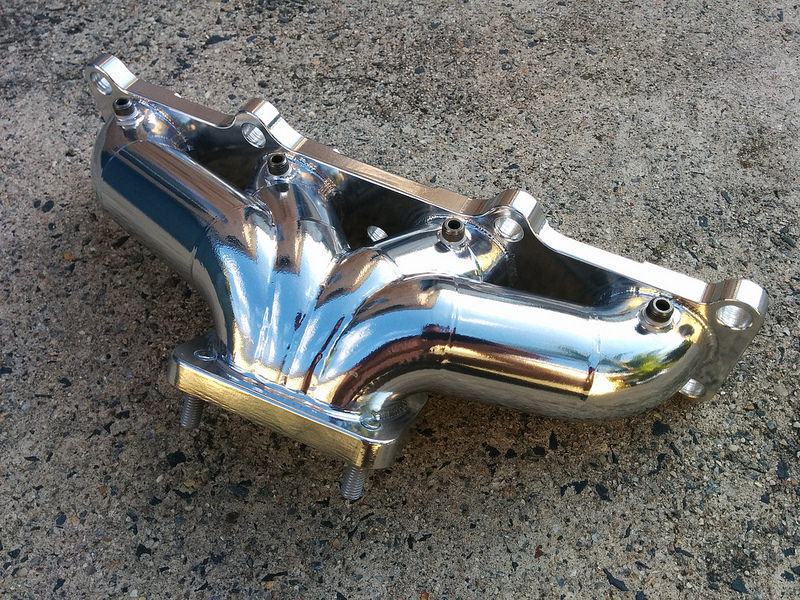

Here are the bits after coating:

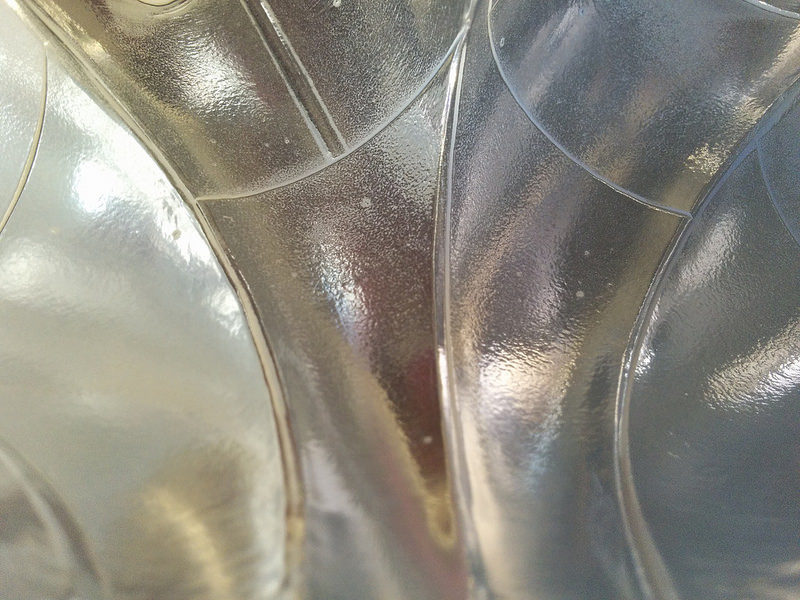

Inside the manifold:

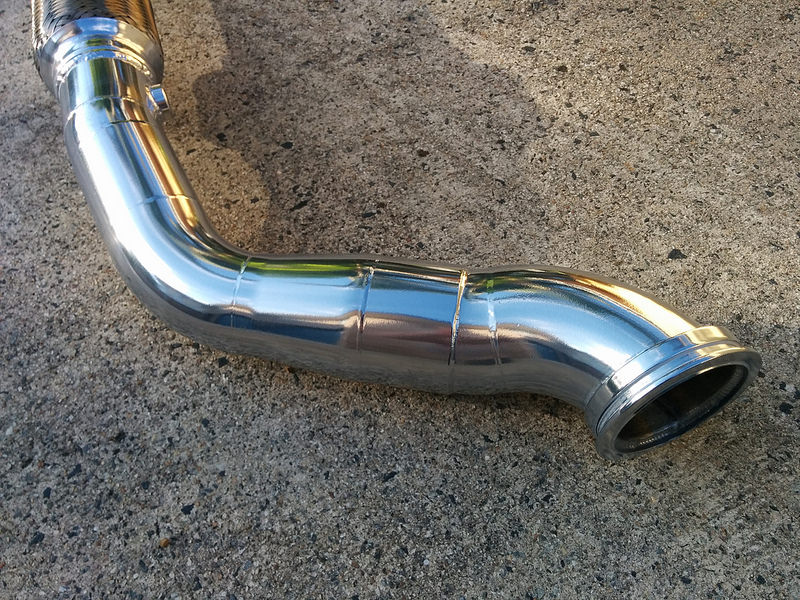

Dump pipe:



Cheers
Attached Thumbnails
Timk Makes Up for Talent With an EFR-16944755789_9f496ac172_c.jpg   Timk Makes Up for Talent With an EFR-16944754189_19a539f88b_c.jpg   Timk Makes Up for Talent With an EFR-16923555027_4bb09efe5d_c.jpg
timk is offline   Reply With Quote
Old 04-13-2015, 11:37 AM   #85
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,065
Total Cats: 253
Default

^
viperormiata is offline   Reply With Quote
Old 04-13-2015, 03:15 PM   #86
Junior Member

Sirnixalot's Avatar

Join Date: Aug 2005
Location: Cayman Islands
Posts: 440
Total Cats: 17
Default

Wow....

Any particular reason for the step down on the exhaust?
Sirnixalot is offline   Reply With Quote
Old 04-13-2015, 08:40 PM   #87
Senior Member
Thread Starter

Join Date: Dec 2004
Location: Brisbane, Australia
Posts: 1,272
Total Cats: 32
Default

Just to mate up to my existing exhaust, only the first 1/3 of that dump pipe is new.
timk is offline   Reply With Quote
Old 04-13-2015, 10:19 PM   #88
Supporting Vendor
iTrader: (6)

Join Date: Mar 2005
Location: Broken Arrow,Ok
Posts: 1,061
Total Cats: 40
Default

That manifold is truly gorgeous. It appears we are on the route for a similar outcome. Continue the progress!
TheBandit is offline   Reply With Quote
Old 04-14-2015, 12:30 AM   #89
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,877
Total Cats: 344
Default

What did you coat it with?

--Ian
codrus is online now   Reply With Quote
Old 04-14-2015, 12:57 AM   #90
Senior Member
Thread Starter

Join Date: Dec 2004
Location: Brisbane, Australia
Posts: 1,272
Total Cats: 32
Default

Not sure Ian, I'm kind of ignorant when it comes to these coatings. I gave it to these guys and told them it was used for sprints so I wanted something durable:

Competition Coatings QLD

They seem to have a good reputation around here, time will tell I guess. A friend of mine used them for his high powered Supra and it seemed to hold up fine.

Cheers
timk is offline   Reply With Quote
Old 04-14-2015, 09:56 AM   #91
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 3,049
Total Cats: 4
Default

Manifold looks balleur, hopefully it stands up to track abuse.

Very nice build
Efini~FC3S is offline   Reply With Quote
Old 04-14-2015, 12:26 PM   #92
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Every time I see a nice compact manifold like this is makes me worried about how far my EFR is hanging off the side of the block.

Good show though, I can't wait to see how this thing spools
EO2K is offline   Reply With Quote
Old 04-14-2015, 05:10 PM   #93
Elite Member
iTrader: (8)

Ryan_G's Avatar

Join Date: Jan 2012
Location: Tampa, Florida
Posts: 2,576
Total Cats: 154
Default

Quote:
Originally Posted by EO2K View Post
Every time I see a nice compact manifold like this is makes me worried about how far my EFR is hanging off the side of the block.
You should be worried.....
Ryan_G is offline   Reply With Quote
Old 04-14-2015, 06:55 PM   #94
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

EO2K is offline   Reply With Quote
Old 05-01-2015, 04:59 AM   #95
Senior Member
Thread Starter

Join Date: Dec 2004
Location: Brisbane, Australia
Posts: 1,272
Total Cats: 32
Default

It's getting pretty close now!

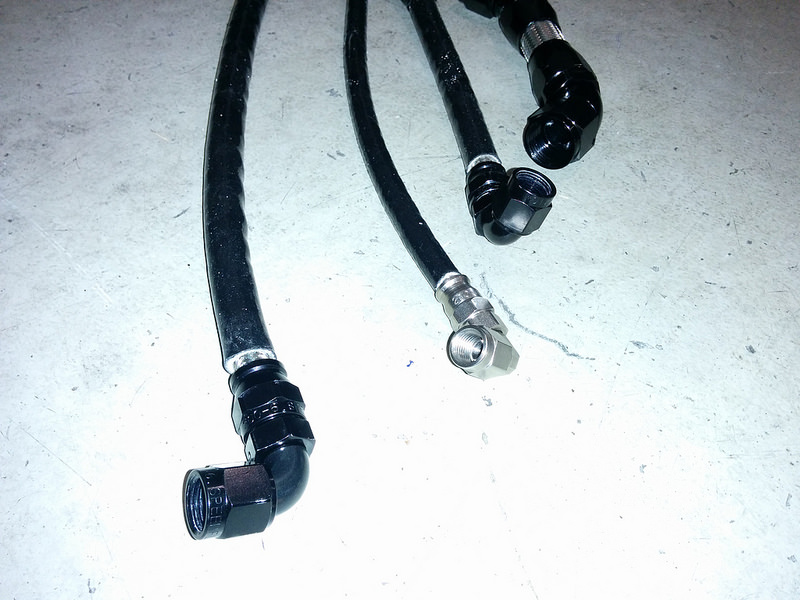

Jason at Automotive Plus is making up the turbo lines for me. Left to right is coolant feed (-6), oil feed (-4), coolant return (-6) and oil return (-10):

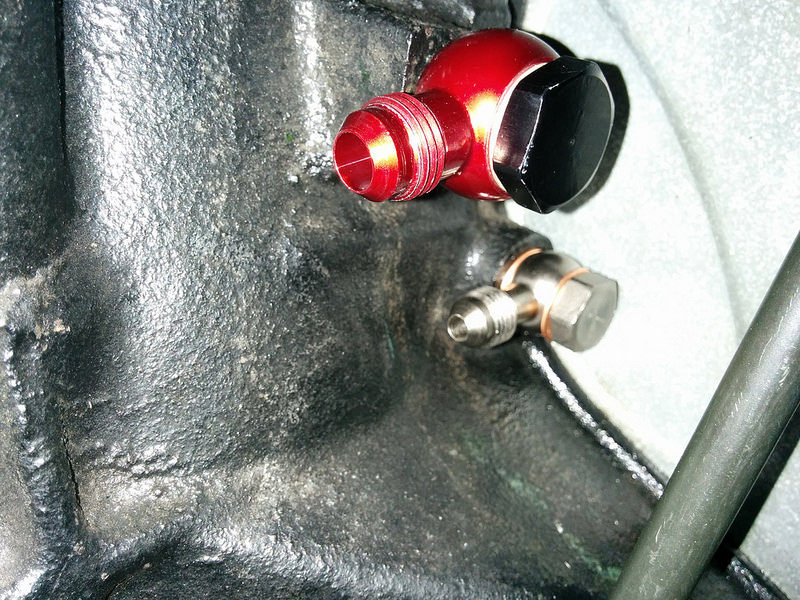

Banjo fittings on block showing coolant and oil feeds (top to bottom):

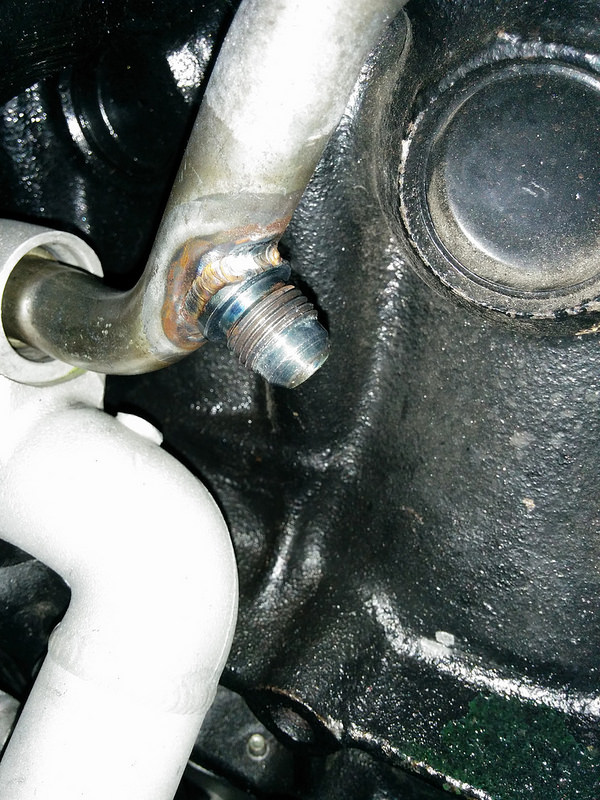

Modified heater hard line to move coolant return (-6):



I like the fire sleeve he has used over the braid. Hopefully this is the right formula for maintenance free lines!

Cheers
Attached Thumbnails
Timk Makes Up for Talent With an EFR-17141369729_0d2c7e4ae5_c.jpg   Timk Makes Up for Talent With an EFR-17301659016_e57c2f4b0f_c.jpg   Timk Makes Up for Talent With an EFR-17327625785_cc8d8985ce_c.jpg
timk is offline   Reply With Quote
Old 05-19-2015, 06:02 AM   #96
Senior Member
Thread Starter

Join Date: Dec 2004
Location: Brisbane, Australia
Posts: 1,272
Total Cats: 32
Default

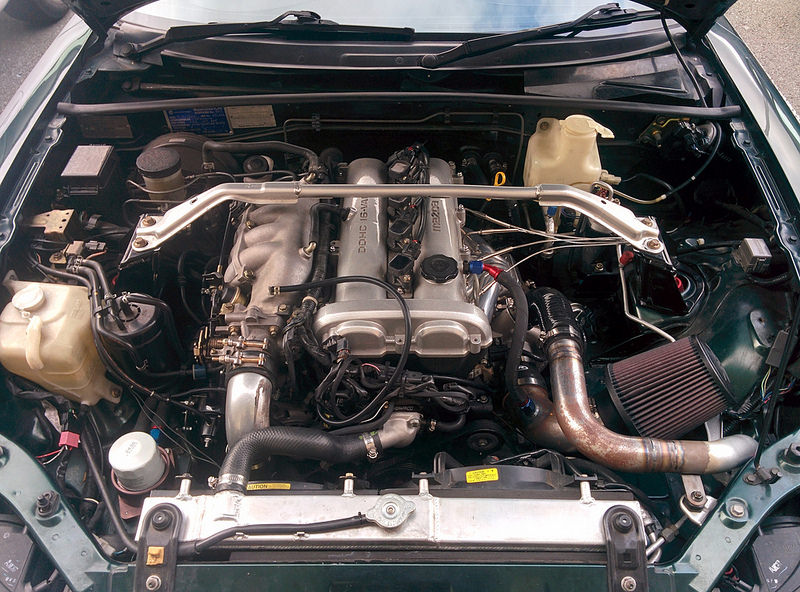

Game on:



As you can see, there's tidying up to do. I'm just running the thing for a week or so to make sure nothing leaks and it behaves itself. Then I'll get the charge pipes powder coated and fix up the vac line and EGT probes.

I have a Koyo Hyper V radiator coming any day now, so hopefully I can throw that in while the pipes are off getting done.

First impressions of this turbo - DAT RESPONSE! I have no preload at all on the gate, solenoid isn't plugged in and I'm running the low boost actuator. If I breathe on the throttle it sounds like a jet turbine and goes straight to 100kPa (absolute), then with a tiny bit more throttle it will hit 150kPa effortlessly.

This thing is going to be an absolute beast when it is dialled in with EBC!

Cheers
Attached Thumbnails
Timk Makes Up for Talent With an EFR-17846803561_8956afe932_c.jpg
timk is offline   Reply With Quote
Old 05-19-2015, 10:10 AM   #97
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default



yes. so much yes
18psi is offline   Reply With Quote
Old 05-19-2015, 03:28 PM   #98
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Quote:
Originally Posted by timk View Post
First impressions of this turbo - DAT RESPONSE! I have no preload at all on the gate, solenoid isn't plugged in and I'm running the low boost actuator. If I breathe on the throttle it sounds like a jet turbine and goes straight to 100kPa (absolute), then with a tiny bit more throttle it will hit 150kPa effortlessly.

This thing is going to be an absolute beast when it is dialled in with EBC!
Yessss! Great progress! You are making me jealous, I can't wait to get mine running.
EO2K is offline   Reply With Quote
Old 07-17-2015, 11:22 PM   #99
Senior Member
Thread Starter

Join Date: Dec 2004
Location: Brisbane, Australia
Posts: 1,272
Total Cats: 32
Default

Haven't had much time to work on the car with other stuff going on, but I have been driving it to work the last few days.

This car is just ridiculous! It is still running the crazy conservative ignition map from my MSM setup but with extra fuelling and no EBC, and it spins the wheels at any hint of throttle. Even 4th gear is really sketchy. I can't even imagine what a 6758 is like but I do not want to go there!

It should be awesome on the track with some semis though!
timk is offline   Reply With Quote
Old 07-18-2015, 04:29 AM   #100
Junior Member

slug_dub's Avatar

Join Date: Sep 2010
Location: QLD, 'straya
Posts: 111
Total Cats: 21
Default

Tim take me for a drive please!
slug_dub is offline   Reply With Quote
