So my local forum is basically dead and i wanted to continue a build thread somewhere so here it is.

Just a little background on my car. Iv had it since January 09. it lived life as a street car for a few years and in the last couple of years its become a Friday car/track car.

Here is how it looked a few months into owning it.

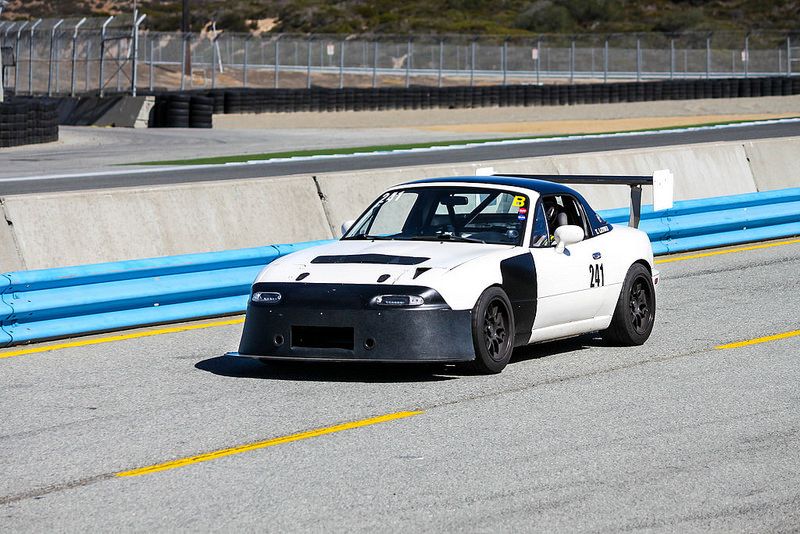

And more current pictures





Attached Thumbnails
T's 94 Track toy-80-4002489121_df626a670c_b_ed0d49a3465caaf70b56dc098e6ffe326e4d0ac0.jpg   T's 94 Track toy-80-25005960976_5aabc08d59_c_3326ad4ad70ee7d0f646dda5c1b3d91030db3819.jpg   T's 94 Track toy-80-24405470633_722eea5e51_c_2cee60936f4a248996de7ef0c44e3b8ef4101b55.jpg
Twibs415 is online now   Reply With Quote
Old 02-14-2016, 08:39 PM   #2
Junior Member
iTrader: (2)

Join Date: Apr 2014
Location: Mountain View, CA
Posts: 358
Total Cats: 20
Default

Needs moar dyno plots
OneTwo is offline   Reply With Quote
Old 02-14-2016, 09:04 PM   #3
Junior Member
Thread Starter
iTrader: (6)

Join Date: Feb 2011
Posts: 405
Total Cats: 6
Default

for posterity.

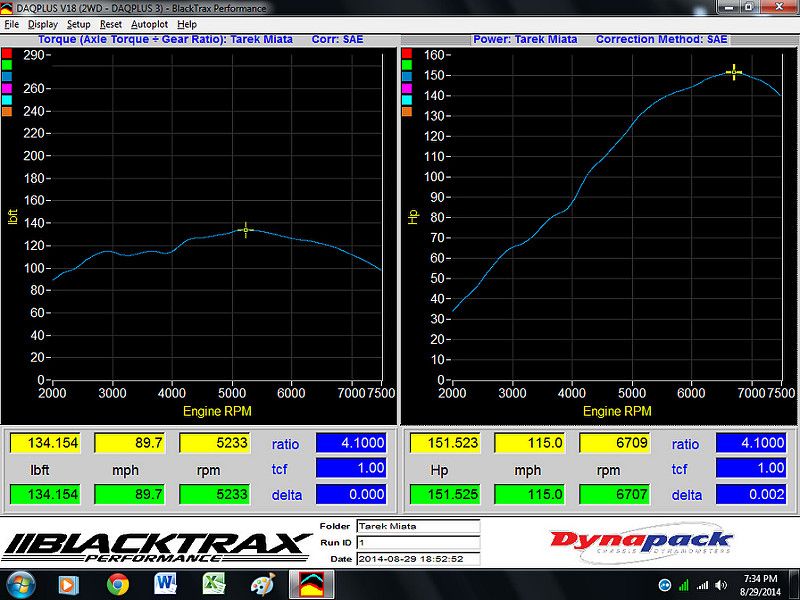

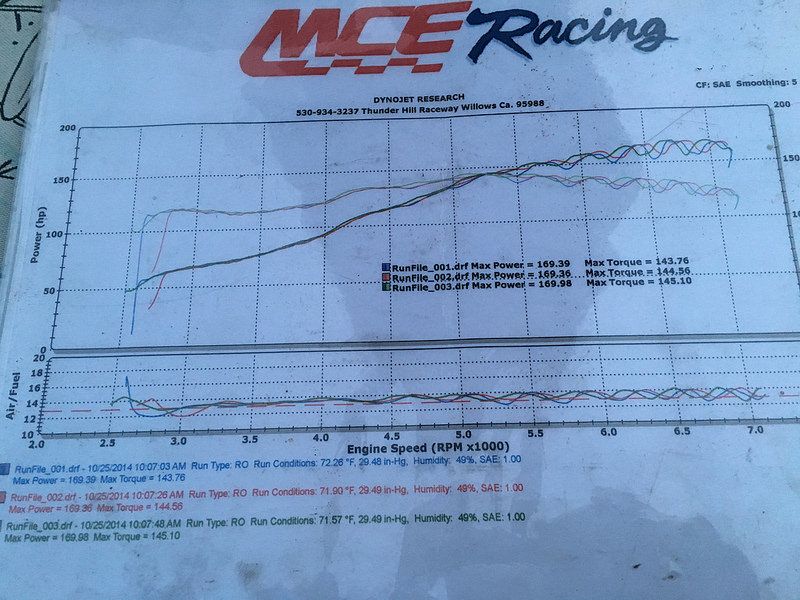

this was at blacktrax where the car gets tunes. this dyno reads super low.



same setup different dyno 2 months later





Then i added cams

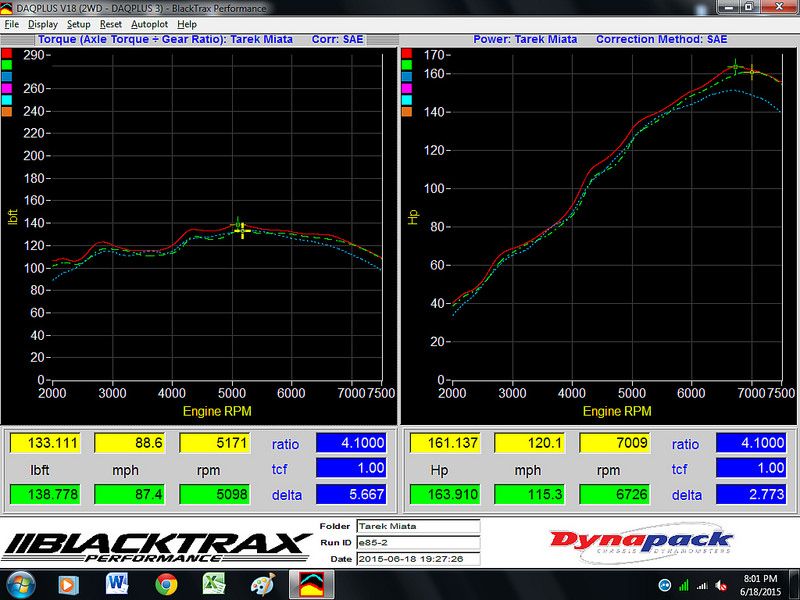

or about 180 on a dynojet
Attached Thumbnails
T's 94 Track toy-80-14892540928_ce3799aae0_c_642489cbdbba4b254c88f4d4e3b8bb6b08194176.jpg   T's 94 Track toy-80-24407141963_23a3478a9f_c_58b57cf56f579e8cf1777f84daf3dc8cd010defa.jpg   T's 94 Track toy-80-18947307281_7d9544d350_c_b26551c9e4ffc3efe3102f4fd1f833c71c47471d.jpg
Twibs415 is online now   Reply With Quote
Old 02-15-2016, 07:38 PM   #4
Junior Member
iTrader: (6)

Cxracer's Avatar

Join Date: Mar 2010
Location: Morgan Hill, CA
Posts: 267
Total Cats: 2
Default

T, what the heck happened to NCR? I moved and got super busy with house projects and by the time I got working on my track car again the forum was a ghost town. What gives?

Anyway, cool build. I didn't get a chance to say hi at Miatas at Laguna Seca. I'm going to try to get my MS2 in the car soon and get my turbo working properly so I can have fun at the track again.

Hope to see you out there.
Cxracer is offline   Reply With Quote
Old 02-15-2016, 09:42 PM   #5
Junior Member
Thread Starter
iTrader: (6)

Join Date: Feb 2011
Posts: 405
Total Cats: 6
Default

Hey Andy!

I think most of the usual posters on NCR moved onto different platforms. id love to jump start it back up but its probably not going to happen. Ill be at laguna so, Stop by and say hi!
Twibs415 is online now   Reply With Quote
Old 02-16-2016, 12:07 AM   #6
Junior Member
Thread Starter
iTrader: (6)

Join Date: Feb 2011
Posts: 405
Total Cats: 6
Default

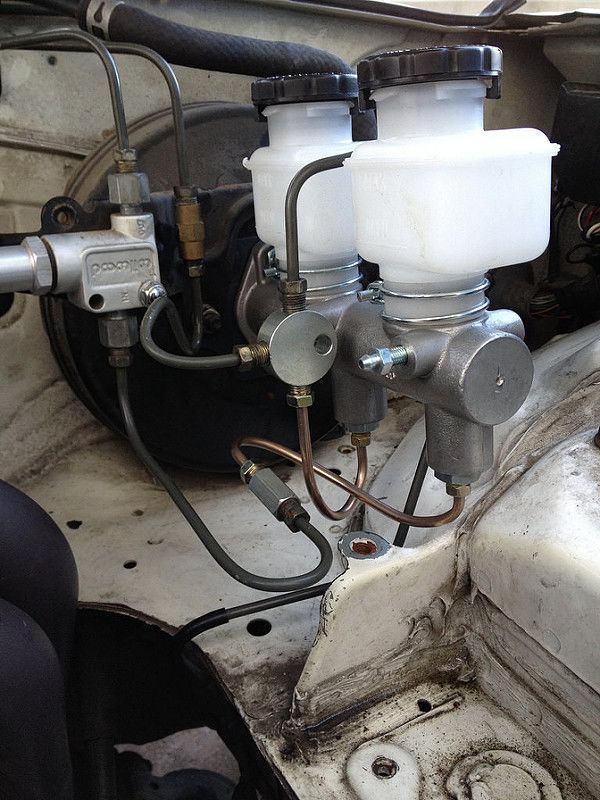

I haven't seen too many pictures of a Wilwood 1 inch master installed. This is the good-win kit and i wish i did it a long time. One of my favorite recent mods paired with torque rt-700 fluid its almost like im driving an air cooled Porsche




This kit would be better if it came with a different hose option so you can eliminate the extra fitting and line from the master to the prop valve.
Attached Thumbnails
T's 94 Track toy-80-23644216176_dc6b1ddd97_c_53cbb9eafd35b2c524baf55aeefebb241e62941d.jpg
Twibs415 is online now   Reply With Quote
Old 03-01-2016, 12:23 AM   #7
Junior Member
Thread Starter
iTrader: (6)

Join Date: Feb 2011
Posts: 405
Total Cats: 6
Default the start of a stupid idea

Well im starting a new engine build. clearances will be tight so i needed too see what the valve overlap looked like.

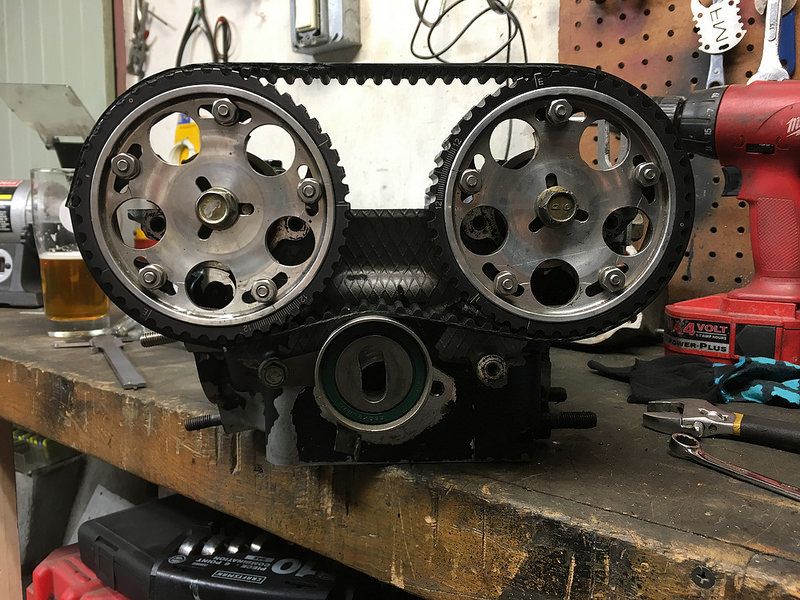

i shortened up a timing belt and adapted a tensioner to the head so i could better watch how the valve move inside the head.


Attached Thumbnails
T's 94 Track toy-80-24765771404_69cfb340b4_c_73f2f10f1f762a79146f169b820b228509501364.jpg
Twibs415 is online now   Reply With Quote
Old 03-01-2016, 08:04 AM   #8
Junior Member
iTrader: (5)

Join Date: Oct 2014
Posts: 436
Total Cats: 19
Default

Very cool stuff, hope you update with more testing and results.
90civichhb is offline   Reply With Quote
Old 03-01-2016, 01:10 PM   #9
Senior Member

Join Date: Jan 2013
Location: Gilbert, AZ
Posts: 656
Total Cats: 80
Default

What in the hell was going on with the dyno on the MCE rig?

Horsepower swinging back and forth by like 20WHP and AFR swinging back and forth from 12 to 14 above 5500 RPM?

Everything looks nice and smooth on the dynapack.
Arca_ex is offline   Reply With Quote
Old 03-01-2016, 01:27 PM   #10
Junior Member
Thread Starter
iTrader: (6)

Join Date: Feb 2011
Posts: 405
Total Cats: 6
Default

Quote:
Originally Posted by Arca_ex View Post
What in the hell was going on with the dyno on the MCE rig?

Horsepower swinging back and forth by like 20WHP and AFR swinging back and forth from 12 to 14 above 5500 RPM?

Everything looks nice and smooth on the dynapack.

Good question! Shitty o2 feedback. Turned it off and it smoothed out. Haven't run o2 feedback since
Twibs415 is online now   Reply With Quote
Old 03-02-2016, 12:03 AM   #11
Junior Member
Thread Starter
iTrader: (6)

Join Date: Feb 2011
Posts: 405
Total Cats: 6
Default

im probably stupid for this...

All the seats and guides are out of this head.

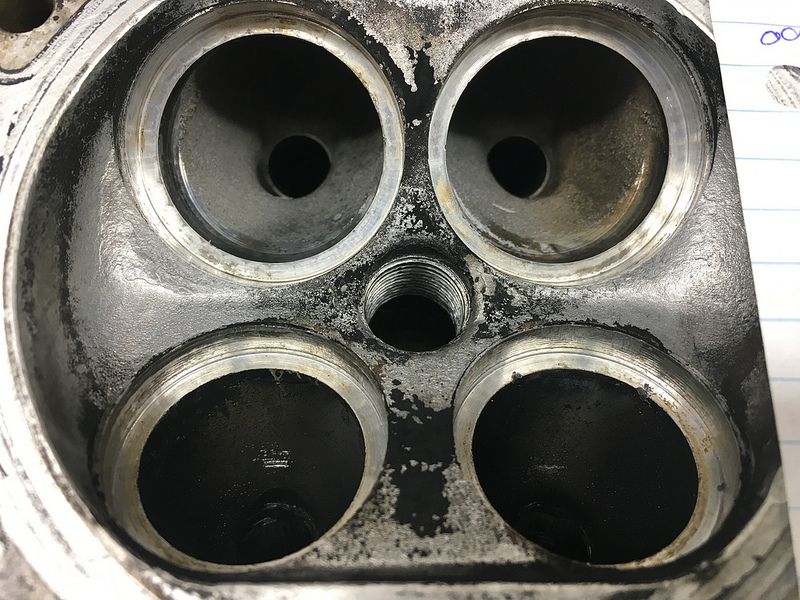

more on this project maybe by the end of the month Big things happening, possibly never done before to a miata head.
Attached Thumbnails
T's 94 Track toy-80-25336604111_57fe29e586_c_4ff917fe6609dd1467712820f8194d4aa2cd60d5.jpg
Twibs415 is online now   Reply With Quote
Old 03-02-2016, 07:25 AM   #12
Elite Member
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 1,974
Total Cats: 145
Default

Never before done, and the seats are out. Looks like my friends head when he was convinced he could fit small block chevy valves in a tiburon head.

I've probably drank beer out of the aluminum made from that thing by now.
ryansmoneypit is offline   Reply With Quote
Old 04-20-2016, 12:31 AM   #13
Junior Member
Thread Starter
iTrader: (6)

Join Date: Feb 2011
Posts: 405
Total Cats: 6
Default Progress

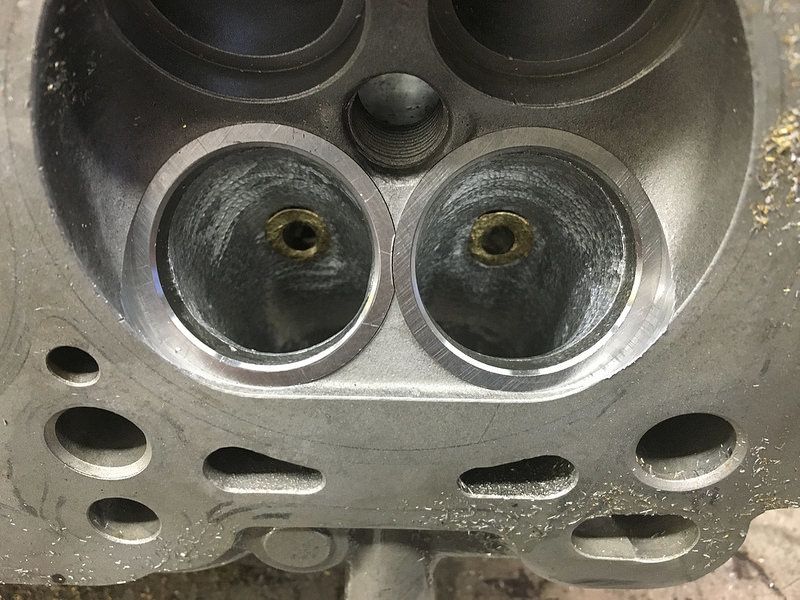

Finally got around to cutting up some aluminum. ported roughly around the valve guide first, then put in the new guides and oversized seats.then a little more roughing. I know i am losing out on velocity with the big valves but then again this motor wont live below 4k or even 5k for that matter.

Attached Thumbnails
T's 94 Track toy-80-26262147470_68741a5609_c_fd2a23c725035dd353d267a2f9ef3c2d31e13cd4.jpg
Twibs415 is online now   Reply With Quote
Old 04-23-2016, 12:27 AM   #14
Junior Member
Thread Starter
iTrader: (6)

Join Date: Feb 2011
Posts: 405
Total Cats: 6
Default

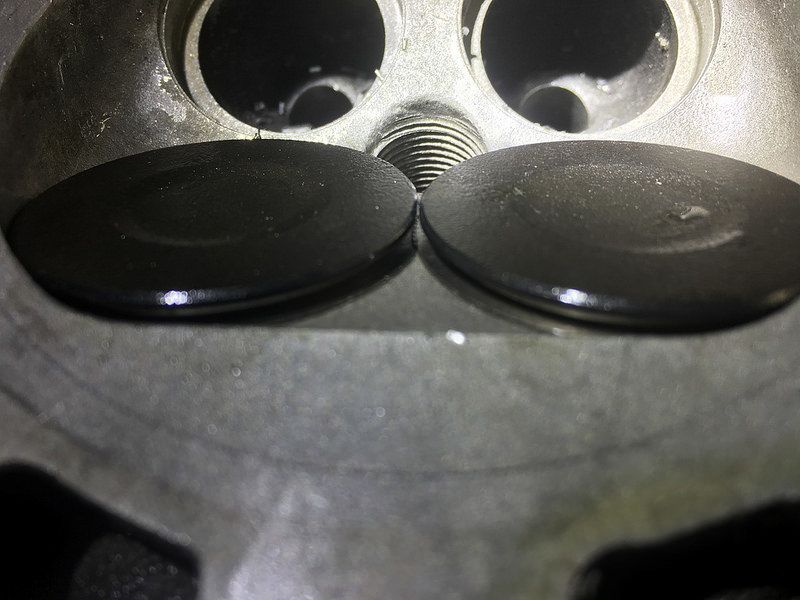

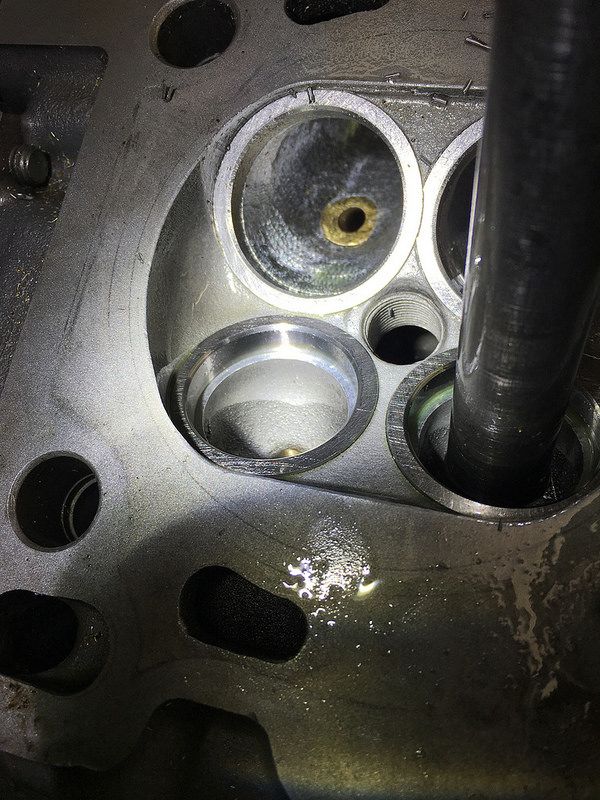

stuck the approximate sized valves ill be using in the head. these will probably get trimmed down .5mm each or so.



put the exhaust seats in today also. you can see how much bigger the throats will be.

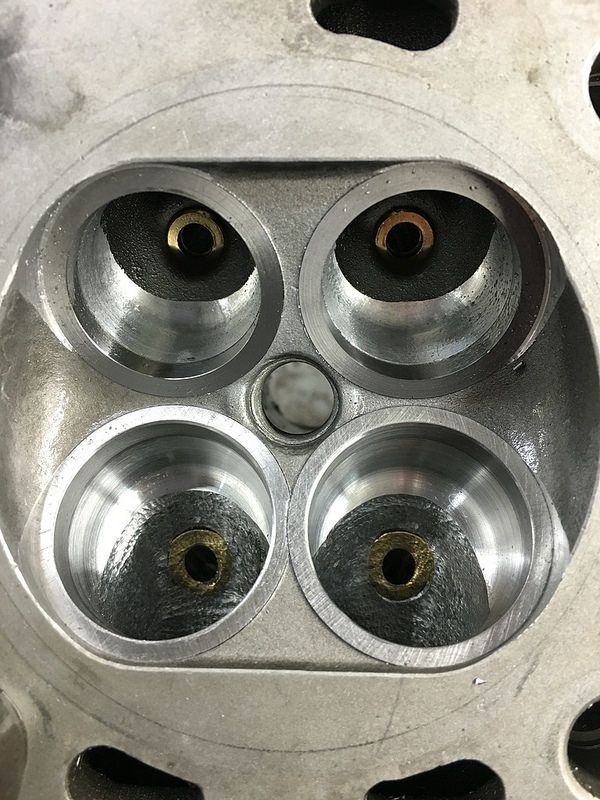

And finally ran a radiused cutter through the throats

Attached Thumbnails
T's 94 Track toy-80-26442689102_e2d6076ece_c_819ea97655971085bdec0a2abb490e9ce9cf5857.jpg   T's 94 Track toy-80-25982249054_bce6c405e9_c_b6ba385816a26d398e7ffcfaa5aa1d4a2de291f9.jpg   T's 94 Track toy-80-26314315320_d1b96d4438_c_d4b6fd9b9ad93f2cb80fef2ddb3a57b1a0b89da2.jpg
Twibs415 is online now   Reply With Quote
Old 04-23-2016, 05:50 AM   #15
Elite Member
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 1,974
Total Cats: 145
Default

What valves did you end up choosing?
ryansmoneypit is offline   Reply With Quote
Old 04-23-2016, 12:16 PM   #16
Junior Member
Thread Starter
iTrader: (6)

Join Date: Feb 2011
Posts: 405
Total Cats: 6
Default

They will be custom ferrea or made from ferrea blanks
Twibs415 is online now   Reply With Quote
Old 05-31-2016, 08:51 PM   #17
Junior Member
Thread Starter
iTrader: (6)

Join Date: Feb 2011
Posts: 405
Total Cats: 6
Default

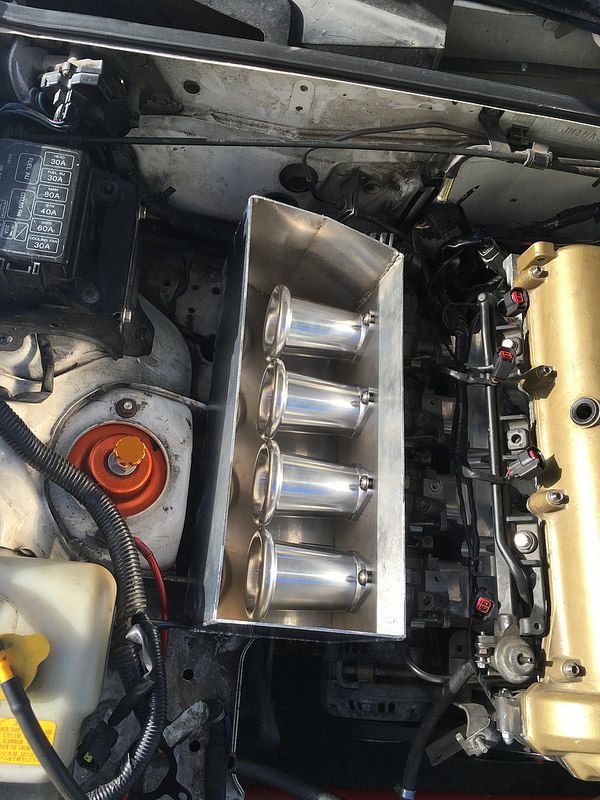

Iv been side tracked and have been working on an itbr setup for my car. not finished yet maybe next weekend ill have it setup and start messing with the tune.

Attached Thumbnails
T's 94 Track toy-80-27110005790_9de1204420_c_3bb0848c8369570de724e38018a8636bf8daa35e.jpg
Twibs415 is online now   Reply With Quote
Old 05-31-2016, 10:13 PM
SADFab
This message has been deleted by SADFab.
Old 05-31-2016, 10:14 PM   #18
SadFab CEO
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,628
Total Cats: 495
Default

Im curious how the hp curve ends up

looks like it will be fun to tune...
hi_im_sean is offline   Reply With Quote
Old 09-04-2016, 11:17 PM   #19
Junior Member
Thread Starter
iTrader: (6)

Join Date: Feb 2011
Posts: 405
Total Cats: 6
Default Almost ready for mrls

got my itbs all setup and running. headed to the dyno Tuesday for the disappointment.



Also got my car on the scales after removing some "stuff" looks like front to rear ratio is better. This is with a half tank of gas without me. Time to find the last 44 lbs to remove.







Twibs415 is online now   Reply With Quote
Old 09-05-2016, 09:21 AM   #20
Junior Member

Join Date: Mar 2016
Location: South Florida
Posts: 72
Total Cats: 6
Default

Thanks for the pic of the Wilwood master. My kit from V8R came without any instructions, and even though it seemed pretty self-explanatory, I was scouring the internet for pictures of the lines so I didn't **** something up. The line exiting from the top of the tee is the one running down to the front left caliper, correct?
CalebMars is offline   Reply With Quote
