Default Turbo, ITBs, and another EVO 3 16G

Well some of you know i got away from the miatas for a wail but have been itching to get another one so i bought this blue 92 NA for 1400.


I got it knowing it needed a new HG but once i fixed that i found that i had 2 down cylinders. So i pulled the motor out and ripped her apart. The block crank and head are fine just needs a refreshing. So ordered everything up to refresh up the motor.

Then i ended up picking up a T3 ramhorn ARTech manifold, some GSXR 750 SRAD throttle bodies, MS1 that's getting MS2 conversion, DSM 450cc injectors with resistor box, EVO 3 16G, and kinugawa turbo turbine T3 housing & anti surge compressor housing for the EVO 3 16G.







Will get photos once everything come as most of it is in the mail.


Going to be running 10psi for now until i pick up another motor to do a full build on from top to bottom.
miatamike203 is offline   Reply With Quote
Old 11-11-2012, 03:12 PM   #2
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,072
Total Cats: 253
Default

About damn time
viperormiata is online now   Reply With Quote
Old 11-11-2012, 03:15 PM   #3
Senior Member
Thread Starter

Join Date: Aug 2009
Location: MONROE CT
Posts: 1,100
Total Cats: 2
Default

I know but in good time should be a nice 350whp again.
miatamike203 is offline   Reply With Quote
Old 11-11-2012, 04:01 PM   #4
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,187
Total Cats: 2,583
Default

Looks like it should be a bichin setup.
evo3 16g is a great turbo. But I wonder: after paying for the turbo and both housings, aren't you into it for basically what a 2871 would cost you? And aren't you basically putting big housings onto relatively small wheels which may make it fairly slow spooling?
18psi is offline   Reply With Quote
Old 11-11-2012, 04:07 PM   #5
Free Moustache Rides
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,656
Total Cats: 49
Default

That Kinugawa housing is an 8cm^2 unit and is gonna be laggy as **** on a 1.6. My stock 7cm housing doesn't wake up til 4K. Should flow like a mofucker up top though
matthewdesigns is offline   Reply With Quote
Old 11-11-2012, 04:18 PM   #6
Senior Member
Thread Starter

Join Date: Aug 2009
Location: MONROE CT
Posts: 1,100
Total Cats: 2
Default

Quote:
Originally Posted by 18psi View Post
Looks like it should be a bichin setup.
evo3 16g is a great turbo. But I wonder: after paying for the turbo and both housings, aren't you into it for basically what a 2871 would cost you? And aren't you basically putting big housings onto relatively small wheels which may make it fairly slow spooling?
If i had to pay full price for the turbo then yes, i got my turbo for 350 new and the 2 housings ended up being 240. So $600 for the whole thing said and done.


Quote:
Originally Posted by matthewdesigns View Post
That Kinugawa housing is an 8cm^2 unit and is gonna be laggy as **** on a 1.6. My stock 7cm housing doesn't wake up til 4K. Should flow like a mofucker up top though
What kinda manifold are you using and remember im planning on going all out on the motor in a year.
From what i have found the 8cm is not much bigger then what most people run seeing as if you convert it to an A/R its .57 and the 7cm is .49.

6 cm^2 = 0.41 A/R
7 cm^2 = 0.49 A/R
8 cm^2 = 0.57 A/R
9 cm^2 = 0.65 A/R
10 cm^2 = 0.73 A/R
miatamike203 is offline   Reply With Quote
Old 11-11-2012, 04:38 PM   #7
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,187
Total Cats: 2,583
Default

Its pretty big any way you look at it. I wouldn't expect it to really wake up til about 5k on a 1.6. Just my .02. But seeing the rest of your setup I'm guessing that's not a problem.
18psi is offline   Reply With Quote
Old 11-11-2012, 04:47 PM   #8
Senior Member
Thread Starter

Join Date: Aug 2009
Location: MONROE CT
Posts: 1,100
Total Cats: 2
Default

Once i get the other motor done this setup will really shine. Going to be getting the head ported and polished by headway performance along with a set of kelford cams. Going to go for a 8000rpm redline.
miatamike203 is offline   Reply With Quote
Old 11-28-2012, 09:10 AM   #9
Senior Member
Thread Starter

Join Date: Aug 2009
Location: MONROE CT
Posts: 1,100
Total Cats: 2
Default

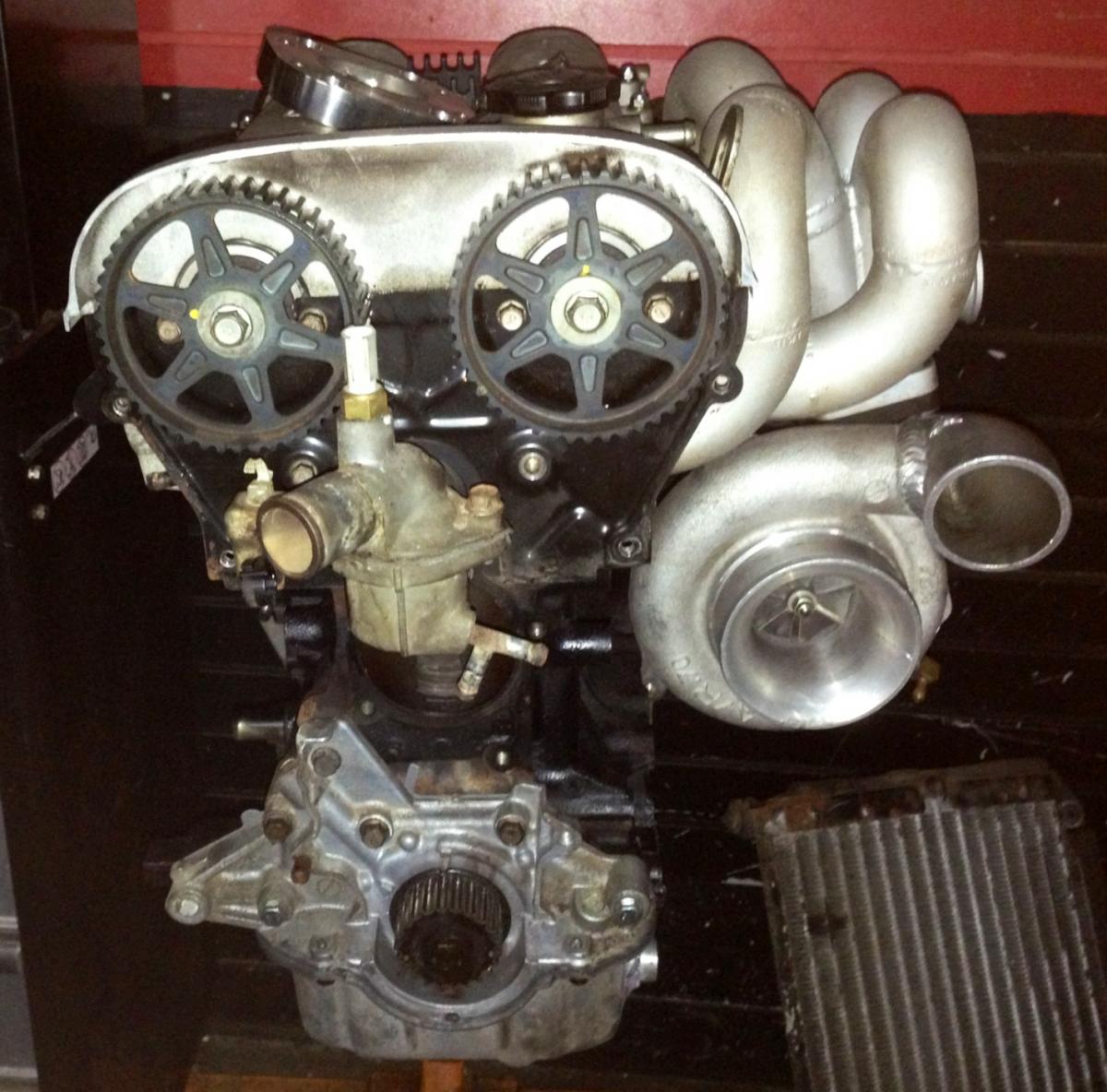

Here is a quick photo post more info tonight...
Attached Thumbnails
Turbo, ITBs, and another EVO 3 16G-securedownload.jpg

Last edited by miatamike203; 11-28-2012 at 02:07 PM.
miatamike203 is offline   Reply With Quote
Old 11-28-2012, 01:37 PM   #10
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,072
Total Cats: 253
Default

Why are you trying to complicate your setup with itb's? Just make another intake manifold like you did with the old car.
viperormiata is online now   Reply With Quote
Old 11-28-2012, 10:05 PM   #11
Senior Member
Thread Starter

Join Date: Aug 2009
Location: MONROE CT
Posts: 1,100
Total Cats: 2
Default

The build is mostly for fun and show, until i get another motor and build the **** out of it and find a 6 speed and 1.8 diff swap.

Might even build a nice setup dial it in and sell it and drive it stock who knows. Its mostly just to keep me busy and mentally happy lol.
miatamike203 is offline   Reply With Quote
Old 11-28-2012, 10:10 PM   #12
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,187
Total Cats: 2,583
Default

Quote:
Originally Posted by miatamike203 View Post
The build is mostly for fun and show, until i get another motor and build the **** out of it and find a 6 speed and 1.8 diff swap.

Might even build a nice setup dial it in and sell it and drive it stock who knows. Its mostly just to keep me busy and mentally happy lol.
I was going to point out how FAIL that is, but realized I did almost the same thing with my previous miata

18psi is offline   Reply With Quote
Old 11-28-2012, 10:15 PM   #13
Senior Member
Thread Starter

Join Date: Aug 2009
Location: MONROE CT
Posts: 1,100
Total Cats: 2
Default

Okay so here is whats done so far and what has happen. I ended up selling the 16g to some one i know and got this nice GT3076R for nothing and i mean nothing. Motor is all stock until next winter. I picked up a water to air intercooler setup and also got all the piping to build my intake manifold. Im going to ditch the MS1 i got for a DIYPNP, also planning on building a 3" downpipe with a cutout and retain stock cat back.
miatamike203 is offline   Reply With Quote
Old 11-28-2012, 10:20 PM   #14
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,187
Total Cats: 2,583
Default

Very nice
18psi is offline   Reply With Quote
Old 12-06-2012, 10:17 PM   #15
Senior Member
Thread Starter

Join Date: Aug 2009
Location: MONROE CT
Posts: 1,100
Total Cats: 2
Default

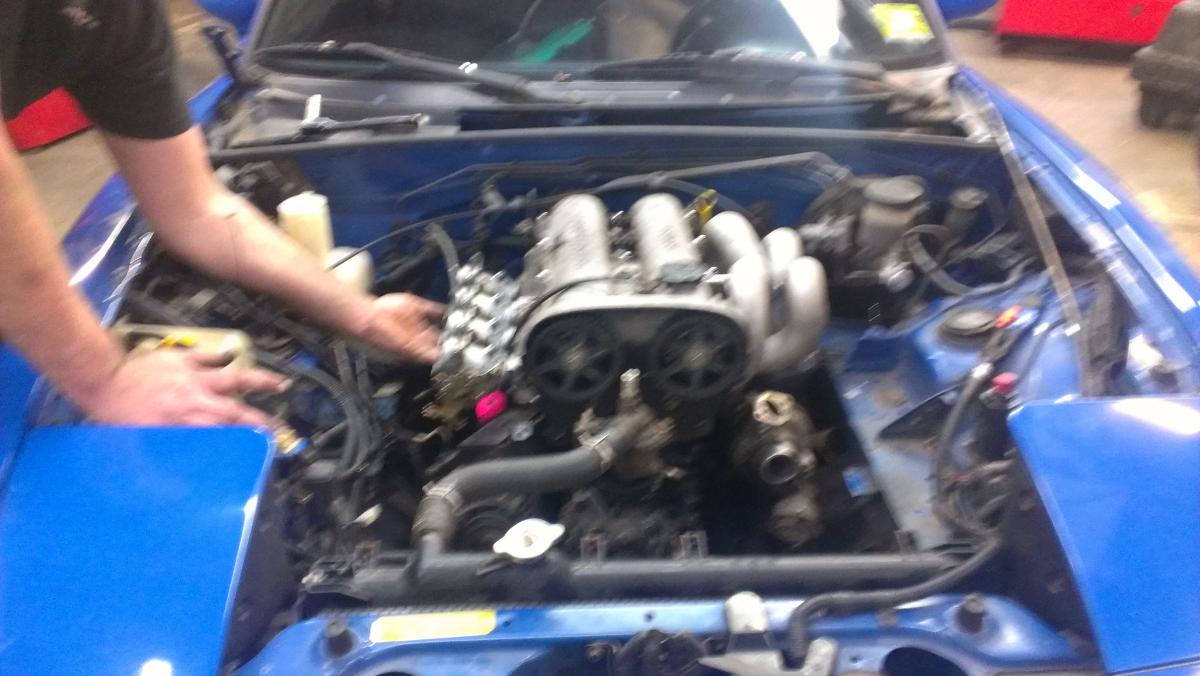

Okay so i put the motor back in so i can fab the rest of the parts and get the car running again. Here is a pic as she stands.
Attached Thumbnails
Turbo, ITBs, and another EVO 3 16G-imag0062.jpg
miatamike203 is offline   Reply With Quote
Old 12-06-2012, 10:17 PM   #16
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,187
Total Cats: 2,583
Default

That's way too sharp. Can you please make it a little more blurry?
18psi is offline   Reply With Quote
Old 12-06-2012, 10:35 PM   #17
Senior Member
Thread Starter

Join Date: Aug 2009
Location: MONROE CT
Posts: 1,100
Total Cats: 2
Default

Sorry its was with a shitty flip phone.
miatamike203 is offline   Reply With Quote
