1991 Pit Crew Mazda Miata 1.8 swap JDM 95M seats, 93LE interior
05-01-2017, 03:20 PM
#1
Junior Member
Thread Starter
iTrader: (3)
Join Date: Sep 2010
Location: Austin
Posts: 217
Total Cats: -1
1991 Pit Crew Mazda Miata 1.8 swap JDM 95M seats, 93LE interior
1991 Pit Crew Mazda Miata 1.8 swap JDM RARE
Located in Austin, TX. Clear TX title, registered.
~122k mi
This has the most iconic nose conversion made for the NA - an extremely rare Pit Crew Racing front end imported from Japan. It's a love or hate conversion, but it sure is a conversation starter. If you don't know - this front end is $3100 alone, plus $400 chrome bumpers, PLUS $600 shipping from japan... that's unpainted and uninstalled. There are only a handful of miata's in the USA (4 including this one, to my knowledge) with this front end conversion! If you are familiar with the 'miata scene', the nose came from the "Blue Potato" and this was previously Phillyb's "Pitcrewb". Planet Miata performed the 1.8L swap with a 120k engine, the body has ~120k on it. Theu also performed a wire tuck to clean up the typically cluttered miata engine bay. If you are familiar with Miata's, you'll know the cost/rarity/desirability of many of these parts and know that several of these are no longer available. A little more love and this will be one unique, retro miata.
I have fixed *many* things on it since I have had ownership and have put on many parts that I've collected over owning 12+ miatas. I had lots of plans for it, but unfortunately I don't have extra parking space here and no longer have a place to work on it. Notable additions include a Hard Dog Stainless roll bar, Boig Header and Artech V-band 3" exhaust, Miataroadster short shifter kit, Trackspeed radiator, 93LE parts, new Nitto NT05 205/50/15's and everything marked new below....

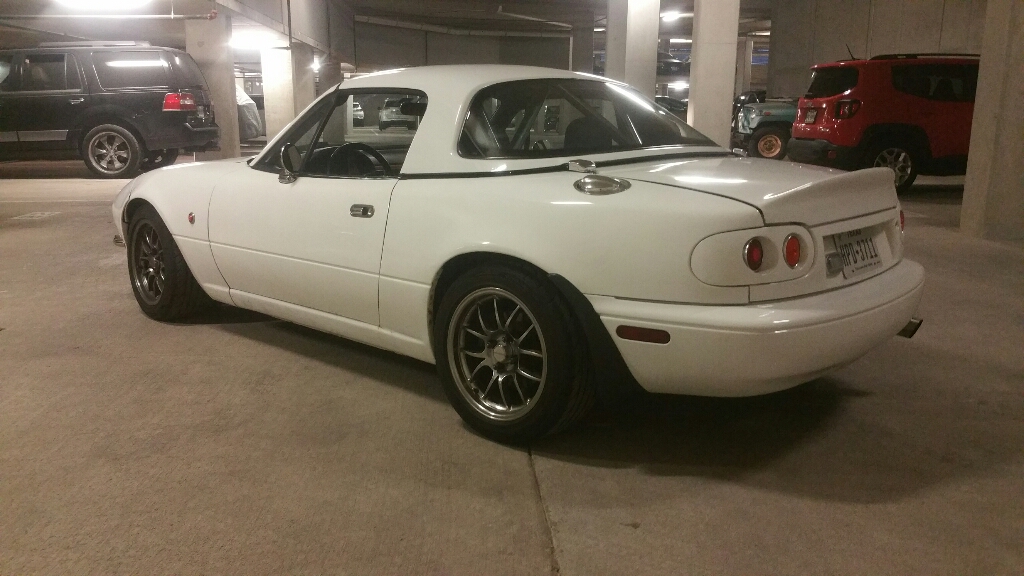

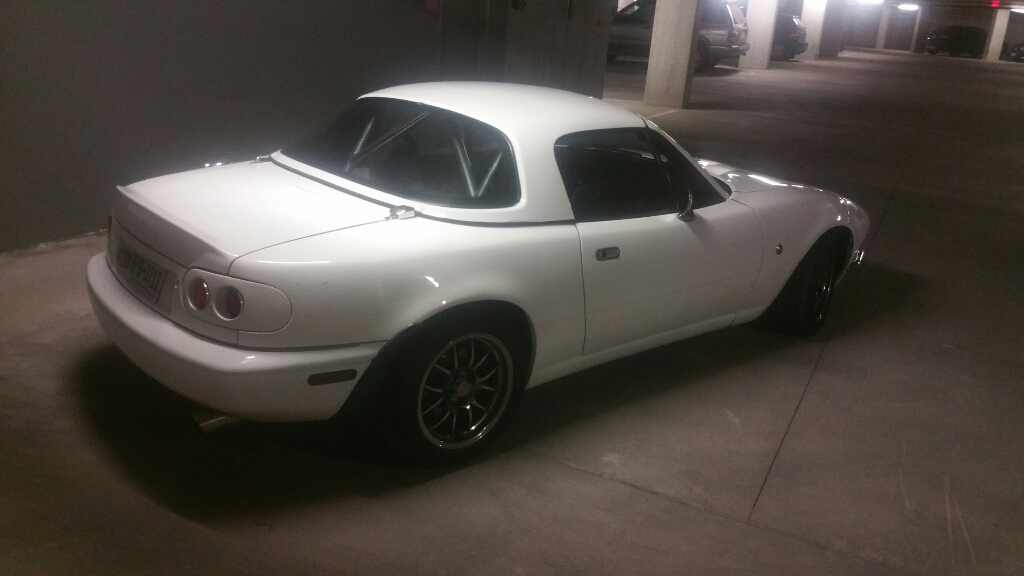

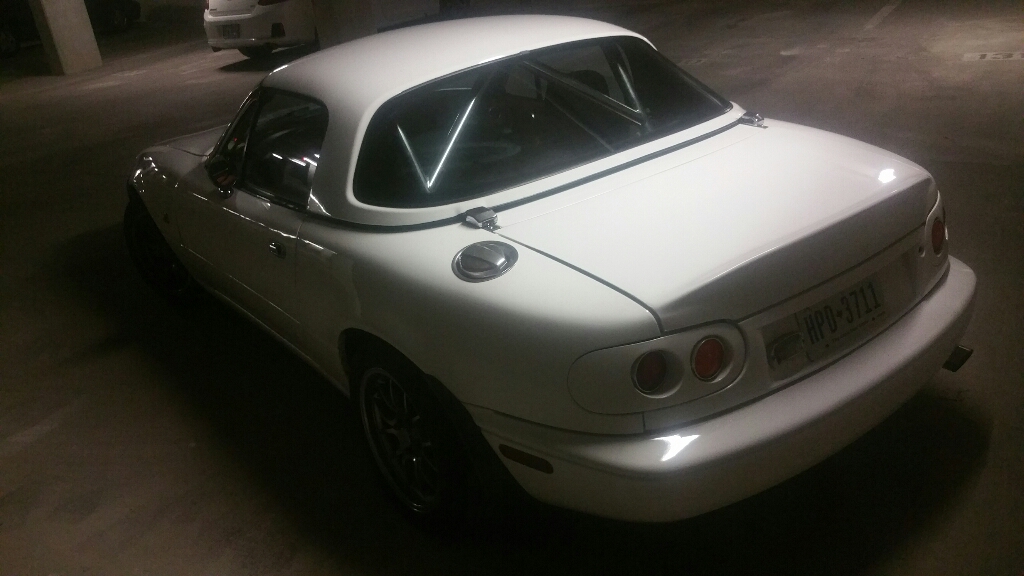

Exterior:
Pitcrew front end with chrome front bumpers
Hella H4 headlights
S800 mirrors
Zoom Side winker turn signals
Zoom fuel lid
Autokonexion Ducktail 1.5
Euro rear finish panel
Zoom tail lights
OEM Hardtop (no headliner/defrost)
Jass hardtop side brackets
NO convertible top
Project G Bikini top custom fitted for
Hard dog Double Diagonal HC Stainless polished roll bar (No longer available, $2500)
-gold rollbar shown in one of the pictures was removed and replaced
949 Racing 6UL 15x8 Nickel wheels with new Nitto NT05 205/50/15's

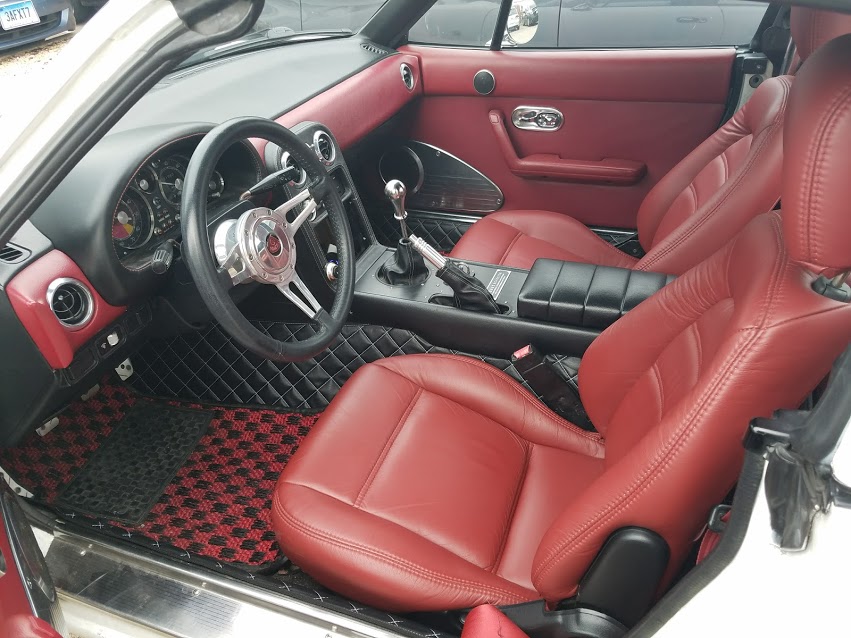

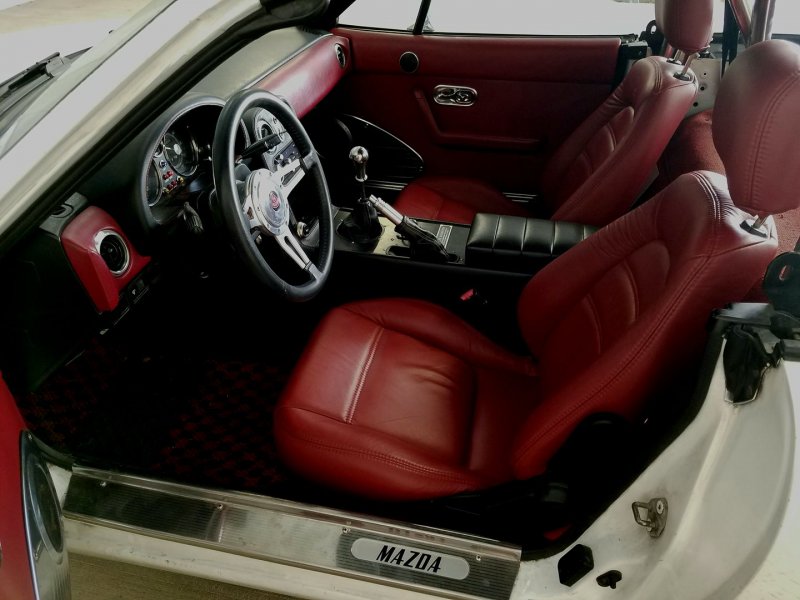

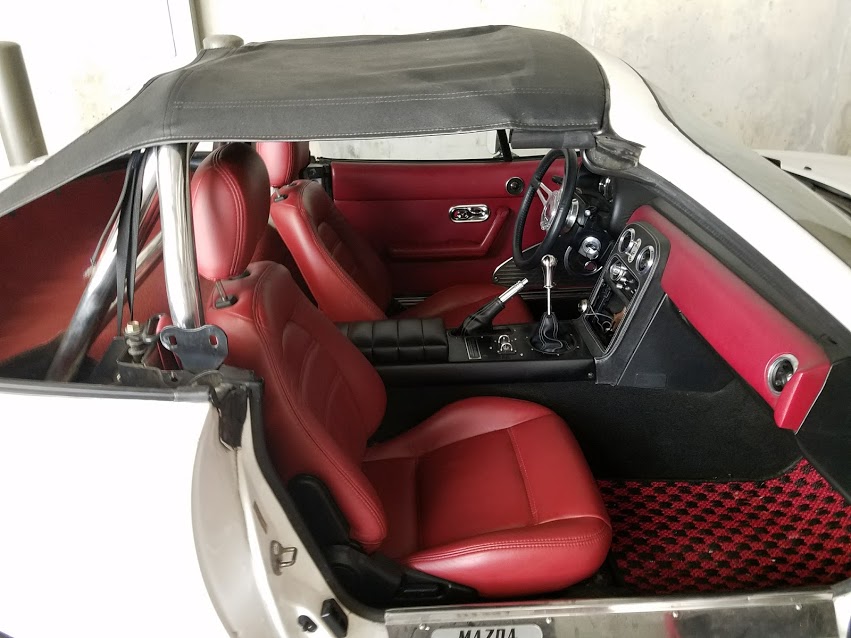

Interior:
95 M-edition seats (only miata seat with adjustable headrests) - recovered in 93LE matching leather. (new)
Nakamae quilted interior panels (side steps, transmission tunnel, lower package tray trim - $600 alone! - new)
Lecarra polished hub (new)

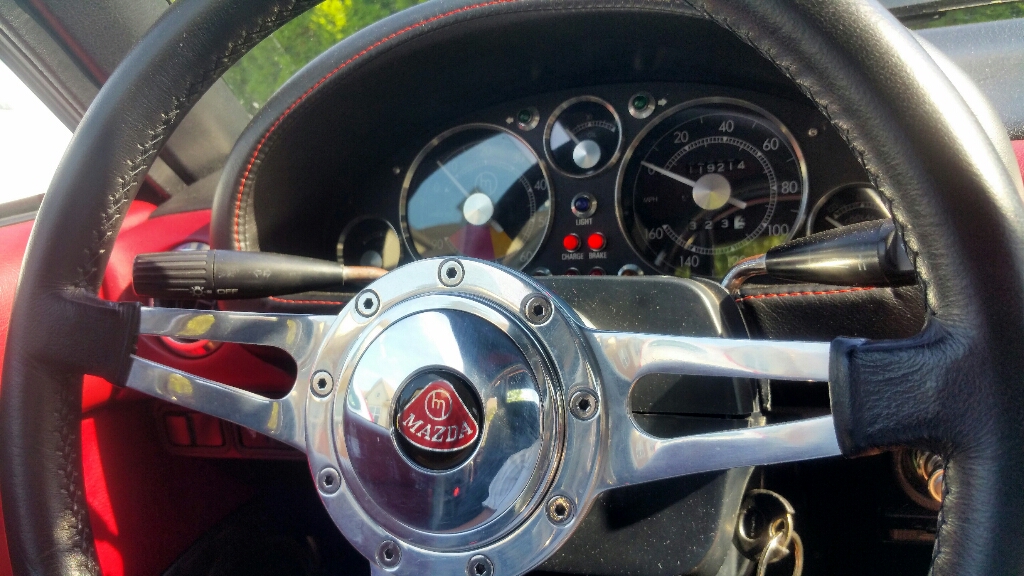

Motolita steering wheel (new)
Billet Motolita horn button with Revlimiter Elanor badge (new)
Stainless door sills with Revlimiter inserts (new)
Redline Leather wrapped cluster hood
Revlimiter gauges
KG Works black retro cluster
Aerodramatics needles
Redline Leather wrapped tombstone
Aerodramatics metal door pulls and door locks
Nielex silver door cups (new)
RS Products HVAC with spun silver *****
KG Works rear view mirror
Revlimiter Retro hazard switch
Revlimiter Retro window switch
Revlimiter Chrome Vent Rings
Garagestar polished brake handle (new)
Garagestar delrin door bushings (new)
Miataroadster tall angled short shift kit (new, just rebuilt shifter, new shift boots, delrin bushings)
93LE interior door panels with retro 93LE speaker covers
93LE seatbelts
93LE red rear carpet
Retromodern simplicity oil cap (new)
Retromodern machine polished ignition cover (new)
Retromodern lighter dummy plug (new)
Retromodern knurled dim **** (new)
Cocomats red and black checkered mats (new)
Engine:
ARP hardware for crank pulley
Gates racing accessory belt (new)
Trackspeed Dual Core Race Radiator (new! this alone is $600, also performed a Zerex Asian Coolant flush)
FM lower silicone hose (new)

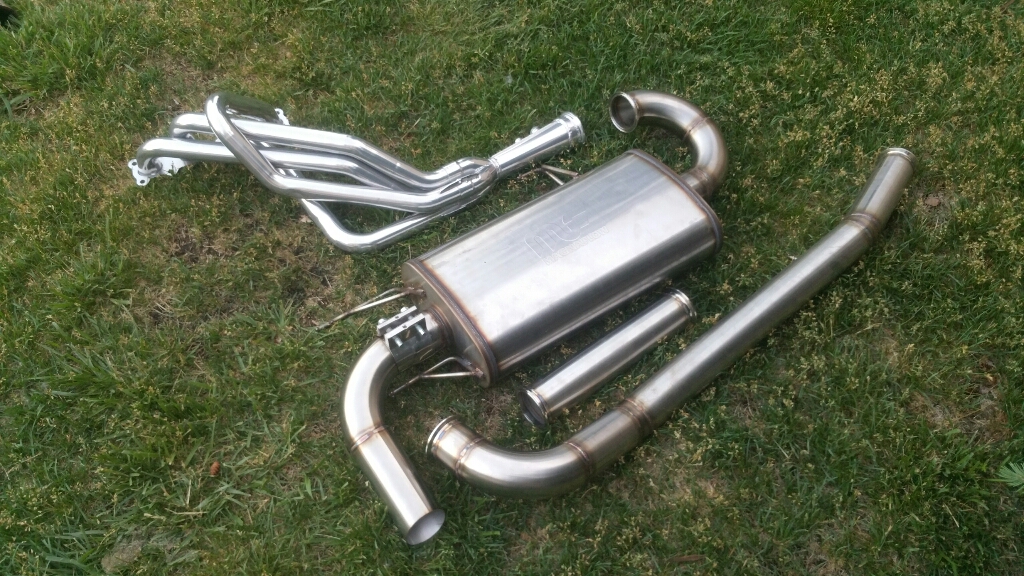

Modified Bob Boig road race header - his is the header that is on all the Top EP GTlite and GT2 miatas. Built for high HP, high revving engines. 1 3/4x 31" primaries, merge collector into 7 degree divergent nozzle into 3" vband ring. Nitroplated. This header was designed for ~200+whp GT motors originally. I modified by replacing the 2" collector with the 7* divergent nozzle to 3" vband ring that are on it now. These haven't been available in ~10 years (new)
Artech Custom 3" Vband exhaust with Magnaflow muffler and flex pipe (new)
Stainless clutch cable
Flyin Miata Happy meal clutch
FC3S clutch type LSD in 1.8 housing with 4.10 gear
Beatrush Aluminum radiator Panel
Garage star black powdercoated cowl panel
Duracell AGM battery (new)
Suspension:
Manual rack
KYB AGX
Suspension techniques sway bars
Hawk HP pads with 1.8 brakes (i believe)
Negs:
The paint job is a 15 footer - the hardtop has typical chips around the edge. Needs a good clean.
The nose has some chips on the bottom as it used to have a TRAP lip mounted to it, but the previous owner broke it off.
No console, unless you buy the Zoom console from me or a bare Zoom fiberglass console.
Dash crashpad will be black unless you purchase the 93LE dash with car.
NO AC or radio
Drips a small amount of oil
Typical miata gear whine in gears 1-3, trans functions well with no grinding/clunking/issues
Small exhaust leak around the header/collector. Acoustiseal or Hylomar sealant was not used, so that should fix it. The guy at Nitroplate said that the coating was strong enough that if you took the header to a muffler shop and had the primaries stretched out to tighten the slips up some it wouldn't hurt the coating at all as well.
Brakes click with hard braking, recent brake bleed and plenty of life on the pads.
I have a 93LE complete dash available 93LE carpet, plastics, and seat belts if you would like to complete the 93LE red interior conversion. I also have many other miata parts to support a turbo build.
Additional things I have for sale that are NOT included with the car:
-Zoom Console Type 1 console - black anodized / black leather armrest $600
-Zoom Type 2 Black leather Radio cover (3 gauge, both silver and black faces) $475
-93LE plastics/carpet/dash $500 with car purchase.
-Full painted OEM control arm set installed ES poly bushings, never used. upper ball joints need replacing $500
-Boundary Street Billet Oil pump BNIB $260
-Rare rearview mirror with built in Map lights PNP! $150
-Flyin Miata Flex Fuel Kit with FM 1.6 purple rail $850
-Odyssey PC680MJ with billet battery bracket $175
-McIntosh double din radio from Subaru CD and tape in a DDMworks din adapter.
-trackspeed BBK, supermiata sway bar kit, GURU billet diff, etc.
Easily removable items can be taken off to further reduce price to your budget.
Will entertain trades for interesting NON PROJECT cars will add cash if necessary...
PHOTO ALBUM:
Pitcrew Miata - Album on Imgur
Located in Austin, TX. Clear TX title, registered.
~122k mi
This has the most iconic nose conversion made for the NA - an extremely rare Pit Crew Racing front end imported from Japan. It's a love or hate conversion, but it sure is a conversation starter. If you don't know - this front end is $3100 alone, plus $400 chrome bumpers, PLUS $600 shipping from japan... that's unpainted and uninstalled. There are only a handful of miata's in the USA (4 including this one, to my knowledge) with this front end conversion! If you are familiar with the 'miata scene', the nose came from the "Blue Potato" and this was previously Phillyb's "Pitcrewb". Planet Miata performed the 1.8L swap with a 120k engine, the body has ~120k on it. Theu also performed a wire tuck to clean up the typically cluttered miata engine bay. If you are familiar with Miata's, you'll know the cost/rarity/desirability of many of these parts and know that several of these are no longer available. A little more love and this will be one unique, retro miata.
I have fixed *many* things on it since I have had ownership and have put on many parts that I've collected over owning 12+ miatas. I had lots of plans for it, but unfortunately I don't have extra parking space here and no longer have a place to work on it. Notable additions include a Hard Dog Stainless roll bar, Boig Header and Artech V-band 3" exhaust, Miataroadster short shifter kit, Trackspeed radiator, 93LE parts, new Nitto NT05 205/50/15's and everything marked new below....
Exterior:
Pitcrew front end with chrome front bumpers
Hella H4 headlights
S800 mirrors
Zoom Side winker turn signals
Zoom fuel lid
Autokonexion Ducktail 1.5
Euro rear finish panel
Zoom tail lights
OEM Hardtop (no headliner/defrost)
Jass hardtop side brackets
NO convertible top
Project G Bikini top custom fitted for
Hard dog Double Diagonal HC Stainless polished roll bar (No longer available, $2500)
-gold rollbar shown in one of the pictures was removed and replaced
949 Racing 6UL 15x8 Nickel wheels with new Nitto NT05 205/50/15's
Interior:
95 M-edition seats (only miata seat with adjustable headrests) - recovered in 93LE matching leather. (new)
Nakamae quilted interior panels (side steps, transmission tunnel, lower package tray trim - $600 alone! - new)
Lecarra polished hub (new)
Motolita steering wheel (new)
Billet Motolita horn button with Revlimiter Elanor badge (new)
Stainless door sills with Revlimiter inserts (new)
Redline Leather wrapped cluster hood
Revlimiter gauges
KG Works black retro cluster
Aerodramatics needles
Redline Leather wrapped tombstone
Aerodramatics metal door pulls and door locks
Nielex silver door cups (new)
RS Products HVAC with spun silver *****
KG Works rear view mirror
Revlimiter Retro hazard switch
Revlimiter Retro window switch
Revlimiter Chrome Vent Rings
Garagestar polished brake handle (new)
Garagestar delrin door bushings (new)
Miataroadster tall angled short shift kit (new, just rebuilt shifter, new shift boots, delrin bushings)
93LE interior door panels with retro 93LE speaker covers
93LE seatbelts
93LE red rear carpet
Retromodern simplicity oil cap (new)
Retromodern machine polished ignition cover (new)
Retromodern lighter dummy plug (new)
Retromodern knurled dim **** (new)
Cocomats red and black checkered mats (new)
Engine:
ARP hardware for crank pulley
Gates racing accessory belt (new)
Trackspeed Dual Core Race Radiator (new! this alone is $600, also performed a Zerex Asian Coolant flush)
FM lower silicone hose (new)
Modified Bob Boig road race header - his is the header that is on all the Top EP GTlite and GT2 miatas. Built for high HP, high revving engines. 1 3/4x 31" primaries, merge collector into 7 degree divergent nozzle into 3" vband ring. Nitroplated. This header was designed for ~200+whp GT motors originally. I modified by replacing the 2" collector with the 7* divergent nozzle to 3" vband ring that are on it now. These haven't been available in ~10 years (new)
Artech Custom 3" Vband exhaust with Magnaflow muffler and flex pipe (new)
Stainless clutch cable
Flyin Miata Happy meal clutch
FC3S clutch type LSD in 1.8 housing with 4.10 gear
Beatrush Aluminum radiator Panel
Garage star black powdercoated cowl panel
Duracell AGM battery (new)
Suspension:
Manual rack
KYB AGX
Suspension techniques sway bars
Hawk HP pads with 1.8 brakes (i believe)
Negs:
The paint job is a 15 footer - the hardtop has typical chips around the edge. Needs a good clean.
The nose has some chips on the bottom as it used to have a TRAP lip mounted to it, but the previous owner broke it off.
No console, unless you buy the Zoom console from me or a bare Zoom fiberglass console.
Dash crashpad will be black unless you purchase the 93LE dash with car.
NO AC or radio
Drips a small amount of oil
Typical miata gear whine in gears 1-3, trans functions well with no grinding/clunking/issues
Small exhaust leak around the header/collector. Acoustiseal or Hylomar sealant was not used, so that should fix it. The guy at Nitroplate said that the coating was strong enough that if you took the header to a muffler shop and had the primaries stretched out to tighten the slips up some it wouldn't hurt the coating at all as well.
Brakes click with hard braking, recent brake bleed and plenty of life on the pads.
I have a 93LE complete dash available 93LE carpet, plastics, and seat belts if you would like to complete the 93LE red interior conversion. I also have many other miata parts to support a turbo build.
Additional things I have for sale that are NOT included with the car:
-Zoom Console Type 1 console - black anodized / black leather armrest $600
-Zoom Type 2 Black leather Radio cover (3 gauge, both silver and black faces) $475
-93LE plastics/carpet/dash $500 with car purchase.
-Full painted OEM control arm set installed ES poly bushings, never used. upper ball joints need replacing $500
-Boundary Street Billet Oil pump BNIB $260
-Rare rearview mirror with built in Map lights PNP! $150
-Flyin Miata Flex Fuel Kit with FM 1.6 purple rail $850
-Odyssey PC680MJ with billet battery bracket $175
-McIntosh double din radio from Subaru CD and tape in a DDMworks din adapter.
-trackspeed BBK, supermiata sway bar kit, GURU billet diff, etc.
Easily removable items can be taken off to further reduce price to your budget.
Will entertain trades for interesting NON PROJECT cars will add cash if necessary...
PHOTO ALBUM:
Pitcrew Miata - Album on Imgur
Last edited by xcoldricex; 05-26-2017 at 10:34 AM.
Reply
0
0
05-01-2017, 05:41 PM
#2
Supporting Vendor
iTrader: (1)
Join Date: Sep 2010
Location: Lake Forest, CA
Posts: 7,952
Total Cats: 1,005
I would LOVE your car if it didn't have the pitcrew front end
In seriousness, for someone who really wants a pitcrew front end Miata, this seems like a great deal.
@AlwaysBroken here's your sway bar kit BTW
In seriousness, for someone who really wants a pitcrew front end Miata, this seems like a great deal.
@AlwaysBroken here's your sway bar kit BTW
Reply
1
1
05-01-2017, 07:56 PM
#4
Junior Member
Thread Starter
iTrader: (3)
Join Date: Sep 2010
Location: Austin
Posts: 217
Total Cats: -1
Thanks. Yeah the pitcrew is always polarizing. I do miss pop ups now that I've had it for a long time. Never fails to start a conversation though.
My girlfriend currently drives this more than I do, so she gets a lot of double takes.
yes, pm me an offer for the fuel rail.
The Trackspeed BBK 11.75" gen 1 dynalite black 4 piston, OEM sport rear brakes, upgraded brake booster and 989 master cylinder as well that was all put on at the same time. used for about 2k miles before the engine went on my previous car.
Looks like prices have dropped on these so I don't really know a reasonable price. I was going to put them on if I was keeping the car.
My girlfriend currently drives this more than I do, so she gets a lot of double takes.
yes, pm me an offer for the fuel rail.
The Trackspeed BBK 11.75" gen 1 dynalite black 4 piston, OEM sport rear brakes, upgraded brake booster and 989 master cylinder as well that was all put on at the same time. used for about 2k miles before the engine went on my previous car.
Looks like prices have dropped on these so I don't really know a reasonable price. I was going to put them on if I was keeping the car.
Reply
0
0
05-02-2017, 01:05 AM
#5
Senior Member
Join Date: Jun 2015
Location: TAMPA, FL
Posts: 817
Total Cats: 20
Tell me about the supermiata sway kit?
Btw, that car's interior looks clean and new in a way that my car probably never will. Miles and miles of untorn leather. Appreciate the effort that went into that front end, but it's just not my taste.
Btw, that car's interior looks clean and new in a way that my car probably never will. Miles and miles of untorn leather. Appreciate the effort that went into that front end, but it's just not my taste.
Reply
0
0
07-25-2017, 01:56 PM
#14
Junior Member
Thread Starter
iTrader: (3)
Join Date: Sep 2010
Location: Austin
Posts: 217
Total Cats: -1
Was on a car for ~100 miles, before it was parted out. The DW300 pump is already mounted to the fuel sender unit with the AN fitting welded. Has a Rare PURPLE FM 1.6L fuel rail.
Reply
0
0
09-29-2017, 03:30 PM
#18
Junior Member
Thread Starter
iTrader: (3)
Join Date: Sep 2010
Location: Austin
Posts: 217
Total Cats: -1
has a new trans installed at auto spec in round rock (miata specialists), new clutch and flywheel. new RMS. Motocraft xt-m5-qs. no gear whine
exhaust leak fixed.
price now $8500!
exhaust leak fixed.
price now $8500!
