$2000 turbo nitrous miata - good, bad ugly


Old 09-30-2018, 12:41 AM
  #1
Junior Member
Thread Starter

Join Date: Jun 2018
Posts: 53
Total Cats: -4
Default $2000 turbo nitrous miata - good, bad ugly

Hi guys,

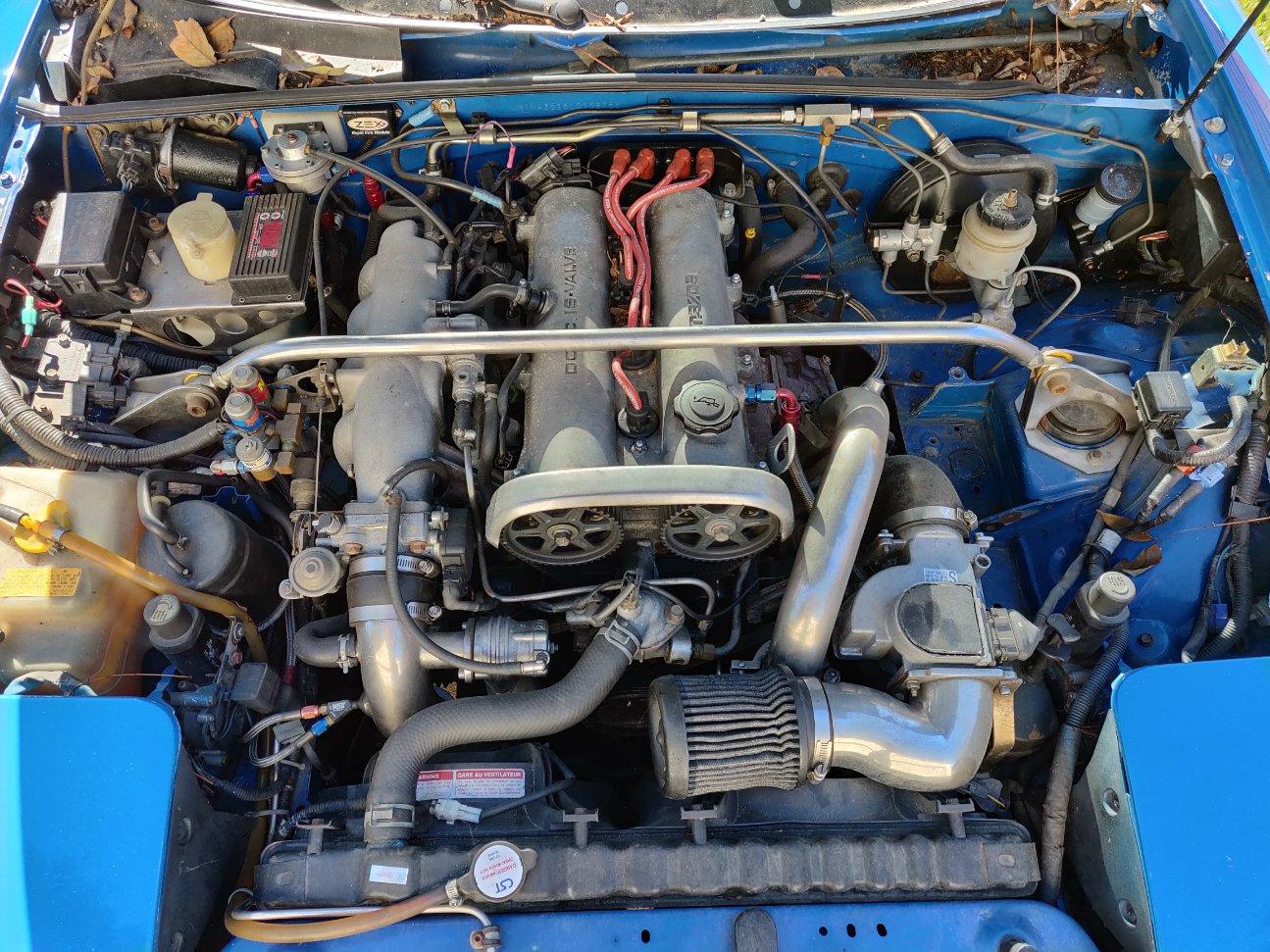

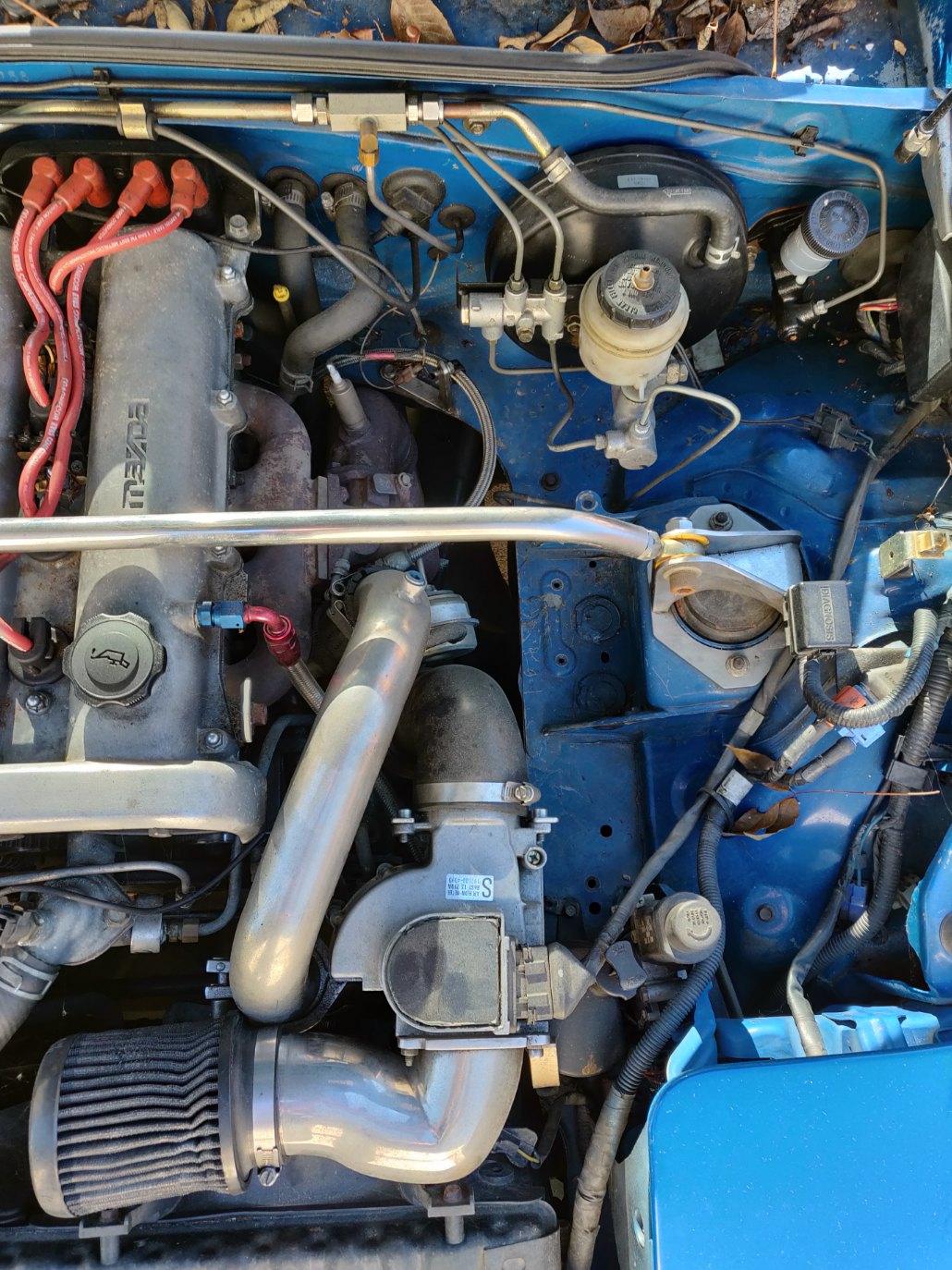

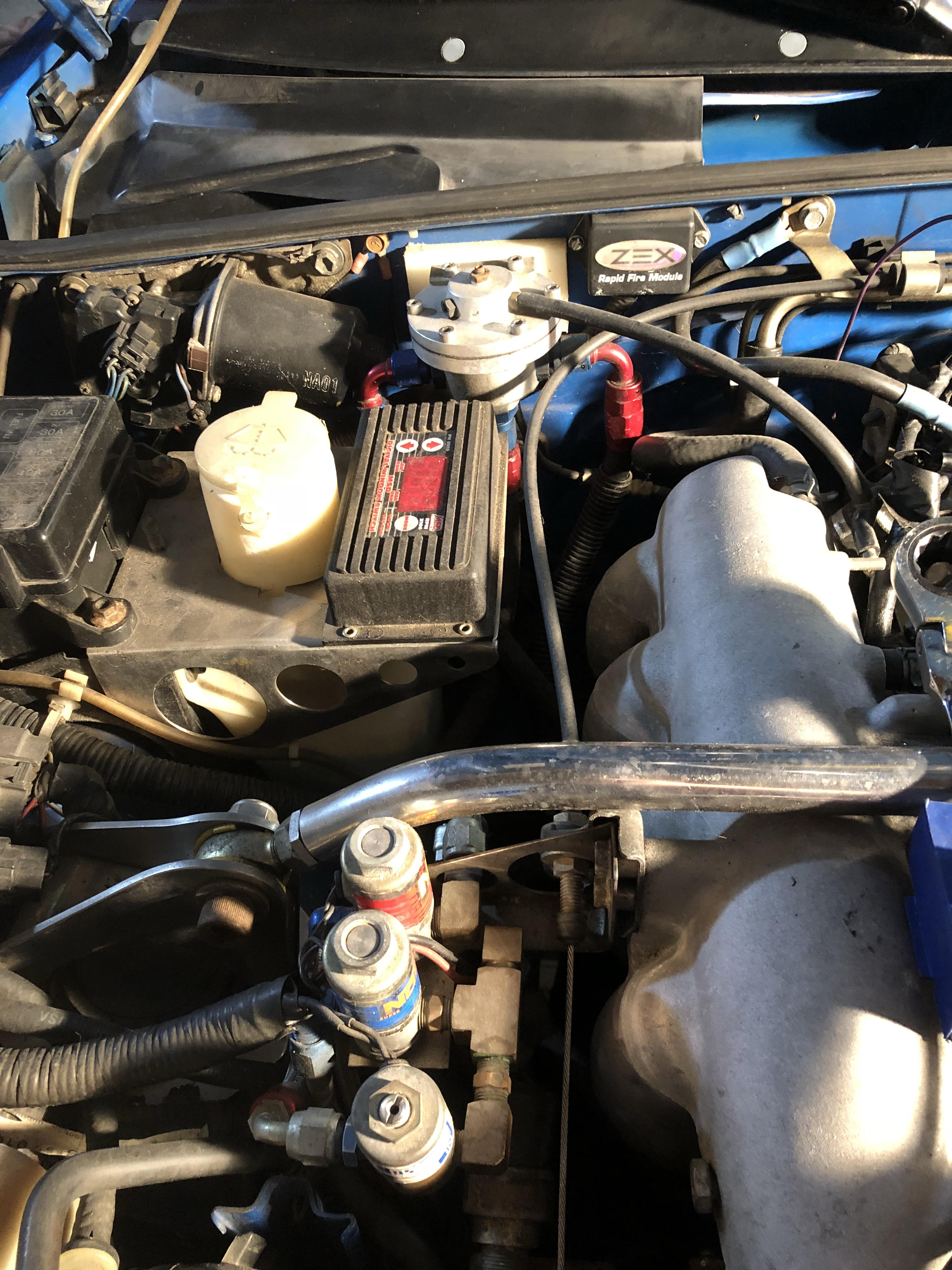

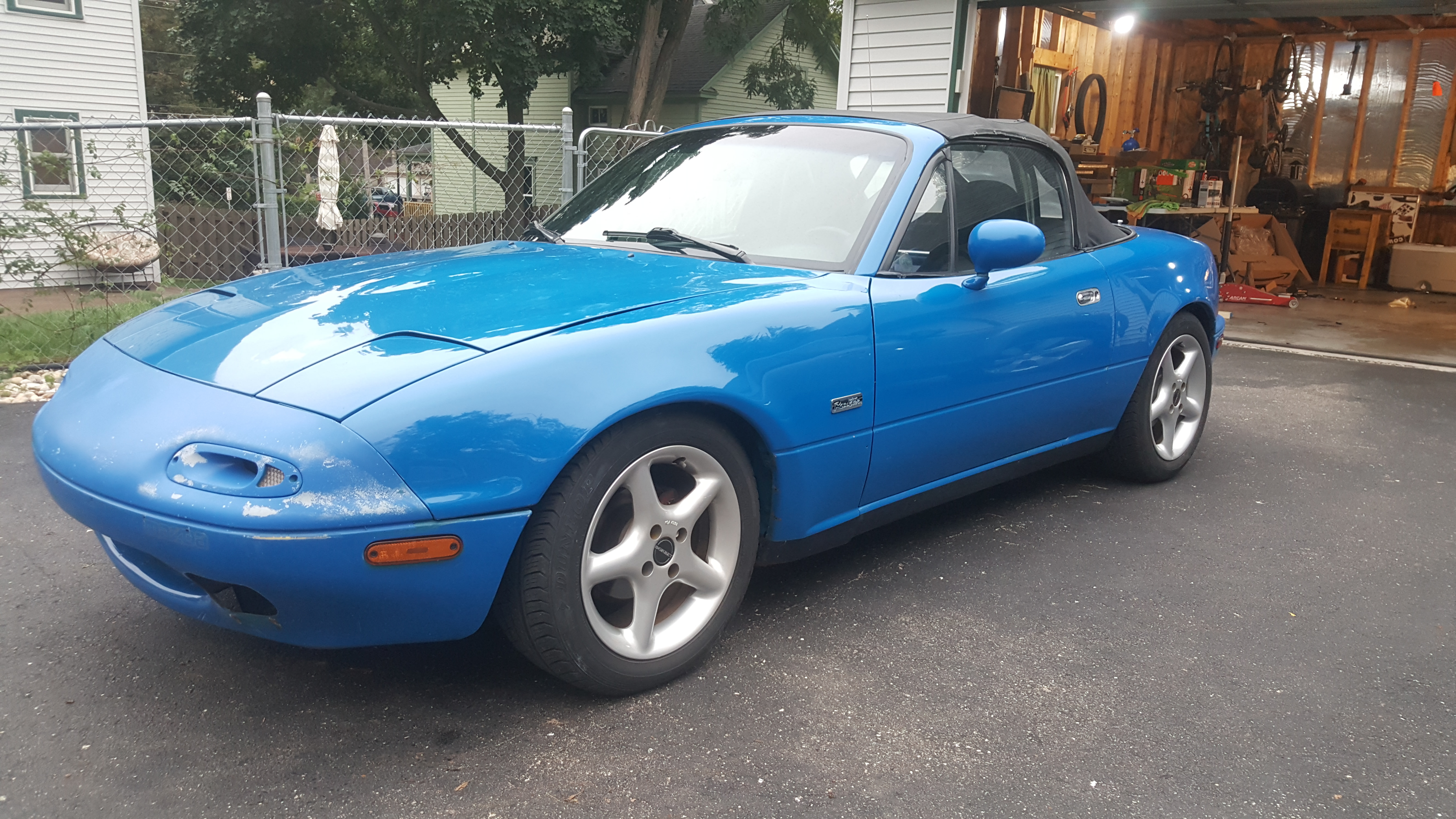

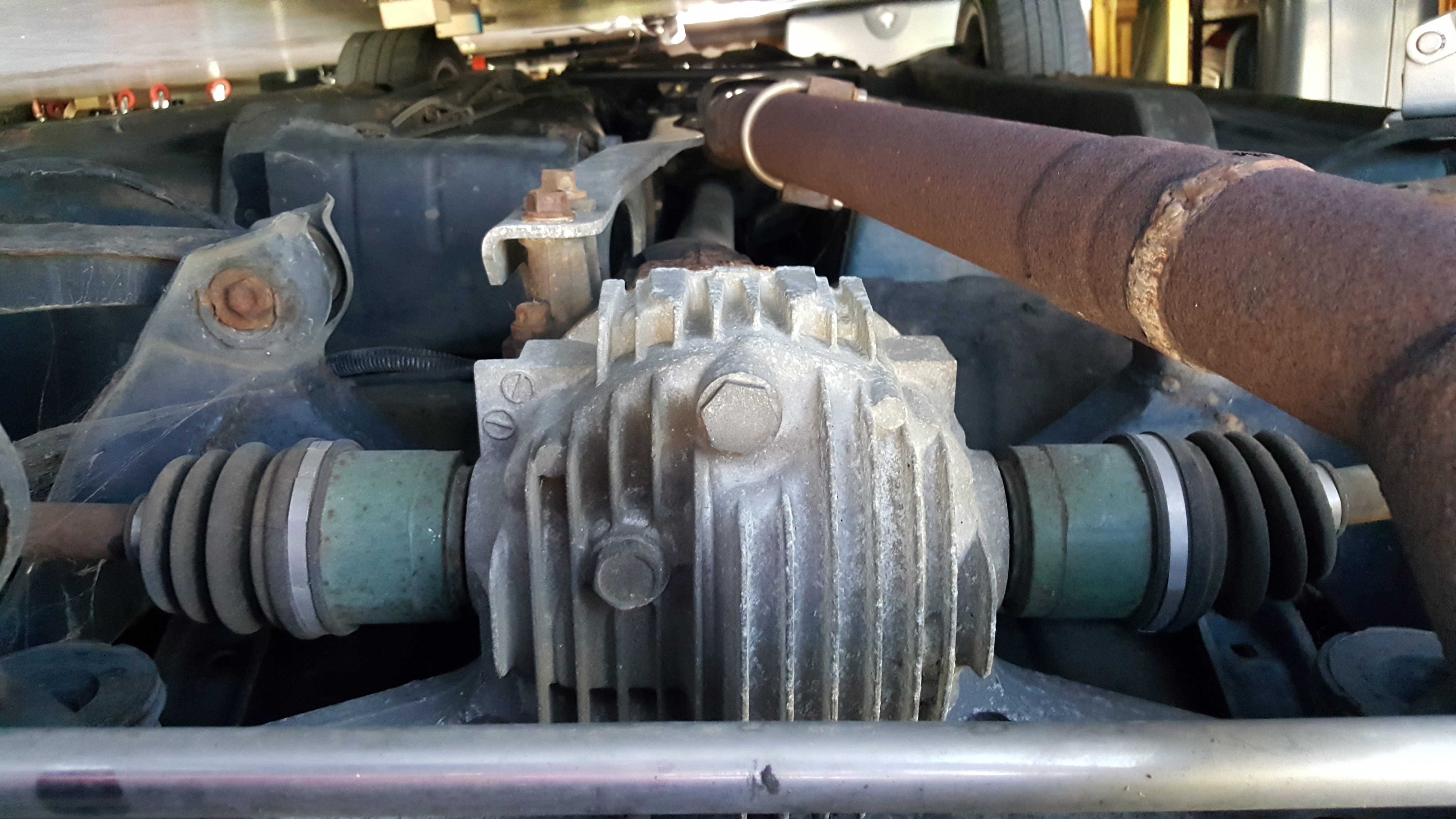

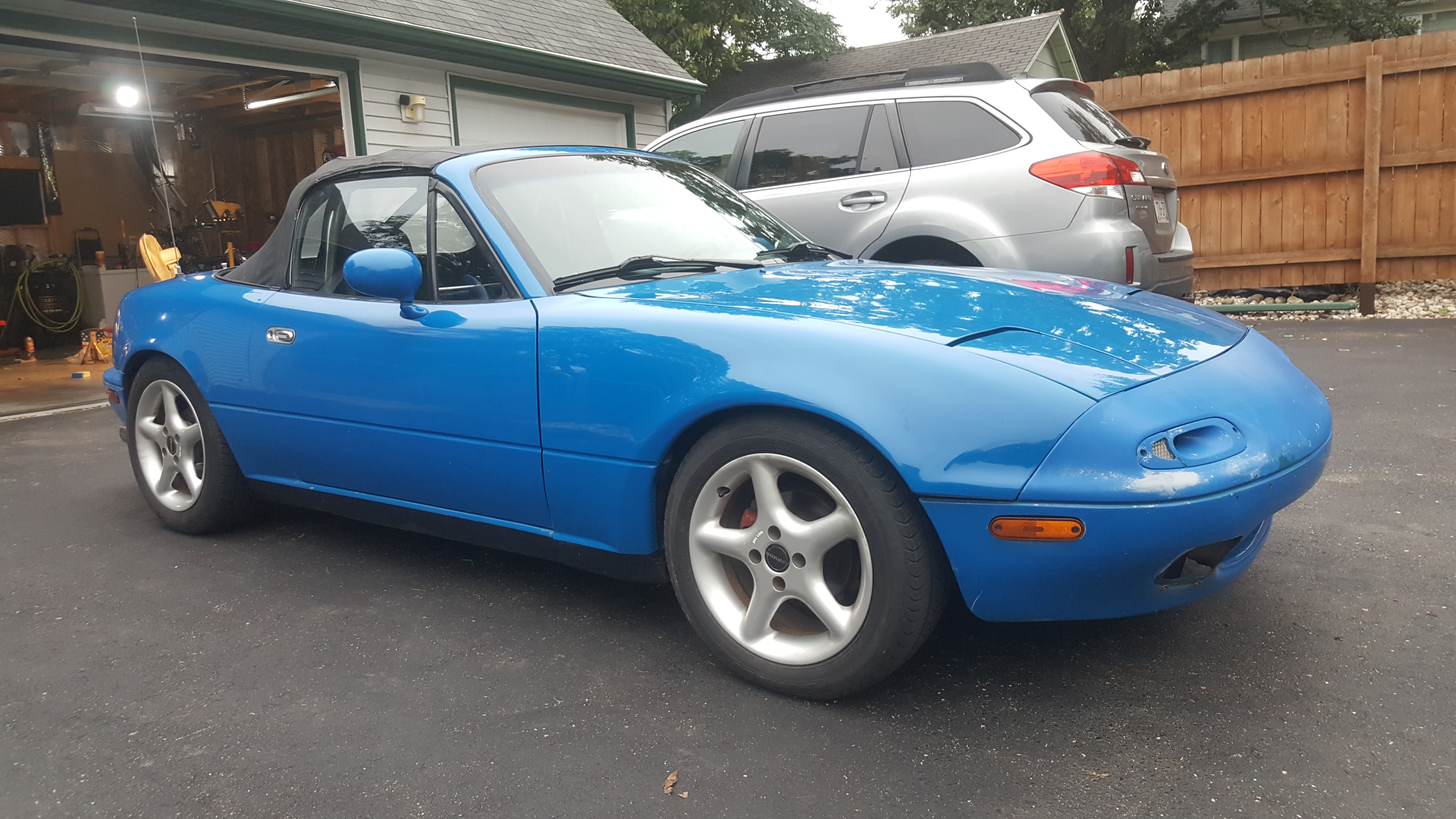

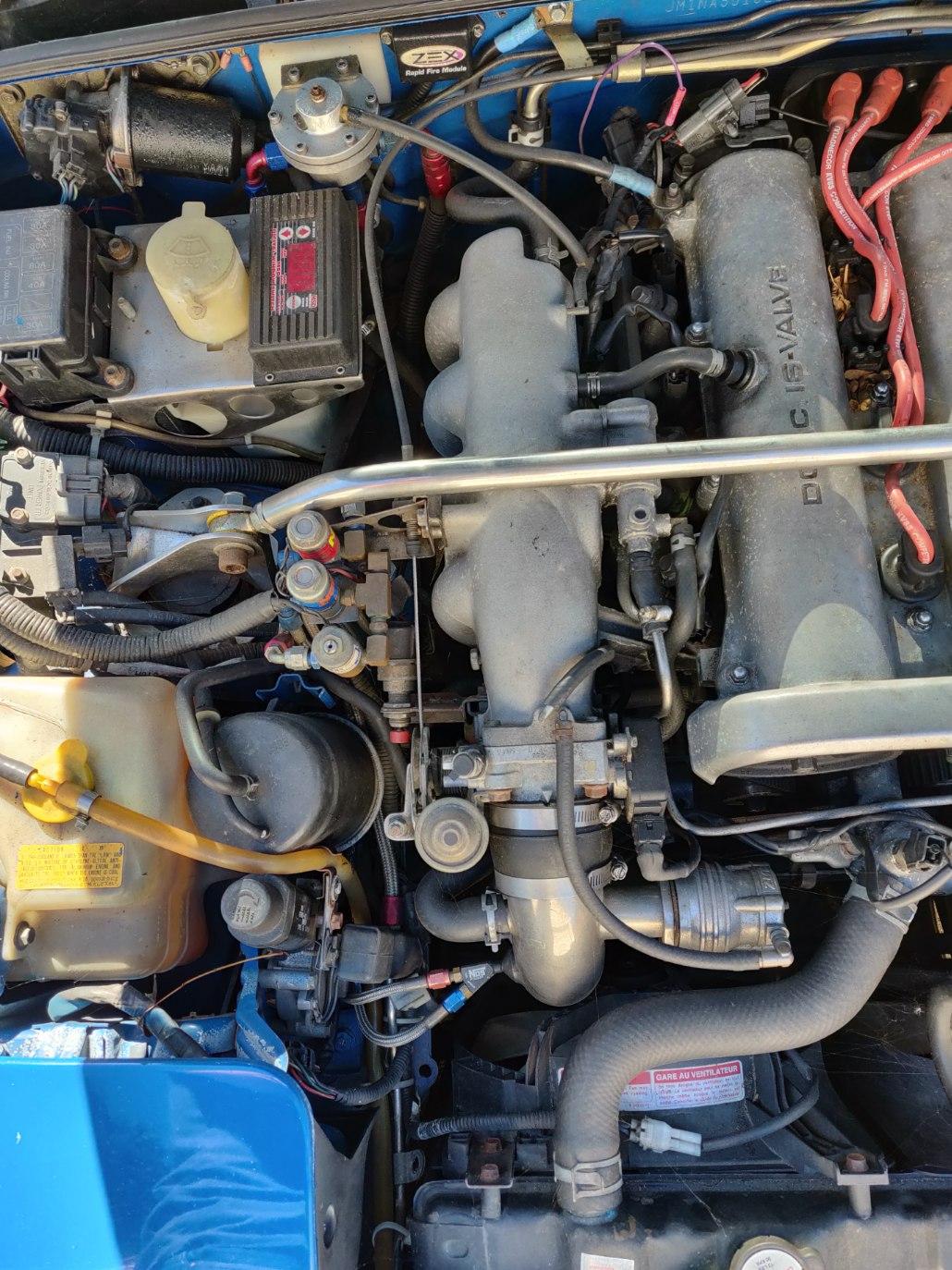

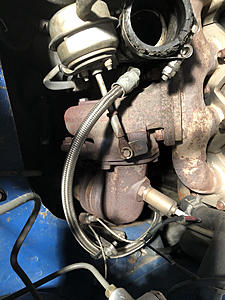

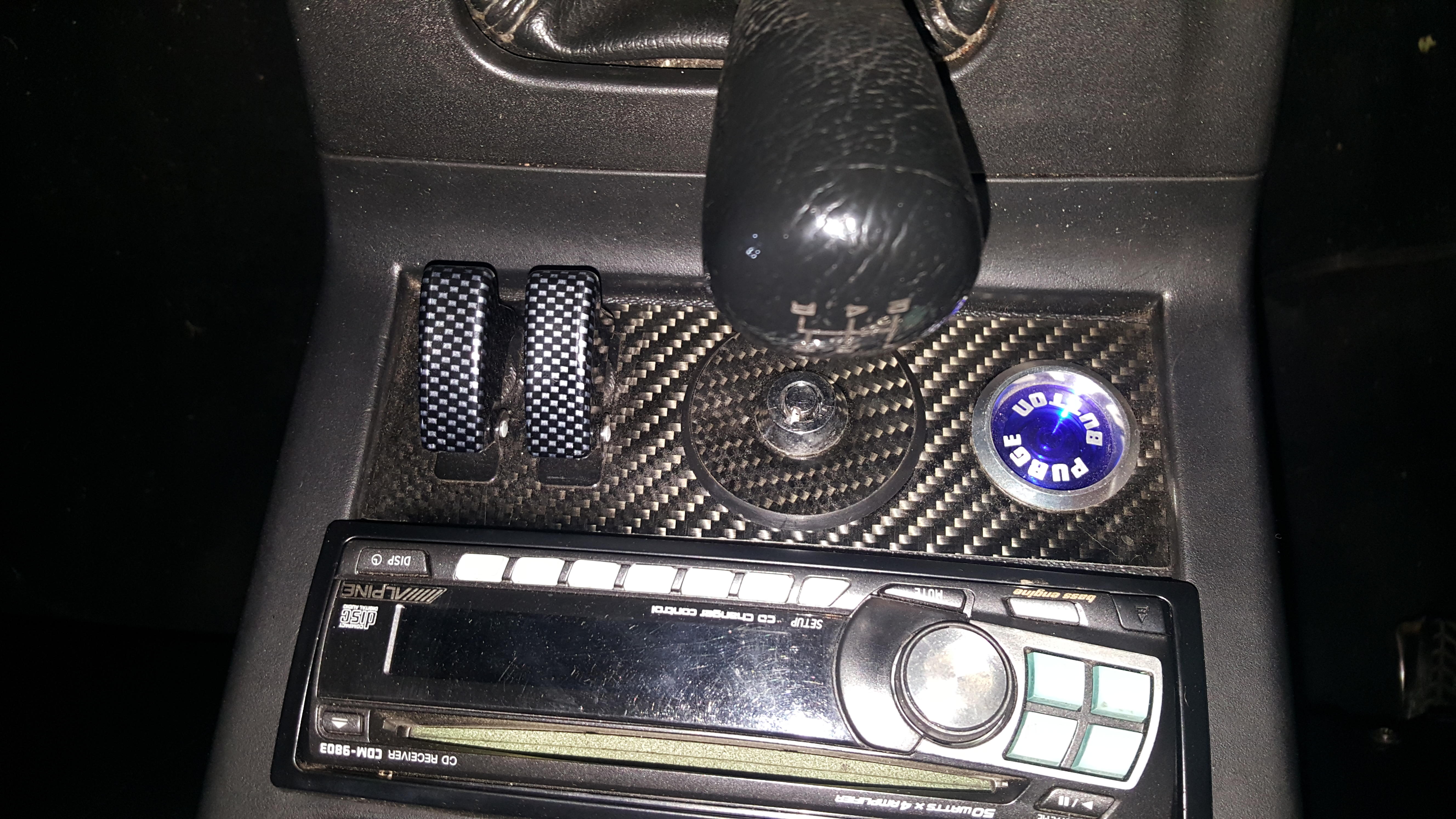

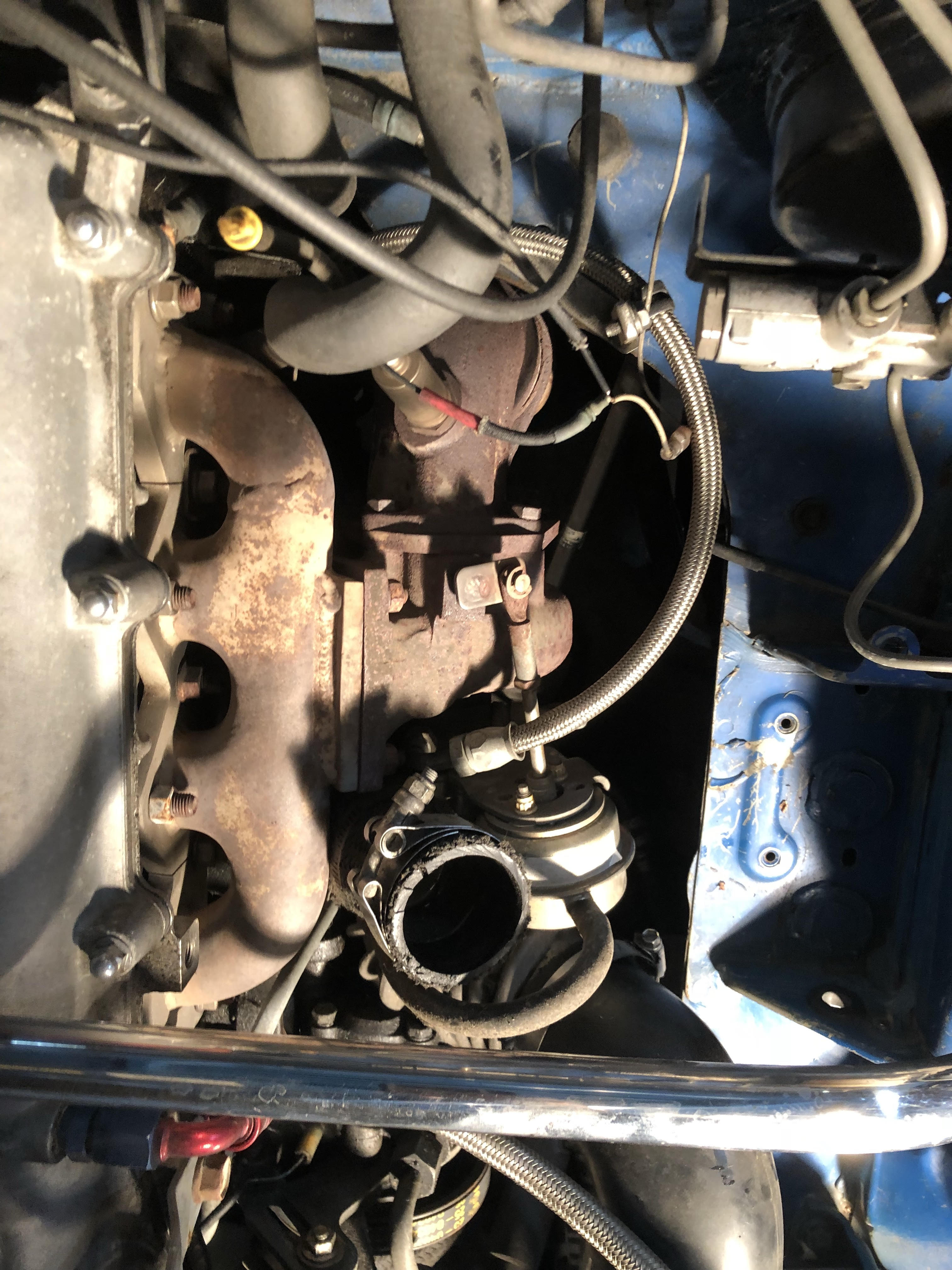

I was searching for a nice 1.8 to start a build with but came across this 1990 1.6 that I wound up buying because it was inexpensive. At some point it looks like someone spent a lot of time and energy creating brackets and welding up custom piping. It all appears well done. The car also has a nitrous system installed with a fogger in the intake, 10lb bottle in the trunk, WOT switch, MSD window switch and purge system. I plan to basically pull all that out and sell what I can to recoup some money. Right now the car is running on the stock computer and a FMU. There is a narrowband and boost gauge added to the a-pillar. I've already bought a AEM wideband to swap in early next week. It's boosting 3-4 PSI and the narrowband is almost always in the "rich" portion of the gauge unless I am steady state light throttle where it bounces back and fourth like normal. Car also has a 1.8 rear end, not sure if torsen.

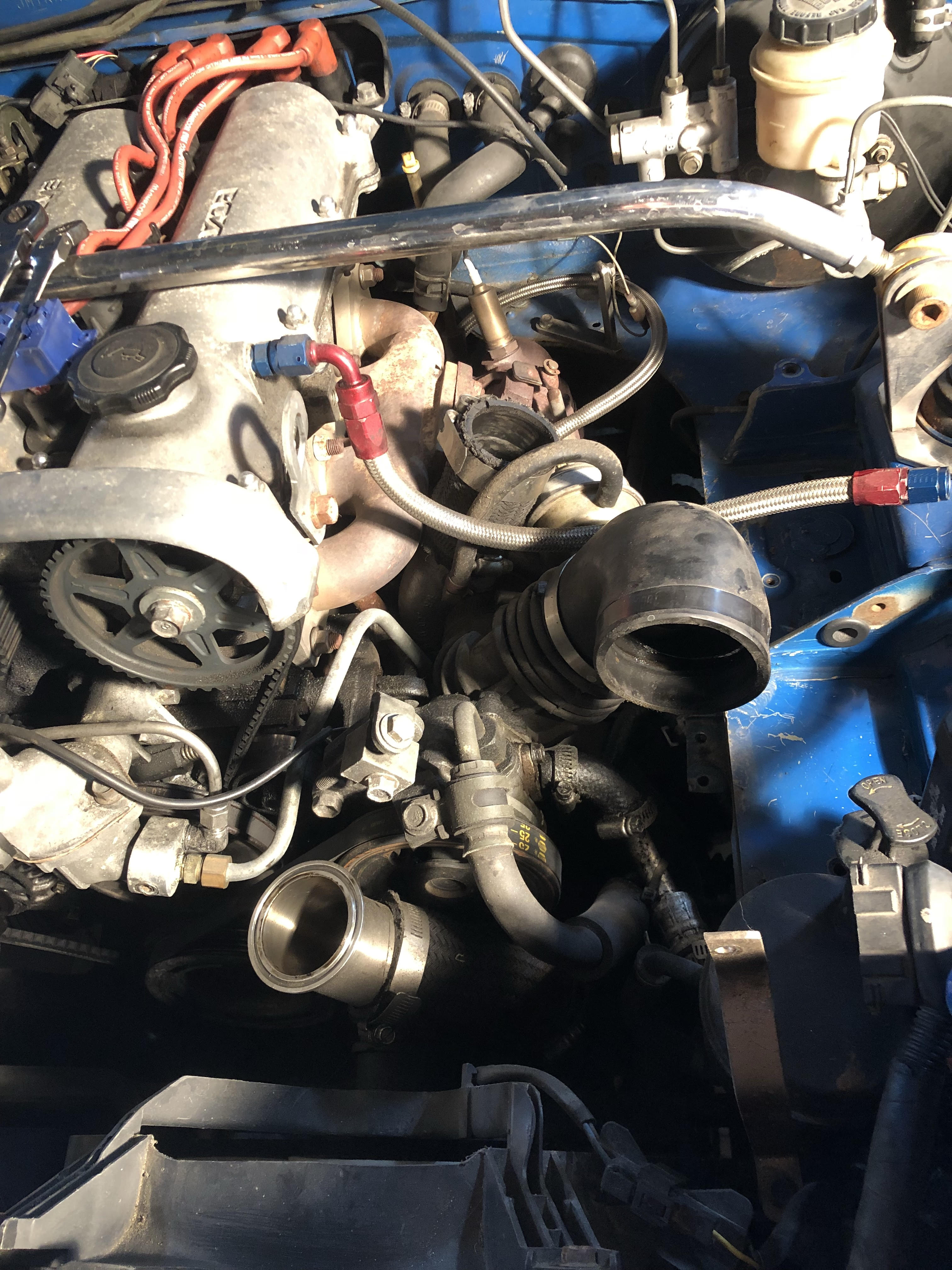

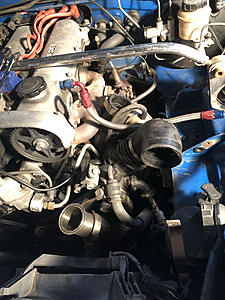

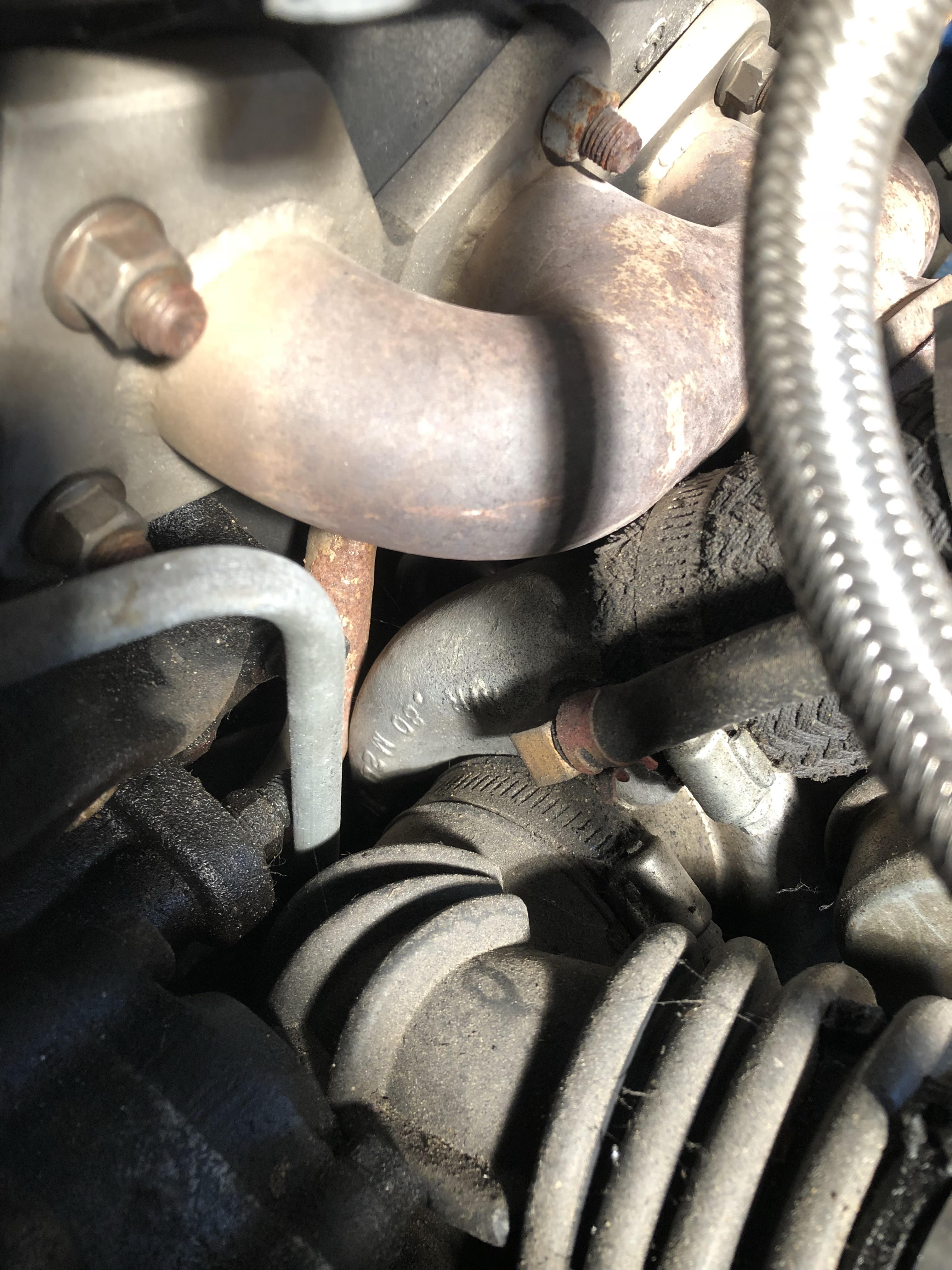

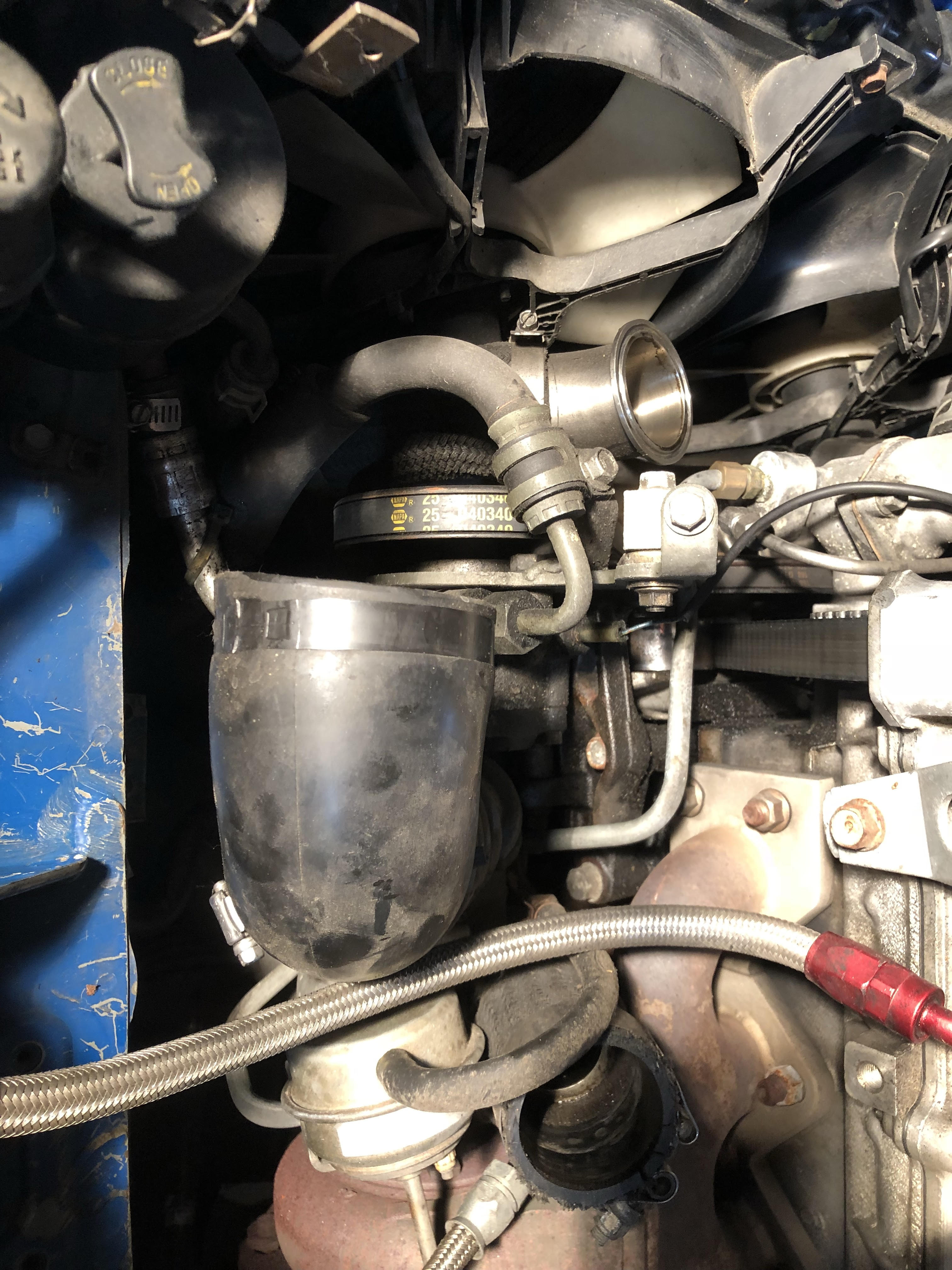

My plan is to buy some injectors, a fuel pump and fuel pressure regulator along with a megasquirt PNP and learn on this car. Some things I notice is the seemingly poor placement of the turbo inlet and a tight 90 degree inlet. I'd like to have the more experienced eyes take a look and tell me the good, bad and ugly of the current setup on the 1.6. I'm hoping to learn the tuning on this car and either swap in a 1.8 later or buy a different 1.8 car altogether that's cleaner. I'm hoping to get in the 200+WHP range with this car after the megasquirt and turning up the boost. I'm guessing it's running around 130-140 whp now? See the attached pics, i'd appreciate any comments on the current setup.
Attached Thumbnails 00 turbo nitrous miata - good, bad ugly-unnamed-1-.jpg   00 turbo nitrous miata - good, bad ugly-unnamed.jpg   00 turbo nitrous miata - good, bad ugly-unnamed-2-.jpg   00 turbo nitrous miata - good, bad ugly-unnamed-3-.jpg   00 turbo nitrous miata - good, bad ugly-unnamed-4-.jpg

00 turbo nitrous miata - good, bad ugly-unnamed-5-.jpg   00 turbo nitrous miata - good, bad ugly-20180929_171031.jpg   00 turbo nitrous miata - good, bad ugly-20180929_171042.jpg   00 turbo nitrous miata - good, bad ugly-20180927_122022.jpg   00 turbo nitrous miata - good, bad ugly-img952018092495115041.jpg

00 turbo nitrous miata - good, bad ugly-img952018092495115048.jpg   00 turbo nitrous miata - good, bad ugly-img952018092495115051.jpg
nicholaschase29 is offline
Old 09-30-2018, 01:32 AM
  #2
Senior Member

Join Date: Mar 2014
Location: Jacksonville, FL
Posts: 1,195
Total Cats: 145
Default

I think its a decent buy, it has an ok looking turbo kit and the body is clean.

get rid of all the crap, nitros, msd, afpr, afm etc...
get a megasquirt, bigger injectors, tune it and crank up the boost.
im sure it will make 200hp if the motor is healthy.

dont worry about the tight bend on the intake, youre not going for 400hp, so one sharp bend on the intake will not make a difference.
once you get rid of the afm, you can eliminate the second tight bend that goes to the filter.
borka is offline
Old 09-30-2018, 07:04 PM
  #3
Junior Member
Thread Starter

Join Date: Jun 2018
Posts: 53
Total Cats: -4
Default

Thanks Borka, kind of what I'm thinking. Glad to hear that bend will not be too detrimental. I'm not racing the car, it's just for street use and I'm not needing every ounce of power.... The body looks better in the pictures than in person, hood, front and rear bumpers and rear panel all have paint issues. There was a body kit on it so there are holes drilled. But it does not have major rust issues which is a big plus here in Wisconsin.

Anyone have any idea what turbo is on this thing? I'd like to find some people running similar setups to help me get a base map going. I still have a lot to learn as far as mega squirt goes. luckily I have a co-worker who is running mega squirt on his turbo fiero that's 400whp+ who knows what he's doing.

Thanks,
Nick
nicholaschase29 is offline
Old 09-30-2018, 09:00 PM
  #4
Senior Member

Join Date: Mar 2014
Location: Jacksonville, FL
Posts: 1,195
Total Cats: 145
Default

looks like some kind of T3 turbo, no ideal what kind though.

get flowforce 640cc injectors, ms3 and use the base map that comes included. that should get you started.
Then just autotune fuel and that would get you 90% of the way to a decent running car.

rest is just fine adjustments for starting, throttle tip in, AC compensation, etc...
borka is offline
Old 09-30-2018, 09:14 PM
  #5
Supporting Vendor
iTrader: (9)

nigelt's Avatar

Join Date: Aug 2014
Location: Carmel Valley, CA
Posts: 1,208
Total Cats: 196
Default

That exhaust is looooow
__________________
FlowForce 380 |640| 960 Injectors
LS Coil PNP harnesses
and complete kits
Free shipping on everything,
including MS3Pro PNP
Bring your own boost - goflowforce.com
nigelt is offline
Old 09-30-2018, 09:31 PM
  #6
Junior Member
Thread Starter

Join Date: Jun 2018
Posts: 53
Total Cats: -4
Default

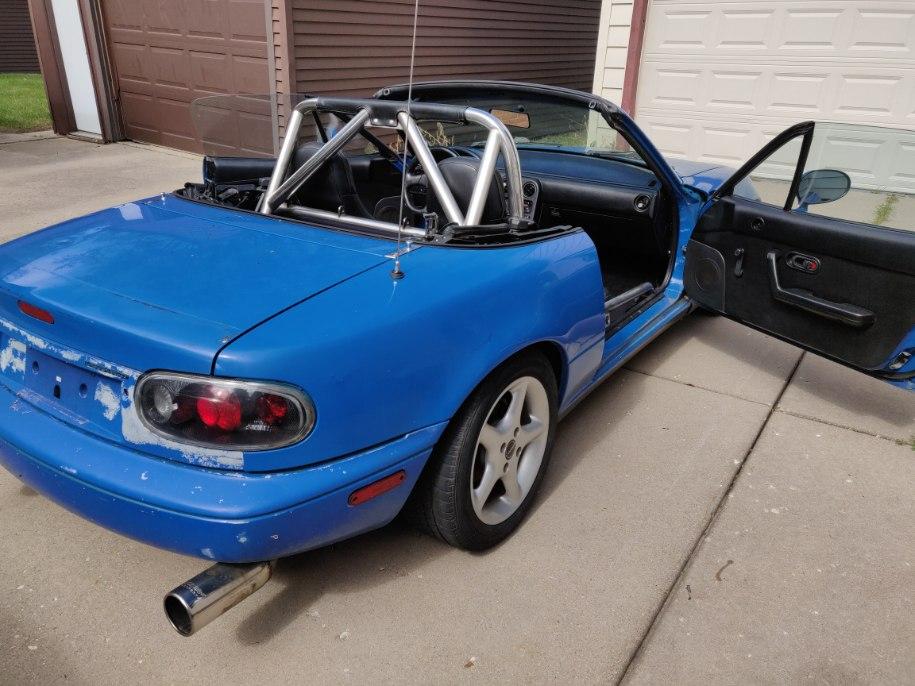

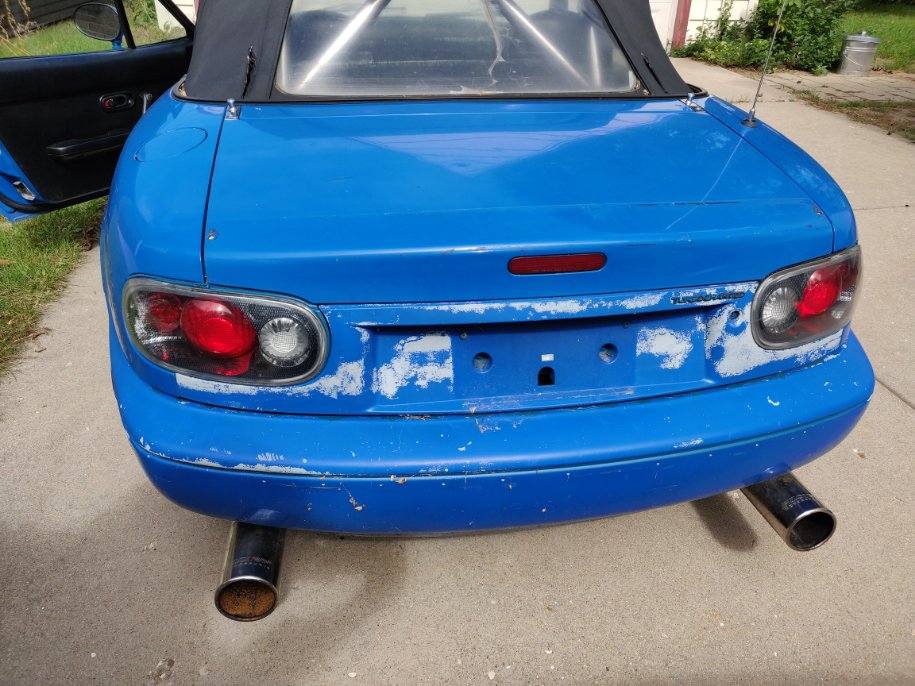

Also sticks out a good distance from the back of the car (looks dorky to me) and is loud for my taste.

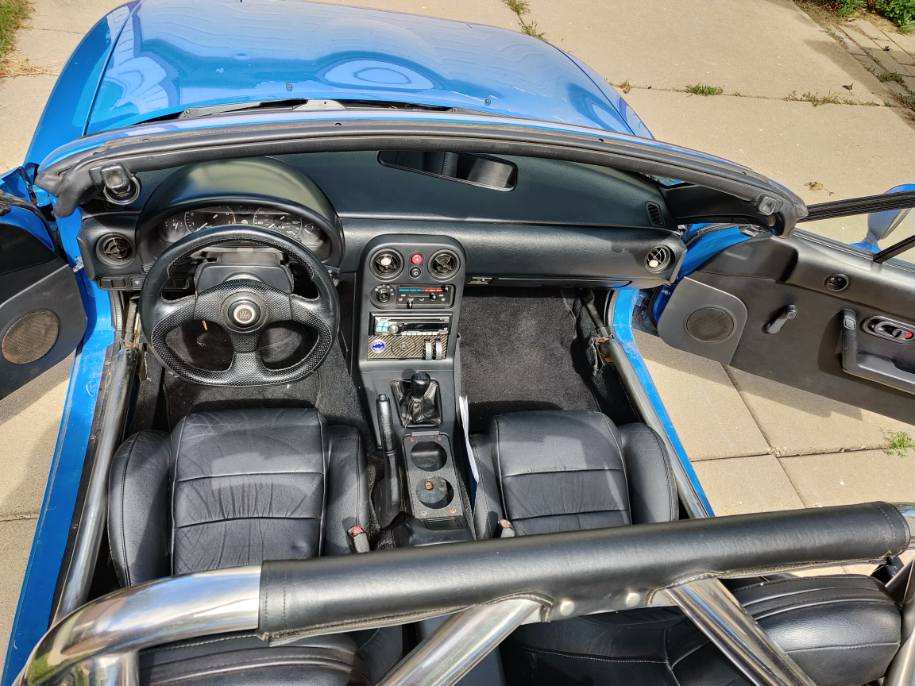

A question on MSPNP2 vs 3 (and I know I have a lot of reading to do), what options does a PNP Pro provide to someone not running a VVT. The only thing I will probably do down the road or one day is swap in a 1.8 (probably not VVT). I do want to run sequential injection.

Thanks,
Nick
Attached Thumbnails 00 turbo nitrous miata - good, bad ugly-img952018092495123821.jpg   00 turbo nitrous miata - good, bad ugly-img952018092495123847.jpg   00 turbo nitrous miata - good, bad ugly-img952018092495123913.jpg   00 turbo nitrous miata - good, bad ugly-img952018092495123915.jpg
nicholaschase29 is offline
Old 10-01-2018, 08:15 AM
  #7
Senior Member

Join Date: Oct 2013
Location: NorthWest NJ
Posts: 1,452
Total Cats: 70
Default

You will need to add wires for sequential.

Otherwise this looks like a solid base. I would take as much appart as you dare ajd check everything out.

You also don't really need a fuel pump for 200hp.
x_25 is offline
Old 10-01-2018, 02:29 PM
  #8
Senior Member

Join Date: May 2017
Posts: 556
Total Cats: -28
Default

that exhaust looks nasty AF, but the turbo setup looks surprisingly nice.
andyfloyd is online now
Old 10-01-2018, 02:49 PM
  #9
VladiTuned
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,141
Total Cats: 3,145
Default

I think you're talking about the cleanly fabricated charge piping. cause the rest of it looks like poo, and is set up for fail-aids which makes it that much more like poo.
18psi is offline
Old 10-01-2018, 02:54 PM
  #10
Senior Member

Join Date: May 2017
Posts: 556
Total Cats: -28
Default

Originally Posted by 18psi View Post
I think you're talking about the cleanly fabricated charge piping. cause the rest of it looks like poo, and is set up for fail-aids which makes it that much more like poo.
yes, I should have clarified that....the charge piping looks good lol.
andyfloyd is online now
Old 10-04-2018, 05:08 PM
  #11
Junior Member
Thread Starter

Join Date: Jun 2018
Posts: 53
Total Cats: -4
Default

Nigelt - just ordered a set of 640cc injectors from your website.

MSPNP2 on its way along with a EBC solenoid. Wideband going in today or tomorrow. I'm curious to see where the AFR is with the FMU and stock injectors.
nicholaschase29 is offline
Old 10-05-2018, 09:29 AM
  #12
Junior Member
Thread Starter

Join Date: Jun 2018
Posts: 53
Total Cats: -4
Default

FWIW - Installed the wideband, under boost the AFR was 10.5-10.0, which looks to be the minimum reading of the gauge (0.00 volts). Looks like it's running rich but safe on the FMU. Going to verify timing next.
nicholaschase29 is offline
Old 10-05-2018, 01:21 PM
  #13
Junior Member

Join Date: Feb 2014
Location: Columbus, IN
Posts: 317
Total Cats: 33
Default

So...it was boosted at 3-4 psi, plus nitrous? What on earth is the point of that? Is it more stable?
Engi-ninja is offline
Old 10-05-2018, 01:23 PM
  #14
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 10,262
Total Cats: 1,606
Default

So you can tell your friends you got a turbo wit nawz.
concealer404 is offline
Old 10-05-2018, 01:26 PM
  #15
VladiTuned
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,141
Total Cats: 3,145
Default

WHOA DAWG YOU GOT TERBO AND NAWZZZ???

that's so sicccc I bet it whips
18psi is offline
Old 10-05-2018, 01:40 PM
  #16
Junior Member

Join Date: Feb 2014
Location: Columbus, IN
Posts: 317
Total Cats: 33
Default

Ah, well that makes total sense! I suppose it would also satisfy the inexplicable attraction of being able to enter "turbo mode" by flipping a switch...
Engi-ninja is offline
Old 10-05-2018, 02:22 PM
  #17
Junior Member
Thread Starter

Join Date: Jun 2018
Posts: 53
Total Cats: -4
Default

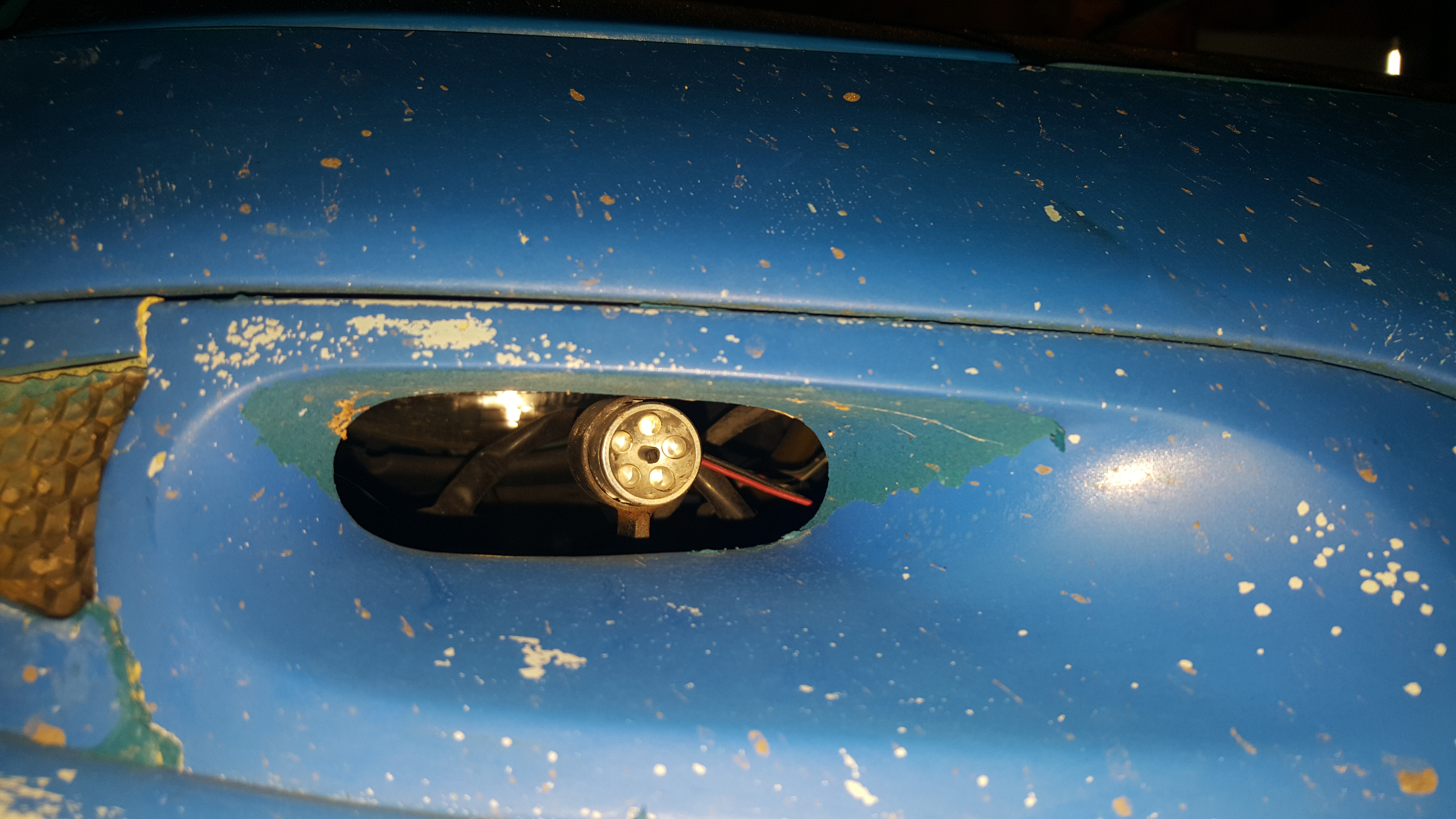

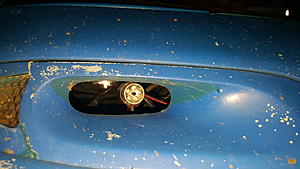

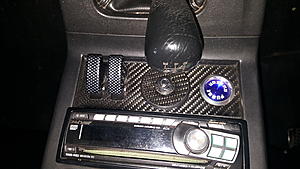

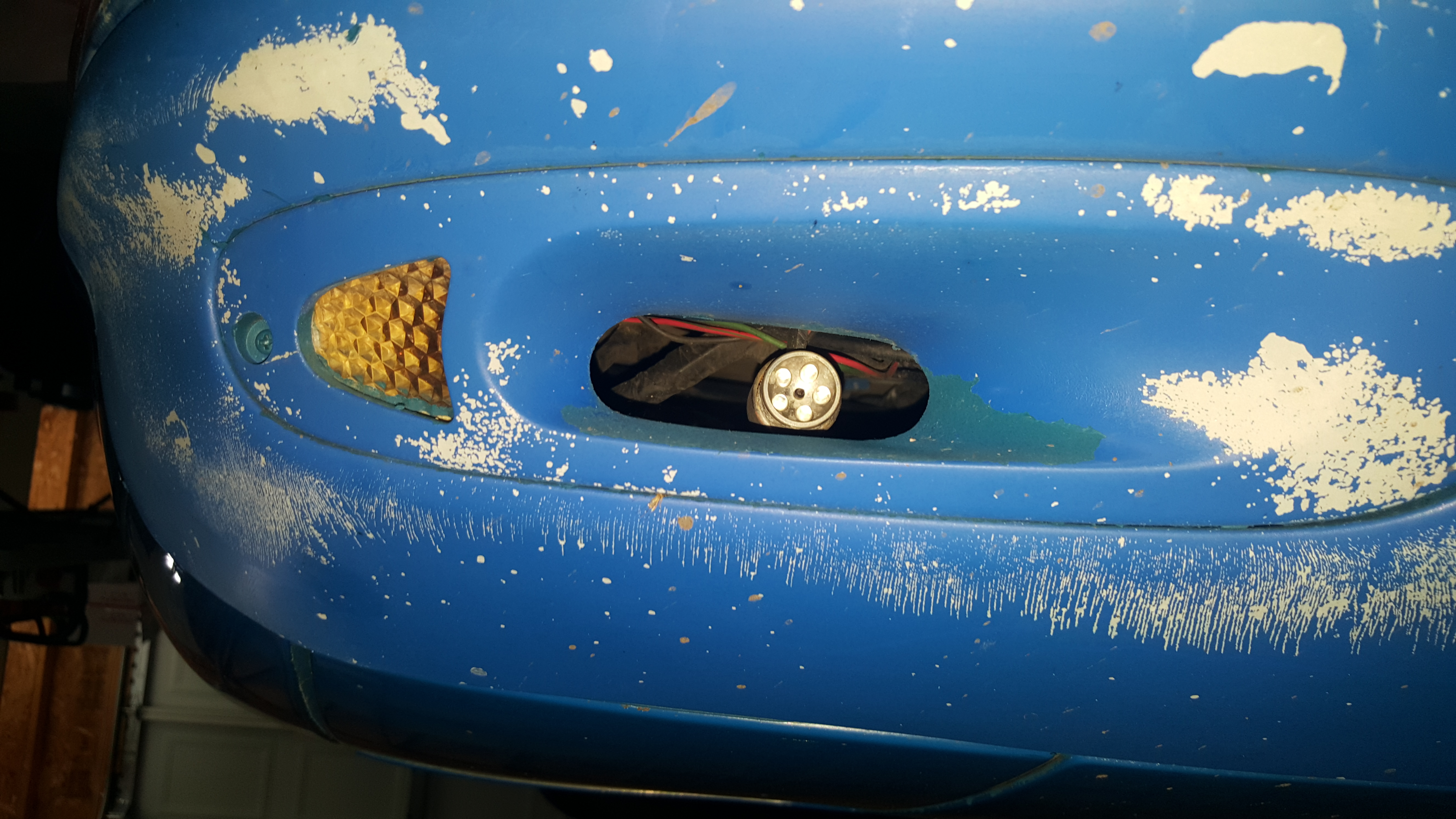

You guys don't even know the best part. It purges right out front running light things with disco LED lights. Great for parties.

EDIT - you'll have to turn your monitor upside down to view images correctly. Not sure why it's doing that.
Attached Thumbnails 00 turbo nitrous miata - good, bad ugly-20181005_123437.jpg   00 turbo nitrous miata - good, bad ugly-20181005_123447.jpg   00 turbo nitrous miata - good, bad ugly-20181005_123503.jpg
nicholaschase29 is offline
Old 10-05-2018, 03:05 PM
  #18
Senior Member

Join Date: Oct 2013
Location: NorthWest NJ
Posts: 1,452
Total Cats: 70
Default

Ok, that is super ricer....


But I kind of want to do that now.
x_25 is offline
Old 10-05-2018, 03:08 PM
  #19
Junior Member
Thread Starter

Join Date: Jun 2018
Posts: 53
Total Cats: -4
Default

All the nitrous stuff is for sale - it could be yours!
nicholaschase29 is offline
Old 10-05-2018, 04:34 PM
  #20
VladiTuned
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,141
Total Cats: 3,145
Default

does it come with 2 big ones? are you able to overnight in time for race warz?
