Default 1.6 oil supply tap

Can someone tell me the what the thread is on the Oil supply tap on the 1.6?
Thank you!
Kirby is offline   Reply With Quote
Old 07-19-2006, 06:54 PM   #2
Elite Member
iTrader: (6)

Loki047's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 4,145
Total Cats: 0
Default

on the block it is 10 x 1.5
Loki047 is offline   Reply With Quote
Old 07-21-2006, 04:52 AM   #3
Newb
Thread Starter

Join Date: Jan 2006
Posts: 32
Total Cats: 0
Default

Do you know what that would equate to in NPT?
Kirby is offline   Reply With Quote
Old 07-21-2006, 08:58 AM   #4
Senior Member

Join Date: Dec 2004
Posts: 1,450
Total Cats: -1
Default

It doesn't equate to anything in NPT. NPT threads are different than std. metric threads.
bripab007 is offline   Reply With Quote
Old 07-21-2006, 10:06 AM   #5
Newb
Thread Starter

Join Date: Jan 2006
Posts: 32
Total Cats: 0
Default

Hmm okay thanks for the help, does anyone know where you can find this fitting?
Kirby is offline   Reply With Quote
Old 07-21-2006, 10:11 AM   #6
Junior Member

Sirnixalot's Avatar

Join Date: Aug 2005
Location: Cayman Islands
Posts: 440
Total Cats: 17
Default

you want a straight 10 x 1.5 to -4an or you feel like a banjo bolt?

summit has em both

the straight -4an to 10mm x 1.5's part number is EAR-9919BFDERL

the banjo has 2 part numbers,
the bolt - EAR-977520ERL
the banjo fitting - EAR-997641ERL
Sirnixalot is offline   Reply With Quote
Old 07-21-2006, 10:22 AM   #7
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,315
Total Cats: 1,913
Default

Quote:
Originally Posted by Kirby
Hmm okay thanks for the help, does anyone know where you can find this fitting?
See these two threads on the subject:
http://tinyurl.com/zjfxy
http://tinyurl.com/fgaue

I went down a similar path to Jayc72 in the first thread with the brake banjos. Very elegant. Unfortunately, -4 banjos in the 90* configuration are hard to come by, so I suggest using a -3 to -4 coupler just after.

http://www.summitracing.com/ is your friend. Go to "Online Store" and hit the plumbing section. More hose ends and adaptors than you can shake a wastegate rod at. You'll have to be somewhat creative in how you search, but if someone makes it, they've got it.

Often times, using the search engine near the top of these pages (on the blue bar) will produce a wealth of knowledge. For example, entering greddy oil lines turned up those two threads I linked to near the top, and a wealth of other data.
Joe Perez is offline   Reply With Quote
Old 07-21-2006, 10:43 AM   #8
Senior Member

Join Date: Dec 2004
Posts: 1,450
Total Cats: -1
Default

I've know I've personally been involved with at least half-a-dozen oil line threads in which I've posted direct links to the parts needed on Summit's site.
bripab007 is offline   Reply With Quote
Old 07-21-2006, 11:03 AM   #9
Elite Member
iTrader: (14)

Join Date: Mar 2006
Location: Edmonton, AB
Posts: 4,921
Total Cats: 0
Default

-3AN is closer to the stock greddy line than -4AN. Which is a bonus since that's more common in brake lines/fittings.

And you don't need a 90* fitting, I did it with a 90* built into the line. I have the 90* coming up to the turbo.
jayc72 is offline   Reply With Quote
Old 07-21-2006, 01:17 PM   #10
Elite Member
iTrader: (6)

Loki047's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 4,145
Total Cats: 0
Default

I welded a metric stud to a NPT coupler, now its NPT and for $1.35
Loki047 is offline   Reply With Quote
Old 07-21-2006, 02:00 PM   #11
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,315
Total Cats: 1,913
Default

Quote:
Originally Posted by Loki047
I welded a metric stud to a NPT coupler, now its NPT and for $1.35
No ****? That's more or less what I'd consider the perfect solution. Any pix?

Sadly, the only M10x1.5 to -(x)AN adaptor that Summit sells is aluminum.
Joe Perez is offline   Reply With Quote
Old 07-21-2006, 02:08 PM   #12
Elite Member
iTrader: (6)

Loki047's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 4,145
Total Cats: 0
Default

yeah give me a minute. just got stung by a wasp ( you can get all the parts from fastnal)
Loki047 is offline   Reply With Quote
Old 07-21-2006, 02:24 PM   #13
Elite Member
iTrader: (6)

Loki047's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 4,145
Total Cats: 0
Default

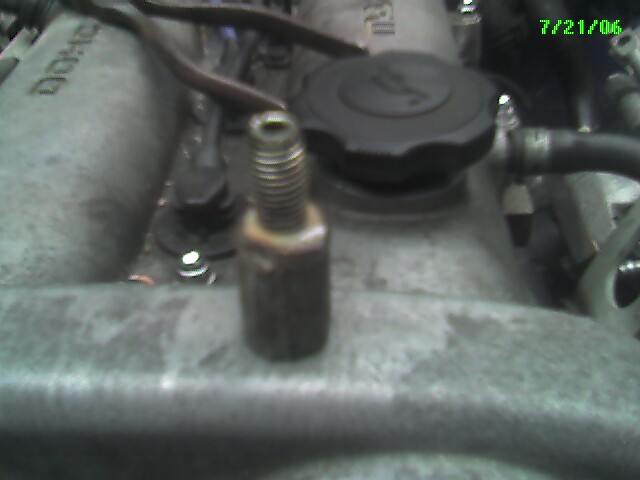

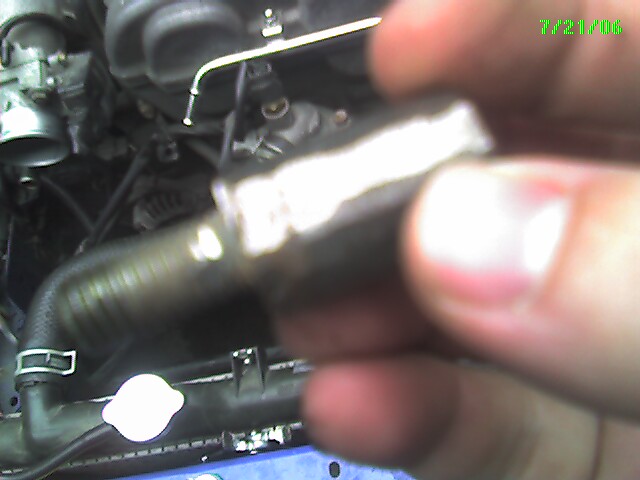

Here ya go.. if you make it, be sure to weld everything straight! not much space.
Attached Thumbnails
1.6 oil supply tap-photo_072106_001.jpg   1.6 oil supply tap-photo_072106_002.jpg
Loki047 is offline   Reply With Quote
Old 07-21-2006, 05:59 PM   #14
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,315
Total Cats: 1,913
Default

Ok, I'm impressed. Somehow I doubt I could weld something that small, keep it straight, and get good penetration, without burning a hole through the damn thing and filling the passage with slag.
Joe Perez is offline   Reply With Quote
Old 07-21-2006, 06:10 PM   #15
Elite Member
iTrader: (6)

Loki047's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 4,145
Total Cats: 0
Default

if its too hard I can send you one. only thing you would have to do is lathe a hole in the bolt
Loki047 is offline   Reply With Quote
Old 07-21-2006, 06:11 PM   #16
I'm Miserable!

Join Date: Jul 2006
Location: sandiego, CA
Posts: 332
Total Cats: 0
Default

ok sorry to thread jack. on the stock greddy setup to bolt the oil feed line to the turbo and to the block is that just a regular bolt? or a special bolt. i need that piece and the washer. i have the oil line but i need those bolts. so im just trying to find out were i can get those.
drftem is offline   Reply With Quote
Old 07-21-2006, 06:59 PM   #17
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,315
Total Cats: 1,913
Default

Quote:
Originally Posted by drftem
ok sorry to thread jack. on the stock greddy setup to bolt the oil feed line to the turbo and to the block is that just a regular bolt? or a special bolt. i need that piece and the washer. i have the oil line but i need those bolts. so im just trying to find out were i can get those.
Ok, I gotta step out of character for a moment here...

<SOAPBOX>

Drftem the Bagger,

Look at messages numbered Six and Seven of This Very Thread.

Click The Links.

Read The Threads Which Are Referenced Therein.



</SOAPBOX>

Ahem. Sorry, folks.
Joe Perez is offline   Reply With Quote
Old 07-21-2006, 07:05 PM   #18
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,315
Total Cats: 1,913
Default

Quote:
Originally Posted by Loki047
if its too hard I can send you one. only thing you would have to do is lathe a hole in the bolt
All I gotta do is lathe a hole in the bolt. Hmmm. Gotta buy me a lathe first, though. <grin>

In all seriousness, I appreciate the offer, but I'll stick with the Banjo fitting for now- no sense changing what works. Just wish I'd have thought of your idea first.
Joe Perez is offline   Reply With Quote
Old 07-22-2006, 01:29 PM   #19
Newb
Thread Starter

Join Date: Jan 2006
Posts: 32
Total Cats: 0
Default

Okay thanks for all the help guys, i really appreciate the help. I got one more question though. What fitting do I use on the Oil supply side of my Turbo? I have a Garret T25 off a DSM. I will be using a -4an Hose.

Thank You!
Kirby is offline   Reply With Quote
