Old 11-21-2015, 11:09 AM   #21
SadFab CEO
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,905
Total Cats: 613
Default

It's only on 1.6 and 94 1.8 blocks. A far a I've seen, everyone with 90 to 94 blocks, including me, use that port...
hi_im_sean is offline   Reply With Quote
Old 11-21-2015, 11:12 AM   #22
SadFab CEO
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,905
Total Cats: 613
Default

Or maybe it was the oil port that only came on 90 to 94? My memory sucks. In any case, i use the water port there and so have lots of others.
hi_im_sean is offline   Reply With Quote
Old 11-21-2015, 11:14 AM   #23
Junior Member
Thread Starter
iTrader: (5)

Join Date: Oct 2014
Posts: 473
Total Cats: 23
Default

I can't find anything in a M12 x 1.25 to barb. Where did you find your barb fitting?
90civichhb is offline   Reply With Quote
Old 11-21-2015, 11:31 AM   #24
SadFab CEO
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,905
Total Cats: 613
Default

Now that I think about it, some probably don't use it because the mixing mani and the front housing have nipples right there ready to go. No point in pulling a plug and ordering a fitting unless you are removing the front neck and or mixing mani like we have done.

I wanted a 90 degree fitting and couldn't find what I needed without stacking up like 3 fittings, so I made my own banjo fitting. I couldn't even find an M12 to 8mm banjo to barb, easily or cheaply anyway. I have some m12 banjo bolts from my Subaru that I found after I made my own bolt, and I can make you a banjo block fitting thing if you want.

https://www.miataturbo.net/build-thr...1/#post1251519


theres plenty of m12x1.25 to AN options though if you want to cobble that together somehow.
AN6 6AN JIC Flare to M12x1 25 Metric Straight Fuel Oil Fitting Adapter Blue | eBay
hi_im_sean is offline   Reply With Quote
Old 11-21-2015, 11:36 AM   #25
Junior Member
Thread Starter
iTrader: (5)

Join Date: Oct 2014
Posts: 473
Total Cats: 23
Default

Quote:
Originally Posted by hi_im_sean View Post
Now that I think about it, some probably don't use it because the mixing mani and the front housing have nipples right there ready to go. No point in pulling a plug and ordering a fitting unless you are removing the front neck and or mixing mani like we have done.

I wanted a 90 degree fitting and couldn't find what I needed without stacking up like 3 fittings, so I made my own banjo fitting. I couldn't even find an M12 to 8mm banjo to barb, easily or cheaply anyway. I have some m12 banjo bolts from my Subaru that I found after I made my own bolt, and I can make you a banjo block fitting thing if you want.

https://www.miataturbo.net/build-thr...1/#post1251519


theres plenty of m12x1.25 to AN options though if you want to cobble that together somehow.
AN6 6AN JIC Flare to M12x1 25 Metric Straight Fuel Oil Fitting Adapter Blue | eBay

The Banjo bolt idea isn't bad, and I have thought about that too. I found a website that has the fitting in question and I ordered some. I kind of screwed up the order and got 8mm barb fittings which seem a bit small for my 3/8 ID slip fittings on my turbo. Not sure if that would cause a problem or not and the largest OD offered in the correct size is 10mm. I may just order these and try to recoup some of the cost by selling them to members on here for a few bucks shipped. Atleast until I break even with.

M12x1.25 to 10mm barb
90civichhb is offline   Reply With Quote
Old 11-23-2015, 03:41 PM   #26
Junior Member
iTrader: (2)

Join Date: Oct 2011
Location: Chicago Il
Posts: 111
Total Cats: 2
Default

I'm planning on using that water port on my 1.6L as well. I just ordered both of these, let's hope they fit:

JEGS Performance Products 110071, JEGS AN Push-Loc Hose End Fittings | JEGS Performance Products
Earl's AT991945, Earl's Ano-Tuff Carburetor Fittings | Earl's
akbloom is offline   Reply With Quote
Old 11-23-2015, 08:02 PM   #27
Junior Member
Thread Starter
iTrader: (5)

Join Date: Oct 2014
Posts: 473
Total Cats: 23
Default

Nice, good fallback if mine doesn't work. I have the same turbo fitting as that, but I still have no started the car yet so I am not sure how well it works. If you have some issues with that setup and want to try a barb that I have PM me. I'll send it to you for shipping.
90civichhb is offline   Reply With Quote
Old 11-24-2015, 09:06 AM   #28
Former Vendor

Join Date: Dec 2007
Location: Texas Hill Country
Posts: 271
Total Cats: 16
Default

The water hook up at the T-stat is just too easy.
corky
Corky Bell is offline   Reply With Quote
Old 11-24-2015, 07:34 PM   #29
Junior Member
Thread Starter
iTrader: (5)

Join Date: Oct 2014
Posts: 473
Total Cats: 23
Default

Quote:
Originally Posted by Corky Bell View Post
The water hook up at the T-stat is just too easy.
corky
I mean, there is a freeze plug where my housing used to be. Cheap coolant reroute requires a bit more thought when keeping it cheap.
90civichhb is offline   Reply With Quote
Old 11-24-2015, 11:04 PM   #30
Junior Member

Join Date: Dec 2009
Location: Brisbane, AUSTRALIA
Posts: 487
Total Cats: 45
Default

Quote:
Originally Posted by hi_im_sean View Post
:
And, like aidan said, don't buy the tubing kit, youll toss 80% of it. All I needed was x2 45's, and maybe a foot of straight section along with the BOV adapter pipe.
:
+1

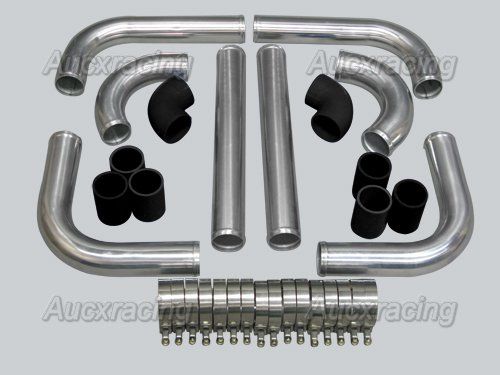

Here's the 2.5" intercooler plumbing kit I bought:


Aucxracing intercooler plumbing kit

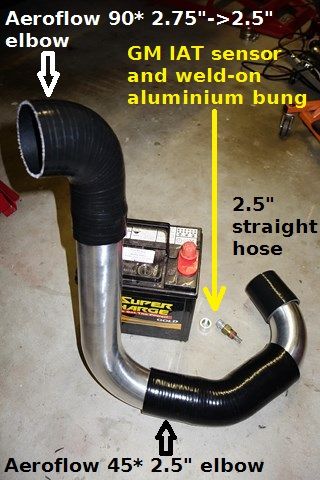

Here's my coldside plumbing mocked up (I call this "The Cobra"):


The Cobra!

- it connects my Fab9 350hp intercooler coldside to my Skunk2 TB.

So from the original plumbing kit I only used a J bend and a cut-down 90* bend. The couplers were of no use (probably could have used one of the straight ones) and I used better clamps.
Attached Thumbnails
1.6L intercooler, pipe, size, routing-80-aucxrcing_2pt5inchintercoolerkit_zps3da4c832_61a14a14ac0388e6a12a2c96f28677c4ef8a76e1.jpg   1.6L intercooler, pipe, size, routing-80-coldsideplumbing_zps15e2f2a6_ebce891f7cf59f0b52a3e50a71b17af01c9b406d.jpg
Lokiel is offline   Reply With Quote
Old 11-25-2015, 08:37 AM   #31
Junior Member
Thread Starter
iTrader: (5)

Join Date: Oct 2014
Posts: 473
Total Cats: 23
Default

Lol, The Cobra! I got most of the piping but no couplers yet. Damn holiday shipping time. :(
