Old 10-09-2015, 01:45 AM   #21
Junior Member
iTrader: (1)

Join Date: Nov 2010
Location: Seattle, WA
Posts: 84
Total Cats: 2
Default

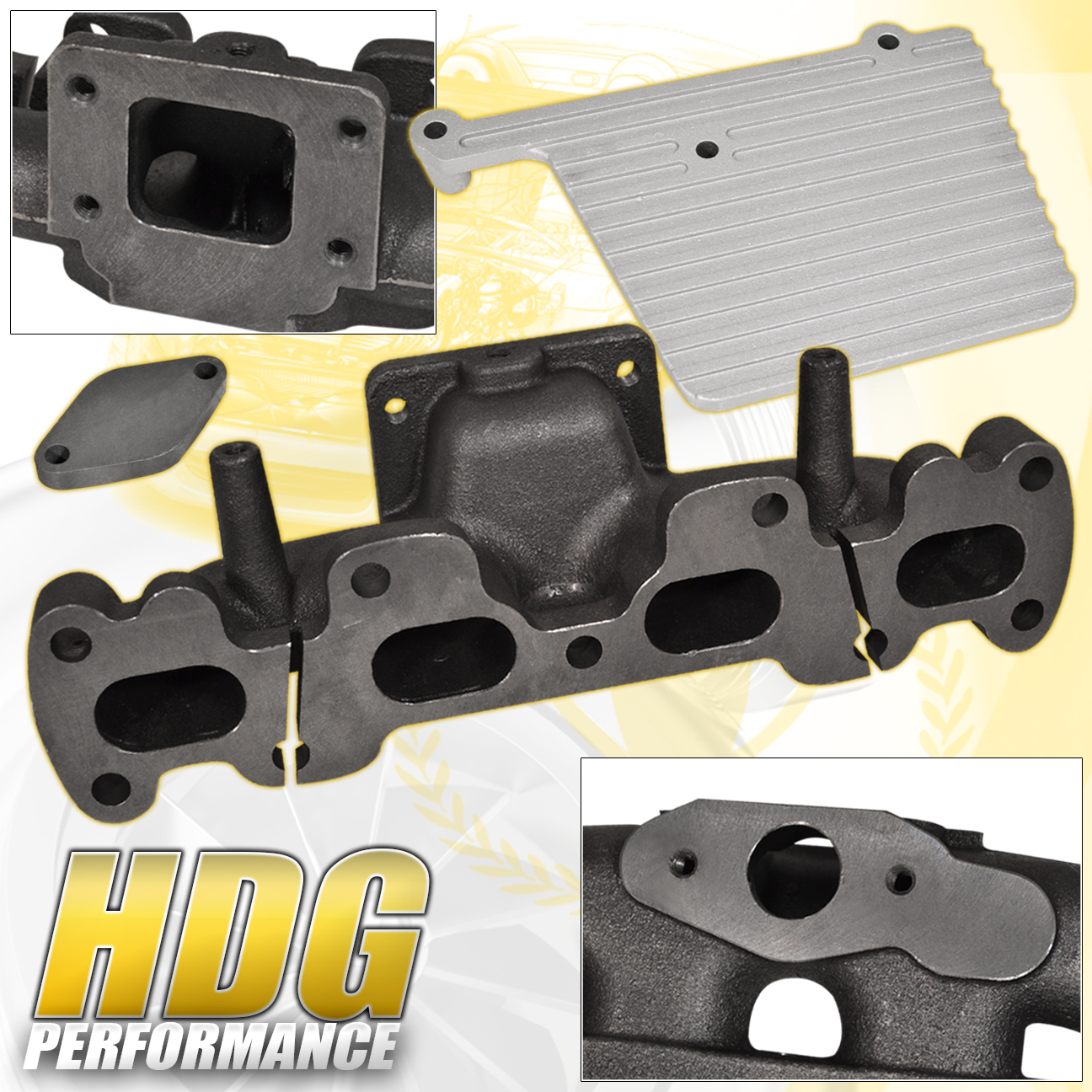

It looks like the Taco taco T25 for the 1.8 has hit the market... 94 05 Miata MX 5 1 8 Liter T2 T25 T28 Cast Turbo Charger Exhaust Manifold Kit | eBay


Attached Thumbnails
97 1.8 turbo manifold and turbo combo. need help-z_131862_0_0.jpg
fail wagon is offline   Reply With Quote
Old 11-11-2015, 06:06 AM   #22
Junior Member

Join Date: Oct 2014
Location: USA
Posts: 125
Total Cats: -65
Default

What is that plate deal? Also are these pretty decent as far as flowage? I might try one or build my own weld el log turd manifold.
Guy Farting is offline   Reply With Quote
Old 11-11-2015, 12:15 PM   #23
Junior Member

Join Date: Oct 2015
Posts: 56
Total Cats: 1
Default

Looks like a heat shield that would attach to the valve cover
Zeddriver is offline   Reply With Quote
Old 11-11-2015, 11:10 PM   #24
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Quote:
Originally Posted by Guy Farting View Post
What is that plate deal? Also are these pretty decent as far as flowage? I might try one or build my own weld el log turd manifold.
I have both the t2 and t3 1.8 tacotaco manifolds in route to my house right now.
shuiend is offline   Reply With Quote
Old 11-12-2015, 09:58 PM   #25
Junior Member

Join Date: Dec 2013
Location: Little Rock, Ar
Posts: 107
Total Cats: 24
Default

Shuiend if you could please let me know how the t25 tacotaco manifold fits and everything. Im looking to maybe get one in place of the fm one just until I have the money to get one and they are back in stock. Basically I'm thinking I can use tacotaco manifold, whatever t25 turbo and FM turbo outlet elbow and downpipe on my 99. I've had good luck with cast ebay manifolds in the past, just hoping it will work with the FM elbow and downpipe. Or maybe this knockoff FM elbow. Im sure it'll crack while installing it though.

New Mazda Miata Stainless 2 5 Turbo Outlet 94 05 | eBay
92turbomiata is offline   Reply With Quote
Old 11-13-2015, 09:05 AM   #26
Former Vendor

Join Date: Dec 2007
Location: Texas Hill Country
Posts: 271
Total Cats: 16
Default

That's cool. The manifold and heat shield pictured by fail wagon are the parts we built for our first Miata kit back in '90. We used them through about '96, then redesigned the system. "Cartech" was our biz name until about '93. Slightly on the crude side. No match for the A/O.

corky
Corky Bell is offline   Reply With Quote
Old 11-20-2015, 12:34 AM   #27
Junior Member

Join Date: Jun 2008
Location: Delhi CA
Posts: 91
Total Cats: 0
Default

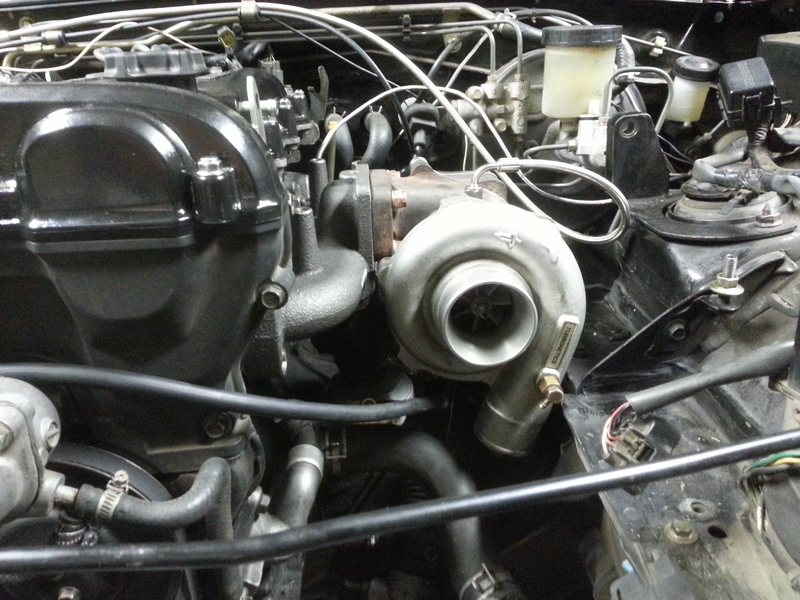

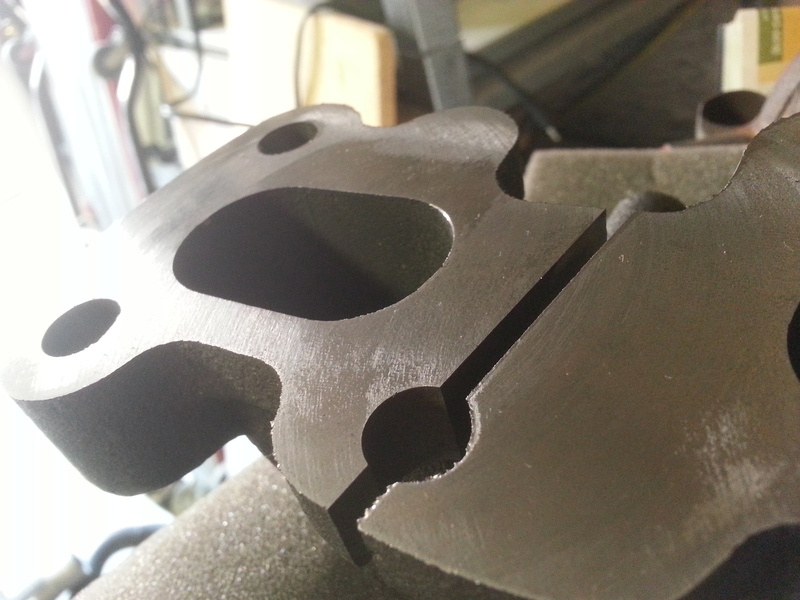

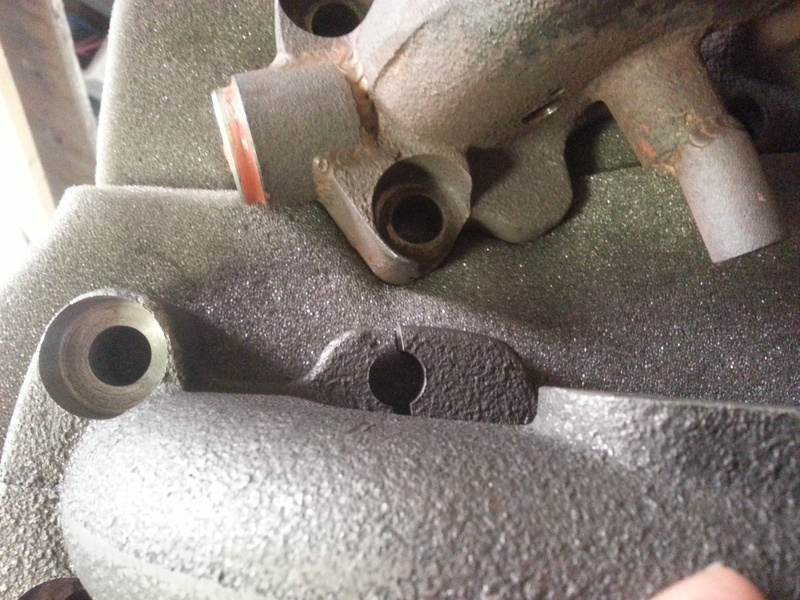

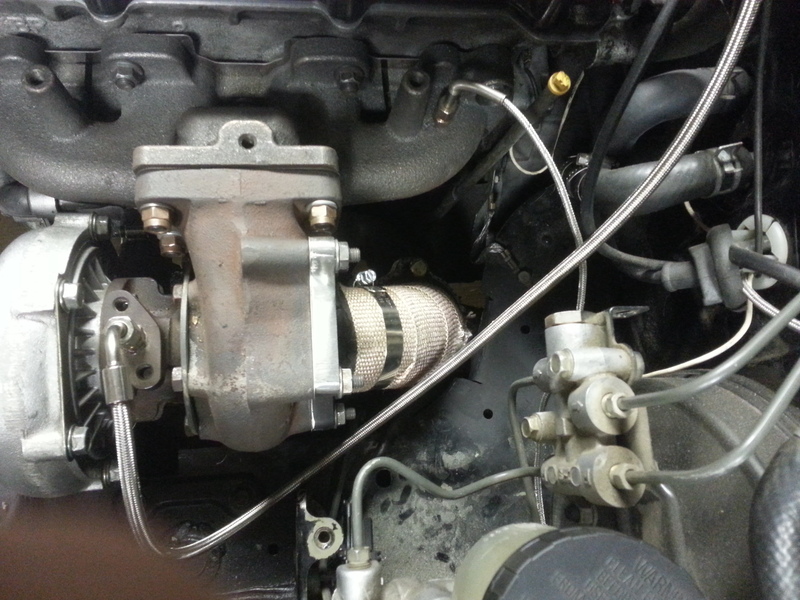

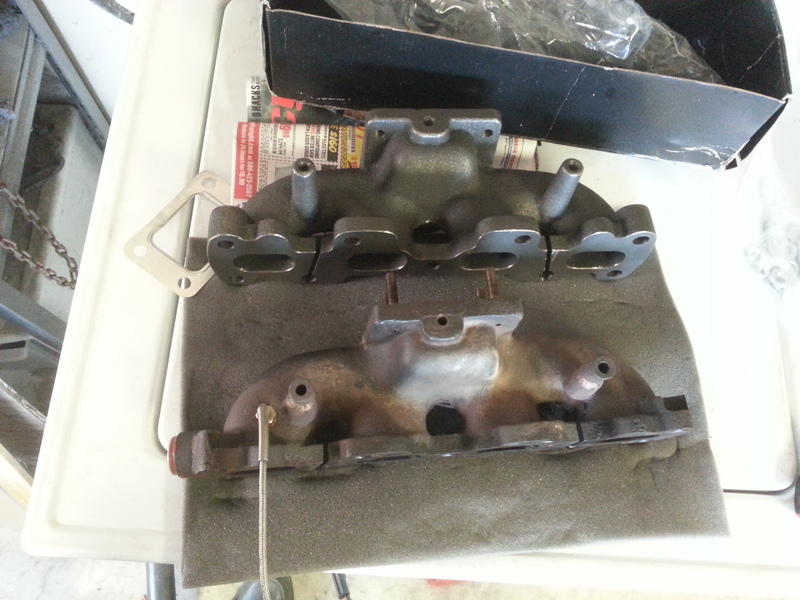

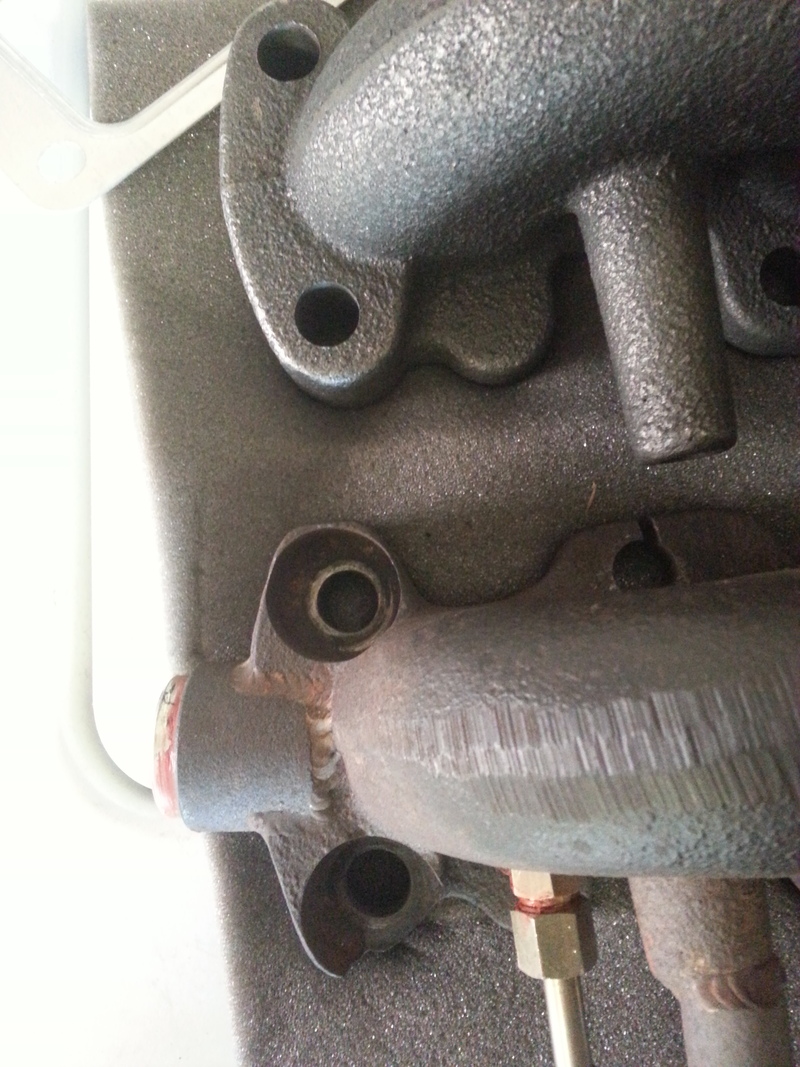

I have bought and installed the t3 turbo manifold. It is a copy of an old FM manifold(I think). It did require some machining to make it fit properly:





[/URL]

I also had the mating surfaces done just in case it was warped.



I didn't use the studs that came with it since they looked weak/cheap. I also went through all of the threads with a tap just to make sure they were good. I've been tuning the car over the last couple of weeks, so far no problems.



I did also have to make a custom elbow to use the FM T25 down pipe.

Attached Thumbnails
97 1.8 turbo manifold and turbo combo. need help-img_20150828_183757.jpg   97 1.8 turbo manifold and turbo combo. need help-img_20150828_183716.jpg   97 1.8 turbo manifold and turbo combo. need help-img_20150901_174457.jpg   97 1.8 turbo manifold and turbo combo. need help-img_20150901_174432.jpg   97 1.8 turbo manifold and turbo combo. need help-img_20150920_211941.jpg

97 1.8 turbo manifold and turbo combo. need help-img_20151018_201237.jpg
