Default another 5-speed blow-up...

I'm only running a 2554R at 12PSI but I guess it was too much for the 5-speed.
Or maybe it was the rumble strip at Pacific Grand Prix (I shifted in 3rd while still on the rumble strip) when there was that nasty sound coming from my tranny. On my way to the pits, it actually sounded like a cash register (ka-ching...).

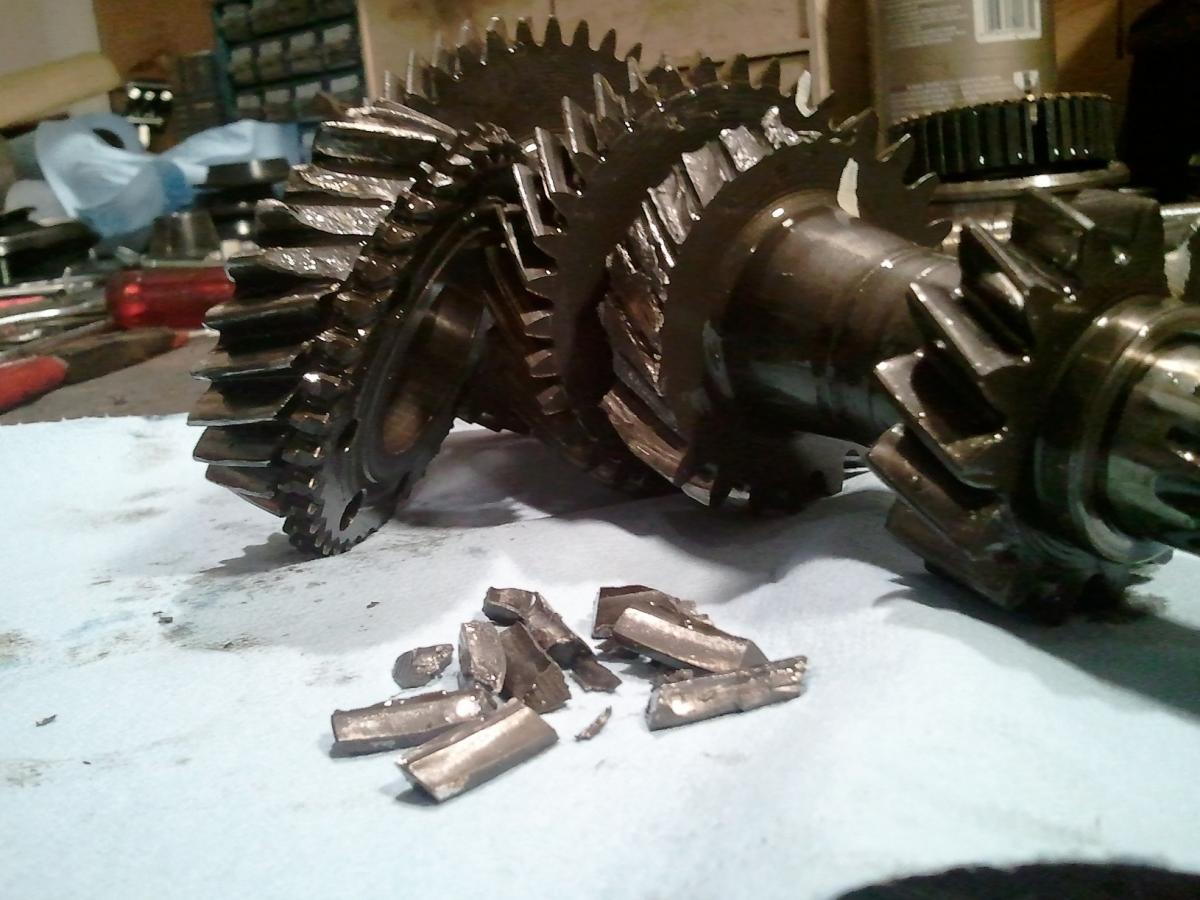

It didn't split the case, just took a large chunck out of 3rd gear.

Got another 5-speed on Craigslist and $150 and 8 hours later, the miata is running again...
Attached Thumbnails
another 5-speed blow-up...-trans.jpg
guzerone is offline   Reply With Quote
Old 06-20-2011, 05:42 PM   #2
Elite Member
iTrader: (4)

MartinezA92's Avatar

Join Date: Aug 2009
Location: Mountain View, CA
Posts: 1,702
Total Cats: 28
Default

inb4 get a 6 speed peasant.
MartinezA92 is offline   Reply With Quote
Old 06-24-2011, 05:37 PM   #3
Junior Member
iTrader: (1)

Join Date: Oct 2008
Location: Palm Harbor FL
Posts: 332
Total Cats: 4
Default

I would suspect the rumble strip could have somehting to do with it. Kinda like throwing third while wheel hopping. I sure hope my 5spd lasts when i get my turbo kit done : /
1slowna is offline   Reply With Quote
Old 06-24-2011, 05:43 PM   #4
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,205
Total Cats: 2,586
Default

if you're tracking it you'll just keep replacing them til you get a 6sp. those 5spds hold up only on the street with careful/light duty use. On the track they die off like rice field flies
18psi is offline   Reply With Quote
Old 06-24-2011, 09:47 PM   #5
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,372
Total Cats: 1,333
Default

Get a 6-speed, plebeian.

No but seriously, get a 6-speed. 5-speed + track use at 200whp+ = broken 3rd gear
Savington is offline   Reply With Quote
Old 06-24-2011, 11:58 PM   #6
Elite Member
iTrader: (5)

pusha's Avatar

Join Date: Nov 2009
Location: Miami, FL
Posts: 7,363
Total Cats: -32
Default

Quote:
Originally Posted by 18psi View Post
if you're tracking it you'll just keep replacing them til you get a 6sp. those 5spds hold up only on the street with careful/light duty use. On the track they die off like rice field flies
I have a few sitting at my house for this reason.
pusha is offline   Reply With Quote
Old 06-25-2011, 12:12 AM   #7
Elite Member
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

Well I guess I've been lucky thus far...

We'll see how long I can get out of my 5 spd.
falcon is offline   Reply With Quote
Old 06-25-2011, 08:36 AM   #8
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Makes me glad I snagged leatherface's 6-speed. My 5-speed is a timebomb @ 240whp.
kotomile is offline   Reply With Quote
Old 06-25-2011, 12:20 PM   #9
Senior Member
iTrader: (2)

Join Date: Nov 2007
Location: Saint Paul, MN
Posts: 1,298
Total Cats: 22
Default

Nothing yet at 270, here's hoping it stays that way.
Der_Idiot is offline   Reply With Quote
Old 07-01-2011, 06:00 AM   #10
Junior Member
iTrader: (4)

Join Date: Jan 2009
Location: Fife, Scotland
Posts: 296
Total Cats: 4
Default

I'm on my 4th 5 speed transmission and have had enough. I have the 4.1 rear end (I *think* - 1.8 Eunos Roadster from 1993), and I'm a bit apprehensive about how short the gearing will be if I move to a 6 speed. Anyone still on the 4.3 rear end who can comment?

Last edited by GrahamC; 07-01-2011 at 07:51 AM.
GrahamC is offline   Reply With Quote
Old 07-01-2011, 01:15 PM   #11
Elite Member
iTrader: (4)

MartinezA92's Avatar

Join Date: Aug 2009
Location: Mountain View, CA
Posts: 1,702
Total Cats: 28
Default

Too short. Change your rear end if you do it. I have 4.10s and a 6 speed and I think its a little short, and I'm not even boosted at the moment.

Also if you have a 93 rear end wouldn't it make that a 4.3?
MartinezA92 is offline   Reply With Quote
