Question anyone ever BEND the dowel pins on their cams???!!!

My belt slipped and so after I set the belt back in place and went for a spin, it was no better. It wont rev past 4500. so I dug a little deeper and when i pulled my cam sprockets, I saw the pins were dented and bent!

has this happened to anyone?


pics soon...
demetri is offline   Reply With Quote
Old 08-26-2008, 06:14 PM   #2
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

One would think that bending a cam dowel pin would be significant of mechanical interference...
m2cupcar is offline   Reply With Quote
Old 08-26-2008, 06:19 PM   #3
Newb
iTrader: (2)

Join Date: Jan 2008
Posts: 41
Total Cats: 0
Default

yep bent the dowel on my talon's cam while trying to loosen the bolt that was holding on the sprocket. You'll need a new cam for sure.
TurboTalon is offline   Reply With Quote
Old 08-26-2008, 07:07 PM   #4
Junior Member
Thread Starter
iTrader: (2)

demetri's Avatar

Join Date: Jul 2005
Location: Montreal, Canada
Posts: 139
Total Cats: 0
Default

Quote:
Originally Posted by TurboTalon View Post
yep bent the dowel on my talon's cam while trying to loosen the bolt that was holding on the sprocket. You'll need a new cam for sure.
except i wasnt tightening or loosening anything. if it happened when i changed the cam belt, would it not have shown its face before the 20000 miles i rode in the meantime? hmmmm ....
demetri is offline   Reply With Quote
Old 08-27-2008, 09:22 AM   #5
Junior Member
Thread Starter
iTrader: (2)

demetri's Avatar

Join Date: Jul 2005
Location: Montreal, Canada
Posts: 139
Total Cats: 0
Default

correction, I remember now I stupidly used an impact gun on those nuts! i'll post some pics on my solution.
demetri is offline   Reply With Quote
Old 08-27-2008, 09:35 AM   #6
Junior Member
Thread Starter
iTrader: (2)

demetri's Avatar

Join Date: Jul 2005
Location: Montreal, Canada
Posts: 139
Total Cats: 0
Default

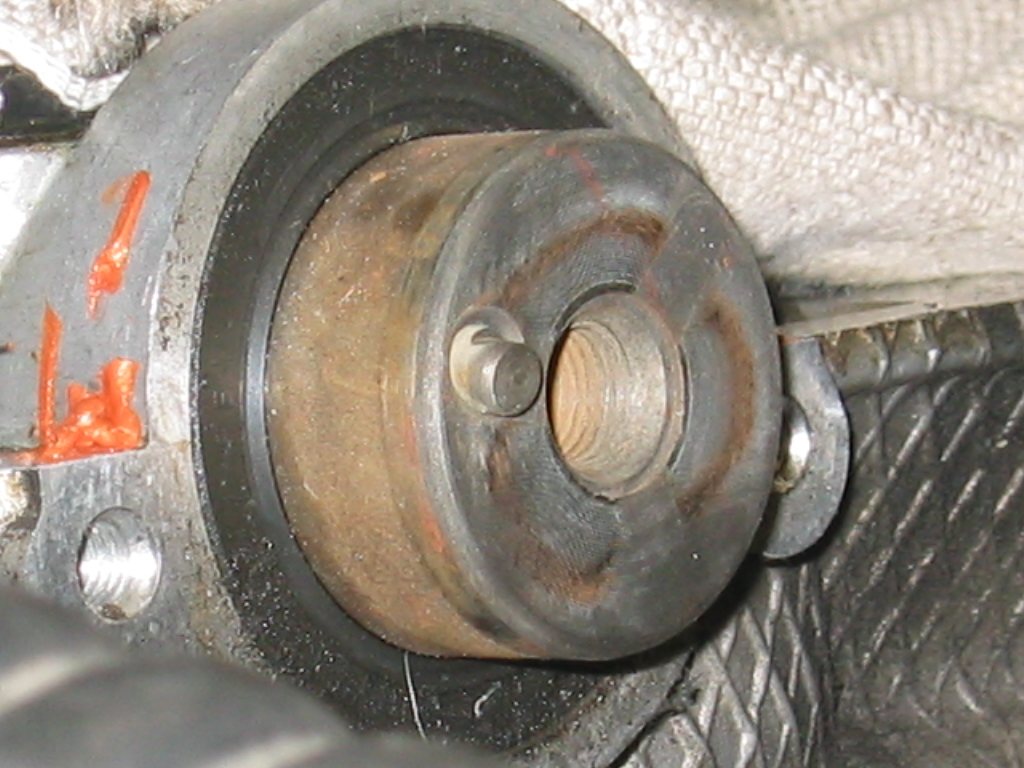

here is one of the bent pins. Can someone tell me if there is a notch in these or that's just my talented use of an Ingersoll Rand 2131?

anyone ever BEND the dowel pins on their cams???!!!-cam0001.jpg
Attached Thumbnails

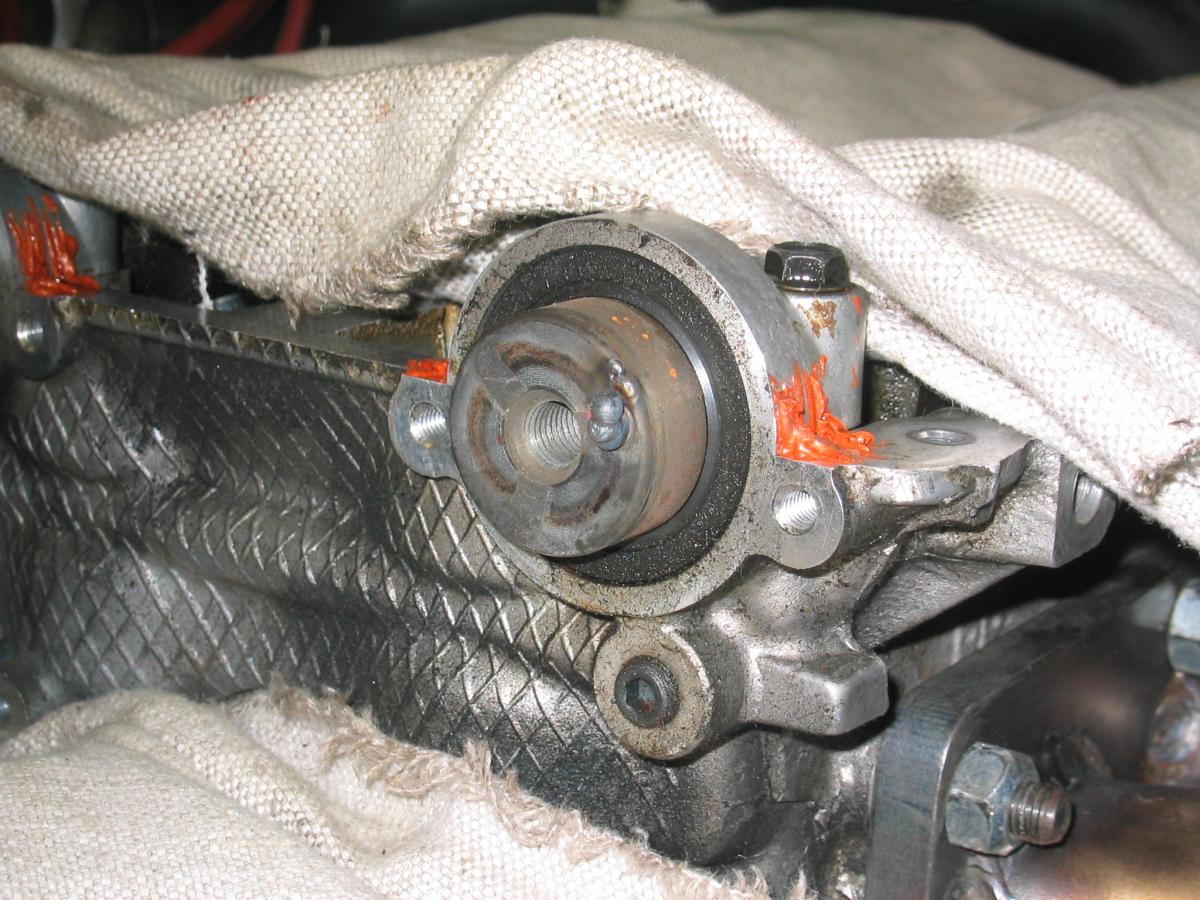

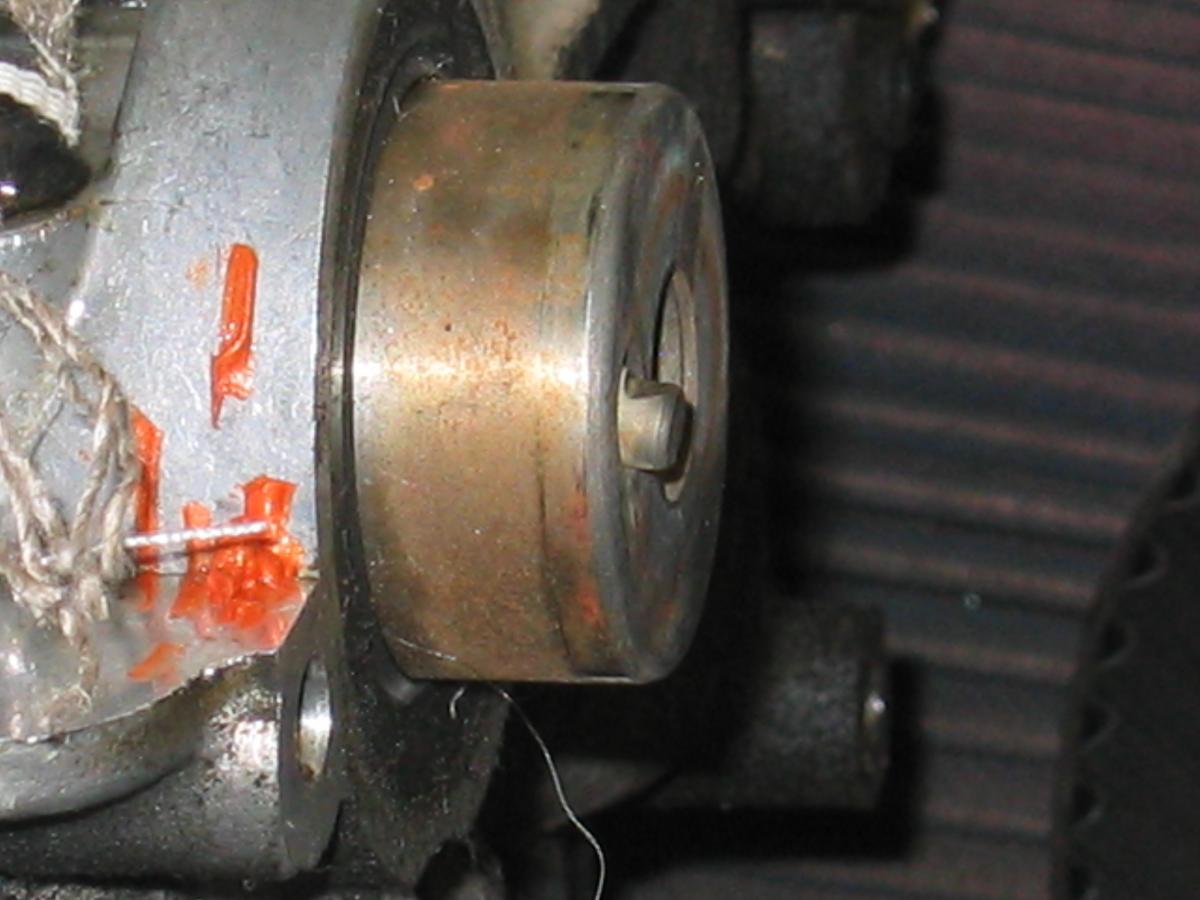

anyone ever BEND the dowel pins on their cams???!!!-cam0002.jpg   anyone ever BEND the dowel pins on their cams???!!!-cam0003.jpg
demetri is offline   Reply With Quote
Old 08-27-2008, 09:40 AM   #7
Junior Member
Thread Starter
iTrader: (2)

demetri's Avatar

Join Date: Jul 2005
Location: Montreal, Canada
Posts: 139
Total Cats: 0
Default

my solution was to weld a tack onto the bent dowel, file it down and voila! Back in business.
demetri is offline   Reply With Quote
Old 08-27-2008, 09:53 AM   #8
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

That's from a loose cam gear- put a torch on it and pull it out. Then install another one. Lots of machinist supply houses stock dowel pins. I wouldn't rely on weld to hold something that's loaded like a dowel pin.
m2cupcar is offline   Reply With Quote
Old 08-27-2008, 09:58 AM   #9
Junior Member
Thread Starter
iTrader: (2)

demetri's Avatar

Join Date: Jul 2005
Location: Montreal, Canada
Posts: 139
Total Cats: 0
Default

didnt know they came out. thanks.
