Default bending a coolant line.

there is a coolant line on the exhaust side that has a bracket mounted onto one of the bottom manifold studs. i need to bend it because i dont have enough clearance on my dp and wg dump tube.

Has anyone ever bent this pipe or done something similar? ive never heated and bent a pipe but think i can manage it.

i was thinking of doing something like this.


the pipe in the video is solid steel and i probably wont need much heat to bend the coolant pipe.

Looking for advice on how to bend it.

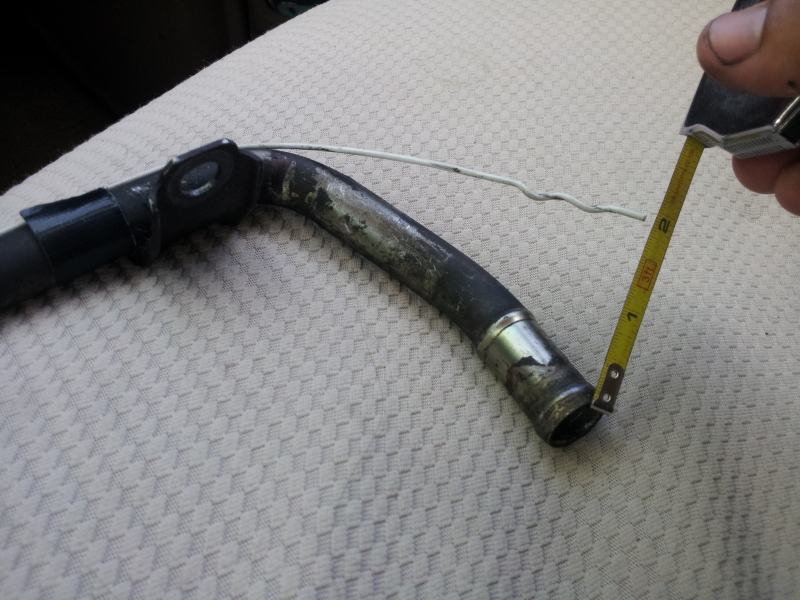

This is the pipe that needs to be bent.

Attached Thumbnails
bending a coolant line.-2011-08-19112848.jpg
Clos561 is offline   Reply With Quote
Old 08-19-2011, 12:55 PM   #2
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

I just cut and welded mine.
m2cupcar is offline   Reply With Quote
Old 08-19-2011, 01:43 PM   #3
Senior Member
iTrader: (6)

Join Date: May 2009
Location: San Francisco
Posts: 989
Total Cats: 23
Default

You need to be much more careful bending tube than solid, because it can kink quite easily. Just go slow and it will be fine, but you need to bend slowly
wittyworks is offline   Reply With Quote
Old 08-19-2011, 02:15 PM   #4
I'm Miserable!

Join Date: Feb 2010
Posts: 584
Total Cats: 0
Default

The old school approach is to fill the pipe with dry sand or salt packed tight and retained with carved wood plugs on each end. This forms a mandrel. Then bend away. You may not even need any heat for the amount of bend you require.
sjmarcy is offline   Reply With Quote
Old 08-19-2011, 02:19 PM   #5
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,353
Total Cats: 1,319
Default

Dozens of people have done this with no issues. Go slow, don't kink it.
Savington is offline   Reply With Quote
Old 08-19-2011, 02:33 PM   #6
Junior Member

Join Date: Jun 2010
Location: South Jersey
Posts: 152
Total Cats: 3
Default



If you fill it with a frozen dish soap and water solution then bend it, You'll have a better chance at a ghetto mandrel bend. That's how the bends are done in trumpets and other brass instruments. The soapy solution stays in place without corks and it has just the right amount of give. Try sixty to seventy percent dawn soap and thirty to forty percent water. By volume of course.
thegrapist is offline   Reply With Quote
Old 08-19-2011, 02:35 PM   #7
Junior Member

Join Date: Jun 2010
Location: South Jersey
Posts: 152
Total Cats: 3
Default



In case it wasn't obvious: fill the pipe with the solution then freeze it upright.
thegrapist is offline   Reply With Quote
Old 08-19-2011, 02:36 PM   #8
Senior Member
Thread Starter
iTrader: (3)

Join Date: Nov 2009
Location: Royal Palm Beach, FL
Posts: 725
Total Cats: 5
Default

So use heat and go slow? My dad mentioned the old school way with sand lol.
Clos561 is offline   Reply With Quote
Old 08-19-2011, 04:27 PM   #9
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,790
Total Cats: 128
Default

I used the "yank on it until it fits" method and haven't had any issues with it, but I don't think it needed to bend too much for it to work on my car.
pdexta is offline   Reply With Quote
Old 08-19-2011, 04:40 PM   #10
Senior Member
iTrader: (10)

Join Date: Jul 2009
Location: Oakdale, CA
Posts: 1,353
Total Cats: 65
Default

I cut and welded mine, I thought about filling it with sand and hitting hit. But I wound up just cutting it then welding it back up. Checking for leaks of course.
RyanRaduechel is offline   Reply With Quote
Old 08-19-2011, 04:56 PM   #11
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,008
Total Cats: 583
Default

It's steel. Pretty forgiving. Bend it in place. You can slip a plumbing pipe (PVC) over the end for leverage.
hornetball is offline   Reply With Quote
Old 08-19-2011, 10:17 PM   #12
Elite Member

Join Date: Feb 2008
Location: Victoria, BC
Posts: 2,322
Total Cats: 12
Default

Quote:
Originally Posted by pdexta View Post
I used the "yank on it until it fits" method and haven't had any issues with it, but I don't think it needed to bend too much for it to work on my car.
I did the same. I put a pipe around the end of it and just bent it till it was fine.
dustinb is offline   Reply With Quote
Old 08-19-2011, 10:19 PM   #13
Senior Member
Thread Starter
iTrader: (3)

Join Date: Nov 2009
Location: Royal Palm Beach, FL
Posts: 725
Total Cats: 5
Default

i tried heating and bending and it didnt work lol. i think because the torch was too small. but i filled it with sand then stuck it inside the base of a engine hoist and got it to bend. it is perfect now
