Old 06-30-2009, 11:04 PM   #21
Hittin' Boost & Cones
Thread Starter
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

More info later but...

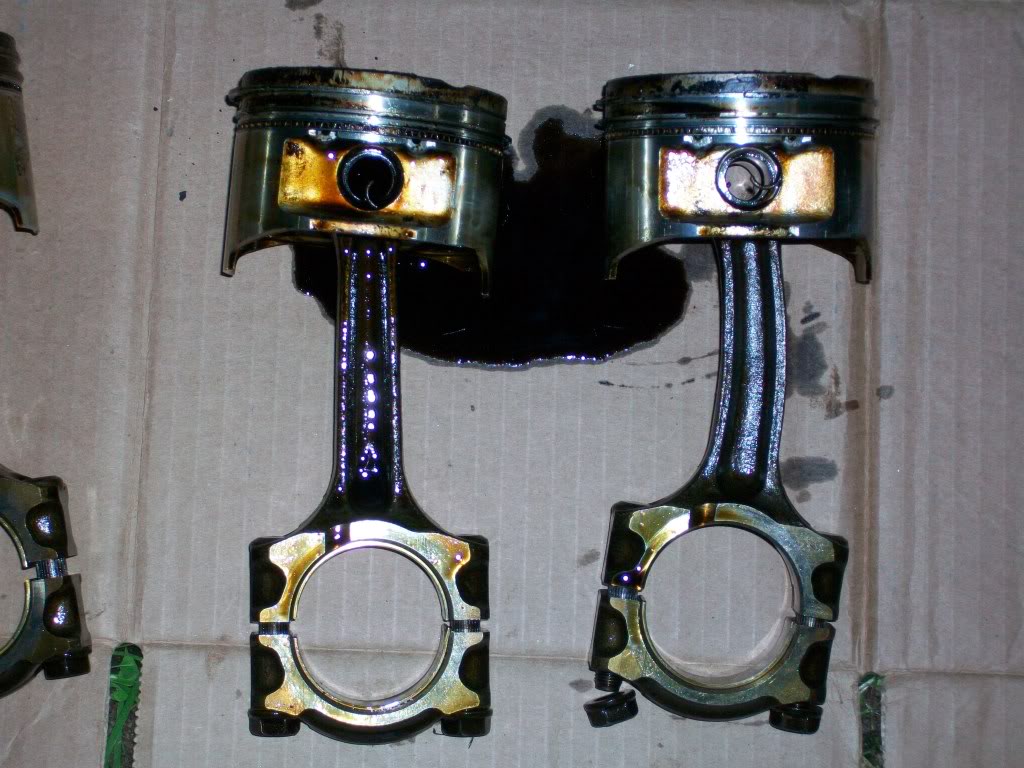

Cyl 3 and 4 (left to right)
Name:  100_0425.jpg
Views: 1
Size:  167.1 KB

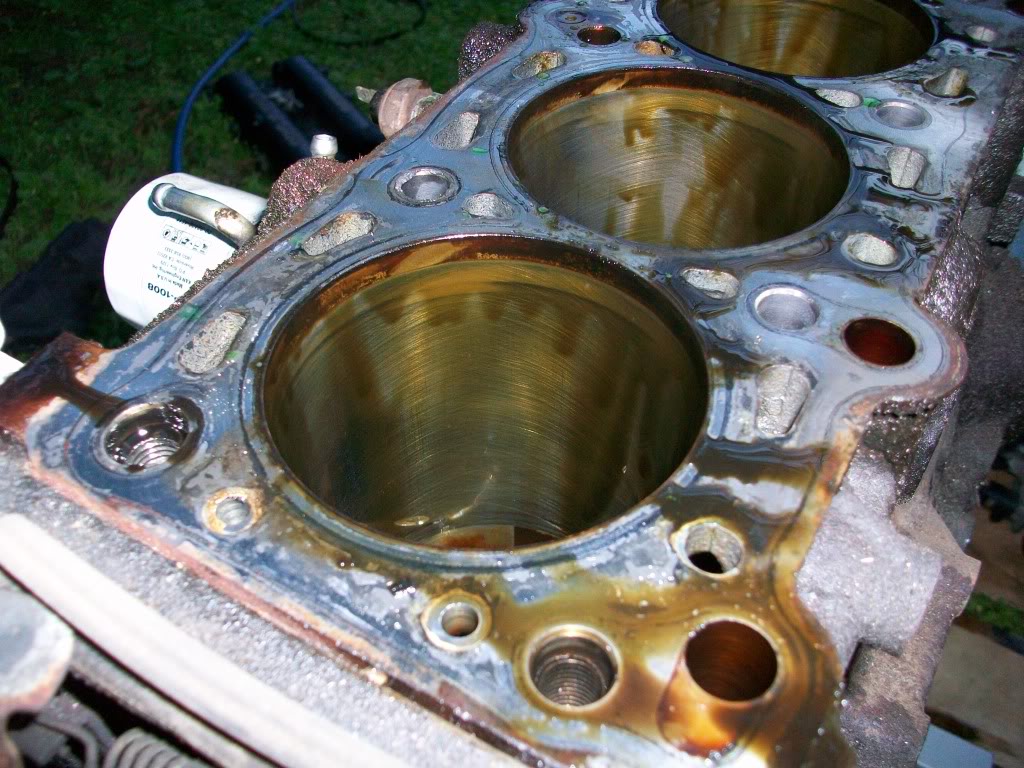

Everything else looks amazing...

SEE...

Name:  100_0426.jpg
Views: 1
Size:  199.0 KB
240_to_miata is offline   Reply With Quote
Old 07-01-2009, 01:04 AM   #22
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Dude have you found out what's wrong yet?

I have the uber 1.6 engine. I reved it to 7250rpm multiple times a minute for a couple weeks when it was still my dad's car and it spun a crank bearing. Made a clicking noise but seemed to run normally, granted I was easy on it since I knew something was up. We balanced the rotating assembly along with rebuilding it (rings, gaskets, honing, etc), but then my dad assembled it without tightening one of the rod cap nuts, so it came loose and started smacking the valves. It drove less than a 1/4 mile like this before we tore it apart again and rebuilt it. 30k later I turbo it, run it uber lean for a while before finding out (because of my WB) that my fuel pump is bad and am now running a fairly safe bandaid tune. I have no idea how you people keep blowing engines, they're obviously bullet proof. (knocking on wood).
curly is offline   Reply With Quote
Old 07-01-2009, 02:23 AM   #23
Elite Member

Join Date: Feb 2008
Location: Victoria, BC
Posts: 2,322
Total Cats: 12
Default

Quote:
Originally Posted by curly View Post
Dude have you found out what's wrong yet?

I have the uber 1.6 engine. I reved it to 7250rpm multiple times a minute for a couple weeks when it was still my dad's car and it spun a crank bearing. Made a clicking noise but seemed to run normally, granted I was easy on it since I knew something was up. We balanced the rotating assembly along with rebuilding it (rings, gaskets, honing, etc), but then my dad assembled it without tightening one of the rod cap nuts, so it came loose and started smacking the valves. It drove less than a 1/4 mile like this before we tore it apart again and rebuilt it. 30k later I turbo it, run it uber lean for a while before finding out (because of my WB) that my fuel pump is bad and am now running a fairly safe bandaid tune. I have no idea how you people keep blowing engines, they're obviously bullet proof. (knocking on wood).
19lbs of boost (spike), 440cc injectors, on a 16g with a stock 1.6 fuel rail = failure. That's how you do it.

And interesting pics above, any ideas?
dustinb is offline   Reply With Quote
Old 07-01-2009, 02:25 AM   #24
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Those cyl walls look great O_O. Our integra didn't look that good when I put a new head on it 10k miles ago. The pistons even wiggled back and forth in the cylinders

Good luck man. I cannot believe you bent a rod on that kind of power...these rods must suck.
wayne_curr is offline   Reply With Quote
Old 07-01-2009, 02:26 AM   #25
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Quote:
Originally Posted by dustinb View Post
19lbs of boost (spike), 440cc injectors, on a 16g with a stock 1.6 fuel rail = failure. That's how you do it.

And interesting pics above, any ideas?

Lol, thats not his setup at all.
wayne_curr is offline   Reply With Quote
Old 07-01-2009, 02:52 AM   #26
Elite Member
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

T25 ftw!
SKMetalworks is offline   Reply With Quote
Old 07-01-2009, 07:57 AM   #27
Hittin' Boost & Cones
Thread Starter
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

Yeah, I was quite amazed at the condition of all the bearings and cylinder walls. The entire motor other than the rod (and the WEAKKK piston rings) seems to be in great shape.

I have been having some issues with noise in my CAS signal to megasquirt. It would randomly spike to like 65000 (yes sixty five thousand) RPMS...causing the rev limiter to blip for a millisecond and i would have a lean spike with no spark. I always had this happen on highway cruise but I'm thinking this may have been the one time it happened under boost and it just didn't make the rods too happy.

Either way I am excited to rebuild. The head looks decent and I should get away with new rods, bearings, ring, gaskets and a quick clean and hone. Stock pistons FTL, but I think I would rather have a coolant reroute, dual feed fuel rail, and bigger rad before I go bigger pistons and end up convincing myself to turn up the boost or something.
240_to_miata is offline   Reply With Quote
Old 07-01-2009, 08:26 AM   #28
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

Sounds like a great plan!

That crosshatch is money, amazing for it to still be in that great of shape.

Measure your stock rings and order a set of matching moly rings from wiseco. Then you will have great rings that can stand a beating.
neogenesis2004 is offline   Reply With Quote
Old 07-31-2009, 09:48 PM   #29
Hittin' Boost & Cones
Thread Starter
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

Im putting the engine back together this weekend, getting it back from the shop 2morro i think.

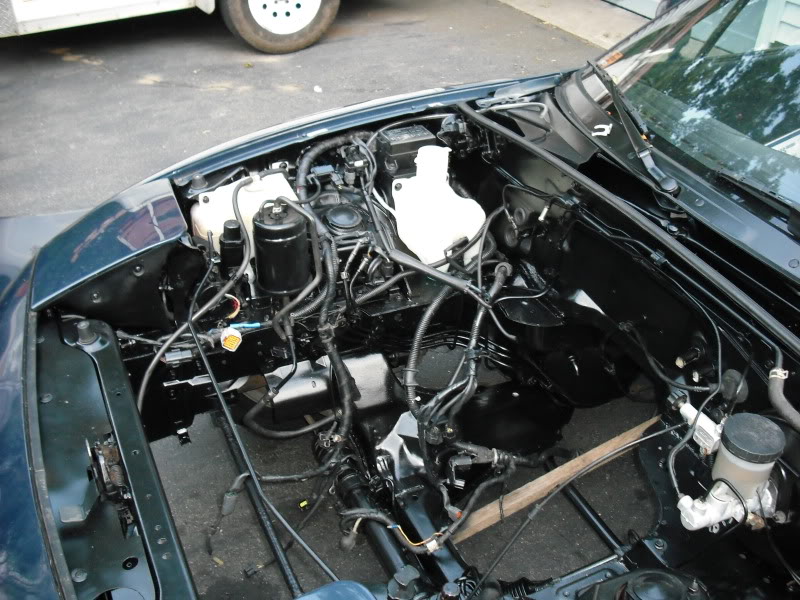

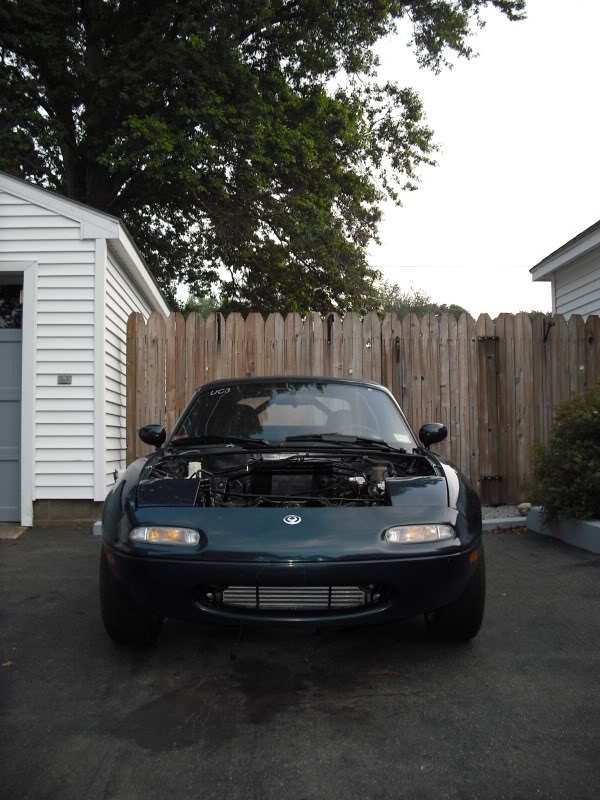

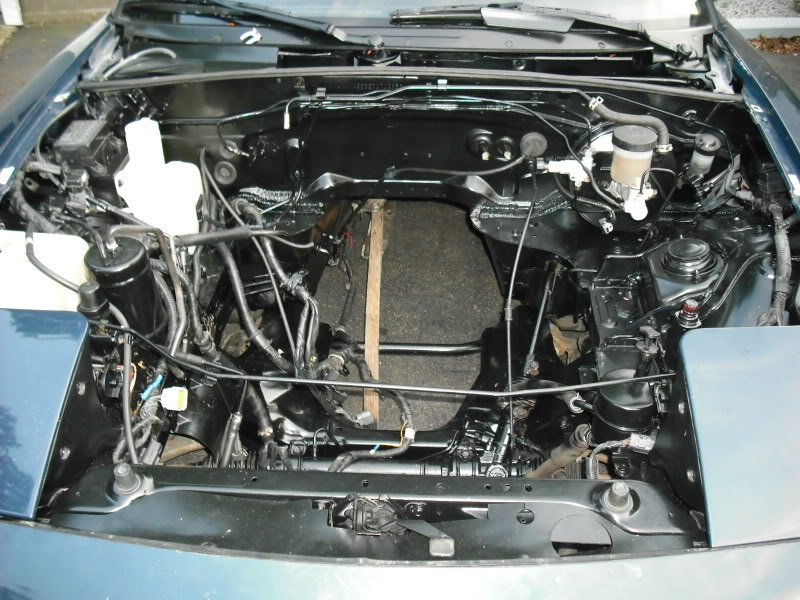

Here are some pics of random progress:

Name:  Enginebay011.jpg
Views: 1
Size:  105.7 KB

Name:  Enginebay008.jpg
Views: 1
Size:  124.7 KB

Name:  Enginebay009.jpg
Views: 1
Size:  121.6 KB

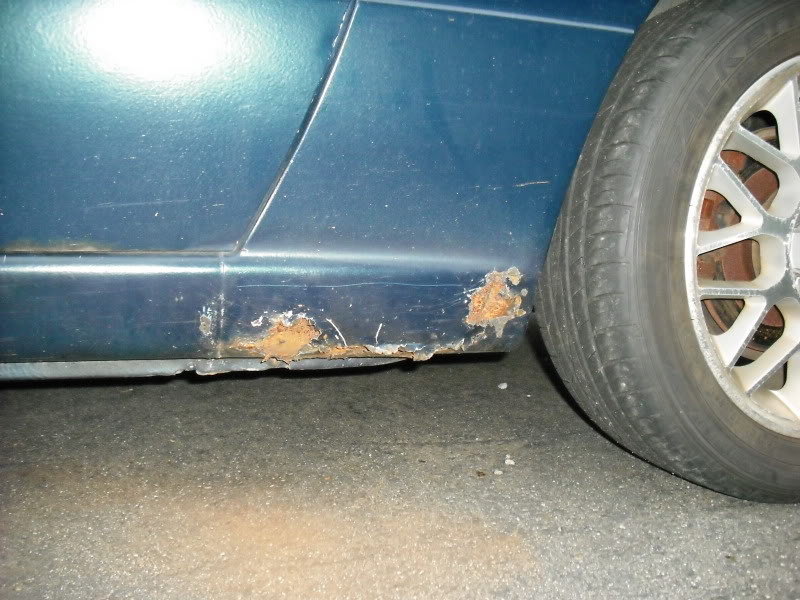

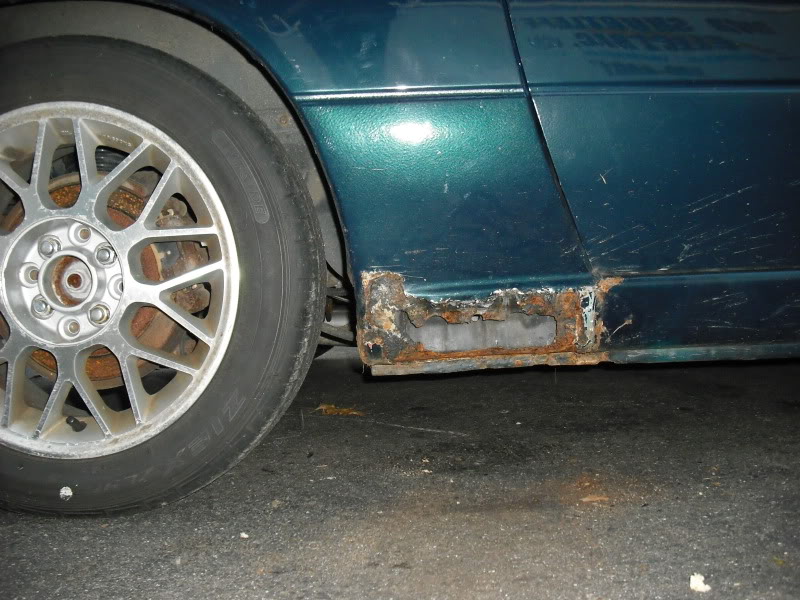

And i got poking when i shouldnt have...
Name:  Enginebay006.jpg
Views: 1
Size:  100.9 KB

Name:  Enginebay007.jpg
Views: 1
Size:  110.4 KB
Pass side was hacked by me in the past and needs to be done right, drivers side was a supprise. Ill be fixing this soon.
240_to_miata is offline   Reply With Quote
Old 07-31-2009, 10:42 PM   #30
Senior Member
iTrader: (4)

Join Date: Aug 2007
Location: Guam (U.S Terr.)
Posts: 786
Total Cats: -2
Default

Engine bay looks clean
mike_671 is offline   Reply With Quote
Old 08-01-2009, 01:03 AM   #31
Elite Member
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

I thought that I was going to join you today. I had it running good at 10 psi. I had it at 11 psi and I heard some knock. This is on a 99 9.5 motor so I would guess that's about the same as 13 on a 9.0. Also a T25.

I need to get it back down to 10 before going into boost again.
Stein is offline   Reply With Quote
Old 08-01-2009, 02:16 AM   #32
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

its sooooooooooooooooooooo nice to have a forged 8.7 motor with 22-28* advance at 15psi. lol
hustler is offline   Reply With Quote
Old 08-01-2009, 02:31 AM   #33
I'm a terrible person
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

Wow.. I'm def putting my engine rebuild before a few things now...
FRT_Fun is offline   Reply With Quote
Old 08-01-2009, 06:40 AM   #34
Hittin' Boost & Cones
Thread Starter
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

Unfortunatly I chose to put a few things before pistons on my list, so my build only includes upgrading the rods and ARP head studs. I want to worry about cooling, wheels, tires, and sways before I bother with pistons. I figure before I reach that point I would need a bigger turbo and clutch anyway.
240_to_miata is offline   Reply With Quote
Old 08-01-2009, 08:19 AM   #35
Junior Member

Join Date: Aug 2008
Posts: 118
Total Cats: 0
Default

That conrod doesn't look quite right
Kinda shocked you blew a rod at that tune. Something must of been real bad in there to do that.
rrjwilson is offline   Reply With Quote
Old 08-03-2009, 06:24 PM   #36
Hittin' Boost & Cones
Thread Starter
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

Found out why I have always had low compression and only dynoed 98 rwhp stock...

My head needed to be done. He did a leak test and found a few of my exhaust valves werent sealing...

Oh you gotta love the machine shop Bill :(
240_to_miata is offline   Reply With Quote
Old 08-03-2009, 09:04 PM   #37
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,702
Total Cats: 237
Default

If you are spending all of the money on a rebuild etc, why the hell not throw in a set of forged pistons?
Fireindc is offline   Reply With Quote
Old 08-03-2009, 09:24 PM   #38
Hittin' Boost & Cones
Thread Starter
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

Because I am a BROKE college student.. and i expected to run into some things that would already increase the price of my build..... aka my head needing work.

Plus, Ive thought it through, and I will need to upgrade my clutch LONG before I surpass what the stock pistons can hold... And i need new tires and wheels (runnin 205 crappy bald all seasons)

So i guess the question is:

Why not upgrade the turbo so you can then have to upgrade the clutch so you can then have to upgrade the pistons so you then should upgrade the head, but then you really need a coolant reroute and rad. and oh yeah... TIRES.
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$ $$$$$$$$$$$$$$$$$
Trust me I thought long and hard about where my limited funds should go.
240_to_miata is offline   Reply With Quote
Old 08-03-2009, 09:33 PM   #39
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,702
Total Cats: 237
Default

Cool man, as long as you've thought it out.

Personally after spending a shitload of money on the expensive part of the build(the build/machine work part), I would without a doubt be putting in full forged internals.

Your argument is not the same, because you do not have to pull apart the motor in order to install a clutch, coolant reroute, tires, etc.
Fireindc is offline   Reply With Quote
Old 08-03-2009, 09:37 PM   #40
Hittin' Boost & Cones
Thread Starter
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

trust me Im sorda regretting it, but I need to pay rent and insurance... and i just bought a winter beater because I really needed a second mode of transporation. You can always pull apart a clean motor and throw it back together as long as nothing is damaged. If I ever have the money for a turbo, clutch, reroute, and tires....... then I will probably have the money to redo the motor as well.
240_to_miata is offline   Reply With Quote
