Quote:
Originally Posted by Braineack View Post
then at 30psi, your turbo is compressing a lot more air, into the same space, than a t25 would. So at the same pressure, you have almost twice the available oxygen to burn and that right there should equal tons more torque.

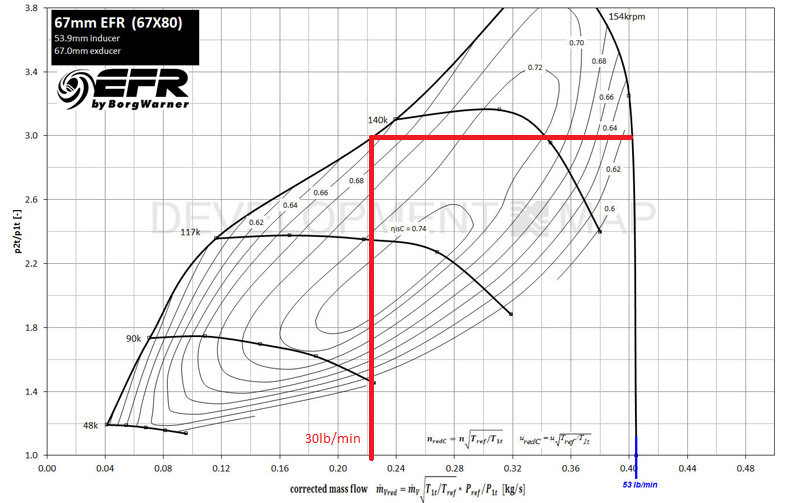

At 30psi a turbo can flow a range of volume, in case of EFR6758, anywhere between 30 and 53lb/min


The actual volume it will flow depends on the restriction.
Attached Thumbnails
Boost pressure vs air flow vs power-30psi-range.png
soviet is offline   Reply With Quote
Old 06-09-2014, 04:30 PM   #22
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 783
Default

What i'd like to know is if there's actually a pressure point in which turbos become unhappy to the point that they consider and/or carry out suicide?

And yes, i need this data for a practical application.
concealer404 is offline   Reply With Quote
Old 06-09-2014, 04:34 PM   #23
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,685
Total Cats: 216
Default

I believe that point would be when you are spinning the turbo too high, which is going to be a combination of boost and flow.
Full_Tilt_Boogie is offline   Reply With Quote
Old 06-09-2014, 04:37 PM   #24
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 783
Default

Quote:
Originally Posted by Full_Tilt_Boogie View Post
I believe that point would be when you are spinning the turbo too high, which is going to be a combination of boost and flow.


Well... i'm talking more like... take a BP, then cut the flow in half. In Soviet's case, i'd be spinning his same turbo to the point that it would be making 60psi and still only 460whp. (Bullshit maths, but you get the idea)

Is this bad? Would it actually be spinning too high? Or would it spin the same, just with more pressure because shitty motor?

I just want to know how to know at what pressure amount a turbo will become asploded.
concealer404 is offline   Reply With Quote
Old 06-09-2014, 04:44 PM   #25
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,685
Total Cats: 216
Default

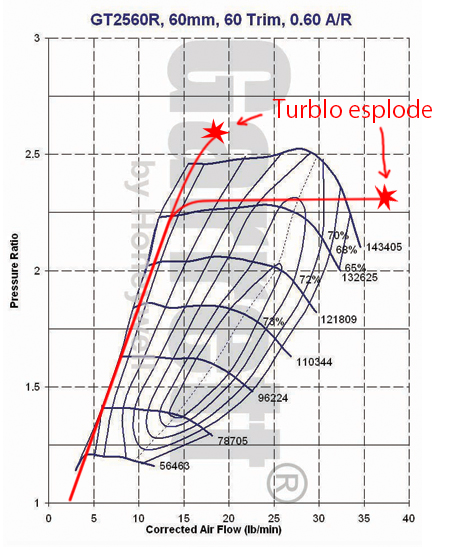

Look at the compressor map



You may need compound turbos to get that kind of boost is something like a GTX cant do it.
Although, the turbo may survive going spinning above where its supposed to. I know DSM guys will push their little stock turbos way off of the compressor map. They like to set turbo records.
Attached Thumbnails
Boost pressure vs air flow vs power-pjqvwh3.png
Full_Tilt_Boogie is offline   Reply With Quote
Old 06-09-2014, 04:47 PM   #26
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 783
Default

But what makes it asplode, exactly? Would pressure alone do it?

I just need a turbo that will handle 60psi or so. Nothing crazy.
concealer404 is offline   Reply With Quote
Old 06-09-2014, 04:49 PM   #27
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,685
Total Cats: 216
Default

Turbo speed. Thats what those thick lines are with the numbers at the far right end.

If you take a 2560 beyond 143405 rpm, Garrett says it will die.
Full_Tilt_Boogie is offline   Reply With Quote
Old 06-09-2014, 04:52 PM   #28
Senior Member
iTrader: (1)

Join Date: Sep 2008
Location: Tucson, Arizona
Posts: 889
Total Cats: 55
Default

Nooooooooo . Damn backspace killed my description. I never use backspace to go back on my browser. I hate whoever invented that.

So anyway.. since I wrote a pretty technical section on this bare with me as i use the wrong words like bigger and smaller and whatever to describe turbos and things.

Basically the gist is. Smaller turbos spool quicker right? When they spool quicker it causes more heat. If gas is held at a constant pressure then it will expand to fill a larger volume. Since a smaller turbo will spool quicker it will constantly be applying more pressure to the molecules. Larger turbo will have more dense air.

Think about someone boosting in Colorado or in Florida. Which of the two states gets more power out of the same amount of boosties?
krissetsfire is offline   Reply With Quote
Old 06-09-2014, 04:53 PM   #29
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 783
Default

I understand speed, but speed doesn't have a direct relationship with pressure by itself without bringing a motor (restriction) into play.

If the 2560 is on a big block, it might only make 5psi before it hits 143406rpm and dies. If it's on an F2T, it might do almost 30psi before it hits 143406rpm and dies.

If the motor is shitty enough, you could go off the pressure end of the chart while staying in the "safe" zone in terms of RPM. Is this still bad, then? (And yes, i realize that we'd likely be walking on the nasty side of the surge line.)
concealer404 is offline   Reply With Quote
Old 06-09-2014, 04:55 PM   #30
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,704
Total Cats: 269
Default

Following on Soviet's map post:

It's not what a turbo can do, but what is the operating point. The question is, at the flow required at a given engine RPM and torque, will the large and small turbo end up operating at about the same pressure and flow. I think they will, less a little for efficiency, and a little for IC and charge piping. The latter variables go away if we look at MAP only.

Comparing (2) maps.
2554 @ 25 lbs/min and 2.0 P/R 69% efficiency
2871 @ 25 lbs/min and 2.0 P/R 75% efficiency.

So the 2871 is 75/69 = 9% more efficient so it has that much advantage on the compressor side. This does assume equal pressure drops in the IC and other intake areas.
DNMakinson is offline   Reply With Quote
Old 06-09-2014, 04:56 PM   #31
Senior Member
iTrader: (1)

Join Date: Sep 2008
Location: Tucson, Arizona
Posts: 889
Total Cats: 55
Default

Quote:
Originally Posted by concealer404 View Post
I understand speed, but speed doesn't have a direct relationship with pressure by itself without bringing a motor (restriction) into play.

If the 2560 is on a big block, it might only make 5psi before it hits 143406rpm and dies. If it's on an F2T, it might do almost 30psi before it hits 143406rpm and dies.

If the motor is shitty enough, you could go off the pressure end of the chart while staying in the "safe" zone in terms of RPM. Is this still bad, then? (And yes, i realize that we'd likely be walking on the nasty side of the surge line.)
Err i re-read that. I don't think it would matter actually. If the car can't flow enough to over spool then it just gets hot and runs poorly... right?
krissetsfire is offline   Reply With Quote
Old 06-09-2014, 05:00 PM   #32
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 783
Default

Quote:
Originally Posted by krissetsfire View Post
I'm guessing you'd just twist the **** out of the shaft and it would break?


That sounds awesome.

"Dear BW,

I'm writing to you to let you know that i've found a new and interesting way for your turbos to fail. I've been using an EFR with the turbo RPM logged so i know that it was not the RPMs that caused this particular example to fail.

I've attached a log showing what happens when you remove the wastegate from one of your EFRs and weld chains around your motor to keep the head attached to the block.

Yours Truly,

The Swanky One"
concealer404 is offline   Reply With Quote
Old 06-09-2014, 05:02 PM   #33
Senior Member
iTrader: (1)

Join Date: Sep 2008
Location: Tucson, Arizona
Posts: 889
Total Cats: 55
Default

I edited it. I don't think It would get to that point. Since it can't flow you'd just end up with really hot exhaust gasses getting trapped and maybe some det? I don't think it's anything any of us will ever run into. Would be a humorous conversation though.
krissetsfire is offline   Reply With Quote
Old 06-09-2014, 05:06 PM   #34
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 783
Default

Quote:
Originally Posted by krissetsfire View Post
I edited it. I don't think It would get to that point. Since it can't flow you'd just end up with really hot exhaust gasses getting trapped and maybe some det? I don't think it's anything any of us will ever run into. Would be a humorous conversation though.
I'm not sure. All i know is that i've run a Toyota CT26 to 25psi+, and this turbo is known to be pretty much put to death at 15psi eventually on the motor it came on originally. IATs were still well within "good" range.

Given the power goals i'm looking at and how little this motor flows (double digits on the bench awwwwwwww yiss) pressure may very well be something i need to look at, since the acceptable answer isn't "oversize the **** out of your turbo."
concealer404 is offline   Reply With Quote
Old 06-09-2014, 05:10 PM   #35
Senior Member
iTrader: (1)

Join Date: Sep 2008
Location: Tucson, Arizona
Posts: 889
Total Cats: 55
Default

I am in no way a turbo engineer but I'd imagine that the factors that determine the life of the wheel would be things like lubrication and heat. If it can't be cooled properly it's most likely going to suffer some heat failure and warp or whatever... causing some sort of eventual or catastrophic failure.
krissetsfire is offline   Reply With Quote
Old 06-09-2014, 05:15 PM   #36
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 260
Default

I'm glad that this thread makes sense to some people. I'm not crazy, I guess.

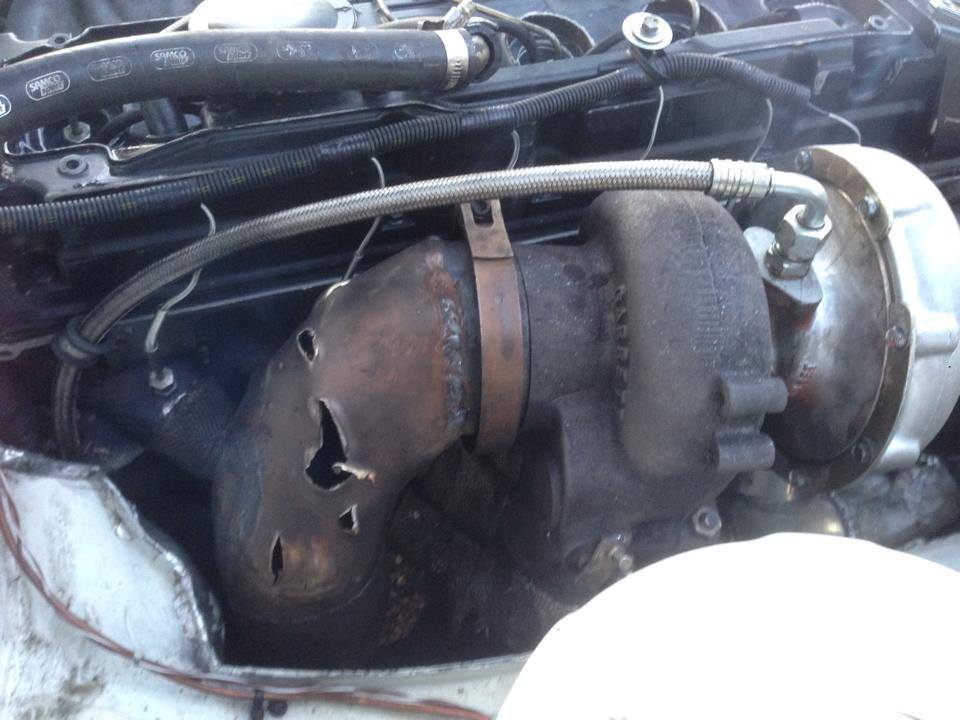

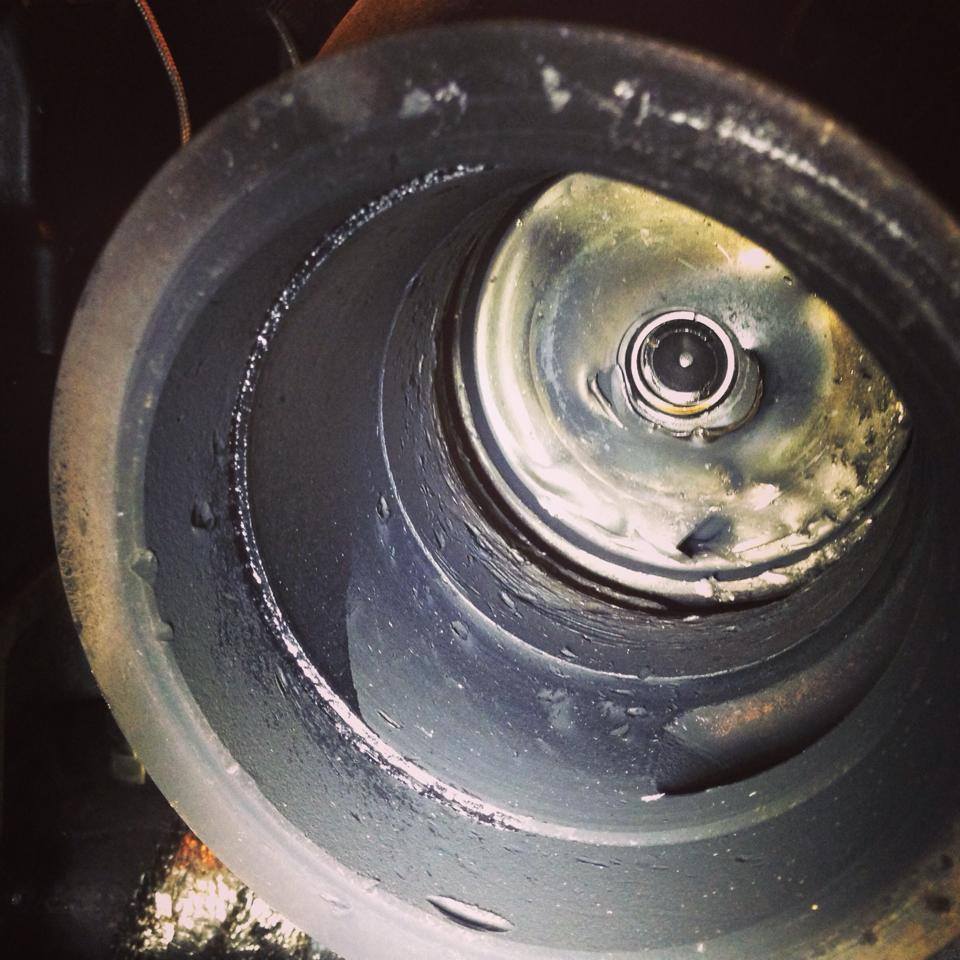

My turbine wheel sheared off the shaft while mostly intact, then rattled in the downpipe. The force was not enough to go through the downpipe, unlike in some cases



Attached Thumbnails
Boost pressure vs air flow vs power-10342395_720717917984979_5062727560167316481_n.jpg   Boost pressure vs air flow vs power-10306320_720725464650891_43740133116513653_n.jpg
soviet is offline   Reply With Quote
Old 06-09-2014, 05:21 PM   #37
Senior Member
iTrader: (1)

Join Date: Sep 2008
Location: Tucson, Arizona
Posts: 889
Total Cats: 55
Default

That's kind of awesome. What were the circumstances?

Not awesome from costing $$$ standpoint but intriguing.
krissetsfire is offline   Reply With Quote
Old 06-09-2014, 05:35 PM   #38
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,704
Total Cats: 269
Default

Wow, I thought your turbine wheel failures were on Borg turbos. Did you have failures on Garretts and EFR's?
DNMakinson is offline   Reply With Quote
Old 06-09-2014, 05:37 PM   #39
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 783
Default

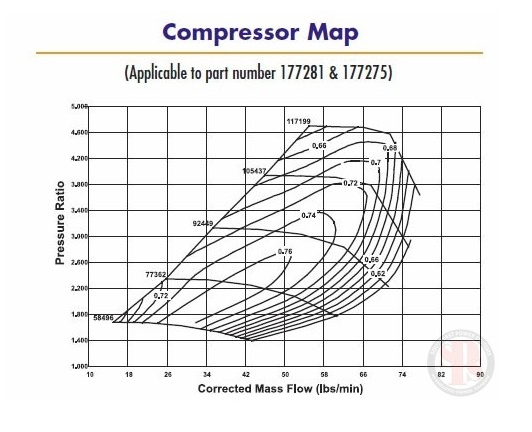

Actually... it looks like once you get into manly turbos, my question becomes a non-issue, since the pressure ratio scale goes square into "much testosterone" realm anyways.

Attached Thumbnails
Boost pressure vs air flow vs power-s300-66-compressor-map.jpg
concealer404 is offline   Reply With Quote
Old 06-09-2014, 05:43 PM   #40
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 260
Default

Quote:
Originally Posted by krissetsfire View Post
That's kind of awesome. What were the circumstances?

Not awesome from costing $$$ standpoint but intriguing.
thats not mine, thats a diesel drift mercedes wagon from finland
soviet is offline   Reply With Quote
