Break these Chinachargers down for me. - Page 2 - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



DIY Turbo Discussion greddy on a 1.8? homebrew kit?

Reply



LinkBack Thread Tools
Old 03-20-2009, 05:36 PM   #21
Senior Member
iTrader: (5)

Join Date: Nov 2007
Location: Troy, MI
Posts: 860
Total Cats: 13
Default

Those are too much money to be experimenting with. Since you need to retune anyway, I'd go with a significantly larger turbo. Spool is overrated even if I say so myself, you dont need anything below 3500 rpm.

I agree with what hustler's trying to say below whilst speaking like a man.......We need to clearly delineate spool from lag. i'm starting a thread when i feel like it.
The_Pipefather is offline   Reply With Quote
Old 03-20-2009, 05:42 PM   #22
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by sixshooter View Post
A 2500rpm usable range is all you need if your upshifts drop you no more than 2500rpm, technically speaking. Usefulness to a particular person is, of course, subjective.
spoken like a true track virgin.
hustler is offline   Reply With Quote
Old 03-20-2009, 05:44 PM   #23
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,165
Total Cats: 2,573
Default

to be perfectly honest, I have to agree. I'd much rather have a strong topend than fast spool. then again, some people in here like to be full boost by 3k so...I'm not a track junkie though
18psi is offline   Reply With Quote
Old 03-20-2009, 05:46 PM   #24
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,633
Total Cats: 1,559
Default

Quote:
Originally Posted by hustler View Post
spoken like a true track virgin.
Spoken by someone with a 2500rpm full boosted range.
sixshooter is offline   Reply With Quote
Old 03-20-2009, 05:53 PM   #25
Elite Member
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

[QUOTE=Newbsauce;384674 I do wish I'd have tried a 2860 though, as those seem like the ideal sizing.[/QUOTE]

HaHa thats what I dropping on mine
buffon01 is offline   Reply With Quote
Old 03-20-2009, 05:56 PM   #26
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Quote:
Originally Posted by 18psi View Post
to be perfectly honest, I have to agree. I'd much rather have a strong topend than fast spool. then again, some people in here like to be full boost by 3k so...I'm not a track junkie though
You dont have to be a track junkie to appreciate fast spool. I like to have a larger useable powerband, even if it hurts the HP numbers.
Saml01 is offline   Reply With Quote
Old 03-20-2009, 06:11 PM   #27
Junior Member

Join Date: Dec 2008
Location: eglin afb florida
Posts: 72
Total Cats: 0
Default

im using an sr20 t28 ebay special, but to unforeseen circumstances, its currently loaded with garrett big t28 internals. spool is slow, but dayum, theres plenty of top end pull. i think im around 10psi on stock internals. finally got it running right, now my clutch is dying. so no dyno yet.
turbo94 is offline   Reply With Quote
Old 03-20-2009, 06:12 PM   #28
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,353
Total Cats: 1,319
Default

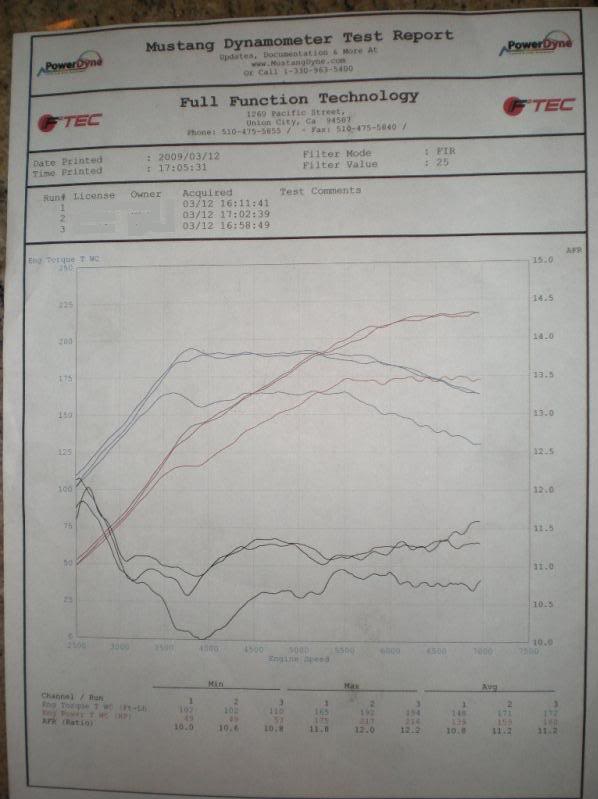

Someone forgot to tell my turbo that it's supposed to "fall off" on the top end.

Name:  DSCN1328.jpg
Views: 1
Size:  44.8 KB
Savington is offline   Reply With Quote
Old 03-20-2009, 06:16 PM   #29
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I plan on getting my gt2860rs tune cleaned up soon...like this may.
hustler is offline   Reply With Quote
Old 03-20-2009, 06:18 PM   #30
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Savington View Post
Someone forgot to tell my turbo that it's supposed to "fall off" on the top end.

too bad it makes no torque...lol.
hustler is offline   Reply With Quote
Old 03-20-2009, 08:20 PM   #31
Elite Member
iTrader: (15)

Join Date: Sep 2007
Location: Incline Village, NV
Posts: 2,073
Total Cats: 5
Default

Quote:
Originally Posted by Saml01 View Post
Artie. 275hp 250 torque I think with a regular 99 intake manifold.
so where is the other 25 hp and 20 tq?


If i were to do it again, i would have gone with a a 2871, or at least a 99 head with an intake mani+ absurd flow exhaust mani.
thesnowboarder is offline   Reply With Quote
Old 03-20-2009, 08:40 PM   #32
Elite Member
Thread Starter
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Looks like the 2860 with the smaller A/R is where I want to be. Now the question is would you buy this ebay special or go for the $800-900 name brand one?

eBay Motors: Drift T28 GT2860 S13 S14 Upgrade Turbo Charger .49 AR (item 120392174832 end time Mar-21-09 19:58:51 PDT)
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 03-20-2009, 10:42 PM   #33
Senior Member
iTrader: (1)

Join Date: Sep 2007
Location: Trenton, NJ
Posts: 1,125
Total Cats: 0
Default

Quote:
Originally Posted by thesnowboarder View Post
Who other than paul? who has an absurd flow exhaust mani and a begi intake mani strapped to his high flowing 99 motor?

Tell me please, because my 2560 isnt making anything near that kind of power.

I would be the other person running absurdflow exhaust manifold, downpipe, and exhaust. Im making 275rwhp and 263 torque at 15psi. Full boost by like 3200 or 3400. I forget the actual number and am too lazy to look it up right about now. The difference between my setup and Paul's is that hes running a 99 block while im running a 95 (different compression). He also has a Begi intake manifold with a 70mm mustang TB while I am running a gutted 99 intake manfold with stock TB (still gave me 11 hp and 1 tq). His intercooler setup is also a lot nicer than mine and shorter.

ArtieParty is offline   Reply With Quote
Old 03-21-2009, 05:22 PM   #34
Elite Member
Thread Starter
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Need your opinion fellas. Want to but something asap. Would you try the ebay special for $300 or spend the extra $600?

Garrett GT28R Turbo - Garrett GT Series Dual Ball Bearing Turbo Charger
Garrett GT2860R
Turbine -Wheel: 53mm w/ 62 trim -Housing: .64 ar
Compressor -Wheel: 60mm w/ 60 trim -Housing: .60 ar



eBay Motors: Drift T28 GT2860 S13 S14 Upgrade Turbo Charger .49 AR (item 120392174832 end time Mar-21-09 19:58:51 PDT)
Drift T28 GT2860
Compressor Wheel
0.60 A/R Cold Side
Ind: 42.50 mm
Exd: 60 mm
Trim: 50

Turbiner Wheel
.49 A/R
Garrett 4 Bolt T25 Flange
Ind: 52.90 mm
Exd: 45.47 mm
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 03-22-2009, 12:51 AM   #35
Elite Member
Thread Starter
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

levnubhin is offline   Reply With Quote
Old 03-22-2009, 02:01 AM   #36
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Quote:
Originally Posted by ArtieParty View Post
I would be the other person running absurdflow exhaust manifold, downpipe, and exhaust. Im making 275rwhp and 263 torque at 15psi. Full boost by like 3200 or 3400. I forget the actual number and am too lazy to look it up right about now. The difference between my setup and Paul's is that hes running a 99 block while im running a 95 (different compression). He also has a Begi intake manifold with a 70mm mustang TB while I am running a gutted 99 intake manfold with stock TB (still gave me 11 hp and 1 tq). His intercooler setup is also a lot nicer than mine and shorter.

[IMG]http://www.miatamx5.com/dynoruns/11-15-08/artie_vs_artie.jpg[/I]
Probably a dumb question, but why does your torque curve fall so quickly?

---------

Phil, try the ebay sepcial. Worst comes to worst you sell the turbo for half of what you paid and you gain experience that you can share with the rest of us. If I was in your shoes I would do just that.
Saml01 is offline   Reply With Quote
Old 03-22-2009, 09:58 AM   #37
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,633
Total Cats: 1,559
Default

Quote:
Originally Posted by levnubhin View Post
Bump
IDK, brother. The pics didn't show much detail in the ads, either. I was looking for casting quality as an indicator (possibly a poor indicator), but that's hard to tell from those little pics.

Without a name brand or reputation, you are just rolling the dice with either one. Pick one. Your call. I don't know, but is that one a real Garrett? Hard to believe the price.
sixshooter is offline   Reply With Quote
Old 03-22-2009, 12:21 PM   #38
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

Quote:
Originally Posted by Saml01 View Post
Probably a dumb question, but why does your torque curve fall so quickly?

---------
Because of the restrictive(even after gutting) factory intake manifold. Here is the same setup but with a better flowing intake mani(red line). Artie's is the green line.

paul is offline   Reply With Quote
Old 03-22-2009, 12:55 PM   #39
Elite Member
Thread Starter
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Dang, that IM made a huge difference.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 03-22-2009, 12:58 PM   #40
Junior Member

Join Date: Apr 2008
Posts: 350
Total Cats: -2
Default

Quote:
Originally Posted by levnubhin View Post
Need your opinion fellas. Want to but something asap. Would you try the ebay special for $300 or spend the extra $600?
Do this. Garrett OE quality. A Garrett guy looked at this and told me it's the same thing they call a GT2560. Couldn't understand how these guys are selling so cheap, unless Ghosn just said, "Get all the NOS parts off the books."

The Nismo Shop : West Covina Nissan : Nissan JDM T28R Turbocharger :: S15 Silvia
SolarYellow510 is offline   Reply With Quote
