Default Can you tell what turbo this is?

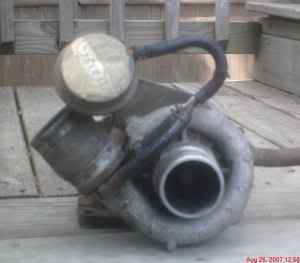

Name:  turbo.jpg
Views: 1
Size:  6.0 KB

I was wondering if you guys could identify what turbo this is. The owner says he thinks it was from a 300zx datsun or nissan. If it is where can i find info on this turbo? If i went and looked at what would i look for to properly identify it?

Thanks,
Brooks
s4miata is offline   Reply With Quote
Old 08-27-2007, 03:16 PM   #2
Elite Member
iTrader: (3)

Join Date: May 2006
Location: Houston, TX
Posts: 2,900
Total Cats: 0
Default

The flange would tell us more... but that does looks like a 300zx T3.
Arkmage is offline   Reply With Quote
Old 08-27-2007, 05:35 PM   #3
Newb
Thread Starter

Join Date: May 2006
Posts: 14
Total Cats: 0
Default

ya thats what i figured. How much do these go for?
s4miata is offline   Reply With Quote
Old 08-27-2007, 05:40 PM   #4
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Depends on if it's blown and the condition of the wheels/housings.
cjernigan is offline   Reply With Quote
Old 08-28-2007, 12:31 AM   #5
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

There might be a small factory metal tab on it identifying the model... just need to take along a list to verify.
If it is from one of those cars and is original, then it's probably 20yrs old... definitely going to need a rebuild. Check to overall shaft play, wastegate flapper action, pull tension on the actuator.

Good luck getting it apart if it needs a rebuild. We're talking a couple days soaking in PB Blaster, a night in the freezer, and liberal application of a torch to get the turbine housing off the CHRA... if you can get the bolts out.

If it looks like it's going to be a pain, then you might pass unless it's only like $30... T3's are cheap and plentiful.
samnavy is offline   Reply With Quote
