Default Changed Head Gasket Clutch Won't start

99 Miata. I changed Head Gasket and Clutch. Put erverything back together and it will not start. It turns over and sounds like it is trying to backfire.
I have checked the timing about a dozen times. Crank sproket set, Intake Pulley I up, Exhaust Pulley E up. right on the marks. front cam lobes out.
sparks are firing and fuel is flowing. I have done similar work on miatas before, but this one has me stumped!
shoultsc is offline   Reply With Quote
Old 03-04-2012, 05:07 PM   #2
Elite Member

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

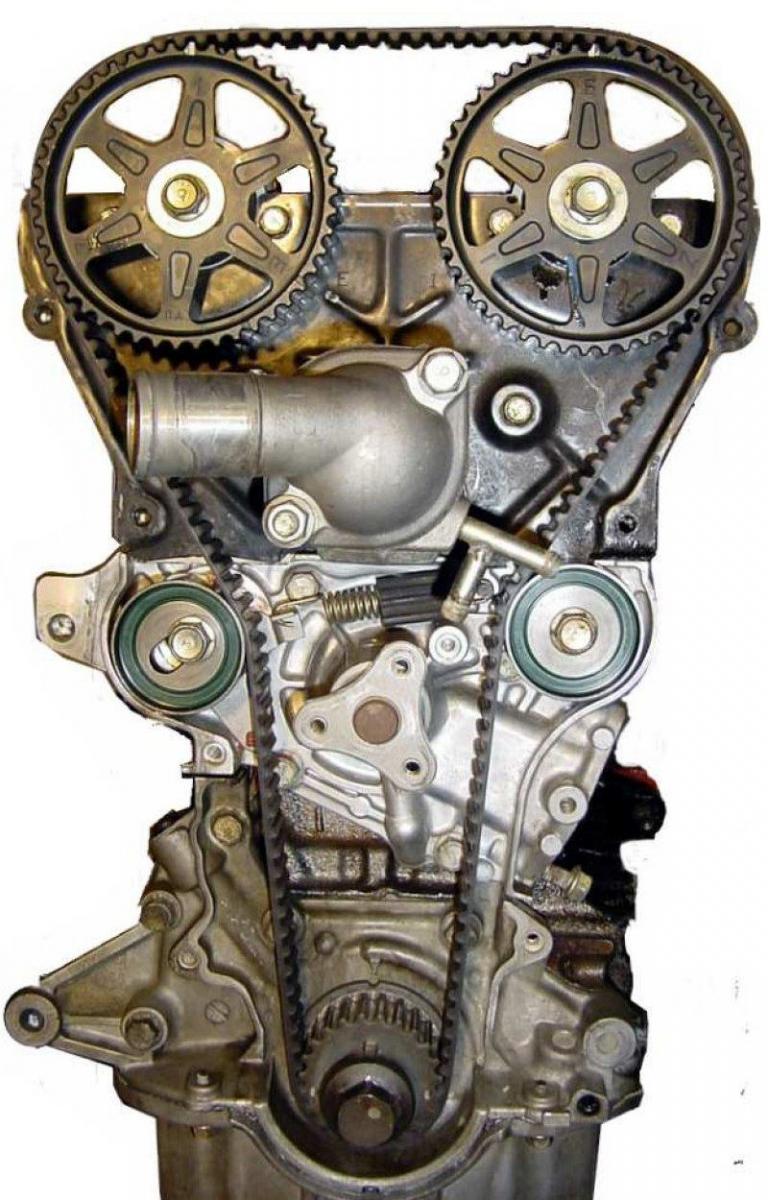

Go off of the marks above the stat housing.
If yours is correct, check the gap on the crank position sensor.
Attached Thumbnails
Changed Head Gasket Clutch  Won't start-viatura%2520-%2520mazda%2520mx-5%2520-%2520base%2520-%2520motor%2520-%2520distribuicao%2520-%2520belt_view.jpg
flounder is offline   Reply With Quote
Old 03-04-2012, 05:48 PM   #3
Junior Member
iTrader: (1)

Join Date: Mar 2010
Location: sacramento
Posts: 169
Total Cats: 1
Default

odd.

that pic sure helps though!
blindboxx2334 is offline   Reply With Quote
Old 03-04-2012, 05:57 PM   #4
Newb
Thread Starter

Join Date: Mar 2012
Posts: 21
Total Cats: 0
Default

My timing is right on. just like the pic. The CPS was not moved and it was running fine before I started the work.
shoultsc is offline   Reply With Quote
Old 03-04-2012, 06:06 PM   #5
Elite Member

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

Did you remember to torque the head bolts? How about firing order? Got the injectors plugged in correctly?
flounder is offline   Reply With Quote
Old 03-04-2012, 06:38 PM   #6
Newb
Thread Starter

Join Date: Mar 2012
Posts: 21
Total Cats: 0
Default

Torqued at 60 lbs. and checked firing order about 10 times!
shoultsc is offline   Reply With Quote
Old 03-04-2012, 06:42 PM   #7
Elite Member

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

Everything plugged back in? Vacuum hose off? You didn't accidently swap in/ex cams did ya?
flounder is offline   Reply With Quote
Old 03-04-2012, 06:43 PM   #8
I'm a terrible person
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

Provide pictures of cam gears lined up plz.
FRT_Fun is offline   Reply With Quote
Old 03-04-2012, 06:47 PM   #9
Newb
Thread Starter

Join Date: Mar 2012
Posts: 21
Total Cats: 0
Default

Everything is back where it is supposed to be. I've gone over everything several times. grounds are good. put a timing light on it and it flashes right on mark. I have done this many times but something is definitley not right with this one.
shoultsc is offline   Reply With Quote
Old 03-04-2012, 06:47 PM   #10
Newb
Thread Starter

Join Date: Mar 2012
Posts: 21
Total Cats: 0
Default

Give me a little bit and I will get pic
shoultsc is offline   Reply With Quote
Old 03-04-2012, 06:59 PM   #11
Elite Member

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

Did you hit the cam sensor when you installed the valve cover? Did you leave the cams attached to the head when it was removed? Maybe when you set it down you bent a valve(s)? Compression test that bitc h.
flounder is offline   Reply With Quote
Old 03-04-2012, 07:15 PM   #12
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

Cam gears in that position should have the pins in the 12 o'clock position. Front intake and exhaust lobes on cylinder #1 should be pointing toward the outside of the motor on both sides. Maybe you relocated the cam gears in the wrong position?
olderguy is offline   Reply With Quote
Old 03-04-2012, 07:23 PM   #13
Newb
Thread Starter

Join Date: Mar 2012
Posts: 21
Total Cats: 0
Default

cams were not attached. Did a leak test on valves. All good.
shoultsc is offline   Reply With Quote
Old 03-04-2012, 07:26 PM   #14
Newb
Thread Starter

Join Date: Mar 2012
Posts: 21
Total Cats: 0
Default

[IMG]C:\Temp\pics\IMG_1175.JPG[/IMG]
shoultsc is offline   Reply With Quote
Old 03-04-2012, 07:29 PM   #15
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Main block to chassis ground strap?

I always seem to fail to install these when I pull engines/head(s)
EO2K is offline   Reply With Quote
Old 03-04-2012, 07:30 PM   #16
I'm a terrible person
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

Quote:
Originally Posted by shoultsc View Post
[IMG]C:\Temp\pics\IMG_1175.JPG[/IMG]
^that wont work.

You need to attach it using the "manage attachments" thing.
FRT_Fun is offline   Reply With Quote
Old 03-04-2012, 07:36 PM   #17
Newb
Thread Starter

Join Date: Mar 2012
Posts: 21
Total Cats: 0
Default

There is a ground by the exhaust that is attached. Is that what your talking bout?
Having trouble with loading pic. Quick instructions on getting a pic in?
shoultsc is offline   Reply With Quote
Old 03-04-2012, 07:49 PM   #18
Newb
Thread Starter

Join Date: Mar 2012
Posts: 21
Total Cats: 0
Default

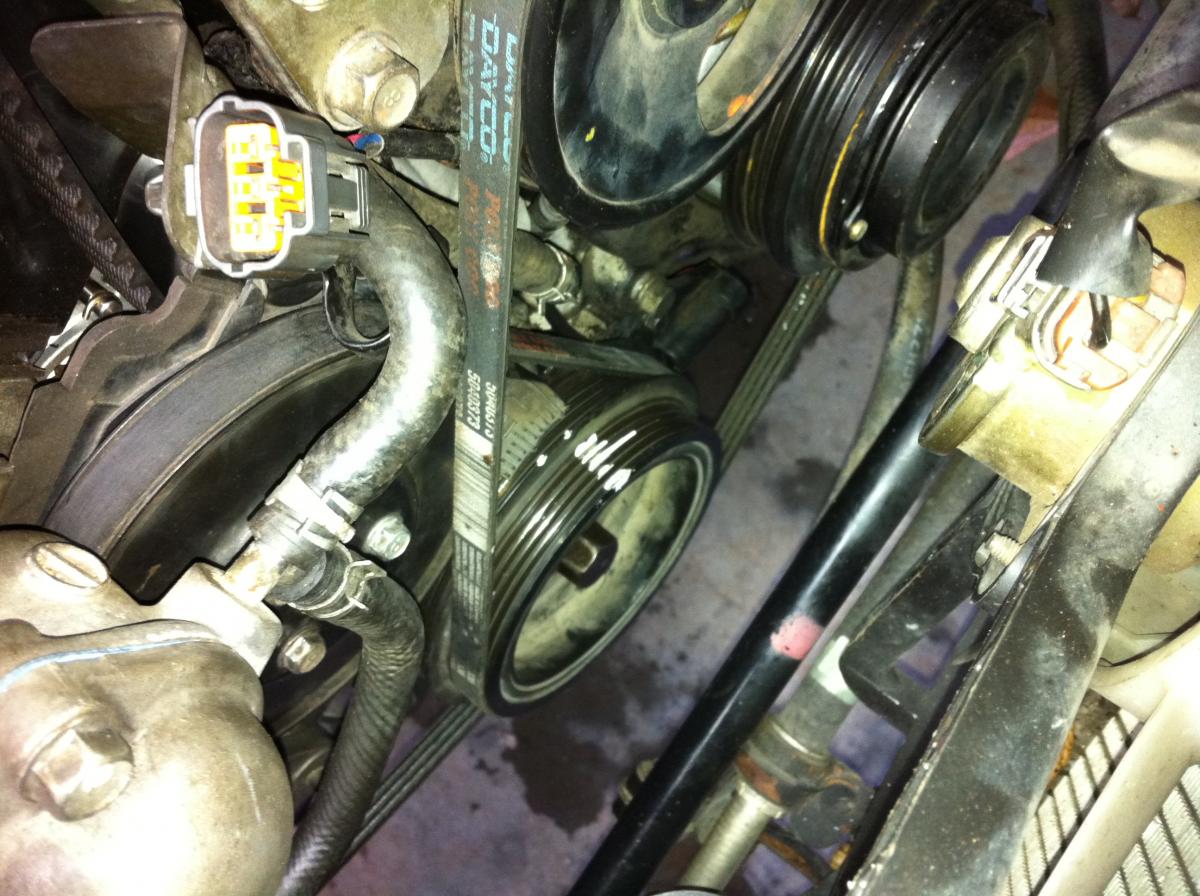

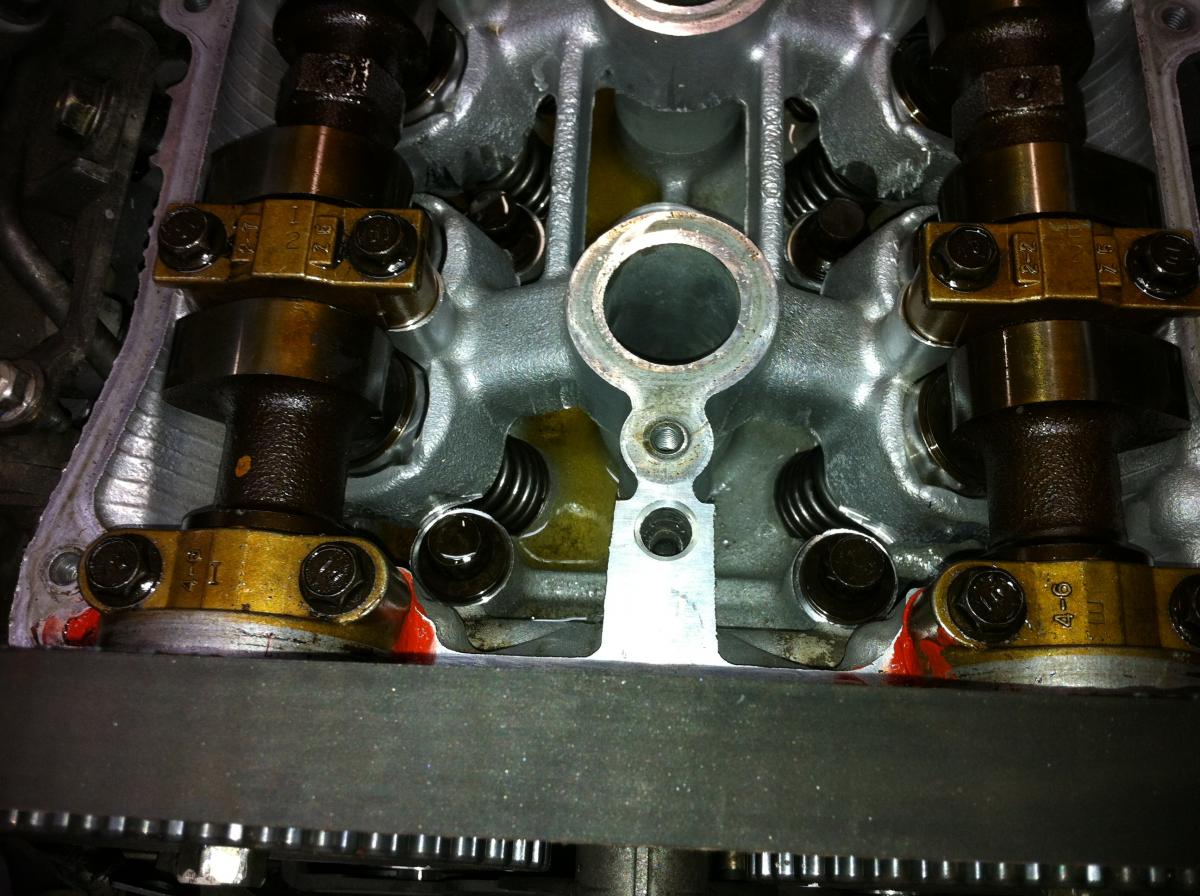

cam gears are correct.
Attached Thumbnails
Changed Head Gasket Clutch  Won't start-img_1175.jpg   Changed Head Gasket Clutch  Won't start-img_1176.jpg   Changed Head Gasket Clutch  Won't start-img_1178.jpg
shoultsc is offline   Reply With Quote
Old 03-04-2012, 07:51 PM   #19
Newb
Thread Starter

Join Date: Mar 2012
Posts: 21
Total Cats: 0
Default

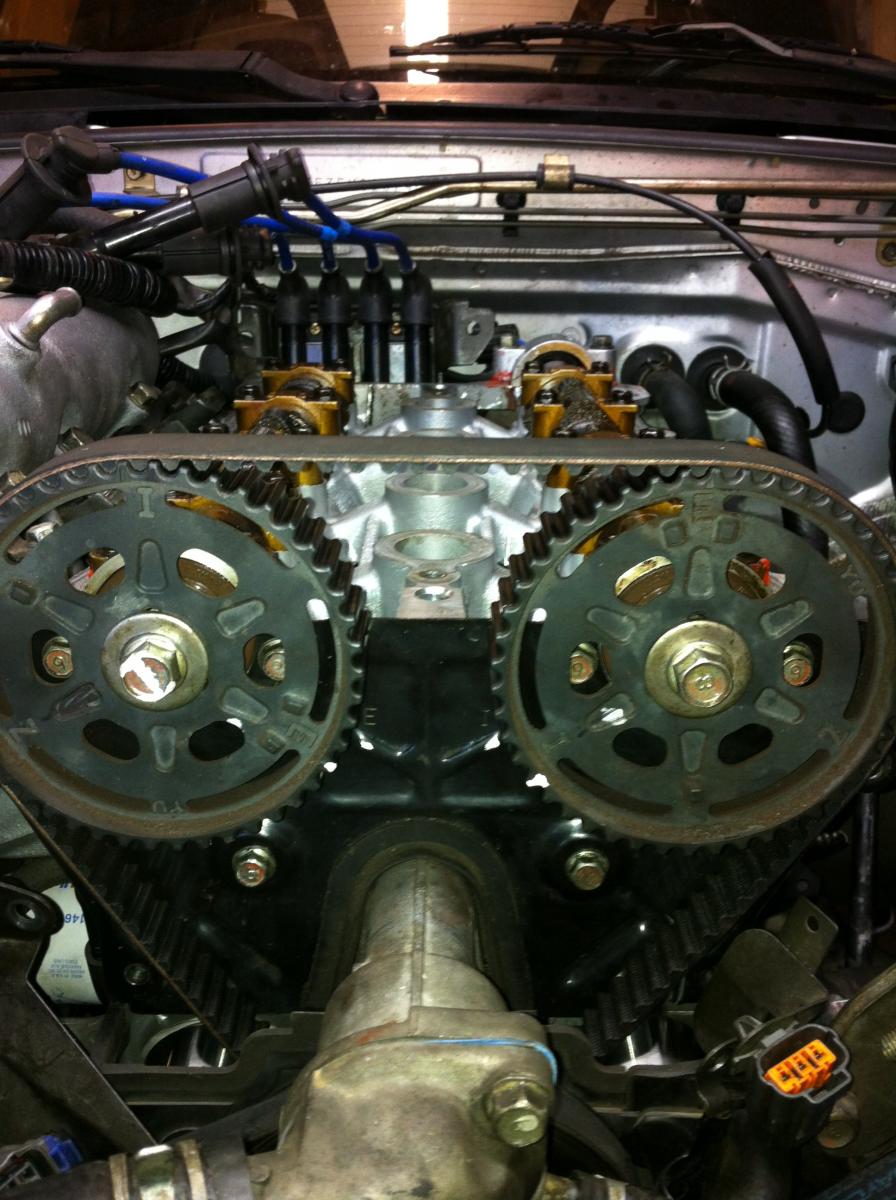

Hopefully this is a better pic
Attached Thumbnails
Changed Head Gasket Clutch  Won't start-img_1175.jpg
shoultsc is offline   Reply With Quote
Old 03-04-2012, 08:23 PM   #20
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Quote:
Originally Posted by shoultsc View Post
There is a ground by the exhaust that is attached. Is that what your talking bout?
That's the one, just figured I'd ask.

If by chance you do this again and you are NOT replacing the timing belt, put a dot of white out on the timing belt and the lower pulley so you can get it back in place, and ZIP TIE the cam gears to the belt in 2-3 places, then take pics before you disassemble. It's full of win and awesome, trust me.
