sooooooo.......necessary?
JoeTheZoe is offline   Reply With Quote
Old 03-10-2012, 09:52 AM   #42
Elite Member
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

You can remove it. Let me add to my previous statement. NBs have 2 canisters: One by the fuel filter is the charcoal canister, and the one in the engine bay appears to be an evaporative catch can for fuel vapors.
Bryce is offline   Reply With Quote
Old 03-10-2012, 11:33 AM   #43
Junior Member
iTrader: (1)

Join Date: Apr 2010
Location: Deland, FL
Posts: 143
Total Cats: 6
Default

Quote:
Originally Posted by Bryce View Post
You can remove it. Let me add to my previous statement. NBs have 2 canisters: One by the fuel filter is the charcoal canister, and the one in the engine bay appears to be an evaporative catch can for fuel vapors.
OK, so simply splice the 2 hoses coming out of the top together? Or replace them with ONE hose that connects to both ends? No CELs right? Im still not standalone.
JoeTheZoe is offline   Reply With Quote
Old 03-26-2012, 05:41 AM   #44
Elite Member
iTrader: (6)

TorqueZombie's Avatar

Join Date: May 2011
Location: Lebanon, TN
Posts: 1,668
Total Cats: 63
Default

Ok I'm still confused. So how do you delete the charcoal canister and "overflow" thingy in the engine bay? I'm looking to free up some space and with a standalone there is no point in the thing being there. I'm pulling the engine anyway. Do you have to delete it from the gas tank to eliminate the whole thing? And if you cap off whatever is at the tank would it possibly pop off on a hot day?
TorqueZombie is offline   Reply With Quote
Old 06-19-2012, 09:09 PM   #45
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,790
Total Cats: 128
Default

Just wanted to bump this thread. Anyone deleted the charcoal canister under the car on an NB? I really don't want to be the first one to try it.
pdexta is offline   Reply With Quote
Old 06-19-2012, 09:24 PM   #46
Elite Member
iTrader: (6)

TorqueZombie's Avatar

Join Date: May 2011
Location: Lebanon, TN
Posts: 1,668
Total Cats: 63
Default

To be honest FM says the hydra actually uses the catch can stuff. I just deleted the small can in the bay. I was told I one wanted to delete it all and plug it you'd have to put a pin hole in the gas cap to let the tank vent a bit. Heat and fuel being used vacuum. I'm not living in a dusty area so wouldn't be a big deal. I'm talking a small hole, like the smallest bit i could find However I garage the car and it gets hot here, not really digging the idea of a hot garage full of gas fumes. Even a little bit of fumes. Mines not a track car and I can't imagine the can by the fuel filter being that heavy. I could use to lose a few pounds myself and that would be a bigger impact probably. Or take the change out of the console.
TorqueZombie is offline   Reply With Quote
Old 06-19-2012, 10:58 PM   #47
Junior Member

Join Date: Mar 2009
Location: Venice, FL
Posts: 179
Total Cats: 9
Default

Yeah capping the line and drilling a hole sounds like an awful idea. Reroute is definitely necessary..you wouldnt cap a coolant line instead of having it recirculate, right?
Orion ZyGarian is offline   Reply With Quote
Old 06-20-2012, 01:30 AM   #48
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

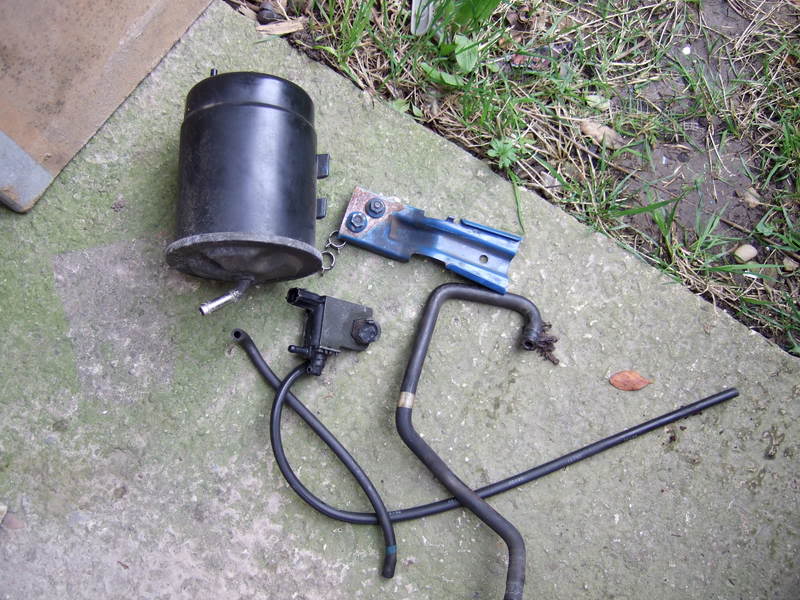

About 6 years ago I removed this:

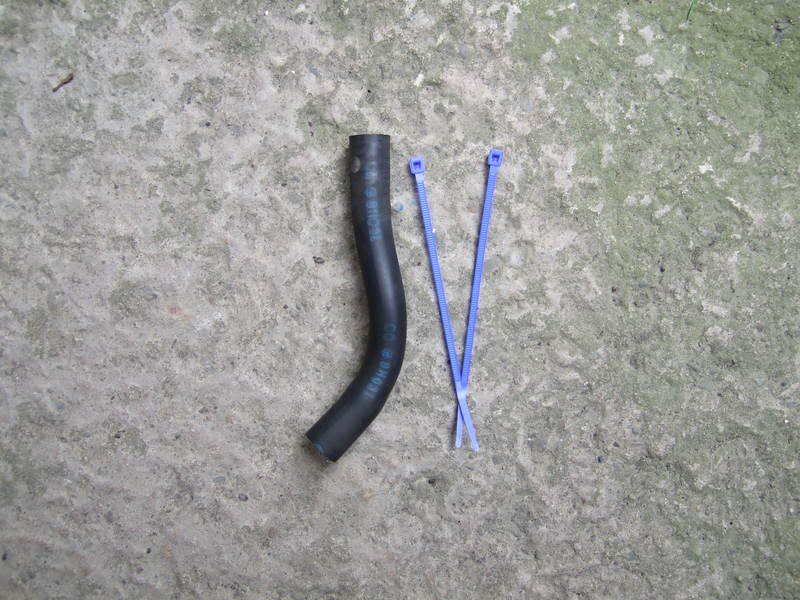

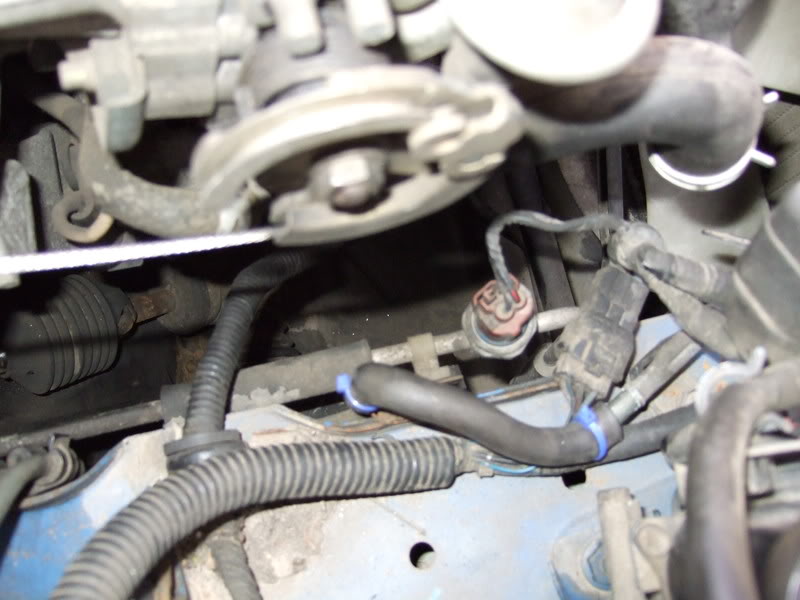

And did this:




Even with the stock ECU it never gave me any problems.

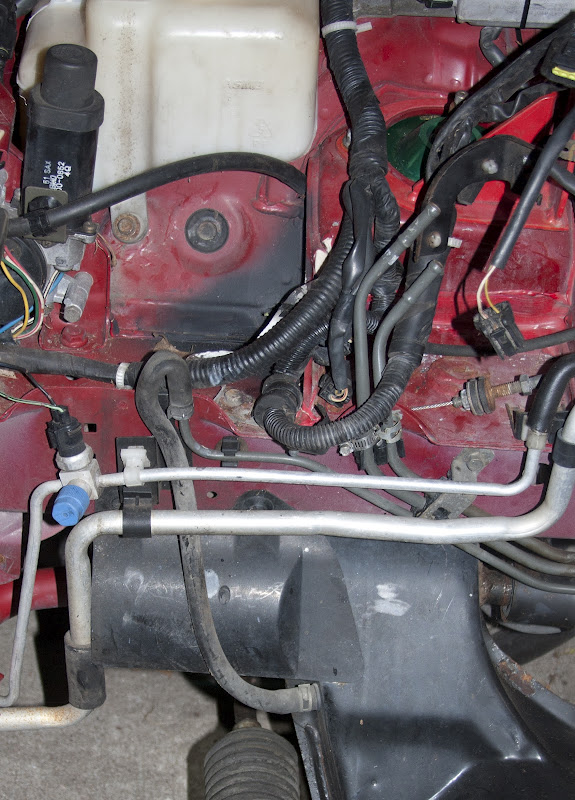

More recently (Today) I did this:

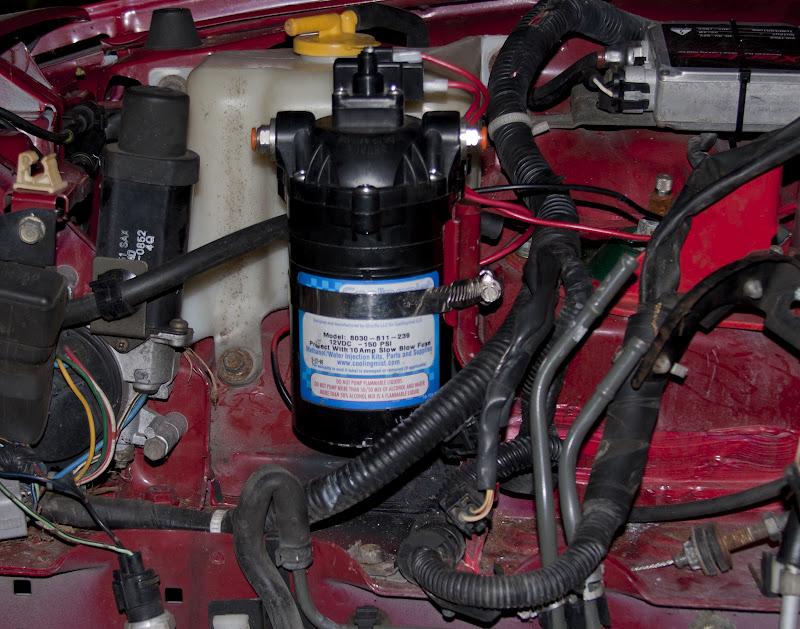

Removed the hard pipe and just looped from the subframe nipple to the hardline coming from the fuel tank, then reinstalled that charcoal can bracket to mount my water pump. Disregard the wiring mess, I haven't bothered to wire it yet. One day plan to use the abandoned purge valve wiring to control the water pump, but that'll have to wait for a better megasquirt.
Attached Thumbnails
Charcoal Canister-dscf1347.jpg   Charcoal Canister-dscf1340.jpg   Charcoal Canister-dscf1341.jpg   Charcoal Canister-img_8402.jpg   Charcoal Canister-img_8406.jpg

elesjuan is offline   Reply With Quote
Old 06-20-2012, 02:16 AM   #49
Elite Member
iTrader: (5)

pusha's Avatar

Join Date: Nov 2009
Location: Miami, FL
Posts: 7,363
Total Cats: -32
Default

^tight work. any chance we could get a peek at the man behind the camera? ;-)
pusha is offline   Reply With Quote
Old 06-20-2012, 05:17 PM   #50
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

Quote:
Originally Posted by pusha View Post
^tight work. any chance we could get a peek at the man behind the camera? ;-)
Lol. No.
elesjuan is offline   Reply With Quote
Old 06-20-2012, 05:48 PM   #51
Elite Member
iTrader: (5)

pusha's Avatar

Join Date: Nov 2009
Location: Miami, FL
Posts: 7,363
Total Cats: -32
Default

Quote:
Originally Posted by elesjuan View Post
Lol. No.
pusha is offline   Reply With Quote
Old 06-20-2012, 11:46 PM   #52
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

Quote:
Originally Posted by pusha View Post
elesjuan is offline   Reply With Quote
