Default Charge Pipes: Miatas are tiny

Just put the engine back in the car and threw the turbo and mani on to start deciding how i am going to do the charge pipes.

My question is:

How the hell do you guys with sr20 t25's run your intercooler pipes? i have it pointed down at an angle much like FM does and i have 2 major issues

1) it is really close to the lip on the frame (may need to trim)
2) it is pointing right at the radiator hose (1 piece hose)

HOW DO YOU GUYS FIT THIS STUFF???

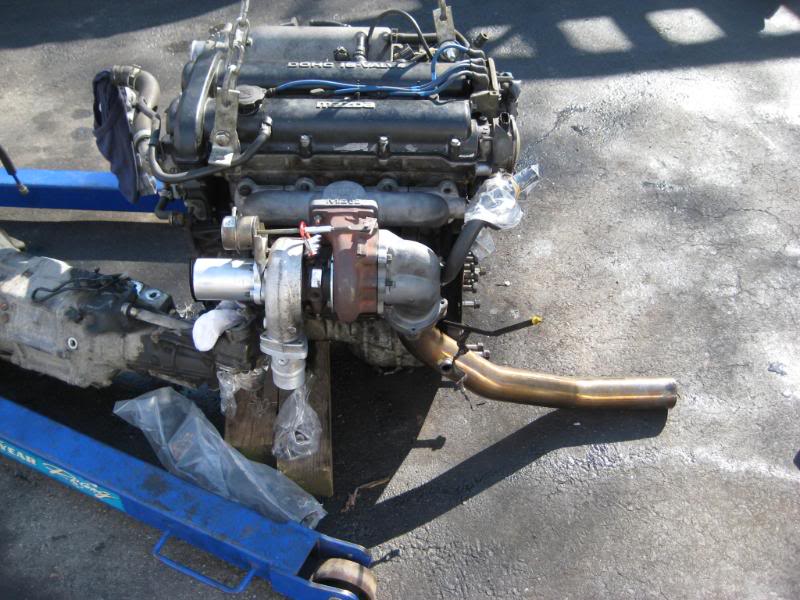

Name:  miataturboproject012.jpg
Views: 6
Size:  89.2 KB

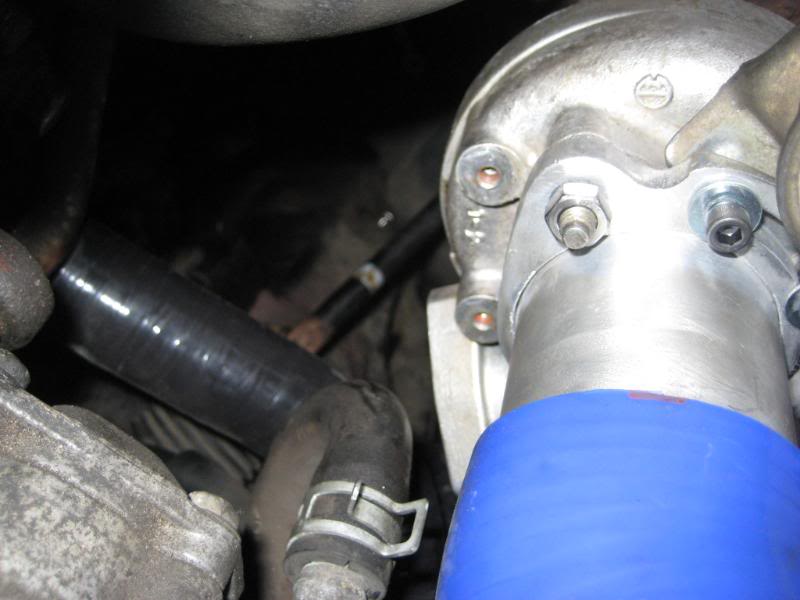

Name:  miataturboproject019.jpg
Views: 5
Size:  47.3 KB

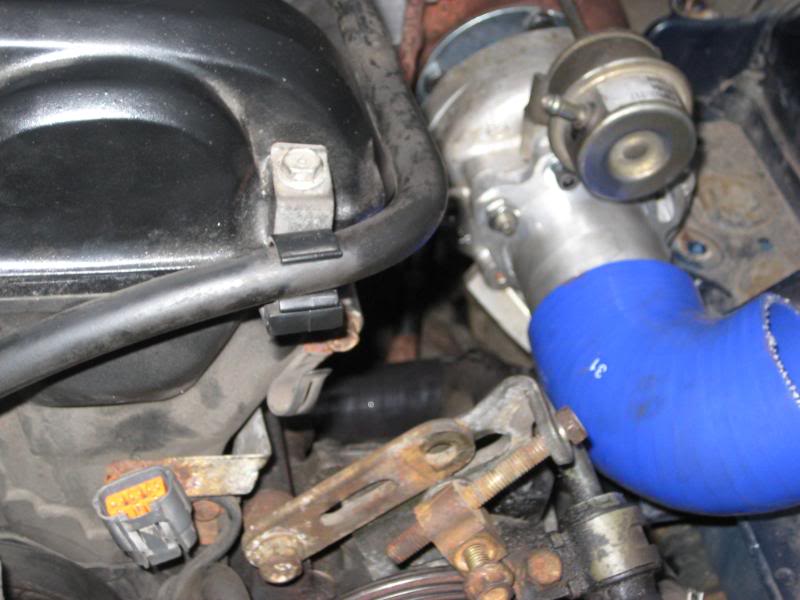

Name:  miataturboproject020.jpg
Views: 5
Size:  58.9 KB

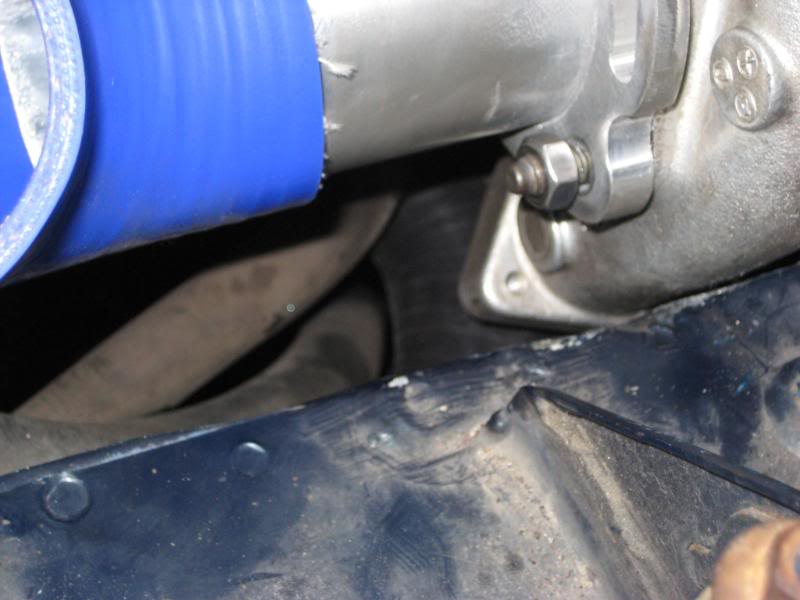

Name:  miataturboproject021.jpg
Views: 5
Size:  50.0 KB

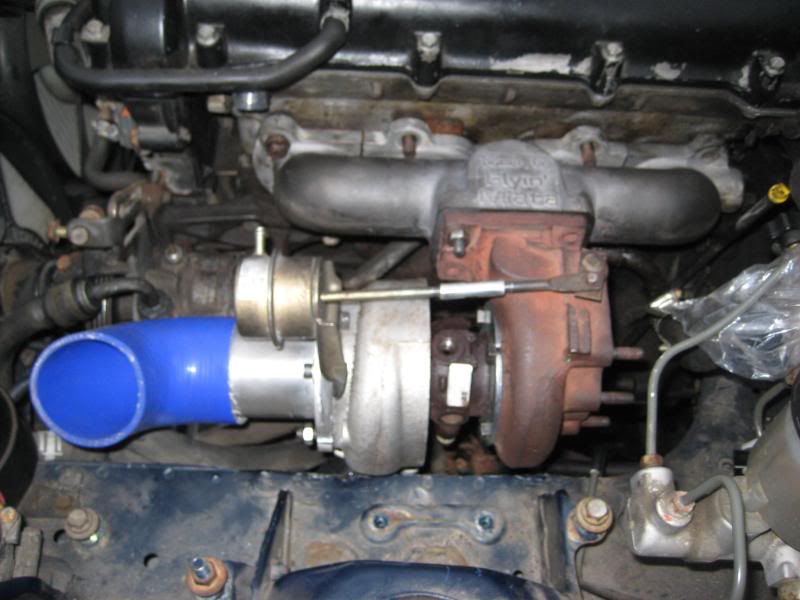

Name:  miataturboproject022.jpg
Views: 5
Size:  59.9 KB

I have a custom machined flange for the 3 bolt outlet that goes to 2" pipe (not pictured).

Any help/pics would be great!

Last edited by 240_to_miata; 03-08-2009 at 08:15 PM.
240_to_miata is offline   Reply With Quote
Old 03-08-2009, 08:17 PM   #2
I EAT CUM
iTrader: (6)

Join Date: Sep 2008
Location: Redneck, Texas
Posts: 1,218
Total Cats: -1
Default

You need to clock it so the outlet faces up not down.
Turbo_4 is offline   Reply With Quote
Old 03-08-2009, 08:17 PM   #3
Junior Member

Join Date: May 2007
Location: San Diego
Posts: 383
Total Cats: 0
Default

jobambo is offline   Reply With Quote
Old 03-08-2009, 08:27 PM   #4
Senior Member
iTrader: (13)

Join Date: Jul 2008
Location: Macon, Ga
Posts: 826
Total Cats: 0
Default

Sam Amporful is offline   Reply With Quote
Old 03-08-2009, 08:31 PM   #5
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,187
Total Cats: 2,583
Default

people trim the lip on the frame and use a different rad hose
18psi is offline   Reply With Quote
Old 03-08-2009, 08:37 PM   #6
Hittin' Boost & Cones
Thread Starter
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

^^^ i have that different rad hose. id prefer not to have it pointing up. thanks for the info guys
240_to_miata is offline   Reply With Quote
Old 03-08-2009, 08:46 PM   #7
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

cry me a river. no trimming of the frame and a giant compressor.





note funky radiator hose setup using giant dual barbs and weird hose bends:

y8s is offline   Reply With Quote
Old 03-08-2009, 09:10 PM   #8
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Also see the build thread in my sig. I'm replacing the stock rad hose with a flexible one.
wayne_curr is offline   Reply With Quote
Old 03-08-2009, 09:14 PM   #9
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

ewww, worm clamps
curly is offline   Reply With Quote
Old 03-08-2009, 09:20 PM   #10
Hittin' Boost & Cones
Thread Starter
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

i just ordered a 2" to 2.5" 90 degree reducer/bend. I think i am going to clock the turbo a little more, and then do a 90 towards the front of the car, then go down under the PS pump and out... or maybe ill point it up... i dont know.

Thanks for all the pics and info.
240_to_miata is offline   Reply With Quote
Old 03-08-2009, 09:44 PM   #11
Junior Member
iTrader: (4)

Join Date: Sep 2007
Location: Hampton Roads, VA
Posts: 398
Total Cats: 0
Default

Quote:
Originally Posted by curly View Post
ewww, worm clamps
someone else saw them, too!
gompers is offline   Reply With Quote
Old 03-08-2009, 11:24 PM   #12
Former Vendor

Join Date: Dec 2007
Location: Texas Hill Country
Posts: 271
Total Cats: 16
Default

We have a water pump inlet that points forward rather than aft. Opens it all up where nothing rubs nothing.
Corky Bell is offline   Reply With Quote
Old 03-08-2009, 11:29 PM   #13
Hittin' Boost & Cones
Thread Starter
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

do you have info on what hose i would need and pricing? i dont see it on the site.
240_to_miata is offline   Reply With Quote
Old 03-08-2009, 11:41 PM   #14
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

To eliminate the stock 3-piece lower radiator hose, go to a junkyard and find something that works. I think mine used to be the upper radiator hose out of a late 80's VW Fox.

Then get rid of you AC and PS. Make sure your intercooler reaches all the way to the end of the radiator, ditch the stupid black air-funneler thing the nose... and you can do your hot-side IC pipe with 1x90* coupler, 1x45* coupler, and 1x45* pipe bend. I have a couple threads with pics of my hotside and coldside... it's easy, you just have to be a man and get rid of all the sissy comfort **** down there.
samnavy is offline   Reply With Quote
Old 03-08-2009, 11:45 PM   #15
Hittin' Boost & Cones
Thread Starter
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

i have no AC, i AM keeping power steering, and i already have the replacement 1 piece rad hose from FM i believe.
240_to_miata is offline   Reply With Quote
Old 03-08-2009, 11:52 PM   #16
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Quote:
Originally Posted by curly View Post
ewww, worm clamps
what's wrong with worm clamps? too inexpensive?
y8s is offline   Reply With Quote
Old 03-09-2009, 12:26 AM   #17
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Uh, yeah actually. Cxracing has a great price of $22 for a set of 12 clamps, any size.
curly is offline   Reply With Quote
Old 03-09-2009, 12:35 AM   #18
Senior Member
iTrader: (2)

Join Date: Oct 2007
Location: Northeastern CT
Posts: 547
Total Cats: 2
Default

that is a good price. they are good quality too, ive never had a problem and they've been on the car for 2 years now.
therieldeal is offline   Reply With Quote
Old 03-09-2009, 11:13 AM   #19
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

I've never had a problem with my lo-fi hose clamps either and they've been on the car for 30,000 miles!

but that doesn't mean I dont want to spend 22 dollars so the kids at school wont tease me.
y8s is offline   Reply With Quote
Old 03-09-2009, 12:43 PM   #20
Elite Member
iTrader: (2)

Newbsauce's Avatar

Join Date: Jul 2006
Location: NoVA
Posts: 2,304
Total Cats: 2
Default

Here's an old shot of my SR20 t25 clocked down
