Default Cheap and easy BOV for BEGi-S

OK so if you go to the build thread link in my sig you will see the BEGi-S install as well as the cowl CAI system I am running. One thing about the CAI I did not like is the loud compressor surge coupled with the low frequency fart sound every time I let off the throttle. It is loud, much louder than the normal suction under boost sound. Annoying IMO.

The accepted wisdom is that for low boost (7.5 psi max in my case) that a BOV is not really necessary as the surge is not bad enough to damage the compressor. Even so I decided to give a BOV a try to see if that would help with the crappy off-throttle sound. After agonizing over what to get, thinking about how to modify the charge pipes, etc etc this solution hit me as easy, cheap and plausible.

So here is what you do.

Buy one of these 2" t-fittings and install it in place of the coupler BEGi gives you to join the two intake tubes (between the turbo and the throttle body, in front of the valve cover). This gives you a 1" connection point for the BOV. It takes all of 5 minutes to install. I bought mine from Forge.
http://www.forgemotorsport.com/conte...roduct=FMTP-51

Then all you need is a BOV with a 1" inlet. I bought this Bosch-like recirculating valve from an Ebay seller. It looks just like a Bosch, but has an black (powder coated?) aluminum housing and a piston valve instead of a diaphragm. And the springs are easily interchangeable.
http://cgi.ebay.com/ebaymotors/ws/eB...D77%26_fvi%3D1

The whole install took less than 15 minutes easily. I used the vacuum fitting on top of the manifold near the throttle body for the BOV vacuum connection. I do not have it recirculating, just VTA. Started the engine, revved the engine a couple of times with my hand by the BOV outlet, valve works. And better yet, no compressor surge farts! I took it for a drive and it sounds great, soooo much better than before. It makes a not too loud pffffffftttt sound with a little bit of a high-pitched whistle. Better yet the turbo seems to stay spooled better between shifts, or at least the lurching from on-throttle/off-throttle/on-throttle transitions is much better.

So, if you have a BEGi-S, and hate the compressor surge farts like I do, consider this option. It will take you less than 15 minutes to install and cost less than $100. Assuming the BOV holds up I am quite pleased.

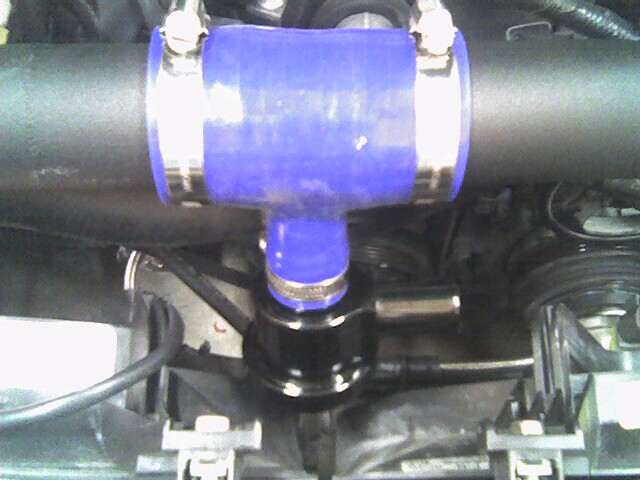

Picture below. Sorry for the crappy photo quality all I had was my camera phone. But you get the idea.
Attached Thumbnails
Cheap and easy BOV for BEGi-S-photo_032608_003.jpg
ZX-Tex is offline   Reply With Quote
Old 03-26-2008, 11:27 PM   #2
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Looks good man, anything is better than compressor surge.
cjernigan is offline   Reply With Quote
Old 03-26-2008, 11:30 PM   #3
Elite Member
Thread Starter
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

One thing that would make it look even better is if I had bought a BLACK coupler instead of that BLUE color which I dislike. I thought I ordered black, oh well. I'm still pleased.
ZX-Tex is offline   Reply With Quote
Old 03-27-2008, 01:30 AM   #4
Elite Member
iTrader: (24)

chriscar's Avatar

Join Date: Dec 2007
Location: Carrollton TX
Posts: 1,702
Total Cats: 13
Default

Nice job. That eBay bov, is a total clone of a Forge 007. Looks like they ran it through a copy machine.

C
chriscar is offline   Reply With Quote
Old 03-27-2008, 01:46 AM   #5
Elite Member
Thread Starter
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

I went to the Forge site and found the valve you mentioned. Very very similar. The main difference I can see is this one uses an aluminum piston with an o-ring to seal the small domed end against the inlet hole. The Forge version uses a plastic piston. Not necessarily worse, just different.
ZX-Tex is offline   Reply With Quote
Old 03-27-2008, 01:54 AM   #6
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

Cool, Looks great man!

Quote:
Originally Posted by chriscar View Post
Nice job. That eBay bov, is a total clone of a Forge 007. Looks like they ran it through a copy machine.

C
I bought a knockoff Greddy Type-S from someone on here, which looks 100% identical to a real Greddy aside from "Greddy" cast into the base, and the sticker on top.



The thing works perfectly. Took me all of five minutes to get it adjusted to a setting I like and it cured my Mazdaspeed6's Boost leak issue. Boost gauge would actually rattle under hard acceleration, solved 100%. Has a neat little whistle to it too. These Knock-offs seem like they're really good quality much to my surprise!
elesjuan is offline   Reply With Quote
Old 03-27-2008, 01:56 AM   #7
Junior Member

Join Date: Jan 2008
Posts: 208
Total Cats: 0
Default

props on being creative
driftbandito is offline   Reply With Quote
Old 03-27-2008, 09:24 AM   #8
Elite Member
iTrader: (24)

chriscar's Avatar

Join Date: Dec 2007
Location: Carrollton TX
Posts: 1,702
Total Cats: 13
Default

Quote:
Originally Posted by ZX-Tex View Post
I went to the Forge site and found the valve you mentioned. Very very similar. The main difference I can see is this one uses an aluminum piston with an o-ring to seal the small domed end against the inlet hole. The Forge version uses a plastic piston. Not necessarily worse, just different.
Where'd you see that? This is what is inside a 007.




C
chriscar is offline   Reply With Quote
Old 03-27-2008, 09:33 AM   #9
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Might be a good idea to put a filter at the open port of the BOV
Ben is offline   Reply With Quote
Old 03-27-2008, 09:54 AM   #10
Junior Member
iTrader: (1)

Join Date: Sep 2006
Posts: 464
Total Cats: 0
Default

We haven't used a plastic piston in years. Our instructions and the like might still show the plastic pistons though.
PAT! is offline   Reply With Quote
Old 03-27-2008, 10:23 AM   #11
Elite Member
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

Quote:
Originally Posted by PAT! View Post
We haven't used a plastic piston in years. Our instructions and the like might still show the plastic pistons though.
you work for forge? Where is our forge i/c kits? haha
cardriverx is offline   Reply With Quote
Old 03-27-2008, 11:09 AM   #12
Elite Member
Thread Starter
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Got it right here, from a link on the Forge web site on the 007 description page.
http://www.audiworld.com/tech/eng16.shtml
As said by Pat that must be an old version.

Yep I am either going to add a filter or go to a recirc setup. The filter will be easier and the BOV is not too loud. You can just hear it with the windows rolled up and the hard top on but it is not screaming for attention.

Quote:
Originally Posted by chriscar View Post
Where'd you see that? This is what is

C
ZX-Tex is offline   Reply With Quote
Old 03-27-2008, 11:16 AM   #13
Elite Member
iTrader: (24)

chriscar's Avatar

Join Date: Dec 2007
Location: Carrollton TX
Posts: 1,702
Total Cats: 13
Default

Yeah, that was from 2001. I bought a used 007 and needed a different spring for it. I called Forger, and they sent me the spring AND a rebuild kit which IIRC contained a new piston for free. I love stuff like that. These knockoff products are making it tough for the good guys, but it's hard to resist them sometimes.

Sorry to hijack your thread.

C
chriscar is offline   Reply With Quote
Old 03-27-2008, 11:45 AM   #14
Elite Member
Thread Starter
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

No problem. I really had no idea it was a knockoff until you pointed out the one on the Forge page.
ZX-Tex is offline   Reply With Quote
Old 03-27-2008, 12:13 PM   #15
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

ZX, that exact T-coupler and a OEM Bosch BOV off a Saab is what I use. I've had it 2 years now with ZERO issues. If it ever fails, I'll just swap to a crushed all-metal valve from a DSM.
samnavy is offline   Reply With Quote
Old 03-27-2008, 12:16 PM   #16
Senior Member
iTrader: (1)

Join Date: Apr 2007
Location: North Jersey
Posts: 721
Total Cats: 0
Default

nice and easy.....i'm totally stealing this idea
budget racer is offline   Reply With Quote
Old 03-30-2008, 01:49 AM   #17
Elite Member
Thread Starter
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

OK not that I was expecting any trouble but I've put a couple hundred miles on it and I'm still liking this mod. I like it a lot actually. I am still very pleased to be rid of the compressor surge farts. It is also easier to hear the turbo spooling up and down.

I added a filter to the BOV. It is one of those valve cover breather filters from Auto Zone on the same aisle as all of the ricer stuff. It has a 1" nipple on it, same size as the BOV. I browsed the hose aisle behind the counter and found a small 1" hose with a 90 deg bend that fit perfectly. It looks like it is a heater core hose for some unknown to me vehicle.

Adding the filter to the BOV was an easy mod; I did it in the Auto Zone parking lot in about 2 minutes.
ZX-Tex is offline   Reply With Quote
Old 05-02-2008, 11:45 PM   #18
Elite Member
Thread Starter
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Update. Over 1000 miles at this point and all is still well. I did make one significant change however. After reading this thread I switched the inlet and outlets on the BOV. I also switched out the soft spring to the blue spring.
https://www.miataturbo.net/forum/showthread.php?t=20366
The sound is much better and I am glad to be rid of that whistling/ringing noise. Now it is just a high pitched hiss, and it is noticeably quieter as well.

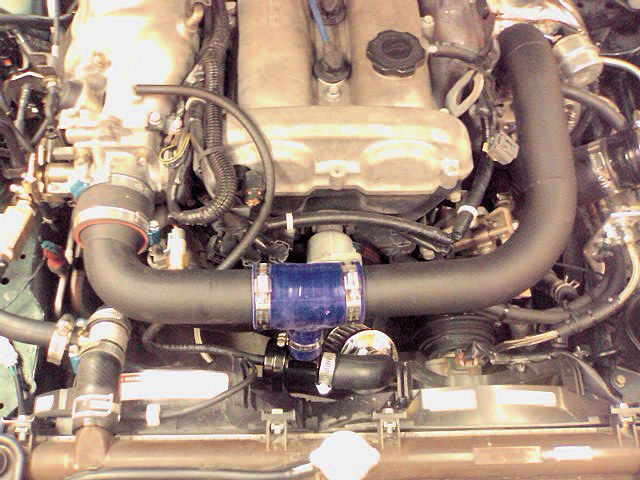

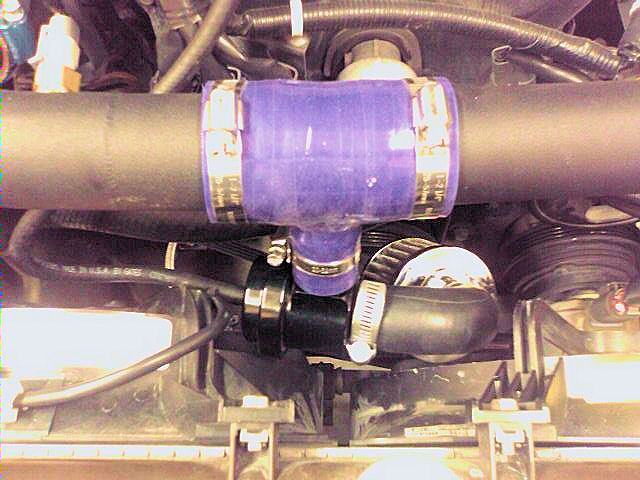

Here are some pictures of how it is now attached.
Attached Thumbnails
Cheap and easy BOV for BEGi-S-image_006.jpg   Cheap and easy BOV for BEGi-S-image_009.jpg
ZX-Tex is offline   Reply With Quote
Old 05-03-2008, 02:19 AM   #19
Elite Member
iTrader: (5)

Join Date: Jan 2007
Location: Freehold, NJ
Posts: 1,577
Total Cats: -2
Default

awesome man, i just found this, I'm def going to do this when my kit comes in next week
