Default churbo rebuild kit

Begi sells a t25/t28 rebuild kit for $70. I found one on eBay for $40, that is listed at a t25/t28 rebuild kit. Are they all the same? I have a begi 2854.
flounder is offline   Reply With Quote
Old 07-15-2013, 10:41 PM   #2
Senior Member
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

I'd go with the begi since it'll be the same parts.
Impuls is offline   Reply With Quote
Old 07-15-2013, 10:53 PM   #3
Elite Member
Thread Starter

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

Too late.

The pics show identical parts. Its just bearings, seals, washer, c clips, orings, studs and a gasket. I don't think begi's chra is any different from the standard?
flounder is offline   Reply With Quote
Old 07-16-2013, 01:43 AM   #4
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,575
Default

I'd go with the brand name one


....oh wait
18psi is offline   Reply With Quote
Old 07-17-2013, 09:40 PM   #5
Elite Member
Thread Starter

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

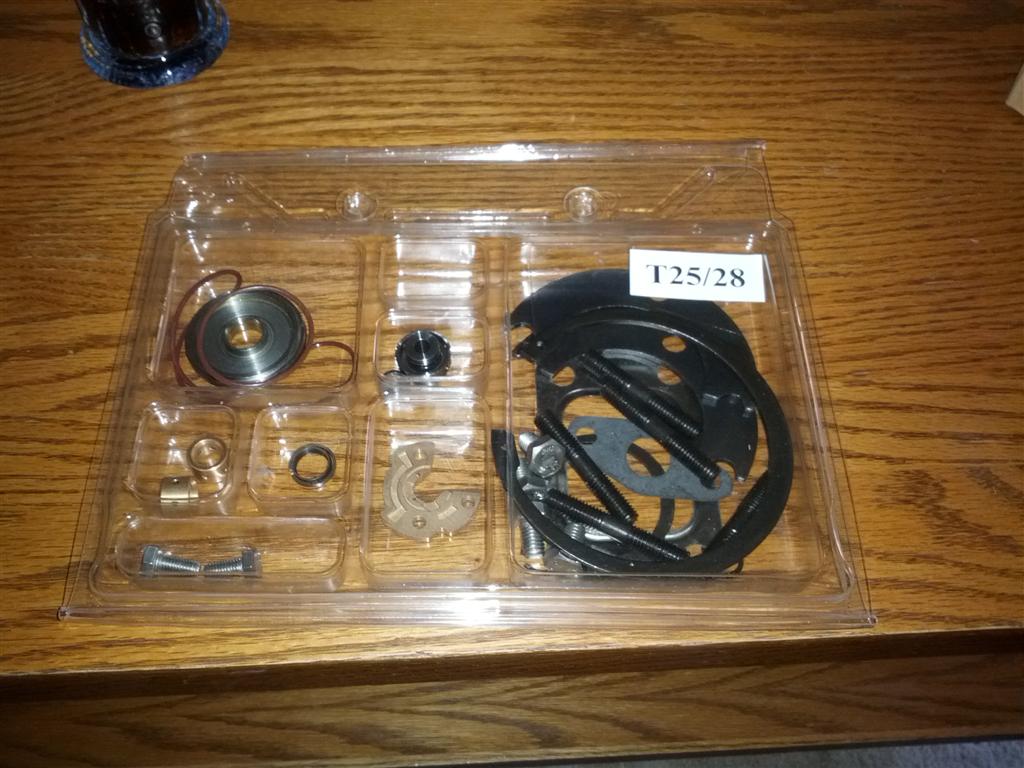

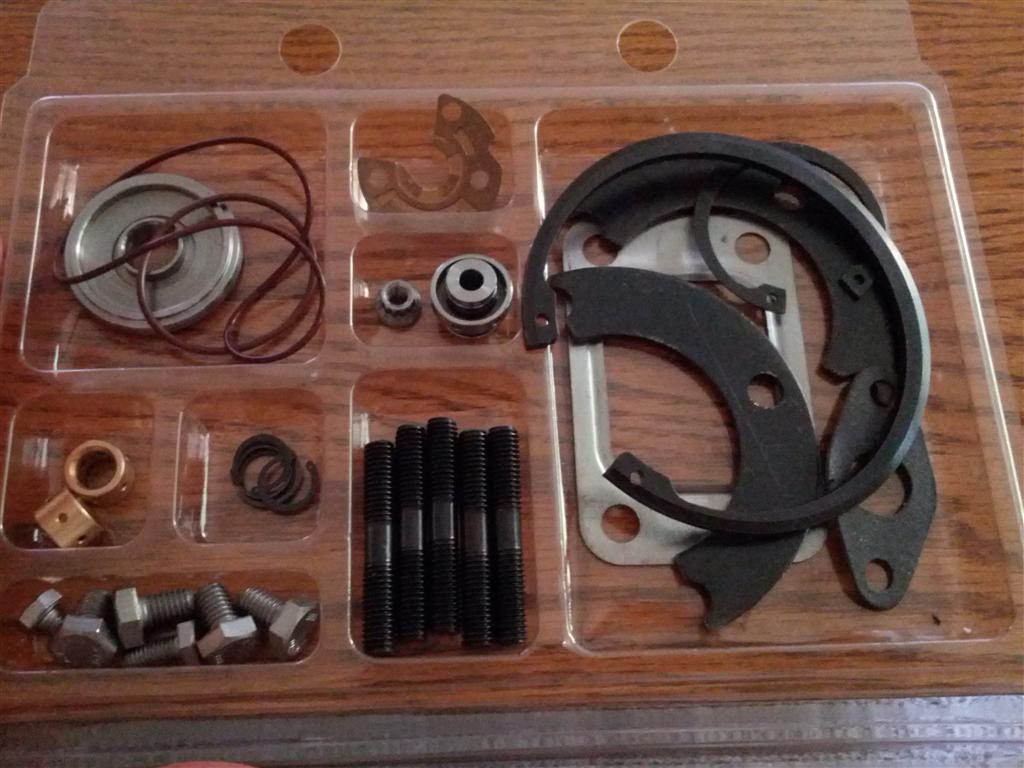

So it arrived today, looks ok I guess? First time rebuild. I was all set to order the begi but I remembered how long it took to get my shanghai and I wanted to start this asap. $40 and 3 days later it was on my porch.




Here is the reason I'm rebuilding it. It's been smoking since I installed the 3in exhaust, but lately it's gotten embarrassing. At first I thought it was the valve seals, so I installed some blue viton ones but that didn't do a damn thing for the smoke. It still spools up good, some had mentioned that with less backpressure in the exhaust, bad turbo seals turn into really bad turbo seals.
Attached Thumbnails
churbo rebuild kit-img_20130717_192837-large-.jpg   churbo rebuild kit-img_20130717_192632-large-.jpg
flounder is offline   Reply With Quote
Old 07-21-2013, 07:17 PM   #6
Elite Member
Thread Starter

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

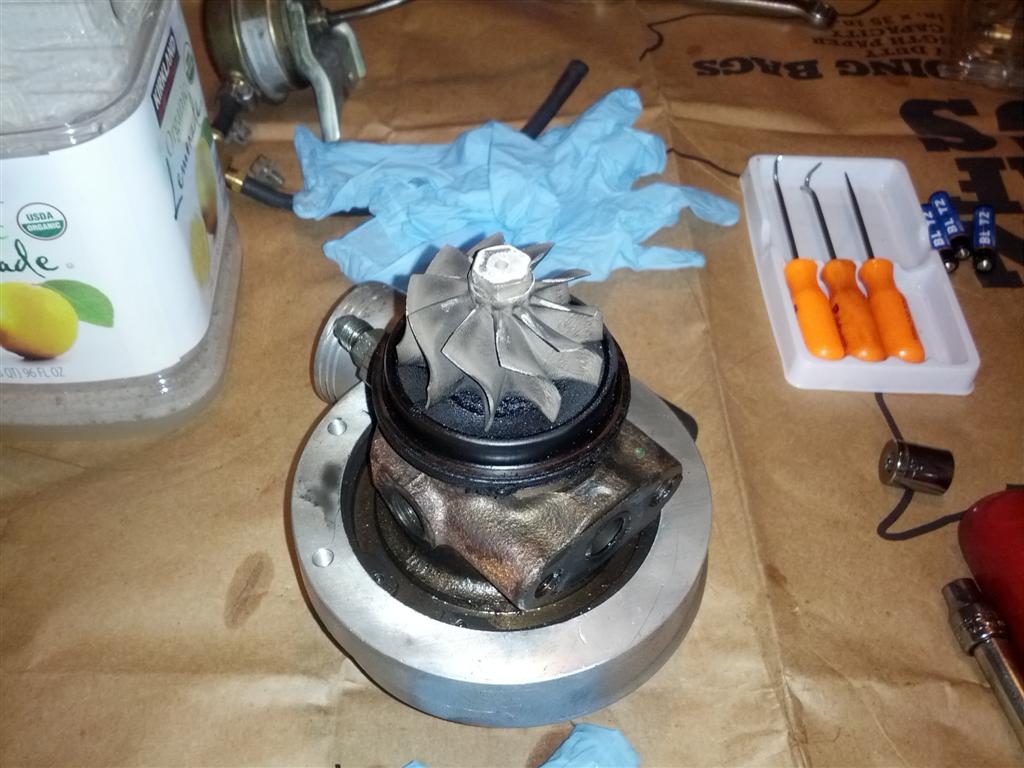

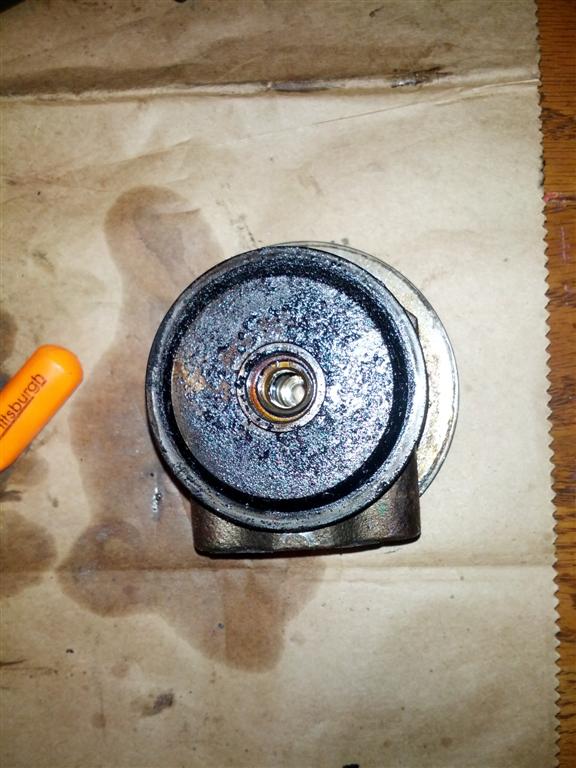

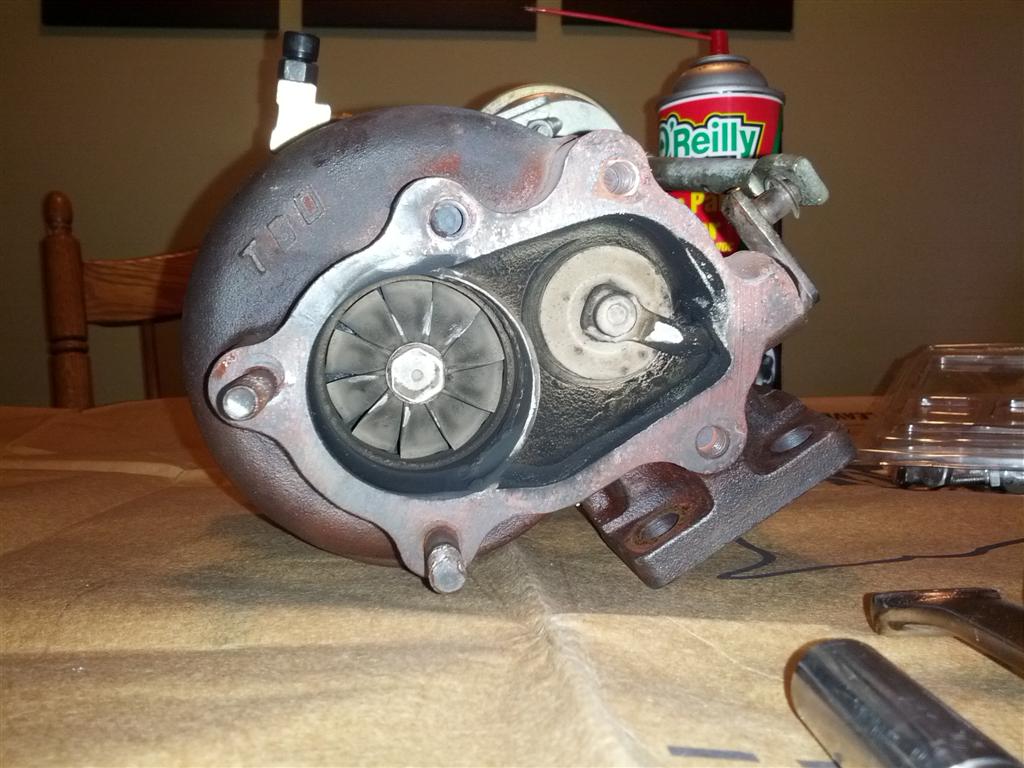

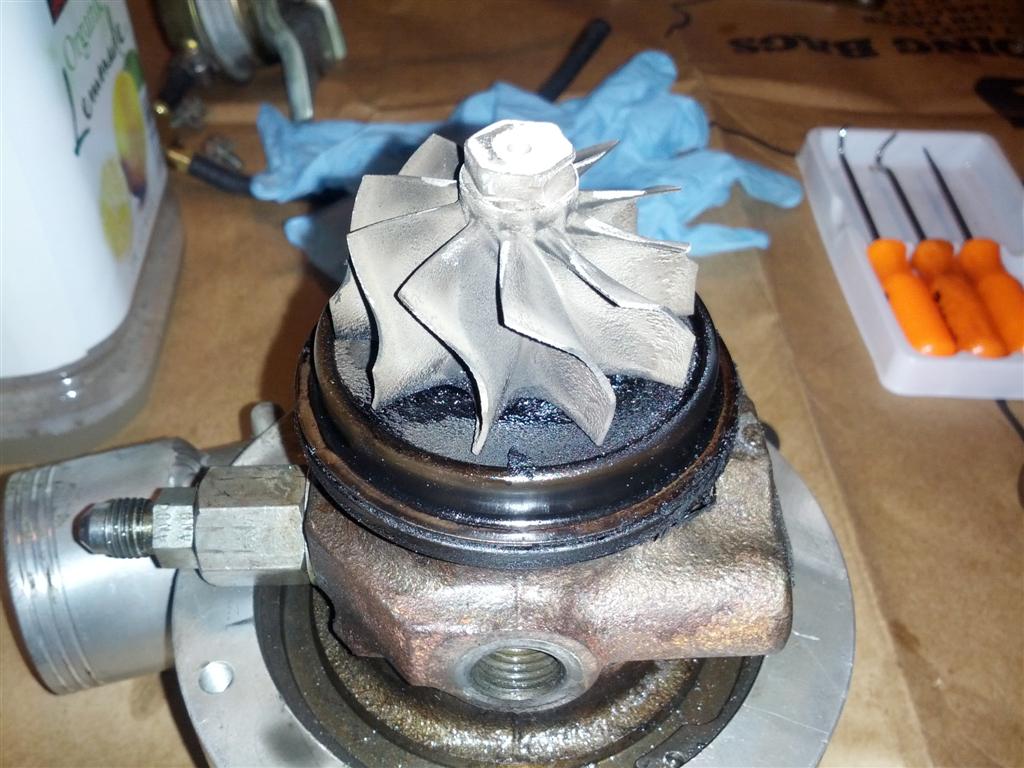

Well...I finally fixed it! It must have been the piston ring seal on the turbine side that was causing all the spy hunter like smoke screen I've been experiencing lately.

Rebuild went smoothly, except for trying to get those tiny c-clips in and out on the chra (holy hell what a pita), and the large c-clip holding the compressor housing on.

So since my car started smoking, I've tried 2 or 3 new pcv's, a catch can, a new drain line, new viton valve seals, and finally the winner was the rebuild kit.

Happy.
Attached Thumbnails
churbo rebuild kit-img_20130719_202825-large-.jpg   churbo rebuild kit-img_20130719_214500-large-.jpg   churbo rebuild kit-img_20130719_214540-large-.jpg   churbo rebuild kit-img_20130719_220346-large-.jpg
flounder is offline   Reply With Quote
Old 07-21-2013, 07:23 PM   #7
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

That rebuild kit came with everything!!! I ordered a garrett rebuild kit a few months ago, it came with seals, bearings, a few other things. No oil drain gasket, no studs, not like your awesome complete kit!!
thirdgen is offline   Reply With Quote
Old 07-21-2013, 07:46 PM   #8
Junior Member
iTrader: (13)

Join Date: Jul 2007
Location: San Antonio, TX
Posts: 498
Total Cats: 6
Default

How many miles did you have on your churbo before you rebuilt it? Curious.
lsc224 is offline   Reply With Quote
Old 07-21-2013, 07:50 PM   #9
Elite Member
Thread Starter

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

I found it on ebay. Search "t25/t28 rebuild kit", it's on the second or third page. It was $32.99 plus $7 shipping. Super fast delivery too.

I"ll go out and record an 'after' video here in a minute. Seriously though, all smoke is gone.

Edit: I think about 10k miles? It may have been bad a while before, but after the 3" went on all hell broke loose.

Last edited by flounder; 07-21-2013 at 08:00 PM.
flounder is offline   Reply With Quote
Old 07-21-2013, 08:02 PM   #10
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,575
Default

please get a driving/tachometer vid too. also try to get moar clips of your exhaust
18psi is offline   Reply With Quote
Old 07-21-2013, 08:13 PM   #11
Elite Member
Thread Starter

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

Sorry about the title, I'm a little excited here.
