Default Coolant reroute, smaller coolant lines.

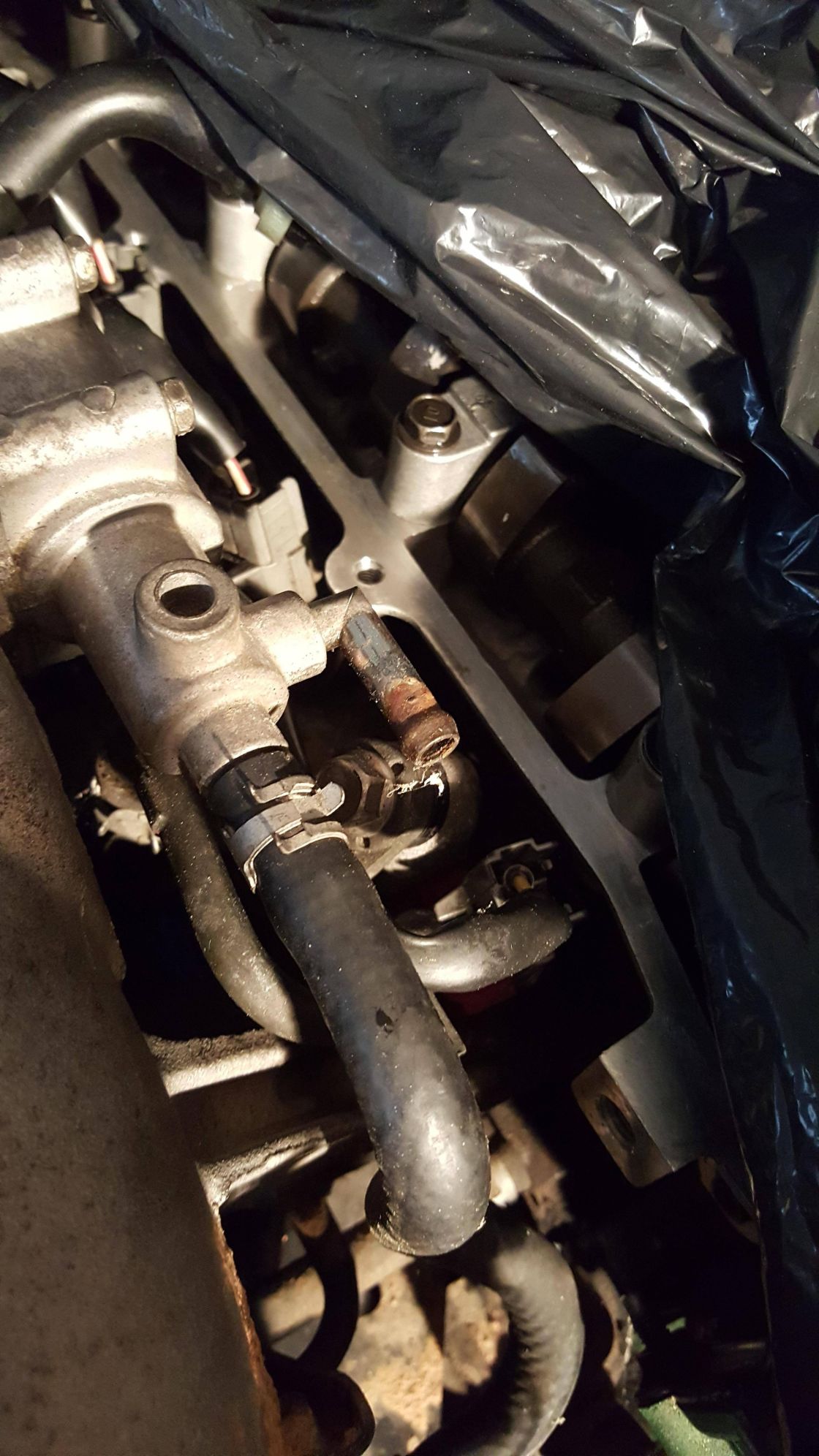

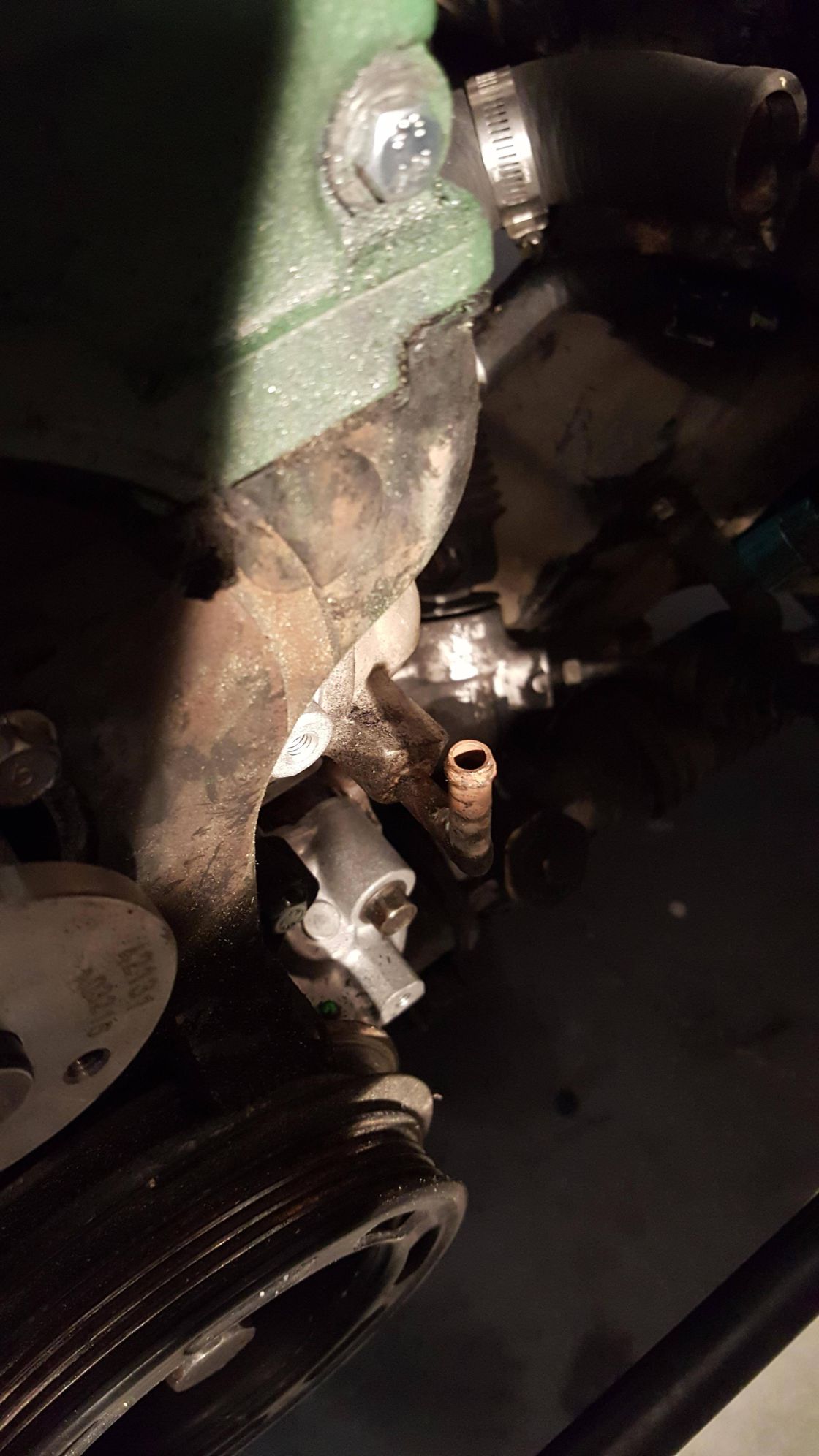

What did you guys do with the line going to the mixing manifold and the line going to the idle thermo thingy?





Attached Thumbnails
Coolant reroute, smaller coolant lines.-80-v6sr1ng_aa3f68ba496927f9ec31dc52147680433834c34e.jpg   Coolant reroute, smaller coolant lines.-80-prght7u_7b604624e7fce8e31a7af566f574c8e035d63d1d.jpg
whinin is offline   Reply With Quote
Old 10-03-2015, 07:48 PM   #2
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,695
Total Cats: 1,562
Default

The one on the mixing manifold is the coolant coming from the turbo. The one that fed the coolant to the intake now feeds coolant to the turbo.
sixshooter is online now   Reply With Quote
Old 10-03-2015, 08:11 PM   #3
Junior Member
Thread Starter

Join Date: Apr 2013
Location: Elgin, SC
Posts: 359
Total Cats: -4
Default

Turbo is oil cooled only. I know...
whinin is offline   Reply With Quote
Old 10-03-2015, 08:24 PM   #4
Junior Member

Join Date: Jul 2015
Location: Bremerton, WA
Posts: 429
Total Cats: 30
Default

Connect them together or block them off. The intake manifold doesn't necessarily need coolant flowing through it but you might as well since the plumbing is already there.

I'd just run a hose between them. That's what I plan to do when I do my reroute.
Itty is offline   Reply With Quote
Old 10-03-2015, 08:32 PM   #5
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

Delete it all, put caps on the mixing manifold and on the head outlet port. Megasquirt takes place of that air valve, full cold control over the idle valve was a novel task too complicated for a 1.6 ecu.

You can just leave the air valve hanging off the intake manifold, but if it ever heatsoaks on a long drive your idle might go to pot. I put some sort of tape between the valve and intake manifold ports till I made a proper blockoff plate and never had any problems.
deezums is offline   Reply With Quote
Old 10-03-2015, 08:35 PM   #6
Junior Member
Thread Starter

Join Date: Apr 2013
Location: Elgin, SC
Posts: 359
Total Cats: -4
Default

Awesome. If I had good idle on my ms3x before the reroute I shouldn't have to change anything correct?
whinin is offline   Reply With Quote
Old 10-03-2015, 08:41 PM   #7
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

Depends on if your idle valve even worked right before you did the tuning.

That valve basically adds idle duty percentage when the coolant is cold, as it heats up it will close the air bypass valve. If you remove coolant without closing it off (the tape) it will always be open and the idle might be fast.

If you tune it always open (removed coolant, didn't block ports) the wax thermostat in the piece can/will open and cut idle air, possibly more than the closed loop parameters can compensate for. Something to look out for, for sure.
deezums is offline   Reply With Quote
Old 10-03-2015, 08:47 PM   #8
Junior Member
Thread Starter

Join Date: Apr 2013
Location: Elgin, SC
Posts: 359
Total Cats: -4
Default

So looks like I'll be making a block off plate soon. Thanks for the help.
whinin is offline   Reply With Quote
Old 10-03-2015, 09:02 PM   #9
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

Here are dimensions in DXF/STL if you need them.

1.6L Miata Air Valve Delete Plate by deezums - Thingiverse
deezums is offline   Reply With Quote
