Old 07-05-2011, 03:56 PM   #21
I'm Miserable!
iTrader: (3)

Join Date: Nov 2010
Location: Greenville, SC
Posts: 180
Total Cats: 1
Default

I haven't seen any cast iron ones for the 1.8
bluemax is offline   Reply With Quote
Old 07-05-2011, 04:01 PM   #22
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,199
Total Cats: 2,584
Default

that's because there are none. only cast ones made for 1.8 are brand name like hks, begi, and fm.
18psi is offline   Reply With Quote
Old 07-05-2011, 06:38 PM   #23
Newb

Join Date: Apr 2011
Posts: 11
Total Cats: 0
Default

I LOL at the ebay listings for cast mani's that say 1.6/1.8... nice try!
91escortgt is offline   Reply With Quote
Old 07-05-2011, 06:50 PM   #24
Junior Member
Thread Starter

Join Date: Jul 2010
Posts: 89
Total Cats: 0
Default

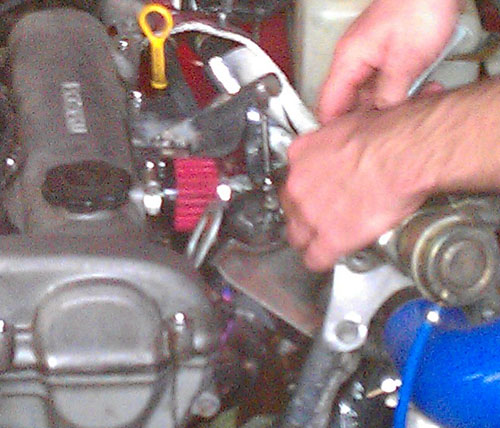

This is the best picture that I have of the hanger I built for the turbo

It has a vertical bar that isn't visible that carries the weight down to one of the engine mount bolts.

The turnbuckle was tightened to take any slack out of it... it's not rose jointed so the turbo could still move up a little bit but I figured this was enough to help support the weight.

It wasn't on the car long enough to get any better shots, this one was form a friend's phone in a relatively dark shed, hence the quality.
Attached Thumbnails
cracked ebay manifold-hanger.jpg
giblets is offline   Reply With Quote
Old 07-05-2011, 06:58 PM   #25
Newb

Join Date: Apr 2011
Posts: 11
Total Cats: 0
Default

It is what it is, you get what you pay for to the fullest w/ egay
91escortgt is offline   Reply With Quote
Old 07-05-2011, 07:51 PM   #26
Junior Member
iTrader: (1)

Join Date: Oct 2008
Location: Palm Harbor FL
Posts: 332
Total Cats: 4
Default

Yeap, looks about right. I really dont understand how they can sell something that absolutely cannot ever do what it was intended to do for more then a month or so.
Props on getting a mani together that works, pretty or not its a hell of an upgrade.
1slowna is offline   Reply With Quote
Old 07-05-2011, 08:29 PM   #27
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

What I don't understand is why they can't replace that **** stainless steel with some standard like 12 gauge mild steel? Sell them raw, don't coat them in anything. Bet they'd last 10 times longer and be semi-quality pieces.

Almost bet you it'd be cheaper to manufacture out of real steel...
elesjuan is offline   Reply With Quote
Old 07-05-2011, 08:52 PM   #28
Junior Member
Thread Starter

Join Date: Jul 2010
Posts: 89
Total Cats: 0
Default

Well, it looked really cool in stainless, especially after it got a little heat in it and went all multi coloured.

Just took the car for a short drive to see if I'd fixed the massive oil leak I've been having and it seems to be going well, although possibly slower than with the stainless manifold, I dunno, could be my imagination, it still gives a good kick in the pants.

With more time I would tack together a better designed manifold and ask a friend to tig it together (that one was SMAW), but that's a project for another time.

Oil leak turned out to be the non OE valve cover gasket that had hardened, I had thought it was the main crank seal because I wasn't happy with the job I did installing it but no, that valve cover was leaking like crazy.
giblets is offline   Reply With Quote
Old 07-05-2011, 09:43 PM   #29
Junior Member

Join Date: Nov 2010
Location: NH
Posts: 60
Total Cats: -2
Default

FWIW my cast ebay manifold has been absolutely solid and taken a LOT of abuse.
jch13 is offline   Reply With Quote
Old 07-07-2011, 12:30 AM   #30
Junior Member
iTrader: (1)

Join Date: Oct 2008
Location: Palm Harbor FL
Posts: 332
Total Cats: 4
Default

cast manis work great at lower power levels, start pushing your bottom end and it will go a lot further with a tubular.
1slowna is offline   Reply With Quote
Old 07-08-2011, 02:23 AM   #31
Junior Member
iTrader: (6)

Join Date: Aug 2008
Location: New Zealand
Posts: 250
Total Cats: 3
Default

Quote:
Originally Posted by wittyworks View Post
Schedule 10 pipe is usually the thinnest used, sched 40 is usually the thickest
I've just done my research and found mine was made out of schedule 5, lame!
ogwazza is offline   Reply With Quote
Old 07-14-2011, 07:53 PM   #32
Senior Member

Join Date: Aug 2009
Location: MONROE CT
Posts: 1,100
Total Cats: 2
Default

What is the OD of the piping you used?
miatamike203 is offline   Reply With Quote
Old 07-15-2011, 05:17 AM   #33
Junior Member
iTrader: (6)

Join Date: Aug 2008
Location: New Zealand
Posts: 250
Total Cats: 3
Default

Quote:
Originally Posted by miatamike203 View Post
What is the OD of the piping you used?
I cannot remember exactly but around 2"
ogwazza is offline   Reply With Quote
Old 07-16-2011, 06:39 AM   #34
Junior Member
Thread Starter

Join Date: Jul 2010
Posts: 89
Total Cats: 0
Default

Quote:
Originally Posted by Bond View Post
Why? Because of the downpipe?

That's going to crack next. Bet you 10 doll hairs.
OMG, how did you know??

It lasted two whole laps of Pukekohe
giblets is offline   Reply With Quote
Old 07-16-2011, 11:35 AM   #35
Newb

Join Date: May 2011
Location: Nürburg, Germany
Posts: 35
Total Cats: 1
Default

My stainless 16G ebay manifold cracked on day 1 on track. Welded it. Braced it. Lasted a couple more days, then it cracked again and warped both faces too. So I actually, can you believe this, paid MONEY to machine the faces flat and welded the f*ck out of it and patched it and braced it like crazy.

Anyway, it went for one more full day of lunacy (YouToob video here) before cracking again.

Now I see tacotaco calling me with their cast iron cheapness. Will have to check the orientation though as I will be sticking a T3/16G convertor inbetween...
MrBTG is offline   Reply With Quote
Old 07-16-2011, 12:34 PM   #36
!!! NOT CONFIRMED !!!

Join Date: Nov 2007
Location: Virginia Beach, Va
Posts: 158
Total Cats: 1
Default

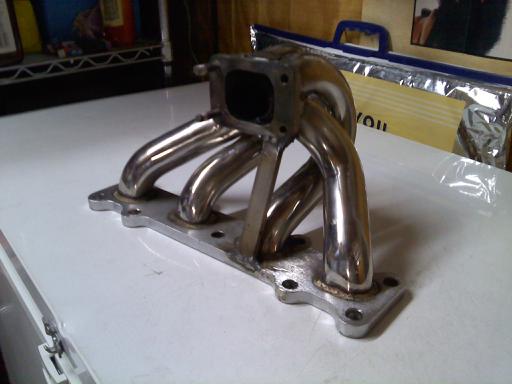

I have a ebay knock off S4 manifold with over 20,000 miles on it. True all that stuff is very thin SS but what I did was weld a brace between the turbo mounting flange and the exhaust flange, also modded the oem downpipe support bracket ( taking the weight off the cheap ebay mani. ) to this day no signs of cracks ?
Attached Thumbnails
cracked ebay manifold-s4-mod.jpg
elderc is offline   Reply With Quote
Old 07-16-2011, 02:12 PM   #37
Newb

Join Date: May 2011
Location: Nürburg, Germany
Posts: 35
Total Cats: 1
Default

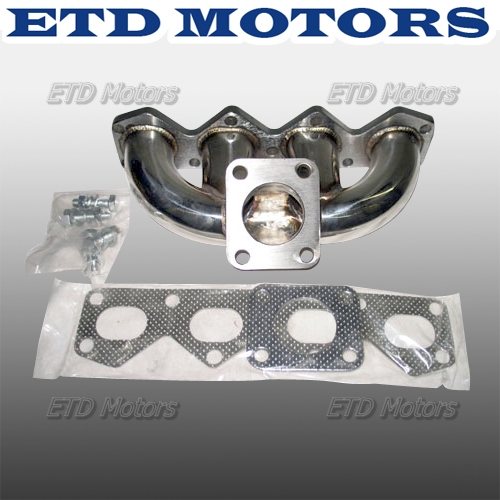

That's a different one to mine - my 1.6 looks like this:



Except it doesn't now. Imagine that being crapped on by a Seagull who ate too much welding rod.
Attached Thumbnails
cracked ebay manifold-au-mf-mx5-1.jpg
MrBTG is offline   Reply With Quote
Old 07-17-2011, 02:37 AM   #38
Junior Member
iTrader: (6)

Join Date: Aug 2008
Location: New Zealand
Posts: 250
Total Cats: 3
Default

Quote:
Originally Posted by MrBTG View Post
Except it doesn't now. Imagine that being crapped on by a Seagull who ate too much welding rod.
classic!
ogwazza is offline   Reply With Quote
Old 05-08-2012, 06:28 PM   #39
Junior Member
iTrader: (2)

Join Date: Aug 2009
Location: WV
Posts: 151
Total Cats: 2
Default

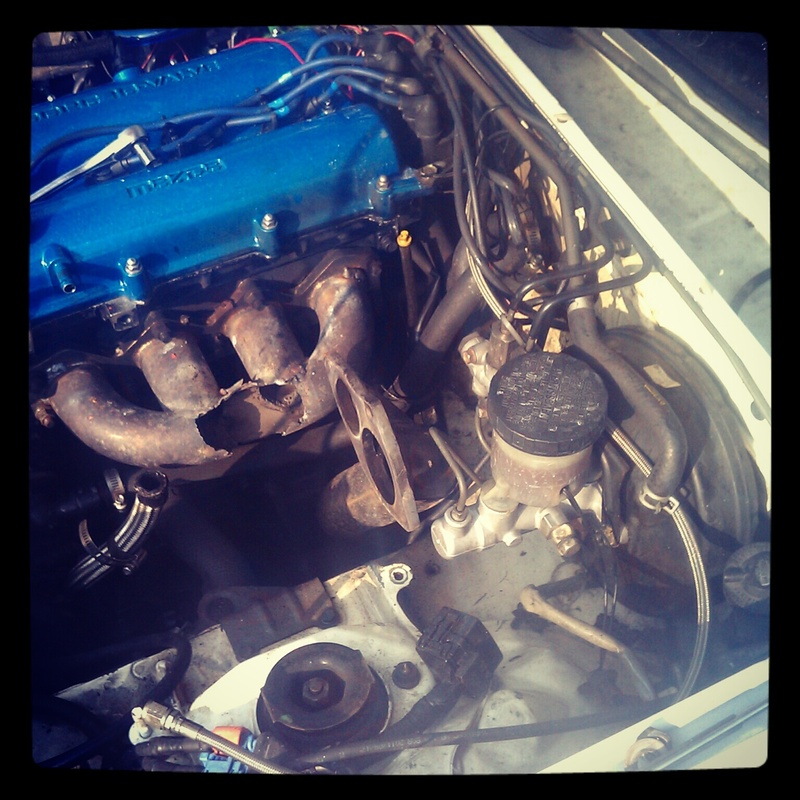

just adding a pic
after being rewelded dozens of times
Attached Thumbnails
cracked ebay manifold-img_20120506_181808.jpg
skullzaflare is offline   Reply With Quote
Old 05-11-2012, 04:42 PM   #40
Junior Member
iTrader: (1)

Join Date: Aug 2008
Location: Austin, TX
Posts: 239
Total Cats: 4
Default

I think it looks like your turbo just said "F' it!" and quantum leaped to the finish line without the rest of the car.
mcfandango is offline   Reply With Quote
