Crappy spool with sr20 t25?


Old 10-02-2018, 08:27 PM
  #1
Junior Member
Thread Starter

Join Date: Mar 2018
Location: Chicago
Posts: 48
Total Cats: 1
Default Crappy spool with sr20 t25?

Whats goin on guys, i recently switched from my ebay t3 manifold with the braineack 50 trim, to a custom log mani with an sr20 t25. Just got the setup finished and my spool is garbage. 5 psi by 3200 in 5th, worse in 4th. The whole reason i changed my setup around was for better spool, but my spool is horrendous. Iíve checked for boost leaks, tightened the wastegate arm(wg moves back and forth freely and doesnít open until 10psi of compressed shop-air), and for pre turbo leaks. Everything seems fine, what gives? I also have a tial bov that after the turbo install, sounds a little different and quieter. Itís open at idle because the spring is too light, but it shouldnít be leaking under boost, and it didnít in the boost leak test. What the hells goin on here?
spencerh22 is offline
Old 10-02-2018, 08:52 PM
  #2
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 6,010
Total Cats: 282
Default

Vac/ boost source line?
thirdgen is offline
Old 10-02-2018, 08:56 PM
  #3
Junior Member
Thread Starter

Join Date: Mar 2018
Location: Chicago
Posts: 48
Total Cats: 1
Default

Originally Posted by thirdgen View Post
Vac/ boost source line?
Wg is from port on turbo, boost gauge from port on manifold. Blow off valve from pcv port on manifold.
spencerh22 is offline
Old 10-02-2018, 09:39 PM
  #4
Senior Member

Join Date: Mar 2014
Location: Jacksonville, FL
Posts: 1,195
Total Cats: 145
Default

1.6L?
And welded el logs dont spool all that good
borka is offline
Old 10-02-2018, 09:43 PM
  #5
Junior Member
Thread Starter

Join Date: Mar 2018
Location: Chicago
Posts: 48
Total Cats: 1
Default

Yeah 1.6, i know they donít spool too good. But this bad? I was running a t3 before with the ebay log and it spooled better..
spencerh22 is offline
Old 10-02-2018, 11:22 PM
  #6
Junior Member
Thread Starter

Join Date: Mar 2018
Location: Chicago
Posts: 48
Total Cats: 1
Default

Bump?
spencerh22 is offline
Old 10-03-2018, 07:38 AM
  #7
Moderator
iTrader: (12)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 18,902
Total Cats: 2,363
Default

What's the turbine housing a/r on the t25 and the old t3?

Some t3's spool earlier than some t25's for various reasons. Not all t3's are the same. There's a huge variation in the series.
sixshooter is offline
Old 10-03-2018, 08:17 AM
  #8
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 14,390
Total Cats: 1,328
Default

Originally Posted by spencerh22 View Post
Yeah 1.6, i know they donít spool too good. But this bad? I was running a t3 before with the ebay log and it spooled better..

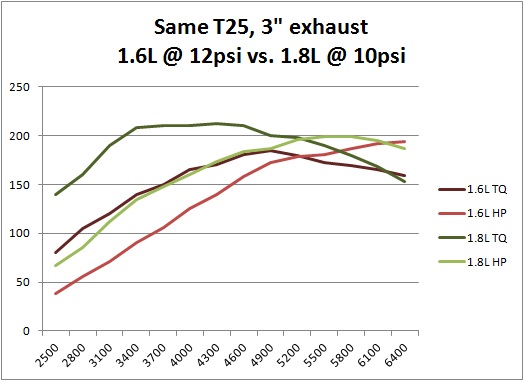

This is what you should roughly be able to do. I have always thought the SR20 t25 on the 1.6l responded horribly for whatever reason.
shuiend is offline
Old 10-03-2018, 09:10 AM
  #9
Junior Member
Thread Starter

Join Date: Mar 2018
Location: Chicago
Posts: 48
Total Cats: 1
Default

Originally Posted by sixshooter View Post
What's the turbine housing a/r on the t25 and the old t3?

Some t3's spool earlier than some t25's for various reasons. Not all t3's are the same. There's a huge variation in the series.
.48 on the ol t3, .64 on the t25 i believe. It just feels off. Iíve heard of people gettin almost instant spool with the t25s. But my transient response is garbage too..
spencerh22 is offline
Old 10-03-2018, 09:12 AM
  #10
Junior Member
Thread Starter

Join Date: Mar 2018
Location: Chicago
Posts: 48
Total Cats: 1
Default

The only thing i can think of that might be causing it, is that i had to clearance my downpipe quite a bit in order to clear the shelf with my vband adapter. I had to hammer it at the elbow, could this really be a bottle neck? I ordered a slimmer adapter and am going to try and see if a pie cut downpipe gives me a little better spool.
spencerh22 is offline
Old 10-03-2018, 09:27 AM
  #11
Moderator
iTrader: (12)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 18,902
Total Cats: 2,363
Default

A .48 will make a small t3 spool pretty damn quick. Exhaust wheel and compressor wheel size and trim can make a difference in spool also but I bet most of it in this case is in the turbine housing a/r. You can look for a smaller one for the t25 if matters that much.
sixshooter is offline
Old 10-03-2018, 09:30 AM
  #12
Junior Member
Thread Starter

Join Date: Mar 2018
Location: Chicago
Posts: 48
Total Cats: 1
Default

Originally Posted by sixshooter View Post
A .48 will make a small t3 spool pretty damn quick. Exhaust wheel and compressor wheel size and trim can make a difference in spool also but I bet most of it in this case is in the turbine housing a/r. You can look for a smaller one for the t25 if matters that much.
I agree, but a smaller turbine AND compressor wheel with a .64 ar which is equal to the 48 on the t3 and spool is this much worse? Something is off here.
spencerh22 is offline
Old 10-03-2018, 09:33 AM
  #13
Junior Member

Join Date: Aug 2017
Location: Lansing, MI
Posts: 173
Total Cats: -14
Default

I have a T25 on my 1.6 and it hits my target boost around 3500
what's your exhaust setup?
WigglingWaffles is offline
Old 10-03-2018, 09:52 AM
  #14
Junior Member
Thread Starter

Join Date: Mar 2018
Location: Chicago
Posts: 48
Total Cats: 1
Default

Originally Posted by WigglingWaffles View Post
I have a T25 on my 1.6 and it hits my target boost around 3500
what's your exhaust setup?
2.5 downpipe all the way back, clearanced to probably around 1.75-2Ē at the turbo exit. Whatís your target boost?
spencerh22 is offline
Old 10-03-2018, 09:55 AM
  #15
Junior Member

Join Date: Aug 2017
Location: Lansing, MI
Posts: 173
Total Cats: -14
Default

11psi, but I have 3" exhaust.
is your idle valve plumbed into the intake tract? I've heard of those bypassing boost without a check valve
WigglingWaffles is offline
Old 10-03-2018, 10:03 AM
  #16
Junior Member

Join Date: Jul 2018
Location: Colorado
Posts: 86
Total Cats: 3
Default

I didn't see it mentioned, but could something perhaps be wrong with the turbo itself? Was the "new" turbo used?
HmoobDude is offline
Old 10-03-2018, 10:08 AM
  #17
Junior Member

Join Date: Mar 2017
Location: Manassas,VA
Posts: 71
Total Cats: 3
Default

I should have a T25g turbo for sale here shortly, Includes an unused 360 degree dynamic seal kit.
muthagoose is offline
Old 10-03-2018, 10:10 AM
  #18
Junior Member
Thread Starter

Join Date: Mar 2018
Location: Chicago
Posts: 48
Total Cats: 1
Default

Originally Posted by HmoobDude View Post
I didn't see it mentioned, but could something perhaps be wrong with the turbo itself? Was the "new" turbo used?
Yeah, it was, but i rebuilt it. Everything seems fine with the turbo.
spencerh22 is offline
Old 10-03-2018, 10:13 AM
  #19
Senior Member

Join Date: Mar 2014
Location: Jacksonville, FL
Posts: 1,195
Total Cats: 145
Default

Journal bearing sr20 t25 turbos are not really spool monsters. I've had one on my 1.8L nb2 miata and was not impressed with the spool, the gt2560r I later installed spooled better. The t25 was not horrible, but not great, considering the small size. This was on a begi cast manifold and 2.5" dp to 3" exhaust.

a 1.6l with weld els log and smashed Downpipe is not helping it spool all that great...

Still it should come alive around 3500rpm or so
borka is offline
Old 10-03-2018, 10:17 AM
  #20
Junior Member

Join Date: Mar 2017
Location: Manassas,VA
Posts: 71
Total Cats: 3
Default

Originally Posted by spencerh22 View Post

Yeah, it was, but i rebuilt it. Everything seems fine with the turbo.
Long shot, but did you plug the stock wastegate mount holes? They pass fully though to the compressor.
muthagoose is offline
