Default Crazy Request- What other intake manifolds fit the 1.8?

I know.. i probably have hundreds of people acting like this..

I have a locost with a miata engine and wish to turbo it. I was hoping someone knew if there is an intake that bolts onto the 1.8 that was designed for a FWD and has the throttle body on the other side? IE near cylinder 4.

Any helps appreciated !

Thanks`
YeboGoGo is offline   Reply With Quote
Old 03-16-2010, 11:12 PM   #2
Junior Member
iTrader: (1)

Join Date: Aug 2008
Location: Evansville, Indiana
Posts: 314
Total Cats: 0
Default

protege?
DrewLGT is offline   Reply With Quote
Old 03-16-2010, 11:14 PM   #3
Junior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2010
Location: Atlanta ga
Posts: 152
Total Cats: -10
Default

Quote:
Originally Posted by DrewLGT View Post
protege?
I thought so but was hoping someone could confirm the ports, injector paths and bolts are all the same.
YeboGoGo is offline   Reply With Quote
Old 03-16-2010, 11:15 PM   #4
Junior Member
iTrader: (1)

Join Date: Aug 2008
Location: Evansville, Indiana
Posts: 314
Total Cats: 0
Default

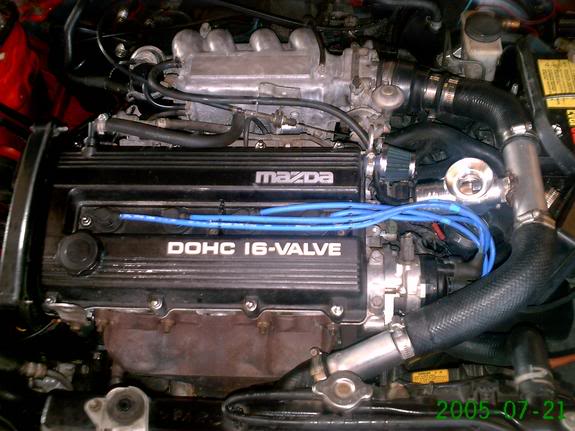

Name:  mazda2.jpg
Views: 9
Size:  46.9 KB

i dont see why everything shouldnt bolt up.

im swapping a protege motor into my car, and it has a miata intake mani bolted to it now
DrewLGT is offline   Reply With Quote
Old 03-16-2010, 11:20 PM   #5
Junior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2010
Location: Atlanta ga
Posts: 152
Total Cats: -10
Default

Quote:
Originally Posted by DrewLGT View Post


i dont see why everything shouldnt bolt up.

im swapping a protege motor into my car, and it has a miata intake mani bolted to it now
Want to sell your protege manifold?
YeboGoGo is offline   Reply With Quote
Old 03-16-2010, 11:24 PM   #6
Junior Member
iTrader: (1)

Join Date: Aug 2008
Location: Evansville, Indiana
Posts: 314
Total Cats: 0
Default

i dont have it my posession, but i can probably get it.

pm me and i'll see what i can do.
DrewLGT is offline   Reply With Quote
Old 03-16-2010, 11:28 PM   #7
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,687
Total Cats: 216
Default

I heard that the intake manifold off of a Lamborghini Countach will work.
Full_Tilt_Boogie is offline   Reply With Quote
Old 03-16-2010, 11:45 PM   #8
Junior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2010
Location: Atlanta ga
Posts: 152
Total Cats: -10
Default

Quote:
Originally Posted by DrewLGT View Post
i dont have it my posession, but i can probably get it.

pm me and i'll see what i can do.
I cant PM for 7 more posts :(
YeboGoGo is offline   Reply With Quote
Old 03-17-2010, 07:29 AM   #9
Junior Member
iTrader: (1)

Join Date: Aug 2008
Location: Evansville, Indiana
Posts: 314
Total Cats: 0
Default

$30 + the actual cost of shipping for the manifold
DrewLGT is offline   Reply With Quote
Old 03-17-2010, 09:56 AM   #10
Senior Member
iTrader: (2)

Join Date: Sep 2008
Location: ON
Posts: 523
Total Cats: 2
Default

Quote:
Originally Posted by YeboGoGo View Post
I know.. i probably have hundreds of people acting like this..

I have a locost with a miata engine and wish to turbo it. I was hoping someone knew if there is an intake that bolts onto the 1.8 that was designed for a FWD and has the throttle body on the other side? IE near cylinder 4.

Any helps appreciated !

Thanks`
Just to let you know, if you are going for higher power levels or simply more boost less psi I'd look into a 323 GTX or even a 323 GTR intake manifold. They are designed for high output rally car versions of the miata engine and flow way more air. They also point in the direction you want them to and they say "TURBO" on them.

If you had known this from the start you could've had a GTR engine for ~$1800, iirc, with a 320+whp capable turbo, a built short block with good manifolds and MS'ed it for cheap (relatively) power.
inferno94 is offline   Reply With Quote
Old 03-17-2010, 11:25 AM   #11
Senior Member
iTrader: (10)

Join Date: Aug 2007
Location: Fredericton, NB
Posts: 1,187
Total Cats: 4
Default

I think i've got an Ford escort manifold sitting in the garage...want it??
Preluding is offline   Reply With Quote
Old 03-17-2010, 11:30 AM   #12
Junior Member

Join Date: Jun 2009
Location: Lancaster, PA
Posts: 240
Total Cats: -2
Default

Quote:
Originally Posted by Full_Tilt_Boogie View Post
I heard that the intake manifold off of a Lamborghini Countach will work.
I thought it was a Gallardo?
TimR is offline   Reply With Quote
Old 03-17-2010, 11:33 AM   #13
Junior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2010
Location: Atlanta ga
Posts: 152
Total Cats: -10
Default

Quote:
Originally Posted by Preluding View Post
I think i've got an Ford escort manifold sitting in the garage...want it??
Interested!

shoot me a PM please! i cant just yet!
YeboGoGo is offline   Reply With Quote
Old 03-18-2010, 04:33 AM   #14
Junior Member
iTrader: (2)

Join Date: Jul 2009
Location: langley BC
Posts: 134
Total Cats: 0
Default

the escort gt intake manifold will fit the miata as far as i know but the only thing that i can see that would be a problem is that the TB would be facing the firewall....
sasquatch is offline   Reply With Quote
Old 03-18-2010, 07:20 AM   #15
Elite Member

Join Date: Dec 2008
Location: Colorado
Posts: 1,669
Total Cats: 36
Default

That would be sort of cool for a cold air intake off the cowl there on a car running MAP instead of an AFM on a non-turbo app..
Sparetire is offline   Reply With Quote
Old 03-18-2010, 09:16 AM   #16
Junior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2010
Location: Atlanta ga
Posts: 152
Total Cats: -10
Default

Quote:
Originally Posted by Sparetire View Post
That would be sort of cool for a cold air intake off the cowl there on a car running MAP instead of an AFM on a non-turbo app..
Your getting closer.. ANyone know what year that Protege has to be ? 90-94?
YeboGoGo is offline   Reply With Quote
Old 03-18-2010, 03:39 PM   #17
Elite Member
iTrader: (4)

Pen2_the_penguin's Avatar

Join Date: Dec 2009
Location: Reno, NV
Posts: 3,690
Total Cats: 97
Default

Escort Turbo 1.8l FWD, and MX-3 1.8l FWD. they bolt right up too.
Pen2_the_penguin is offline   Reply With Quote
Old 03-18-2010, 04:30 PM   #18
Junior Member
iTrader: (2)

Join Date: Jul 2009
Location: langley BC
Posts: 134
Total Cats: 0
Default

this also may be of interest to you... honda b18 gsr manifold with a bp flange on it...

https://www.miataturbo.net/forum/t43103-7/
sasquatch is offline   Reply With Quote
Old 03-19-2010, 11:19 AM   #19
Junior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2010
Location: Atlanta ga
Posts: 152
Total Cats: -10
Default

The honda intake seems cool. My concern is the injector bung fitting but doesnt mean I wouldnt consider it
