Default Differential question

Is there any way oh telling if i have a 1.8 or 1.6 differential just by looking at it?

Do all 1.6's have limited slip diffs?
zebro racing is offline   Reply With Quote
Old 02-21-2008, 05:57 PM   #2
Elite Member
iTrader: (5)

Join Date: Jan 2007
Location: Freehold, NJ
Posts: 1,577
Total Cats: -2
Default

nope 70% of 1.6 are open rears actually
disturbedfan121 is offline   Reply With Quote
Old 02-21-2008, 06:12 PM   #3
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

1.6 diffs are smaller. Pretty sure they're a 6" rear compared to the 7" 1.8 rear. Some 1.6 diffs are viscous which is a pretty lame excuse for an LSD, they're usually worn out and act an as open anyway.
cjernigan is offline   Reply With Quote
Old 02-21-2008, 06:22 PM   #4
Elite Member
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

what year is your car?
Zabac is offline   Reply With Quote
Old 02-21-2008, 06:29 PM   #5
Junior Member
Thread Starter

Join Date: Feb 2007
Location: Tallahassee, FL
Posts: 129
Total Cats: 0
Default

my car is a '91. the 1.6 is a 6" and the 1.8 is a 7" but those are the pinion sizes; cant see those with out taking it apart. is there any way to tell from the outside (ie. without taking it apart)? i bought this car already turboed so im tring to firgure out what ist got and what it needs.

thanks
zebro racing is offline   Reply With Quote
Old 02-21-2008, 06:29 PM   #6
Elite Member
iTrader: (15)

Join Date: Sep 2007
Location: Incline Village, NV
Posts: 2,073
Total Cats: 5
Default

From my understanding the axles of a 94+ meaning 1.8 would go into the diff where as the pre 94's just connect with 4 bolts on the outside of the diff itself.

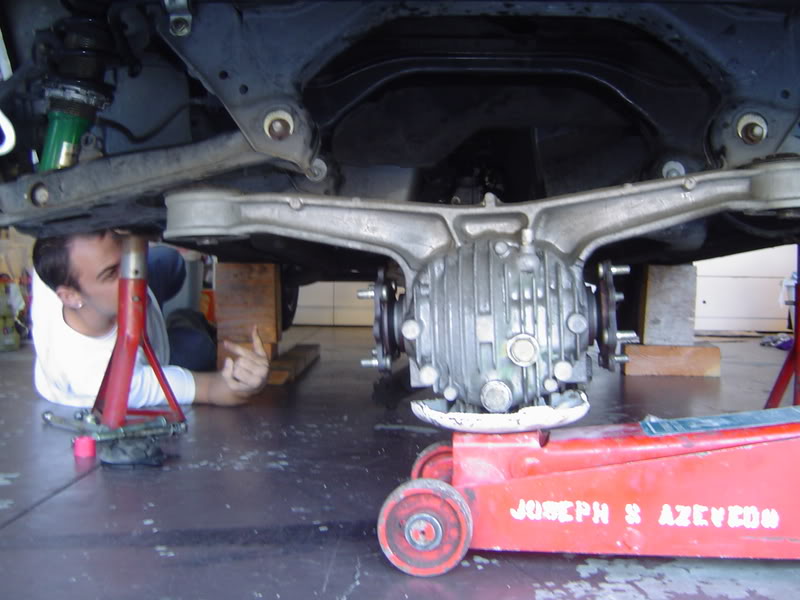

Name:  DSC07656.jpg
Views: 2
Size:  69.9 KB
1.6 ^ Notice the bolts coming out of either side of the diff

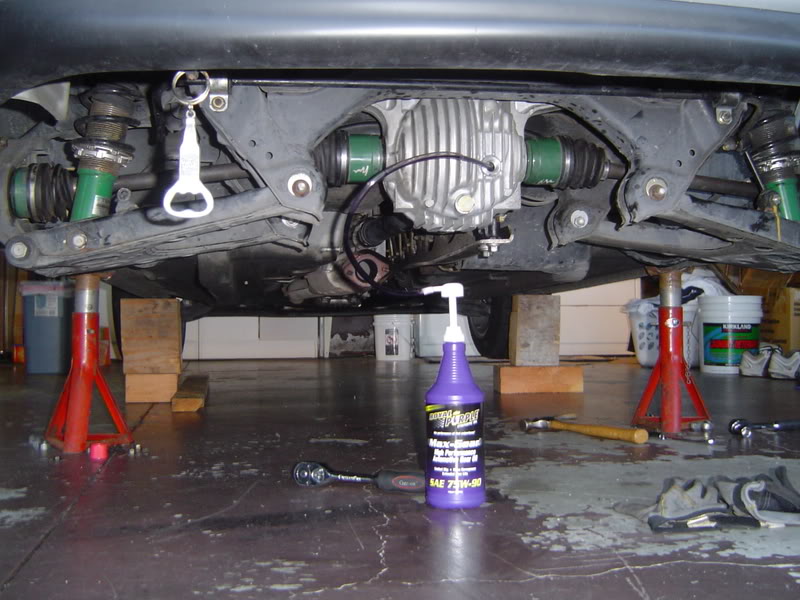

Name:  DSC07661.jpg
Views: 1
Size:  90.6 KB
1.8^ Notice the green parts of the axles go into the diff itself.


Hope that clears that up for you

And no not all 1.6 diff's are Vlsd. But the Vlsd's arnt any stronger than the open anyways. The ring and pinion is the strength in the diff itself. Someone feel free to correct me if im wrong.
thesnowboarder is offline   Reply With Quote
Old 02-21-2008, 06:38 PM   #7
Junior Member
Thread Starter

Join Date: Feb 2007
Location: Tallahassee, FL
Posts: 129
Total Cats: 0
Default

thanks for the help. pros on the bottle opener hanging from the bumper.
zebro racing is offline   Reply With Quote
Old 02-21-2008, 06:40 PM   #8
Elite Member
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

FWIW if you do have a VLSD diff, it's worn out by now and acting like an open diff. Even when new they didn't offer more than 20 percent locking action. Not exactly a performance LSD, they came in more handy in snow.
Bryce is offline   Reply With Quote
Old 02-21-2008, 06:48 PM   #9
Elite Member
iTrader: (15)

Join Date: Sep 2007
Location: Incline Village, NV
Posts: 2,073
Total Cats: 5
Default

Quote:
Originally Posted by zebro racing View Post
thanks for the help. pros on the bottle opener hanging from the bumper.
Lol it was actually on the tow hook at the time, i was quite low and didnt want to scrape my r-package rear lip so i got that to hang about half in below it so i could hear it rattle against the ground before i would hit the lip. (Backing into my driveway)

Here is a link to more info if needed:
http://www.miata.net/garage/diffguide/index.html
thesnowboarder is offline   Reply With Quote
Old 02-21-2008, 06:53 PM   #10
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

olderguy is online now   Reply With Quote
Old 02-21-2008, 06:56 PM   #11
Junior Member
iTrader: (5)

Join Date: Jan 2006
Posts: 294
Total Cats: 0
Default

The 94-95 also had stub axles similar to the 90-93. From 96+ the axles didn't have the stub shafts and just went into the diff.

To tell the difference from the 1.6L and the 1.8L diff you have to look at the front of it where the drive shaft bolts to. The 1.8L should have rubber damper piece that looks like a +. The 1.6L do not have that piece.

Hopefully this clears things up.
supersuk is offline   Reply With Quote
Old 02-21-2008, 06:58 PM   #12
Elite Member
iTrader: (15)

Join Date: Sep 2007
Location: Incline Village, NV
Posts: 2,073
Total Cats: 5
Default

Quote:
Originally Posted by supersuk View Post
The 94-95 also had stub axles similar to the 90-93. From 96+ the axles didn't have the stub shafts and just went into the diff.
Ya, just read that, my earlier post is not 100 percent correct. Check the link i put a few post's up to make sure of what you have.
thesnowboarder is offline   Reply With Quote
Old 02-21-2008, 07:00 PM   #13
Junior Member
iTrader: (5)

Join Date: Jan 2006
Posts: 294
Total Cats: 0
Default

Ha ha, olderguy beat me to it!!
supersuk is offline   Reply With Quote
Old 02-21-2008, 07:37 PM   #14
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Hey those look like Teins
ZX-Tex is offline   Reply With Quote
Old 02-21-2008, 08:02 PM   #15
Elite Member
iTrader: (15)

Join Date: Sep 2007
Location: Incline Village, NV
Posts: 2,073
Total Cats: 5
Default

Quote:
Originally Posted by ZX-Tex View Post
Hey those look like Teins

Thats because they were
thesnowboarder is offline   Reply With Quote
Old 02-21-2008, 09:30 PM   #16
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

Quote:
Originally Posted by supersuk View Post
Ha ha, olderguy beat me to it!!
Looks as though three of us were looking for the link at the same time and I was not that fast on the cut and paste either.
