Default DIY exhaust and water injection setup

Hey, just thought id post up some pictures of the exhaust I just made and the WI system. I used a harbor freight 90 amp welder on the exhaust, worked great! The pipe is aluminized steel. Overall I spent about $200 including the welder. Also, V band clamps rock! The sound is low and smooth, sounds really good to me.


Name:  IMG_1111.jpg
Views: 12
Size:  425.2 KB

Name:  IMG_1112.jpg
Views: 36
Size:  415.1 KB

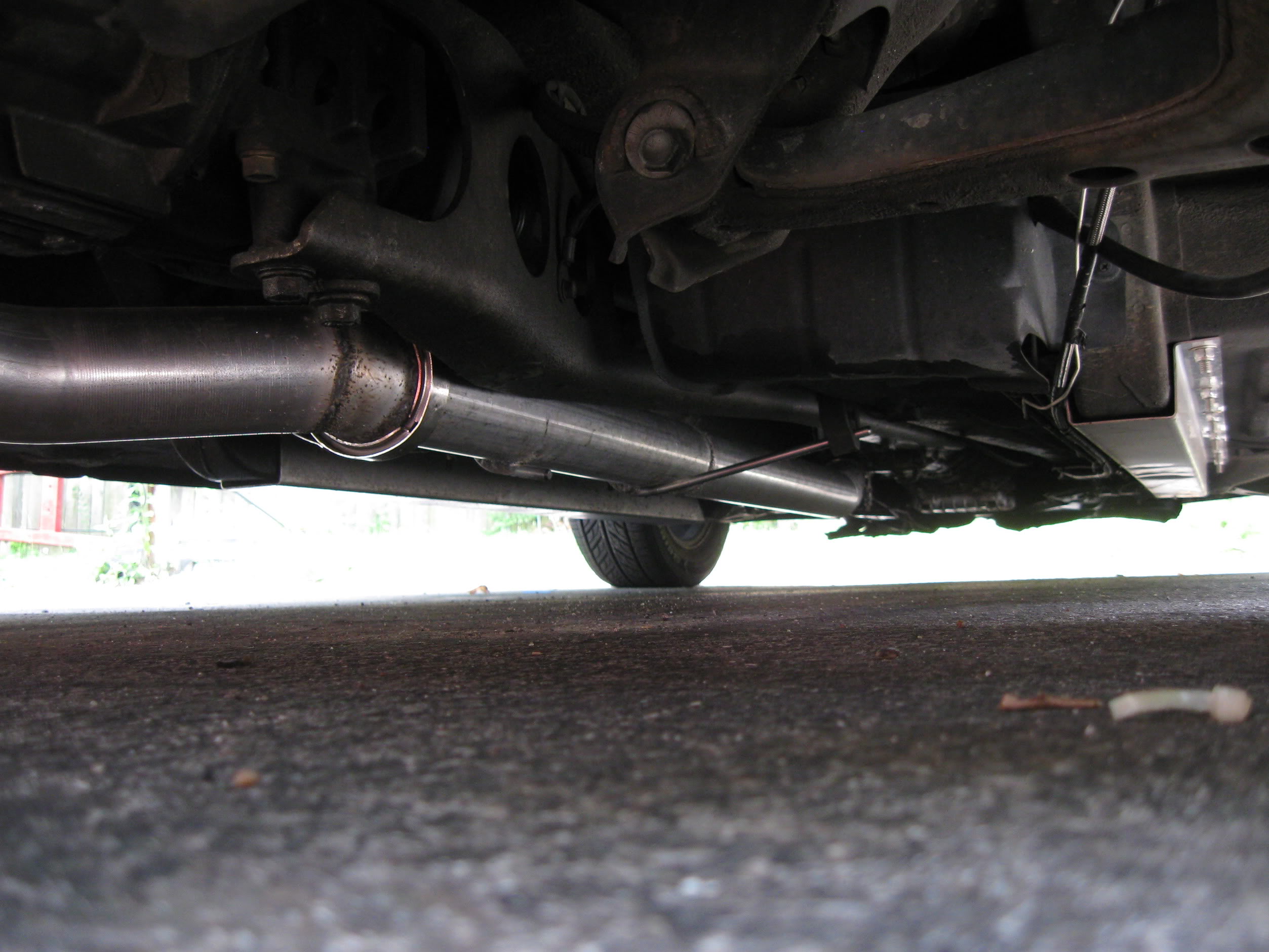

Name:  IMG_1113.jpg
Views: 13
Size:  408.7 KB

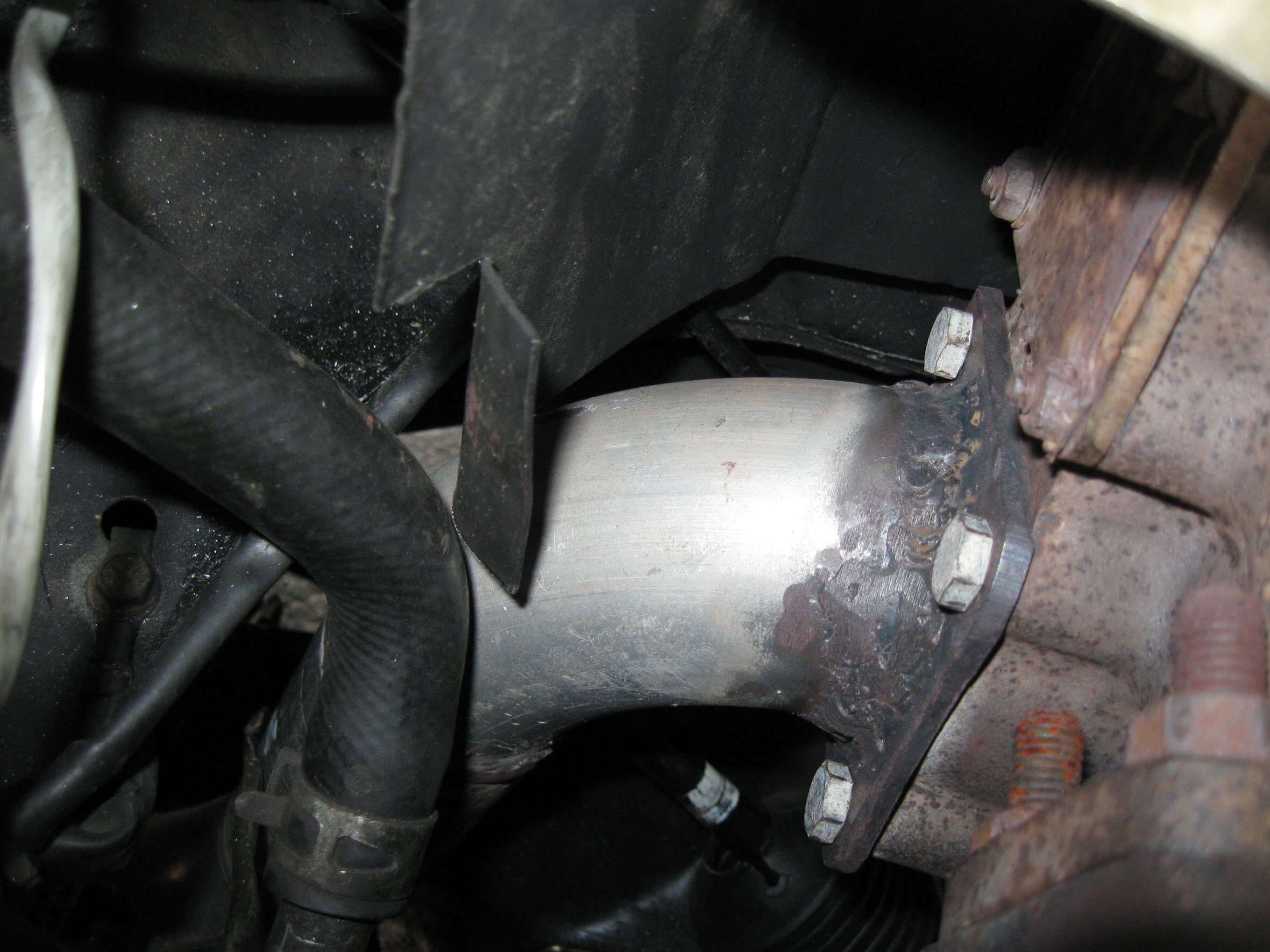

Name:  IMG_1114.jpg
Views: 12
Size:  452.0 KB

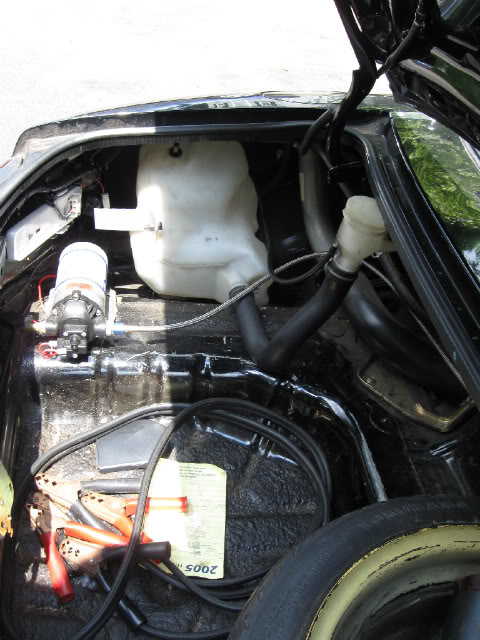

Name:  IMG_1110.jpg
Views: 13
Size:  76.7 KB

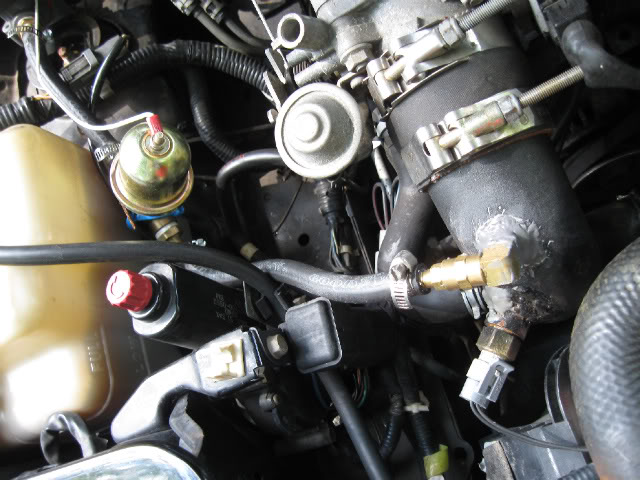

Name:  IMG_1115.jpg
Views: 23
Size:  72.8 KB

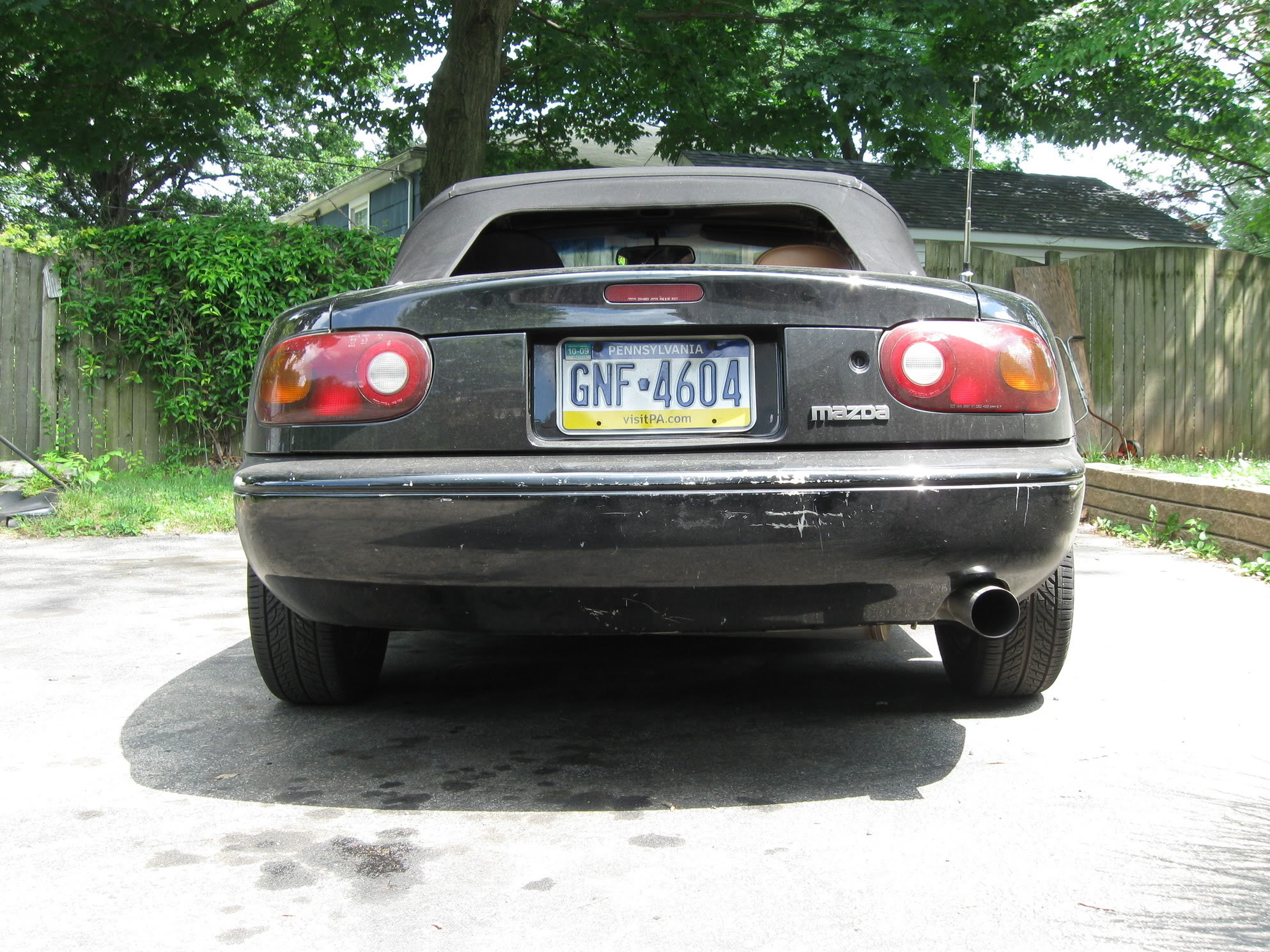

Name:  IMG_1119.jpg
Views: 11
Size:  642.3 KB
cardriverx is offline   Reply With Quote
Old 07-09-2009, 05:40 PM   #2
I'm Miserable!
iTrader: (16)

Join Date: Dec 2008
Location: where most people are Utarded
Posts: 1,323
Total Cats: 0
Default

What were your settings on the welder? I have the same one and am about to start playing with it.
zoomin is offline   Reply With Quote
Old 07-09-2009, 06:16 PM   #3
Supporting Vendor
iTrader: (6)

Join Date: Mar 2005
Location: Broken Arrow,Ok
Posts: 1,061
Total Cats: 40
Default

If that's all 3" I think we probably used the same muffler. I'm very pleased with the 6" can Magnaflow. It's almost too quiet. Nice DIY.

Michael
TheBandit is offline   Reply With Quote
Old 07-10-2009, 12:15 AM   #4
Elite Member
Thread Starter
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

Quote:
Originally Posted by zoomin View Post
What were your settings on the welder? I have the same one and am about to start playing with it.
I used 16 gauge tube, and I commonly used the high amperage, and the wire feed around 7 or 8.

If you need to fill a gap, switch to low to avoid making the hole larger, and wire feed around 6. then quickly circle around the hole, making it smaller and smaller every pass till its filled.

eaither way, your wire feed will always be above 5. Oh, for the hangers, high power and 8-9 wire feed, it can get a solid weld on 3/8 round stock with only one pass.


Micheal, yep thats the one. Sounds really good, especially under full throttle.
cardriverx is offline   Reply With Quote
Old 07-10-2009, 12:26 AM   #5
I'm Miserable!
iTrader: (16)

Join Date: Dec 2008
Location: where most people are Utarded
Posts: 1,323
Total Cats: 0
Default

Thanks for the motivating pictures and info, I hope to get some stuff done this weekend!!
zoomin is offline   Reply With Quote
Old 07-10-2009, 12:36 AM   #6
Elite Member
Thread Starter
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

Quote:
Originally Posted by zoomin View Post
Thanks for the motivating pictures and info, I hope to get some stuff done this weekend!!
No problem. I don't know if you've welded before, but be sure to do some practice first. Did you get any extended warintee for it? The 3 year one was like $20, so I got it, figured id "trade it in" in a couple years and get the newer model lol.
cardriverx is offline   Reply With Quote
Old 07-10-2009, 01:09 AM   #7
I'm Miserable!
iTrader: (16)

Join Date: Dec 2008
Location: where most people are Utarded
Posts: 1,323
Total Cats: 0
Default

I have a bunch of scrap to play with, and definitely got the extended warranty!
zoomin is offline   Reply With Quote
Old 07-10-2009, 01:24 AM   #8
Elite Member
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

FCAW is so ugly. Makes me want to throw up everytime i see these welds... Unless of course its on a structural building then i admire it. Good fabbing skills though!
SKMetalworks is offline   Reply With Quote
Old 07-10-2009, 01:55 AM   #9
Elite Member
Thread Starter
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

lol, whatever it holds good. I could take the time to grind it and stuff, but it doesent matter to me. The turbo flange I did with a mig, but I only had it for a day lol.

Maybe if I convince Pitt's FSAE team to let me borrow the TIG...

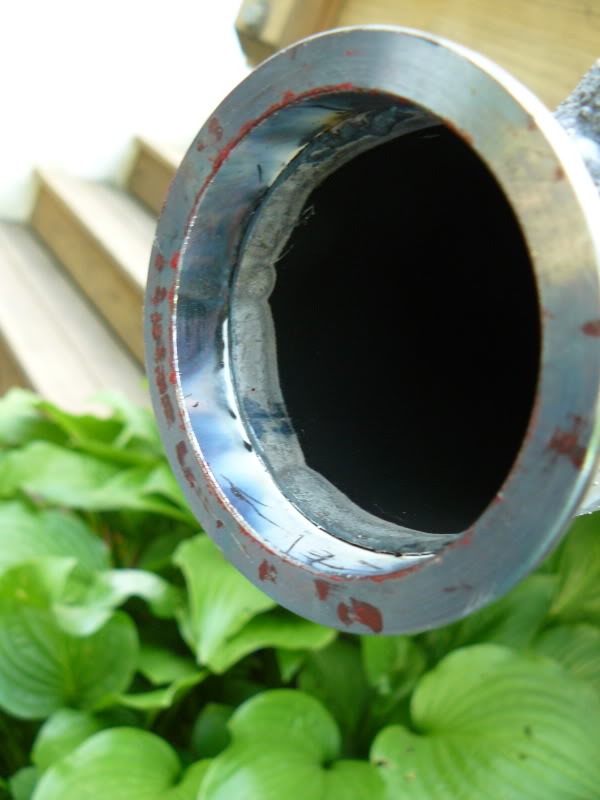

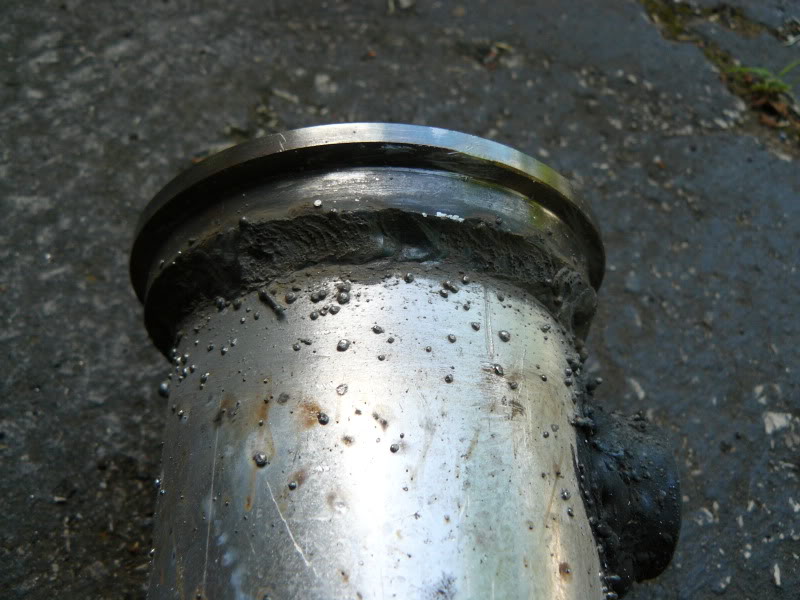

Here is the best weld I got with the flux core...

Name:  P1020225.jpg
Views: 18
Size:  108.0 KB

Name:  P1020227.jpg
Views: 11
Size:  77.1 KB

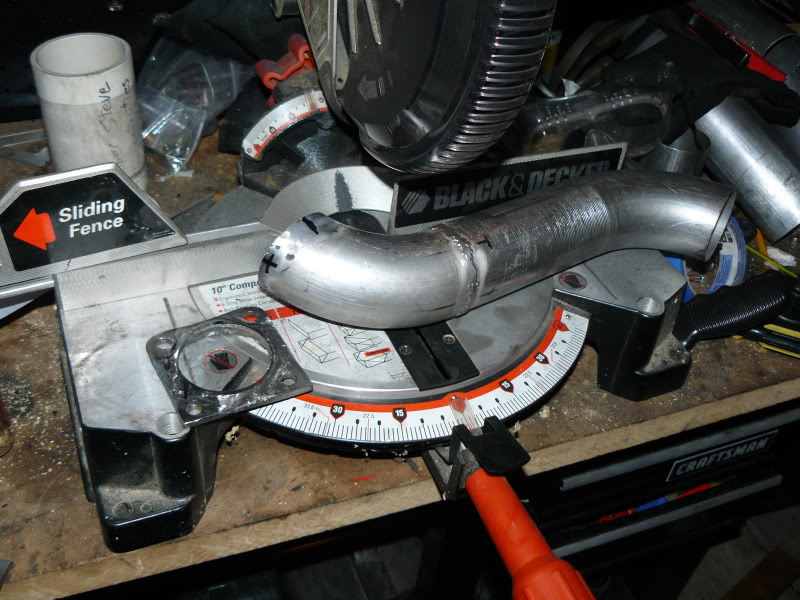

And the downpipe (yes I used a miter saw with a metal disk to cut the pipe lol)....

Name:  P1020217.jpg
Views: 50
Size:  131.8 KB
cardriverx is offline   Reply With Quote
Old 07-10-2009, 01:59 AM   #10
I'm Miserable!
iTrader: (16)

Join Date: Dec 2008
Location: where most people are Utarded
Posts: 1,323
Total Cats: 0
Default

My plan is to tack the visible flanges with the 90 amp and bring it elsewhere for finishing, the unseen ones I will care less about.
zoomin is offline   Reply With Quote
Old 07-10-2009, 08:04 AM   #11
Newb

Join Date: May 2009
Posts: 1
Total Cats: 0
Default

what kind of pump is that for your WI?
nukedit is offline   Reply With Quote
Old 07-10-2009, 08:43 AM   #12
Senior Member
iTrader: (2)

Join Date: Jul 2008
Posts: 602
Total Cats: 0
Default

Next time you're out shopping and buying material to weld something, grab some Anti-Spatter Gel or a slag hammer. Sheesh!

A weld is a weld, if it hold that's good enough. I'd spray paint them w/ some rustoleum if it were me. It'll prolong the life.
Project84 is offline   Reply With Quote
Old 07-10-2009, 07:03 PM   #13
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Ok i need more details on where you got all your parts cause that is right in my budget (already have the welder). Where did you get your piping and muffler? V-band?
wayne_curr is offline   Reply With Quote
Old 07-11-2009, 03:30 PM   #14
Elite Member
Thread Starter
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

The pump is a Shurflo 8009-543-236.


I got the bends off of mandrel bending solutions Mandrel Bending Solutions Home Page.

They were cheap, and because im in PA shipping was fast.



The V band clamps are these 3" MILD STEEL V-BAND CLAMP FLANGE KIT TURBO TO DOWNPIPE:eBay Motors (item 110410743083 end time Jul-11-09 19:12:24 PDT)

Worked well enough, make sure to used some copper RTV when you clamp them together.
cardriverx is offline   Reply With Quote
Old 07-11-2009, 04:28 PM   #15
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

what did the water do to EGT?
hustler is offline   Reply With Quote
Old 07-13-2009, 12:15 AM   #16
Elite Member
Thread Starter
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

Quote:
Originally Posted by hustler View Post
what did the water do to EGT?
Cant tell ya, I dont have a EGT gauge
cardriverx is offline   Reply With Quote
Old 07-13-2009, 02:49 AM   #17
Elite Member
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

I just rememeberd this thread got me motivated to install my WI. Thanks
SKMetalworks is offline   Reply With Quote
Old 07-13-2009, 07:47 PM   #18
Elite Member
Thread Starter
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

Quote:
Originally Posted by sbkcocker499 View Post
I just rememeberd this thread got me motivated to install my WI. Thanks
haha no problem, I need to go get some distilled water actually...
cardriverx is offline   Reply With Quote
Old 07-13-2009, 08:17 PM   #19
Elite Member
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

Windshield wiper fluid FTMFW!
