Slow progress - I got some unforeseen space problems in the gauge cluster...

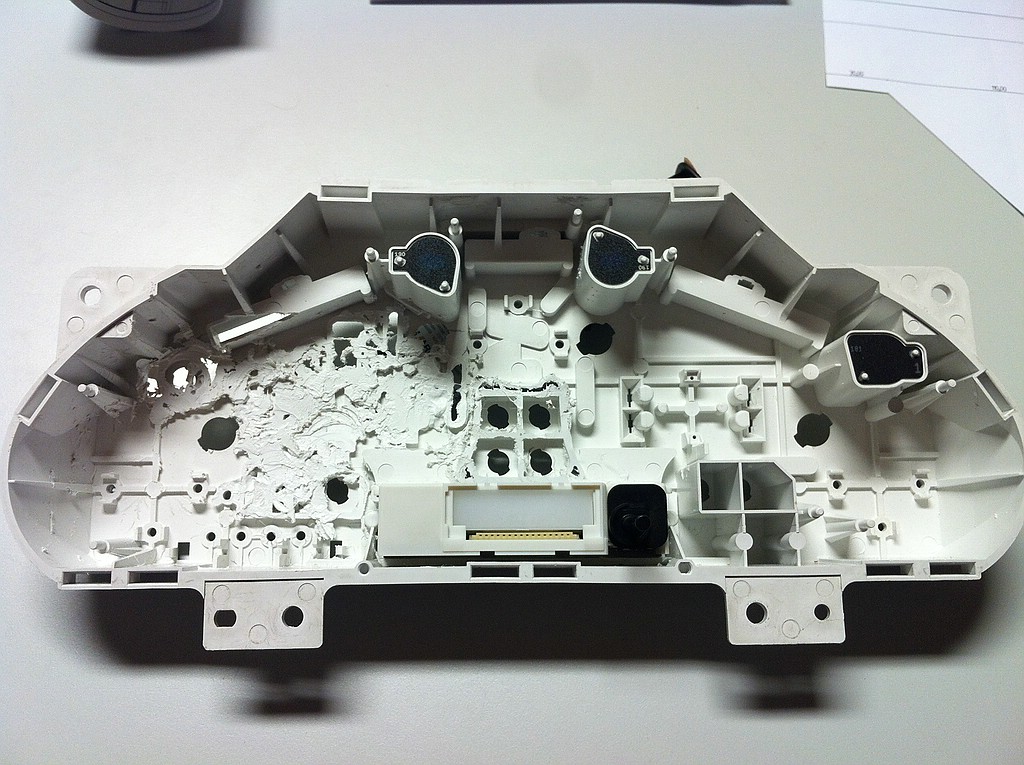

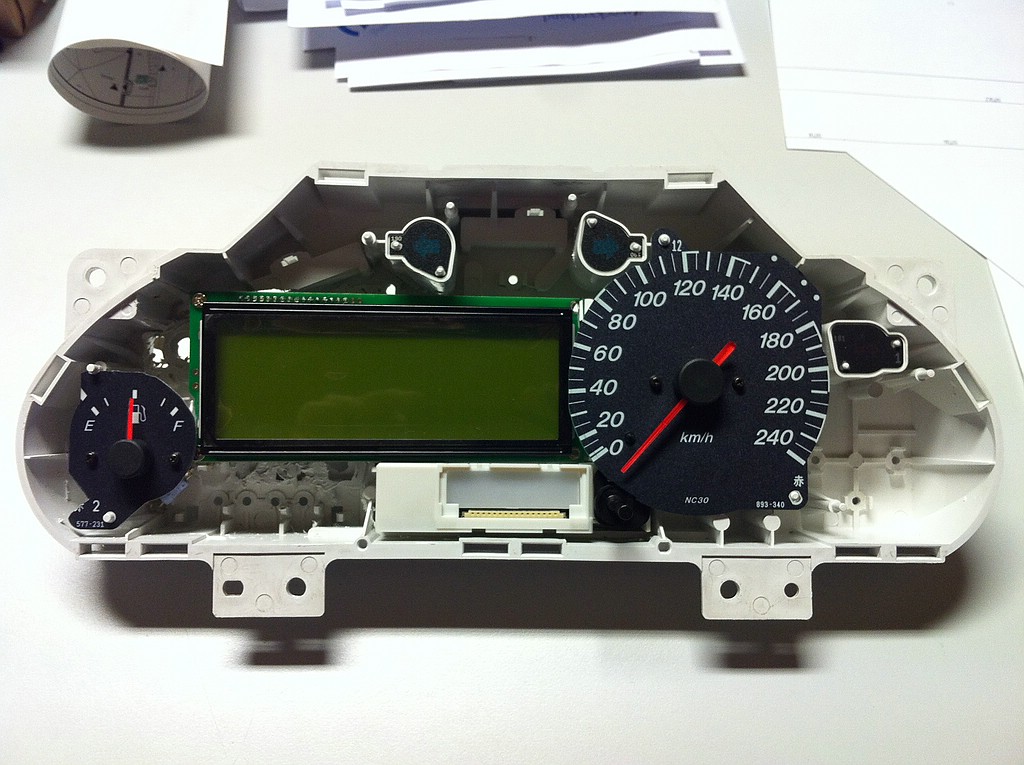

Making room:


With the first gauges and the Maxigauge in place:

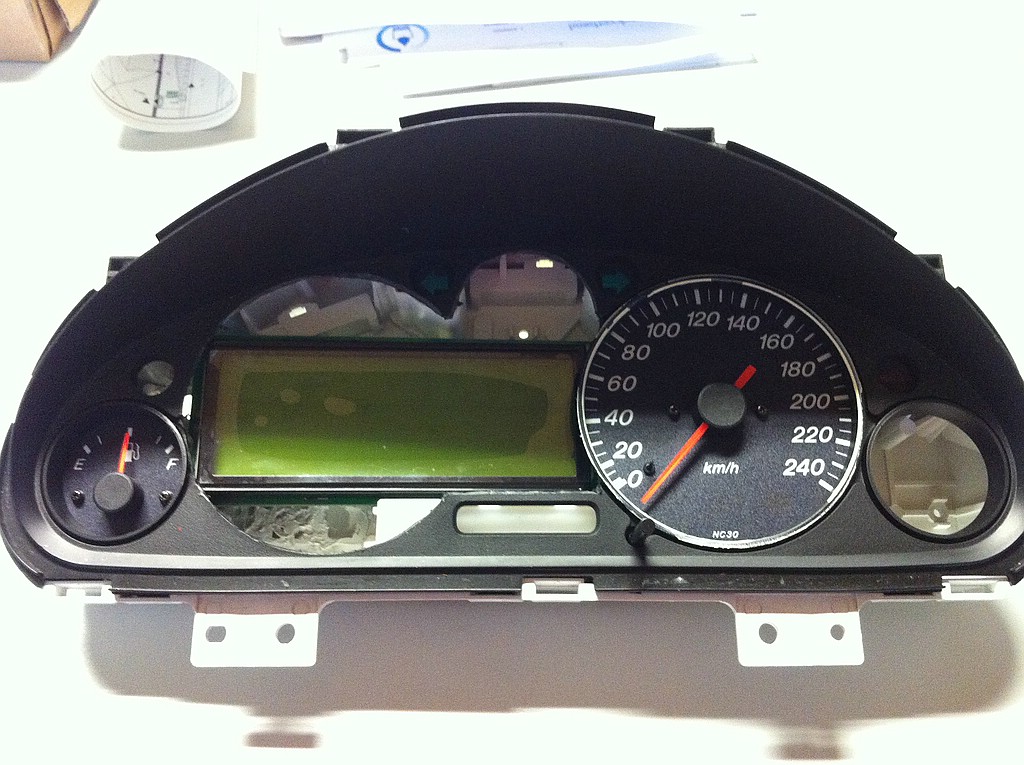

With the cut and mounted bezel


Now I have to make mounts for the Maxigauge and wire everything up.
Attached Thumbnails DIY gauge cluster with Maxigauge-gc_0007.jpg   DIY gauge cluster with Maxigauge-gc_0008.jpg   DIY gauge cluster with Maxigauge-gc_0009.jpg
Old May 3, 2012 | 09:57 AM
  #22
ThunderFox's Avatar
Junior Member

Joined: Mar 2012
Posts: 200
Total Cats: -12
From: Portugal
Default

Wow! I'm thorougly impressed!
Old May 3, 2012 | 10:09 AM
  #23
elesjuan's Avatar
Elite Member
iTrader: (11)

Joined: Jun 2007
Posts: 5,360
Total Cats: 43
From: Overland Park, Kansas
Default

I can't wait to see this complete!
Old May 4, 2012 | 10:31 AM
  #24
Zaphod's Avatar
Thread Starter
Elite Member

Joined: Mar 2006
Posts: 1,574
Total Cats: 106
From: Schwarzenberg, Germany
Default

Lets go on ...

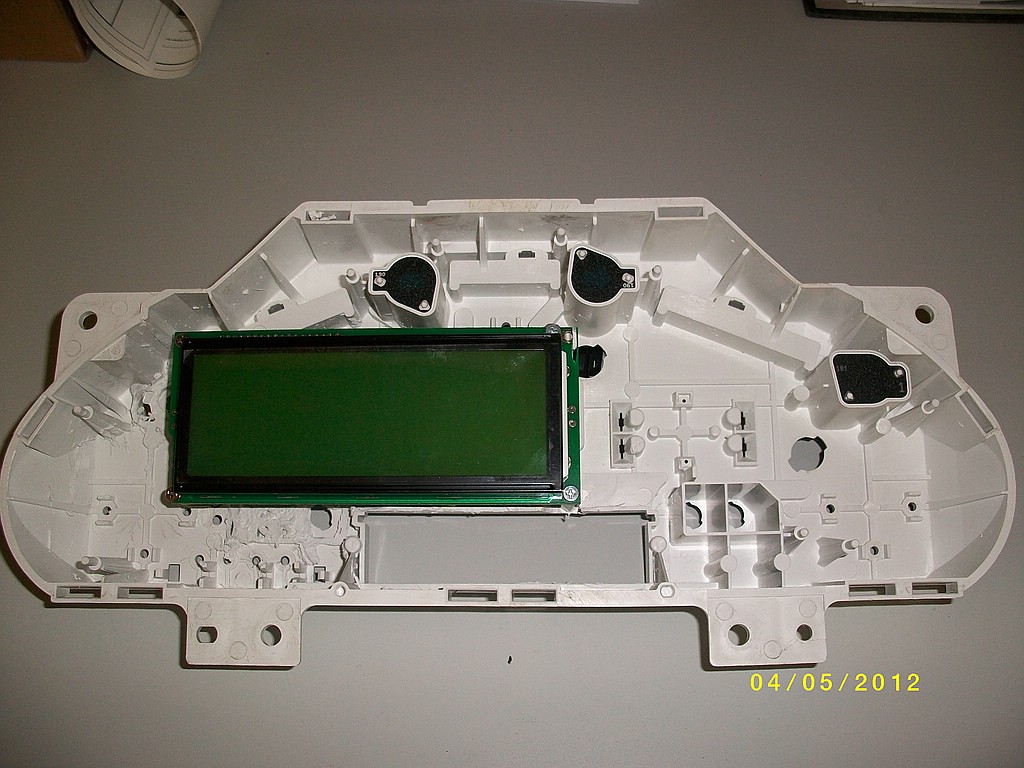

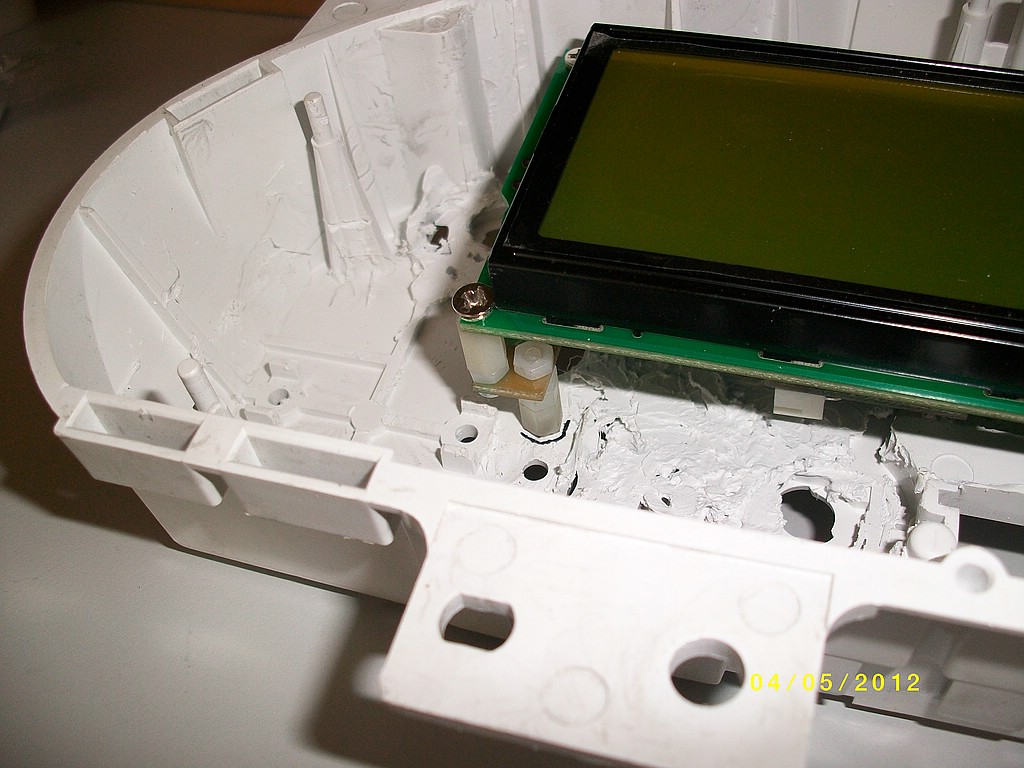

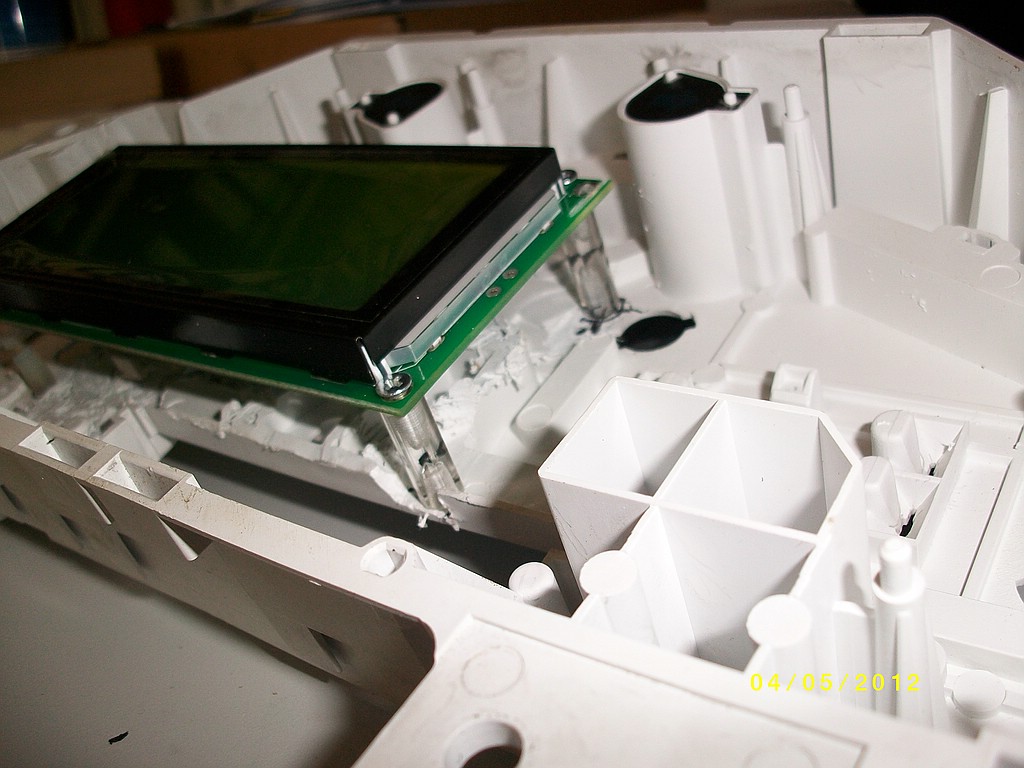

Mounted the Maxigauge on standoffs at the correct height


Made out of some old plastic leftovers, cut to length and threads into both sides


Had to make some adjustments to the Maxigauge, and get a bit creative

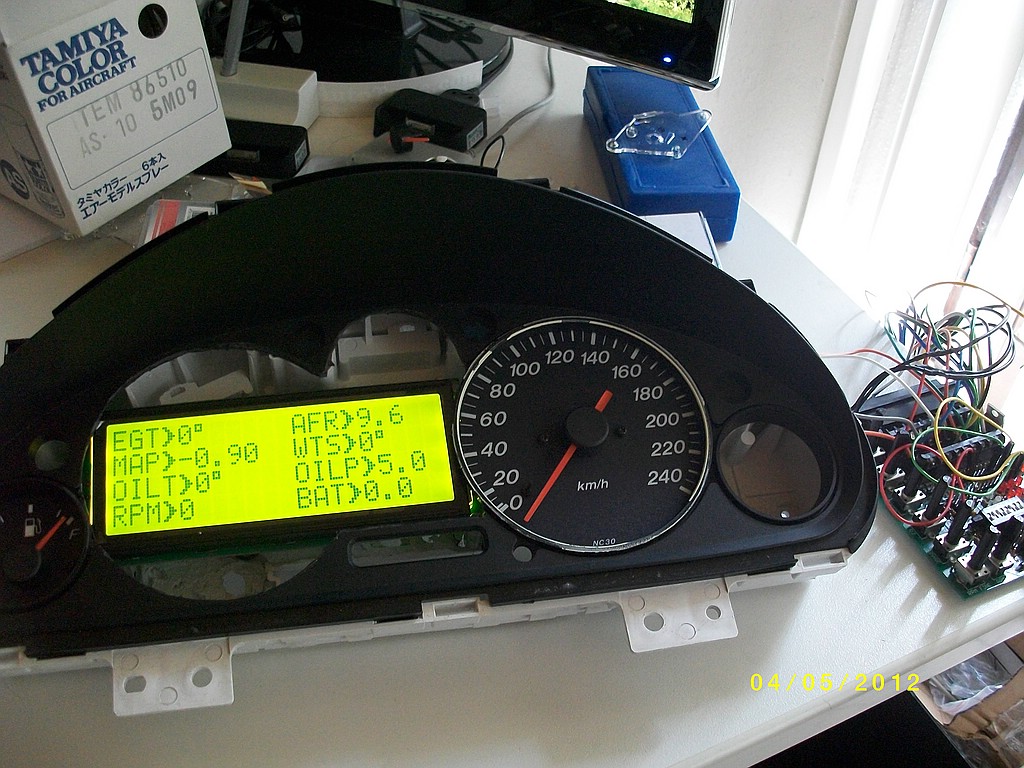

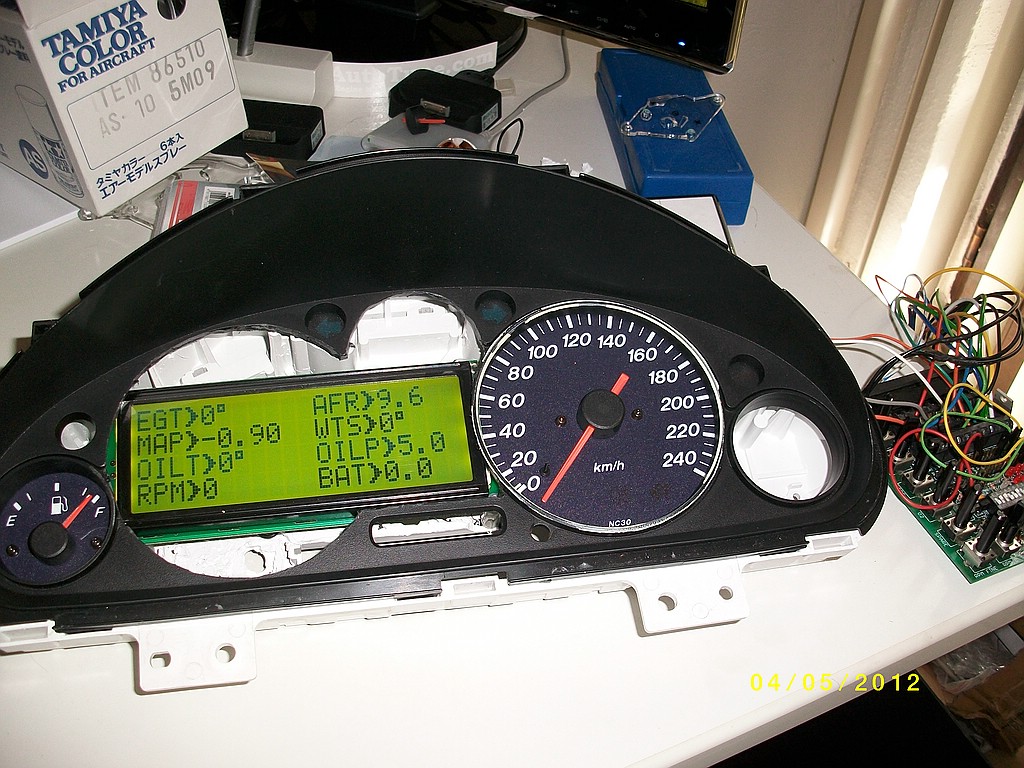

Mounted in place and first test of the gauge - powered by my Jimstim...


(without flash)

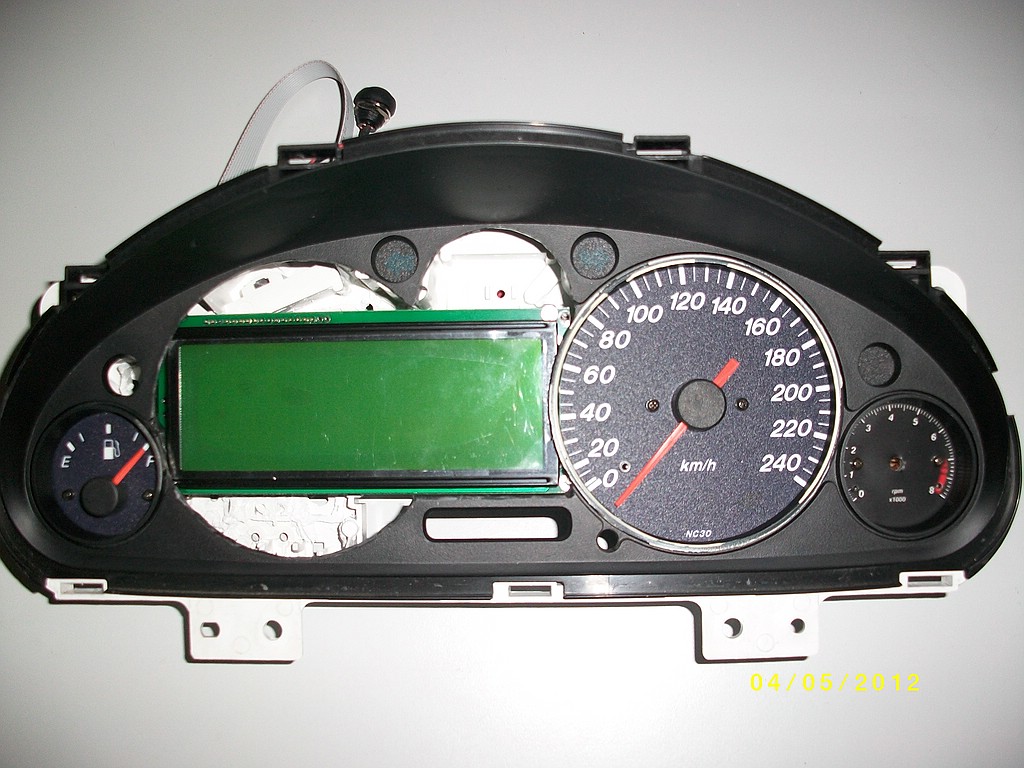

Attached my old RPM gauge to the small gauge face - and put it in place
Attached Thumbnails DIY gauge cluster with Maxigauge-gc_0010.jpg   DIY gauge cluster with Maxigauge-gc_0011.jpg   DIY gauge cluster with Maxigauge-gc_0012.jpg   DIY gauge cluster with Maxigauge-gc_0013.jpg   DIY gauge cluster with Maxigauge-gc_0014.jpg

DIY gauge cluster with Maxigauge-gc_0015.jpg
Old May 4, 2012 | 11:51 AM
  #25
ThunderFox's Avatar
Junior Member

Joined: Mar 2012
Posts: 200
Total Cats: -12
From: Portugal
Default

Looking so awesome! I'm thoroughly jealous!

Look, can I ask you a favour? Since you have that NB cluster out of the car, can you take a photo of the back circuitry for me? I'm curious to know what is involved in making it compatible with an NA!
Old May 4, 2012 | 11:52 AM
  #26
revlimiter's Avatar
Senior Member
iTrader: (1)

Joined: Jan 2009
Posts: 518
Total Cats: 95
From: ABQ, NM
Default

Whoa. Tiny tach!

This whole project is pretty damn cool.
Old May 4, 2012 | 11:55 AM
  #27
RyanLewo's Avatar
Junior Member
iTrader: (1)

Joined: Mar 2010
Posts: 147
Total Cats: 3
Default

Would you be interested in making these for other members? I would like to see the finished result, but so far it looks great!
Old May 4, 2012 | 11:58 AM
  #28
fooger03's Avatar
Elite Member
iTrader: (2)

Joined: Jan 2009
Posts: 4,149
Total Cats: 230
From: Columbus, OH
Default

Why small RPM/Big speedo, and not the other way around?

Because Street Car?

Edit: I just read post #14 - what's TUV?
Old May 4, 2012 | 12:23 PM
  #29
rleete's Avatar
Elite Member
iTrader: (21)

Joined: Jun 2007
Posts: 6,794
Total Cats: 1,342
From: Rochester, NY
Default

TUV is like our state inspections.
Old May 4, 2012 | 03:28 PM
  #30
Zaphod's Avatar
Thread Starter
Elite Member

Joined: Mar 2006
Posts: 1,574
Total Cats: 106
From: Schwarzenberg, Germany
Default

As I stated in one of the earlier posts, I would have loved to make a big tach + small speedo, but the TÜV (Association for technical inspection) wants to see the car every 2 years to check for technical correctness.

@RyanLewo - Sorry but no, this is quite a handful of work, and I run a Engineering offce as a civil engineer, have two kids and so on...

@revlimiter - I have to give the credit to you, otherwise I wouldn't have known how to make the gauge face for the small tach...
Old May 16, 2012 | 04:27 AM
  #31
Zaphod's Avatar
Thread Starter
Elite Member

Joined: Mar 2006
Posts: 1,574
Total Cats: 106
From: Schwarzenberg, Germany
Default

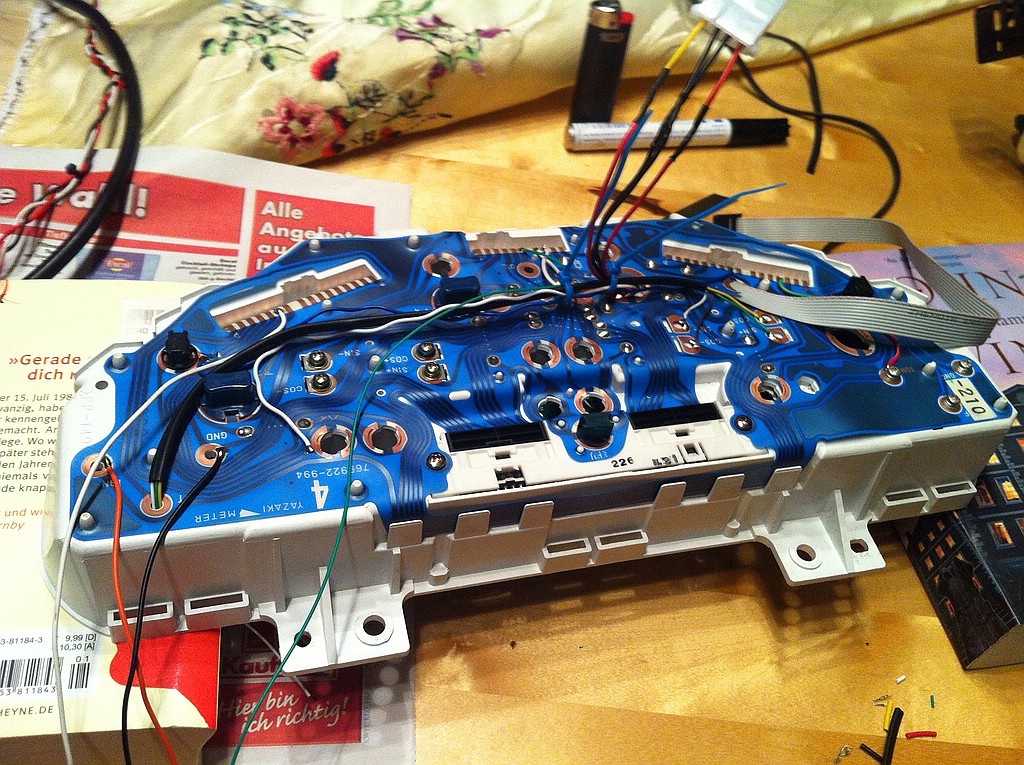

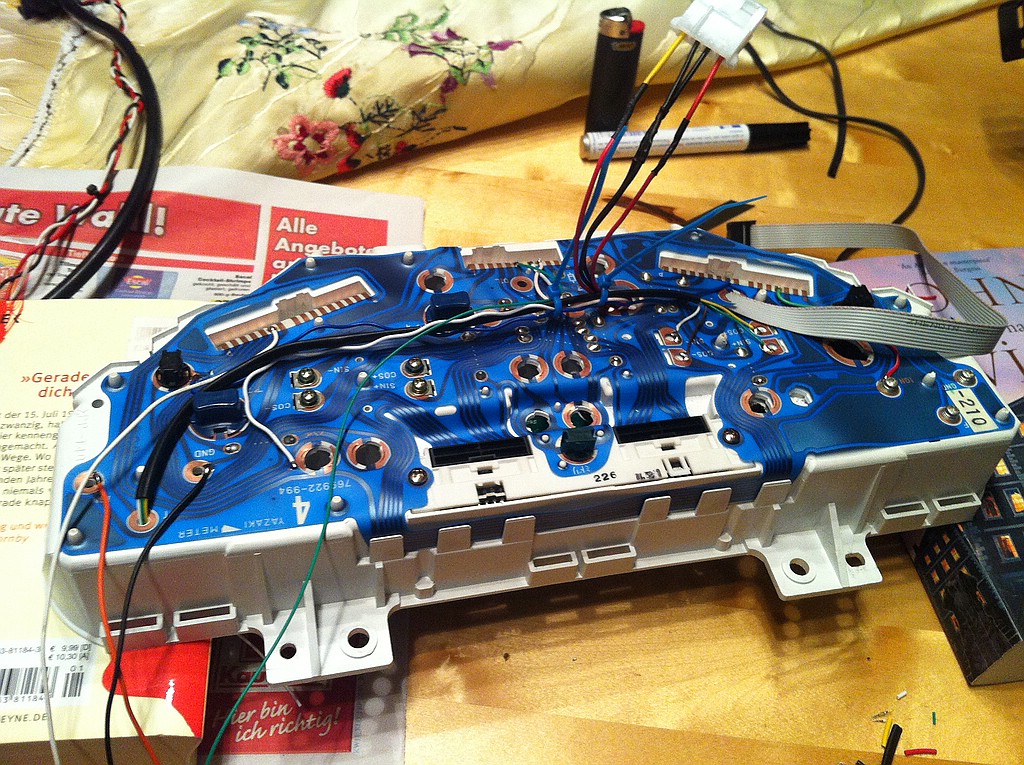

A bit more wiring is done,
as I want this whole thing to be plug and play - this is a bit more complex...



I relocated some of the signal lights - highbeam, abs, handbrake...

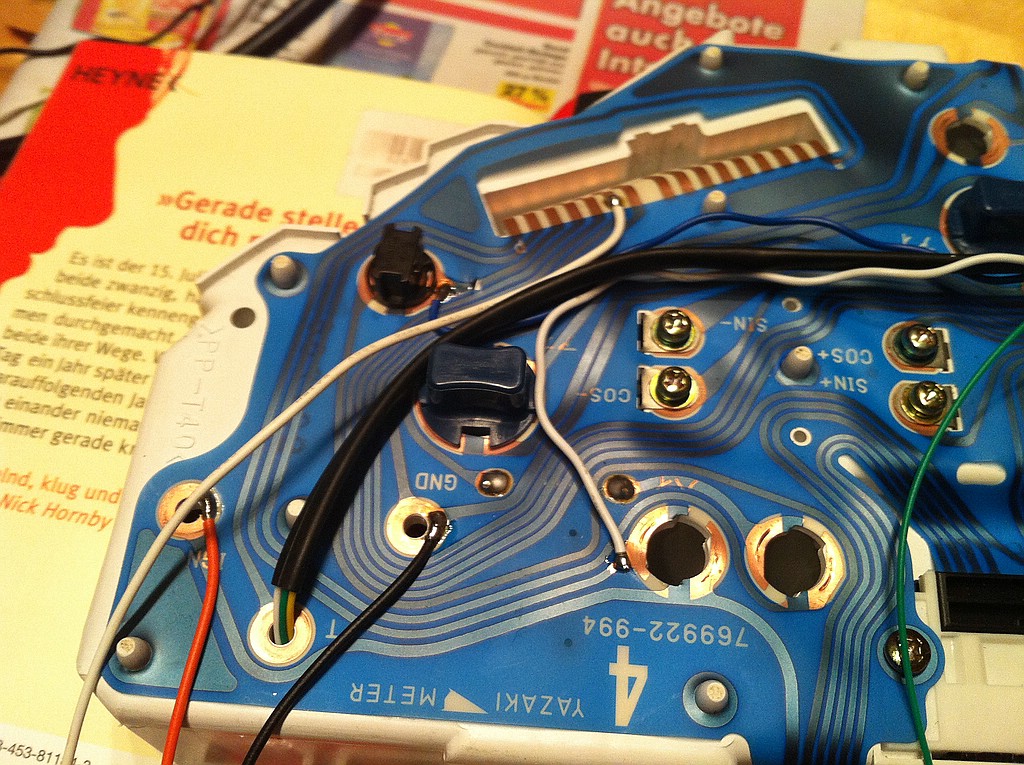

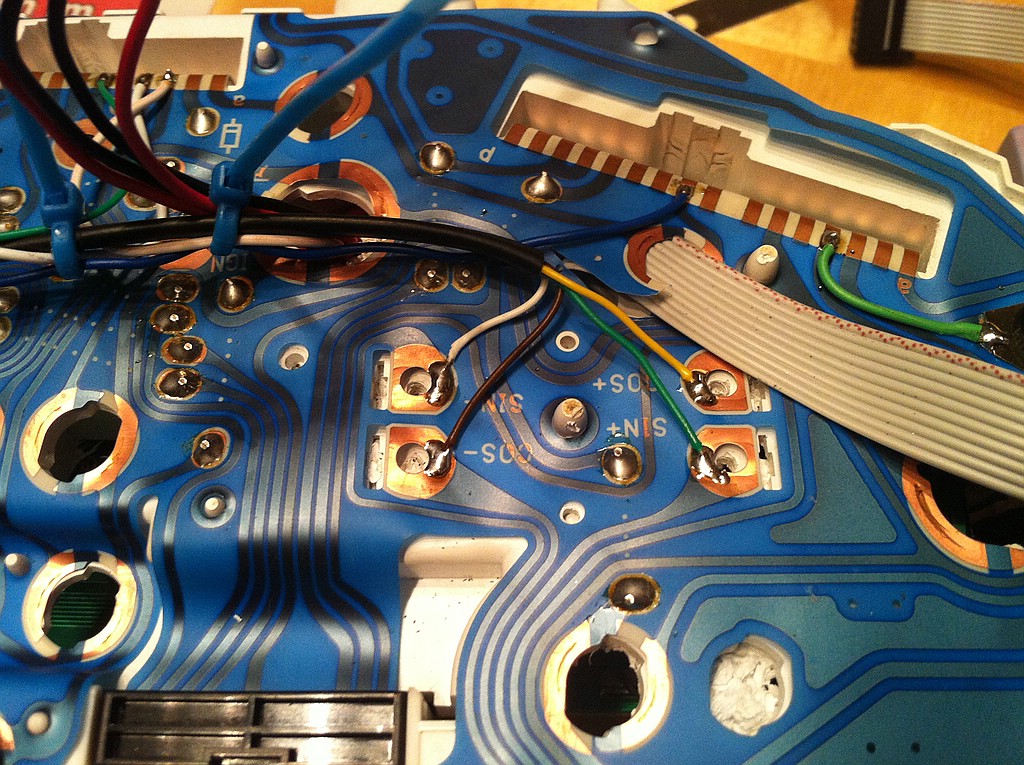

This is the wiring for the relocated tach gauge

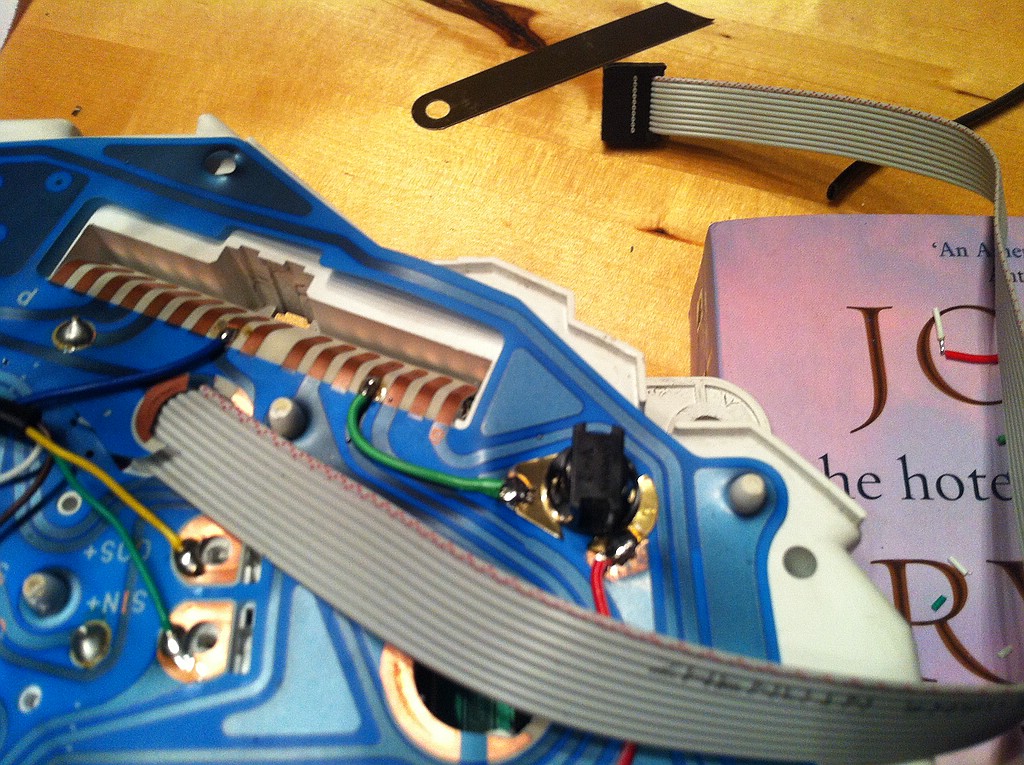

It's easy to solder on the copper pads of the OEM circuit. Some of the old traces have to be cut...


the cluster is actually in the car, but I have to redo some of the wiring and change the gauge bezel...
Attached Thumbnails DIY gauge cluster with Maxigauge-gc_0017.jpg   DIY gauge cluster with Maxigauge-gc_0018.jpg   DIY gauge cluster with Maxigauge-gc_0019.jpg   DIY gauge cluster with Maxigauge-gc_0020.jpg   DIY gauge cluster with Maxigauge-gc_0021.jpg

Old May 17, 2012 | 03:36 PM
  #32
Zaphod's Avatar
Thread Starter
Elite Member

Joined: Mar 2006
Posts: 1,574
Total Cats: 106
From: Schwarzenberg, Germany
Default

Quick first vid in the car... (map is not attached to a vac line so nevermind)
Old May 18, 2012 | 01:06 PM
  #33
WestfieldMX5's Avatar
Senior Member

Joined: Nov 2007
Posts: 999
Total Cats: 73
From: Belgium
Default

awesome!
Almost makes me regret installing my S2000 cluster
Old May 31, 2012 | 03:25 AM
  #34
Zaphod's Avatar
Thread Starter
Elite Member

Joined: Mar 2006
Posts: 1,574
Total Cats: 106
From: Schwarzenberg, Germany
Default

All done and finished...

The finish of the surface of the cluster is not perfect, but it's o.k. for the moment (might redo this over the wintertime)

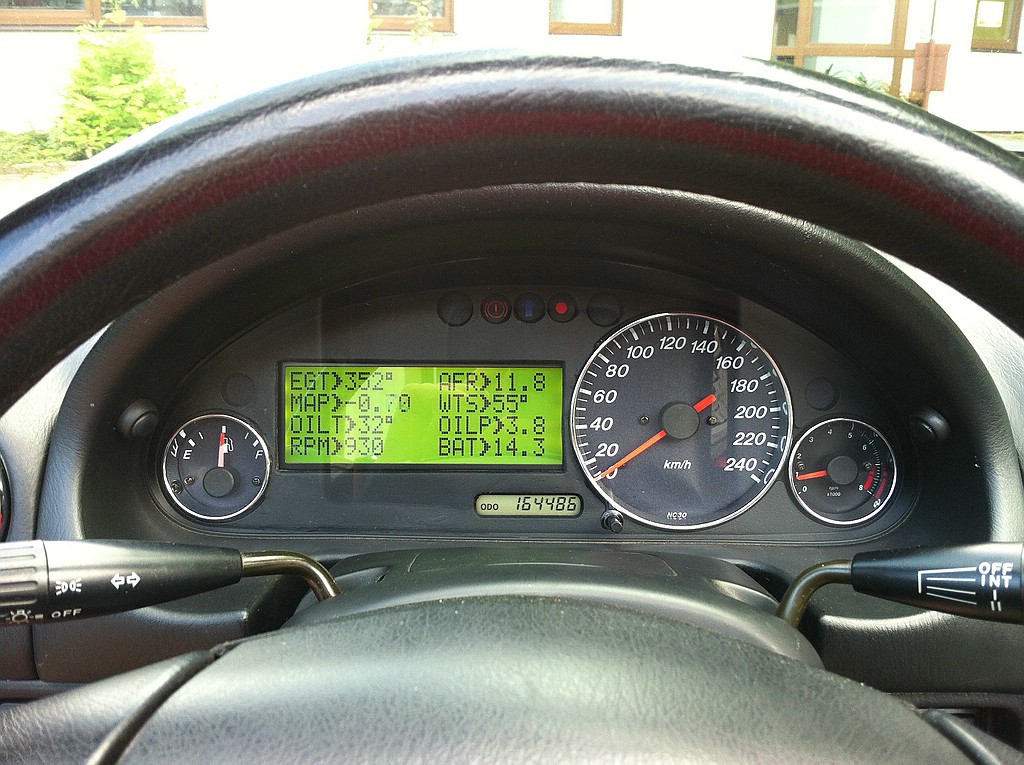

The 3 indicators in the middle are handbrake (left), shiftlight (middle), warning from Maxigauge (right).

You can see the two buttons for switching through the menus of the Maxigauge on the left and right side of the cluster hood.
